Amana E2100I.000 (BOM: E2100I.00 0)

Model: E2100I.000 (BOM: E2100I.00 0)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

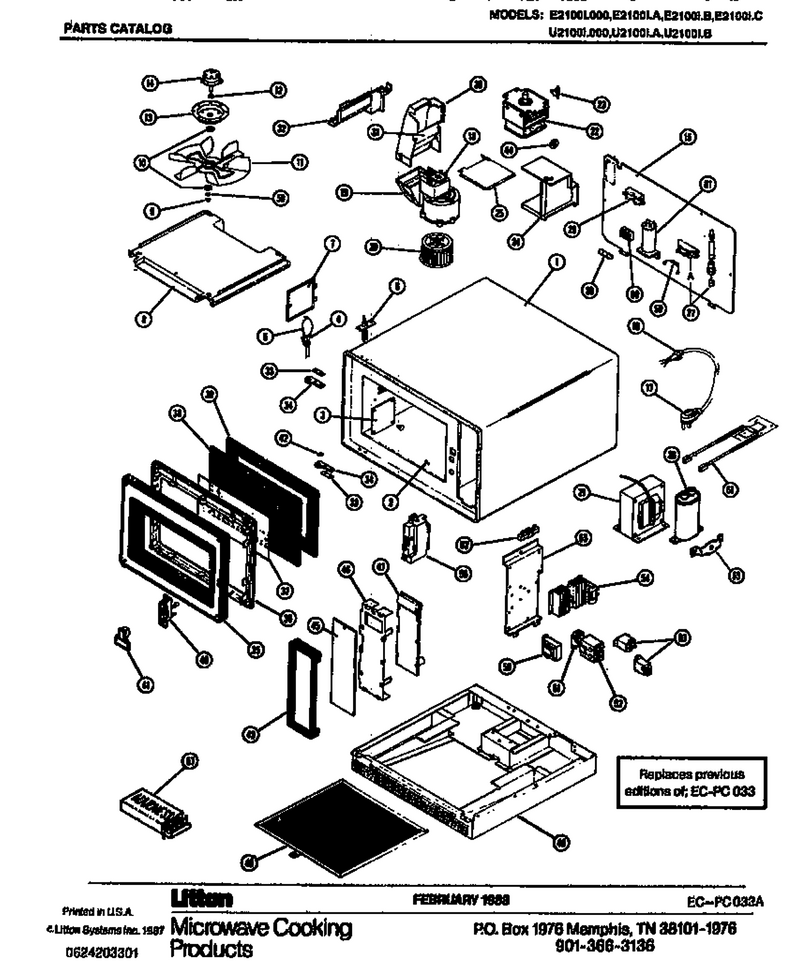

01 - Page 1

...
...
NI
U&c Mnl E2100i.b WPL-M94D574
...
1
Rivet, Pop WPL-A4539629
...
2
Kit, Shelf WPL-R0156904
...
3
Lamp Lens WPL-2570000202
...
4
Screw WPL-WP90767
...
5
Light Bulb WPL-59002071
...
6
Screw WPL-WP90767
...
7
Cover Light (Gray) WPL-M7D838
...
8
Stirrer Cover WPL-45422P01
...
9
Nut, Push WPL-Y04100035
...
10
Washer WPL-M1D565
...
11
Kit, Stirrer Blade WPL-M35D53
...
12
R F Gasket Kit WPL-M2D152
...
13
Support Mtr WPL-45437P01
...
14
Stirrer Motor Kit WPL-R0163263
...
15
Screw WPL-WP90767
...
16
Strain Relf WPL-26632P01
...
17
See Note Fuse -- (Model U21001 Only) Type Bs1362, 13 Amp (Purchase Locally) WPL-Y00000000
...
18
Screw WPL-WPW10001160
...
19
Housing, Blower WPL-45559P01
...
20
Wheel, Blower M35d39 WPL-36300P01
...
21
Hv Xfmr 220v50hz 1000w WPL-M60D150
...
22
Gasket-Rf WPL-M2D305
...
23
Cutout-Thermal-Control WPL-31866P01
...
24
Screw WPL-WP90767
...
25
Deflector-Air M65d344 WPL-46762P01
...
26
Screw WPL-WP90767
...
27
Hv Rect 12kv 750max WPL-1330000301
...
28
Pop Rivet WPL-A4539625
...
29
Fuse WPL-WPM0805102
...
30
M65d345 Duct, Air WPL-45407P01
...
31
M65d346 Divider Air WPL-45402P01
...
32
Transition-Cav Exh Fs-10 WPL-45753P01
...
33
Shim-Hinge WPL-45540P01
...
34
Hinge WPL-M3D345
...
35
Outer Door Asy Kit WPL-M70D239
...
36
Door Filler Kit WPL-M55D18
...
37
Outer Window Kit WPL-M70D158
...
38
No.8 Ab X 3/8`` Screw WPL-M1D906
...
39
Window, Inner Door WPL-10785001
...
40
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
41
Handle, Door Kit WPL-M11D86
...
42
Ia Nylon Flat Washer WPL-40370P02
...
43
No.8-32 Captive Nut(25) WPL-M1D758
...
44
Toroid (Arc Suppressor) WPL-44780P01
...
45
Assy Memb Switch WPL-4100010317
...
46
Clip WPL-5522546002
...
47
No.6 Pan Hd Machine Screw WPL-M1D321
...
48
Rail Assy WPL-M52D236
...
49
Filter Air WPL-45412P01
...
50
Screw WPL-WP90767
...
51
Screw WPL-WP90767
...
52
Relay Sec/intlk WPL-M16D105
...
53
Relay WPL-38806P01
...
54
Standoff WPL-M2D663
...
55
Nut WPL-WP488130
...
56
Screw WPL-WP98165
...
57
Wire Harness WPL-M27D463
...
58
Wshr-Rubber WPL-32383P01
...
59
Bleeder Resistor WPL-M3D62
...
60
Rivet, Block Mtg. WPL-M1D743
...
61
Lock Washer WPL-M0272803
...
62
Speed Clip WPL-M8D123
...
63
Screw WPL-WP90767
...
64
Protector, Trans Therm WPL-M4D128
