Amana DWA22AB (BOM: P1318601W)

Model: DWA22AB (BOM: P1318601W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

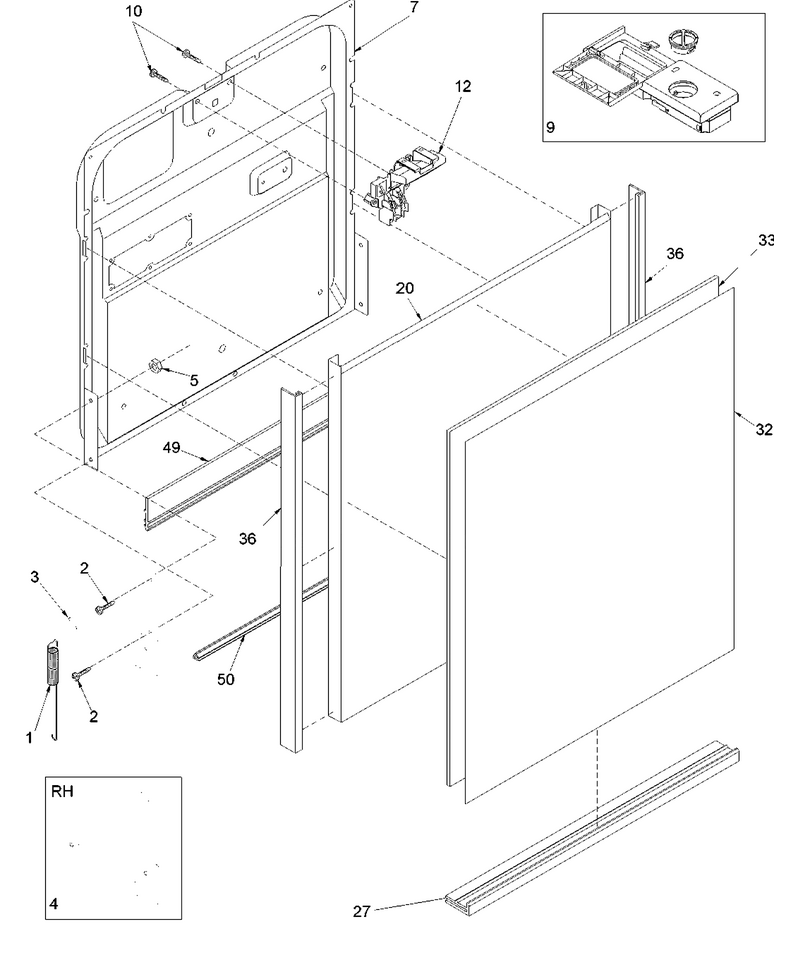

02 - Door

...
...
NI
Screw WPL-W10236043
...
1
Spring WPL-WPR9900669
...
2
Screw, Arm Assy WPL-R9800063
...
3
Assy, L.h. Arm WPL-R9800213
...
4
Assy, R.h. Hinge Arm WPL-R9800212
...
5
Nut WPL-M0282009
...
7
Assy, Inner Door WPL-R9800186
...
9
Dispenser WPL-WPW10247183
...
10
Screw, Latch WPL-R9800065
...
12
Assy, Latch Black WPL-R9800193
...
20
Assy, Mid Door WPL-R9800214
...
27
Trim, Door Bottom (Black) WPL-R9800199
...
32
Insert, Door Kit WPL-R9800237
...
33
Spacer, Door Insert WPL-R9800115
...
36
Trim, Door Side (Black) WPL-R9800196
...
49
Gsket, Door Bottom WPL-R9800181
...
50
Support, Hinge WPL-R9800082

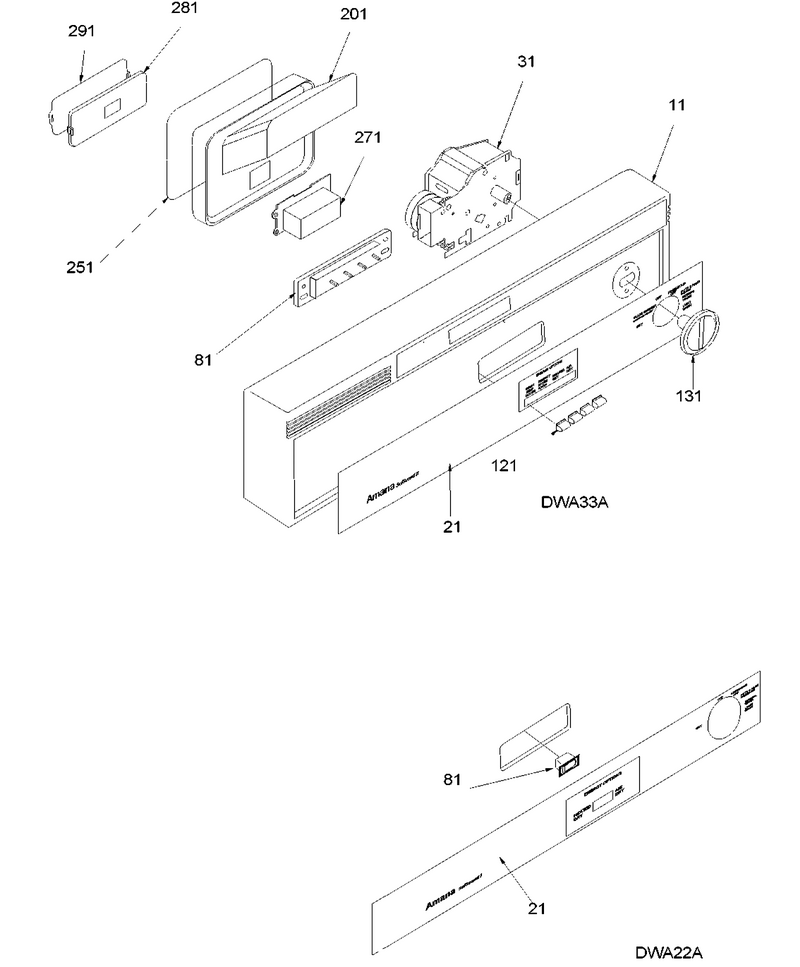

01 - Control Panel

...
...
NI
Gasket, Vent WPL-R9800188
...
11
Panel, Control (Black) WPL-R9800092
...
21
Overlay, Cont Pnl (Black) WPL-12413115
...
31
Timer WPL-R9800215
...
81
Switch- Ro WPL-WP31986601B
...
131
Knob, Timer (Black) WPL-12411801
...
201
Assy, Vapor Weldment WPL-R9800165
...
251
Seal, Chamber WPL-R9800116
...
271
Actuator, Wax WPL-R9800108
...
281
Vent, Valve WPL-R9800109
...
291
Gasket, Valve WPL-R9800099

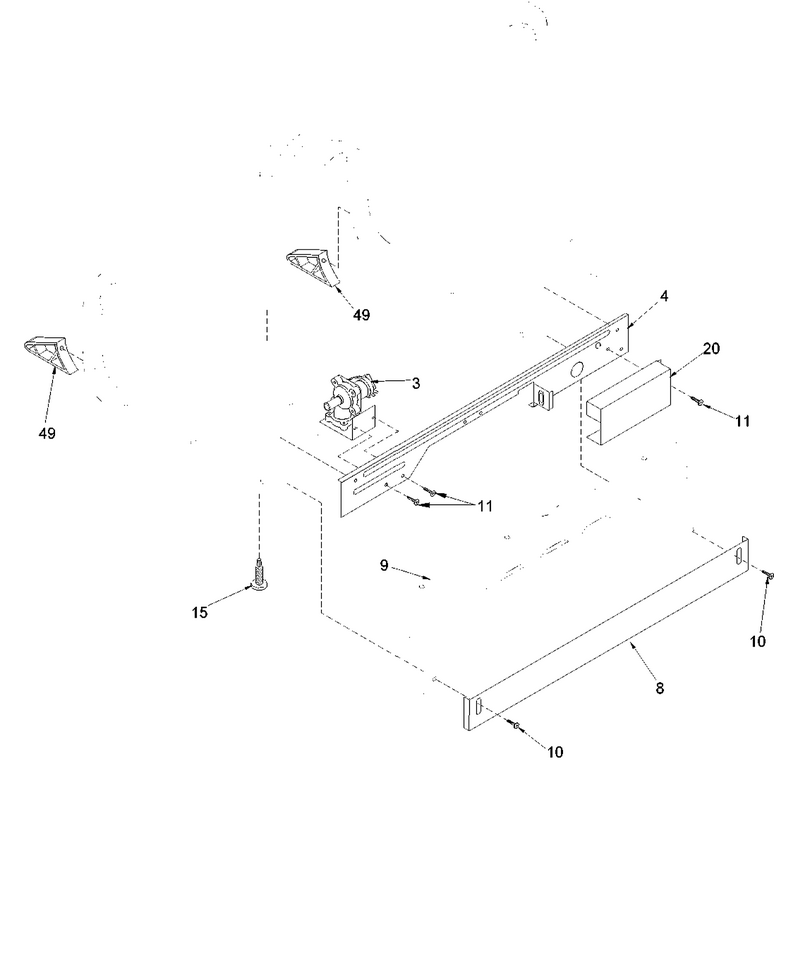

03 - Kickplate

...
...
NI
Screw, No.1 WPL-R9800059
...
3
Valve-Inlt WPL-WPR9800089
...
4
Brace, Front WPL-R9800074
...
8
Toeplate, Adjustable (Blk) WPL-R9800209
...
9
Assy,kickplate/baffle(Black) WPL-R0000311
...
10
Screw WPL-W10236043
...
11
Screw WPL-WP3390631
...
15
Screw, Leveling WPL-R9800081
...
20
Cover, J-Box WPL-R9800077
...
49
Guard, Motor WPL-R9800110

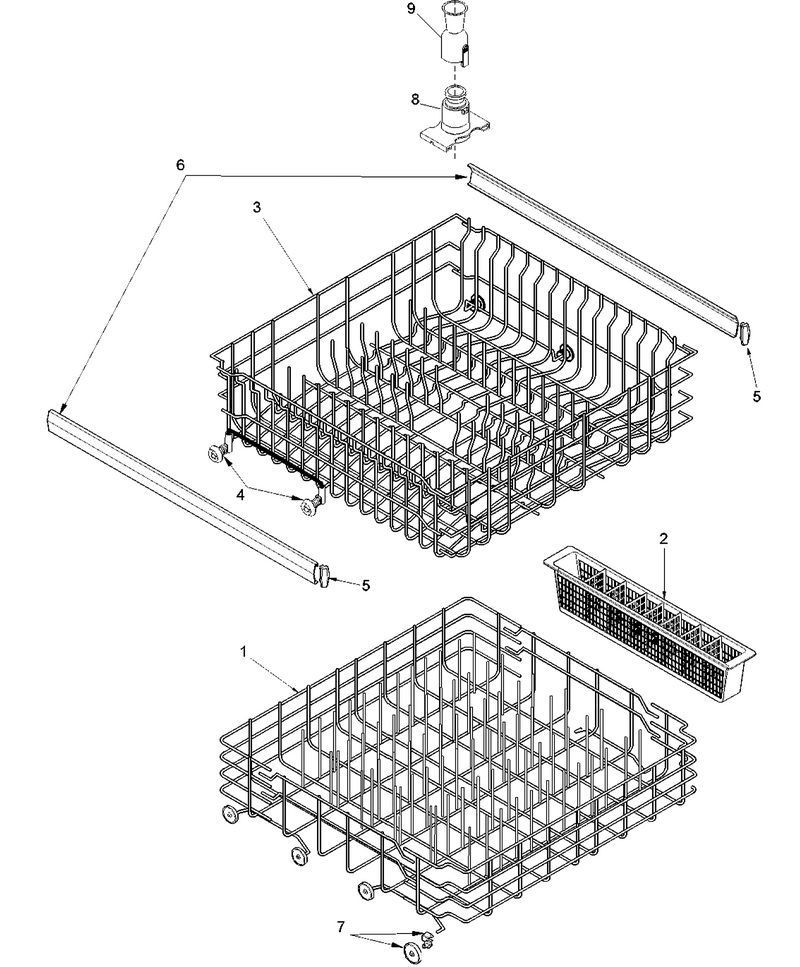

05 - Rack

...
...
1
Assy, Lower Rack WPL-R9800202
...
2
Basket, Silverware WPL-R9800080
...
3
Assy, Upper Rack WPL-R9800206
...
4
Wheel Assembly, Upper Rack (4) WPL-965553
...
5
End Cap, Slide (4) WPL-965554
...
6
Slide, Rack WPL-R9800120
...
7
Assy, Wheel & Brkt WPL-R9800069
...
8
Base, Funnel WPL-R9800189
...
9
Funnel WPL-R9800155

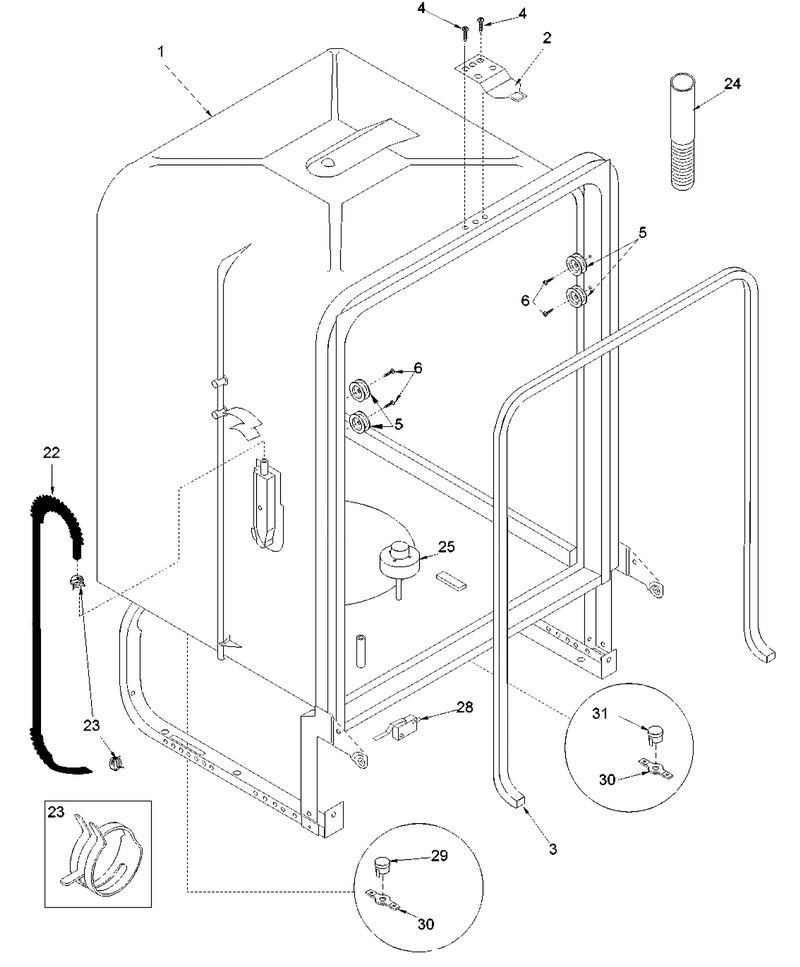

06 - Tub

...
...
NI
Screw, Retainer Thermostat WPL-R9800182
...
1
Not Available WPL---
...
2
Strike, Door WPL-R9800084
...
3
Gasket WPL-WPW10314643
...
4
Screw, No.10-16 X 3/8`` Hex WPL-R9800072
...
5
Roller, Tub WPL-R9800062
...
6
Screw, W/washer WPL-R9800236
...
22
Tubing, Water Inlet WPL-R9800129
...
23
Clamp WPL-WP596669
...
24
Hose, Drain WPL-R9800096
...
25
Float WPL-R9800078
...
28
Switch, Float WPL-965520
...
29
Thermostat, Reset WPL-R9800173
...
30
Retainer, Thermostat WPL-R9800132

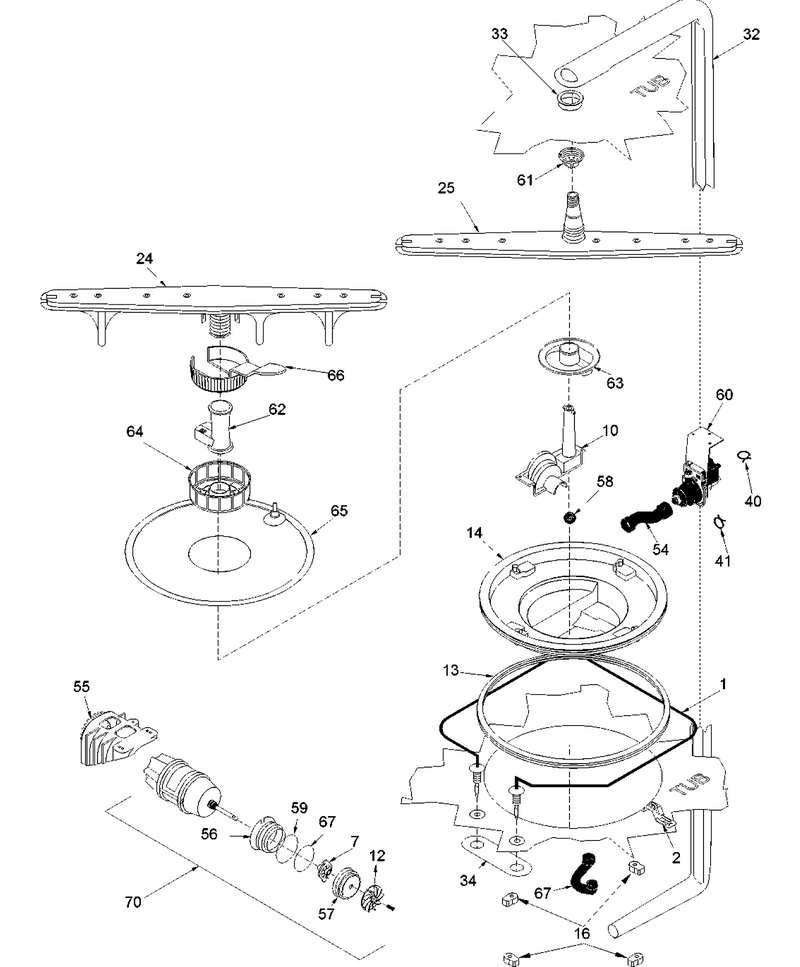

04 - Motor

...
...
NI
Screw, Ss Impeller WPL-R9800164
...
1
Heater WPL-R9800148
...
2
Bracket,heater (2) WPL-R0000303
...
7
Macerator WPL-R9800136
...
10
Cover, Volute WPL-R9800133
...
12
Impeller WPL-R9800135
...
13
Gasket, Sump WPL-R9800142
...
14
Housing, Sump WPL-R0000304
...
16
Retainer, Sump WPL-R9800141
...
24
Arm-Spray WPL-W10169069
...
25
Arm, Center Spray WPL-R9800200
...
32
Nozzle Kit WPL-R9800154
...
33
Nozzle Kit WPL-R9800154
...
34
Washer, Insulating WPL-R9800060
...
40
Clamp WPL-WP285655
...
41
Clamp, Drain Pump WPL-R9800145
...
54
Hose Connector WPL-R9800121
...
55
Bracket, Motor WPL-R0000307
...
56
Mount, Front Motor WPL-R9800139
...
57
Barrel,front WPL-R9800137
...
58
Check, Ball WPL-R9800140
...
59
O-Ring, Rear WPL-R9800143
...
60
Assy, Drain Pump WPL-R9800147
...
61
Nozzle Kit WPL-R9800154
...
62
Support, Spray Arm WPL-R9800175
...
63
Base, Soil Director WPL-R9800157
...
64
Filter, Stainless Steel WPL-R9800159
...
65
Filter, Stainless Steel WPL-R9800159
...
66
Trap, Glass WPL-R9800160
...
67
O-Ring, Front WPL-R9800144
...
70
Assy, Motor/pump WPL-R9800174
