Amana DUS900B (BOM: P1173719W)

Model: DUS900B (BOM: P1173719W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

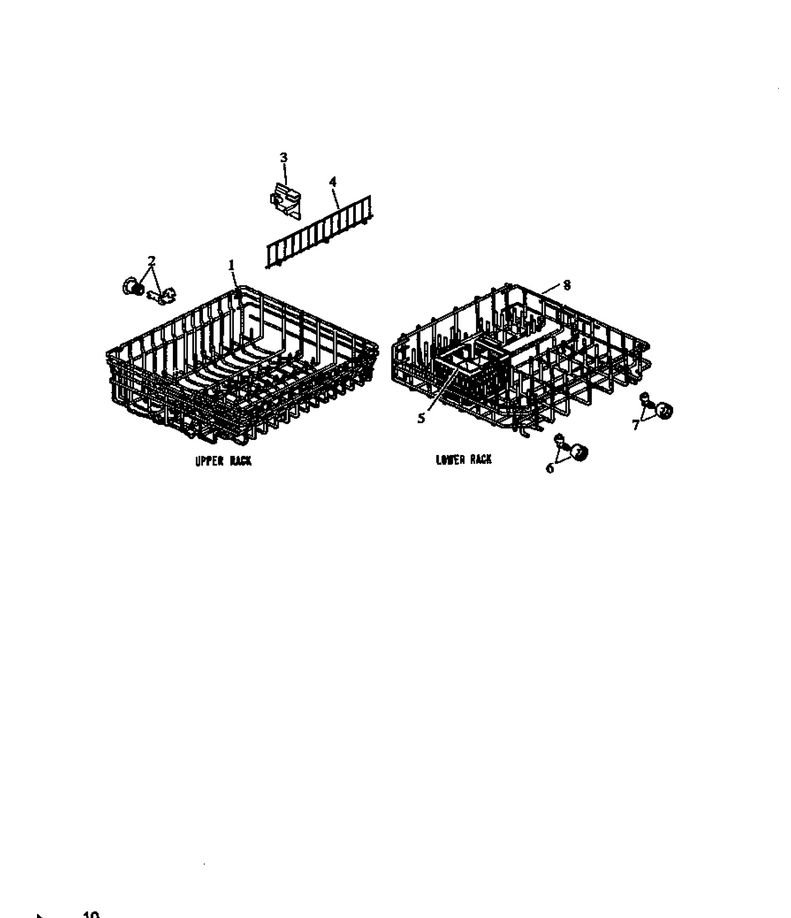

04 - Page 4

...
...
1
Upper Rack & Roller Tm WPL-R0910161
...
2
Wheel WPL-W10542232
...
3
Support-Shelf WPL-R0910063
...
4
Upper Rack & Roller Tm WPL-R0910161
...
5
Basket, Silverware WPL-R0910060
...
6
Lower Roller Assy WPL-R0910007
...
7
Roller WPL-W10882367
...
8
Assembly-Lower Rack & Roller WPL-R0910059

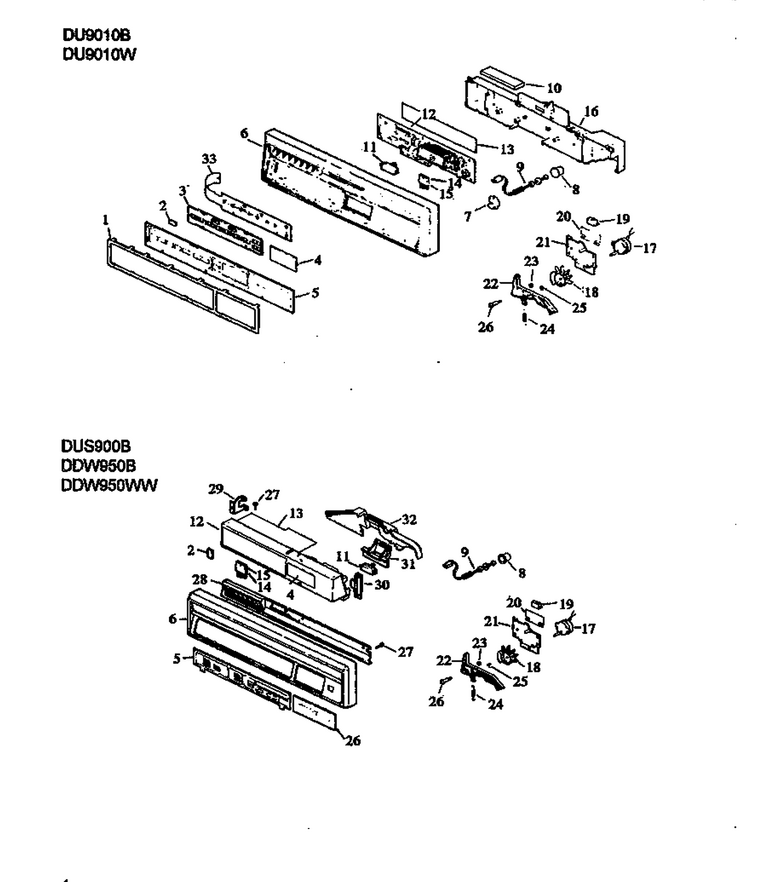

01 - Page 1

...
...
2
Switch, Key WPL-R0902512
...
4
Filter Display WPL-R0910072
...
5
Film Appearance WPL-R0910071
...
6
Escutcheon WPL-R0903027
...
8
Thermistor Housing WPL-R0911003
...
9
Thermistor & Spring WPL-R0911005
...
11
Switch WPL-Y03000066
...
12
Net-Assy,control WPL-R0910070
...
13
Barrier-Moisture WPL-R0904515
...
14
Connector, Elect, Spin WPL-R0906005
...
15
Therminal Pin & Socket WPL-R0906007
...
17
Motor, Det. Cup WPL-R0907002
...
18
Cam, Motor WPL-R0907003
...
19
Switch Det. Motor WPL-R0902511
...
20
Insulator Switch WPL-R0904511
...
21
Mounting Plate WPL-R0905627
...
22
Leaver Det. Trip WPL-R0905628
...
23
Nut WPL-R0901006
...
24
Spring, Timer Lever WPL-R0905541
...
25
Retainer WPL-R0901514
...
26
Stud WPL-R0905578
...
27
Screw WPL-W10856125
...
28
Insert Escutcheon WPL-R0905715
...
29
Bracket Control L.h. WPL-R0905657
...
30
Bracket Control R.h. WPL-R0905656
...
31
Bracket-Switch WPL-R0910068
...
32
Cover-Harness WPL-R0905662

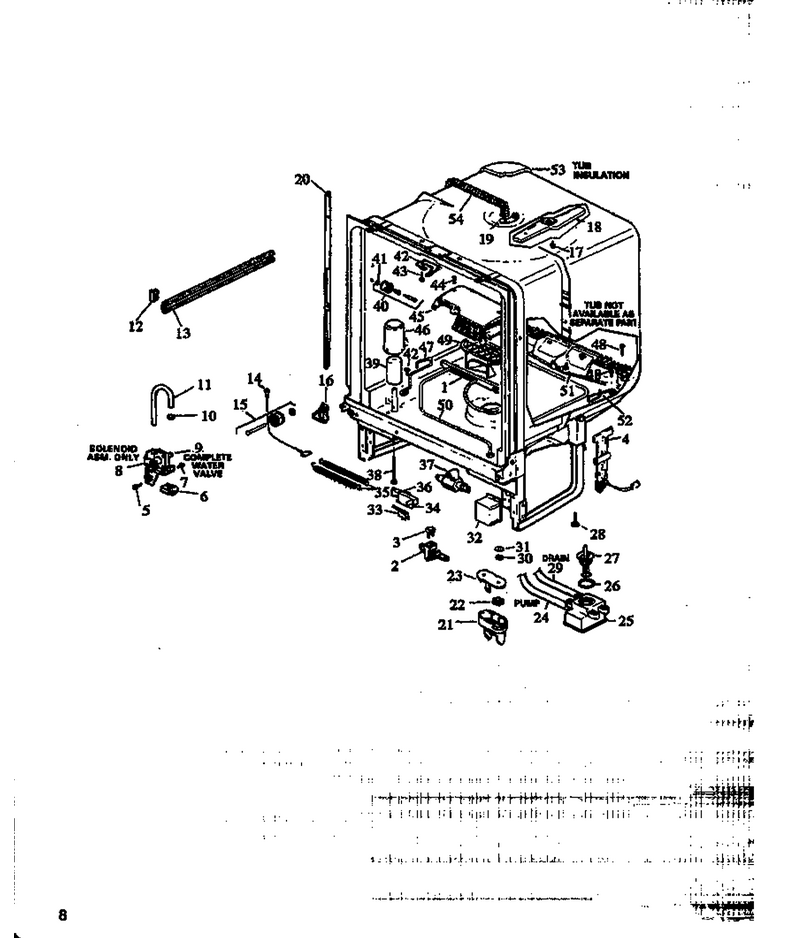

03 - Page 3

...
...
1
Support-Heater WPL-R0905658
...
2
Receptacle WPL-R0910021
...
3
Thermostat WPL-R0911006
...
4
Sensor-Spray Arm WPL-R0910066
...
5
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
6
Insul, Hsg Terminal WPL-R0903582
...
7
Screw WPL-R0900011
...
8
Solenoid Assembly, Water Valve WPL-R0909002
...
9
Valve, Water Inlet (W/solenoid WPL-R0910033
...
10
Clamp WPL-R0901510
...
11
Hose, Water Inlet WPL-R0903514
...
12
Endcap WPL-WPW10326683
...
13
Rack Slide WPL-R0905567
...
14
Cable And Eyelet WPL-R0905640
...
15
Roller & Stud Kit WPL-R0910013
...
16
Baffle, Tube Corner Rh WPL-R0905596
...
17
Screw WPL-R0900013
...
18
Assy, Pwr Shower WPL-R0905554
...
19
Nut WPL-R0901003
...
20
Trim, Tub WPL-R0905574
...
21
Barrier, Htg Element WPL-R0903581
...
22
Nut WPL-R0901001
...
23
Base Barrier WPL-R0903580
...
24
Hose, Chamber WPL-R0906506
...
25
Coll. Chamber WPL-Y03000055
...
26
Gasket WPL-R0904503
...
27
Piston & Nut Assy WPL-Y03000222
...
28
Screw Level WPL-R0905006
...
29
Hose WPL-Y03000084
...
30
Grommet WPL-R0906502
...
31
Washer WPL-R0900501
...
32
Cover, Jct. Box WPL-R0905553
...
33
Switch Flood WPL-R0902501
...
34
Cover Switch Brkt WPL-R0905514
...
35
Door Spring - Orange WPL-R0905638
...
36
Brkt, Flood Switch WPL-R0905513
...
37
Check Valve WPL-R0910053
...
38
Float Stem WPL-R0905512
...
39
Flood Float WPL-R0903501
...
40
Tub Roller & Stud Kit WPL-R0910004
...
41
No.8 Type A Set Sst Washer WPL-R0900503
...
42
Latch Keeper WPL-R0905505
...
43
Screw WPL-R0900025
...
44
Screw WPL-R0900008
...
45
Cover Inlet Sump WPL-R0905527
...
46
Float, Dome WPL-R0913227
...
48
Screw WPL-WPW10348409
...
49
Cap, Sump WPL-Y03000213
...
50
Element-Heating WPL-R0910065
...
51
Frame Assy WPL-R0910052
...
52
Support-Heater WPL-R0905658
...
53
Insulation WPL-R0904502
...
54
Hose, Shower Assy WPL-R0903527

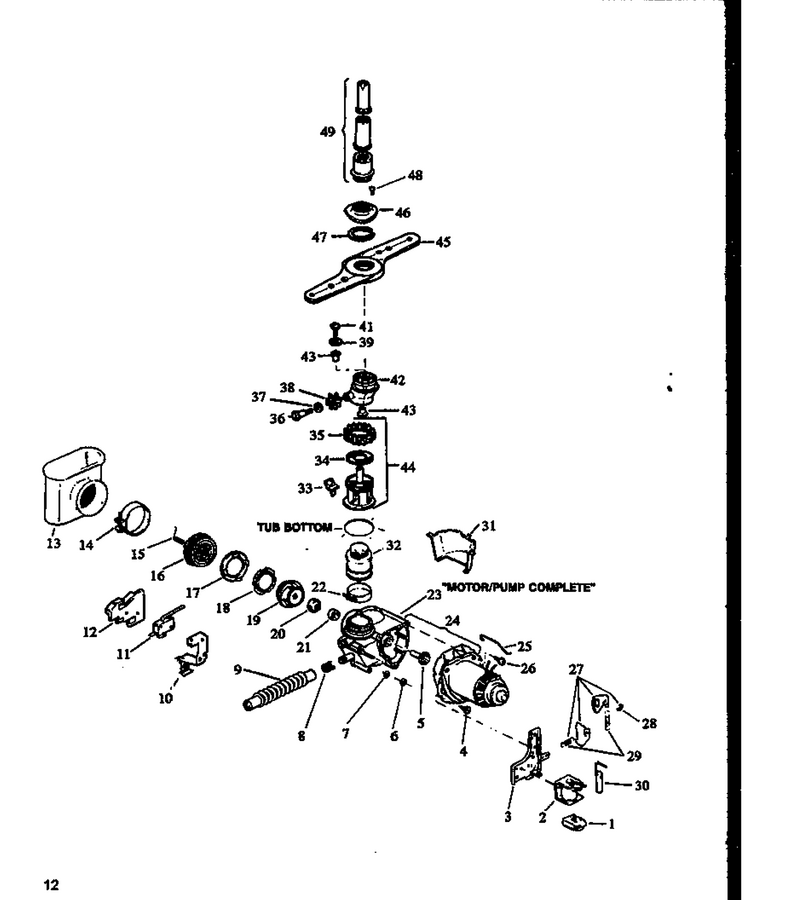

05 - Page 5

...
...
1
Insul, Hsg Terminal WPL-R0903582
...
2
Solenoid WPL-Y03000185
...
3
Bracket-Solenoid WPL-R0905639
...
4
Screw WPL-W10856125
...
5
Shaft Guard/slinger WPL-R0905564
...
6
Nut WPL-R0906510
...
7
Seal, Shaft WPL-R0906504
...
8
Clamp WPL-R0901510
...
9
Tube Assy, Drain WPL-Y03000184
...
10
Switch Bracket WPL-R0903016
...
11
Switch, Flood WPL-Y03000045
...
12
Switch Guard WPL-R0903017
...
13
Inlet Sump WPL-R0905526
...
14
Clamp WPL-WP696392
...
15
Spring, Cutter WPL-R0905521
...
16
Nut WPL-R0905563
...
17
Wear Ring Base WPL-R0905518
...
18
Wear Ring WPL-R0905520
...
19
Shaft Seal WPL-R0903503
...
21
Seal WPL-R0903502
...
22
Clamp WPL-WP696392
...
23
Motor/pump Assy Dishwa WPL-R0910001
...
24
Motor-Pump WPL-WPY03000182
...
25
Hanger Mechanism WPL-R0905712
...
26
Screw WPL-R0900007
...
27
Gate Valve Arm Kit WPL-Y03000032
...
28
Retainer WPL-R0901503
...
29
Spring, Gate Arm WPL-R0905529
...
30
Armature & Link Assy WPL-R0905517
...
31
Guard WPL-R0905522
...
32
Connector, Pump WPL-R0903520
...
33
Check Valve WPL-R0903583
...
34
Seal Lower WPL-R0910029
...
35
Nut WPL-R0901004
...
36
Screw WPL-R0900015
...
37
Washer WPL-R0900504
...
38
Pinion Gear WPL-R0910016
...
39
Washer WPL-R0900502
...
41
Screw WPL-R0900014
...
42
Hub/pinion Assy WPL-R0905555
...
43
Bearing WPL-R0905556
...
44
Supt & Nut Arm WPL-R0901009
...
45
Assy Spray Arm WPL-R0910077
...
46
Adapter Pwr Twr WPL-R0905558
...
47
Seal, Split Ring WPL-R0905557
...
48
Screw WPL-WPW10348409
...
49
Center Spray Assy WPL-R0910017

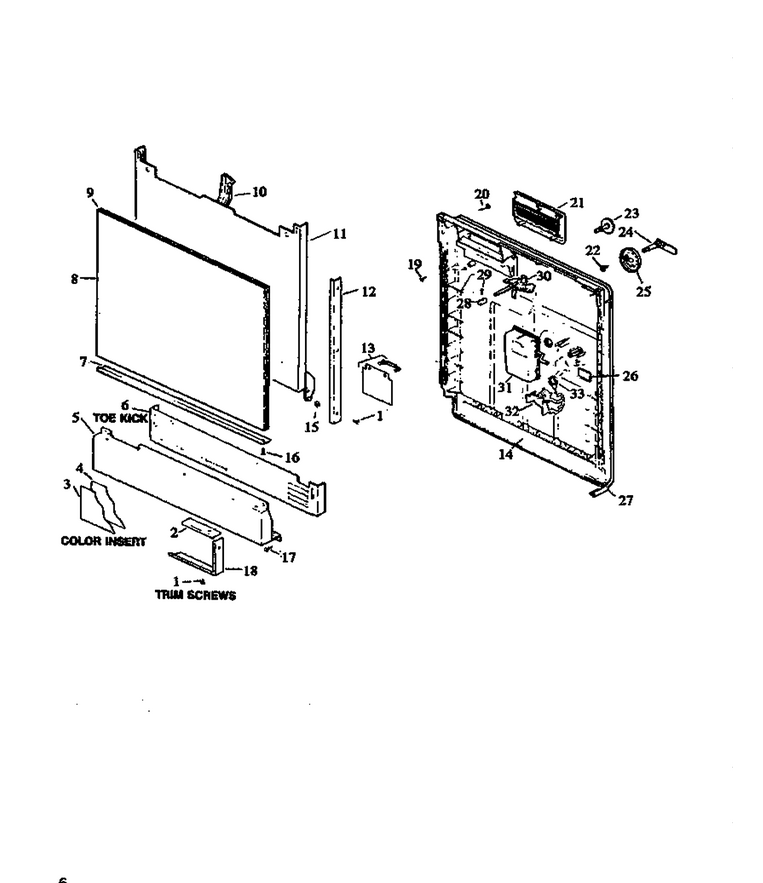

02 - Page 2

...
...
1
Screw WPL-W11233072
...
2
Trim-Top Serv Panel WPL-R0905648
...
3
Insert, Serv. Panel WPL-R0905623
...
5
Panel, Access WPL-Y03000189
...
6
Toe Kick Assy WPL-R0903022
...
7
Trim-Door Bottom WPL-R0905645
...
8
Insert, Door Panel WPL-R0905620
...
10
Conduit WPL-R0905661
...
11
Assy Panel Front (Weld Mt) WPL-R0905659
...
12
Trim Door Side WPL-R0905644
...
13
Drip Shield WPL-R0910011
...
14
Door, Inner WPL-R0903021
...
15
Adapter Faucet WPL-R0903562
...
16
Screw WPL-W10856125
...
17
Screw, Handle WPL-61002031
...
18
Trim Side/bottom-Sides WPL-Y03000033
...
19
Screw WPL-R0900009
...
20
Screw WPL-R0900006
...
21
Door Vent WPL-R0905536
...
22
Screw WPL-R0900007
...
23
Cap Fill WPL-R0905646
...
24
Shaft Hand D Cup WPL-R0905538
...
25
Detergent Cup Cover WPL-R0910010
...
26
Deflecter WPL-R0905523
...
27
Door Gasket WPL-R0904501
...
28
Knob, Latch WPL-R0903532
...
29
Screw WPL-WP74004005
...
30
Latch, Assembly WPL-Y03000191
...
31
Injector, Rinse WPL-Y03000002
...
32
Cam, Det. WPL-R0905625
...
33
Spring Det Trip WPL-R0905624
