Amana DUS500B (BOM: P1173816W)

Model: DUS500B (BOM: P1173816W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

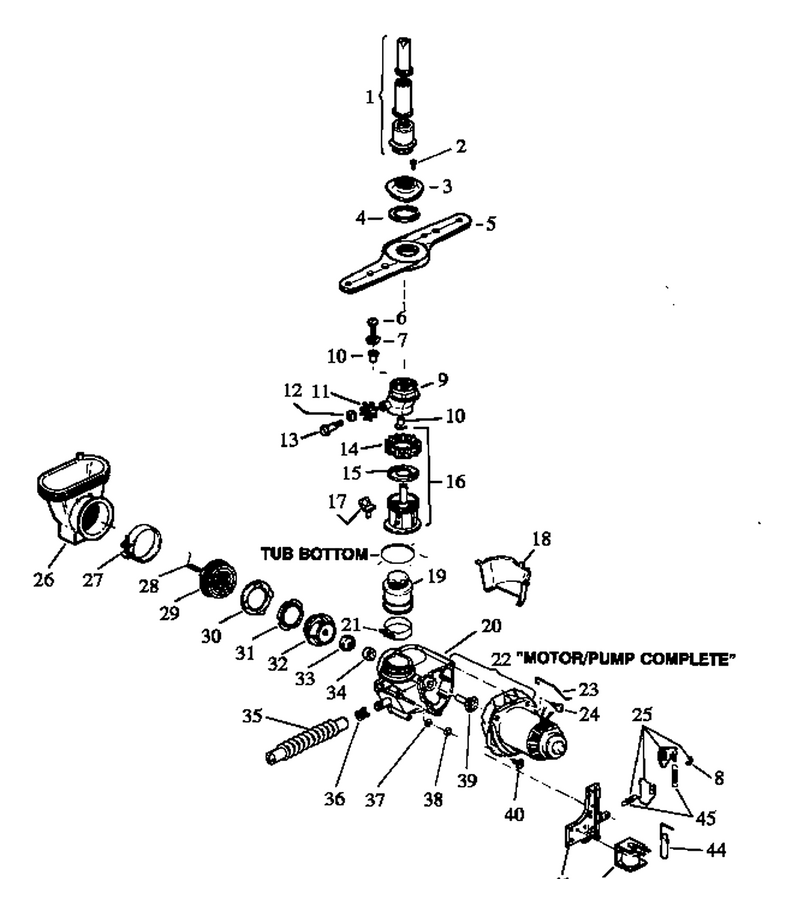

05 - Page 5

...
...
1
Assembly-Center Spray WPL-R0910057
...
2
Screw WPL-WPW10348409
...
5
Assy Spray Arm Shield WPL-R0910055
...
6
Screw, Hub WPL-R0900026
...
7
Thrust Washer WPL-R0900508
...
8
Retainer WPL-R0901503
...
9
Spray Arm Hub WPL-R0910056
...
16
Hub & Suppt. WPL-R0903515
...
17
Check Valve WPL-R0910037
...
18
Guard WPL-R0905522
...
19
Connector, Pump WPL-R0903520
...
20
Motor/pump Assy Dishwa WPL-R0910001
...
21
Clamp WPL-WP696392
...
22
Motor-Pump WPL-WPY03000182
...
23
Hanger Mechanism WPL-R0905712
...
24
Screw WPL-R0900007
...
25
Gate Valve Arm Kit WPL-Y03000032
...
26
Inlet, Sump WPL-Y03000224
...
27
Clamp WPL-WP696392
...
28
Spring, Cutter WPL-R0905521
...
29
Nut WPL-R0905563
...
30
Wear Ring Base WPL-R0905518
...
31
Wear Ring WPL-R0905520
...
32
Pump Impeller WPL-R0905519
...
33
Shaft Seal WPL-R0903503
...
34
Seal WPL-R0903502
...
35
Tube Assy, Drain WPL-Y03000184
...
36
Clamp WPL-R0901510
...
37
Seal, Shaft WPL-R0906504
...
38
Nut WPL-R0906510
...
39
Shaft Guard/slinger WPL-R0905564
...
40
Screw WPL-W10856125
...
41
Bracket-Solenoid WPL-R0905639
...
42
Solenoid WPL-Y03000185
...
43
Insul, Hsg Terminal WPL-R0903582
...
44
Armature & Link Assy WPL-R0905517
...
45
Spring, Gate Arm WPL-R0905529

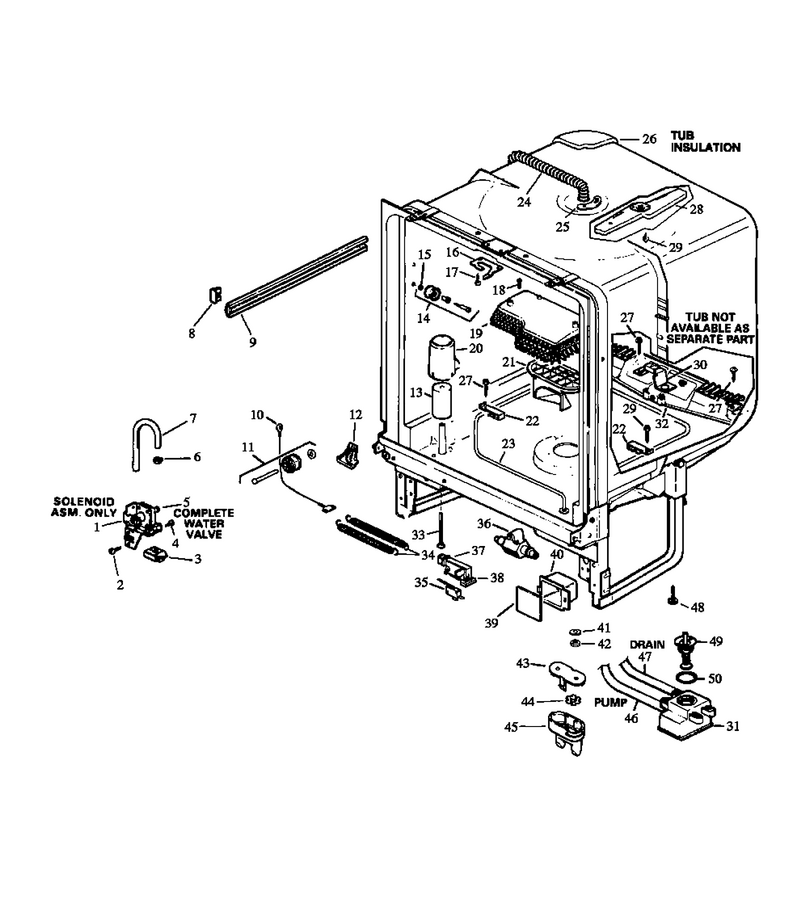

04 - Page 4

...
...
1
Solenoid Assembly, Water Valve WPL-R0909002
...
2
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
3
Insul, Hsg Terminal WPL-R0903582
...
4
Screw WPL-R0900011
...
5
Valve, Water Inlet (W/solenoid WPL-R0910033
...
6
Clamp WPL-R0901510
...
7
Hose, Water Inlet WPL-R0903514
...
8
Endcap WPL-WPW10326683
...
9
Rack Slide WPL-R0905567
...
10
Cable And Eyelet WPL-R0905640
...
11
Roller & Stud Kit WPL-R0910013
...
12
Baffle Tub Corner Lh WPL-R0905597
...
13
Flood Float WPL-R0903501
...
14
Tub Roller & Stud Kit WPL-R0910004
...
15
No.8 Type A Set Sst Washer WPL-R0900503
...
16
Latch Keeper WPL-R0905505
...
17
Screw WPL-R0900025
...
18
Screw WPL-R0900008
...
19
Cover Inlet Sump WPL-R0905527
...
21
Cap, Sump WPL-Y03000213
...
22
Support Heater Rear WPL-R0905633
...
23
Assy, Heating Element WPL-R0910124
...
24
Hose, Shower Assy WPL-R0903527
...
25
Nut WPL-R0901003
...
26
Insulation WPL-R0904508
...
27
Screw WPL-WPW10348409
...
28
Assy, Pwr Shower WPL-R0905554
...
29
Screw WPL-R0900013
...
30
Support, Heater Front WPL-R0905632
...
33
Float Stem WPL-R0905512
...
34
Door Spring Blue WPL-R0905503
...
35
Switch Flood WPL-R0902501
...
37
Brkt, Flood Switch WPL-R0905513
...
38
Cover Switch Brkt WPL-R0905514
...
39
Cover, Junc Box WPL-R0903032
...
40
Box, Junction WPL-R0903587
...
41
Washer WPL-R0900501
...
42
Grommet WPL-R0906502
...
43
Base Barrier WPL-R0903580
...
44
Nut WPL-R0901001
...
45
Barrier, Htg Element WPL-R0903581
...
48
Leg, Leveling WPL-R0905506
...
50
Kit Spray Assy WPL-R0903535

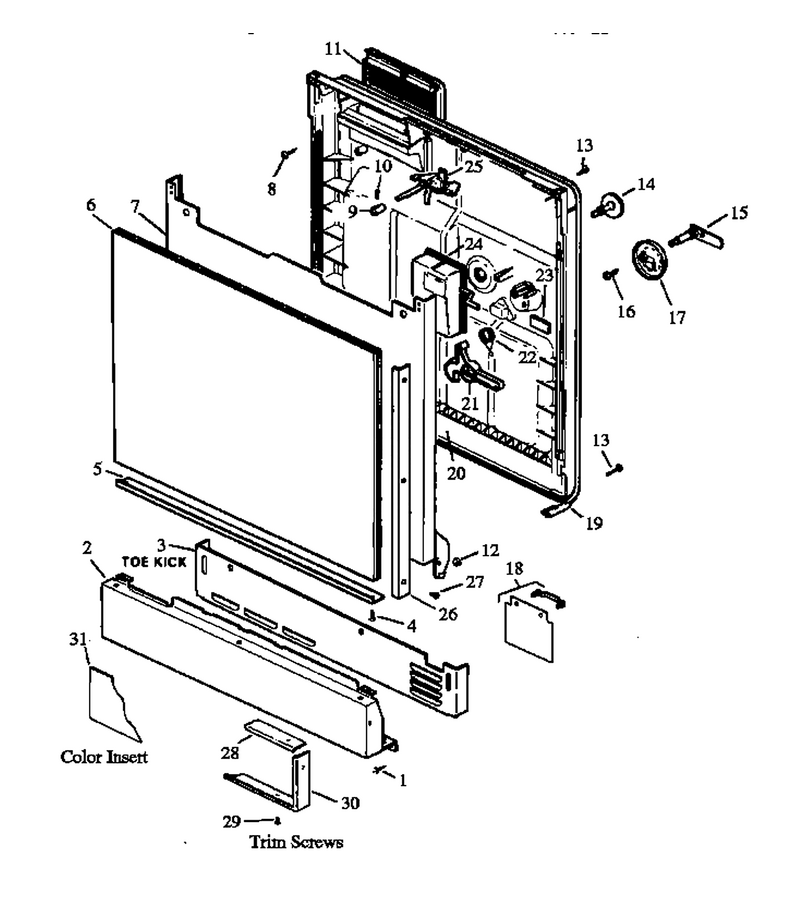

02 - Page 2

...
...
NI
Screw WPL-R0900017
...
1
Kit, Screw WPL-R9800670
...
2
Panel, Access WPL-Y03000189
...
3
Toe Kick Assy WPL-R0903022
...
4
Screw WPL-W10856125
...
5
Trim-Door Bottom WPL-R0905645
...
6
Insert, Door Panel WPL-R0905620
...
7
Door & Hinge Assy, Outer WPL-R0905637
...
8
Screw WPL-R0900009
...
9
Knob, Latch WPL-R0903532
...
10
Screw WPL-WP74004005
...
11
Door Vent WPL-R0905536
...
12
Hinge Arm Bearing WPL-R0905537
...
13
Screw WPL-R0900006
...
14
Cap Fill WPL-R0905646
...
15
Shaft Hand D Cup WPL-R0905538
...
16
Screw WPL-R0900007
...
17
Detergent Cup Cover WPL-R0910010
...
18
Drip Shield WPL-R0910011
...
19
Door Gasket WPL-R0904501
...
20
Door, Inner WPL-R0903021
...
21
Latch Detergent Cup WPL-R0905539
...
22
Trip Spring WPL-R0905542
...
23
Deflecter WPL-R0905523
...
24
Injector, Rinse WPL-Y03000002
...
25
Latch, Assembly WPL-Y03000191
...
26
Trim, Side Door WPL-R0905721
...
27
Screw WPL-W11233072
...
28
Trim-Top Serv Panel WPL-R0905648
...
29
Trim Side/bottom-Sides WPL-Y03000033
...
30
Insert, Serv. Panel WPL-R0905623

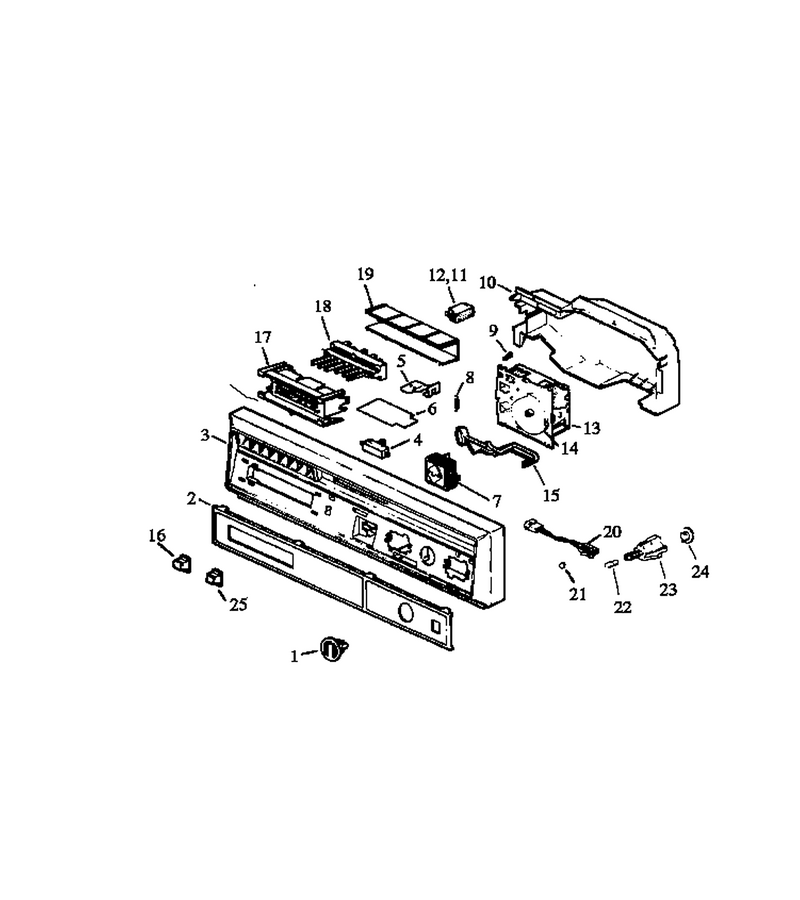

01 - Page 1

...
...
1
Knob Timer Assy WPL-R0903539
...
2
Insert- Esutcheon WPL-R0905649
...
3
Escutcheon WPL-Y03000071
...
4
Switch, Interlock WPL-R0902506
...
5
Ass`y, Switch Leaf WPL-R0905716
...
6
Shield, Switch WPL-R0905534
...
7
Switch, Cycle WPL-R0902507
...
8
Spring, Timer Lever WPL-R0905541
...
9
Screw WPL-R0900009
...
10
Cover Electric WPL-R0905641
...
11
Terminal WPL-Y03000076
...
12
Housing Terminal WPL-R0910049
...
13
Timer WPL-R0904005
...
15
Lever, Timer WPL-R0905545
...
16
Push Button WPL-R0903542
...
17
Retainer, Switch WPL-R0905546
...
18
Switch P/b WPL-R0902503
...
19
Cover, Switch WPL-R0905547
...
20
Assy Pilot Light WPL-R0912003
...
21
Lens WPL-R0910061
...
22
Spring WPL-R0901501
...
23
Retainer WPL-R0901502
...
24
Thermostat, Water WPL-R0911001
...
25
Push Button WPL-R0903542

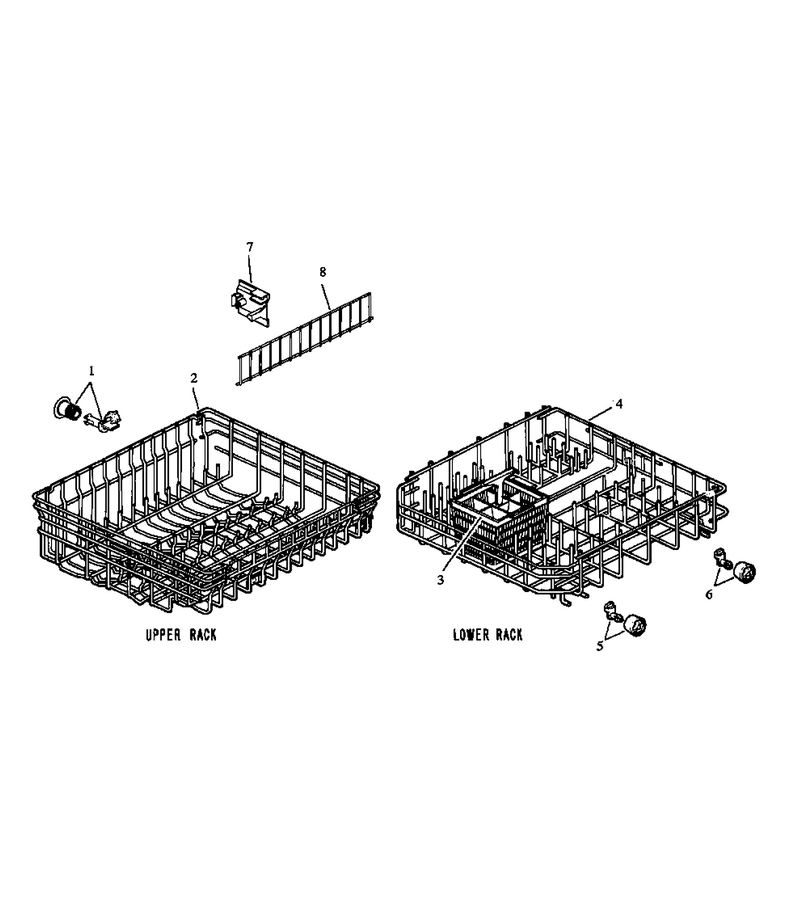

03 - Page 3

...
...
1
Wheel WPL-W10542232
...
2
Assembly-Upper Rack WPL-R0910058
...
3
Basket, Silverware WPL-R0910060
...
4
Assembly-Lower Rack & Roller WPL-R0910059
...
5
Lower Roller Assy WPL-R0910007
...
6
Roller WPL-W10882367
