Amana DUS31419 (BOM: MN03)

Model: DUS31419 (BOM: MN03)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

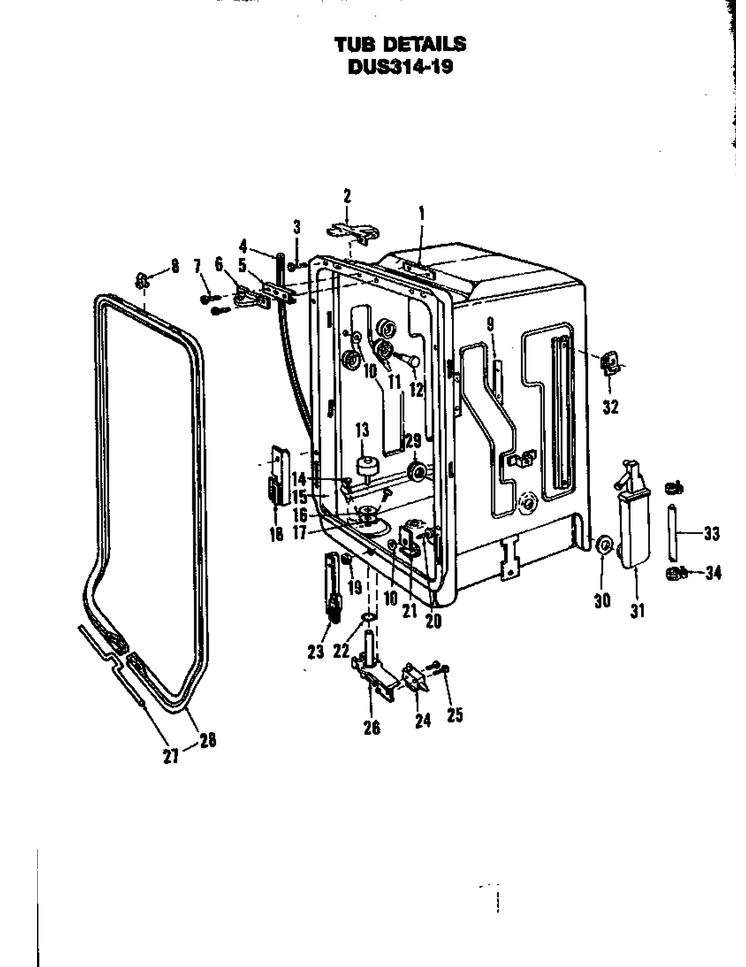

07 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0809677
...
3
Screw WPL-0806894
...
4
Drain Hose WPL-809112
...
5
Shim WPL-0809214
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Twin Nut Assem. WPL-0807038
...
10
Washer, Sealing WPL-0809044
...
11
Tub Roller WPL-Y03100018
...
12
Kit, Screw & Washer WPL-0808564
...
13
Float WPL-Y03100047
...
14
Screw WPL-807268
...
15
Tub & Gasket Assy. WPL-0809716
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Counterbalance Arm Guide, Lh WPL-0807599
...
19
Use M0281003 WPL-0803346
...
20
Screw WPL-WP250830
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Counterbalance Arm Guide, Rh WPL-0807600
...
24
Float Assy WPL-Y0809859
...
25
Screw WPL-0809864
...
26
Float Assy WPL-Y0809859
...
27
Gasket Junction Wire WPL-0809634
...
28
Tube & Gasket Wire Assy WPL-809633
...
29
Nut Plastic WPL-0805669
...
30
Washer WPL-803573
...
31
Water Inlet Assy WPL-Y0806470
...
32
Nut, Cage WPL-0806291
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813

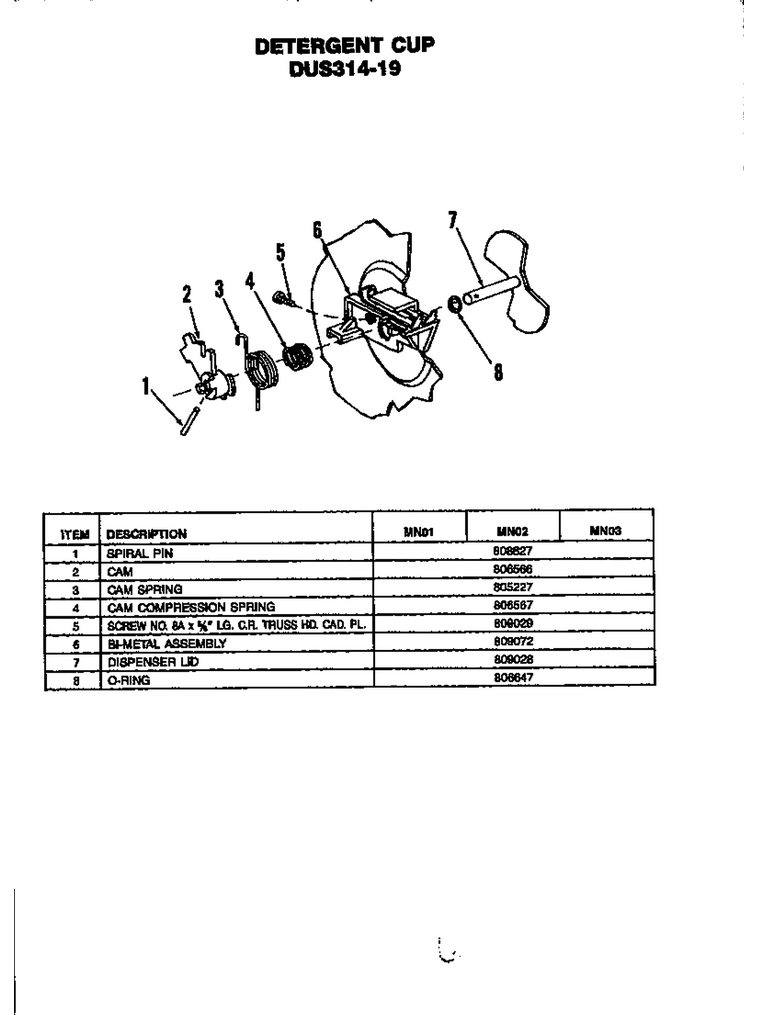

02 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

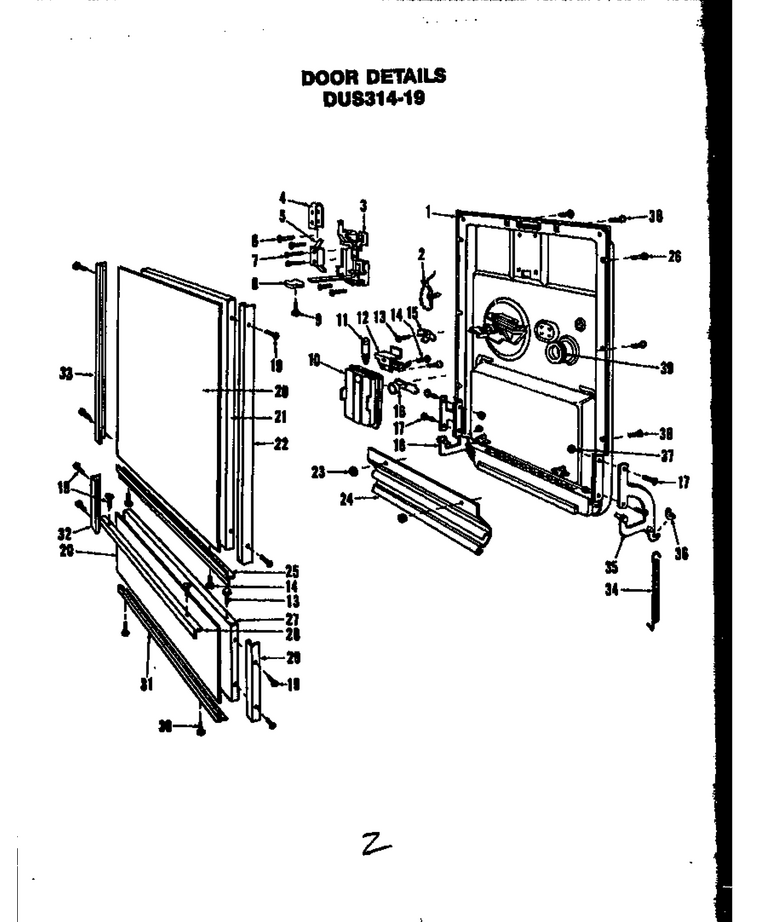

03 - Door Details

...
...
NI
Wood Door Frame Kit WPL-0808935
...
1
Door Assy. Inner WPL-0809635
...
2
Tie Wire WPL-WPM0322202
...
3
Latch Asm WPL-807016
...
4
Switch Cover WPL-0807450
...
5
Switch, Door Latch WPL-Y0807043
...
6
Screw WPL-W11233072
...
7
Screw WPL-0808618
...
8
Sub 806893 Latch Knob WPL-0806398
...
9
Use 0806830 WPL-0809163
...
10
Body Dispenser, Wetting Agent WPL-Y0806753
...
11
Plunger WPL-0806757
...
12
Bi-Metal Asm WPL-809109
...
13
Screw WPL-WP90767
...
14
Screw WPL-W11233072
...
15
Terminal, Grounding WPL-0807213
...
16
Fill Plug WPL-Y0807673
...
17
Screw WPL-0803311
...
18
Arm, L.h. WPL-Y0807539
...
19
Screw WPL-WP355214
...
20
Door & Access Pnl Inserts Harv WPL-0808920
...
21
Door Panel, White WPL-Y0808298
...
22
Door Panel Trim, Rh WPL-0808990
...
23
Speednut WPL-0809026
...
24
Baffle WPL-809636
...
25
Bottom Trim, Door WPL-0809637
...
26
Screw WPL-Y0808749
...
27
Access Panel, White WPL-Y0808304
...
28
Access Panel Trim, Top WPL-Y0808471
...
29
Trim, Acc Side WPL-0808103
...
30
Screw WPL-M0217225
...
31
Access Panel Trim, Bottom WPL-0808303
...
32
Trim, Acc Side WPL-0808104
...
33
Door Panel Trim, Lh WPL-0808991
...
34
Door Spring WPL-Y0807601
...
35
Arm, R.h. WPL-0807538
...
36
Spring Pad WPL-0805884
...
37
Nut WPL-M0282009
...
38
Screw WPL-WP7101P126-60
...
39
Grommet, Mounting WPL-0805631

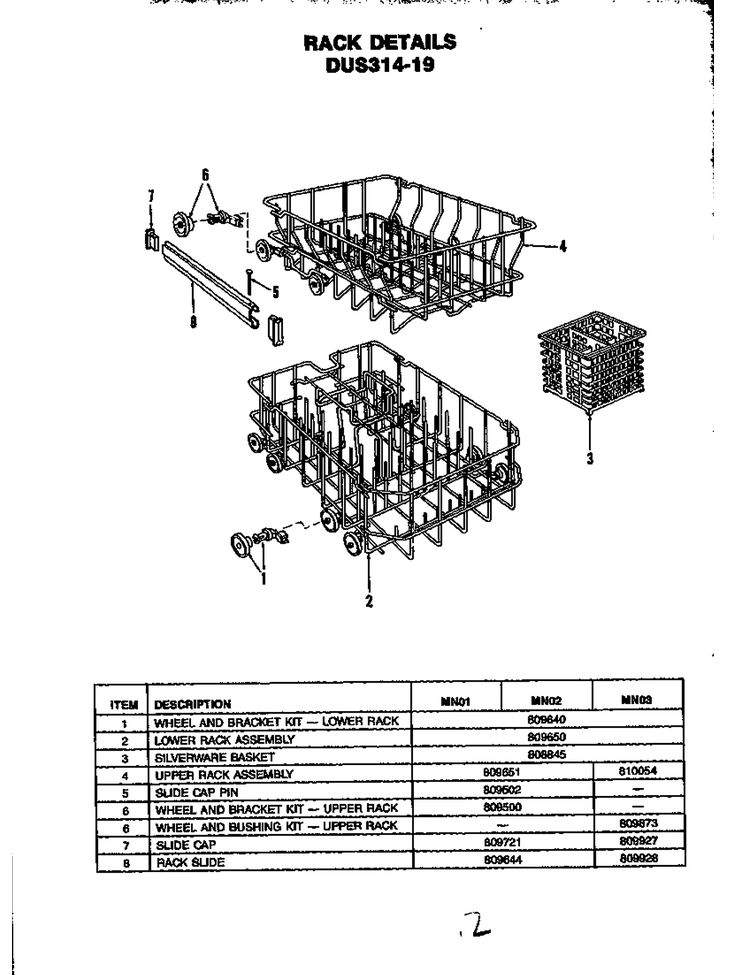

06 - Rack Details

...
...
1
Single Wheel & Brkt. WPL-0809640
...
2
Lower Rack Assy WPL-809641
...
3
Silverware Basket WPL-Y0808845
...
4
Rack, Upper WPL-Y0810054
...
6
Wheel, Rack WPL-Y0809873
...
7
End Cap, Slide (4) WPL-965554
...
8
Rack Slide WPL-Y0809928

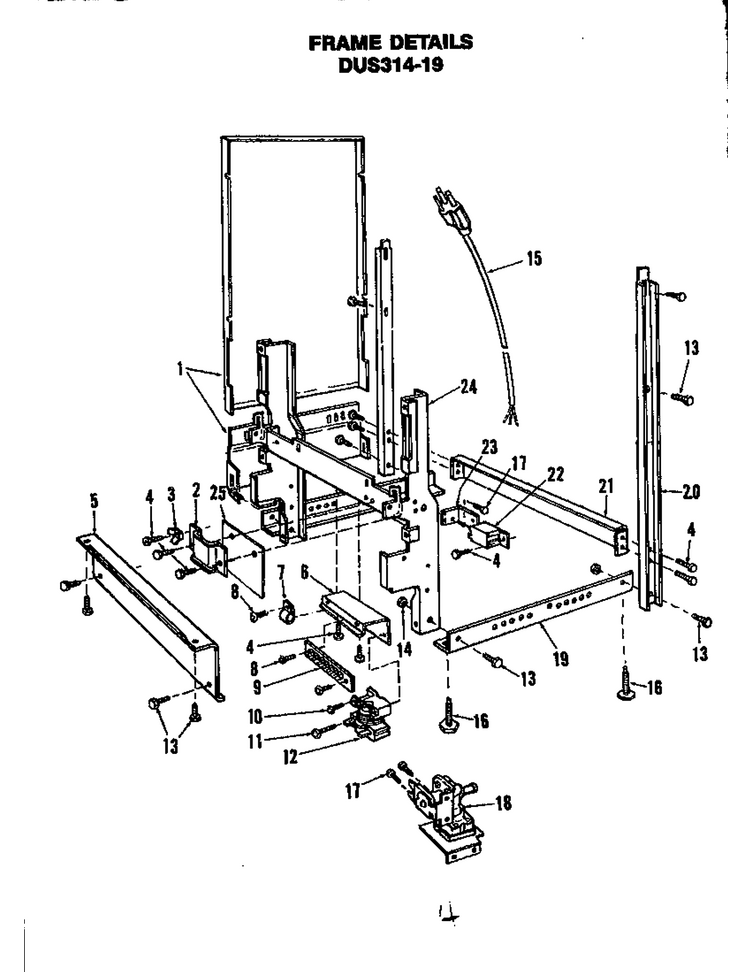

04 - Frame Details

...
...
1
Side Panel WPL-808885
...
2
Wiring Clamp WPL-0806723
...
3
Terminal, Grounding WPL-0807213
...
4
Screw WPL-WP90767
...
5
Toeplate WPL-0807559
...
6
Bracket, Terminal Board WPL-0807849
...
7
Clamp WPL-Y0808442
...
8
Screw WPL-W11233072
...
9
Terminal Block WPL-0807486
...
10
Screw WPL-WP488234
...
11
Screw WPL-0804672
...
12
Relay WPL-0805255
...
13
Screw WPL-0807001
...
14
Nut K WPL-M0282005
...
15
Power Cord WPL-Y0808395
...
16
Leveling Leg WPL-0809422
...
17
Screw WPL-Y0807950
...
18
Valve Assy. WPL-0809241
...
19
Side Base Angle Kit WPL-0809543
...
20
Support Channel WPL-0808670
...
21
Rear Brace WPL-0807566
...
22
Junction Box Cover WPL-0800222
...
23
Cover Bracket WPL-0807019
...
24
Hinge, Frame WPL-0809212
...
25
Wire Shield WPL-0809144

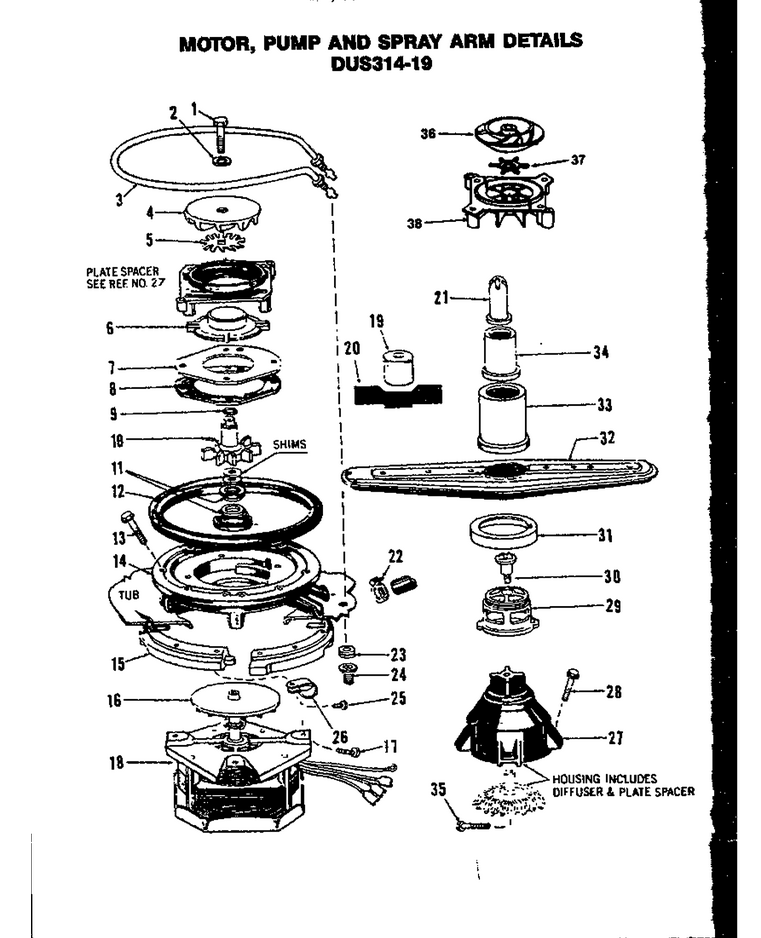

05 - Motor

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
3
Heater Kit WPL-806864
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Impeller, Upper WPL-Y0809909
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Water Shield Assy WPL-Y0809366
...
17
Screw WPL-807268
...
18
Motor Assembly WPL-Y0806300
...
19
Seal Installation Tool WPL-Y0803923
...
21
Tower Tip WPL-0808849
...
22
Clamp WPL-WP285655
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Pump Housing, Upper WPL-Y0809953
...
28
Screw WPL-0809831
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Shield Bearing WPL-808924
...
32
Spray Arm WPL-Y0808848
...
33
Tower Base WPL-Y0808178
...
34
Tower Section WPL-Y0808179
...
35
Screw WPL-WP67006908
...
36
Impeller, Upper WPL-Y0809918
...
37
Macerator WPL-Y03100008
...
38
Plate, Spacer WPL-0809921

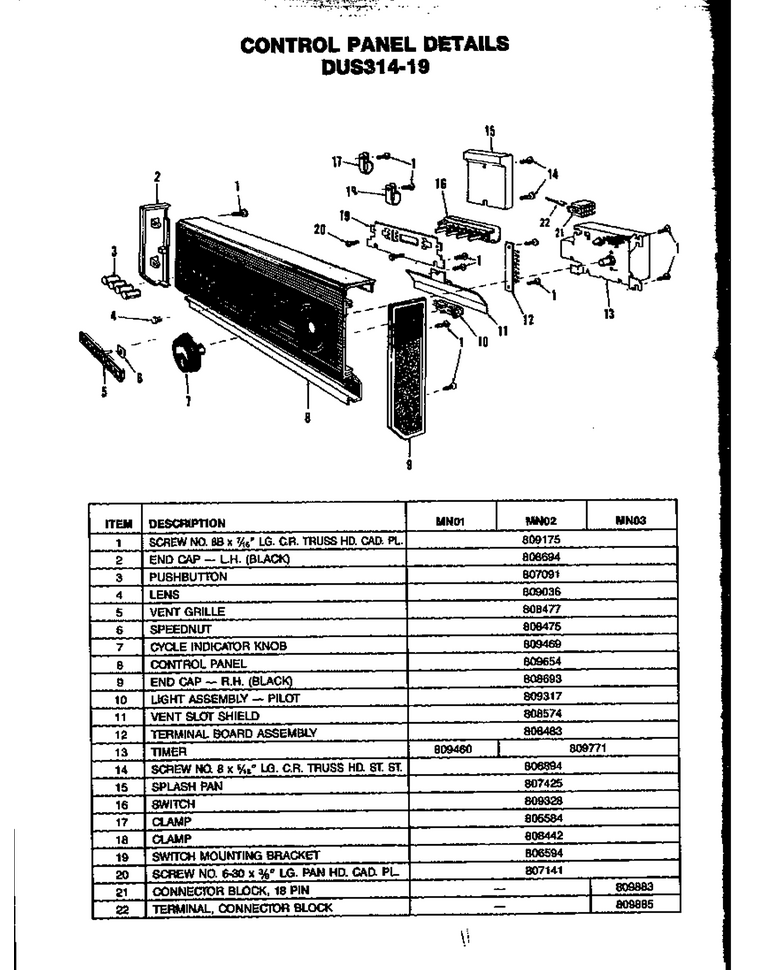

01 - Control Panel Details

...
...
1
Screw WPL-0809175
...
2
End Cap, Lh WPL-0808694
...
3
Push Button WPL-807091
...
4
Lens WPL-0809036
...
5
Vent Grille WPL-Y0808477
...
6
Speed Nut WPL-Y0808475
...
7
Knob WPL-0809469
...
8
Control Panel WPL-0809654
...
9
End Cap, Rh WPL-0808693
...
10
Light, Assy. WPL-0809317
...
11
Vent Slot Shield WPL-0808574
...
12
Terminal Board Assy. WPL-Y0808483
...
13
Timer- Ddw WPL-Y0809594
...
14
Screw WPL-0806894
...
15
Splash Pan WPL-0807425
...
16
Switch WPL-0809328
...
17
Clamp WPL-W10833902
...
18
Clamp WPL-Y0808442
...
19
Bracket, Switch Mounting WPL-0806594
...
20
Screw WPL-0807141
...
21
Housing, Timer Terminal WPL-Y0809883
...
22
Housing, Timer Terminal WPL-0809885
