Amana DUS202-1L (BOM: DUS20201L)

Model: DUS202-1L (BOM: DUS20201L)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

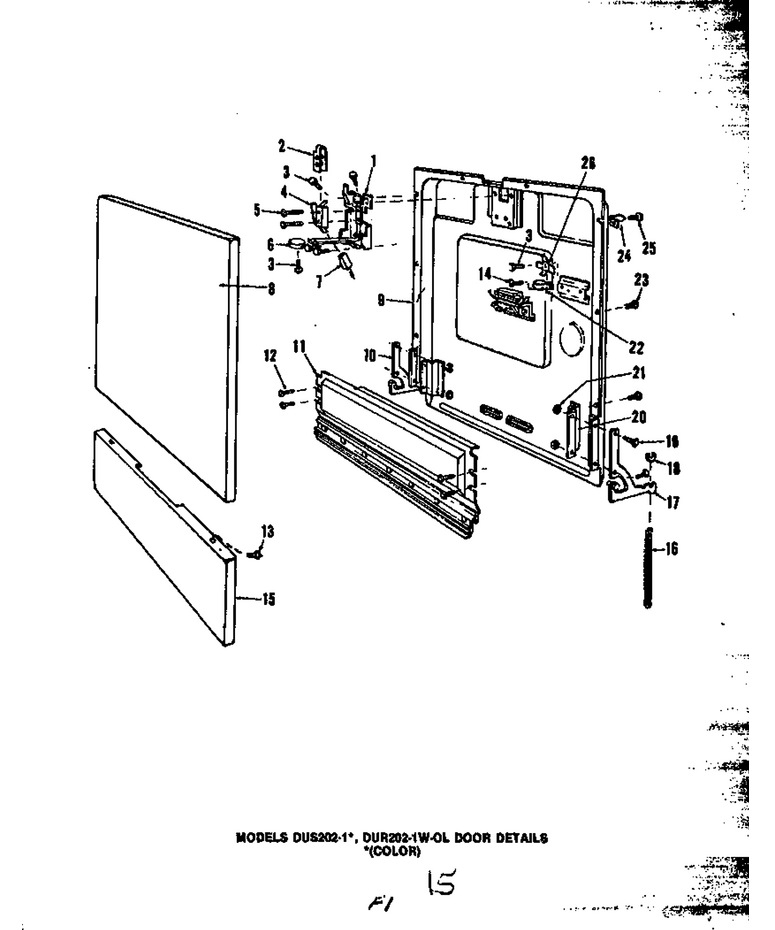

02 - Door Details

...
...
1
Latch Asm WPL-807016
...
2
Switch Cover WPL-0807450
...
3
Screw WPL-0806830
...
4
Switch, Door Latch WPL-Y0807043
...
5
Screw WPL-Y0808425
...
6
Knob, Latch WPL-0808712
...
7
Wire Retainer WPL-0806845
...
8
Door Panel, White WPL-0807262
...
9
Sub 809288, Inner Door Panel WPL-0807191
...
10
Arm Assy Lh Counterbalance WPL-0805682
...
11
Vent Plate Assembly WPL-0808369
...
12
Use 0806976 WPL-0806810
...
13
Screw WPL-WP90767
...
14
Screw WPL-WP90767
...
15
Sub 809108, Access Panel WPL-0807257
...
16
Spring- Co WPL-Y0808971
...
17
Rh Arm WPL-805681
...
18
Spring Pad WPL-0805884
...
19
Screw WPL-0803311
...
20
Arm Bracket WPL-Y0806717
...
21
Nut WPL-M0282009
...
22
Clamp WPL-Y0808442
...
23
Screw WPL-0806967
...
24
Door Guide WPL-0807449
...
25
Truss Hd. Cad. Pl. WPL-806926
...
26
Terminal, Grounding WPL-0807213

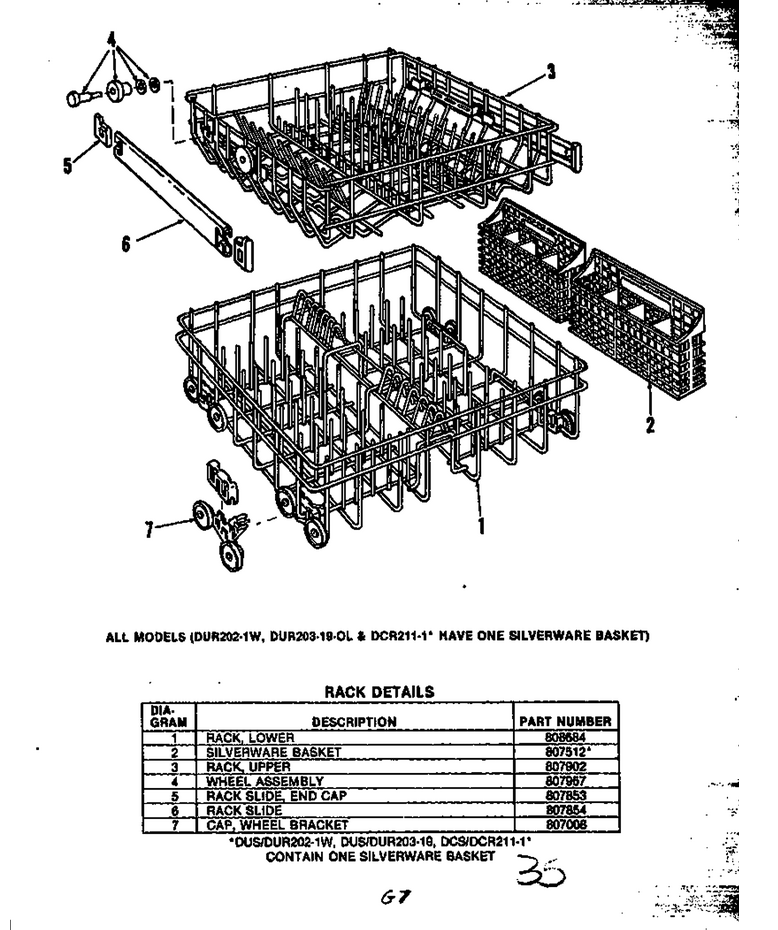

03 - Rack Details

...
...
1
Sub 808946,rack Lower WPL-0808684
...
2
Silverware Basket WPL-Y0807512
...
3
Rack, Upper WPL-0807902
...
4
Wheel Asm WPL-807957
...
5
End Cap, Rack Slide WPL-Y0807853
...
6
Rack Slide WPL-0807854
...
7
Wheel Assy WPL-Y0807008

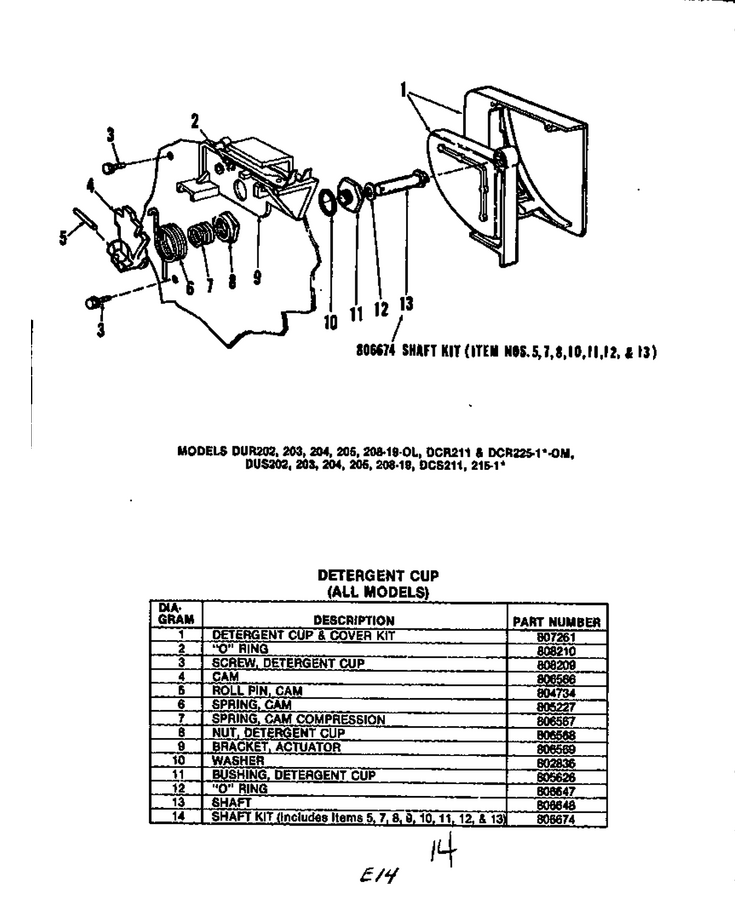

01 - Detergent Cup

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Sub 806565, Screw WPL-0808209
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Sub 808507, Trigger Assy WPL-Y0806569
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit WPL-806674
