Amana DUS104-19 (BOM: DUS10419)

Model: DUS104-19 (BOM: DUS10419)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

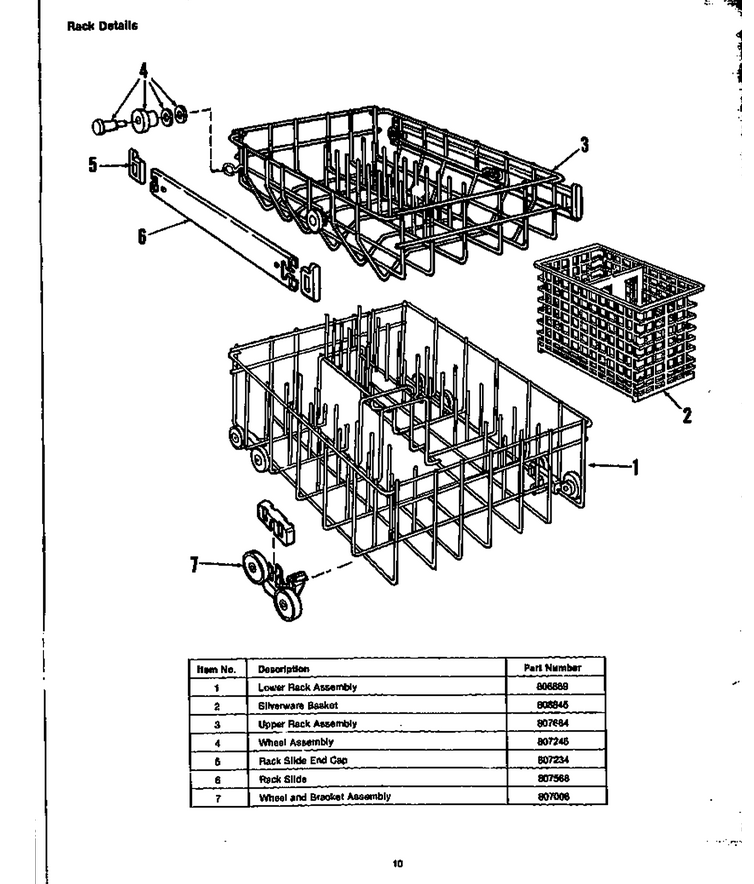

06 - Rack Details

...
...
1
Lower Rack Assy WPL-809641
...
2
Silverware Basket WPL-Y0808845
...
3
Rack Assembly-Upper WPL-807684
...
4
Wheel Assembly WPL-0807245
...
5
End Cap, Slide WPL-0807234
...
6
Rack Slide WPL-0807568
...
7
Wheel Assy WPL-Y0807008

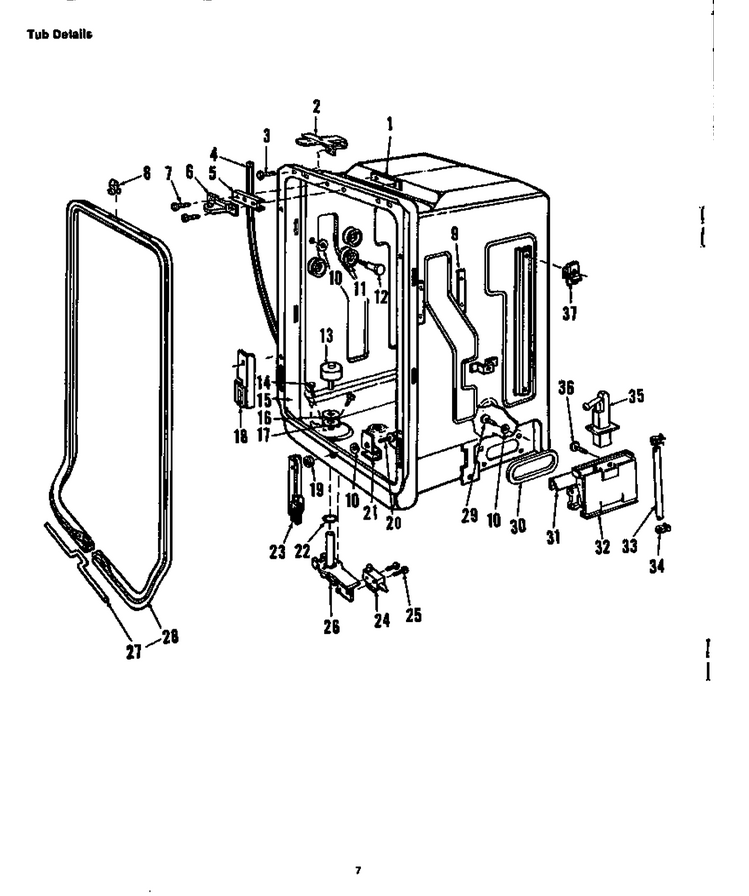

07 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Screw WPL-0806894
...
4
Drain Hose WPL-809112
...
5
Shim Strike WPL-0807073
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Twin Nut Assem. WPL-0807038
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Float WPL-Y0804630
...
14
Screw WPL-807268
...
15
Tub & Gasket Assy WPL-0809045
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Counterbalance Arm Guide, Lh WPL-0807599
...
19
Use M0281003 WPL-0803346
...
20
Screw WPL-WP250830
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Counterbalance Arm Guide, Rh WPL-0807600
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Float Assy WPL-Y0809859
...
27
Junction Rod WPL-0808118
...
28
Tub Gasket & Wire Assembly (Includes Key Nos. 8 & 27) WPL-809003
...
29
Screw WPL-Y0806901
...
30
Gasket WPL-806797
...
31
Tapping Plate WPL-0808705
...
32
Vent Stack WPL-0808706
...
33
Tube, Inlet WPL-0807891
...
34
Tube, Inlet WPL-0807891
...
35
Inlet Nozzle WPL-0808707
...
36
Screw WPL-0808818
...
37
Nut, Cage WPL-0806291
...
38
Tub Insulation WPL-0809143

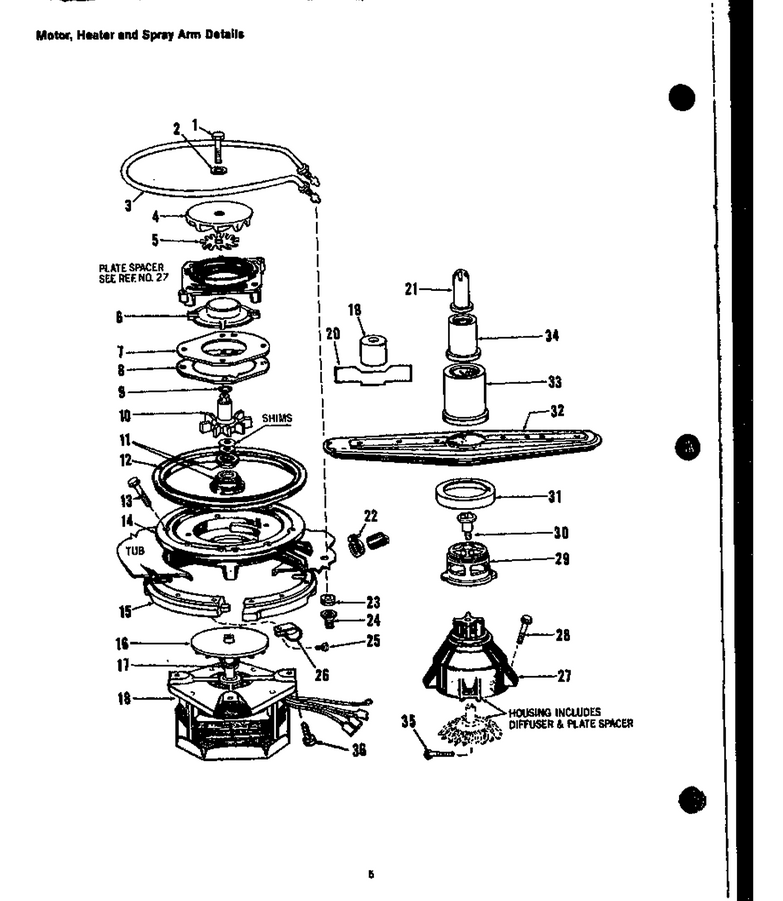

04 - Motor

...
...
NI
Pump&motor Asm WPL-809120
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater Kit WPL-806864
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Tower Tip WPL-0808849
...
22
Clamp WPL-WP285655
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw, Pump Housing WPL-0807359
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Shield Bearing WPL-808924
...
32
Spray Arm WPL-Y0808848
...
33
Tower Base WPL-Y0808178
...
34
Tower Section WPL-Y0808179
...
35
Screw WPL-WP67006908
...
36
Screw WPL-807268

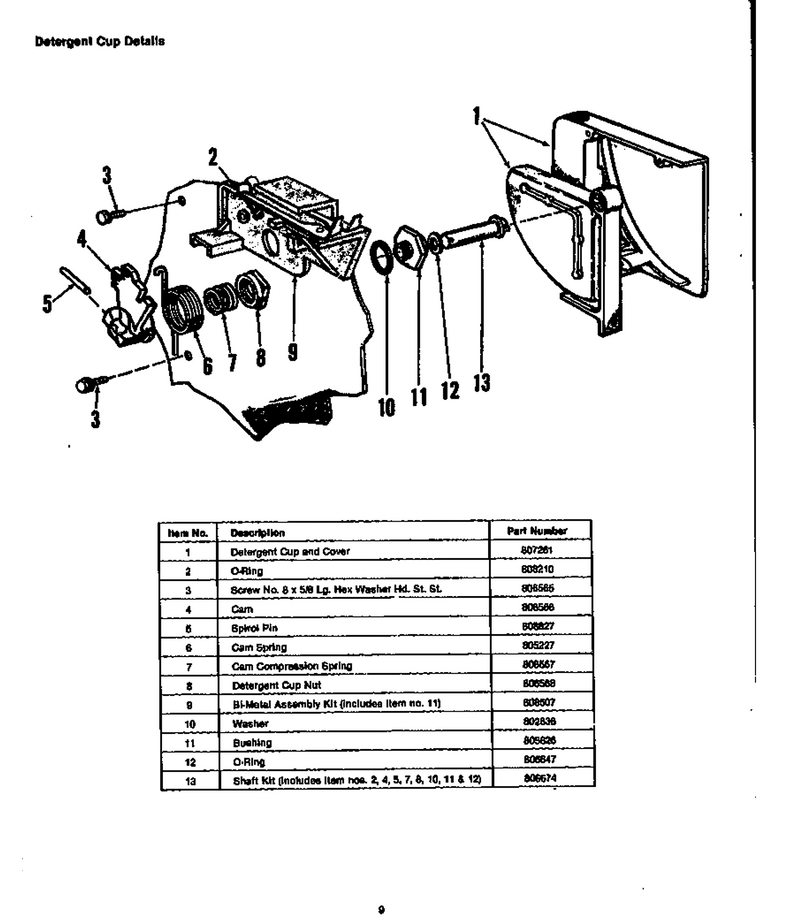

01 - Detergent Cup Details

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674

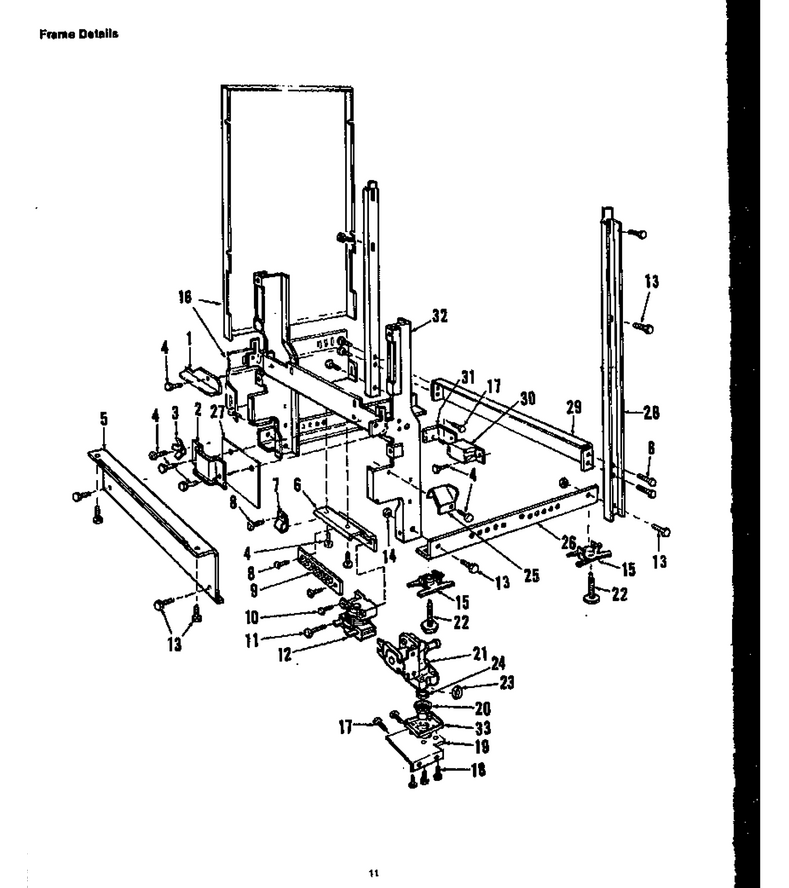

03 - Frame Details

...
...
1
Suds Deflector, Lh WPL-0807558
...
2
Wiring Clamp WPL-0806723
...
3
Terminal, Grounding WPL-0807213
...
4
Screw WPL-WP90767
...
5
Toeplate WPL-0807559
...
6
Brkt, Terminal Block WPL-0807675
...
7
Clamp WPL-Y0808442
...
8
Screw WPL-W11233072
...
9
Terminal Block WPL-0807486
...
10
Screw WPL-WP488234
...
11
Screw WPL-0804672
...
12
Relay WPL-0805255
...
13
Screw WPL-0807001
...
14
Nut K WPL-M0282005
...
15
Tee Nut - Snap In WPL-0807671
...
16
Panel, Side WPL-808886
...
17
Screw WPL-Y0807950
...
18
Screw WPL-0808368
...
19
Mounting Bracket WPL-0807613
...
20
Fitting WPL-Y0808337
...
21
Valve WPL-0808668
...
22
Leveling Legs WPL-0807672
...
23
Flow Washer WPL-0808577
...
24
Gasket WPL-Y0806100
...
25
Suds Deflector, Rh WPL-0807563
...
26
Base Angle WPL-0807564
...
27
Wire Shield WPL-0808013
...
28
Support Channel WPL-0808670
...
29
Rear Brace WPL-0807566
...
30
Junction Box Cover WPL-0800222
...
31
Cover Bracket WPL-0807019
...
32
Sub 809212, Hinge, Frame WPL-0807674
...
33
Fitting, Retainer WPL-Y0808458

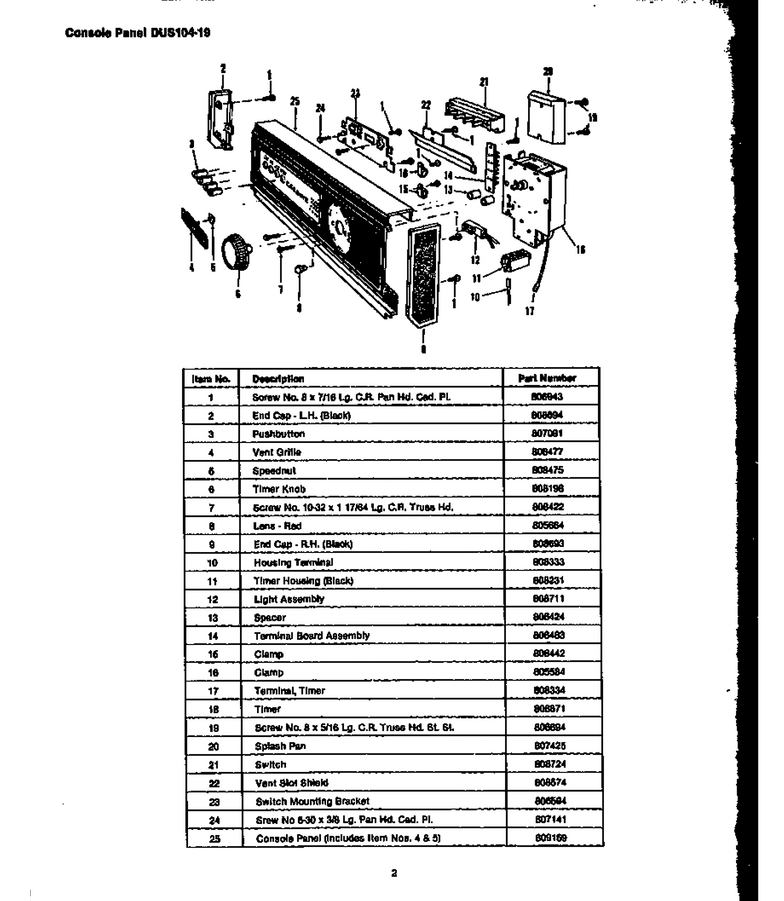

05 - Page 1

...
...
1
Screw WPL-0806943
...
2
End Cap, Lh WPL-0808694
...
3
Push Button WPL-807091
...
4
Vent Grille WPL-Y0808477
...
5
Speed Nut WPL-Y0808475
...
6
Timer Knob WPL-Y0808482
...
7
Screw, No.10-32 X 1 7/64 WPL-0808422
...
8
Lens WPL-0805664
...
9
End Cap, Rh WPL-0808693
...
10
Terminal, (Pack Of 25) WPL-0808333
...
11
Housing, Timer B WPL-Y0808231
...
12
Light Assy. WPL-0808711
...
13
Spacer WPL-0808424
...
14
Terminal Board Assy. WPL-Y0808483
...
15
Clamp WPL-Y0808442
...
16
Clamp WPL-W10833902
...
17
Terminal End WPL-0808334
...
18
Timer WPL-0808671
...
19
Screw WPL-0806894
...
20
Splash Pan WPL-0807425
...
21
Switch WPL-0808724
...
22
Vent Slot Shield WPL-0808574
...
23
Bracket, Switch Mounting WPL-0806594
...
24
Screw WPL-0807141
...
25
Console Panel WPL-0809169

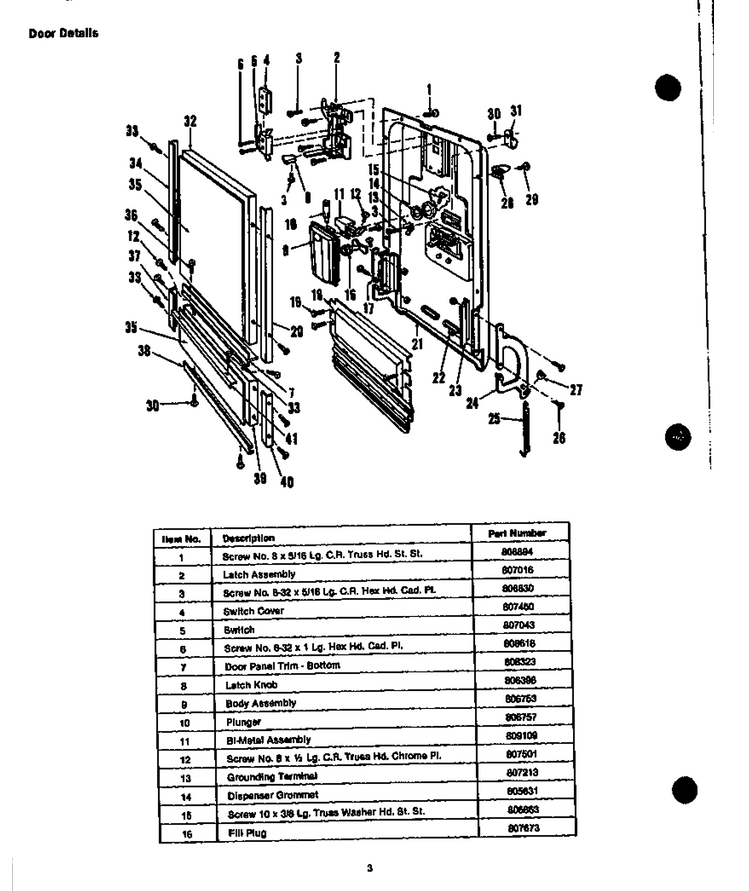

02 - Door Details

...
...
1
Screw WPL-0806894
...
2
Latch Asm WPL-807016
...
3
Screw WPL-0806830
...
4
Switch Cover WPL-0807450
...
5
Switch, Door Latch WPL-Y0807043
...
6
Screw WPL-0808618
...
7
Door Panel Trim, Bottom WPL-Y0808323
...
8
Sub 806893 Latch Knob WPL-0806398
...
9
Body Dispenser, Wetting Agent WPL-Y0806753
...
10
Plunger WPL-0806757
...
11
Bi-Metal Asm WPL-809109
...
12
Screw WPL-W11233072
...
13
Terminal, Grounding WPL-0807213
...
14
Grommet, Mounting WPL-0805631
...
15
Screw WPL-0806863
...
16
Fill Plug WPL-Y0807673
...
17
Arm, L.h. WPL-Y0807539
...
18
Vent Plate WPL-808370
...
19
Use 0806976 WPL-0806810
...
20
Door Panel Trim, Rh WPL-0808990
...
21
Weld & Finish Assy WPL-0808583
...
22
Nut WPL-M0282009
...
23
Arm Bracket WPL-Y0806717
...
24
Arm, R.h. WPL-0807538
...
25
Door Spring WPL-Y0807534
...
26
Screw WPL-0803311
...
27
Spring Pad WPL-0805884
...
28
Door Guide WPL-0807537
...
29
Screw WPL-Y0808749
...
30
Screw WPL-M0217225
...
31
Clamp WPL-Y0808442
...
32
Door Panel, White WPL-Y0808298
...
33
Screw WPL-WP74004005
...
34
Door Panel Trim, Lh WPL-0808991
...
35
Door & Access Pnl Inserts Blk WPL-0808923
...
36
Screw WPL-WP90767
...
37
Trim, Acc Side WPL-0808104
...
38
Access Panel Trim, Bottom WPL-0808303
...
39
Access Panel, White WPL-Y0808304
...
40
Trim, Acc Side WPL-0808103
...
41
Access Panel Trim, Top WPL-Y0808471
