Amana DUS-416-1W (BOM: DUS-416-1 W)

Model: DUS-416-1W (BOM: DUS-416-1 W)

Save Part Not Listed?
product name

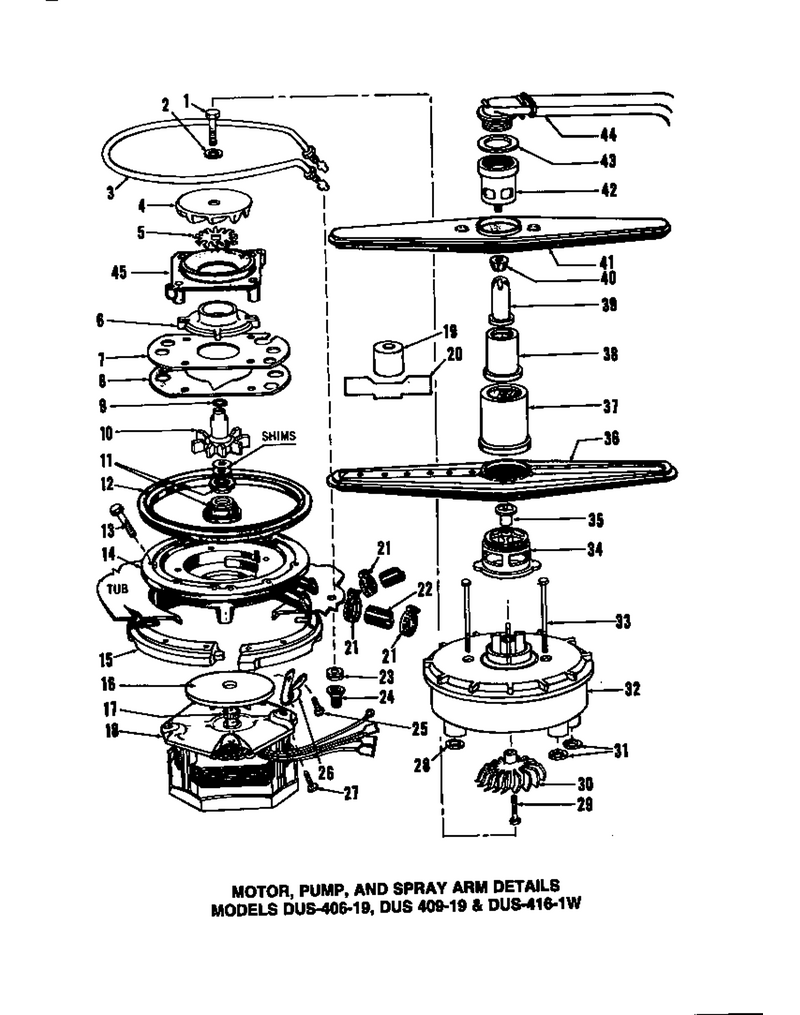

01 - Motor, Pump, And Spray Arm Details

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-0809004
...
4
Screw WPL-WP7101P126-60
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0809006
...
8
Pump Gasket WPL-Y0809007
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809110
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Housing WPL-Y03100021
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Clamp WPL-WP285655
...
22
Hose Connector WPL-0808174
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Screw WPL-807268
...
28
O Ring WPL-Y0809016
...
29
Screw WPL-0809073
...
30
Diffuser WPL-Y0809014
...
31
O Ring WPL-0809015
...
32
Filter Body WPL-Y809011
...
33
Screw WPL-0809012
...
34
Bearing WPL-Y0809046
...
35
Spray Arm Bolt WPL-809018
...
36
Spray Arm WPL-0808177
...
37
Tower Base WPL-Y0808178
...
38
Tower Section WPL-Y0808179
...
39
Tower Tip WPL-Y0808180
...
40
Nut, Spray Arm WPL-Y0808181
...
41
Spray Arm WPL-Y0809021
...
42
Distributor WPL-0808183
...
43
Gasket WPL-0808184
...
44
Elbow & Tube Assy WPL-0808185
...
45
Spacer Plate WPL-Y0809020
