Amana DUS-404-19 (BOM: DUS-404-1 9)

Model: DUS-404-19 (BOM: DUS-404-1 9)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

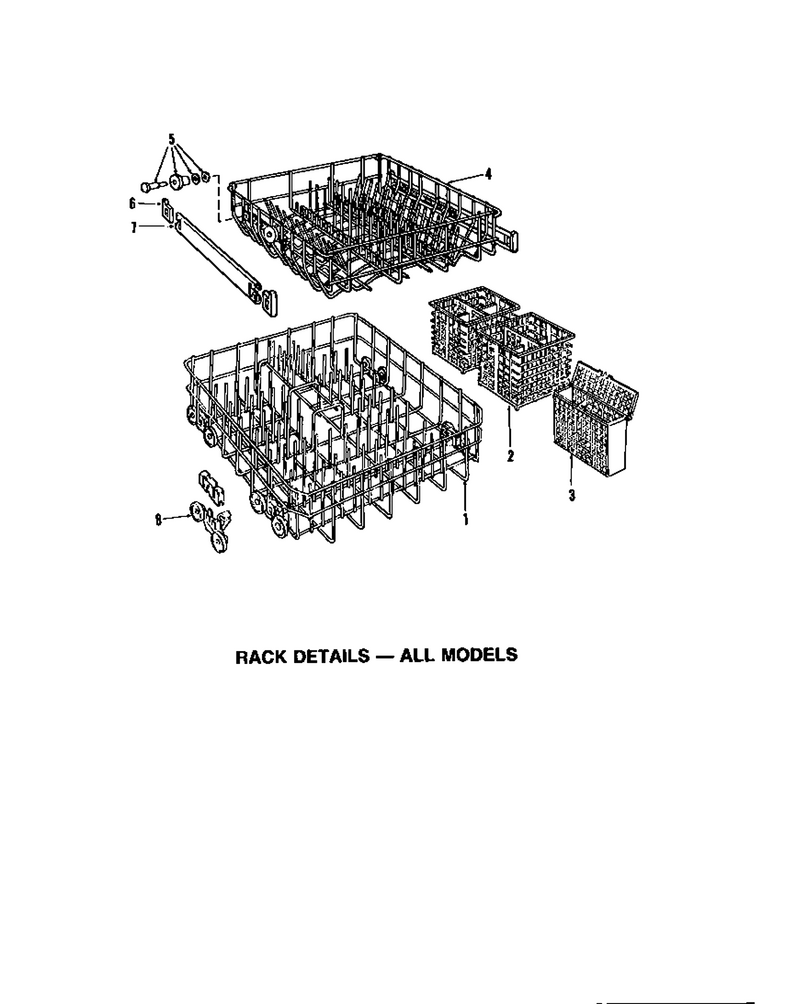

07 - Rack Details

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845
...
4
Rack, Upper WPL-0807902
...
5
Wheel Asm WPL-807957
...
6
End Cap, Rack Slide WPL-Y0807853
...
7
Rack Slide WPL-0807854
...
8
Wheel Assy WPL-Y0807008

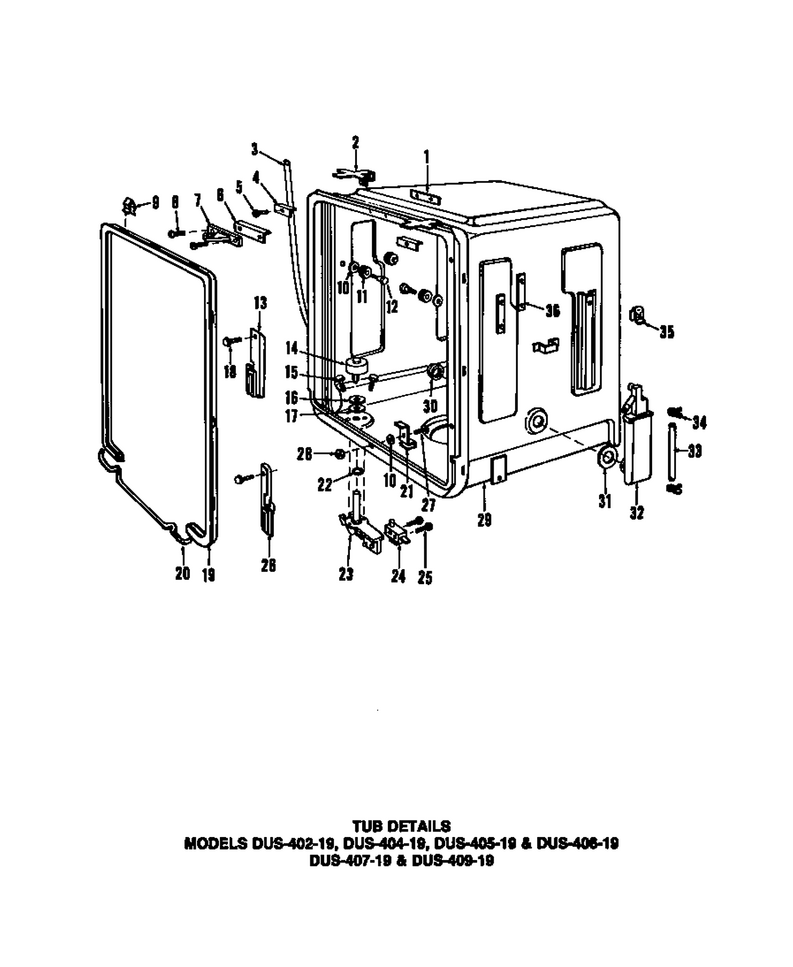

09 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Drain Hose WPL-809112
...
4
Clip, Shim WPL-0809199
...
5
Screw WPL-0806976
...
6
Shim WPL-0809214
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Clip Kit (Tub Gasket) WPL-805763
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL-4340834
...
20
Gasket, Wire Junction WPL-0809320
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Rh Guide WPL-807471
...
27
Screw WPL-WP250830
...
28
Use M0281003 WPL-0803346
...
29
Tub & Gasket Assy WPL-0809347
...
30
Nut Plastic WPL-0805669
...
31
Washer WPL-803573
...
32
Water Inlet Assy WPL-Y0806470
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Nut, Cage WPL-0806291
...
36
Twin Nut Assem. WPL-0807038

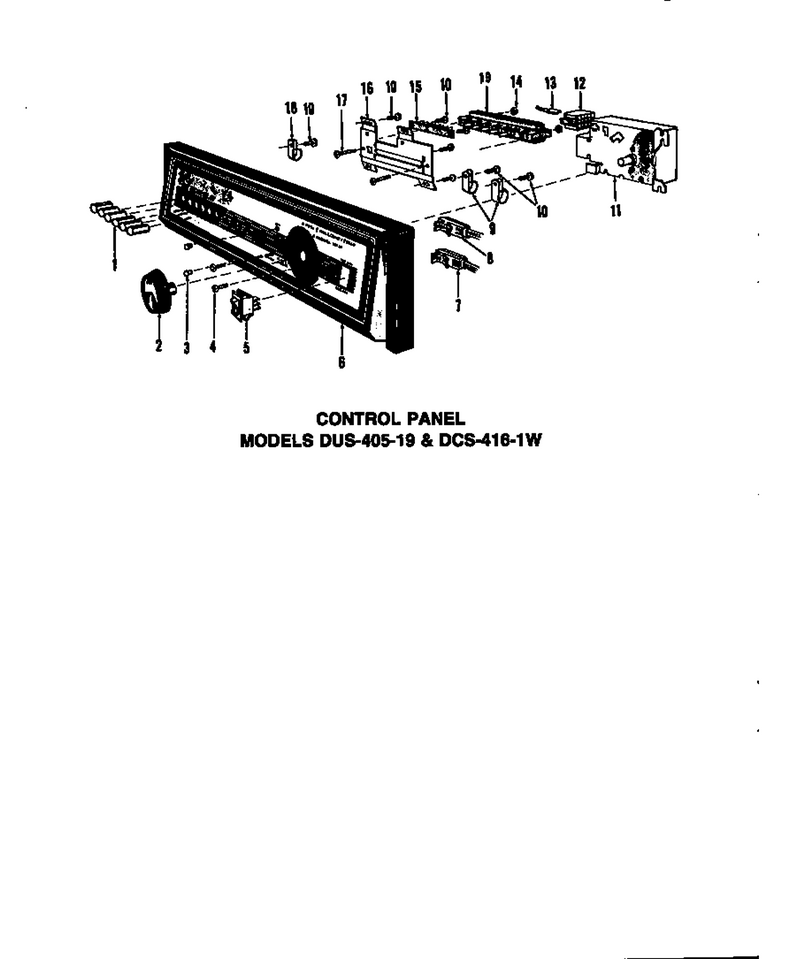

01 - Counter Panel

...
...
1
Push Button WPL-807091
...
2
Sub 809416, Knob, Timer WPL-0809350
...
3
Lens WPL-0809036
...
4
Screw WPL-0805324
...
5
Switch WPL-807665
...
6
Control Panel WPL-0809354
...
7
Light Assy. WPL-0809332
...
8
Light, Assy. WPL-0809317
...
9
Clamp WPL-Y0808442
...
10
Screw WPL-0809175
...
11
X Timer WPL-0809190
...
12
Timer, Terminal Housing WPL-0809296
...
13
Terminal, (Pack Of 25) WPL-0808333
...
14
Use M0281003 WPL-0803346
...
15
Terminal Board Assy. WPL-Y0808483
...
16
Bracket, Sw. Mtg. WPL-0809334
...
17
Screw WPL-0807103
...
18
Clamp WPL-W10833902
...
19
Switch WPL-0809368

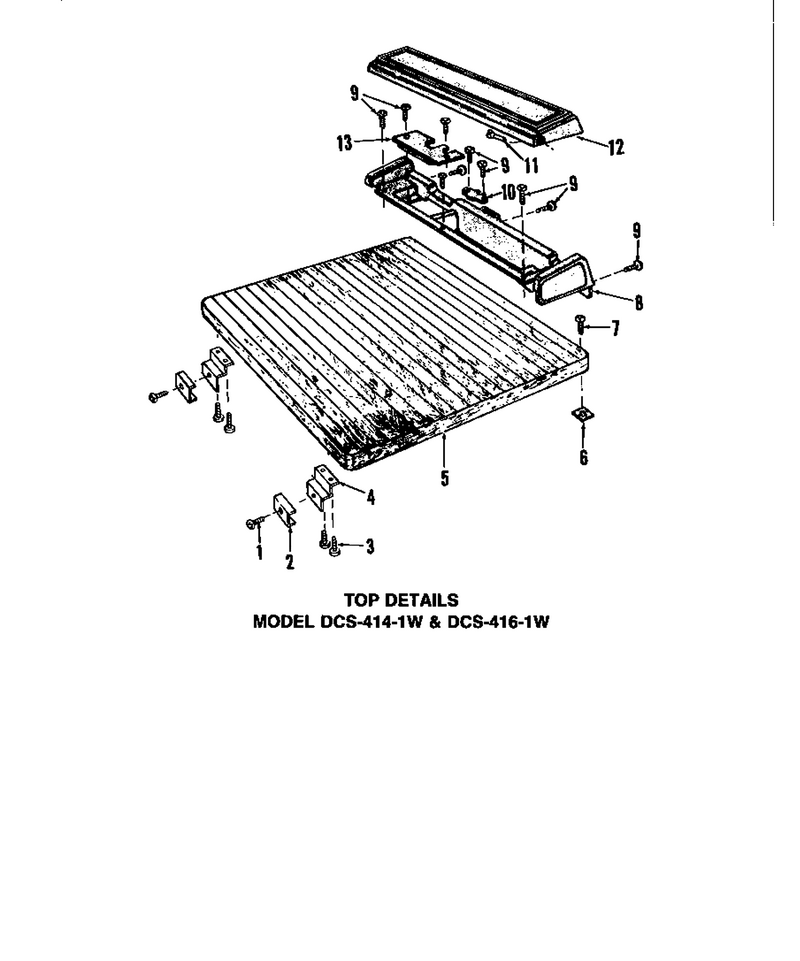

08 - Top Details

...
...
2
Clip, Shim WPL-0809199

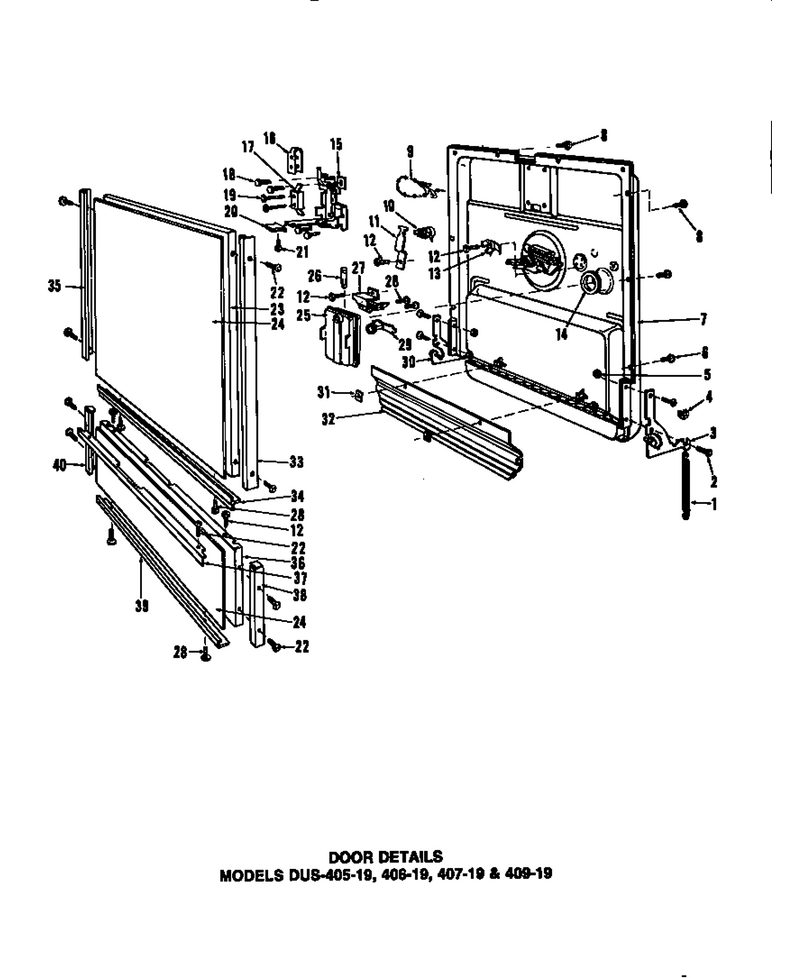

04 - Door Details

...
...
2
Screw WPL-0803311

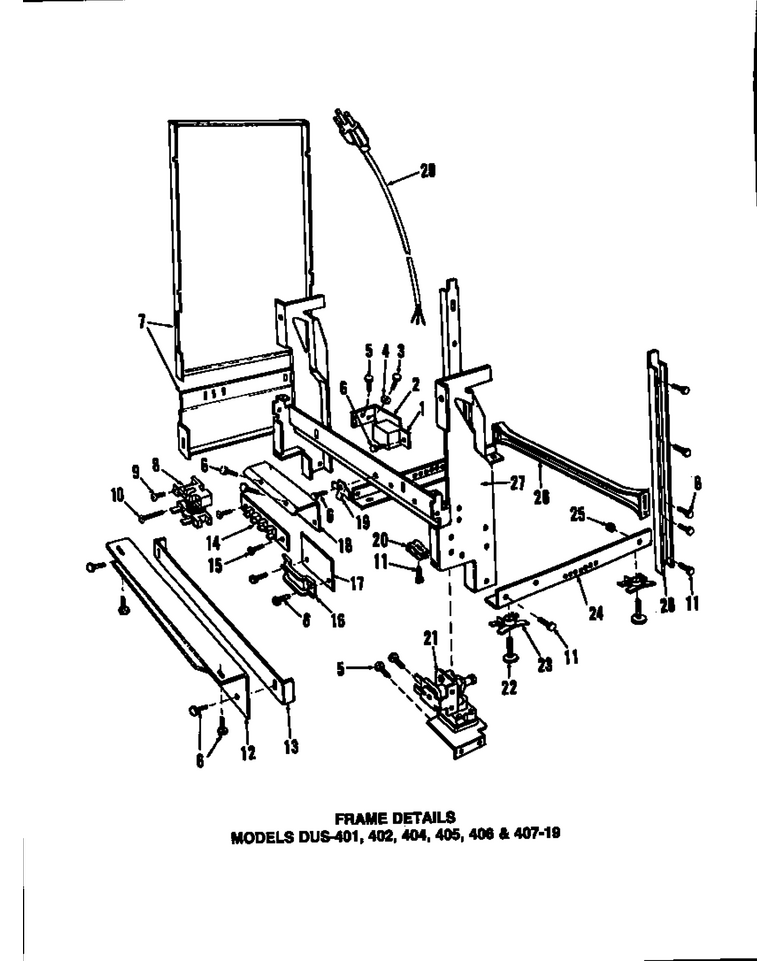

05 - Frame Details

...
...
1
Junction Box Cover WPL-0800222
...
2
Cover Bracket WPL-0807019
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Screw WPL-WP90767
...
7
Side Panel Kit WPL-808881
...
8
Relay WPL-0805255
...
9
Screw WPL-WP488234
...
10
Screw WPL-0804672
...
11
Screw WPL-0807001
...
12
Use 0809765 WPL-0809304
...
13
Toe Plate, Adjustable WPL-0809303
...
14
Terminal Block WPL-0807486
...
15
Screw WPL-W11233072
...
16
Wiring Clamp WPL-0806723
...
17
Wire Shield WPL-0809144
...
18
Bracket, Terminal Board WPL-0807849
...
19
Terminal, Grounding WPL-0807213
...
20
Speed Nut WPL-0808170
...
21
Valve Assy WPL-Y0809240
...
22
Leveling Legs WPL-0807672
...
23
Tee Nut - Snap In WPL-0807671
...
24
``u`` Frame Assembly WPL-Y0807851
...
25
Nut K WPL-M0282005
...
26
Brace, Rear WPL-Y0807852
...
27
Weld Assembly, Hinge WPL-0807848
...
28
Support Channel WPL-0808670
...
29
Power Cord WPL-Y0808395

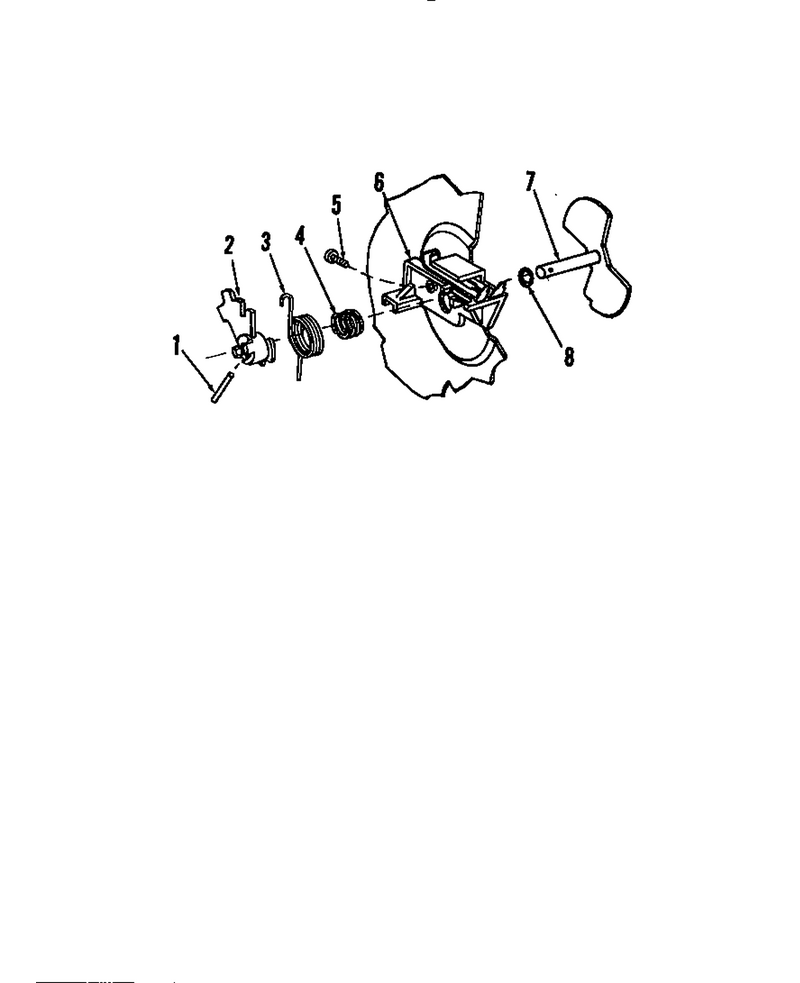

02 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

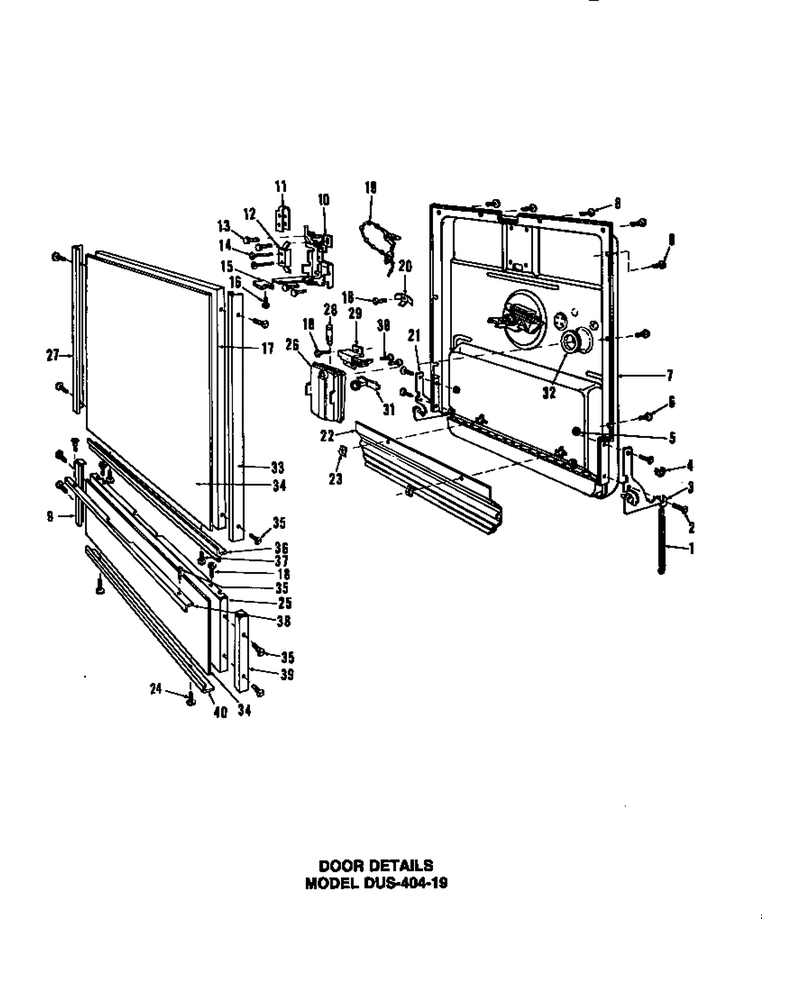

03 - Door Details

...
...
1
Door Spring WPL-809360
...
2
Screw WPL-0803311
...
3
Rh Arm WPL-805681
...
4
Spring Pad WPL-0805884
...
5
Nut WPL-828470
...
6
Screw WPL-WP7101P126-60
...
7
Door Assy. WPL-0809054
...
8
Screw WPL-Y0808749
...
9
Tie Wire WPL-WPM0322202
...
10
Thermostat WPL-Y0808956
...
11
Thermostat Retainer WPL-0809097
...
12
Screw WPL-WP90767
...
13
Terminal, Grounding WPL-0807213
...
14
Grommet, Mounting WPL-0805631
...
15
Latch Asm WPL-807016
...
16
Switch Cover WPL-0807450
...
17
Switch, Door Latch WPL-Y0807043
...
18
Screw WPL-W11233072
...
19
Screw WPL-0808618
...
21
Use 0806830 WPL-0809163
...
22
Screw WPL-WP74004005
...
23
Door Panel, White WPL-0807262
...
24
Door & Access Panel Insert,alm WPL-0808908
...
25
Body Dispenser, Wetting Agent WPL-Y0806753
...
26
Plunger WPL-808757
...
27
Bi-Metal Asm WPL-809109
...
28
Screw WPL-W11233072
...
29
Fill Plug WPL-Y0807673
...
30
Arm Assy Lh Counterbalance WPL-0805682
...
31
Speednut WPL-0809026
...
32
Baffle Seal WPL-Y0809025
...
33
Door Pnl Trim, Rh WPL-0808976
...
34
Door Trim, Bottom WPL-Y0807347
...
35
Door Pnl Trim, Lh WPL-0808977
...
36
Access Panel, White WPL-0809108
...
37
Trim, Top, Access Panel WPL-0808346
...
39
Sub 808027 Trim, Access WPL-Y0809994
...
40
Screw WPL-W11233072

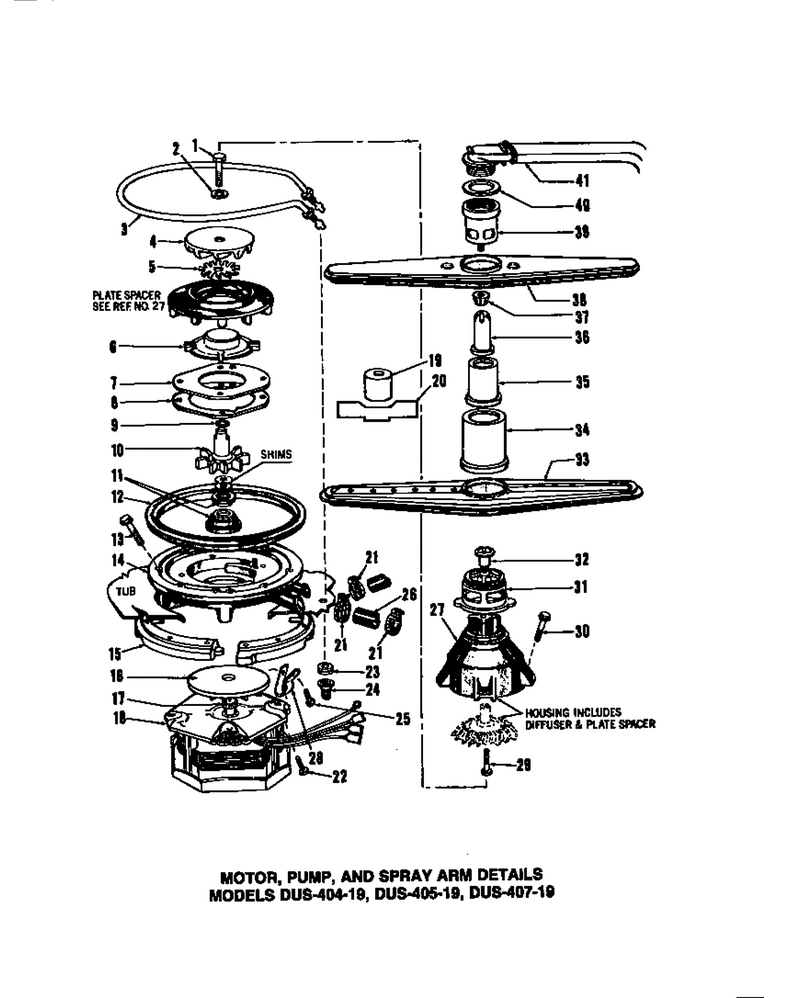

06 - Motor, Pump, And Spray Arm Details

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-Y0809060
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809110
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-809102
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Clamp WPL-WP285655
...
22
Screw WPL-807268
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Hose Connector WPL-0808174
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Clamp WPL-Y0808442
...
29
Screw WPL-WP67006908
...
30
Screw, Pump Housing WPL-0807359
...
31
Bearing WPL-Y0809046
...
32
Spray Arm Bolt WPL-809018
...
33
Spray Arm WPL-0808177
...
34
Tower Base WPL-Y0808178
...
35
Tower Section WPL-Y0808179
...
36
Tower Tip WPL-Y0808180
...
37
Nut, Spray Arm WPL-Y0808181
...
38
Spray Arm WPL-Y0809021
...
39
Distributor WPL-0808183
...
40
Gasket WPL-0808184
...
41
Elbow & Tube Assy WPL-0808185
