Amana DUS-401-1W (BOM: DUS-401-1 W)

Model: DUS-401-1W (BOM: DUS-401-1 W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

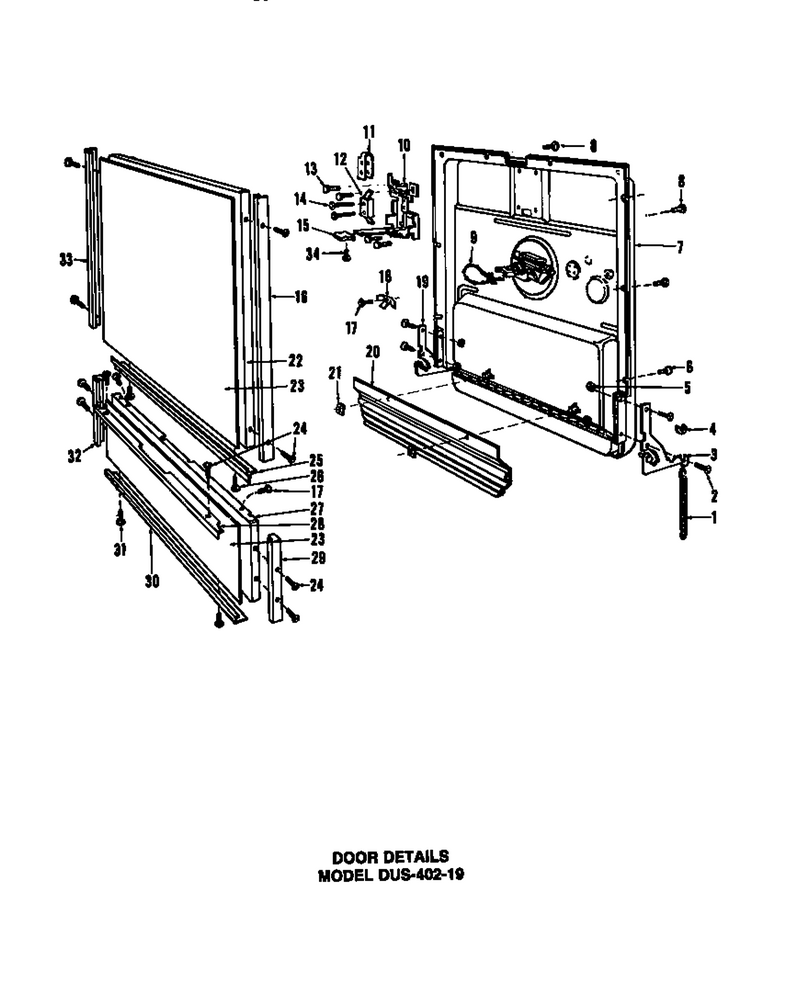

04 - Door Details

...
...
2
Screw WPL-0803311

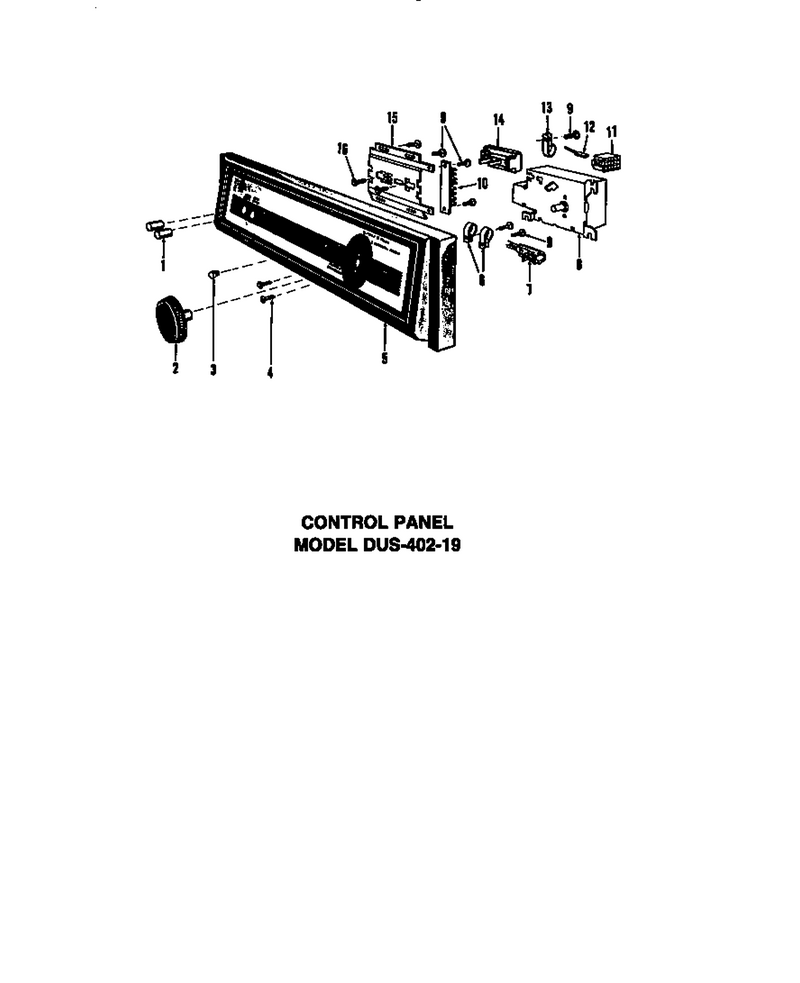

01 - Counter Panel

...
...
1
Push Button WPL-807091
...
2
Knob WPL-0809356
...
3
Lens WPL-0809036
...
4
Screw WPL-0805324
...
5
Control Panel WPL-0809357
...
6
Clamp WPL-Y0808442
...
7
Light, Assy. WPL-0809317
...
8
Timer WPL-Y0809191
...
9
Screw WPL-0809175
...
10
Terminal Board Assy. WPL-Y0808483
...
11
Timer, Terminal Housing WPL-0809296
...
12
Terminal, (Pack Of 25) WPL-0808333
...
13
Clamp WPL-W10833902
...
14
Switch WPL-807281
...
15
Bracket, Switch WPL-0809314
...
16
Screw WPL-0807141

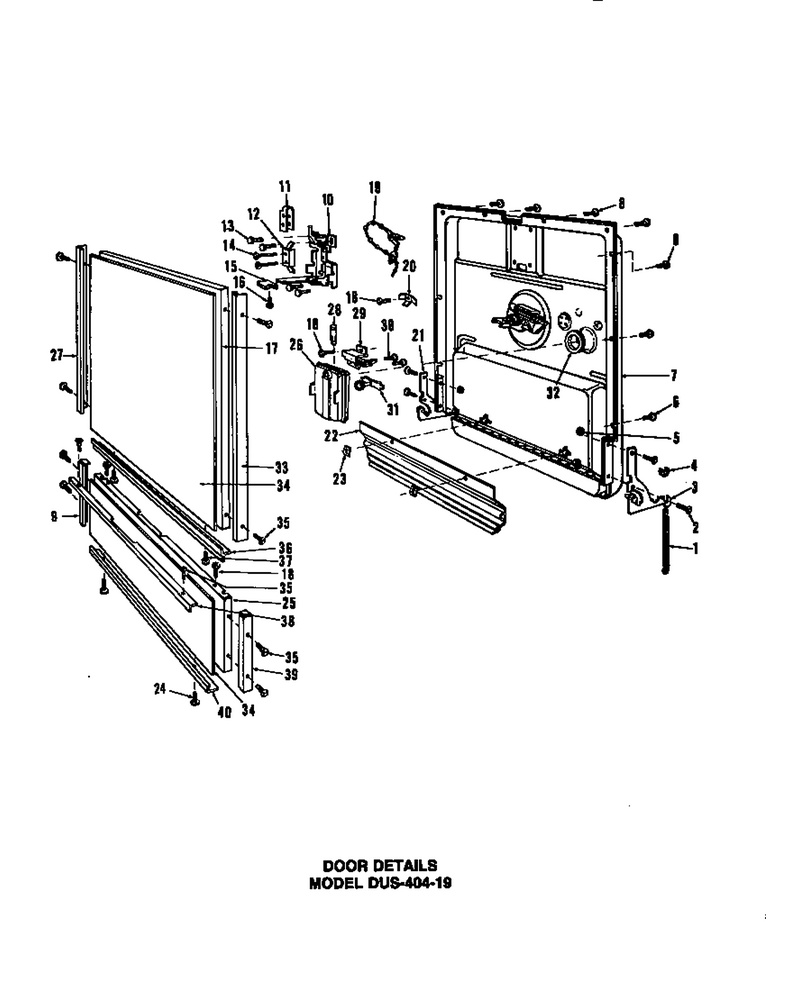

03 - Door Details

...
...
1
Door Spring WPL-809360
...
2
Screw WPL-0803311
...
3
Rh Arm WPL-805681
...
4
Spring Pad WPL-0805884
...
5
Nut WPL-M0282009
...
6
Screw WPL-WP7101P126-60
...
7
Door Assy. WPL-0809052
...
8
Screw WPL-Y0808749
...
9
Tie Wire WPL-WPM0322202
...
10
Latch Asm WPL-807016
...
11
Switch Cover WPL-0807450
...
12
Switch, Door Latch WPL-Y0807043
...
13
Screw WPL-W11233072
...
14
Screw WPL-0808618
...
15
Sub 806893 Latch Knob WPL-0806398
...
16
Door Panel Trim, Rh WPL-0808990
...
17
Screw WPL-WP90767
...
18
Terminal, Grounding WPL-0807213
...
19
Arm Assy Lh Counterbalance WPL-0805682
...
20
Baffle Seal WPL-Y0809025
...
21
Speednut WPL-0809026
...
22
Door Panel, White WPL-0807262
...
23
Door And Access Panel Inserts WPL-0808914
...
24
Screw WPL-WP74004005
...
25
Door Trim, Bottom WPL-Y0807347
...
26
Screw WPL-W11233072
...
27
Access Panel, White WPL-0809108
...
28
Trim, Top, Access Panel WPL-0808346
...
29
Trim, Acc Side WPL-0808103
...
30
Sub 808027 Trim, Access WPL-Y0809994
...
31
Screw WPL-M0217225
...
32
Trim, Acc Side WPL-0808104
...
33
Door Panel Trim, Lh WPL-0808991
...
34
Screw No.8 WPL-0808715

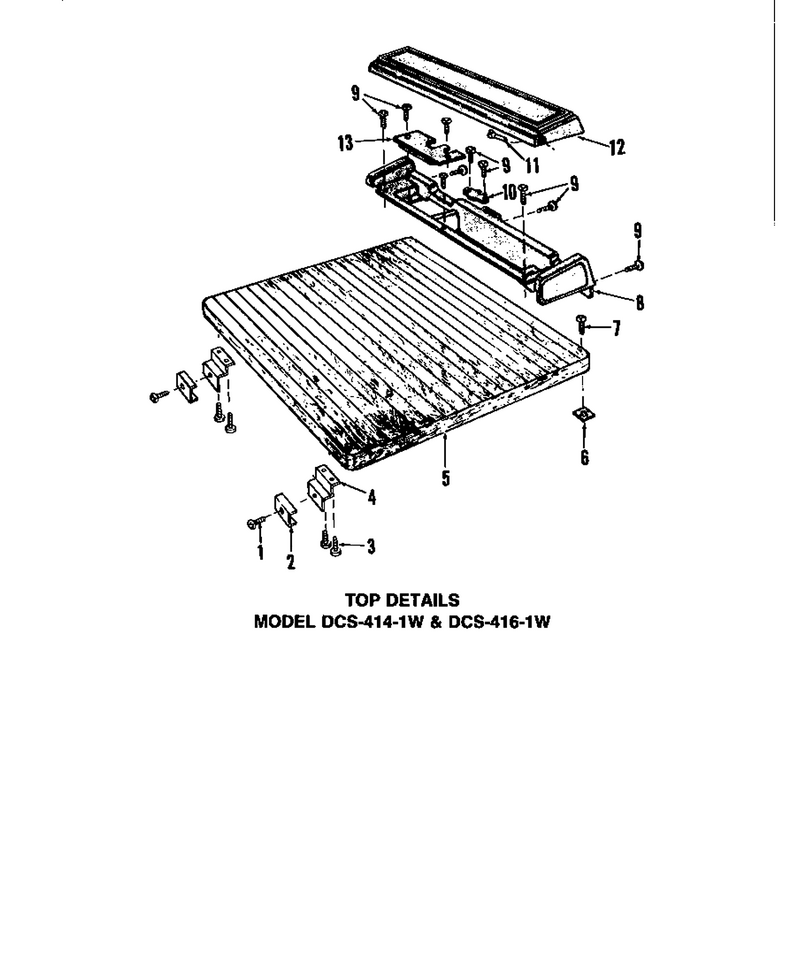

05 - Top Details

...
...
2
Clip, Shim WPL-0809199

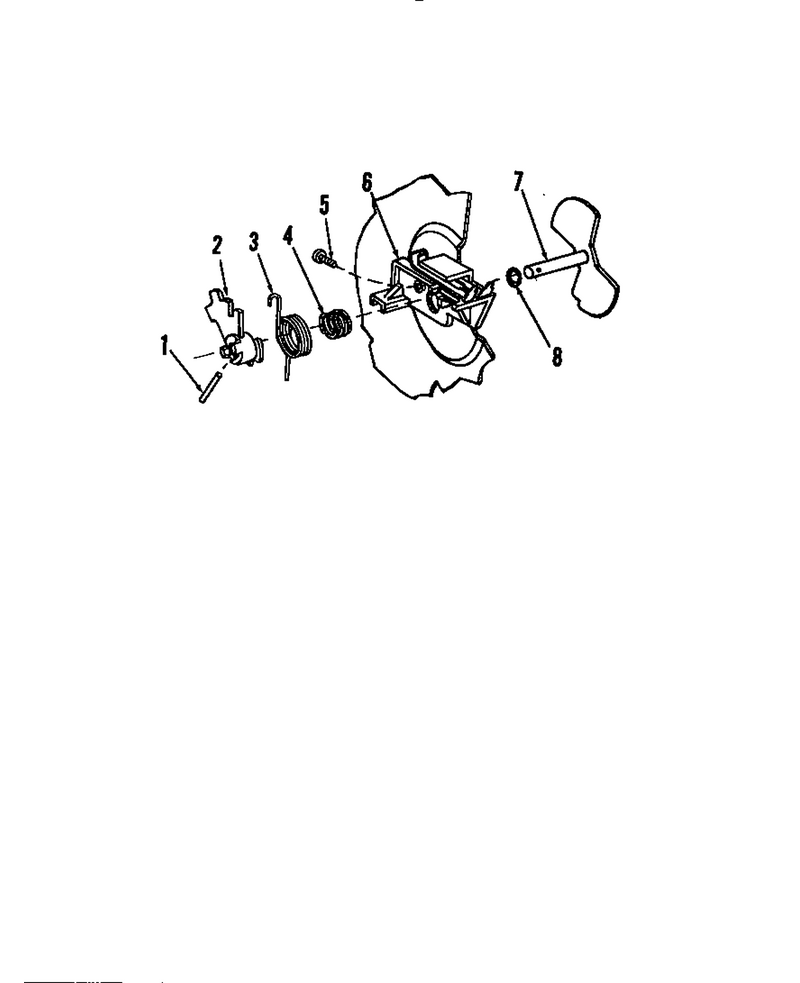

02 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

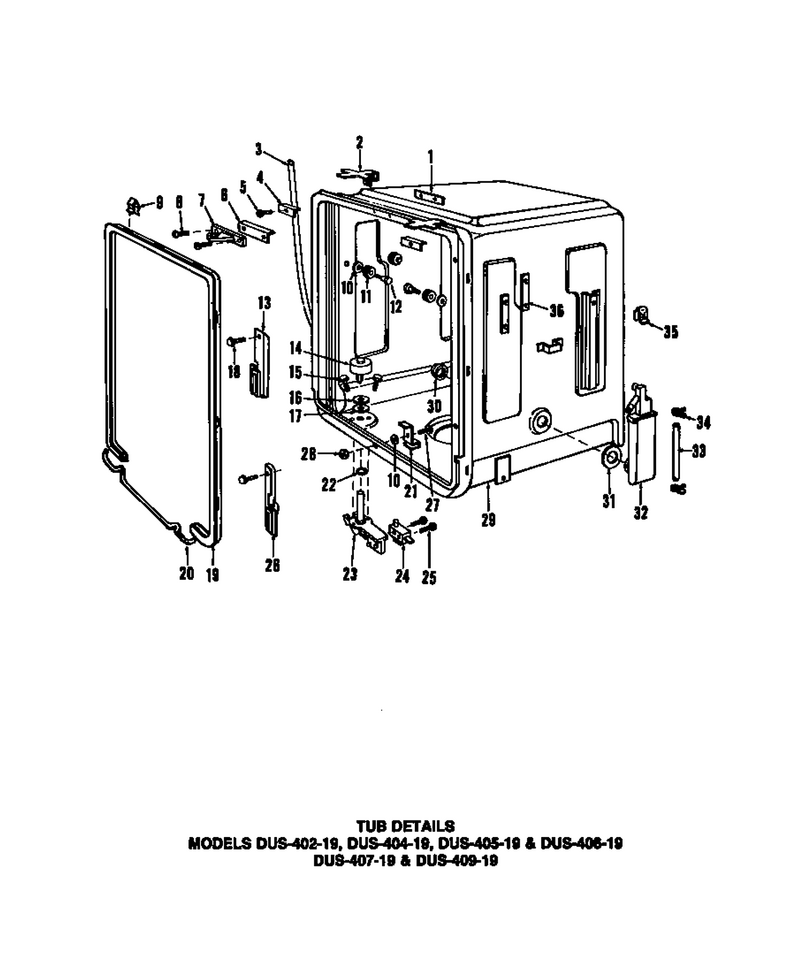

06 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Drain Hose WPL-809112
...
4
Clip, Shim WPL-0809199
...
5
Screw WPL-0806976
...
6
Shim WPL-0809214
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Clip Kit (Tub Gasket) WPL-805763
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL-4340834
...
20
Gasket, Wire Junction WPL-0809320
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Rh Guide WPL-807471
...
27
Screw WPL-WP250830
...
28
Use M0281003 WPL-0803346
...
29
Tub & Gasket Assy. WPL-0809257
...
30
Nut Plastic WPL-0805669
...
31
Washer WPL-803573
...
32
Water Inlet Assy WPL-Y0806470
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Nut, Cage WPL-0806291
...
36
Twin Nut Assem. WPL-0807038
