Amana DUS-114-19 (BOM: DUS-114-1 9)

Model: DUS-114-19 (BOM: DUS-114-1 9)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

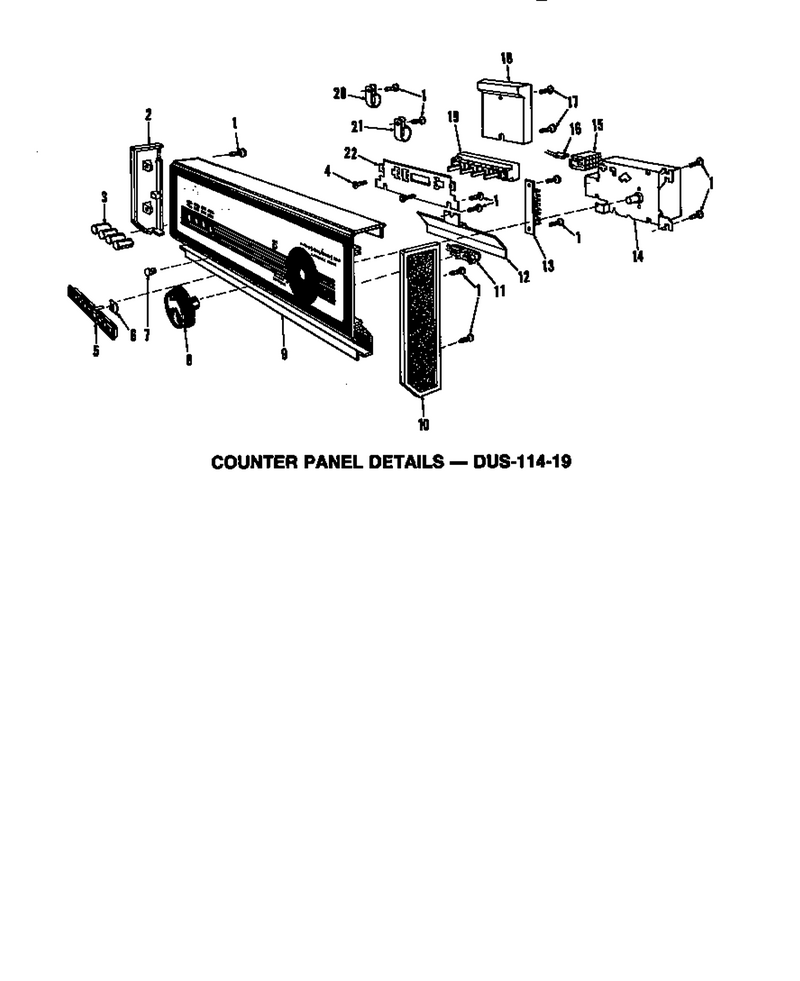

01 - Counter Panel Details

...
...
1
Screw WPL-0809175
...
2
End Cap, Lh WPL-0808694
...
3
Push Button WPL-807091
...
4
Screw WPL-0807141
...
5
Vent Grille WPL-Y0808477
...
6
Speed Nut WPL-Y0808475
...
7
Lens WPL-0809036
...
8
Knob WPL-0809356
...
9
Control Panel WPL-0809365
...
10
End Cap, Rh WPL-0808693
...
11
Light Assembly-Pilot WPL-809037
...
12
Vent Slot Shield WPL-0808574
...
13
Terminal Board Assy. WPL-Y0808483
...
14
X Timer WPL-0809190
...
15
Timer, Terminal Housing WPL-0809296
...
16
Terminal, (Pack Of 25) WPL-0808333
...
17
Screw WPL-0806894
...
18
Splash Pan WPL-0807425
...
19
Switch WPL-0809328
...
20
Clamp WPL-W10833902
...
21
Clamp WPL-Y0808442
...
22
Bracket, Switch Mounting WPL-0806594

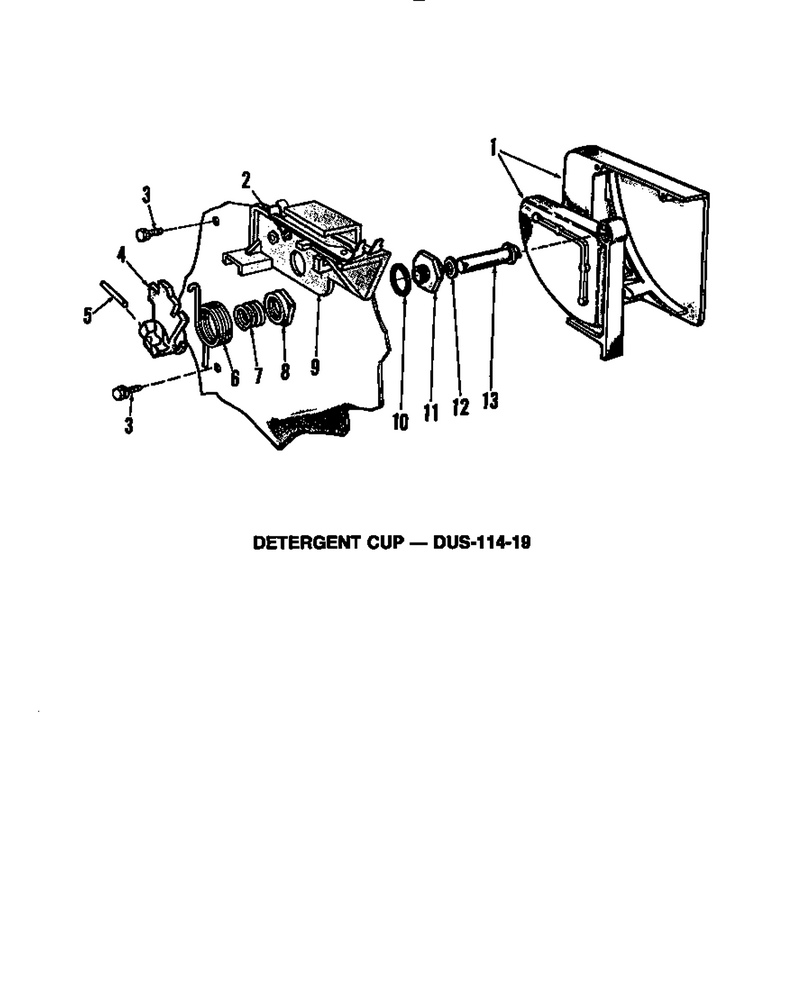

02 - Detergent Cup

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674

04 - Door Details

...
...
2
Screw WPL-0803311

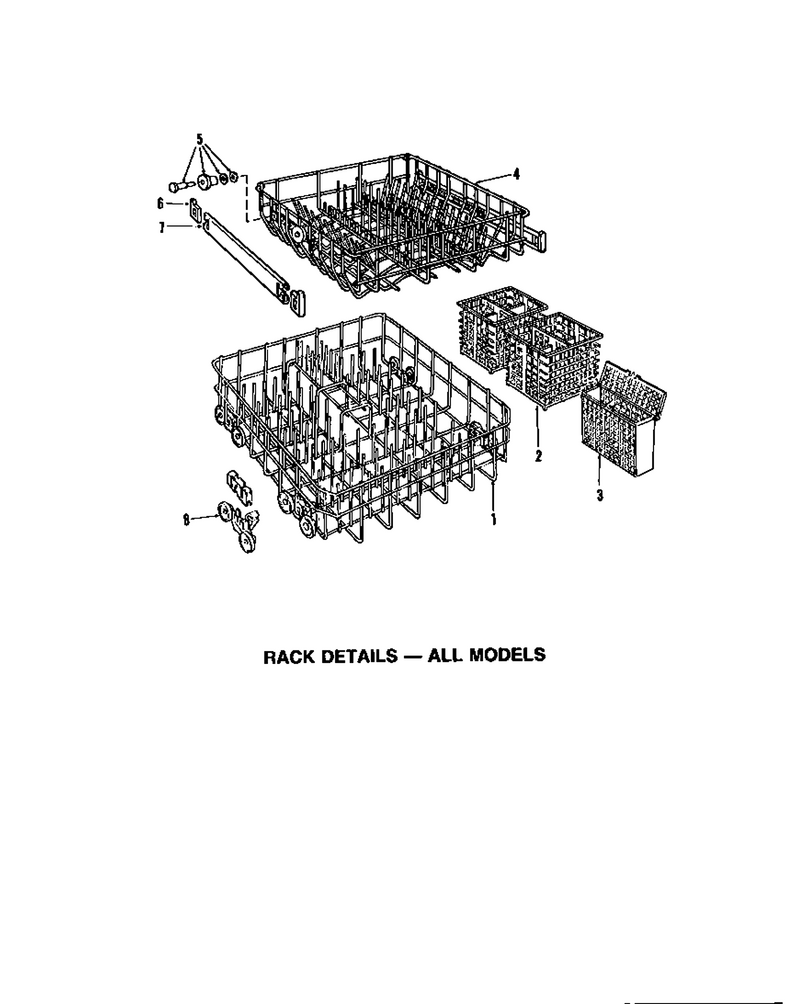

07 - Rack Details

...
...
1
Lower Rack Assy WPL-809641
...
2
Silverware Basket WPL-Y0808845
...
4
Upper Rack Assy. WPL-0809396
...
5
Wheel Asm WPL-807957
...
6
End Cap, Rack Slide WPL-Y0807853
...
7
Side Rail WPL-0809213
...
8
Wheel Assy WPL-Y0807008

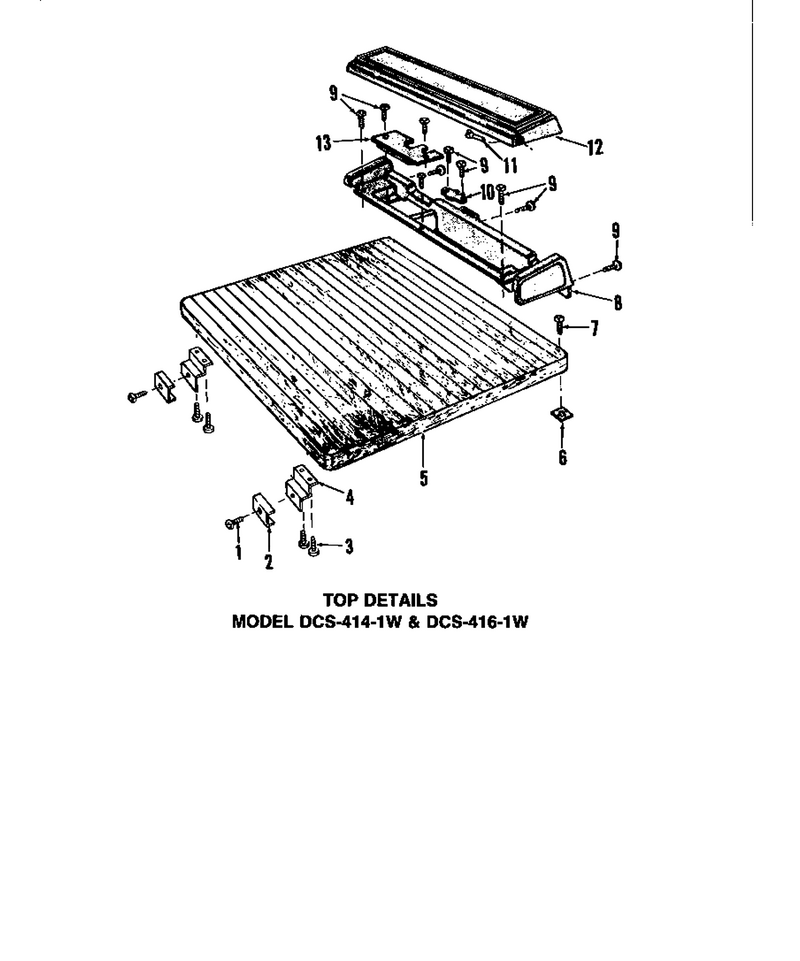

08 - Top Details

...
...
2
Clip, Shim WPL-0809199

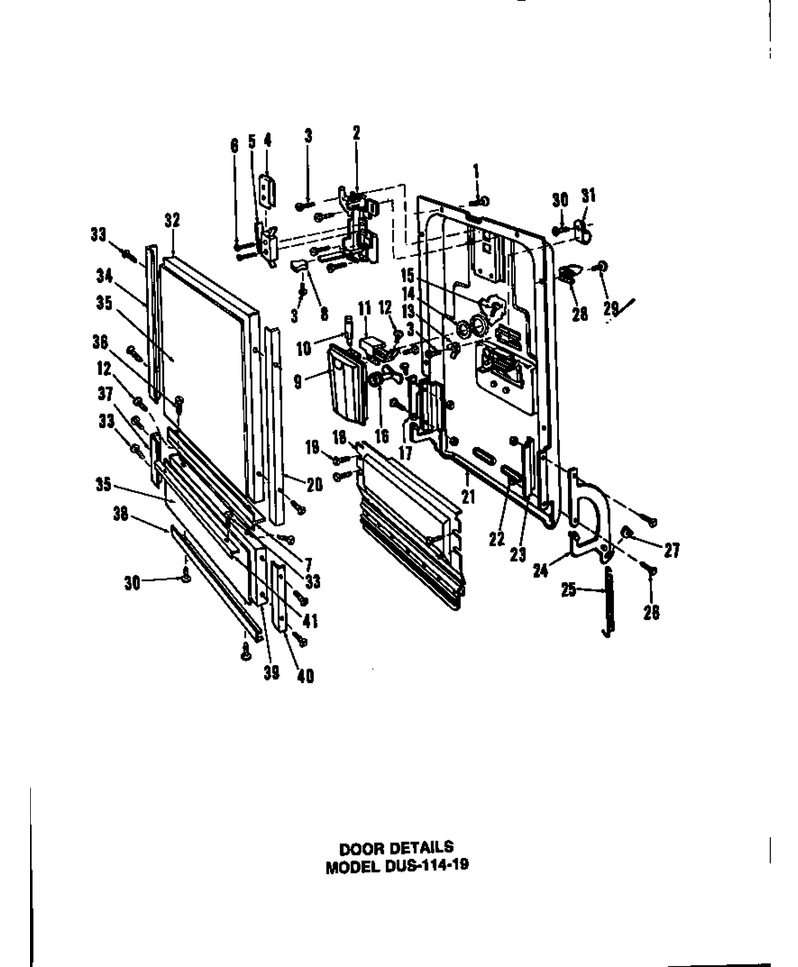

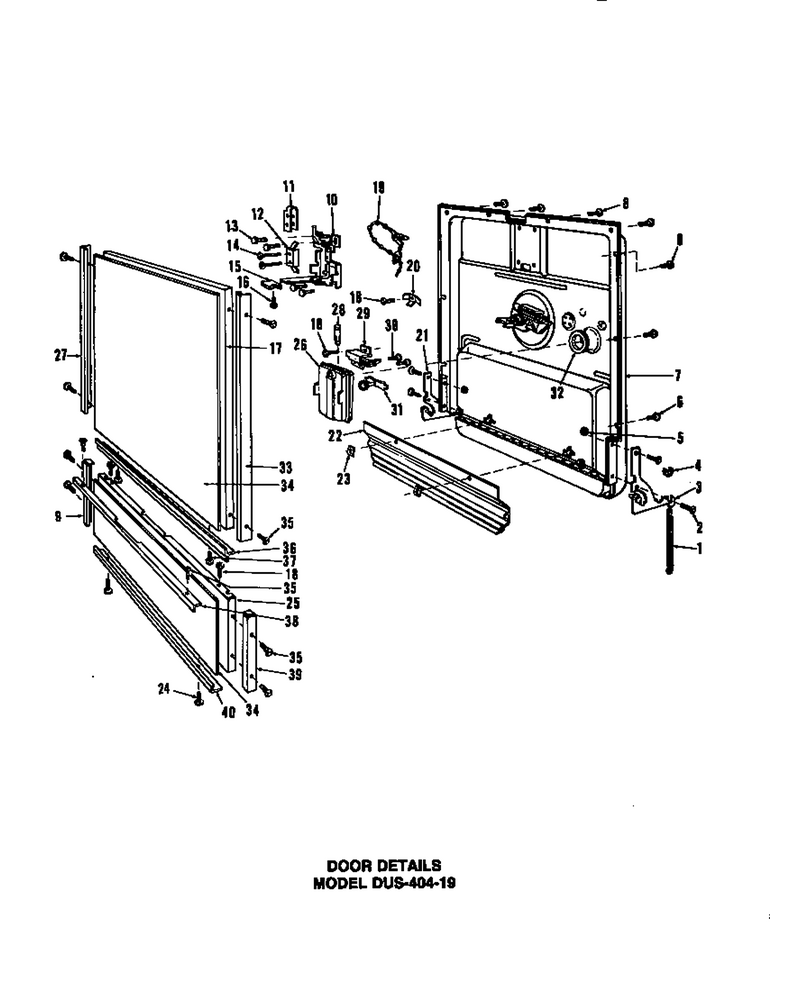

03 - Door Details

...
...
1
Screw WPL-0806894
...
2
Latch Asm WPL-807016
...
3
Screw WPL-0806830
...
4
Switch Cover WPL-0807450
...
5
Switch, Door Latch WPL-Y0807043
...
6
Screw WPL-0808618
...
7
Door Panel Trim, Bottom WPL-Y0808323
...
8
Knob WPL-0806893
...
9
Body Dispenser, Wetting Agent WPL-Y0806753
...
10
Plunger WPL-0806757
...
11
Bi-Metal Asm WPL-809109
...
12
Screw WPL-W11233072
...
13
Terminal, Grounding WPL-0807213
...
14
Grommet, Mounting WPL-0805631
...
15
Screw WPL-0806863
...
16
Fill Plug WPL-Y0807673
...
17
Arm, L.h. WPL-Y0807539
...
18
Vent Plate WPL-808370
...
19
Use 0806976 WPL-0806810
...
20
Door Panel Trim, Rh WPL-0808990
...
21
Weld & Finish Assy WPL-0808583
...
22
Nut WPL-M0282009
...
23
Arm Bracket WPL-Y0806717
...
24
Arm, R.h. WPL-0807538
...
25
Door Spring WPL-Y0807534
...
26
Screw WPL-0803311
...
27
Spring Pad WPL-0805884
...
28
Door Guide WPL-0807537
...
29
Switch WPL-808479
...
30
Screw WPL-M0217225
...
31
Clamp WPL-Y0808442
...
32
Door Panel, White WPL-Y0808298
...
33
Screw WPL-WP74004005
...
34
Door Panel Trim, Lh WPL-0808991
...
35
Door & Access Pnl Inserts Harv WPL-0808920
...
36
Door & Access Pnl Inserts Harv WPL-0808920
...
37
Trim, Acc Side WPL-0808104
...
38
Access Panel Trim, Bottom WPL-0808303
...
39
Access Panel, White WPL-Y0808304
...
40
Trim, Acc Side WPL-0808103
...
41
Access Panel Trim, Top WPL-Y0808471

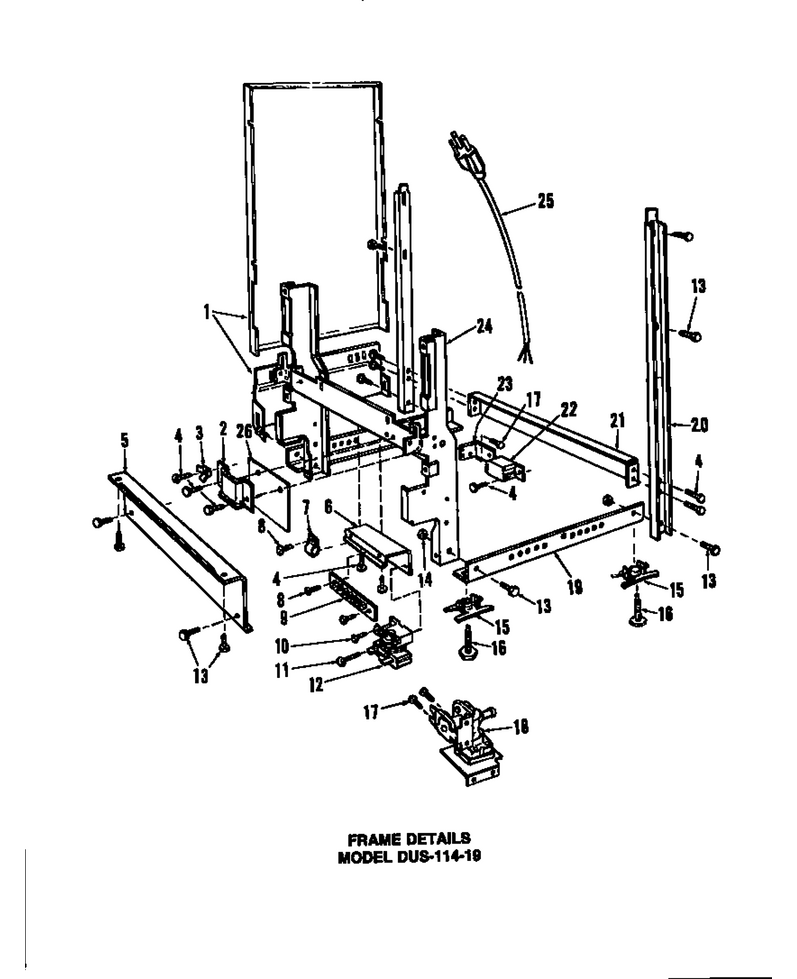

05 - Frame Details

...
...
1
Side Panel WPL-808885
...
2
Wiring Clamp WPL-0806723
...
3
Terminal, Grounding WPL-0807213
...
4
Screw WPL-WP90767
...
5
Toeplate WPL-0807559
...
6
Bracket, Terminal Board WPL-0807849
...
7
Clamp WPL-Y0808442
...
8
Terminal Block WPL-0807486
...
10
Screw WPL-WP488234
...
11
Screw WPL-0804672
...
12
Relay WPL-0805255
...
13
Screw WPL-0807001
...
14
Nut K WPL-M0282005
...
15
Tee Nut - Snap In WPL-0807671
...
16
Leveling Legs WPL-0807672
...
17
Washer WPL-0807590
...
18
Valve Assy. WPL-0809241
...
19
Base Angle WPL-0807564
...
20
Support Channel WPL-Y80670
...
21
Rear Brace WPL-Y827566
...
22
Junction Box Cover WPL-0800222
...
23
Cover Bracket WPL-0807019
...
24
Hinge, Frame WPL-0809212
...
25
Power Cord WPL-Y0808395

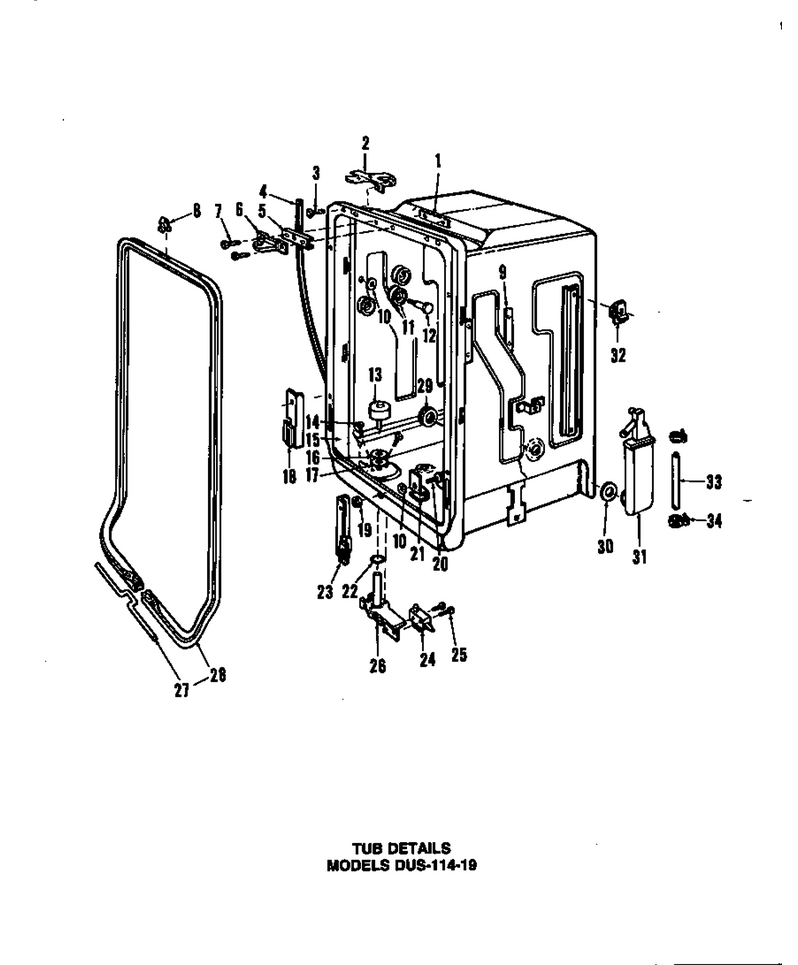

09 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Screw WPL-0806894
...
4
Drain Hose WPL-809112
...
5
Shim Strike WPL-0807073
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Twin Nut Assem. WPL-0807038
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Float WPL-Y0804630
...
14
Screw WPL-807268
...
15
Tub & Gasket Assy WPL-0809045
...
16
Ring WPL-Y0808064
...
17
Counterbalance Arm Guide, Lh WPL-0807599
...
19
Use M0281003 WPL-0803346
...
20
Screw WPL-WP250830
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Counterbalance Arm Guide, Rh WPL-0807600
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Float Assy WPL-Y0809859
...
27
Junction Rod WPL-0808118
...
28
Tub Gasket & Wire Assembly (Includes Key Nos. 8 & 27) WPL-809003
...
29
Nut Plastic WPL-0805669
...
30
Washer WPL-803573
...
31
Water Inlet Assy WPL-Y0806470
...
32
Nut, Cage WPL-0806291
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813

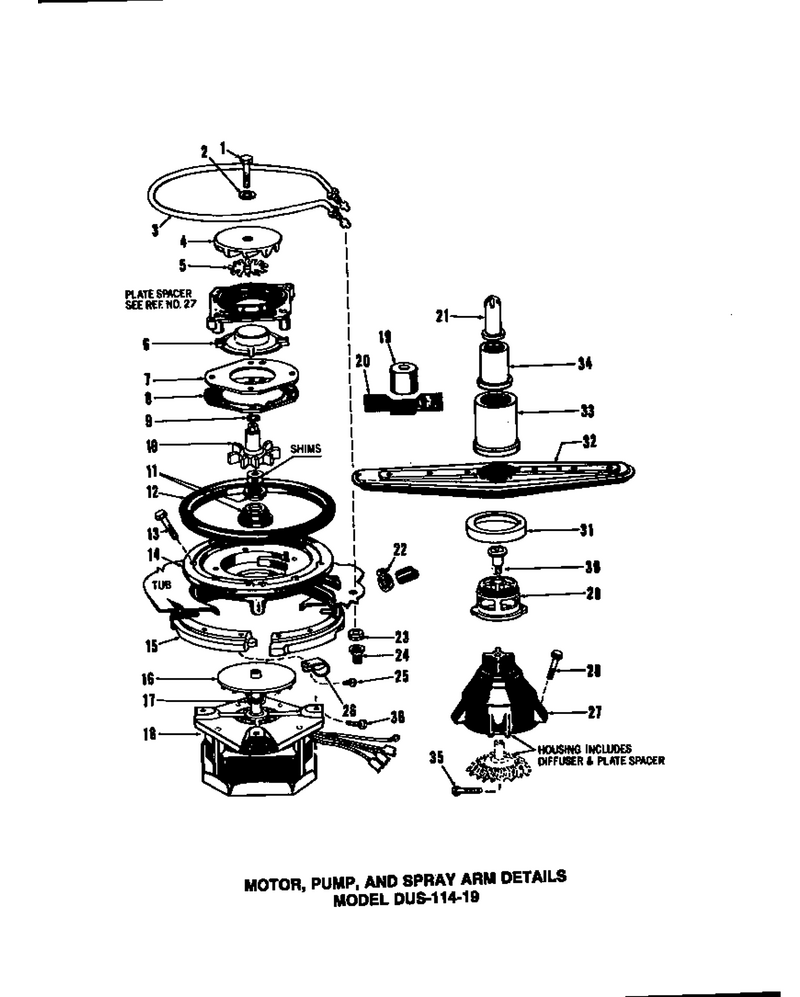

06 - Motor, Pump, And Spray Arm Details

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater Kit WPL-806864
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Water Shield Assy WPL-Y0809366
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Seal Shim Gage WPL-8070777
...
21
Tower Tip WPL-0808849
...
22
Clamp, Hose WPL-0806090
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw, Pump Housing WPL-0807359
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Shield Bearing WPL-808924
...
32
Spray Arm WPL-Y0808848
...
33
Tower Base WPL-Y0808178
...
34
Tower Section WPL-Y0808179
...
35
Screw WPL-WP67006908
...
36
Screw WPL-807268
