Amana DS30E2 (BOM P1332916M)

Model: DS30E2 (BOM P1332916M)

Save Part Not Listed?
product name

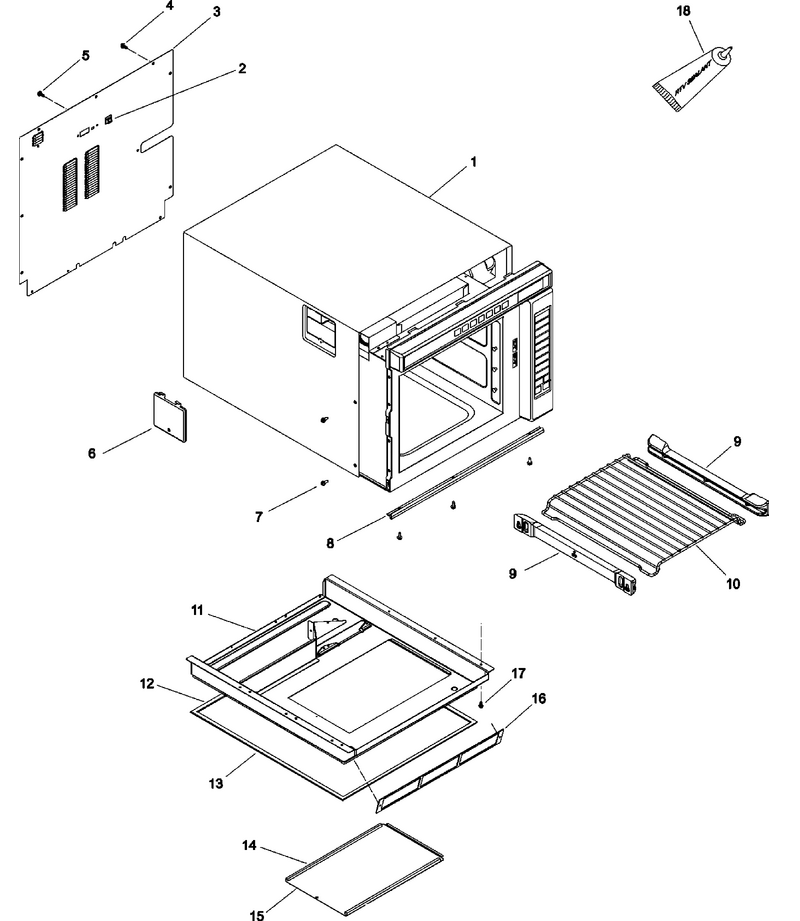

01 - Cabinet

...
...
001
Wrapper-Oc (Blk) WPL-10908908
...
002
Clip WPL-WPM0104106
...
003
Access Pan Weld (Blk) WPL-12002804
...
004
Screw-Sm/hex WPL-12990526
...
005
Screw WPL-WP3388228
...
006
Cover Light (Blk) WPL-10785610
...
007
Screw-Sm/oval WPL-13045301
...
008
Trim-Oc WPL-10909005
...
009
Rack Guide Assy WPL-12523203
...
010
Rack-Oven WPL-12487403
...
011
Assy, Base Pan & Gaskets WPL-R0150116
...
012
Basepan Gasket-Cut WPL-59001646
...
013
Basepan Gasket-Cut WPL-59001647
...
014
Gasket,per Ft WPL-A30303-30
...
015
Bottom Access Panel WPL-10782402
...
016
Not Required Part Or See Note WPL-W10124350
...
017
Screw WPL-WP489128
...
018
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408

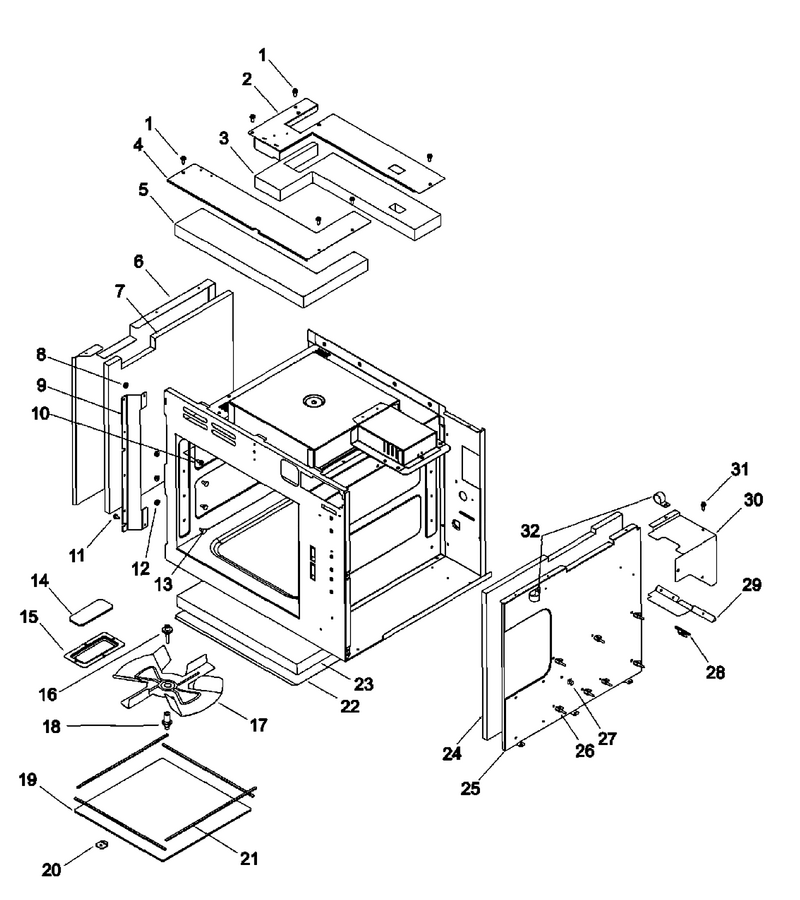

03 - Stirrer, Ducts,

...
...
001
Screw-Sm/hex WPL-12990526
...
002
Retainer-Top Back Insul WPL-10977401
...
003
Insul- Top Back Retainer WPL-12000701
...
004
Retainer-Top Front Insul WPL-10978002
...
005
Insul- Top Front Retainer WPL-12000702
...
006
Retainer-Side Insul Lt WPL-10977301
...
007
Insul- Side Retainer Lt WPL-12000501
...
008
Nut-No.6 Keps WPL-13045501
...
009
Brkt, Hinge Supp WPL-12189004
...
010
Screw-Mach WPL-M0202557
...
011
Screw-Tf/hex Rohs WPL-59002047
...
012
Nut-No.8 Keps WPL-59002051
...
013
Bolt-Shldr WPL-12030101
...
014
Glass-Oven Light WPL-12047501
...
015
Screw WPL-M0213815
...
016
Shaft, Stirrer WPL-12004401
...
017
Blade, Stirrer WPL-10825904Q
...
018
Kit-Insert & Blade Stirrer WPL-R0130737
...
019
Assy, Stirrer Cover WPL-R0150115
...
020
Screw WPL-M0213815
...
021
Gasket WPL-12019002
...
022
Screw WPL-67007110
...
023
Insul-Bottom Retainer WPL-12000703
...
024
Insul- Side Retainer Rt WPL-12000401
...
025
Screw WPL-67007110
...
026
Screw-Sm/hex WPL-12990522
...
027
Not Required Part Or See Note WPL-W10124350
...
028
Clip WPL-WPM0104106
...
029
Duct-Blower/mag WPL-10978601
...
030
Cover-Mag Inlet WPL-10978702
...
031
Screw-Sm/hex WPL-12990522
...
032
Clamp-.75 Tube WPL-13049701

...
...
001
Manual-Owners WPL-NLA
...
002
Manual-Service WPL-RS5320016
...
003
Manual-Prod Safety WPL-13062001
...
004
Tech Sht, Comm Micro WPL-16027601
...
005
Harness-Triacs & Rtd Wires WPL-13018601
...
006
Harness-Pc Board WPL-13018301
...
007
Harness-Interlock WPL-13018201
...
008
Harness-Oven Lt WPL-13018401
...
009
Harness-Oven WPL-13018501
...
010
Wire-Hv Jumper WPL-13017704
...
011
Wire-Hv Jumper WPL-13017705
...
012
Wire-Hv Jumper WPL-13017706
...
013
Bit For Crow Foot Drive Screws WPL-92113P01
...
014
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408
...
015
Flat Sheet WPL-59001516
...
016
Rack & Guide Kit WPL-NLA
...
017
Fry Basket WPL-59001518
...
018
Pizza Stone WPL-59001519
...
019
Cavity Cleaner WPL-59001520
...
020
Drip Tray WPL-NLA

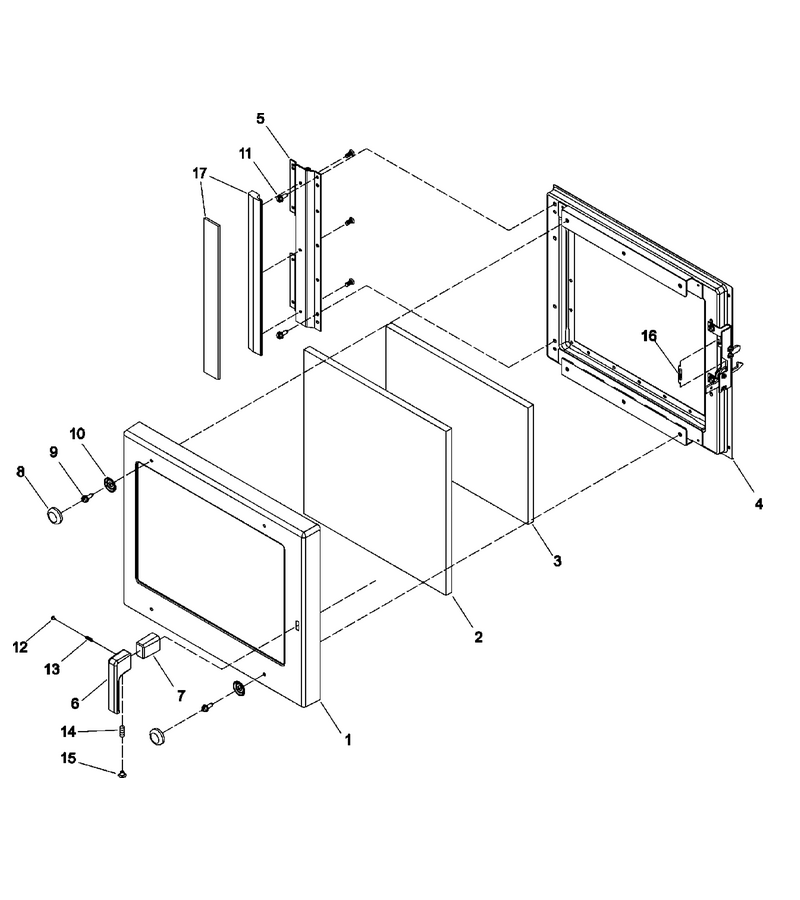

02 - Door

...
...
001
Door-Outer WPL-59001511
...
002
Insul-Door (Large Sheet) WPL-59001720
...
003
Insul-Door (Small Sheet) WPL-59001719
...
004
Inner Door Assy- Ace WPL-59002021
...
005
Hinge- Door WPL-59001869
...
006
Door Handle WPL-12490902
...
007
Insert,handle WPL-12576901
...
008
Cap-Screw WPL-59001660
...
009
Screw-Tc/holt WPL-13042701
...
010
Washer, Cap Screw WPL-M0295502
...
011
Screw WPL-WP12990527
...
012
Plug, Button (Blk) WPL-12360703
...
013
Screw- Set/cone WPL-59002036
...
014
Screw WPL-WP8533976
...
015
Plug, Button (Wht) WPL-M0310305
...
016
Spring-Door Latch WPL-59001721
...
017
Hinge Cover (Gray) WPL-59001230
...
018
Bit For Crow Foot Drive Screws WPL-92113P01

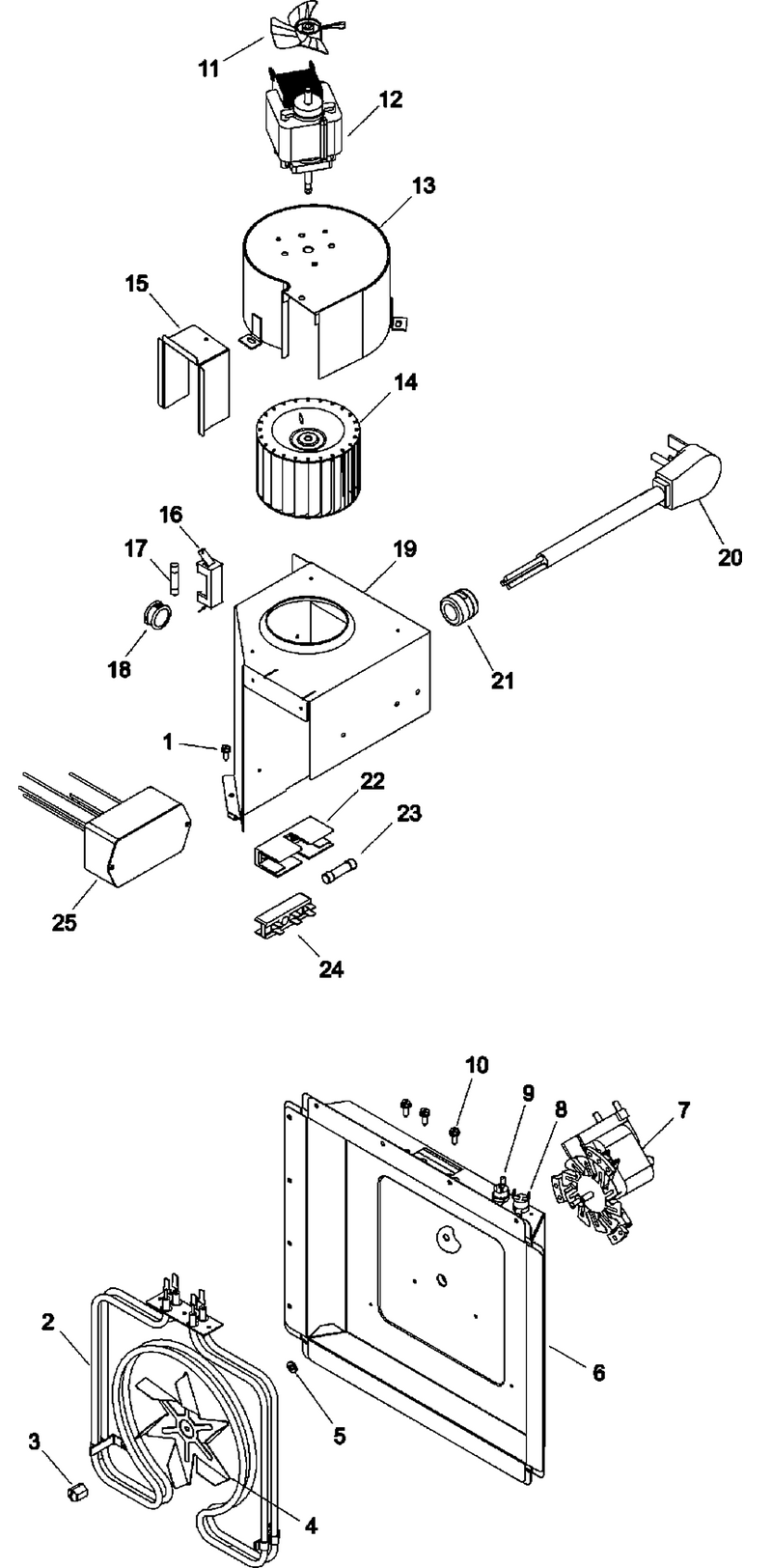

04 - Fuses, Blower, Heater Box,

...
...
001
Screw-Sm/hex WPL-12990526
...
002
Screw-Tc/pan WPL-13041801
...
003
Nut,cap WPL-12538001
...
004
Blade, Fan WPL-12537901
...
005
Washer WPL-12546101
...
006
Screw, Sm WPL-67006425
...
007
Screw WPL-WP489464
...
008
Screw-Tc/round WPL-67006950
...
009
Screw-Tc/round WPL-67006950
...
010
Screw-Sm/pan WPL-12990606
...
011
Fan Blade WPL-B5706704
...
012
Screw-Tf/hex WPL-12992305
...
013
Scroll Weld WPL-10797203
...
014
Wheel, Blower WPL-C3670809
...
015
Screw-Sm/hex WPL-12990526
...
016
Screw WPL-WP59002061
...
017
Fuse WPL-WPM0805102
...
018
Bushing-Snap WPL-M0571003
...
019
Bracket,blower Weld WPL-12000812
...
020
Cord, Power WPL-59002001
...
021
Relief- Strain WPL-M0370009
...
022
Screw-Sm/hex WPL-12990522
...
023
Fuse,15 Amp WPL-M0805202
...
024
Screw-Sm/pan WPL-12990606
...
025
Filter-Line WPL-12130001

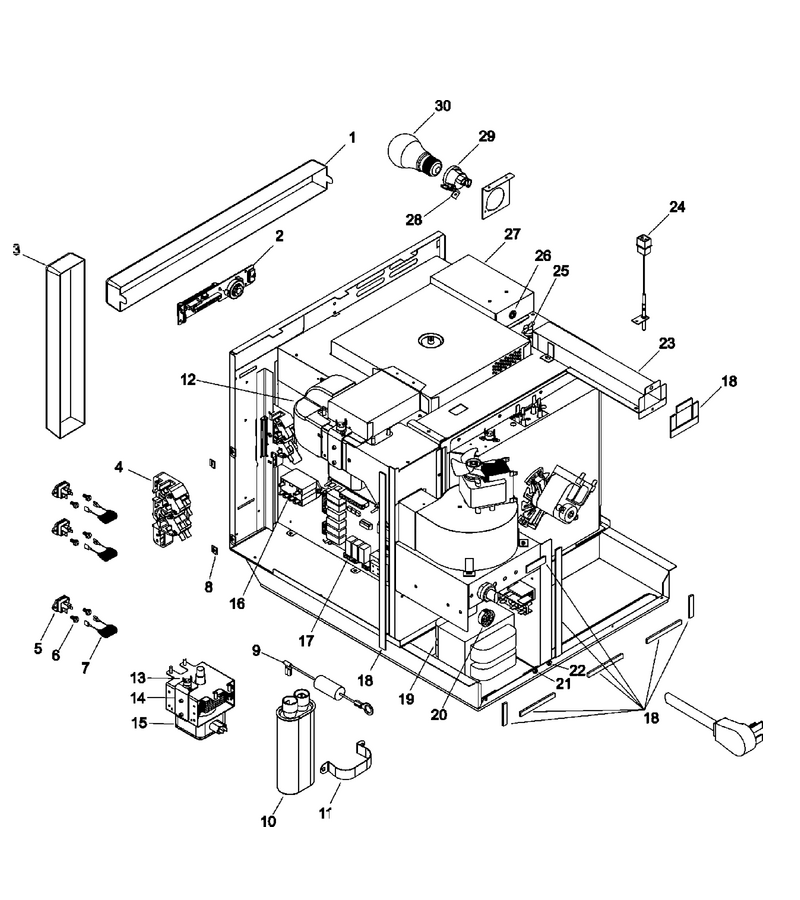

05 - Electrical Components

...
...
001
Screw-Tf/hex Rohs WPL-59002047
...
002
Board,display WPL-12502404
...
003
Screw-Tf/hex Rohs WPL-59002047
...
004
Screw WPL-WP98165
...
005
Kit, Triac Assy WPL-R0157373
...
006
Screw-Sm/hex WPL-12990526
...
007
Snubber Assembly WPL-59002017
...
008
Nut-No.6 Speed WPL-M0287016
...
009
Screw-Tf/hex Rohs WPL-59002047
...
010
Capacitor-1.30 WPL-59001172
...
011
Screw WPL-WP489497
...
012
Screw WPL-WP90767
...
013
Cutout-Thermal WPL-B5684119
...
014
Brkt-Tco Mtg WPL-10999501
...
015
Magnetron-T WPL-59001484
...
016
Screw WPL-WP90767
...
017
Board-Hv WPL-12502810
...
018
Gasket,per Ft WPL-A30303-30
...
019
Transformer-Hv 230v 50 Hz WPL-10788620
...
020
Snap Bushing WPL-M0571001
...
021
Screw WPL-WP90767
...
022
Screw WPL-WP12990527
...
023
Flue Duct Weld WPL-12002901
...
024
Sensor-Temp WPL-12000202
...
025
Thermal Protector WPL-B5684102
...
026
Bushing WPL-A3293501
...
027
Cover,lamp WPL-12630501
...
028
Screw WPL-WP59002061
...
029
Screw-Sm/hex WPL-12990522
...
030
Bulb-Light WPL-WP67002552

...
...
001
Wiring Information WPL-NLA
