Amana DS30E (BOM P1325908M)

Model: DS30E (BOM P1325908M)

Save Part Not Listed?
product name

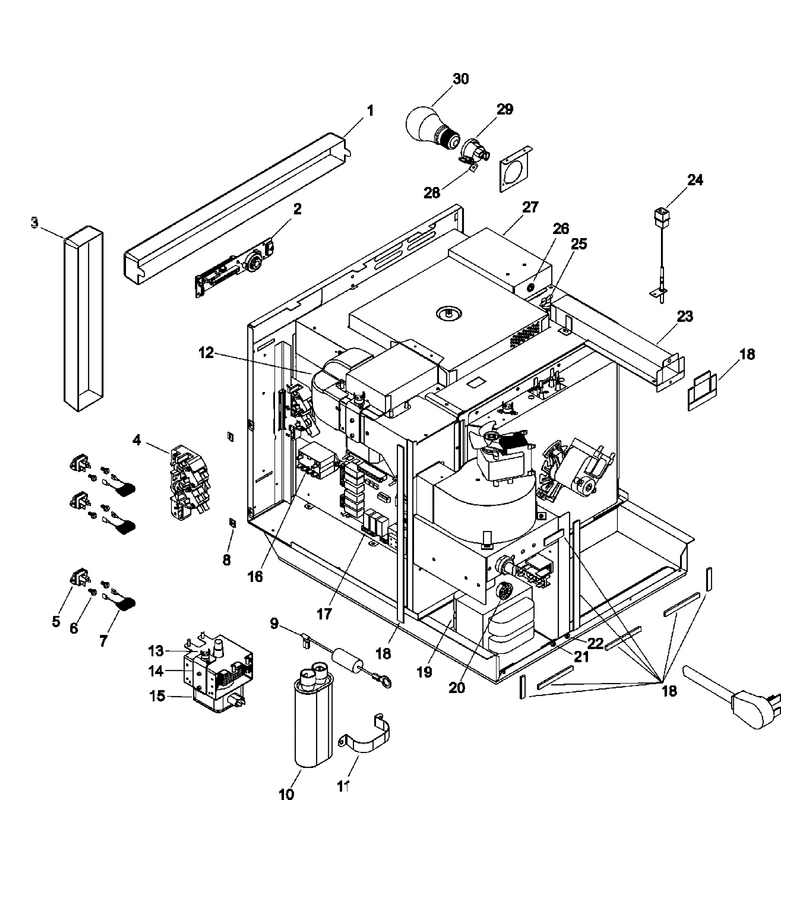

03 - Electrical Components

...
...
001
Touch Panel-Top WPL-59001673
...
002
Screw WPL-M0234114
...
003
Screw, Hex Head WPL-59001208
...
004
Screw-Sm/hex WPL-12990523
...
005
Triac WPL-D7681501
...
006
Screw WPL-WP90767
...
007
Snubber Assembly WPL-59002017
...
008
Nut-Speed WPL-M0287001
...
009
Screw, Hex Head WPL-59001208
...
010
Capacitor-1.30 WPL-59001172
...
011
Screw, Hex Head WPL-59001208
...
012
Screw WPL-WP90767
...
013
Cutout-Thermal WPL-B5684119
...
014
Brkt-Tco Mtg WPL-10999501
...
015
Magnetron-T WPL-59001484
...
016
Screw WPL-WP90767
...
017
Board,hv Amana Program WPL-12559101Q
...
018
Gasket (Inch) WPL-A3030301
...
019
Transformer-Hv 230v 50 Hz WPL-10788620
...
020
Snap Bushing WPL-M0571001
...
021
Screw WPL-WP90767
...
022
Screw WPL-WP3388228
...
023
Screw WPL-WP90767
...
024
Sensor-Temp WPL-12000202
...
025
Thermal Protector WPL-B5684102
...
026
Bushing WPL-A3293501
...
027
Screw WPL-WP90767
...
028
Screw WPL-WP489349
...
029
Screw WPL-WP59002061
...
030
Bulb-Light WPL-WP67002552

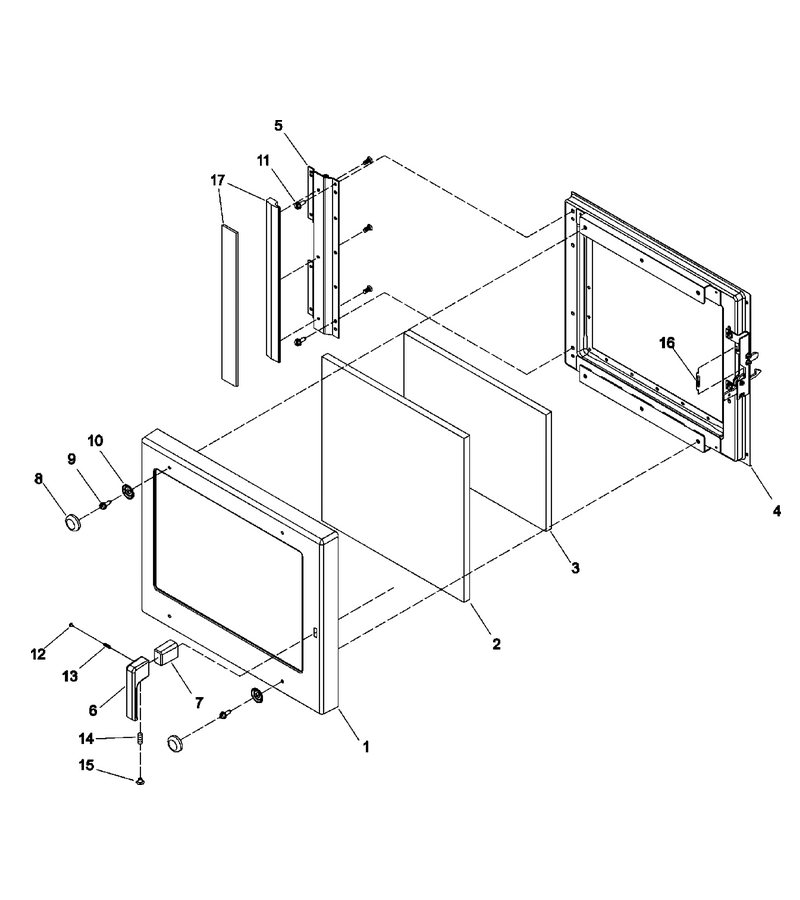

02 - Door

...
...
001
Door-Outer WPL-59001511
...
002
Insulation, Door-Large WPL-12474902
...
003
Insulation, Door-Small WPL-12474901
...
004
Kit- Inner WPL-12002760
...
005
Hinge-Door WPL-12002863
...
006
Door Handle WPL-12490902
...
007
Insert,handle WPL-12576901
...
008
Cap-Screw WPL-59001660
...
009
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
010
Washer, Cap Screw WPL-M0295502
...
011
Screw WPL-WP12990527
...
012
Plug, Button (Blk) WPL-12360703
...
013
Screw WPL-WP8533976
...
014
Set Screw WPL-M0206943
...
015
Plug, Button (Wht) WPL-M0310305
...
016
Spring-Door Latch WPL-59001721
...
017
Hinge Cover (Gray) WPL-59001230
...
018
Bit For Crow Foot Drive Screws WPL-92113P01

...
...
001
Use & Care-English WPL-NLA
...
002
Manual-Service WPL-RS5320016
...
003
Manual-Prod Safety WPL-16021751
...
004
Tech Sheet WPL-NLA
...
005
Harness-Triacs & Rtd Wires WPL-12537703
...
006
Harness-Pc Board WPL-13018301
...
007
Harness-Interlock WPL-13018201
...
008
Harness-Oven Light WPL-12004302
...
009
Harness, Wiring-Main WPL-59001658
...
010
Wire, H.v. WPL-12026901
...
011
Jumper Wire WPL-D7718009
...
012
Wire, H.v. WPL-12026901
...
013
Bit For Crow Foot Drive Screws WPL-92113P01
...
014
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408
...
015
Flat Sheet WPL-59001516
...
016
Rack & Guide Kit WPL-NLA
...
017
Fry Basket WPL-59001518
...
018
Pizza Stone WPL-59001519
...
019
Cavity Cleaner WPL-59001520
...
020
Drip Tray WPL-NLA

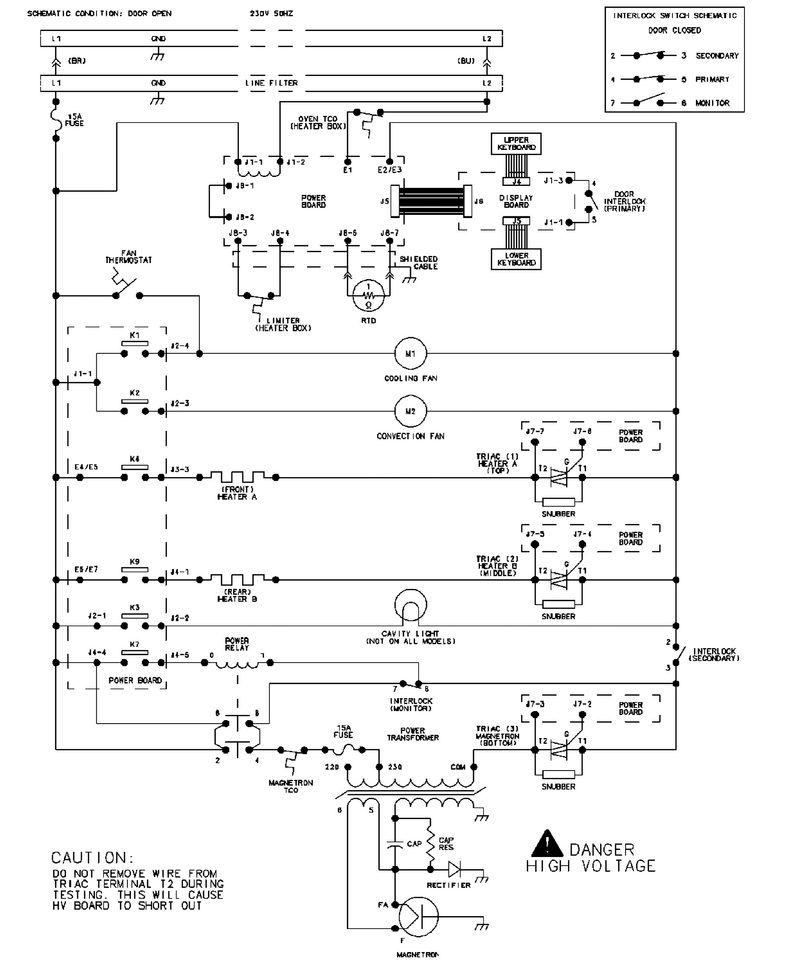

07 - Wiring Information

...
...
001
Wiring Information WPL-NLA

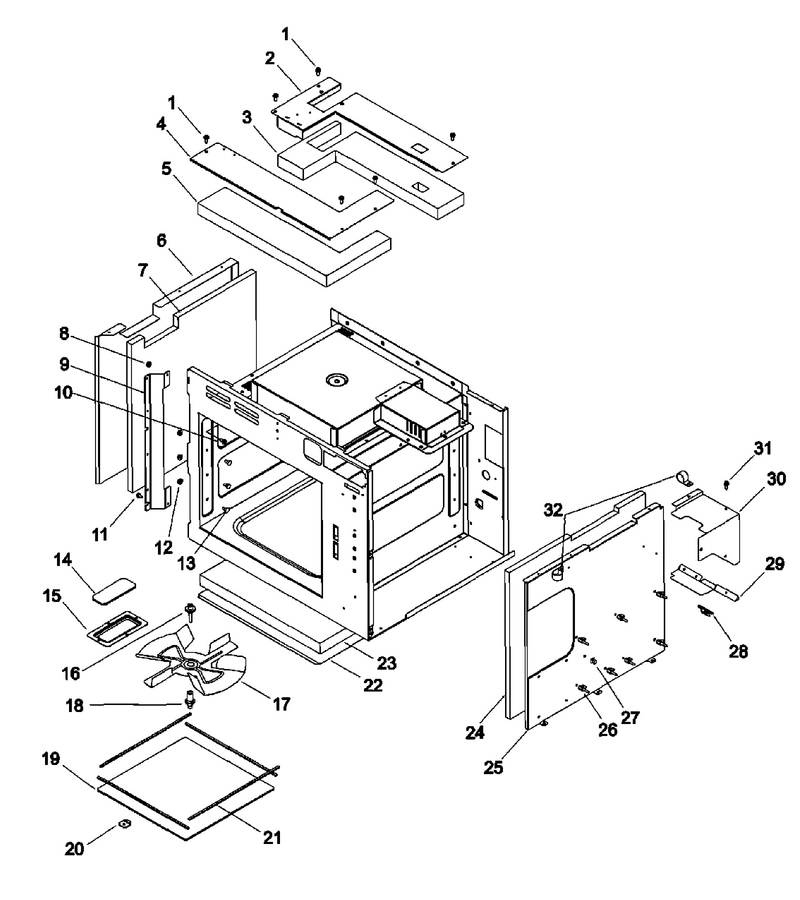

04 - Stirrer, Ducts,

...
...
001
Screw WPL-WP90767
...
002
Retainer-Top Back Insul WPL-10977401
...
003
Insul- Top Back Retainer WPL-12000701
...
004
Retainer-Top Front Insul WPL-10978002
...
005
Insul- Top Front Retainer WPL-12000702
...
006
Retainer-Side Insul Lt WPL-10977301
...
007
Insul- Side Retainer Lt WPL-12000501
...
008
Nut K WPL-M0282005
...
009
Brkt, Hinge Supp WPL-12189004
...
010
Screw WPL-M0213815
...
011
Screw, Hex Head WPL-59001208
...
012
Nut WPL-WP488130
...
013
Bolt-Shldr WPL-12030101
...
014
Glass-Oven Light WPL-12047501
...
015
Screw WPL-M0213815
...
016
Shaft, Stirrer WPL-12004401
...
017
Blade, Stirrer WPL-10825904Q
...
018
Kit-Insert & Blade Stirrer WPL-R0130737
...
019
Assy, Stirrer Cover WPL-R0150115
...
020
Screw WPL-M0213815
...
021
Gasket WPL-12019002
...
022
Screw WPL-WP489128
...
023
Insul-Bottom Retainer WPL-12000703
...
024
Insul- Side Retainer Rt WPL-12000401
...
025
Retainer-Side Insul Rt WPL-59001652
...
026
Support P-C Bd A WPL-M0590602
...
027
Support WPL-M0585507
...
028
Clip WPL-WPM0104106
...
029
Duct-Blower/mag WPL-10978601
...
030
Cover-Mag Inlet WPL-10978702
...
031
Screw WPL-WP489349
...
032
Screw WPL-WP90767

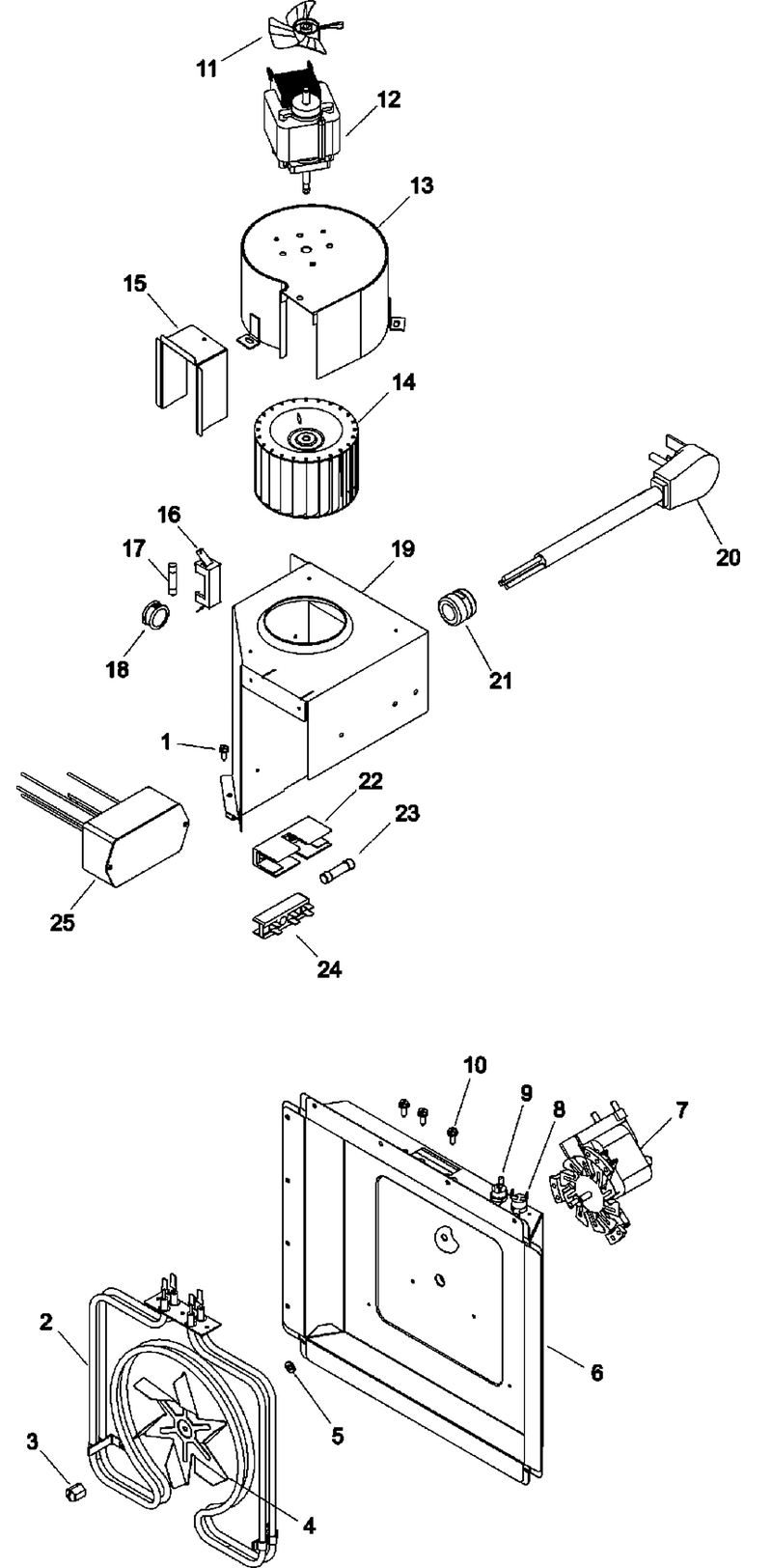

05 - Fuses, Blower, Heater Box,

...
...
001
Screw WPL-WP90767
...
002
Screw WPL-WP488234
...
003
Nut,cap WPL-12538001
...
004
Blade, Fan WPL-12537901
...
005
Washer WPL-12546101
...
006
Screw (3) WPL-67006425
...
007
Motor,convection WPL-12537803
...
008
Screw WPL-M0232012
...
009
Screw WPL-M0232012
...
010
Screw WPL-W10856125
...
011
Fan Blade WPL-B5706704
...
012
Screw WPL-M0253916
...
013
Scroll Weld WPL-10797203
...
014
Wheel, Blower WPL-C3670809
...
015
Screw WPL-WP90767
...
016
Screw WPL-WP59002061
...
017
Fuse WPL-WPM0805102
...
018
Bushing-Snap WPL-M0571003
...
019
Screw WPL-WP90767
...
020
Cord, Power WPL-59002001
...
021
Relief- Strain WPL-M0370009
...
022
Screw WPL-WP489349
...
023
Fuse,15 Amp WPL-M0805202
...
024
Screw WPL-WP90767
...
025
Rivet-Pop WPL-A4539638

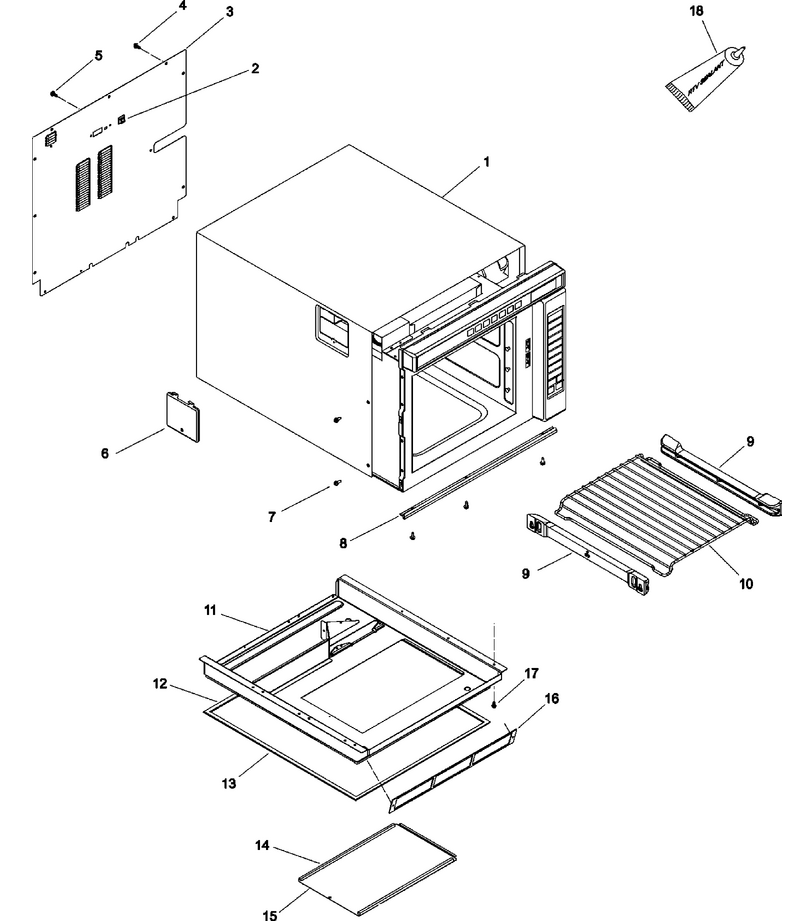

01 - Cabinet

...
...
001
Wrapper-Oc (Ss) WPL-10908901Q
...
002
Clip WPL-WPM0104106
...
003
Access Pan Weld (Blk) WPL-12002804
...
004
Screw WPL-WP3388228
...
005
Screw WPL-WP90767
...
006
Clip WPL-NLA
...
007
Screw WPL-M0215116
...
008
Trim-Oc (Brushed) WPL-NLA
...
009
Assy, Rack Guide WPL-12523201Q
...
010
Rack-Oven WPL-12487403
...
011
Assy, Base Pan & Gaskets WPL-R0150116
...
012
Basepan Gasket-Cut WPL-59001646
...
013
Basepan Gasket-Cut WPL-59001647
...
014
Gasket (Inch) WPL-A3030301
...
015
Bottom Access Panel WPL-10782402
...
016
Screw-Thumb WPL-13042901
...
017
Screw WPL-WP489128
...
018
Sealer, Rtv 10.3 Oz-Red-Ov Cav WPL-M0275408
