Amana DRT1702BW (BOM: PDRT1702BW0)

Model: DRT1702BW (BOM: PDRT1702BW0)

Save Part Not Listed?
product name

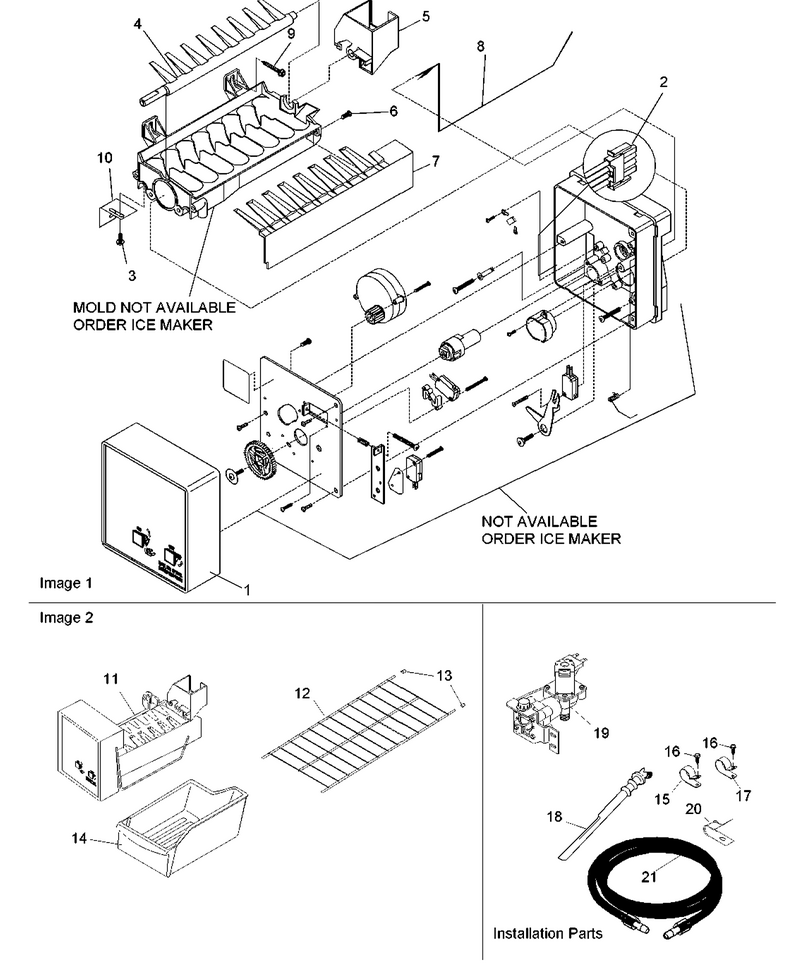

04 - Ice Maker Assy & Parts

...
...
NI
Icemaker Install Kit WPL-8003RP
...
1
Cover, Ice Maker WPL-61005374
...
2
Harness,wiring-Ice Maker WPL-R0131183
...
3
Screw,im Brkt Mtg-Hex Wshr Hd WPL-R0130830
...
4
Ejector,ice WPL-R0131161
...
5
Bearing & Inlet WPL-R0131162
...
6
Screw WPL-R0131178
...
7
Stripper,ice WPL-R0131163
...
8
Arm,shut-Off WPL-R0131164
...
9
Screw,hex Wshr Hd(8-18ab X WPL-R0130827
...
10
Bracket WPL-WP2256087
...
11
Kit,ice Maker(ic9t) WPL-R0130847
...
12
Shelf,freezer WPL-R0130970
...
13
End Cap,fz Shelf WPL-R0130985
...
14
Container,ice WPL-R0130868
...
15
Clamp,wiring Harness WPL-R0130420
...
16
Screw WPL-WP98165
...
17
Clamp,water Tube(steel).50 Id WPL-R0131338
...
18
Tube,water-Ice Mold Fill Exten WPL-R0130870
...
19
Valve-Inlt WPL-W10833899
...
20
Clip WPL-WPM0104106
...
21
Tube,water Inlet-Inlet Valve WPL-R0130833

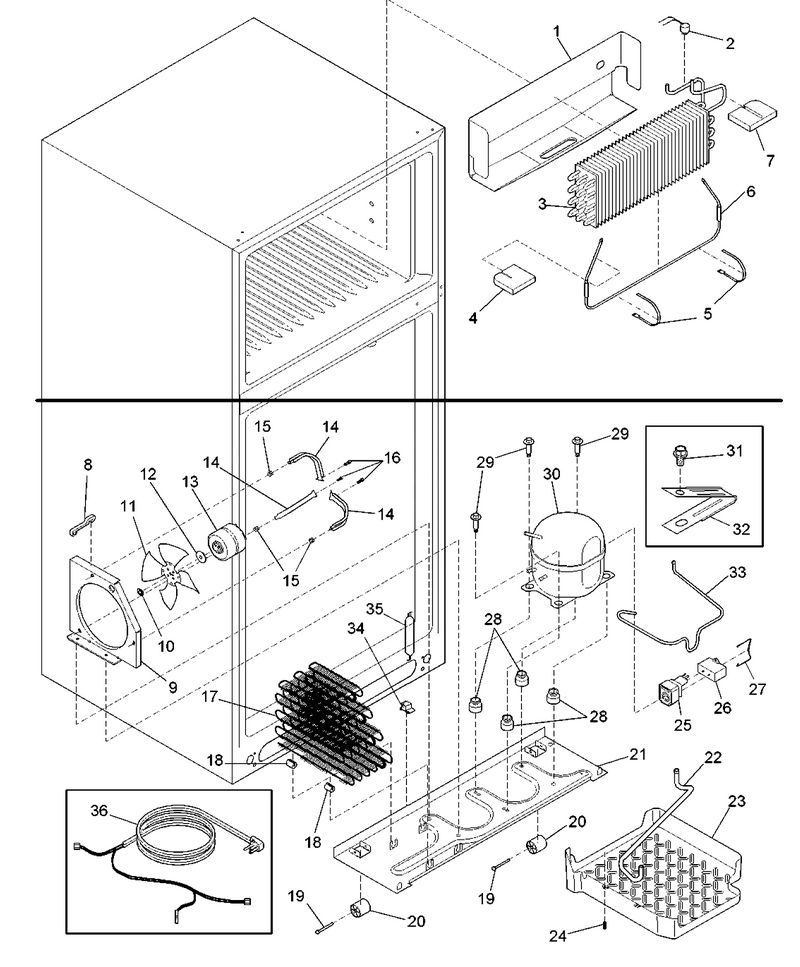

03 - Evaporator And Machine Compartment

...
...
NI
Kit,heat Exchanger WPL-R0131214
...
1
Trough,drain WPL-R0130976
...
2
Cover,evap Coil WPL-R0131215
...
3
Kit,evaporator Coil WPL-R0131217
...
4
Insulation Block,lh WPL-R0130389
...
5
Strap,evap/heater(aluminum) WPL-R0130441
...
6
Kit,defrost Heater WPL-R0131216
...
7
Insulation Block,rh WPL-R0130388
...
8
Spacer, Cond Tube (blk) WPL-R0131520
...
9
Shroud,cond Fan WPL-R0130354
...
10
Nut,speed WPL-R0130322
...
11
Fan Blade,condenser(galv Steel WPL-R0130353
...
12
Grommet,silencer WPL-R0130323
...
13
Motor,cond Fan WPL-R0130362
...
14
Bracket,support-Cond Mtr WPL-R0130376
...
15
Grommet,bracket WPL-R0130377
...
16
Screw, Cond Fan Mtr WPL-R0130321
...
17
Condenser WPL-R0131209
...
18
Grommet,cond Mtg WPL-R0130412
...
19
Pin,roller WPL-R0130325
...
20
Roller,rear-Comp Base WPL-R0130433
...
21
Screw,no.8 Truss Hd(10-32ca X 0. WPL-R0130330
...
22
Tube,drain-Lower WPL-R0130386
...
23
Pan,defrost Drain WPL-R0130361
...
24
Screw WPL-WP98165
...
25
Overload,relay WPL-R0130332
...
26
Capacitor,run(220 Vac,15 Micro WPL-R0130336
...
27
Clamp,elec Cont Mtg-Comp WPL-R0130333
...
28
Grommet,comp Mtg WPL-R0130331
...
29
Screw,comp Mtg-Hex Hd(1/4-28) WPL-R0130413
...
30
Compressor WPL-R0130432
...
31
Screw,hex Wshr Hd(8-32 X 1) WPL-R0130335
...
32
Clamp,wiring Harness WPL-R0130420
...
33
Tube,connector Suction WPL-R0130818
...
34
Clip,wiring Harness WPL-R0130411
...
35
Drier WPL-WPB2150504
...
36
Wiring Harness,control Box WPL-R0130410

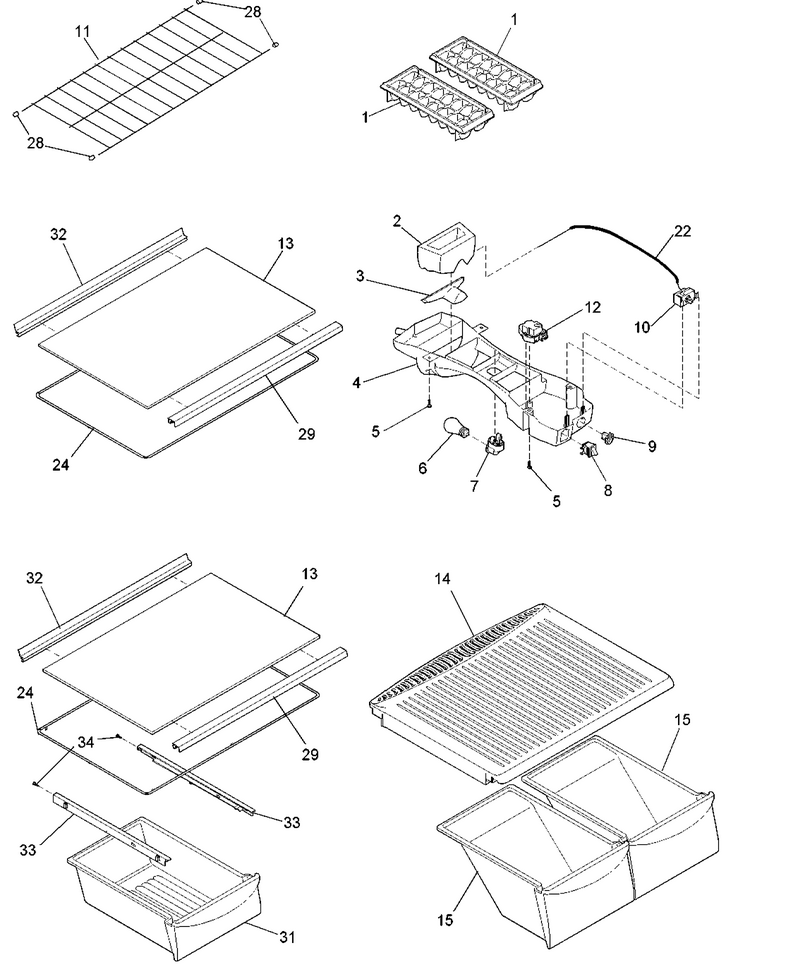

05 - Refrig. Shelving & Light

...
...
1
Tray WPL-WP841180A
...
2
Diffuser,air WPL-R0130390
...
3
Seal,diffuser WPL-R0130872
...
4
Box,control WPL-R0131207
...
5
Screw WPL-WP98165
...
6
Light Bulb WPL-8009
...
7
Socket-Light WPL-R0130416
...
8
Switch WPL-W11384469
...
9
Knob,temp Control WPL-R0130387
...
10
Control,temperature WPL-R0130434
...
11
Shelf,freezer WPL-R0130970
...
12
Screw,timer Mtg-Pan Hd(6-20x) WPL-R0130421
...
13
Shelf,glass WPL-R0131198
...
14
Cover,crisper Pan-Shelf WPL-R0130971
...
15
Pan,crisper WPL-R0131205
...
22
Tube,sensor WPL-R0131475
...
24
Frame,sliding Shelf WPL-R0130974
...
28
End Cap,fz Shelf WPL-R0130985
...
29
Trim,shelf-Front WPL-R0130968
...
31
Pan,meat(clear) WPL-R0130906
...
32
Trim,shelf-Rear WPL-R0130969
...
33
Hanger,meat Pan-R.h. WPL-R0131510
...
34
Screw,roller/hanger(8-10 X 0.4 WPL-R0130324

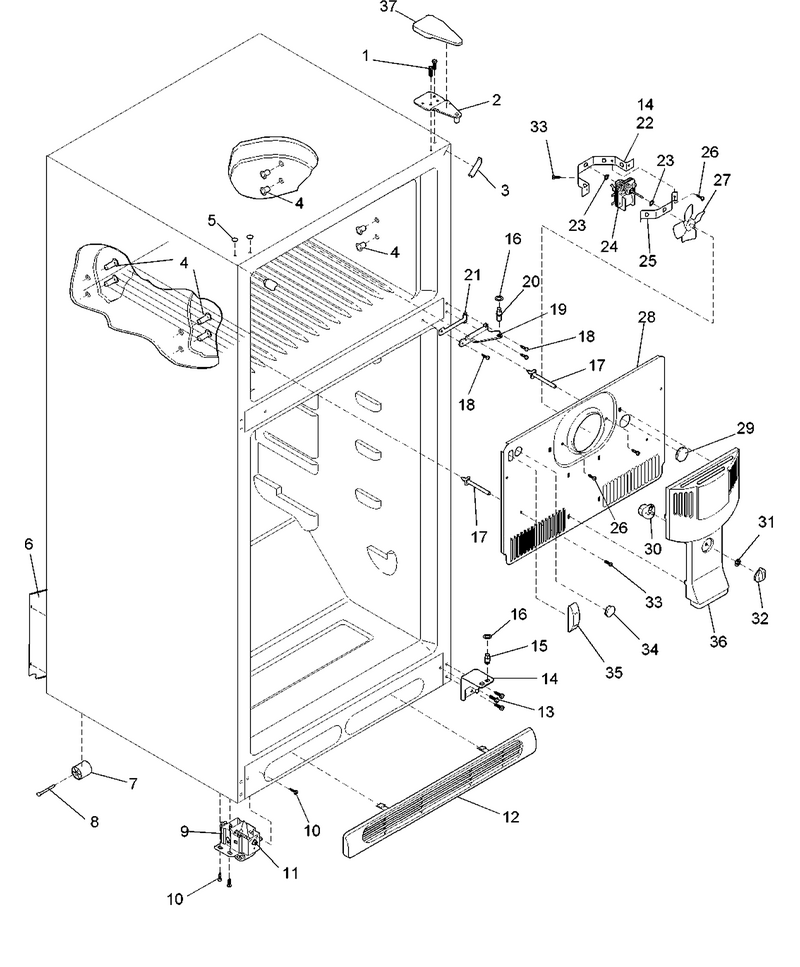

01 - Cabinet, Hinges, Evap Fan & Rollers

...
...
NI
Paint, Touch-Up (1/2oz.) (white) WPL-72017
...
1
Screw,hinge Mtg-Hex Head WPL-R0130819
...
2
Bracket,hinge-Top WPL-R0131199
...
3
Trim,cabinet Corner(bisque) WPL-R0130904
...
4
Grommet,shelf Mtg-Rh(0.69``) WPL-R0130422
...
5
Plug,button-Upr Hinge(bisque) WPL-R0130912
...
6
Cover,access WPL-R0130894
...
7
Roller,rear-Comp Base WPL-R0130433
...
8
Pin,roller WPL-R0130325
...
9
Assy,front Roller WPL-R0130363
...
10
Screw,no.8 Truss Hd(10-32ca X 0. WPL-R0130330
...
11
Bolt,roller Adj-Hex Wshr Hd WPL-R0130364
...
12
Grille,toe(bisque) WPL-R0131219
...
13
Screw WPL-WP488402
...
14
Bracket,hinge-Bottom(bisque) WPL-R0131203
...
15
Pin,lower Hinge WPL-R0130352
...
16
Washer,hinge(nylon) WPL-R0130341
...
17
Support,evap Cover WPL-R0130375
...
18
Screw,bisque(no.10-32 X 3/4) WPL-R0130931
...
19
Bracket,hinge-Center(white) WPL-R0131200
...
20
Pin,center Hinge WPL-R0130350
...
21
Spacer,ctr Hinge WPL-R0130365
...
22
Bracket,motor Mtg-Rear WPL-R0130426
...
23
Bushing,motor Mtg WPL-R0130418
...
24
Motor,evap Fan WPL-R0130399
...
25
Bracket,motor Mtg-Front WPL-R0130425
...
26
Screw (3) WPL-67006425
...
27
Fan Blade,evap(red) WPL-R0130439
...
28
Seal,coil Cover WPL-R0131469
...
29
Plug,hole-Factory Test WPL-R0130423
...
30
Damper,fan Cover WPL-R0130397
...
31
Clip WPL-M0118901
...
32
Knob,damper Control WPL-R0130396
...
33
Screw WPL-WP98165
...
34
Plug,wtr Inlet Tube-1`` Round WPL-R0130405
...
35
Plug,ice Maker Harness-Rectang WPL-R0130395
...
36
Cover,fan WPL-R0130382
...
37
Cover,upr Hinge(bisque) WPL-R0130916

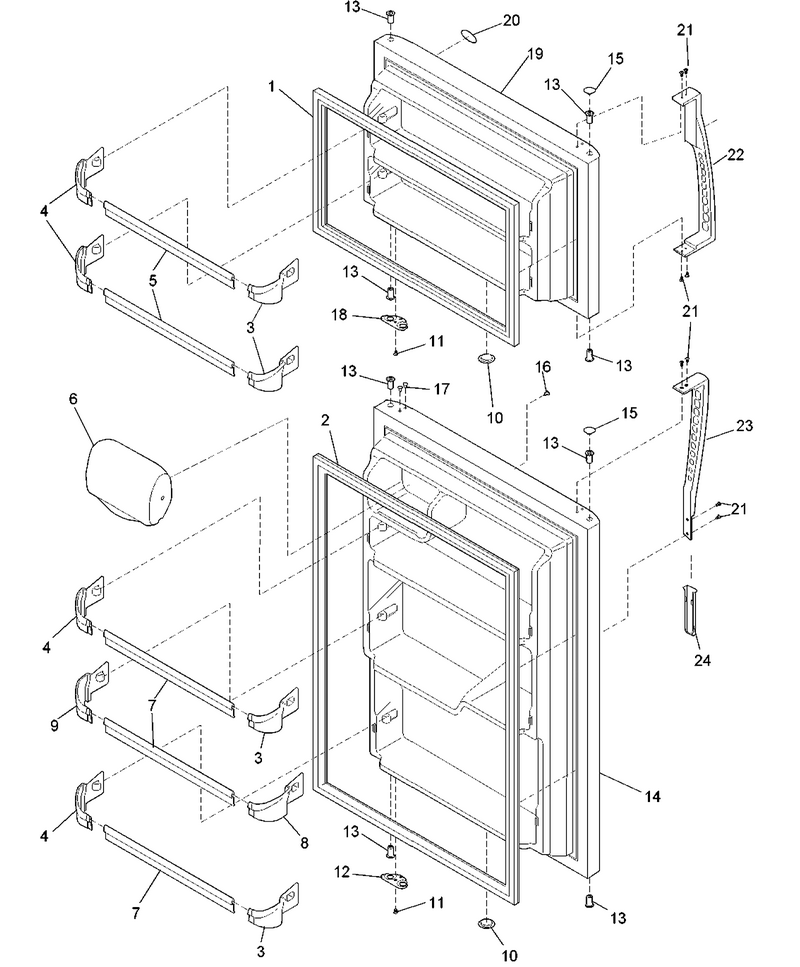

02 - Door Assy, Handles & Shelves

...
...
1
Gasket,fz Dr(white) WPL-R0130972
...
2
Gasket,ref Dr(white) WPL-R0130973
...
3
Support,door Rack-2 Liter,rh WPL-R0130343
...
4
Support,door Rack-2 Liter,lh WPL-R0130342
...
5
Rack,fz Dr WPL-R0130967
...
6
Door,dairy(clear) WPL-R0130905
...
7
Rack,ref Dr-18.65`` WPL-R0130966
...
8
Support,door Rack-Gallon,rh WPL-R0130360
...
9
Support,door Rack-Gallon,lh WPL-R0130359
...
10
Plug,foam Hole(white) WPL-R0130369
...
11
Screw,no.8 Truss Hd(10-32ca X 0. WPL-R0130330
...
12
Door Stop,ref(bisque) WPL-R0130899
...
13
Bearing,hinge WPL-R0130340
...
14
Assy,ref Dr Foam(white) WPL-R0131212
...
15
Plug,button(bisque) WPL-10686407
...
16
Button- Pl WPL-WP67001130
...
17
Button- Pl WPL-WP67001130
...
18
Door Stop,frzr(bisque) WPL-R0130900
...
19
Assy,fz Dr Foam(bisque) WPL-R0131211
...
20
Nameplate, Dba WPL-R0130438
...
21
Screw WPL-WP7101P126-60
...
22
Handle,fz Dr(white) WPL-R0130435
...
23
Handle,ref Dr(white) WPL-R0130436
...
24
Trim, Lwr Handle WPL-12273510
