Amana DRS2662AC (BOM: PDRS2662AC0)

Model: DRS2662AC (BOM: PDRS2662AC0)

Save Part Not Listed?
product name

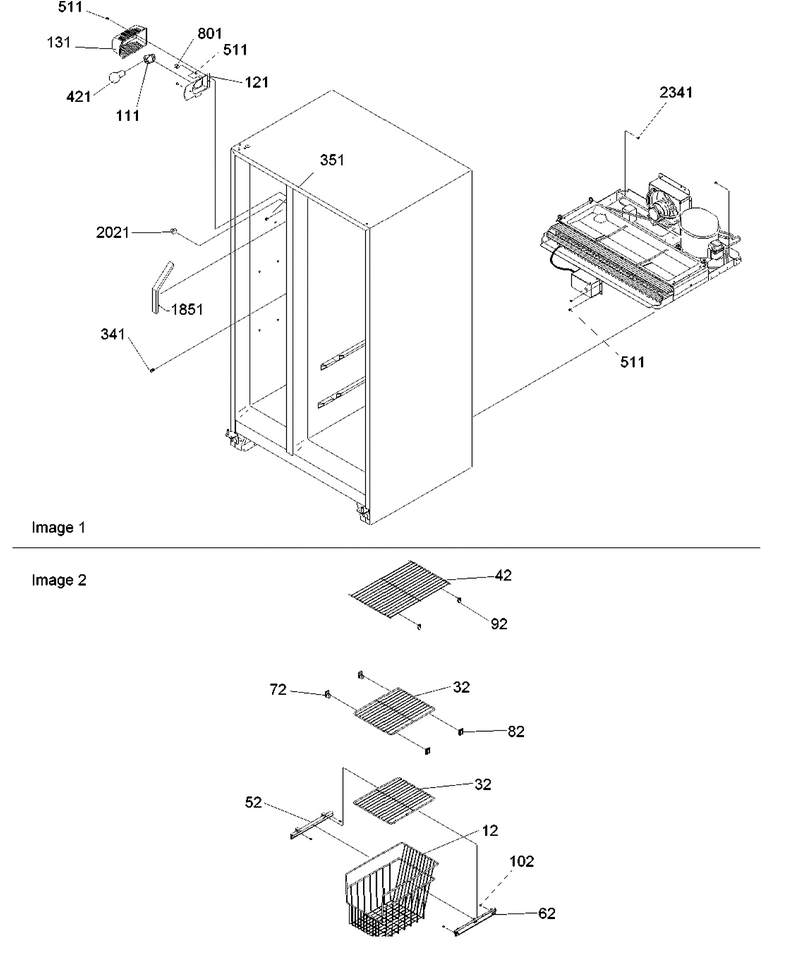

07 - Freezer Shelves & Lights

...
...
12
Basket, Frz 13`` WPL-12314702
...
32
Shelf, Sta Frz WPL-12353304
...
42
Shelf, Stationary WPL-12363401
...
52
Rail, Shelf (lt) WPL-12015102
...
62
Rail, Shelf (rt) WPL-10972802
...
72
Support, Shelf (lt) WPL-12015002
...
82
Support- S WPL-WP10941102
...
92
Support- F WPL-WPC8973801
...
102
Screw WPL-WP98165
...
111
Socket-Light WPL-D7714407
...
121
Plate, Light Socket WPL-D7753505
...
131
Shield, Light WPL-D7786603
...
341
Tie Wire WPL-WPM0322202
...
351
Grommet, Screw WPL-M0580007
...
421
Bulb-Light WPL-W10887190
...
511
Screw (3) WPL-67006425
...
801
Clip, Ground WPL-B5733302
...
1851
Gasket Foam WPL-A3189335
...
2021
Support WPL-M0560005
...
2341
Screw, Sm WPL-M0211357

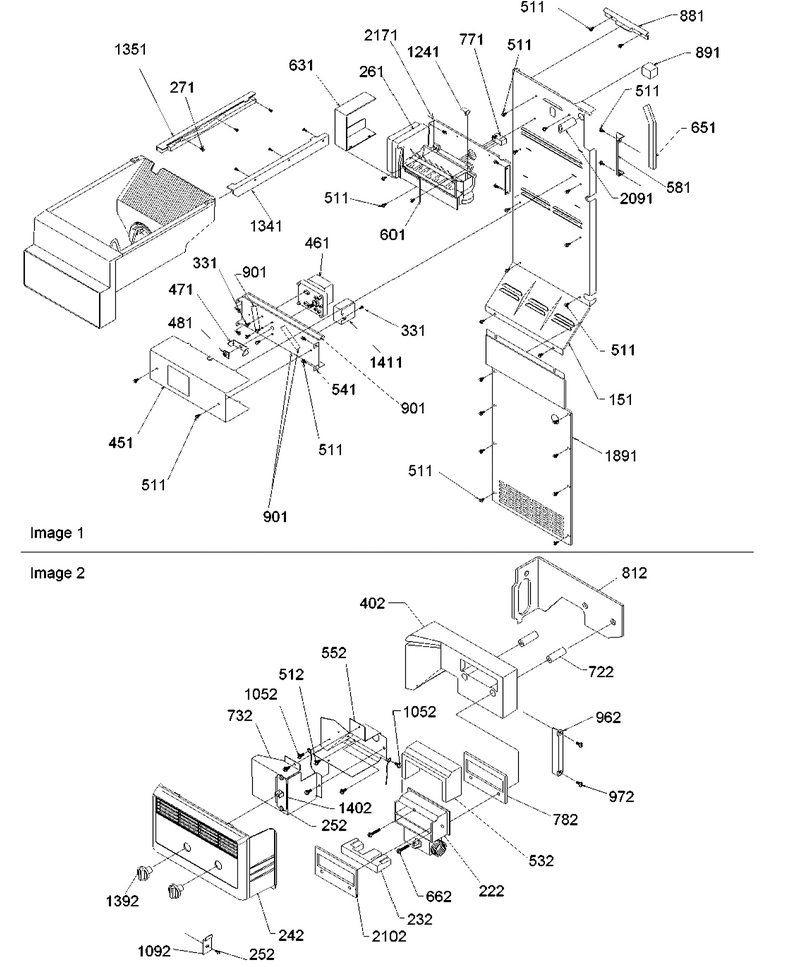

09 - Ice Maker/control Assy

...
...
NI
Clamp, Wire WPL-10526701
...
151
Inner Fz Back-Pnt WPL-D7821174
...
222
Control, Damper WPL-R9900109
...
232
Insert, Control WPL-C8902601
...
242
Cover, Control WPL-10862717
...
252
Screw WPL-WP90767
...
261
Ice Maker Assy. WPL-D7824706Q
...
271
Screw, Handle WPL-67006529
...
331
Screw WPL-WPW10139210
...
402
Air Duct, Waxed WPL-10176606Q
...
451
Cover, Auger Motor WPL-D7788836
...
461
Motor, Auger WPL-12501001
...
471
Coupling WPL-WP10114901
...
481
Nut WPL-WPM0223101
...
511
Screw (3) WPL-67006425
...
512
Screw (3) WPL-67006425
...
532
Insulation WPL-D7788201
...
541
Support,auger Motor WPL-D7749207
...
552
Box, Control Btm WPL-D7822406
...
581
Cover, Supply Air WPL-D7838302
...
601
Arm,ice Maker Shut Off WPL-D7877001Q
...
631
Cover Im WPL-D7820401
...
651
Gasket WPL-B8386602
...
662
Screw WPL-M0216539
...
722
Spacer Damper WPL-A3044208
...
732
Box, Control Top WPL-D7868606
...
771
Harness WPL-D7824601
...
782
Gasket, Damper WPL-B8345401
...
812
Gasket, Air Duct WPL-10177901
...
881
Clamp WPL-C8976201
...
891
Gasket, Air Block WPL-C8976102
...
901
Gasket-Per Ft WPL-A3030305
...
962
Clamp WPL-C8977301
...
972
Screw WPL-WP489474
...
1052
Screw WPL-WP489399
...
1092
Brkt, Cont Cover WPL-12414701
...
1241
Clip WPL-B5720301
...
1341
Glide, Frz. (rt) WPL-67004323
...
1351
Glide, Container (left) WPL-67005375
...
1392
Kit, Range Knob-22,31,61 (6) WPL-12500101
...
1402
Assy, Control-Fz WPL-R0161092
...
1411
Capacitor WPL-WP65889-4
...
1891
Evap Cover- E Ct WPL-10655902
...
2091
Ext. Fill Tube WPL-A3127414
...
2102
Gasket, Damper WPL-10383201
...
2171
Support-Im WPL-D7821004

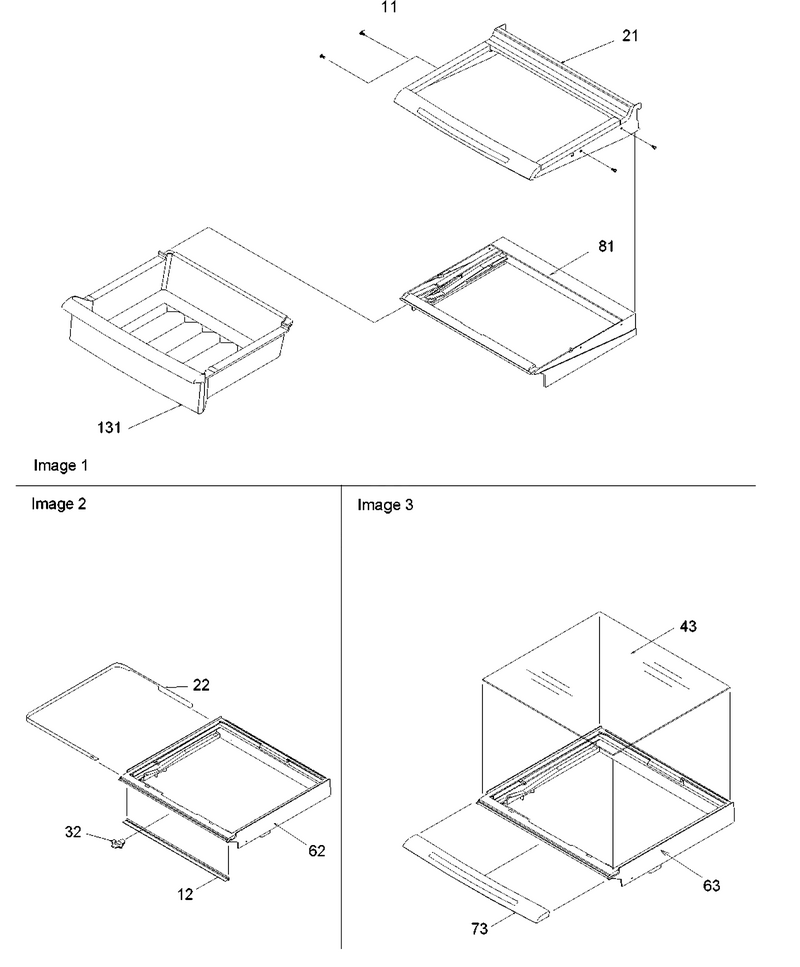

03 - Deli, Shelves & Crisper Assy

...
...
11
Screw WPL-W10856125
...
12
Seal-Crisp Front WPL-10968801
...
21
Shelf, Stationary WPL-67005092
...
22
Band, Crisper WPL-10882701
...
32
Slide, Crisper/deli WPL-10852501
...
43
Glass, Shelf WPL-Y10370066
...
62
Frame-Cris WPL-10782902
...
63
Frame-Cris WPL-10782902
...
73
Trim,lwr Crispr Frnt WPL-12113011
...
81
Frame, Deli WPL-10783803
...
131
Pan- Deli WPL-10784202

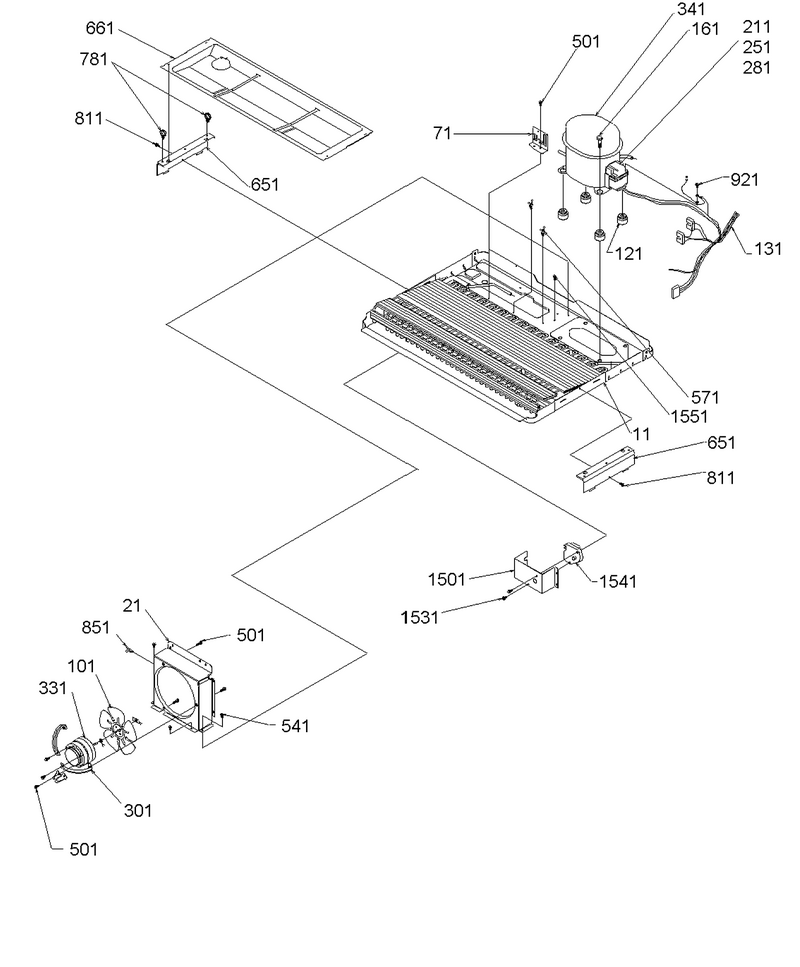

11 - Machine Compartment

...
...
11
Assy,cond/pan-E Ct WPL-10544114
...
21
Kit-Shroud WPL-R0130014
...
71
Bracket, Water Valve WPL-12421101
...
101
Blade, Fan WPL-10518702
...
121
Grommet, Compressor WPL-67003493
...
131
Harness, M.c. WPL-10967603
...
161
Screw, Shldr WPL-M0221523
...
211
Overload WPL-WP10377023
...
251
Start-Dev WPL-WP10097202
...
281
Cover-Term WPL-4344043
...
301
Kit-Shroud WPL-R0130014
...
331
Motor-Cond WPL-833697
...
341
Compressor Kit (contains Items 12, 17, 27, & 29) WPL-W10160407
...
501
Screw WPL-WPM0223816
...
541
Screw WPL-WP90767
...
571
Tie, Wire WPL-M0585401
...
651
Brkt, Drain Pan Mtg. WPL-10495702
...
661
Pan, Drain WPL-10507903
...
781
Tie Wire WPL-WPM0322202
...
811
Rivet-Pop WPL-59002054
...
851
Tie Wire WPL-M0585403
...
921
Screw WPL-12992301
...
1501
Bracket, Timer WPL-12534801
...
1531
Screw WPL-M0216705
...
1541
Timer-Def WPL-R0131577
...
1551
Screw WPL-WP489399

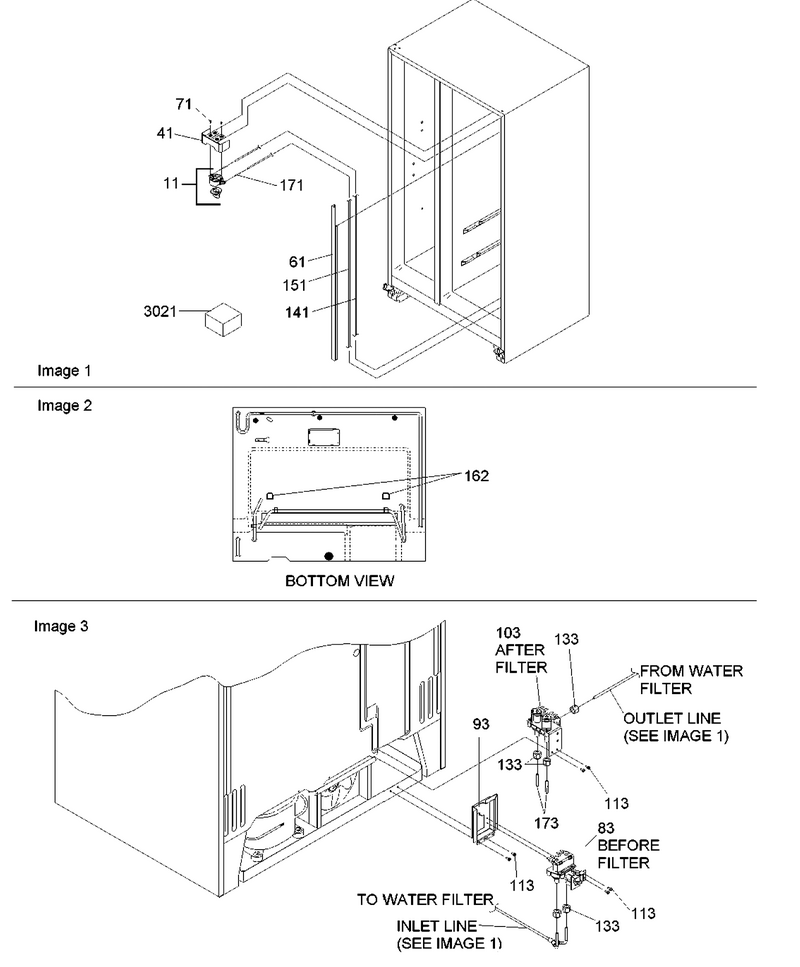

13 - Water Filter Assy

...
...
11
Bypass WPL-R0000009
...
41
Cover, Water Filter-E Ct WPL-12445402
...
61
Cover, Waterline WPL-12421801
...
71
Screw WPL-WP98165
...
83
Valve-Inlt WPL-WP12544001
...
93
Plate-Water Valve WPL-12236001
...
103
Valve- Sec WPL-WP12544101
...
113
Screw, 8-32 X 3/8 WPL-681390
...
133
Nut WPL-WP627018
...
141
Valve-Inlt WPL-WP12544001
...
151
Line,filter Outlet To I/m 110`` WPL-12319001
...
162
Clip, Cord WPL-M0104102
...
171
Insert- Pl WPL-WPA3223101
...
173
Spring WPL-WPA1055105
...
3021
Filter, Water WPL-12527301

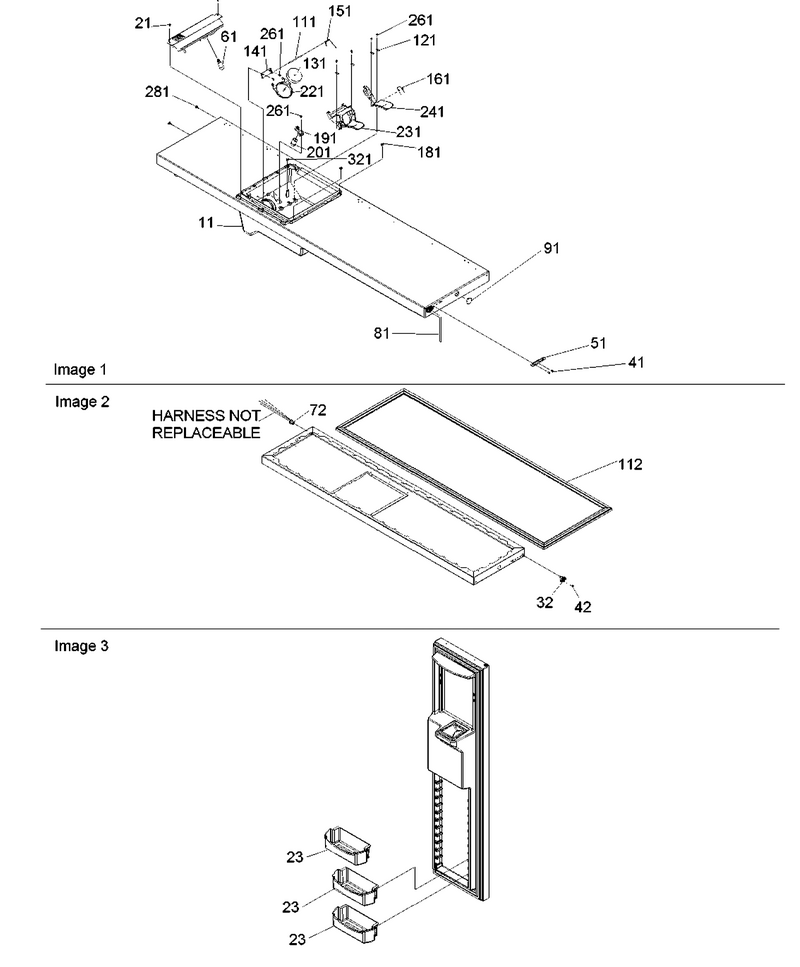

06 - Freezer Door

...
...
NI
Kit,chute Dr No.3 WPL-R0156692
...
11
Assy,fz Dr Foam(bisque) Sxs WPL-12309909CQ
...
21
Screw WPL-M0216705
...
23
Bucket, Frz Door WPL-12311906
...
32
Kit,dr Closure WPL-R0181181
...
41
Screw WPL-WP98165
...
42
Screw WPL-WP8281227
...
51
Stop, Door (bsq) WPL-C8972411
...
61
Bulb-Light WPL-W10857122
...
72
Bushing- D WPL-WP67004977
...
81
Tube WPL-WPB5705307
...
91
Plug, Button (blk) WPL-A3080001
...
111
Pin, Chute Door WPL-A1061501
...
112
Gasket-Dor WPL-R0000201
...
121
Retainer, Ice Arm WPL-A1061601
...
131
Insulation, Chute Door WPL-B8380701
...
141
Chute-Drwr WPL-R0000447
...
151
Spring,chute Door WPL-B8380901
...
161
Spring, Return WPL-B8385401
...
181
Clip WPL-W10819546
...
191
Retainer Door Delay WPL-C8972501
...
201
Delay, Door WPL-C8973602
...
221
Kit,chute Dr No.3 WPL-10246601
...
231
Arm-Dispsr WPL-12002642
...
241
Arm, Wtr Actuator(bisque) WPL-10872112
...
261
Screw WPL-WP90767
...
281
Plug, Button (bsq) WPL-M0311606
...
321
Clip, Waterline WPL-12454803

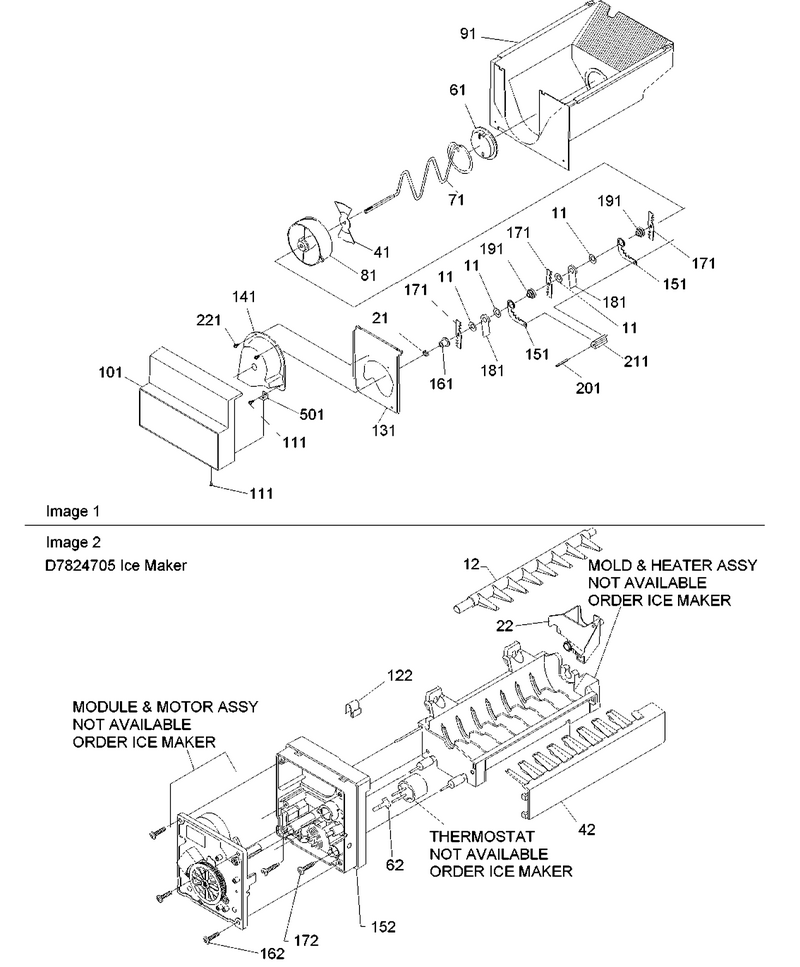

08 - Ice Bucket Auger & Ice Maker Parts

...
...
NI
Crushr-Mec WPL-WP12740302
...
11
Washer, Waved WPL-10275101
...
12
Arm-Ejectr WPL-WP627843
...
21
Nut WPL-WPM0223101
...
22
Cup-Fill WPL-WP628356
...
41
Bar, Crsh Ice Bucket WPL-10113801
...
42
Arm-Stripr WPL-WP2182124
...
61
Cap- Helix WPL-WPD7749401
...
62
Clip WPL-WP2315522
...
71
Agitator, Ice WPL-10114401
...
81
Wheel- Crs WPL-WP67002052
...
91
Bucket- Cr WPL-WP10111905
...
101
Front-Ci Bucket WPL-10870904
...
111
Screw (3) WPL-67006425
...
122
Clip WPL-WP628379
...
131
Front, Ice Crusher WPL-10115001
...
141
Cover, Blade WPL-10114004
...
151
Blade, Static WPL-10114601
...
152
Housing-Im WPL-WP2195914
...
161
Spacer, Cover WPL-10113901
...
162
Screw WPL-R0186041
...
171
Blade, Rotating WPL-10114501
...
172
Screw WPL-R0186040
...
181
Damper, Ice WPL-10275201
...
191
Washer Stepped WPL-10114301
...
201
Pin, Roll WPL-M1200108
...
211
Anchor, Blade WPL-10114101
...
221
Screw, Tf WPL-M0231704
...
501
Brkt, Cover Mtg. WPL-10894901

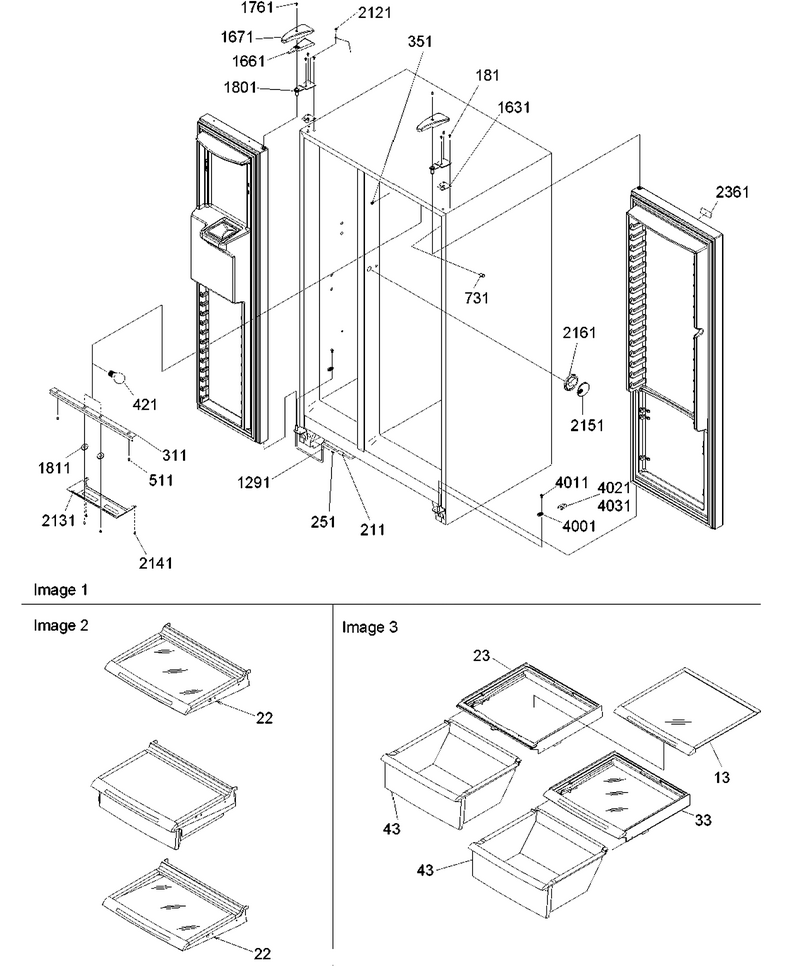

10 - Lights, Hinges & Shelving

...
...
13
Shelf-Top Crisper WPL-10783115
...
22
Shelf, Stationary WPL-67005092
...
23
Assy, Crisper Frame WPL-10882801Q
...
33
Assy,crisper Frame WPL-10882823Q
...
43
Pan,crisper WPL-10783201
...
181
Screw WPL-WP489349
...
211
Fitting WPL-WP4373559
...
251
Screw WPL-WP90767
...
311
Shield, Light WPL-10014716
...
351
Grommet, Screw WPL-M0580007
...
421
Bulb-Light WPL-W10887190
...
511
Screw (3) WPL-67006425
...
731
Clip, Air Tunnel WPL-10426801
...
1291
Clamp WPL-W10833902
...
1631
Shim, Top Hinge WPL-B8389007
...
1661
Foil, Hng Cov WPL-10863501
...
1671
Cover Hinge (bisque) WPL-10849410
...
1761
Screw WPL-WP8281196
...
1801
Hinge, Top (e-Ct) WPL-12426201
...
1811
Washer WPL-M0270519
...
2121
Screw WPL-W11214483
...
2131
Cover, Frz Light WPL-10493302
...
2141
Screw-Sm WPL-M0238846
...
2151
Grille, Control WPL-10164813
...
2161
Control-Air WPL-10164701
...
2361
Nameplate (amana Plus) WPL-Y12528501
...
4001
Kit,dr Closure WPL-R0181181
...
4011
Screw WPL-WP8281227
...
4021
Shim- Clos WPL-WP67005716
...
4031
Shim, Dr Bushing WPL-10361804

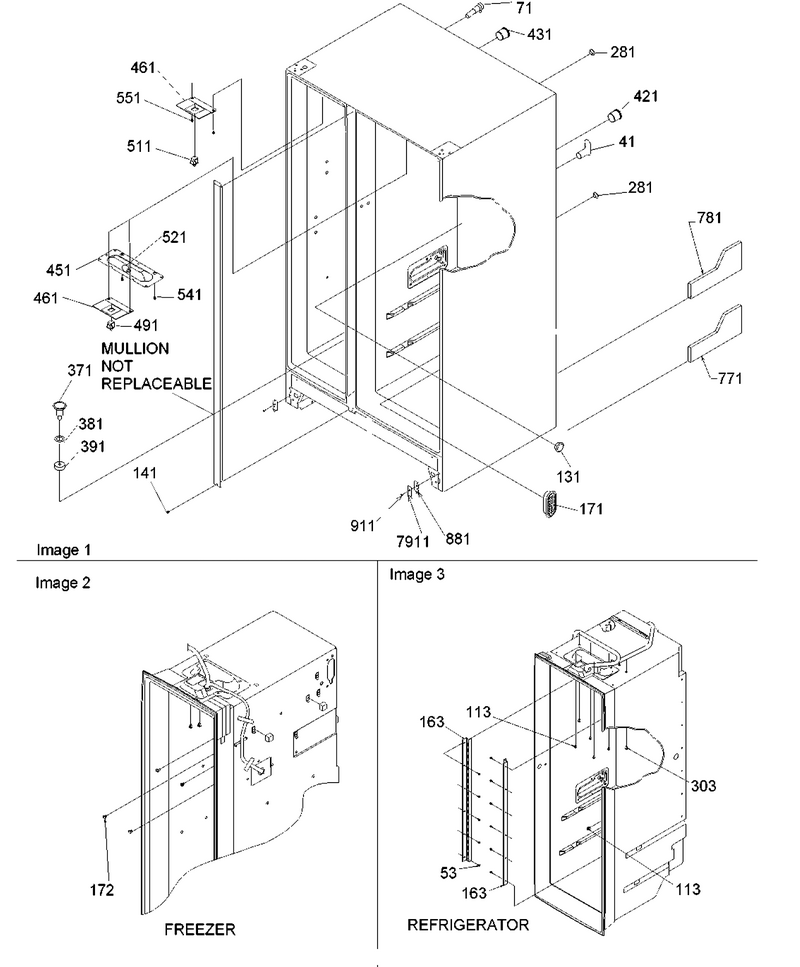

02 - Cabinet Parts

...
...
41
Tunnel, Heat Ex. WPL-C8971902
...
53
Screw (3) WPL-67006425
...
71
Assy, Fill Tube WPL-12023401Q
...
113
Grommet, Screw WPL-M0580007
...
131
Tunnel, Retainer WPL-10923101
...
141
Screw, Handle (black) WPL-12991101
...
163
Ladder, Cant. WPL-12614205
...
171
Grille-Rtn Air WPL-D7785402
...
172
Grommet, Screw WPL-M0580007
...
281
Plug, Button (blk) WPL-A3080001
...
303
Grommet, Screw WPL-M0581001
...
371
Funnel WPL-W10815413
...
381
Seal- O Ri WPL-WPM0500703
...
391
Gasket- Dr WPL-WPB8381501
...
421
Tunnel Wire WPL-10187501
...
431
Tunnel Wire WPL-10187601
...
451
Housing, Light WPL-12427502
...
461
Cover, Light Sw WPL-D7297604
...
491
Switch WPL-W11384469
...
511
Switch WPL-W11396033
...
521
Clip, Ground WPL-B5733302
...
541
Screw WPL-WP90767
...
551
Screw (3) WPL-67006425
...
771
Insulation, R Foot WPL-10906501
...
781
Insulation, L.foot WPL-10906503
...
881
Spacer, Btm Hinge WPL-12146803
...
911
Rivet, Pop (wht) WPL-B5642901
...
7911
Shim, Bottom Hinge Metal WPL-12187603

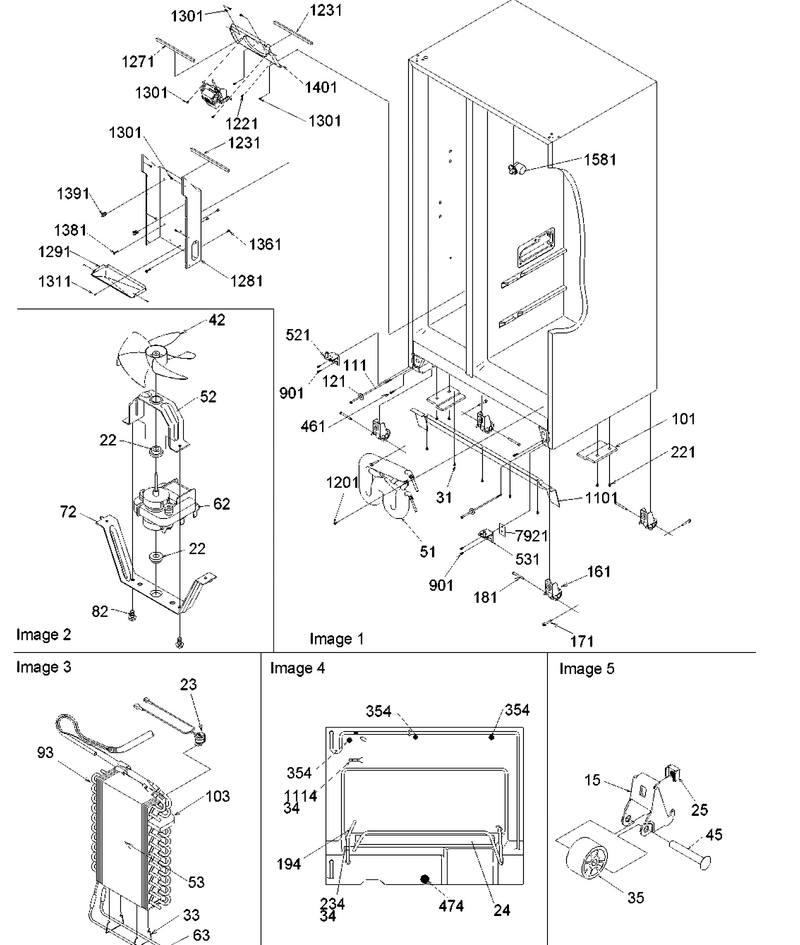

04 - Drain, Rollers & Evap Assy

...
...
15
Assy, Roller Bracket WPL-12452602Q
...
22
Grommet WPL-WP2264462
...
23
Thermostat WPL-R0161088
...
24
Insulation, O.c.bottom WPL-10906502
...
25
Nut, Speed WPL-M0286708
...
31
Screw WPL-WP489069
...
33
Clip WPL-W11673433
...
34
Screw WPL-WP489069
...
35
Roller WPL-WP10450603
...
42
Blade-Fan WPL-WP2169142
...
45
Rivet WPL-M1205302
...
51
Reservoir WPL-R0181175
...
52
Brkt, Up Evap. Fan WPL-10492801
...
53
Assy,low Side(sxs 22) WPL-R0170055
...
62
Motor-Evap WPL-WPW10189703
...
63
Heater- Ev WPL-WP12049801
...
72
Brakt-Mtr WPL-WP10492701
...
82
Screw WPL-WP90767
...
93
Block, Air Coil (left) WPL-10629601
...
101
Support, Mach Comp. WPL-10508001
...
103
Block, Air Coil (right) WPL-10629001
...
111
Screw Adjust WPL-10093311
...
121
Washer, Nylon WPL-M0274067
...
161
Assy, Roller Bracket WPL-12452602Q
...
171
Cotter Pin K WPL-M1200004
...
181
Pin K WPL-M1200202
...
194
Tube, Drain WPL-10505101
...
221
Screw WPL-WP3400094
...
234
Clamp WPL-M0102303
...
354
Plug, Button (blk) WPL-A3080001
...
461
Screw, Mach WPL-M0206313
...
474
Plug, Button WPL-A3076901
...
521
Hinge, Btm L E-Ct WPL-12431707
...
531
Hinge, Btm R E-Ct WPL-12431709
...
901
Screw WPL-WP67006715
...
1101
Baffle, M.c. Air WPL-10508107
...
1114
Clip, Wire WPL-M0585206
...
1201
Screw WPL-WP98165
...
1221
Screw WPL-WP489399
...
1231
Gasket WPL-B8386608
...
1271
Gasket (1=1ft.) WPL-10839713
...
1281
Shield, Evap WPL-10893803
...
1291
Drip Tray Pnt. WPL-D7850202
...
1301
Screw WPL-WP90767
...
1311
Rivet WPL-10098801
...
1361
Grommet A WPL-M0580002
...
1381
Clip, Evap WPL-10527401
...
1391
Clip, Evaporator WPL-10623003
...
1401
Shroud,evap Fan-E Ct WPL-10890206
...
1581
Socket, Light WPL-D7714408
...
7921
Shim-Bot Hinge WPL-12146702

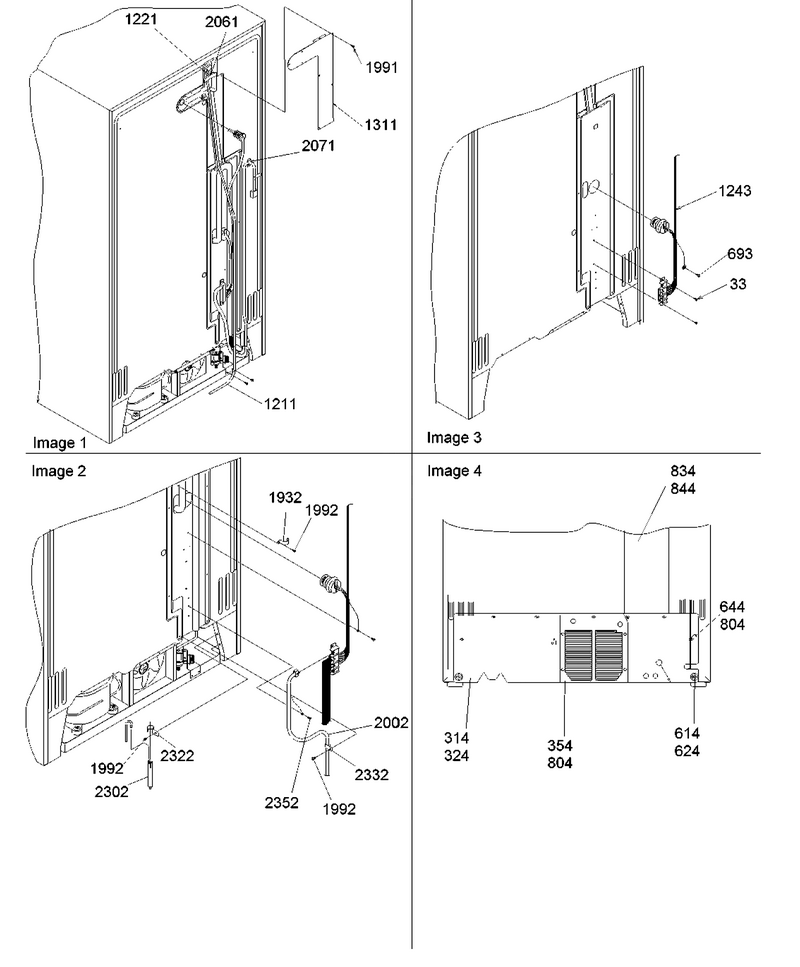

01 - Cabinet Back

...
...
NI
Insert- Pl WPL-WPA3223101
...
33
Screw WPL-WP489069
...
314
Assy, Mc Back WPL-12041617
...
324
Screw WPL-WP489464
...
354
Back, M.c. WPL-12039903
...
614
Screw WPL-WP489474
...
624
Foot, Outer Case WPL-C8960601
...
644
Clamp, Tube WPL-M0108001
...
693
Screw WPL-WP489399
...
804
Screw, Sm WPL-M0227217
...
834
Cover, O.c.back WPL-10178406
...
844
Screw WPL-WP489069
...
1211
Tube WPL-WPB5705307
...
1221
Clip- Spee WPL-WPM0114003
...
1243
Harness, Cabinet WPL-12072603
...
1311
Cover - Wire WPL-10178505
...
1932
Clamp WPL-B5794201
...
1991
Screw WPL-WP489069
...
1992
Screw WPL-WP489069
...
2002
Cord-Power WPL-10916505
...
2061
Gasket (ft.) WPL-10839803
...
2071
Clip WPL-WPM0104106
...
2302
Drier WPL-WPB2150504
...
2322
Clip, Drier WPL-10547002
...
2332
Clamp, Speed WPL-M0103904
...
2352
Screw WPL-WP489399

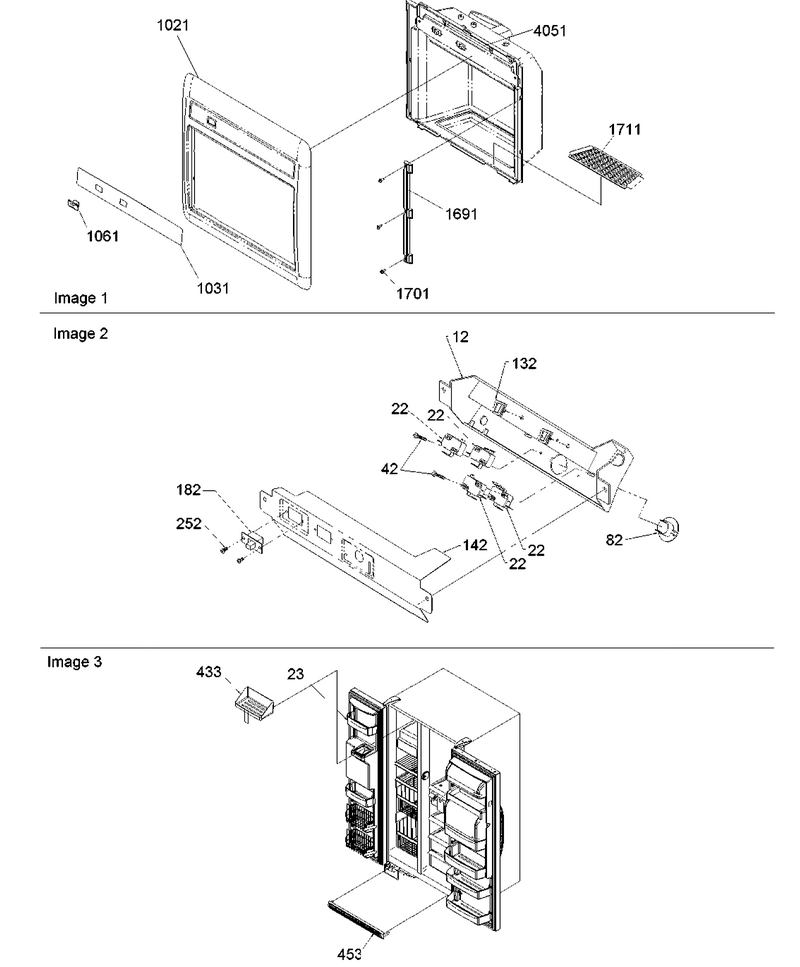

05 - Facade Dispenser Cover, & Elec Brkt Assy

...
...
12
Bracket,elec Mntg WPL-10323308
...
22
Switch, Limit WPL-12419601
...
23
Shelf, Fzr Door WPL-12311807
...
42
Screw, T.f. WPL-M0237809
...
82
Socket, Light WPL-10131702
...
132
Wire Clip WPL-B5667304
...
142
Cover, Elec Brkt WPL-10131810
...
182
Switch-Crushed/cube WPL-10166002
...
252
Screw WPL-W11084238
...
433
Shelf, Ice Cream WPL-10870802
...
453
Kit, Toe Grille (bsq) WPL-12321814Q
...
1021
Facade,dispenser(bisque) WPL-12501902C
...
1031
Insert,dba Facade(bisque) WPL-12508204C
...
1061
Cap, Switch(bisque) WPL-12502102C
...
1691
Extension, Cavity WPL-12335602
...
1701
Screw-Sm/hex WPL-12990523
...
1711
Grille,sump(bisque) WPL-12524801C
...
4051
Gasket, Foam WPL-A3189379

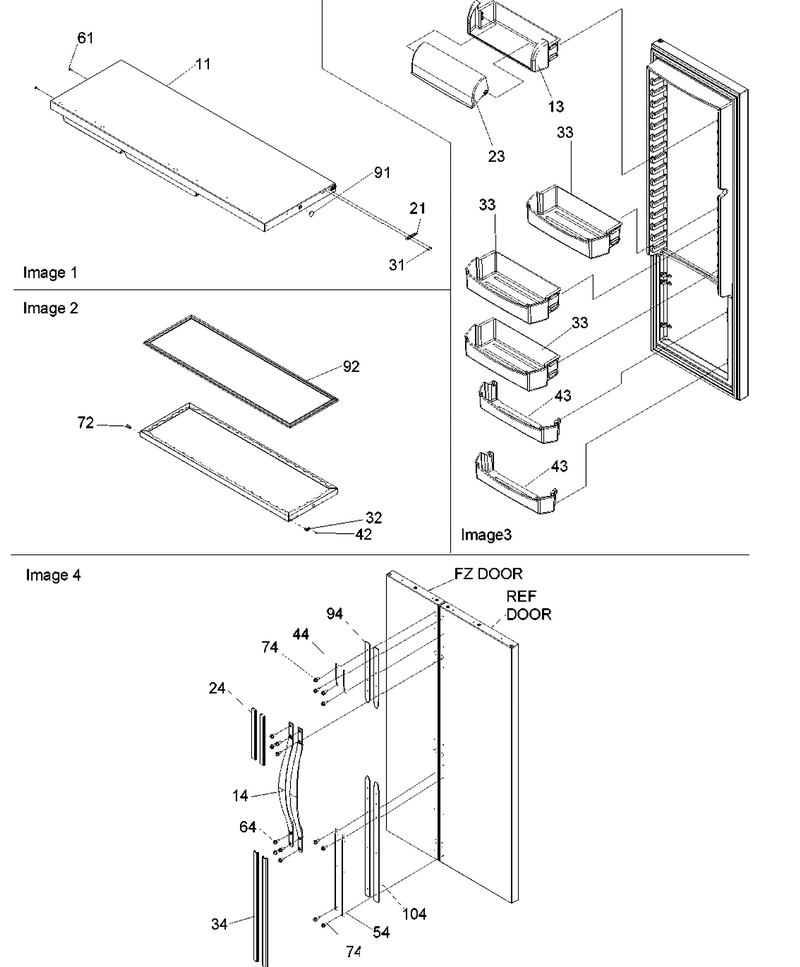

12 - Refrigerator Door, Trim & Handles

...
...
11
Assy,ref Dr Foam(bisque) Sxs WPL-12309705CQ
...
13
Frame, Dairy WPL-12308603
...
14
Handle,door(bisque) WPL-12514601C
...
21
Stop, Door (bsq) WPL-C8972411
...
23
Door- Dair WPL-12308704
...
24
Trim, Bisque S X S Top WPL-12273517
...
31
Screw WPL-WP98165
...
32
Kit,dr Closure WPL-R0181181
...
33
Bucket, Ref Door WPL-12309515
...
34
Trim, Bisque S X S Bott WPL-12273518
...
42
Screw WPL-WP8281227
...
43
Shelf, Ref Door WPL-12311209
...
44
Retainer,top Trim WPL-12273806
...
54
Retainer,btm Trim WPL-12273807
...
61
Plug, Button (bsq) WPL-M0311606
...
64
Kit, Screw WPL-R9800670
...
72
Bushing, Door (wht) WPL-10961001
...
74
Screw-Sm/hex WPL-12990523
...
91
Plug, Button (blk) WPL-A3080001
...
92
Gasket-Dor WPL-R0000200
...
94
Trim,top Handle(bisque) WPL-12495103C
...
104
Trim,btm Handle(bisque) WPL-12495104C
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
