Amana DK55 (BOM: P1307706R)

Model: DK55 (BOM: P1307706R)

Save Part Not Listed?
product name

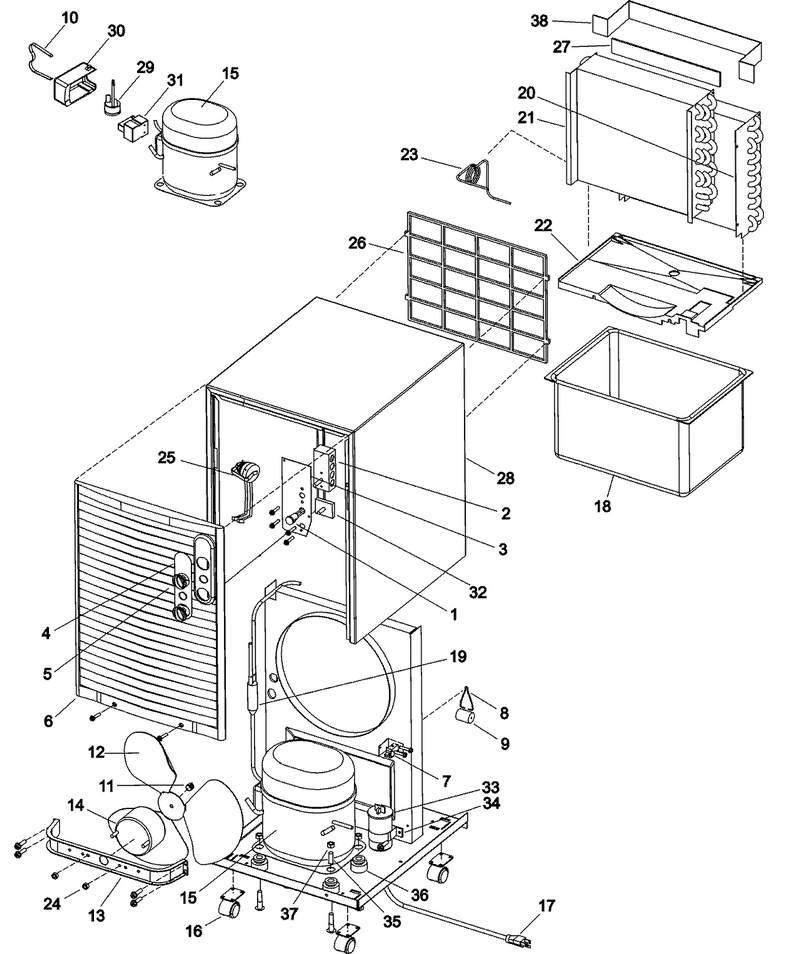

01 - Cabinet

...
...
NI
Wire, Lead (Red) WPL-R0211546
...
1
Light, Pilot WPL-R0000119
...
2
Humidistat WPL-R0000120
...
3
Bracket, Control WPL-R0211515
...
4
Escutcheon, Control Panel WPL-65001066
...
5
Knob, Control WPL-R9900207
...
6
Grille-Front WPL-R0211518
...
7
Switch,auto Shutoff WPL-R0000109
...
8
Float Arm WPL-R0211520
...
9
Float Body WPL-R9900209
...
10
Clip, Cover WPL-R9900238
...
11
Clip, Fan Blade WPL-R0211522
...
12
Fan Blade & Clip WPL-R0211523
...
13
Brkt, Motor Mount WPL-R9900231
...
14
Motor, Fan WPL-R9900232
...
15
Compressor WPL-R0211563
...
16
Caster WPL-R0211532
...
17
Wiring, Line Supply Cord WPL-R9900215
...
18
Removable-Bucket WPL-R0211567
...
19
Drier Assy WPL-R9900218
...
20
Condenser WPL-R0211568
...
21
Evaporator Assy WPL-R0211569
...
22
Tray, Drip WPL-R0000116
...
23
Capillary Tube WPL-R9900221
...
25
De-Icer Control WPL-R0211542
...
27
Gasket-Sponge Rubber WPL-R0000118
...
28
Wrapper Assy WPL-R0211572
...
29
Filter/back Cover WPL-R9900228
...
30
Overload Protector WPL-R0211566
...
32
Switch, Speed (Rotary) WPL-R0211560
...
33
Capacitor WPL-R0211564
...
34
Strap, Capacitor WPL-R0130029
...
37
Nut, Lock (8-32) WPL-74005230

...
...
0
Mnl,tech Svc Dehumid-See Note WPL-RT4300001
