Amana DK50 (BOM: P1307703R)

Model: DK50 (BOM: P1307703R)

Save Part Not Listed?
product name

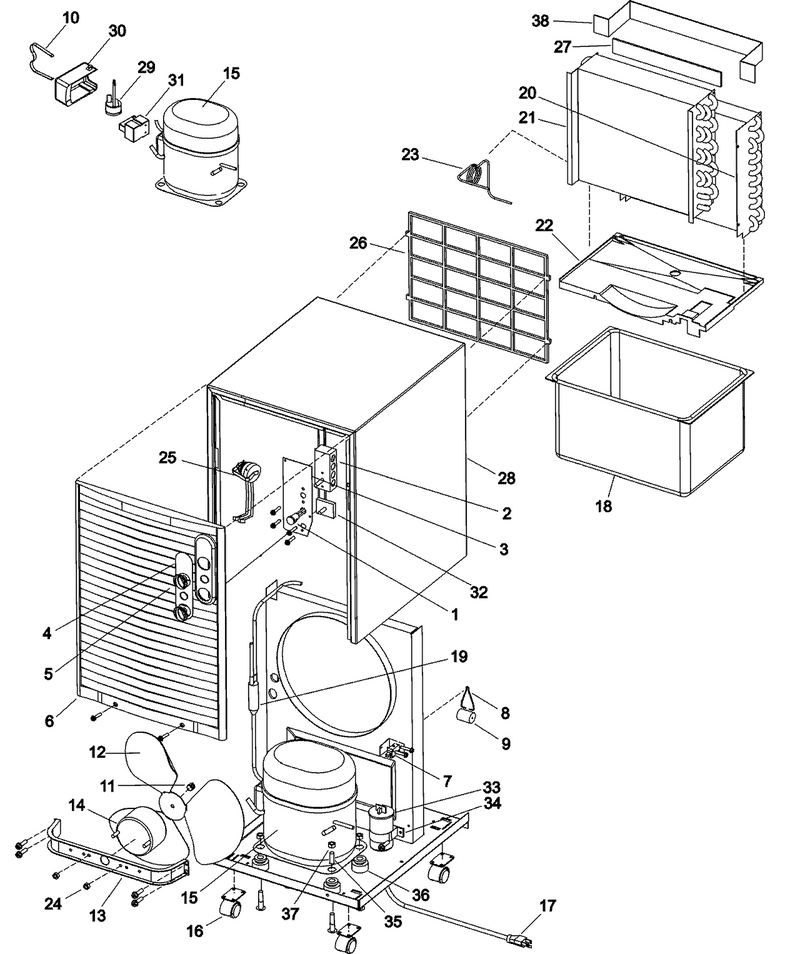

01 - Cabinet

...
...
1
Light, Pilot WPL-R0211513
...
2
Cover, Humidistat WPL-R0211561
...
3
Bracket, Control WPL-R0211515
...
4
Escutcheon, Control Panel WPL-R9900230
...
5
Knob, Control WPL-R9900207
...
6
Grille-Front WPL-R0211518
...
7
Switch, Auto Shutoff WPL-R0211519
...
8
Float Arm WPL-R0211520
...
9
Float Body WPL-R9900209
...
10
Clip - Cover WPL-R9900046
...
11
Clip, Fan Blade WPL-R0211522
...
12
Fan Blade & Clip WPL-R0211523
...
13
Brkt, Motor Mount WPL-R9900231
...
14
Clip, ``c`` Fan Motor Shaft WPL-R0211527
...
15
Compressor WPL-R9900042
...
16
Caster WPL-R0211532
...
17
Wiring, Line Supply Cord WPL-R9900215
...
18
Removable-Bucket WPL-R0211567
...
19
Drier Assy WPL-R9900218
...
20
Condenser WPL-R0211568
...
21
Screw, Evaporator WPL-R9900219
...
22
Drip Tray WPL-R9900220
...
23
Capillary Tube WPL-R9900221
...
24
Nut, Lock (8-32) WPL-74005230
...
25
De-Icer Control WPL-R0211542
...
26
Filter/back Cover WPL-R9900228
...
27
Gasket-Sponge Rubber WPL-R0000118
...
28
Screw Kit-Wrapper To Base WPL-R9900227
...
29
Overload - Protector WPL-R9900043
...
30
Cover - Overload WPL-R9900045
...
32
Switch, Speed (Rotary) WPL-R0211560
...
33
Capacitor WPL-R0211564
...
34
Strap, Capacitor WPL-R0130029
...
35
Sleeve WPL-4356846
...
36
Compressor, Grommet WPL-4356335
...
37
Nut WPL-R9900223
...
39
Wire, Lead (Red) WPL-R0211546
...
40
Wire, Lead (Blue) WPL-R0211547
...
41
Wire, Lead (White) WPL-R0211574
...
42
Wire, Jumper (Grey) WPL-R0211575
...
43
Clip, Protector WPL-R9900236

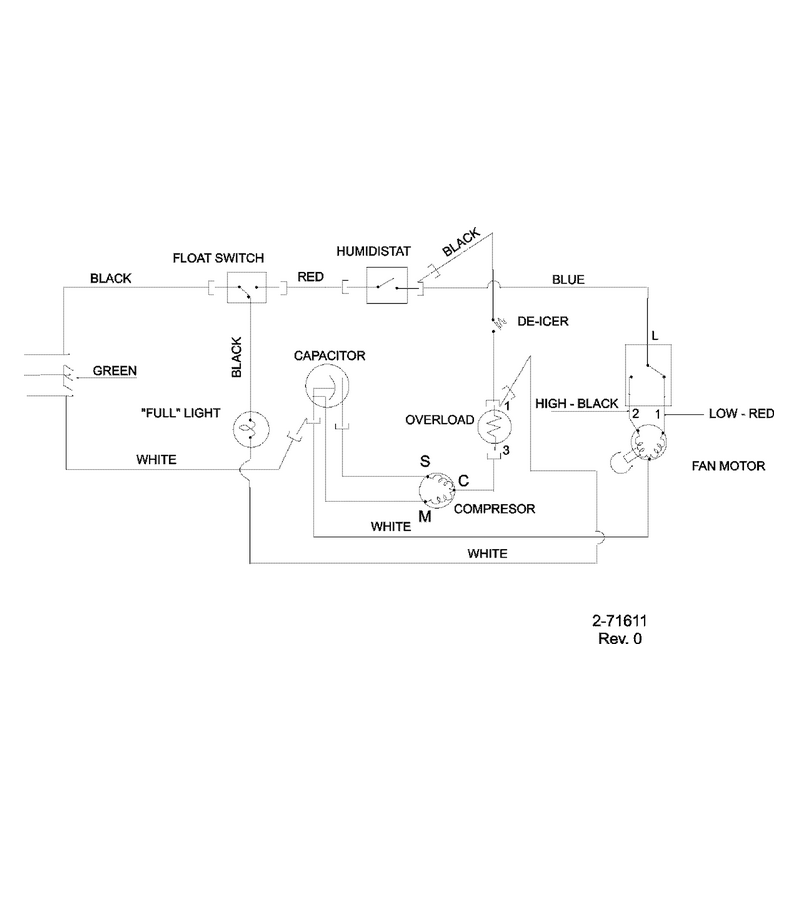

03 - Wiring Information

...
...
NI
Wiring Information WPL-15003429

...
...
1
Mnl-Use & Care (Dehumidifier) WPL-B1424904
...
2
Mnl, Pts Dehumidifier WPL-RP4300002
...
3
Mnl,svc Tech Dehumid.-See Note WPL-RS4300000
...
4
Mnl,tech Svc Dehumid-See Note WPL-RT4300001
