Amana DK25 (BOM: P1307705R)

Model: DK25 (BOM: P1307705R)

Save Part Not Listed?
product name

03 - Wiring Information

...
...
NI

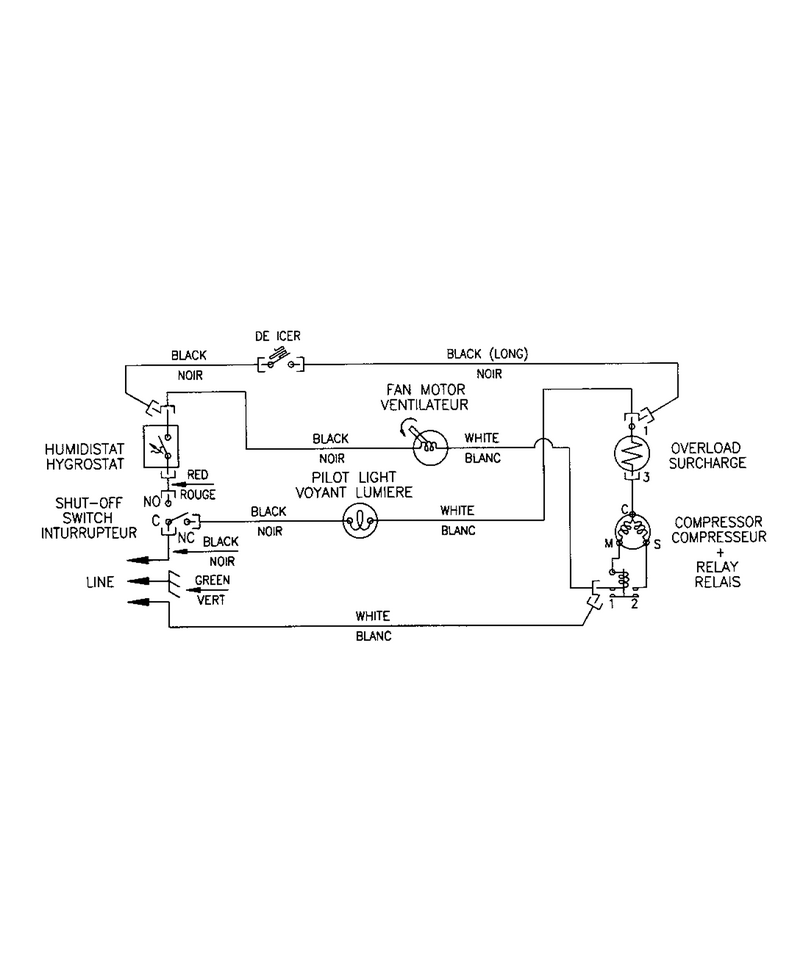

Wiring Information WPL-15003427

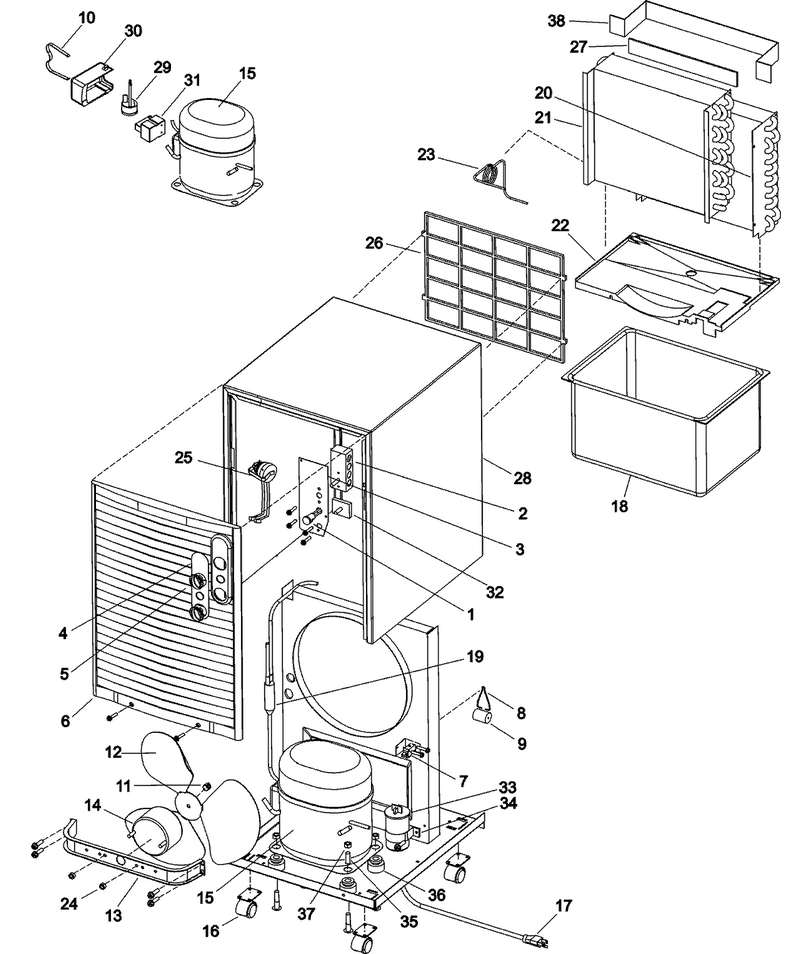

01 - Cabinet

...
...
1
Light, Pilot WPL-R9900206
...
2
Humidistat WPL-R0000120
...
3
Bracket, Control WPL-R0211515
...
4
Escutcheon, Control Panel WPL-R0000121
...
5
Knob, Control WPL-R9900207
...
6
Grille-Front WPL-R0211518
...
7
Switch, Auto Shutoff WPL-R0211519
...
8
Float Arm WPL-R0211520
...
9
Float Body WPL-R9900209
...
10
Clamp, Term. Cover WPL-10899501
...
11
Clip, Fan Blade WPL-R0211522
...
12
Fan Blade & Clip WPL-R0211523
...
13
Brkt, Motor Mount WPL-R9900231
...
14
Motor, Fan WPL-R9900210
...
15
Kit, Compressor WPL-R0211528
...
16
Caster WPL-R0211532
...
17
Wiring, Line Supply Cord WPL-R9900215
...
18
Removable-Bucket WPL-R0211567
...
19
Drier Assy WPL-R0211535
...
20
Condenser WPL-R9900216
...
21
Evaporator Coil WPL-R0211537
...
22
Drip Tray WPL-R9900220
...
23
Capillary Tube WPL-R0211540
...
24
Nut, Lock (8-32) WPL-74005230
...
25
De-Icer Control WPL-R0211542
...
26
Filter/back Cover WPL-R9900228
...
27
Relay WPL-R0211529
...
28
Wrapper Assy WPL-R0211572
...
29
Overload Protector WPL-R0211530
...
30
Cover, Overload Protector WPL-R0211531
...
31
Relay WPL-R0211529
...
39
Wire, Lead (Red) WPL-R0211546
...
40
Clip, Overload WPL-Y09100114

...
...
1
Mnl-Use & Care (Dehumidifier) WPL-B1424904
...
2
Mnl, Pts Dehumidifier WPL-RP4300002
...
3
Mnl,svc Tech Dehumid.-See Note WPL-RS4300000
...
4
Mnl,tech Svc Dehumid-See Note WPL-RT4300000
