Amana DH42-HO (BOM: P5434108R)

Model: DH42-HO (BOM: P5434108R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

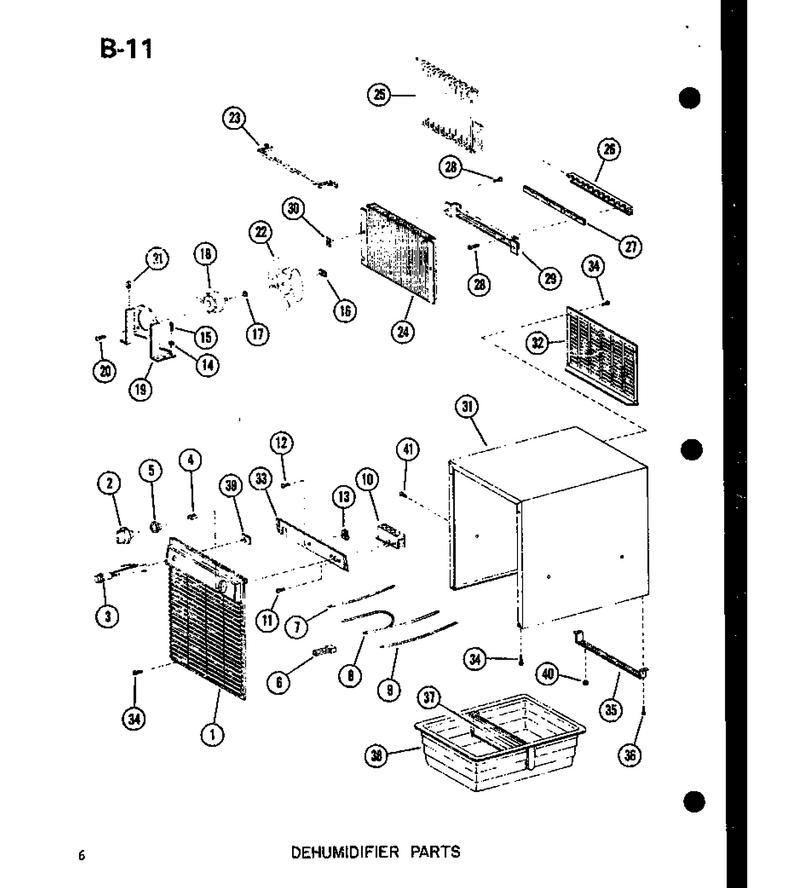

01 - Dehumidifier Parts

...
...
1
Cabinet Front WPL-D5320208
...
2
Knob WPL-D4964203
...
3
Warning Lamp Assy WPL-B1159101
...
4
Spring WPL-A3022701
...
5
Bushing WPL-A4592301
...
6
Housing Tab WPL-A3044402
...
7
Wire, Signal Light To Overflow WPL-B4796001
...
8
Wire, Humidistat To Signal Lig WPL-B4796101
...
9
Wire, Humidistat To Relay WPL-B4796401
...
10
Humidistat WPL-R0000120
...
11
Screw WPL-M0206116
...
12
Screw WPL-M0211530
...
13
Clamp WPL-M0102603
...
14
Washer WPL-M0270501
...
15
Screw WPL-WP489464
...
16
Nut K WPL-A0276101
...
17
Washer, Rubber, Fan Blade Mtg. WPL-A3033201
...
18
Motor, Fan WPL-B4767401
...
19
Bracket K WPL-C0681101
...
20
Screw WPL-M0220114
...
21
Clip WPL-M0110801
...
22
Fan Blade WPL-B0496901
...
23
Gasket WPL-A3030302
...
24
Coil-Condenser WPL-C5857402
...
25
Evaporator Assy WPL-C4827101
...
26
Spacer WPL-B4731501
...
27
Gasket Per Foot WPL-A4605201
...
28
Screw WPL-M0216532
...
29
Bracket WPL-B4731601
...
30
Nut WPL-M0286106
...
31
Outer Case - Beige WPL-D5320604
...
32
Outer Case Back WPL-C5214502
...
33
Mount,humidistat WPL-C5236101
...
34
Screw WPL-M0211517
...
35
Foot WPL-C5214201
...
36
Screw WPL-M0211530
...
37
Divider WPL-B4732201
...
38
Water Pan WPL-D4922601
...
39
Nut WPL-M0287611
...
40
Plug Button WPL-M0310001
...
41
Screw (3) WPL-67006425

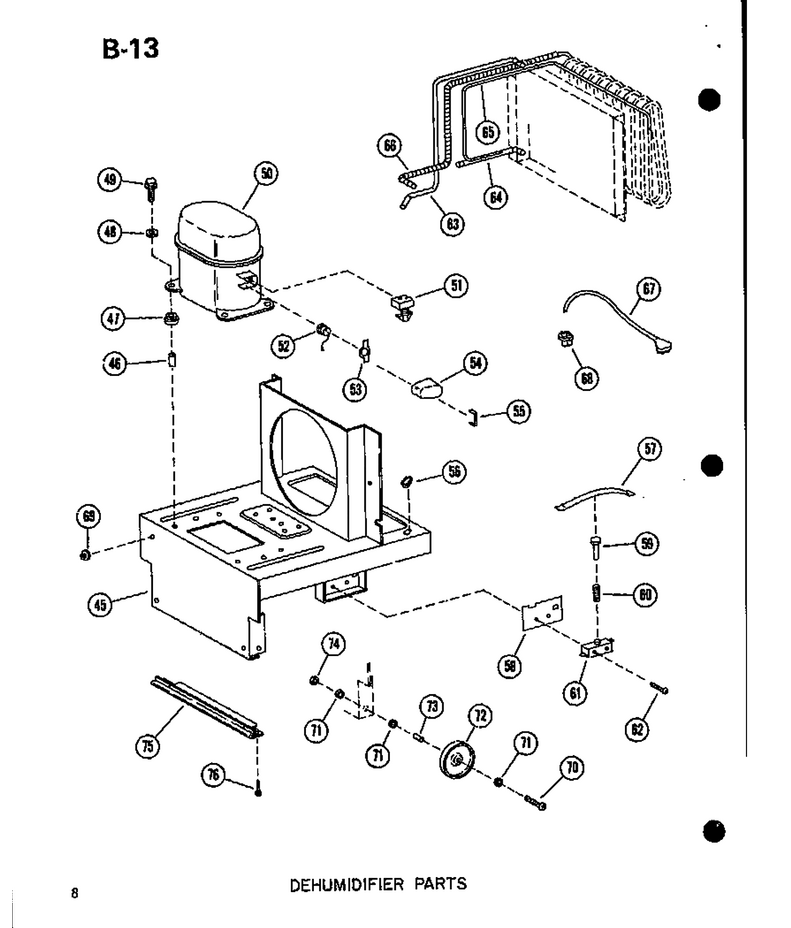

02 - Dehumidifier Parts

...
...
45
Weld Base Pan Pntd WPL-D5312803
...
46
Grommet Sleeve K WPL-A4002901
...
47
Grommet K WPL-A3026101
...
48
Washer, Flat Steel, Cond. Fan WPL-M0270523
...
49
Screw WPL-M0250561
...
50
Compressor Ae3925a WPL-D5321701
...
51
Relay WPL-C3553401
...
52
Overload WPL-D4976627
...
53
Spring K WPL-A3043601
...
54
Cover K WPL-B0559501
...
55
Strap K WPL-A3041801
...
56
Eyelet WPL-A3056101
...
57
Spring WPL-B4788201
...
58
Spacer WPL-A4580001
...
59
Rod WPL-B4786001
...
60
Spring, Switch Rod WPL-A4585901
...
61
Switch WPL-B4788601
...
62
Screw WPL-M0251007
...
63
Discharge Line WPL-C5208501
...
64
Process Strainer WPL-B4799901
...
65
Capillary Tube WPL-C5222801
...
66
Suction Line WPL-C5208601
...
67
Power Cord WPL-B5157201
...
68
Strain Relief WPL-M0370001
...
69
Spacer WPL-B4775901
...
70
Screw WPL-M0202850
...
71
Washer WPL-M0272506
...
72
Wheel Assy WPL-B4701803
...
73
Sleeve WPL-A3035601
...
74
Nut WPL-M0281104
...
75
Support WPL-C5214303
...
76
Screw WPL-M0211517
