Amana DH30 (BOM: P9966601R)

Model: DH30 (BOM: P9966601R)

Save Part Not Listed?
product name

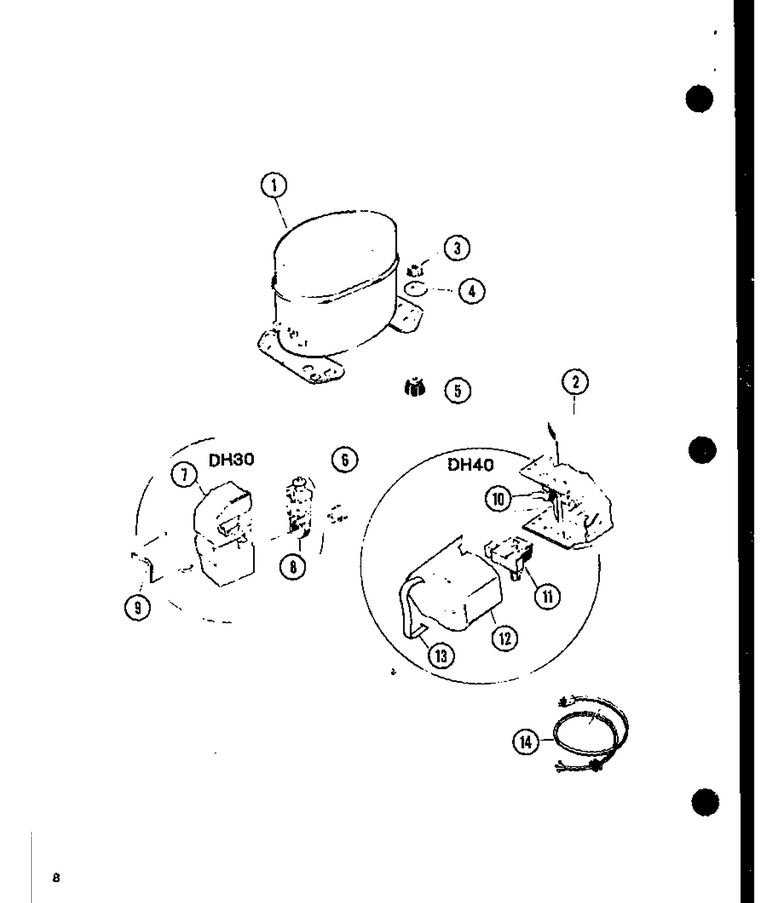

03 - Page 3

...
...
1
Compressor WPL-R0155037
...
3
Nut WPL-R0189044
...
4
Washer WPL-R0190043
...
5
Grommet WPL-R0182119
...
6
Overload WPL-R0162004
...
7
Clip Assy WPL-R0181129
...
8
Relay WPL-R0159031
...
9
Clip Assy WPL-R0181129
...
14
Service Cord WPL-R0164231

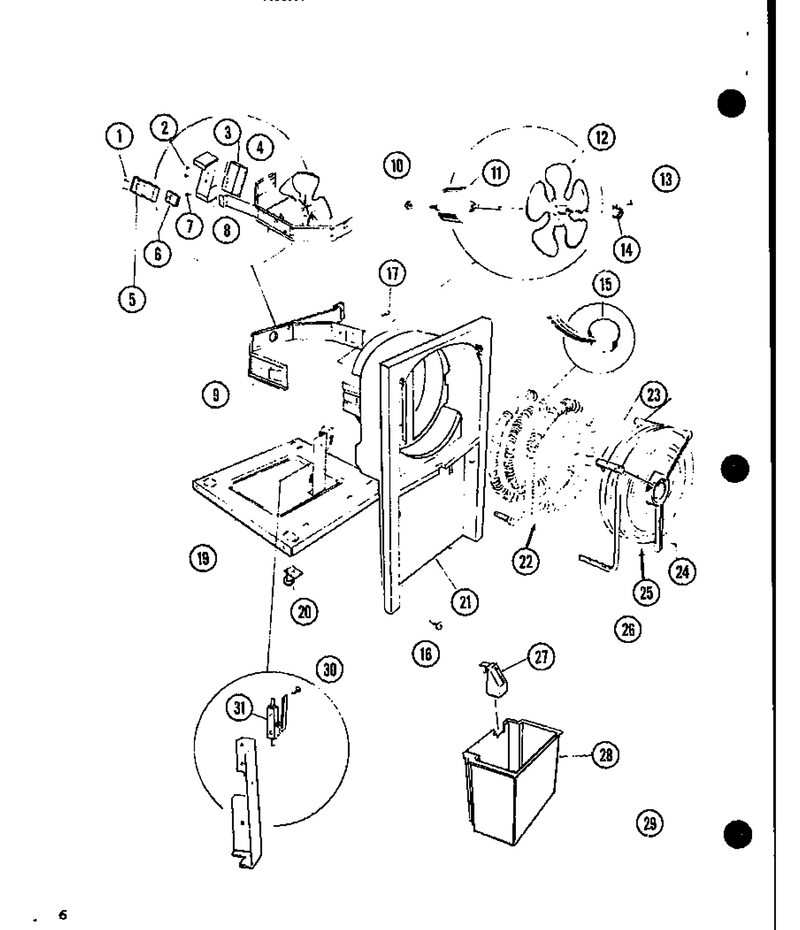

02 - Page 2

...
...
1
Screw WPL-R0188041
...
2
Screw WPL-R0188040
...
3
Control, Humidistat WPL-R0161055
...
4
Guard Terminal WPL-R0181131
...
5
Bracket WPL-R0176023
...
6
Switch WPL-R0163131
...
7
Screw WPL-R0188040
...
8
Bracket WPL-R0176024
...
9
Bracket WPL-R0176025
...
10
Nut WPL-WP488130
...
11
Assy-Dehum WPL-R0154049
...
12
Fan Blade WPL-R0156044
...
13
Screw WPL-R0188042
...
14
Clamp WPL-R0191091
...
15
Control Defrost WPL-R0161056
...
16
Screw WPL-R0188038
...
17
Screw WPL-R0188038
...
19
Base/w Casters WPL-R0194455
...
20
Caster WPL-R0176026
...
21
Shroud WPL-R0194456
...
22
Condenser WPL-R0171003
...
23
Support, Inner WPL-R0176027
...
24
Support, Outer WPL-R0176028
...
25
Evaporator WPL-R0170028
...
26
Capillary Tub WPL-R0173057
...
27
Fan Shroud Seal Assy WPL-R0181123
...
28
Bucket WPL-R0181127
...
29
Harness, Wire WPL-R0164230
...
30
Screw WPL-R0188039
...
31
Switch WPL-R0163132

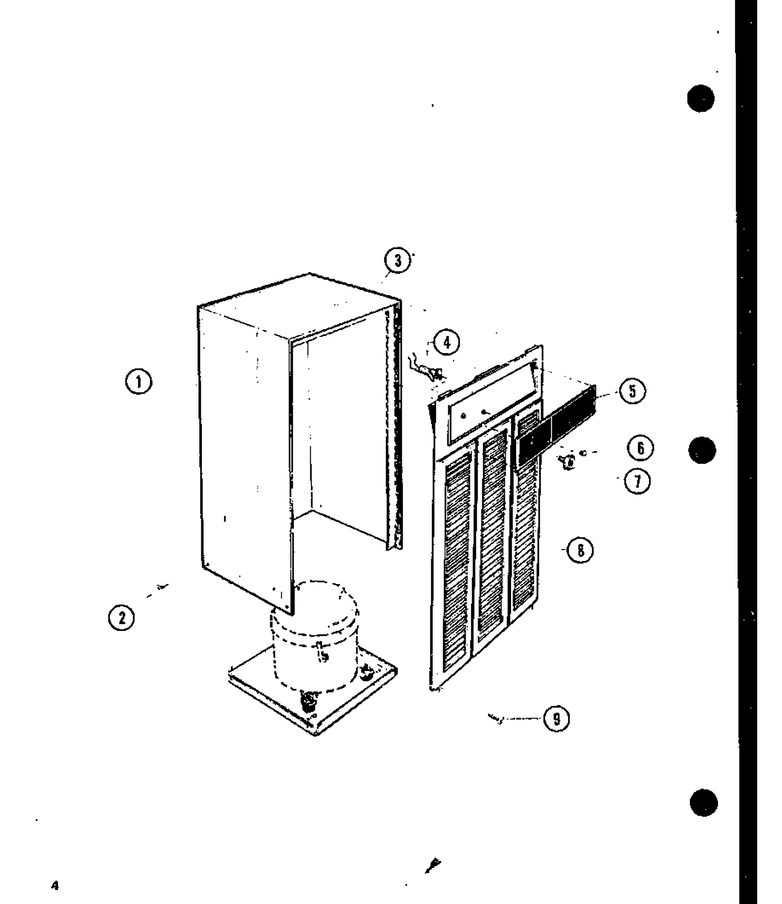

01 - Page 1

...
...
1
Wrapper WPL-R0194454
...
2
Screw WPL-R0188038
...
3
Trim WPL-R0176019
...
4
Light WPL-R0165014
...
5
Dial Plate WPL-R0176020
...
6
Lens WPL-R0181126
...
7
Knob WPL-R0181125
...
8
Grille-Front WPL-R0176022
...
9
Screw WPL-R0188039
