Amana DH26-H (BOM: P5434104R)

Model: DH26-H (BOM: P5434104R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

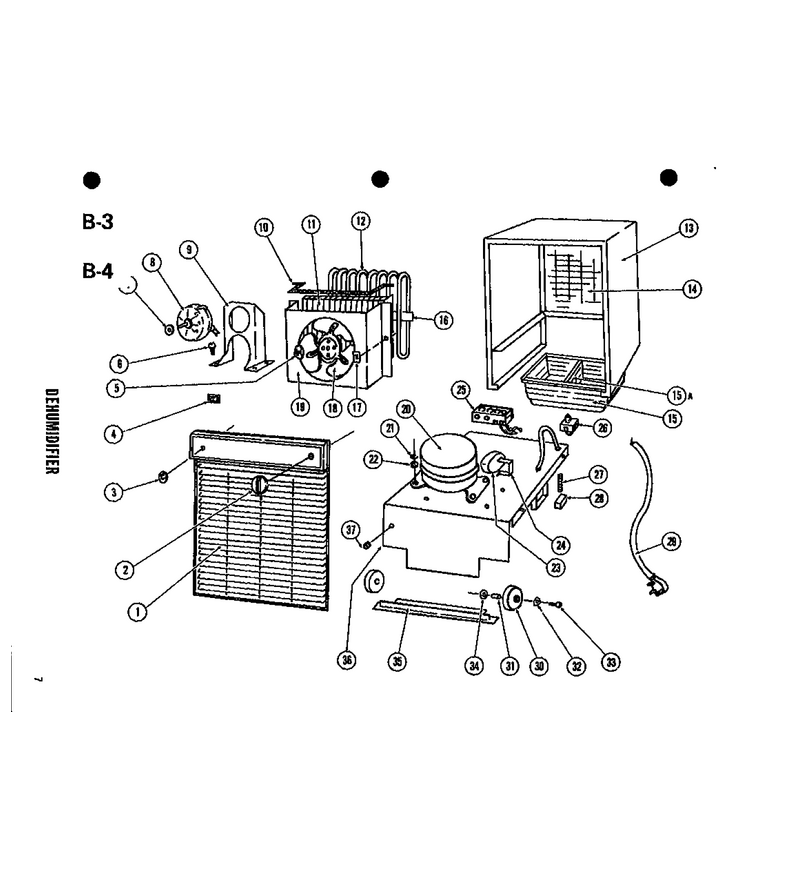

01 - Dehumidifier

...
...
Dh26-H/p54341-5r Model Dh26-H, Manufacturing Number P54341-5r Uses A Tecumseh Compressor And Related Parts. WPL-NOTE:
...
NI
Wire, Humidistat To Relay WPL-B4796401
...
1
Front WPL-D5320202
...
2
Knob WPL-D4964203
...
5
Motor WPL-B4767402
...
6
Screw WPL-WP90767
...
7
Washer, Rubber, Fan Motor Moun WPL-B4767403
...
8
Motor, Fan WPL-B4767404
...
9
Bracket K WPL-C0681101
...
10
Gasket WPL-A3030302
...
11
Coil-Condenser WPL-C5857402
...
12
Evap. Assy WPL-C5205601
...
13
Outer Case-Tan WPL-D5320602
...
14
Outer Case Back WPL-C5214502
...
15
Divider, Water Pan WPL-D4732201
...
16
Bracket WPL-B4731601
...
18
Fan Blade WPL-B0496901
...
19
Fan Shroud WPL-D4921501
...
20
Compressor, Danfoss WPL-D5450301
...
21
Screw WPL-M0250561
...
22
Washer, Flat Steel, Cond. Fan WPL-M0270523
...
24
Strap K WPL-A3041801
...
25
Humidistat WPL-R0000120
...
29
Power Cord WPL-B5157201
...
35
Support WPL-C5214302
...
36
Base Pan WPL-D5312804
...
37
Plug Button WPL-M0310001
