Amana DH2222W (BOM: P6924201R)

Model: DH2222W (BOM: P6924201R)

Save Part Not Listed?
product name

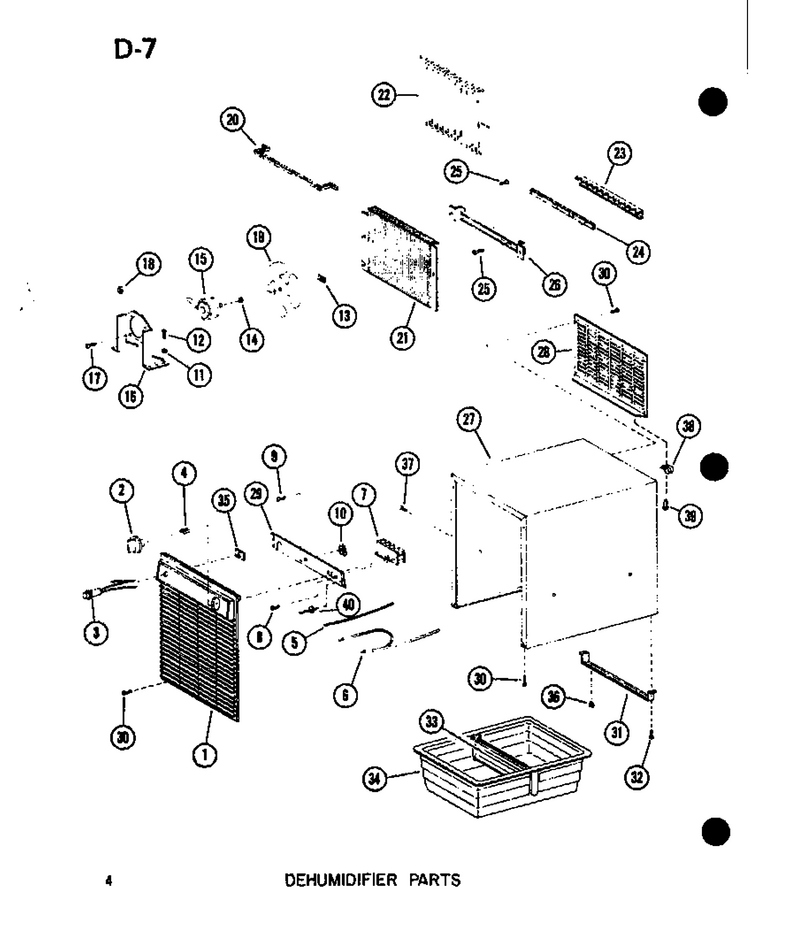

01 - Dehumidifier Parts

...
...
1
Cabinet Front WPL-D5320208
...
2
Knob K WPL-D7009805
...
3
Warning Lamp Assy WPL-B1159101
...
4
Clip,retainer WPL-M0115902
...
5
Jumper Wire WPL-C5946409
...
6
Jumper Wire WPL-C5946410
...
7
Humidistat WPL-R0000120
...
8
Screw WPL-M0206116
...
9
Screw WPL-M0211530
...
10
Clamp WPL-M0102603
...
11
Washer WPL-M0270501
...
12
Screw WPL-WP489464
...
13
Nut K WPL-A0276101
...
14
Washer, Rubber, Fan Blade Mtg. WPL-A3033201
...
15
Motor WPL-B4767402
...
16
Bracket Fan Pntd WPL-C0681102
...
17
Screw WPL-M0220114
...
18
Clip K WPL-M0110501
...
19
Fan Blade WPL-B0496901
...
20
Gasket WPL-A3030302
...
21
Coil-Condenser WPL-C5857402
...
22
Evaporator Assy WPL-C4827101
...
23
Spacer WPL-B4731501
...
24
Gasket Per Foot WPL-A4605201
...
25
Screw WPL-M0216532
...
26
Bracket WPL-B4731601
...
27
Outer Case - Beige WPL-D5320604
...
28
Back O.c. Ptd WPL-C5214503
...
29
Mount-Humidistat WPL-C5236102
...
30
Screw WPL-M0211517
...
31
Fast O.c. WPL-C5214202
...
32
Screw WPL-W11233072
...
33
Divider WPL-B4732201
...
34
Water Pan WPL-D4922601
...
35
Nut WPL-M0287611
...
36
Plug Button WPL-M0310001
...
37
Screw (3) WPL-67006425
...
38
Clamp WPL-M0102309
...
39
Screw WPL-WP90767
...
40
Rivet-Pop WPL-59002054

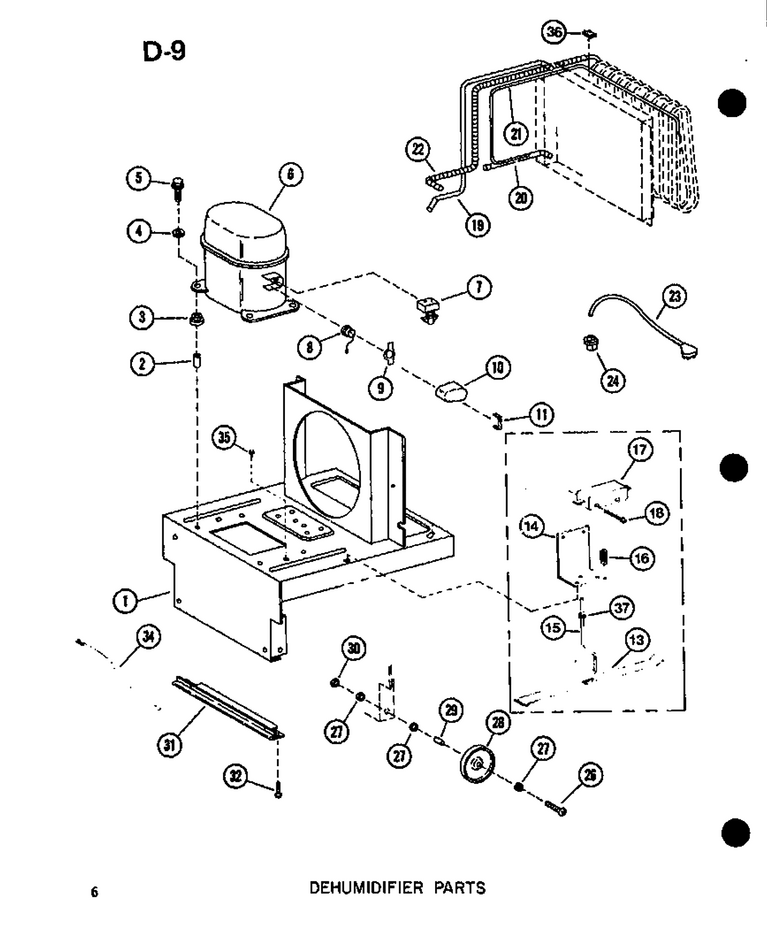

02 - Dehumidifier Parts

...
...
1
Base Pan WPL-D6924102
...
2
Grommet Sleeve K WPL-A4002901
...
3
Grommet K WPL-A3026101
...
4
Washer, Flat Steel, Cond. Fan WPL-M0270523
...
5
Screw WPL-M0250561
...
6
Compressor Ae3925a WPL-D5321701
...
7
Relay WPL-C3553401
...
8
Overload WPL-D4976627
...
9
Spring K WPL-A3043601
...
10
Cover K WPL-B0559501
...
11
Strap K WPL-A3041801
...
13
Spring, Flat WPL-B1377201
...
14
Bracket WPL-B1377401
...
15
Rod-Push WPL-B1377301
...
16
Spring WPL-A4585902
...
17
Xswitch, Overflow WPL-B1358501
...
18
Screw WPL-M0227520
...
19
Discharge Line WPL-C5208501
...
20
Process Strainer WPL-B4799901
...
21
Capillary Tube WPL-C5222801
...
22
Suction Line WPL-C5208601
...
23
Cord Set WPL-B1159001
...
24
Strain Relief WPL-M0370001
...
26
Screw WPL-M0202850
...
27
Washer WPL-M0272506
...
28
Wheel Assy WPL-B4701803
...
29
Sleeve WPL-A3035601
...
30
Nut WPL-M0281104
...
31
Support, Front WPL-C5214304
...
32
Screw WPL-M0211517
...
34
Jumper Wire WPL-C5297836
...
35
Screw WPL-WP489399
...
36
Gasket (Ft.) WPL-10839803
...
37
Washer WPL-M0270502
