Amana DEFS900I (BOM: P1300801M)

Model: DEFS900I (BOM: P1300801M)

Save Part Not Listed?
product name

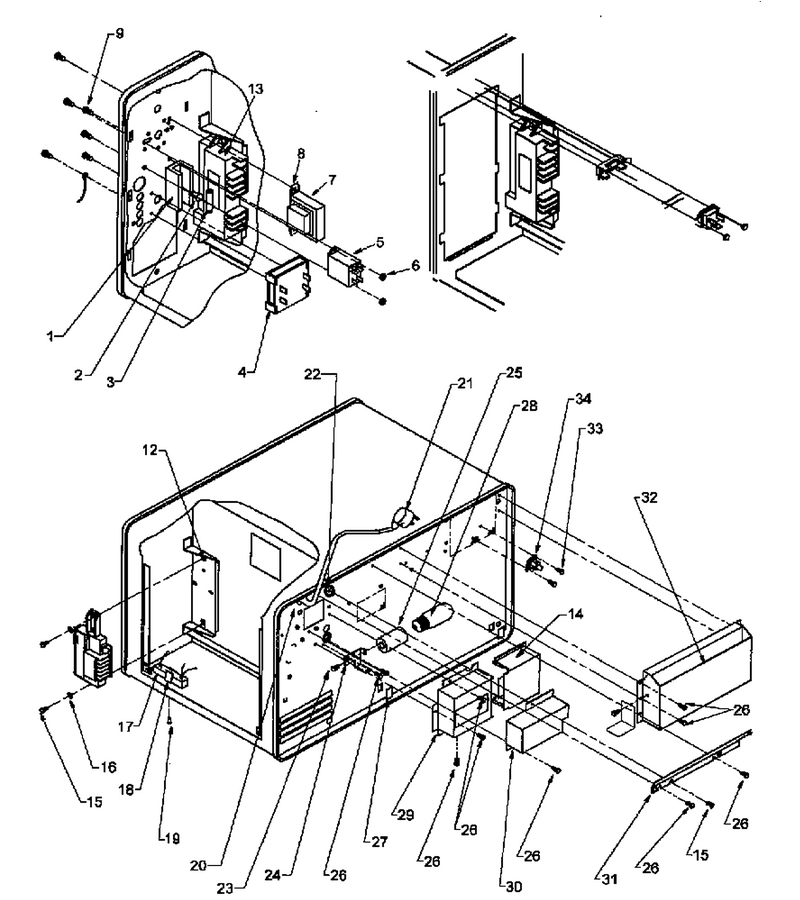

04 - Front/back Panel

...
...
NI
Rivet-Pop WPL-59002054
...
1
Block-Fuse WPL-W10206728
...
2
Rivet-Pop WPL-59002054
...
3
Fuse, 10 Amp WPL-M0805106
...
6
Nut K WPL-M0282005
...
8
Clip WPL-40558P01
...
9
See Note Screw-Machine WPL-Y00000000
...
12
U-Clip WPL-42365P01
...
13
Switch, Interlock WPL-R0163285
...
14
Light Cover WPL-92506P01
...
15
Screw WPL-WPW10001160
...
20
Strain Relf WPL-26632P01
...
21
Cord-Power WPL-B5669026
...
22
Bushing WPL-5145-S
...
23
No.4 Ab X 3/8`` Screw WPL-5000-ZZ
...
24
Bracket, Lamp WPL-3000030101
...
25
Socket, Lamp WPL-2042100201
...
26
Screw WPL-WP489464
...
27
Tape Alum WPL-M0275166
...
28
Light Bulb WPL-59002071
...
29
Cover, Component WPL-10822201
...
30
Cover-Rear Vent WPL-10830201
...
31
Channel, Wire WPL-10826901
...
32
Kit, Exhaust Baffle WPL-R0163287
...
33
Screw WPL-M0251717
...
34
Fuse, Thermal WPL-B5795305

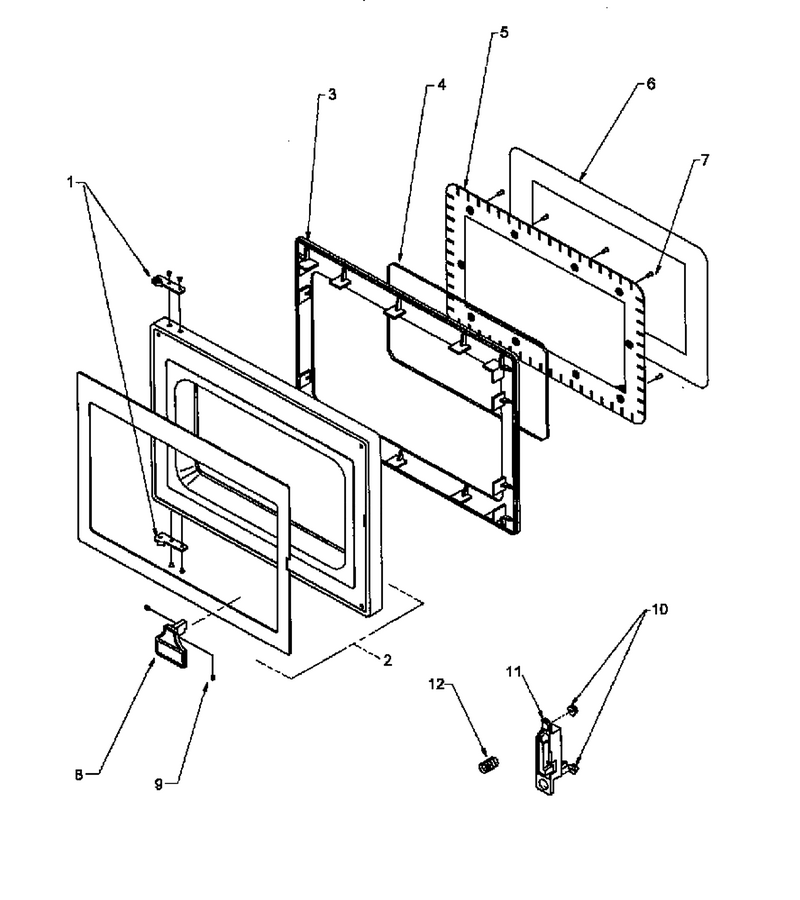

03 - Door

...
...
1
Hinge Asy Kit WPL-R0163252
...
3
Door Filler Kit WPL-M55D18
...
4
Outer Window Kit WPL-M70D246
...
5
Inner Door Kit WPL-R0163255
...
6
Window, Inner Door WPL-10785001
...
7
Screw WPL-WP8281236
...
8
Door Handle-E Ct WPL-3000029501
...
9
Screw WPL-WP8533976
...
10
No.10-24 Flange Whiz-Lk Nut WPL-5015-T
...
11
Door Latch Kit WPL-R0163256
...
12
Spring, Door WPL-41205P01

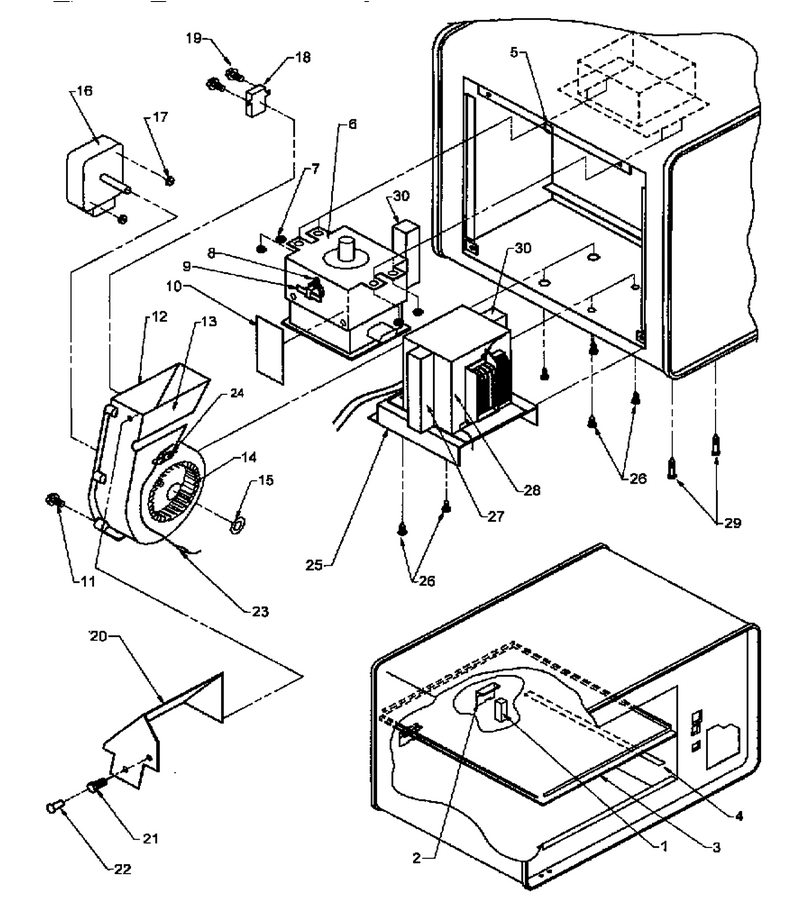

01 - Cavity

...
...
1
Support-Tray WPL-3010003001
...
2
Rework Shelf Support (Sr) WPL-4180025801
...
3
Shelf W/sealant Kit WPL-M50D39
...
4
11.75 X .5 Shim WPL-2570002301
...
5
Cable Clip WPL-39126P01
...
6
Magnetron WPL-10794401
...
7
Ia 5mm Flange Whiz-Lk Nut (25) WPL-5014-J
...
8
Screw WPL-M0251717
...
9
Protector,thermal 180c 25 Amp WPL-1751802501
...
10
Tape Alum WPL-5041-CC
...
11
No.8 Hi-Lo X 3/8`` Screw WPL-5145-W
...
12
Blower Bracket WPL-M20D372
...
13
Blwr Hsg M65d293 WPL-42553P01
...
14
Wheel Blower M35d37 WPL-45146P01
...
15
Nut WPL-WP3195558
...
16
Motor-Blower WPL-12164501
...
17
Nut K WPL-5010-LL
...
18
Line Filt 120/250v 6.5a M10d13 WPL-1642514001
...
19
Screw A WPL-5001-WW
...
20
Cvr Blwr WPL-41235P01
...
21
Screw WPL-5027-ZZ
...
22
.187 Dia Push Rivet WPL-5039-T
...
23
Rectifier WPL-WP13091701
...
24
Tie-Elect. WPL-5140-FF
...
25
Support-Xfmr WPL-10822702
...
26
No.10 T X 3/8`` Screw WPL-5018-JJ
...
27
Foamx(Bl) 1 Pc.= 1 Ft. WPL-24642P01
...
28
Transformer-Hv WPL-10788608
...
29
Bolt Xfmer (10) WPL-40326P01
...
30
Foam Gaske.75`` Width WPL-5144-VV

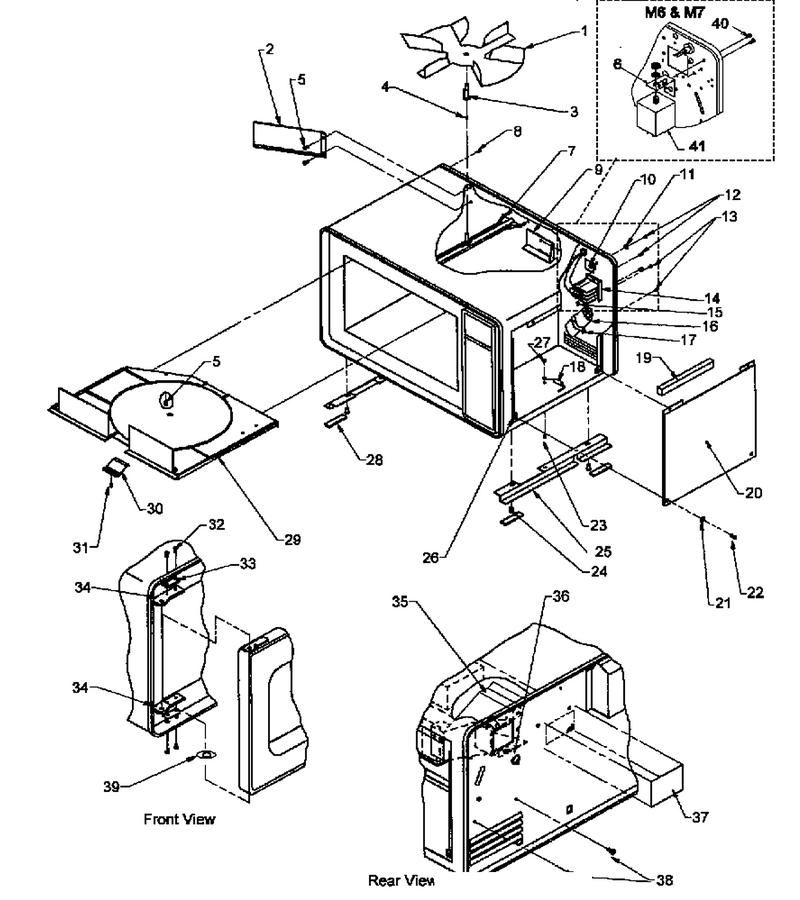

05 - Strirer/miscellaneous

...
...
1
Blade, Stirrer WPL-10826002Q
...
2
Deflector WPL-40365P01
...
3
Insert Stirrer Kit WPL-M2D571
...
4
Ball WPL-38321P01
...
5
.187 Dia Push Rivet WPL-5039-T
...
6
Brkt-Line Filter WPL-12102701
...
7
Stirrer Supt Bar Kit WPL-M20D327
...
8
See Note Screw WPL-Y00000000
...
9
Deflector WPL-40375P01
...
10
Nut K WPL-M0282005
...
11
Washer WPL-M0272503
...
12
See Note Screw-Mach WPL-Y00000000
...
13
Screw WPL-5027-ZZ
...
14
Termnl Block WPL-30282P01
...
15
Nut K WPL-5012-TT
...
16
Hvcap1.05mfd 2500v80deg C WPL-1241524333
...
17
Bracket WPL-10825501
...
18
Rectifier WPL-WP13091701
...
19
Foamx(Bl) 1 Pc.= 1 Ft. WPL-24642P01
...
20
Access Pnl Kit WPL-M53D54
...
21
See Note Washer-Lock WPL-Y00000000
...
22
No.8 Ab X 1/2`` Crow Foot Hd Scr WPL-5145-E
...
23
Screw WPL-WPW10001160
...
24
.156 Pop Rivet WPL-5067-S
...
25
Rail Support WPL-43855P01
...
26
Clip WPL-40558P01
...
27
See Note Nut WPL-Y00000000
...
28
Tape 8-Ft/pkg Kit WPL-M2D451
...
29
Stirrer Cover WPL-44103P01
...
30
Cover, Stirrer Support WPL-3010002701
...
31
Plastic Fastener WPL-5524122001
...
32
No.8-32 Pan Hd Mach Scr (25) WPL-5149-C
...
33
Shim-Hinge WPL-45540P01
...
34
Assy, Hinge WPL-4180032601Q
...
35
Duct Cavity WPL-M65D301
...
36
Bushing (Blk) WPL-74009866
...
37
Polyester Tape 2.75`` WPL-5079-D
...
38
Screw WPL-WP489464
...
39
Ia Nylon Flat Washer WPL-40370P02
...
40
Screw WPL-WP3388228
...
41
Line Filter Xx WPL-B5717801

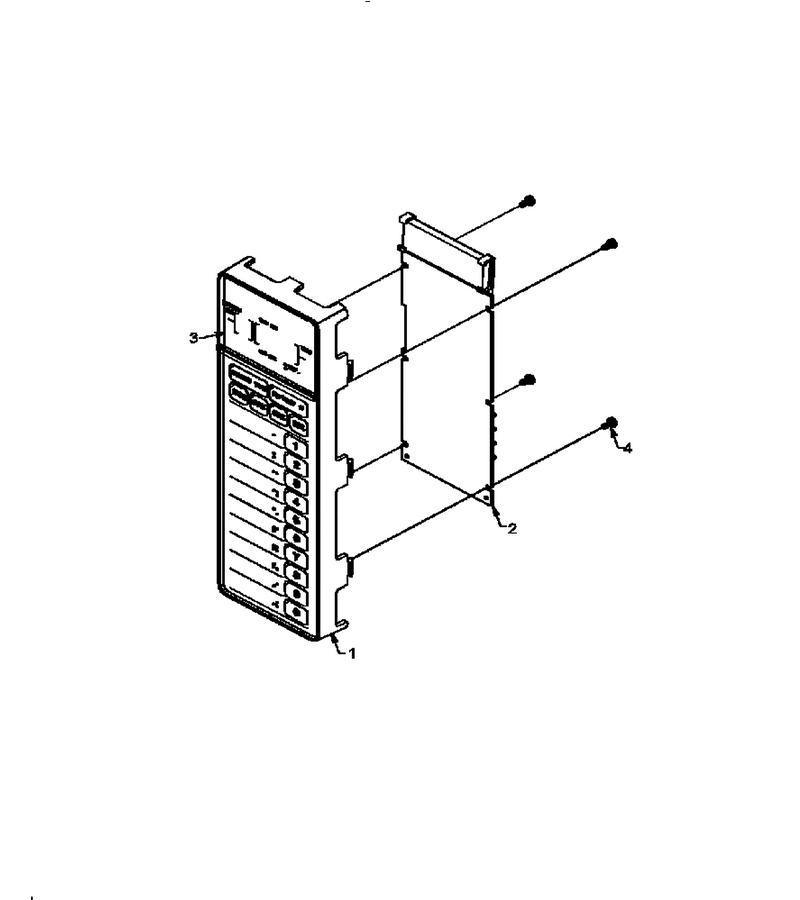

02 - Control Panel

...
...
1
Touch Panel Asy WPL-4002003401
...
2
Board, P.c. WPL-10987106
...
3
Display Window Kit WPL-M2D632
...
4
Screw-Tf WPL-5064-CC
