Amana DECS11M (BOM: P1327804M)

Model: DECS11M (BOM: P1327804M)

Save Part Not Listed?
product name

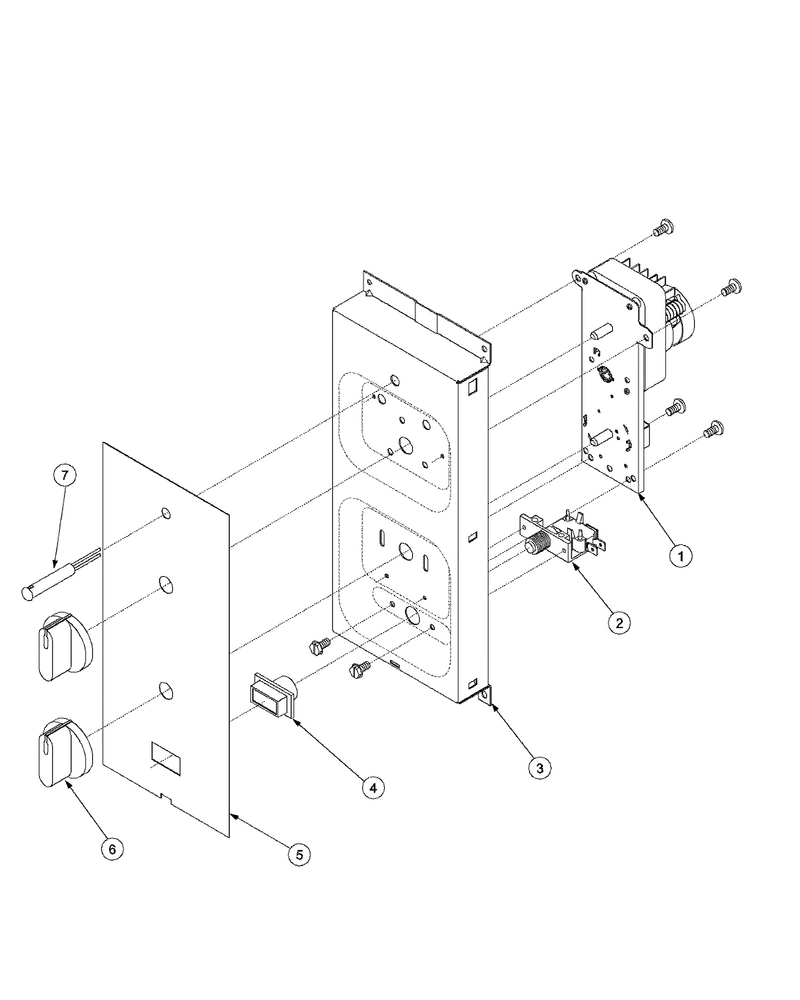

02 - Control

...
...
1
Screw WPL-WP59002061
...
2
Switch, Start WPL-12492101
...
3
Brkt,control(E-Ct) WPL-12471402
...
4
Button, Push WPL-12487801
...
5
Thinplate WPL-59001063
...
6
Knob, Timer WPL-12360802
...
7
Light, Pilot WPL-B5785708

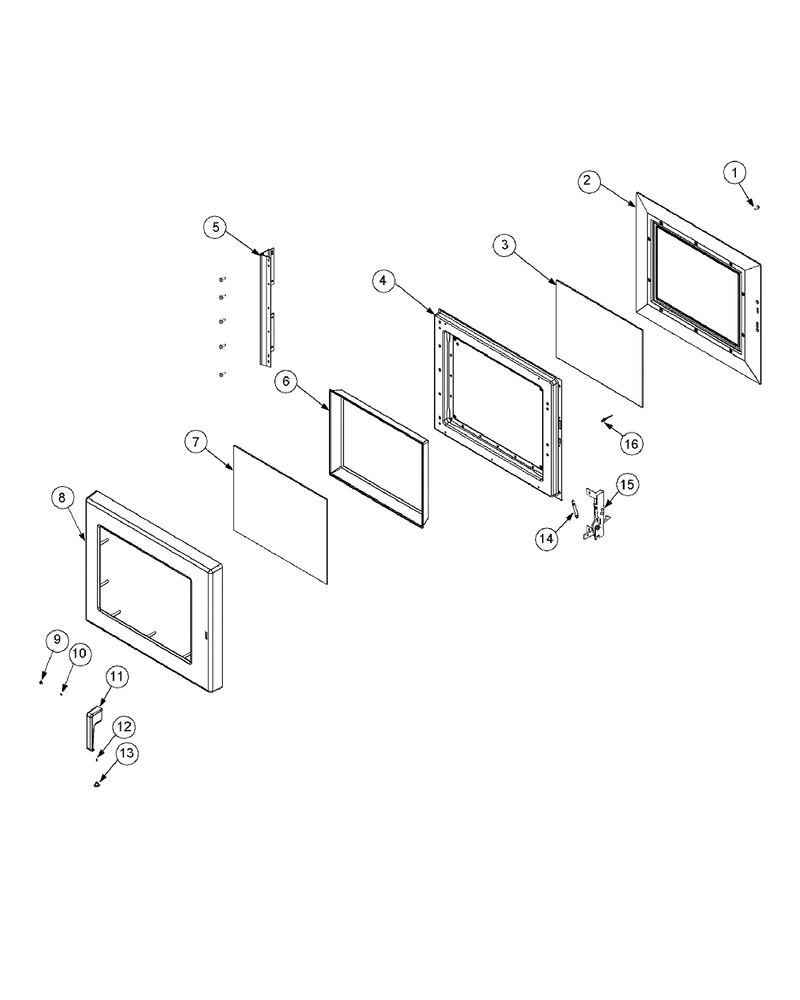

03 - Door

...
...
1
Screw-Hi Lo Y-Drive Head WPL-67003392
...
2
Door, Inner WPL-D7683508
...
3
Window, Inner WPL-B8371202
...
4
Door Ring Weld WPL-59002013
...
5
Screw WPL-WP90767
...
6
Box,shadow WPL-12667201
...
7
Window,outer WPL-C8960402
...
8
Door,outer WPL-12667101
...
9
Hole, Plug WPL-59001007
...
10
Screw WPL-WP8533976
...
11
Handle, Door WPL-12490901
...
12
Screw WPL-WP8533976
...
13
Plug, Button (Wht) WPL-M0310305
...
14
Spring, Door Latch WPL-C8893502
...
15
Screw WPL-WP3388228
...
16
Rivet-Pop WPL-59002054

...
...
1
Oven Rack WPL-D7780102
...
2
Bit For Torx 15h Drive Screws WPL-R0193551
...
3
Magnetic Y-Drive Bit WPL-R0193574
...
4
Manual, Service WPL-59001068
...
5
Manual, Use & Care WPL-59001624

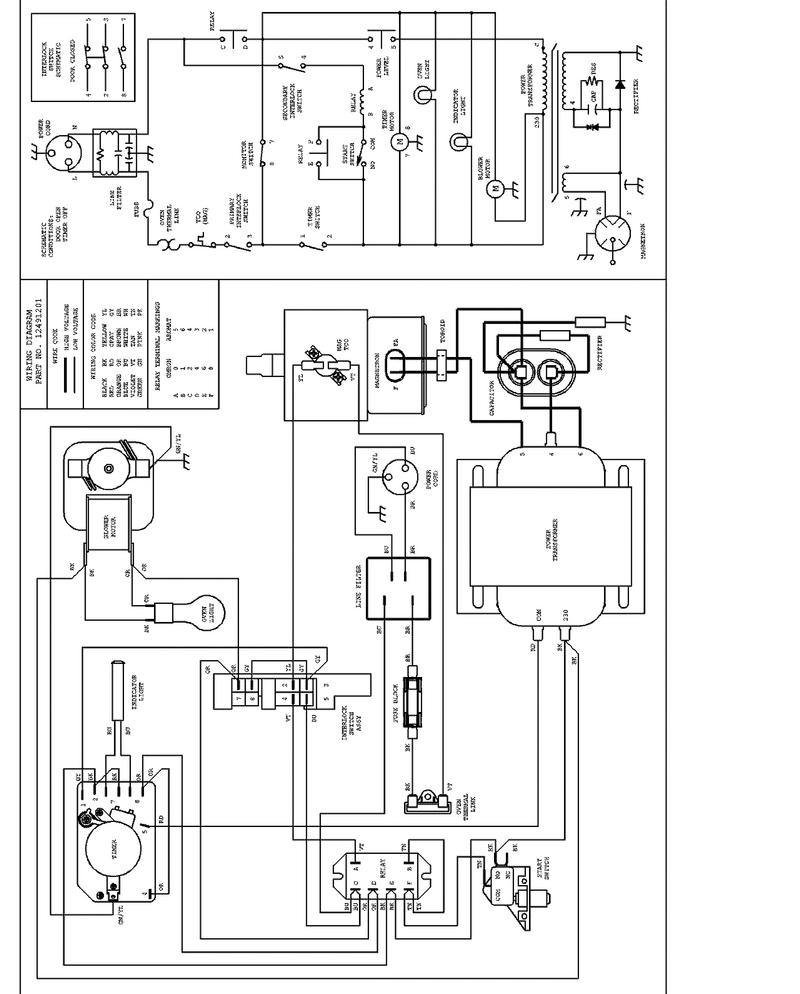

07 - Wiring Information

...
...
NI
Diagram, Wiring WPL-15002983

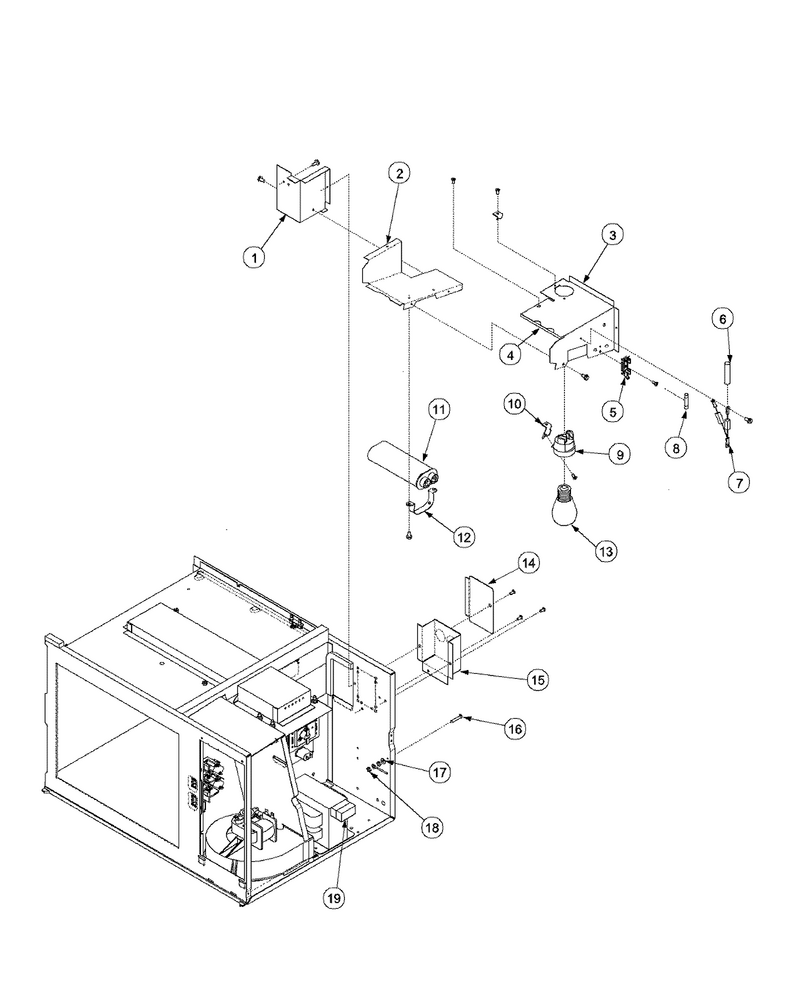

04 - Electric Components

...
...
1
Screw, Tf WPL-M0231704
...
2
Air Duct. Bottom WPL-D7772202
...
3
Duct, Top Air WPL-D7772007
...
4
Gasket (Inch) WPL-A3030301
...
5
Screw WPL-WP59002061
...
6
Sleeve, Wire WPL-M0322602
...
7
Screw, Tf WPL-M0231704
...
8
Fuse, 12 Amp WPL-M0805105
...
9
Socket, Light WPL-B8376801
...
10
Screw WPL-WP59002061
...
11
Capacitor-1.20 WPL-59001171
...
12
Strap, Capacitor WPL-A4055406
...
13
Bulb-Light WPL-WP67002552
...
14
Screw, Tf WPL-M0231704
...
15
Cover,air Duct WPL-C8988002
...
16
Stud-Self Clinch WPL-M0293502
...
17
Washer WPL-M0272503
...
18
Nut K WPL-M0282005
...
19
Gasket, Neoprene WPL-10966602

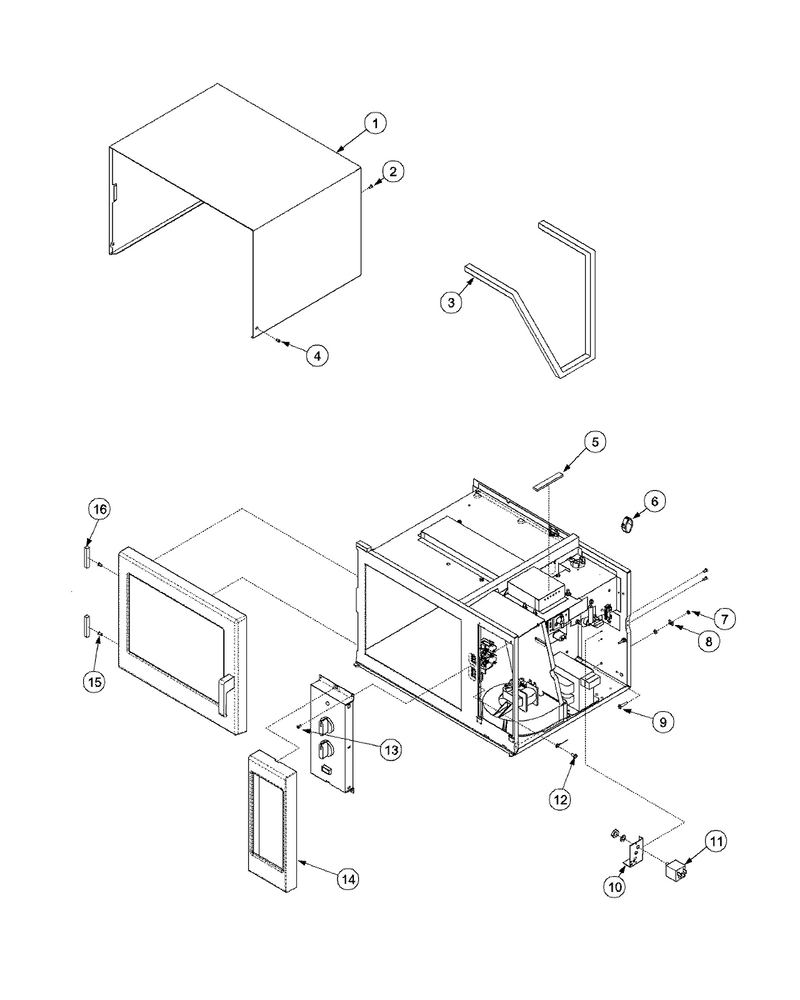

05 - Outer Case

...
...
1
Wrapper,oc WPL-D7684913
...
2
Screw, Tf WPL-M0231704
...
3
Gasket (Per Foot) WPL-10839706
...
4
Screw, Tf WPL-M0231804
...
6
Clip, Guide WPL-M0118705
...
7
Nut-Keps WPL-M0282021
...
8
Washer-U Type WPL-12152201
...
9
Screw-Mach WPL-M0200843
...
10
Brkt, Line Filter WPL-B5696109
...
11
Line Filter Xx WPL-B5717801
...
12
Screw, Tf WPL-M0231704
...
13
Screw, Tf WPL-M0231704
...
14
Side Escutcheon-Des11m WPL-59001066
...
15
Screw WPL-WP12990527
...
16
Gasket WPL-A3263904

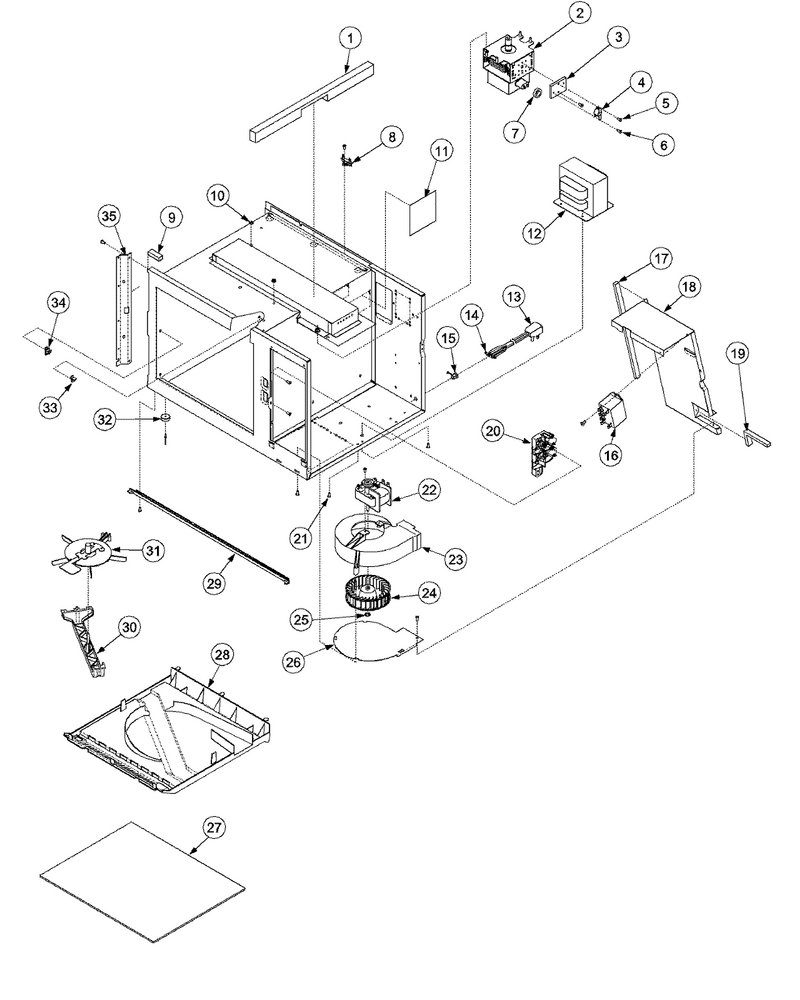

01 - Blower & Cavity

...
...
1
Gasket, Oven Top WPL-B8369901
...
2
Magnetron WPL-12096201
...
3
Plate, Thermal Cutout WPL-B8380601
...
4
Thermal Protector WPL-B5684106
...
5
Screw T.c WPL-M0229916
...
6
Screw WPL-M0232012
...
7
Toroid (Arc Suppressor) WPL-44780P01
...
8
Screw WPL-WPW10068250
...
9
Gasket (Inch) WPL-A3030301
...
10
Nut WPL-M0288808
...
11
Window, Oven Light WPL-B8367701
...
12
Screw WPL-59001052
...
14
Insulator, Pod K WPL-M0325501
...
15
Relief- Strain WPL-M0370009
...
16
Screw-Sm/hex WPL-12990523
...
17
Gasket WPL-A3030302
...
18
Blower Partition,black E Ct WPL-D7685413
...
19
Gasket WPL-A3030302
...
20
Screw-Sm/hex WPL-12990523
...
21
Screw, Tf WPL-M0231704
...
22
Screw WPL-M0213123
...
23
Scroll, Blower WPL-D7684601
...
24
Blower Wheel WPL-C8793501
...
25
Nut WPL-WP3195558
...
26
Brkt Scroll WPL-C8942501
...
27
Tray-Glass Floor WPL-C8936902
...
28
Grease Shield WPL-D7692501
...
29
Trim,oc WPL-12667301
...
30
Cradle, Antenna WPL-D7685505
...
31
Assy, Antenna WPL-C8943002Q
...
32
Pop Rivet WPL-A4539625
...
33
Support, Shelf WPL-B8374901
...
34
Support Rack WPL-B8371001
...
35
Screw, Tf WPL-M0231704
