Amana DE3670

Model: DE3670

Save Part Not Listed?
product name

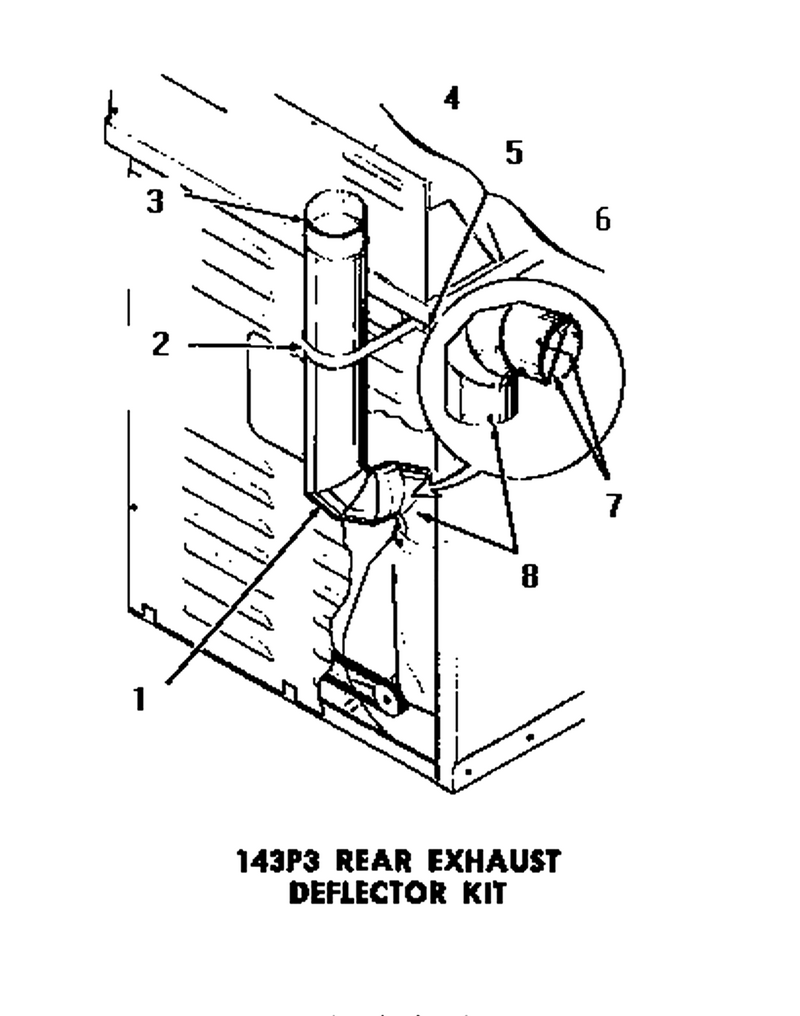

01 - 143p3 Rear Exhaust Deflector Kit

...
...
NI
Rear Exhaust Deflector Kit WPL-143P3
...
1
Elbow WPL-51917
...
2
Support Bracket WPL-52127
...
3
Exhaust Pipe, 4`` X 18`` WPL-Y52129
...
4
Screw,10-24 X 3/8 Round WPL-20267
...
5
Lockwasher,no.10 Ext Shk WPL-03815
...
6
Nut WPL-03673
...
7
See Note Cut And Remove Wire Guards WPL-Y00000000
...
8
See Note Dryer Exhaust Elbow -- (Supplied With Dryer) WPL-Y00000000

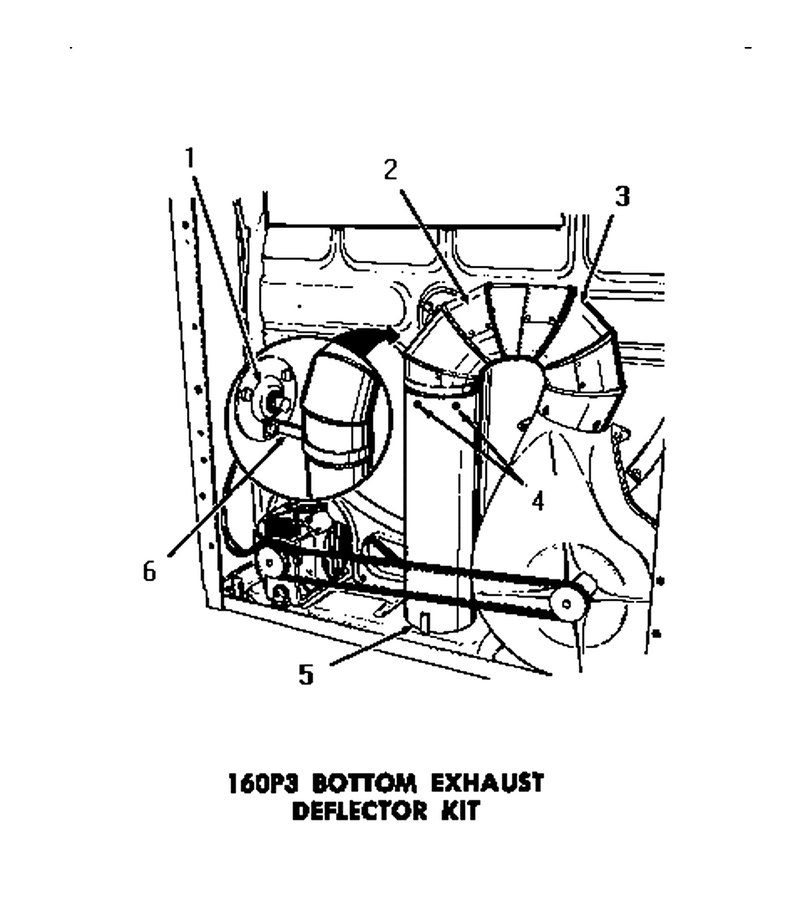

03 - 160p3 Bottom Exhaust Deflector Kit

...
...
NI
Bottom Exhaust Deflector Kit WPL-160P3
...
1
See Note Bearing Retainer WPL-Y00000000
...
2
Short 90 Degrees Elbow WPL-52699
...
3
See Note Dryer Exhaust Elbow -- (Supplied With Dryer) WPL-Y00000000
...
4
Screw WPL-WP3177991
...
5
Exhaust Tube WPL-52698
...
6
Supt-Top Brnr,lh, WPL-0052775

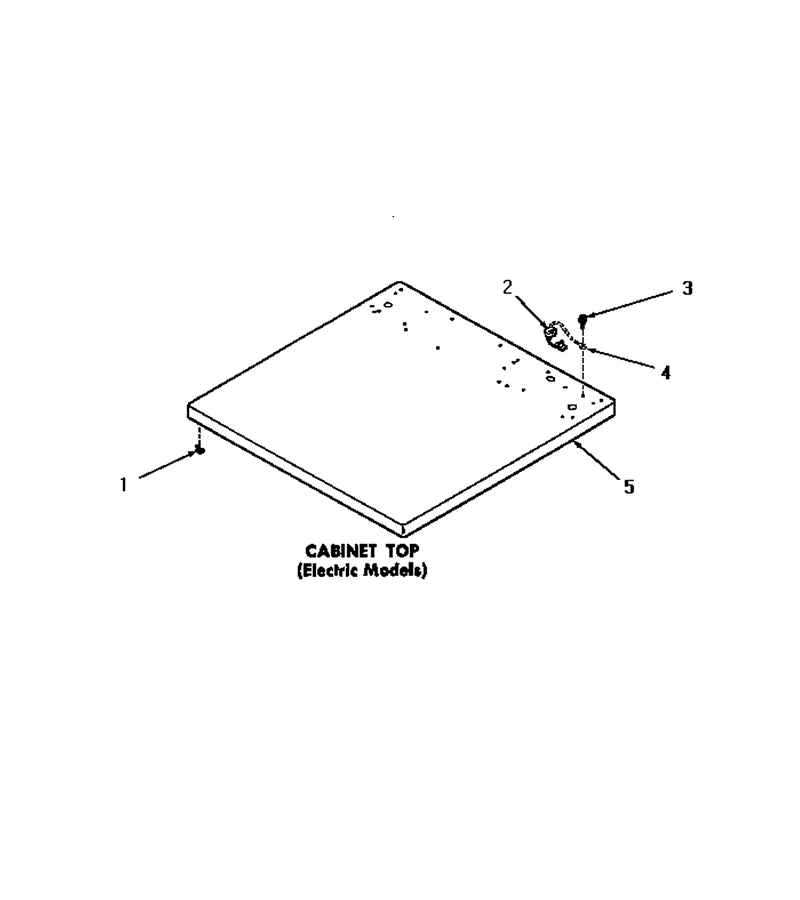

05 - Cabinet Top

...
...
Housing And Panel Assembly Will Be Supplied Whenever 52963gr Lint Screen Housingor 53058gr Inner Door Panel Is Ordered WPL-NOTE:
...
1
Caged Nut WPL-23007
...
2
Relief, Strain WPL-52151
...
3
Screw,10-24 X 1/2 Hex WPL-51924
...
4
See Note Ground Wire, Green WPL-Y00000000
...
5
Cabinet Top, Avocado WPL-54759A

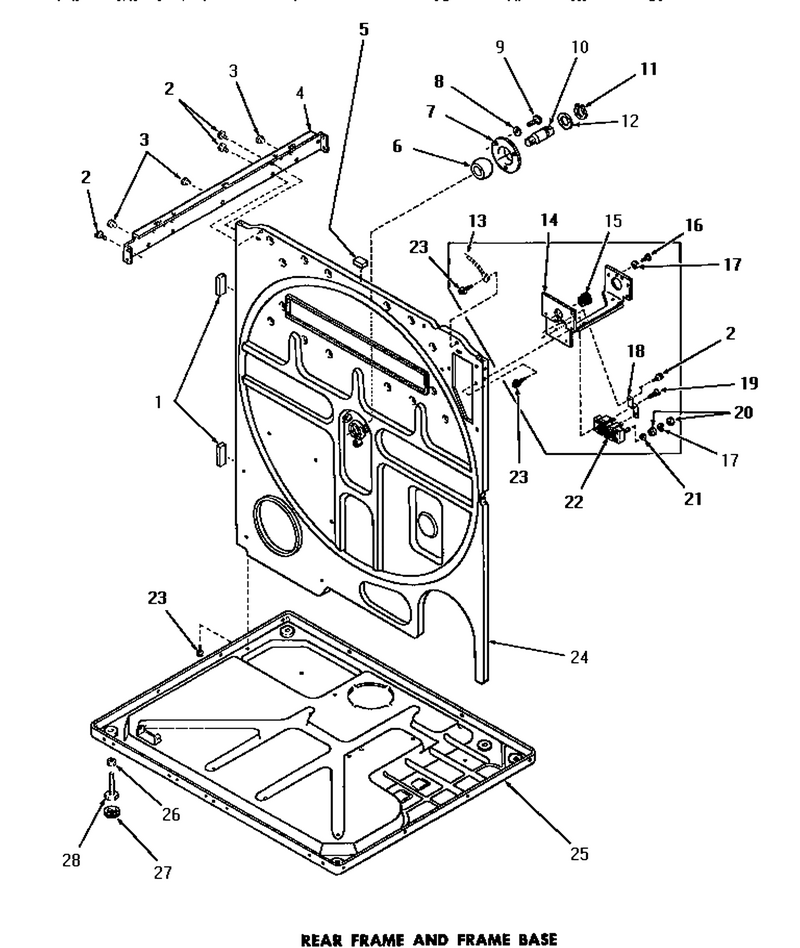

18 - Rear Frame & Frame Base

...
...
1
Bumper Pad WPL-20354
...
2
Screw WPL-WP3390631
...
3
Bumper WPL-21685
...
4
Support Channel, Right Or Left WPL-51818
...
5
Bumper WPL-54024
...
6
Bearing,drum Shaft WPL-Y52079
...
7
Cover,bearing WPL-51826
...
8
Lockwasher,1/4 Std-C P WPL-03189
...
9
Bolt WPL-WP8204624
...
10
Shaft,drum WPL-53132
...
11
Ring,retaining WPL-70061
...
12
Washer WPL-Y52564
...
13
See Note Ground Wire, Green WPL-Y00000000
...
14
Terminal Block Bracket WPL-Y52110
...
15
Relief,strain WPL-52113
...
16
Screw,10b-16 X 1/2 Hex WPL-52909
...
17
Washer,13/64idx1/2odx. WPL-51474
...
18
Strap,ground WPL-53950
...
19
Screw,10b-16 X 3/4 Rou WPL-Q6535
...
20
Nut WPL-Q6163
...
21
Washer WPL-Q6623
...
22
Block- Ter WPL-W11705611
...
23
Screw,10b-16 X 1/2 Hex WPL-51784
...
24
Frame,rear WPL-52574
...
25
Frame Base WPL-Y52572
...
26
Nut WPL-WP62739
...
27
Foot- Rubb WPL-WPY314137
...
28
Feet-Lvlng WPL-W10176519

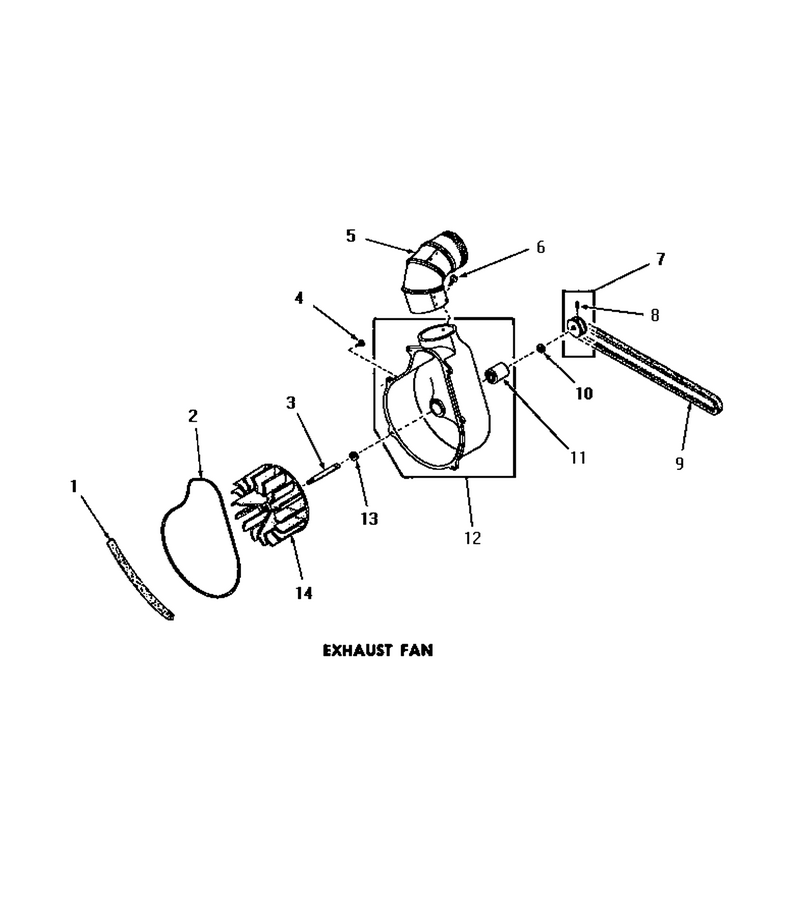

11 - Exhaust Fan

...
...
1
Seal WPL-51790
...
2
Gasket,housing WPL-51791
...
3
Exhaust Fan Shaft WPL-R9900466
...
4
Screw,10b-16 X 1/2 Hex WPL-51784
...
5
Switch- Ro WPL-WP31986601B
...
6
Screw WPL-WP3177991
...
7
Assy,pulley WPL-53521
...
8
Screw,1/4-20x3/8 Hex S WPL-02771
...
9
Belt WPL-51994
...
10
Washer WPL-WP233520
...
11
Bearing WPL-R9900464
...
12
Housing,blower WPL-51946
...
13
Washer WPL-WP233520
...
14
Impeller WPL-90585

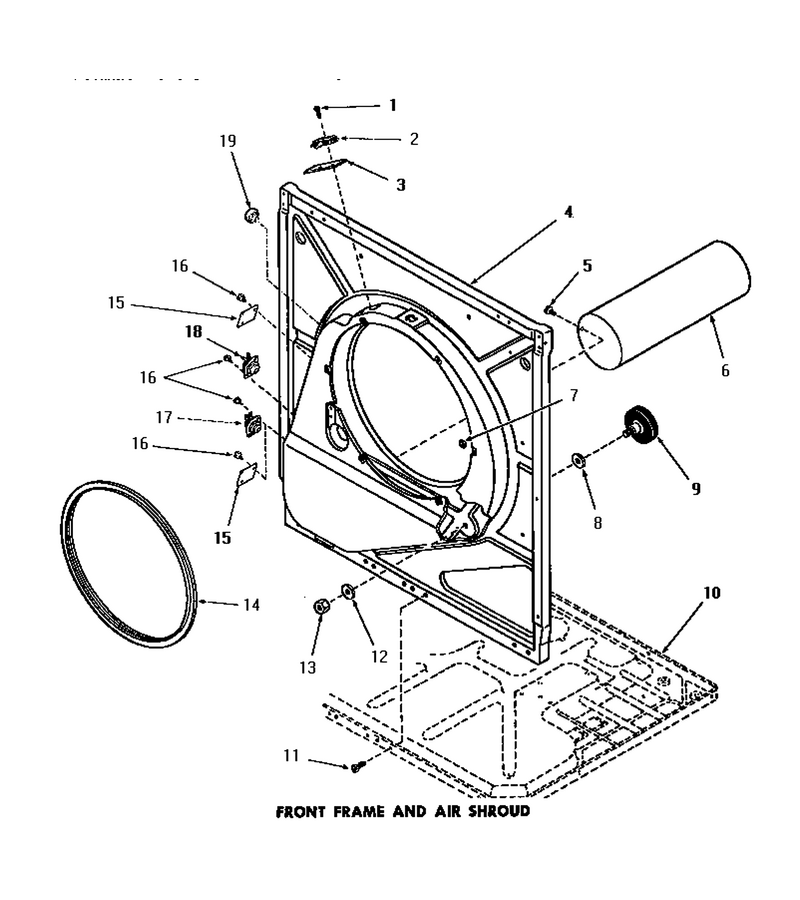

12 - Front Frame & Air Shroud

...
...
1
Screw,6b-20 X 7/8 Hex WPL-51783
...
2
Switch WPL-Y51143
...
3
Insulation WPL-52112
...
4
Front Frame And Air Shroud WPL-51850
...
5
Screw WPL-WP489464
...
6
Exhaust Duct WPL-51821
...
7
Speed Nut WPL-52865
...
8
Washer WPL-52123
...
9
Support WPL-56285P
...
10
See Note Frame Base WPL-Y00000000
...
11
Screw,10b-16 X 1/2 Hex WPL-51784
...
12
Washer WPL-52122
...
13
Nut WPL-52124
...
14
Gasket WPL-51798
...
15
Cover Plate WPL-52550
...
16
Screw WPL-WP3177991
...
17
Thermostat WPL-51987
...
18
Thermostat WPL-Y52394
...
19
Capillary & Suction Line Assy WPL-Y0053719

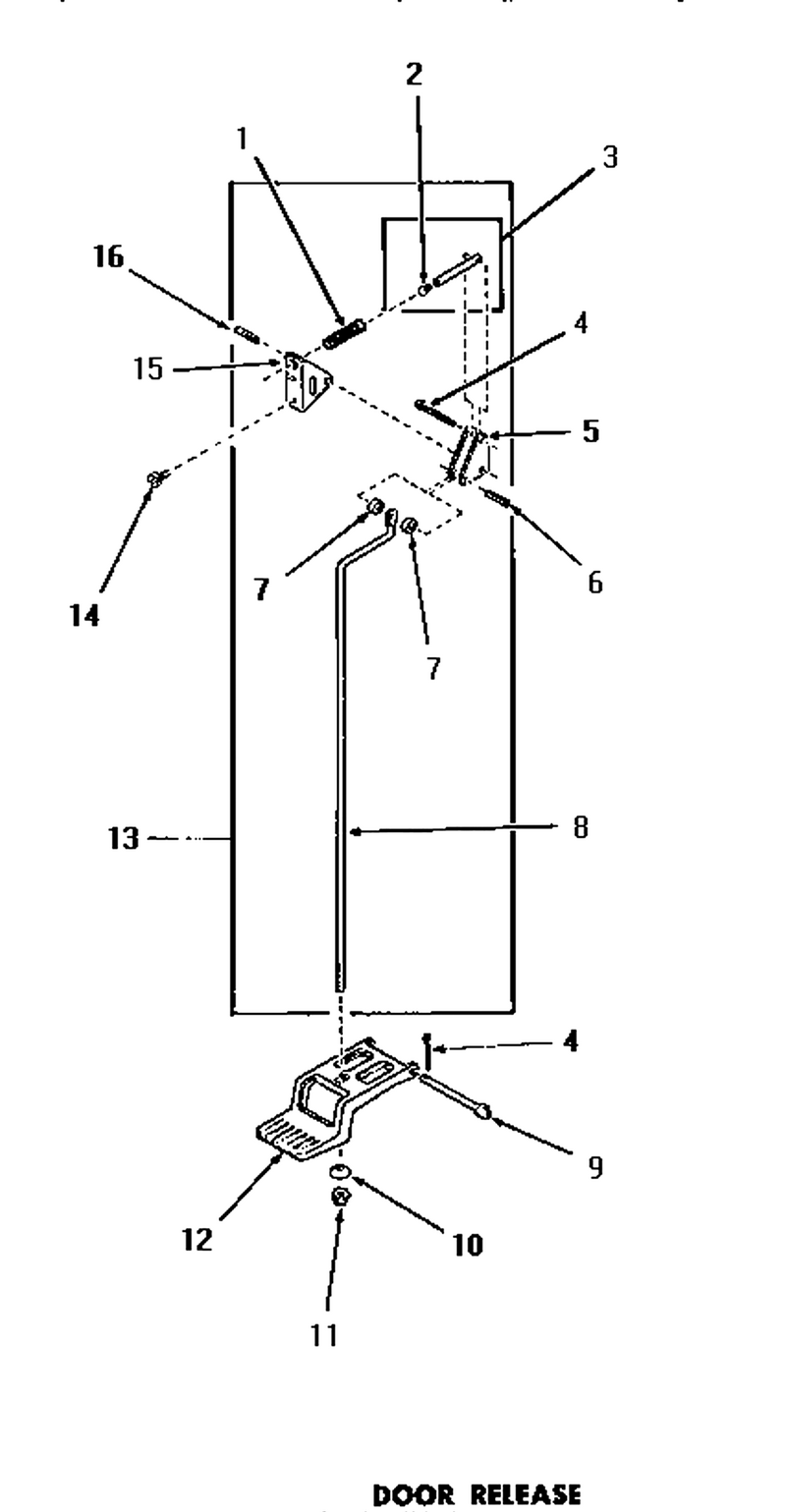

08 - Door Release

...
...
1
Door Release Spring WPL-51065
...
2
Plug WPL-51786
...
3
Door Release Pin Assembly WPL-51841
...
4
Pin,cotter WPL-02578
...
5
Door Release Lever WPL-51041
...
6
Pin,roll 1/8 X 3/4 WPL-51161
...
7
Door Release Spacer WPL-51121
...
8
Door Release Rod WPL-51837
...
9
Pedal Hinge Pin WPL-51045
...
10
Nylon Washer WPL-51046
...
11
Nut WPL-51271
...
12
Pedal,foot WPL-51802
...
13
Door Release Assembly WPL-51844
...
14
Screw WPL-51246
...
15
Door Release Bracket WPL-51052
...
16
Pin,roll 1/8 X 3/4 WPL-51161

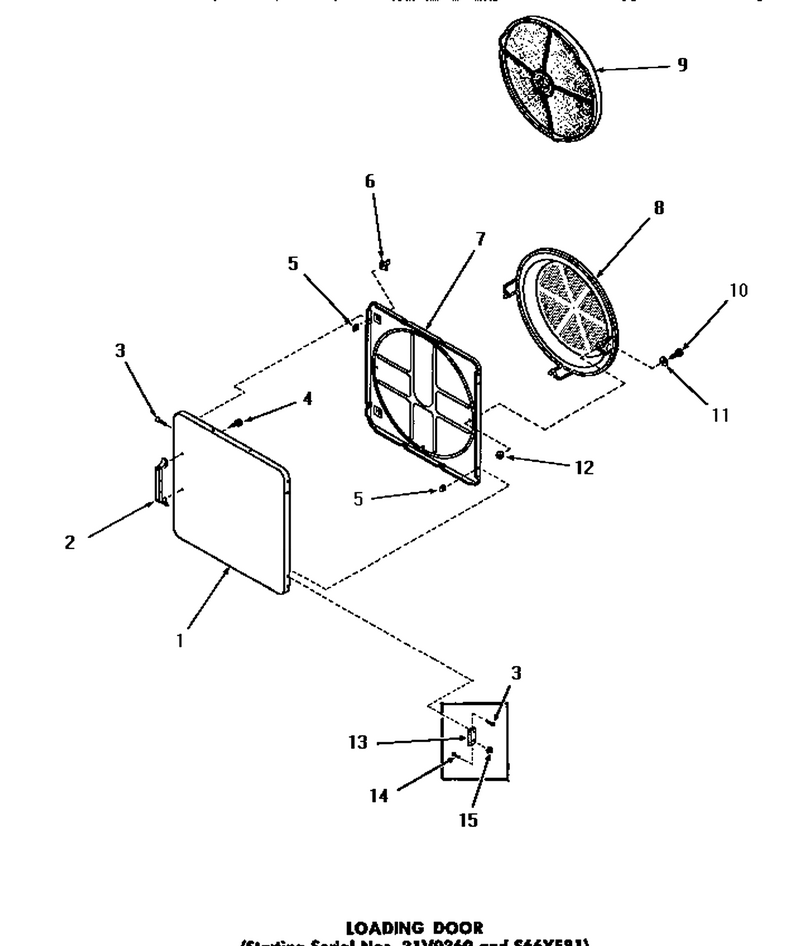

15 - Loading Door

...
...
1
Outer Door Panel, Coppertone WPL-52489C
...
2
Pull,door WPL-54068P
...
3
Screw, 8b-16x5/8 Tap WPL-500226
...
4
Screw WPL-WP489464
...
5
Speed Nut WPL-52865
...
6
Door Catch La-1003 WPL-LA-1003
...
7
Inner Door Panel WPL-54665
...
8
Assy,grill&support-Pur WPL-54731
...
9
No Longer Available WPL-53002
...
10
Cap Screw WPL-24688
...
11
Washer WPL-Q6275
...
12
Nut WPL-WPW10139757
...
13
Hinge (Comml. Part) WPL-70014
...
14
Screw,8-32 X 13/32 Fl WPL-22649
...
15
Nut WPL-WP488130

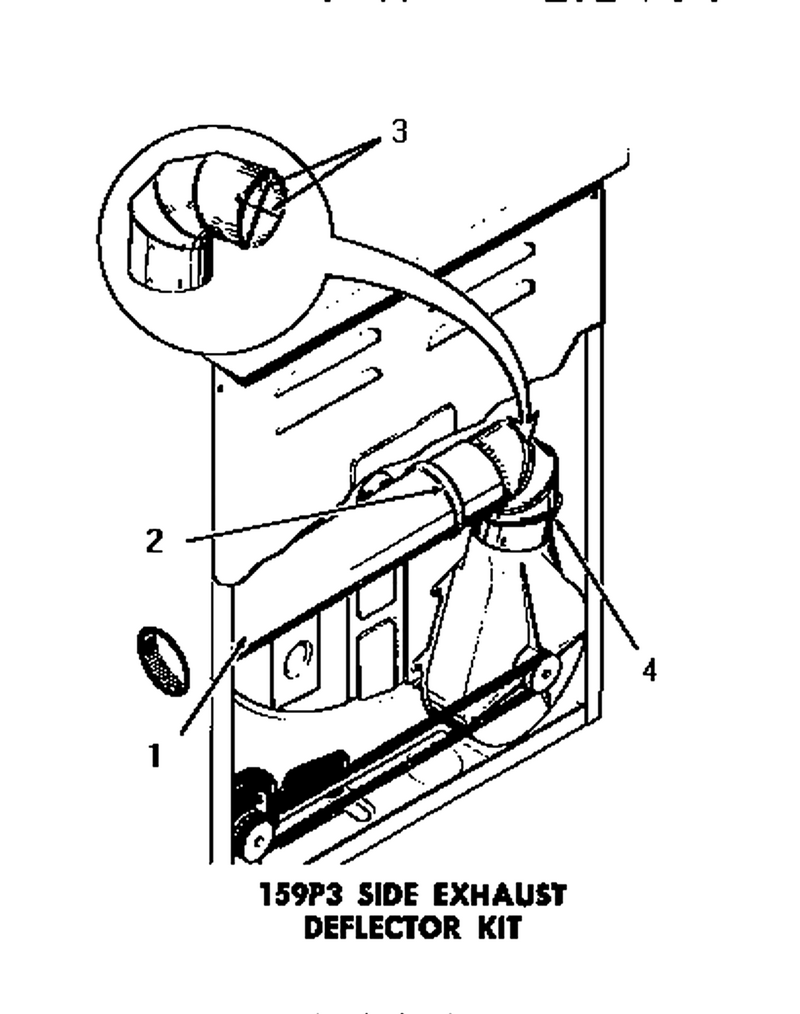

02 - 159p3 Side Exhaust Deflector Kit

...
...
NI
Side Exhaust Deflector Kit WPL-159P3
...
1
Handle, Oven Door (J) WPL-Y0052776
...
2
Supt-Top Brnr,lh, WPL-0052775
...
3
See Note Cut And Remove Wire Guards WPL-Y00000000
...
4
See Note Dryer Exhaust Elbow -- (Supplied With Dryer) WPL-Y00000000

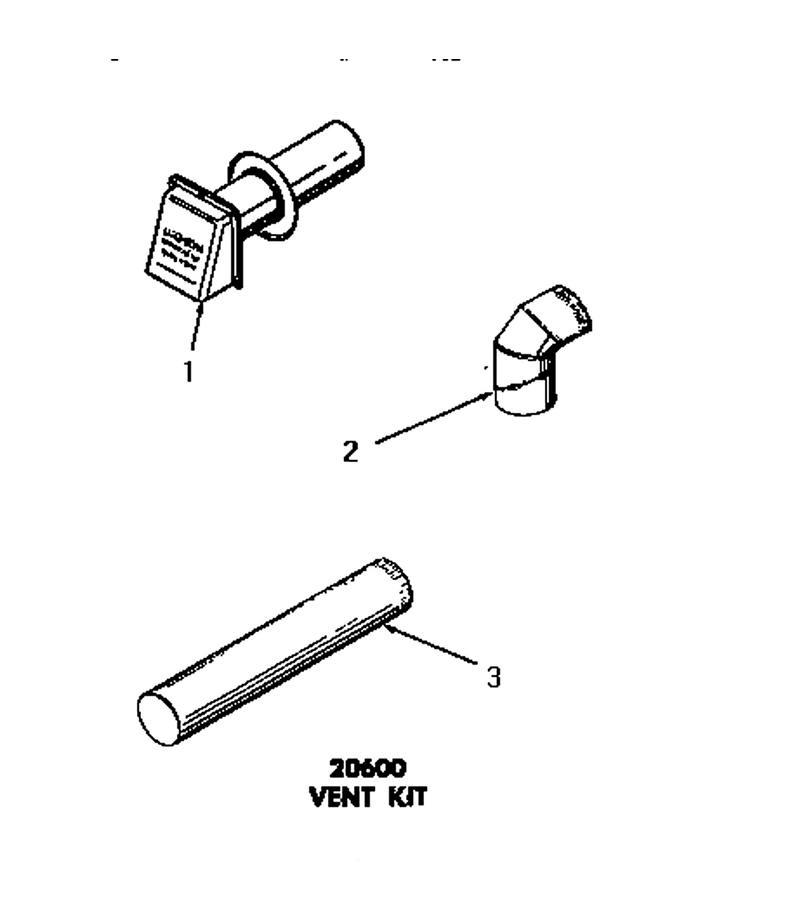

04 - 20600 Vent Kit

...
...
NI
Vent Kit WPL-20600
...
1
Weather Hood WPL-20601
...
2
Elbow WPL-51917
...
3
Sub 126a2533 WPL-20602

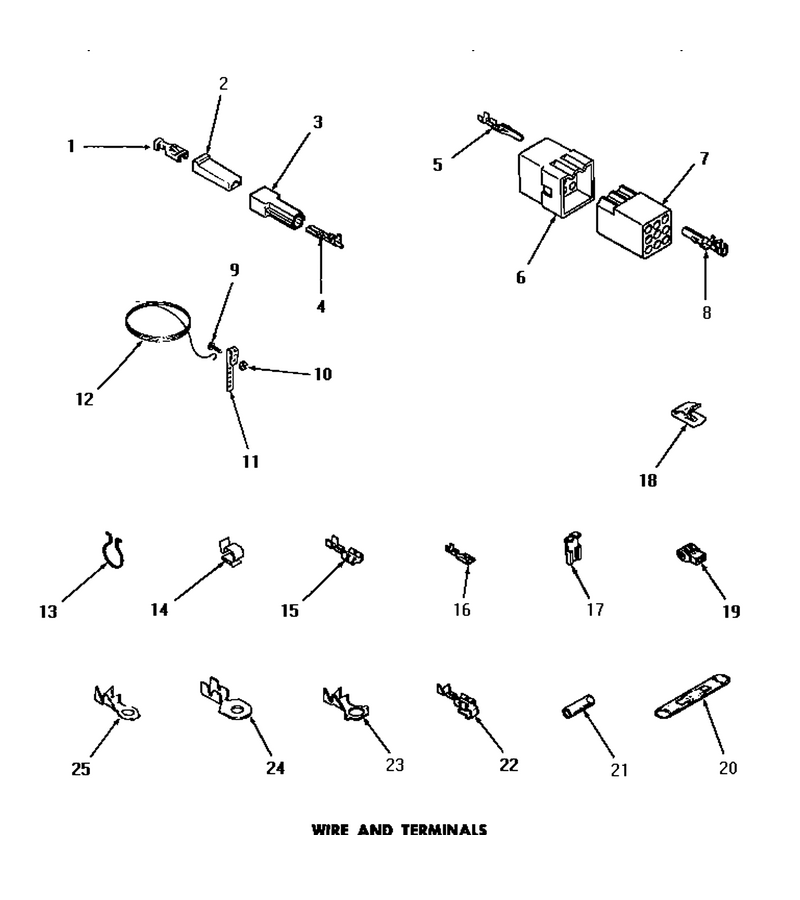

19 - Wire & Terminals

...
...
NI
18 Gauge Wire WPL-20680
...
1
Terminal,spade-1/4 Fem WPL-Y00115
...
2
Connector WPL-90789
...
3
Housing,tab WPL-90788
...
4
Terminal,tab-1/4 Male WPL-00133
...
5
Terminal,pin-1/8 Male WPL-Y00127
...
6
Plug,nylon WPL-54522
...
7
Receptacle,12 Circuit- WPL-54523
...
8
Terminal,pin-1/8 Femal WPL-Y00128
...
9
Round Head Screw WPL-21431
...
10
Nut WPL-Y20276
...
11
Strap,ground WPL-21430
...
12
Ground Wire WPL-Y21429
...
13
Clip,wire WPL-51291
...
14
Clip,cable WPL-21036
...
15
Spade Terminal(18 Gauge) WPL-Y00119
...
16
Terminal,spade-3/16 Fe WPL-00112
...
17
Terminal,flag-1/4 Fema WPL-Y00120
...
18
Cable Clip WPL-21312
...
19
Insulator, Pod K WPL-M0325501
...
20
Connector WPL-WP75614
...
21
Insulator Sleeve WPL-503670
...
22
Terminal,spade-1/4 Fem WPL-Y00114
...
23
Terminal,ring-1/4 Stud WPL-Y00113
...
24
Terminal,ring-10 Stud WPL-Y00111
...
25
Terminal,ring-10 Stud WPL-00110

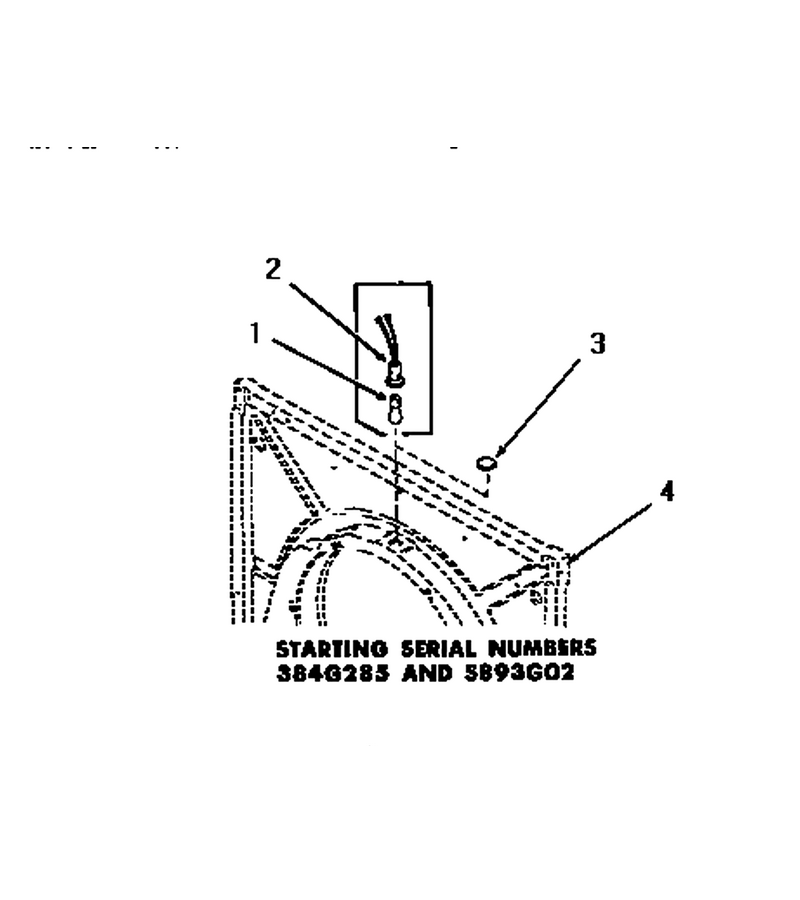

10 - Drum Light & Cover Plate

...
...
1
Bulb, Cylinder Light WPL-31001575
...
2
Washer WPL-M0270519
...
3
Plug Button WPL-54610
...
4
See Note Front Frame And Air Shroud WPL-Y00000000

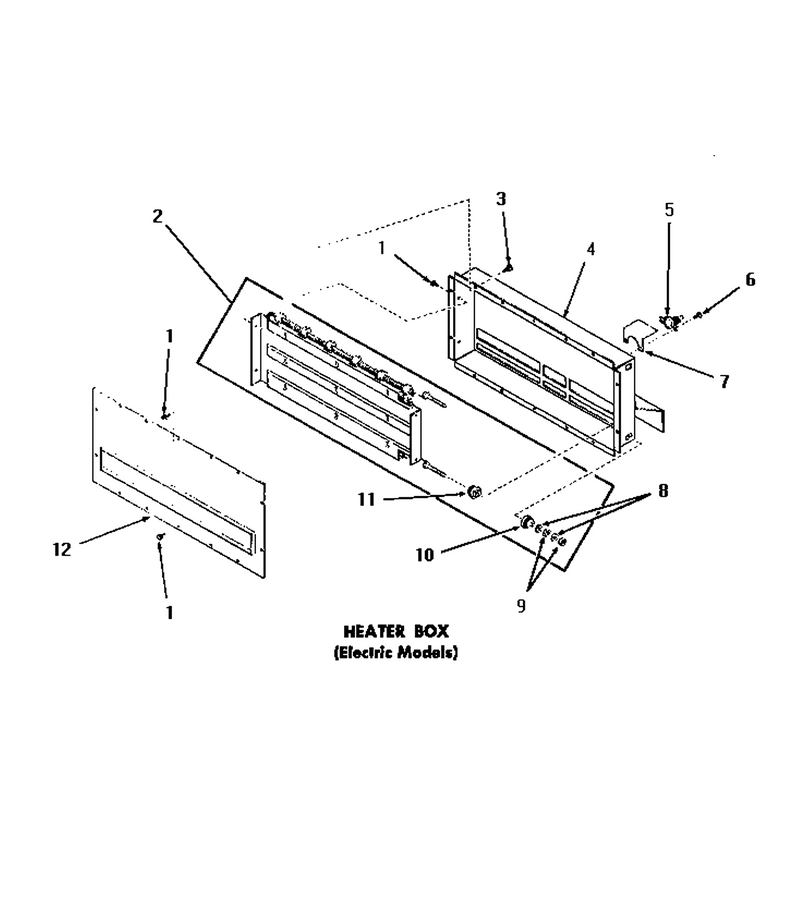

13 - Heater Box

...
...
1
Screw WPL-WP3390631
...
2
Element,heater-240v WPL-Y52626
...
3
Screw,10b-16 X 1/2 Hex WPL-51784
...
4
Heater Box And Shield WPL-Y51876
...
5
Thermostat WPL-55523
...
6
Screw WPL-WP3177991
...
7
Thermostat Shield WPL-52117
...
8
Washer WPL-54532
...
9
Nut WPL-54531
...
10
Insulator WPL-51145
...
11
Insulator WPL-51146
...
12
Heater Box Cover Plate WPL-51867

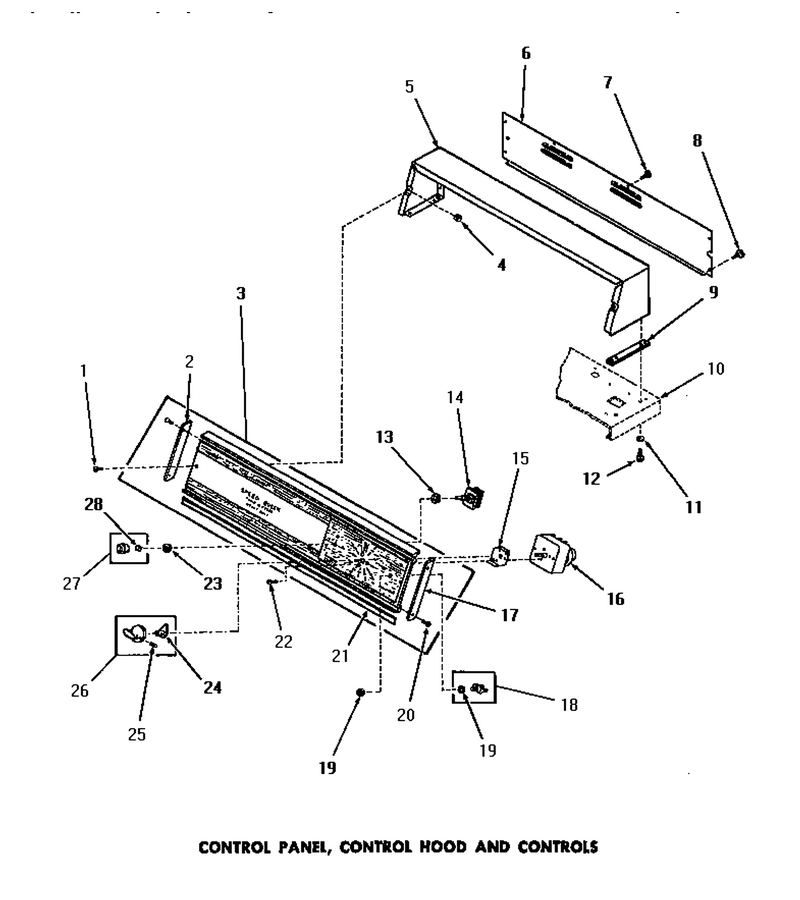

07 - Control Panel, Control Hood & Controls

...
...
1
Screw,8ab-18x7/8 Oval WPL-25232
...
2
End Cap, Left WPL-25072
...
3
Control Panel WPL-54986
...
4
Nut,speed U-Type WPL-54038
...
5
Control Hood, Harvest Gold WPL-52530H
...
6
Control Hood Rear Cover, Gray WPL-52539GR
...
7
Screw WPL-WP3177991
...
8
Hex Head Screw WPL-25724
...
9
Gasket,control Box End WPL-23028
...
10
See Note Cabinet Top WPL-Y00000000
...
11
Washer,11/64idx3/8odx3 WPL-20493
...
12
Screw WPL-WP90767
...
13
Lockwasher,3/8 Intshkp WPL-91176
...
14
Switch WPL-58813
...
15
Spacer,timer WPL-25966
...
16
Timer WPL-52610
...
17
End Cap, Right WPL-25073
...
18
Switch WPL-55882P
...
19
Nut,hex 15/32-32 WPL-52947
...
20
Screw, 8b-16x5/8 Tap WPL-500226
...
21
Actuator, Water WPL-Y0053880
...
22
Nameplate, Handle WPL-Y0054441
...
23
Nut,knurled 3/8-24 WPL-24205
...
24
Indicator WPL-24857
...
25
Setscrew WPL-25285
...
26
Assy,knob-Timer WPL-24858
...
27
Xreplace WPL-22245
...
28
Clip,c Xreplace WPL-22244

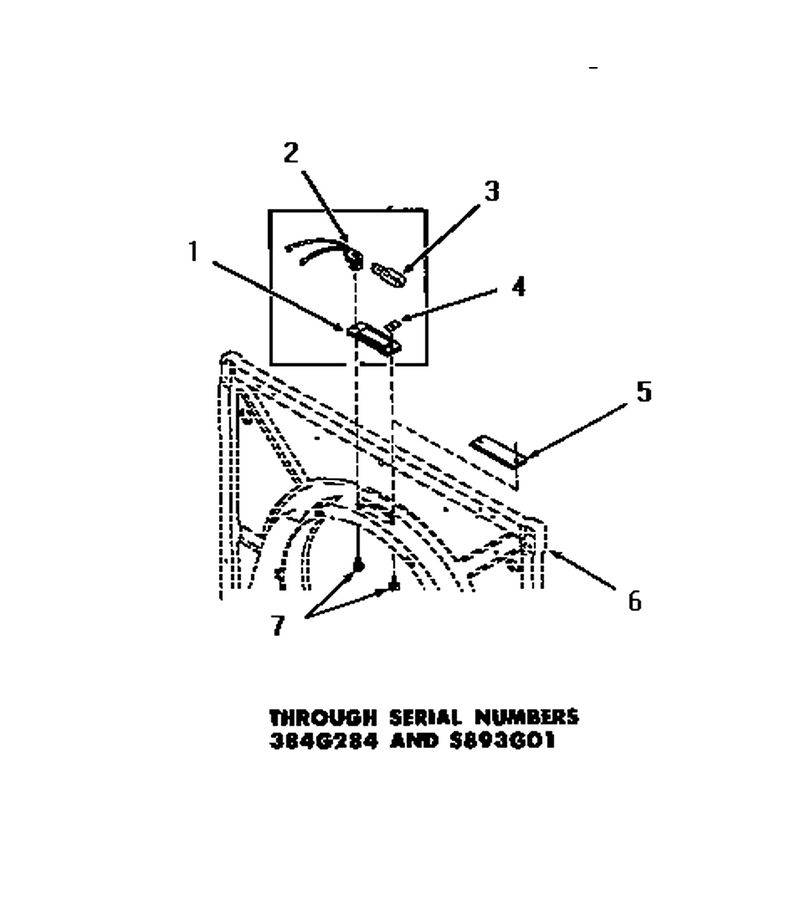

09 - Drum Light & Cover Plate

...
...
1
Lens,drum Light WPL-51070
...
2
Bulb Receptacle WPL-Y51887
...
3
Bulb-Light WPL-WPA3167501
...
4
Speed Nut WPL-Y51788
...
5
Cover Plate WPL-53911
...
6
See Note Front Frame And Air Shroud WPL-Y00000000
...
7
Screw,10b-16 X 1/2 Hex WPL-51784

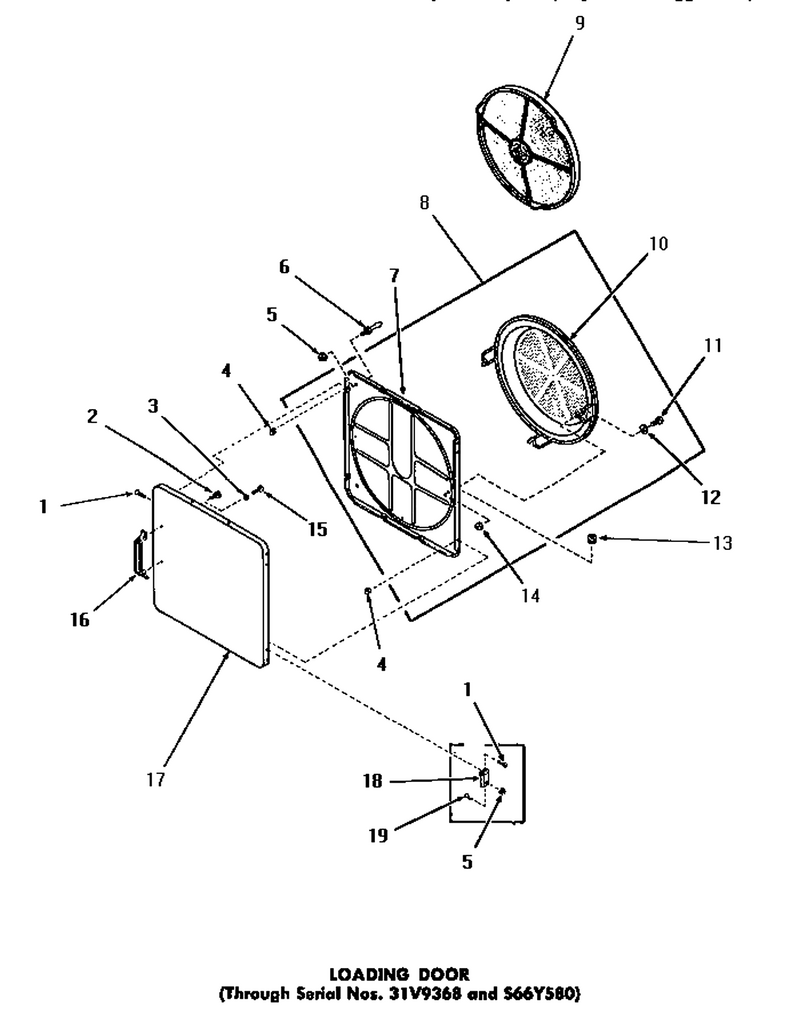

14 - Loading Door

...
...
1
Screw, 8b-16x5/8 Tap WPL-500226
...
2
Screw WPL-WP489464
...
3
Lockwasher WPL-Y20278
...
4
Speed Nut WPL-52865
...
5
Nut WPL-WP488130
...
6
Strike,door WPL-51992
...
7
Inner Door Panel WPL-54730
...
8
Assy,housing & Panel WPL-54738
...
9
No Longer Available WPL-53002
...
10
Assy,grill&support-Pur WPL-54731
...
11
Cap Screw WPL-24688
...
12
Washer WPL-Q6275
...
13
Grommet WPL-51858
...
14
Nut WPL-WPW10139757
...
15
Hex Head Screw WPL-22024
...
16
Pull,door WPL-54068P
...
17
Outer Door Panel, Coppertone WPL-52489C
...
18
Hinge (Comml. Part) WPL-70014
...
19
Screw,8-32 X 13/32 Fl WPL-22649

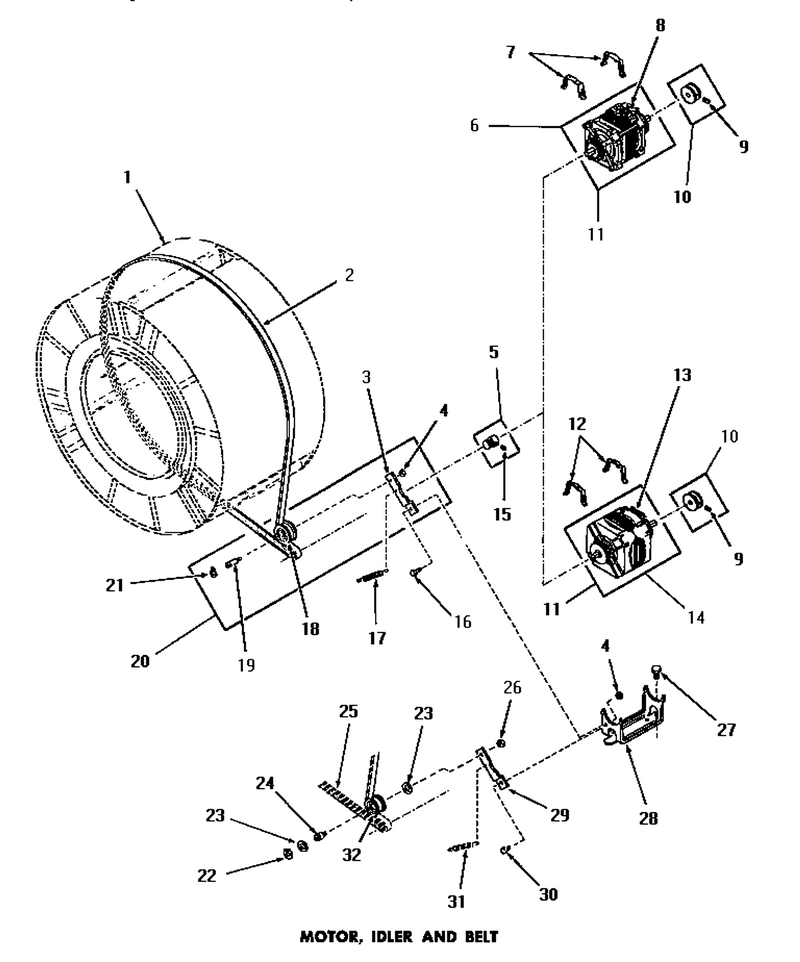

16 - Motor, Idler & Belt

...
...
1
See Note Clothes Drum WPL-Y00000000
...
2
Belt WPL-52556
...
3
Lever,idler WPL-54410
...
4
Nut WPL-WPW10139757
...
5
Assy,motor Pulley WPL-52593
...
6
See Note General Electric Form ``v`` Motor WPL-Y00000000
...
7
Clamp WPL-WP660658
...
8
Switch WPL-53249
...
9
Screw,1/4-20x3/8 Hex S WPL-02771
...
10
Pulley,motor WPL-53522
...
11
Motor WPL-52697
...
12
Clamp WPL-WP660658
...
13
Motor Switch, Delco WPL-53214
...
14
See Note General Electric Form ``t`` Motor WPL-Y00000000
...
15
Setscrew WPL-52906
...
16
Bolt,shoulder WPL-52567
...
17
Spring WPL-52323
...
18
Pulley-Idr WPL-WPY54414
...
19
Shaft,idler Lever WPL-54411
...
20
Lever,idler WPL-54415
...
21
Ring- Reta WPL-WP23748
...
22
Ring,retaining WPL-70061
...
23
Washer WPL-Y52564
...
24
Shaft,idler Xreplace WPL-52611
...
25
See Note Belt WPL-Y00000000
...
26
Nut WPL-52124
...
27
Cap Screw And Lockwasher WPL-23928
...
28
Mount,motor WPL-51824
...
29
Idler Lever WPL-52562
...
30
See Note Shoulder Bolt WPL-Y00000000
...
31
See Note Spring WPL-Y00000000
...
32
Idler Pulley WPL-52561

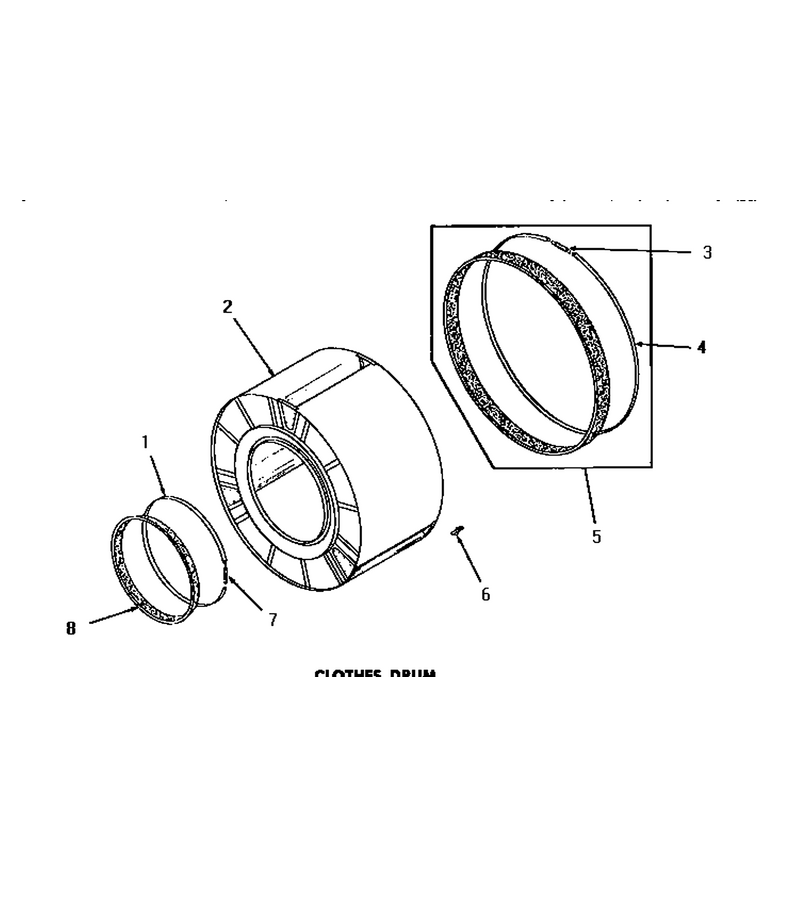

06 - Clothes Drum

...
...
1
Strap,retainer WPL-50169
...
2
Assy,drum WPL-53135
...
3
Spring WPL-52310
...
4
Strap,seal WPL-50781
...
5
Assy,seal WPL-51883A
...
6
Clip WPL-51201
...
7
Spring WPL-50168
...
8
Seal,front WPL-51881

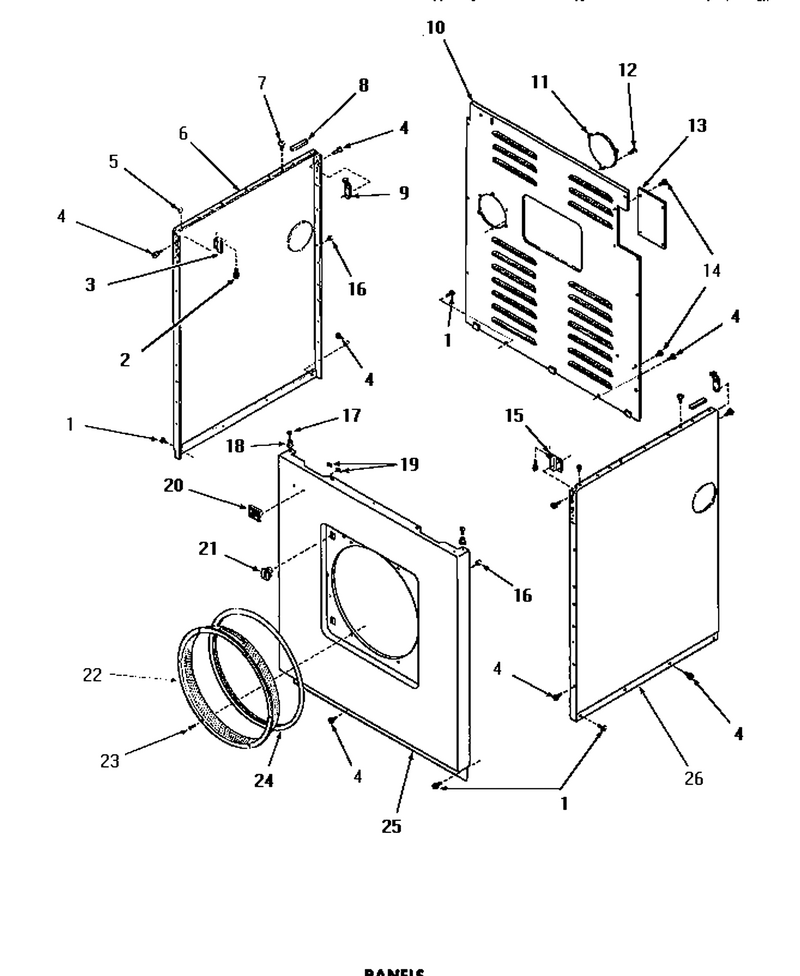

17 - Panels

...
...
1
Screw WPL-WP27001200
...
2
Screw,10-24 X 3/4 Sems WPL-23008
...
3
Bracket WPL-22847
...
4
Screw,10b-16 X 1/2 Hex WPL-51784
...
5
Bumper WPL-21176
...
6
Side Panel, Left, Harvest Gold WPL-52669H
...
7
Screw, No.10-16 X 3/8`` WPL-52442
...
8
Bumper Pad WPL-80312
...
9
Lug,hold-Down WPL-52487
...
10
Rear Panel, Harvest Gold WPL-52677H
...
11
Plate,cover WPL-51855GR
...
12
Screw, 6b-20x5/16 WPL-51782
...
13
Terminal Block Access Plate, C WPL-52108C
...
14
Screw WPL-WP3390631
...
15
Bracket WPL-22846
...
16
Bumper WPL-20387
...
17
Screw,10b-16 X 3/4 Rou WPL-Q6535
...
18
Mount,panel WPL-23020
...
19
Clip WPL-22161
...
20
Monogram WPL-22086
...
21
Door Catch La-1003 WPL-LA-1003
...
22
Duct Ring, Gray WPL-52052GR
...
23
Screw,8b-18 X 1/2 Rd H WPL-51778
...
24
Seal,outer WPL-51799
...
25
Front Panel, W WPL-54664W
...
26
Side Panel, Right, Avocado WPL-52673A
