Amana DDW950WW (BOM: P1173811W)

Model: DDW950WW (BOM: P1173811W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

03 - Pump & Water Distribution Components

...
...
1
Gate Valve Arm Kit WPL-Y03000032
...
2
Retainer WPL-R0901503
...
3
Spring, Gate Arm WPL-R0905529
...
4
Armature & Link Assy WPL-R0905517
...
5
Insul, Hsg Terminal WPL-R0903582
...
6
Solenoid WPL-Y03000185
...
7
Bracket-Solenoid WPL-R0905639
...
8
Screw WPL-W10856125
...
9
Shaft Guard/slinger WPL-R0905564
...
10
Nut WPL-R0906510
...
11
Seal, Shaft WPL-R0906504
...
12
Clamp WPL-R0901510
...
13
Tube Assy, Drain WPL-Y03000184
...
14
Switch Bracket WPL-R0903016
...
15
Switch, Flood WPL-Y03000045
...
16
Switch Guard WPL-R0903017
...
18
Clamp WPL-WP696392
...
19
Spring, Cutter WPL-R0905521
...
20
Nut WPL-R0905563
...
21
Wear Ring Base WPL-R0905518
...
22
Wear Ring WPL-R0905520
...
23
Pump Impeller WPL-R0905519
...
24
Shaft Seal WPL-R0903503
...
25
Seal WPL-R0903502
...
26
Clamp WPL-WP696392
...
27
Check Valve WPL-R0910037
...
28
Seal Lower WPL-R0910029
...
29
Nut WPL-R0901004
...
30
Screw WPL-R0900015
...
31
Washer WPL-R0900504
...
32
Pinion Gear WPL-R0910016
...
33
Screw WPL-R0900007
...
34
Seal, Split Ring WPL-R0905557
...
35
Center Spray Assy WPL-R0910017
...
36
Screw WPL-WPW10348409
...
37
Adapter Pwr Twr WPL-R0905558
...
38
Spray Arm WPL-Y03000113
...
39
Screw, Hub WPL-R0900045
...
40
Washer WPL-R0900502
...
41
Hub/pinion Assy WPL-R0905555
...
42
Bearing WPL-R0905556
...
43
Supt & Nut Arm WPL-R0901009
...
44
Connector, Pump WPL-R0903520
...
45
Guard WPL-R0905522
...
46
Motor/pump Assy Dishwa WPL-R0910001
...
47
Motor-Pump WPL-WPY03000182
...
48
Hanger Mechanism WPL-R0905712

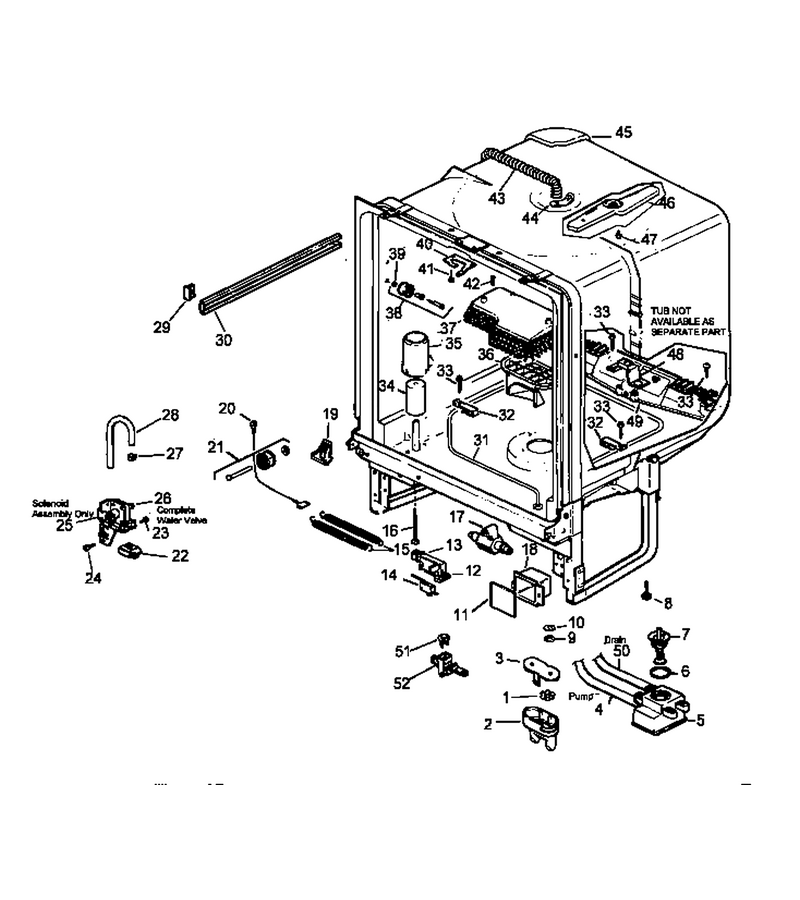

04 - Tub Parts

...
...
1
Nut WPL-R0901001
...
2
Barrier, Htg Element WPL-R0903581
...
3
Base Barrier WPL-R0903580
...
4
Hose, Chamber WPL-R0906506
...
5
Coll. Chamber WPL-Y03000055
...
6
Gasket WPL-R0904503
...
7
Piston & Nut Assy WPL-Y03000222
...
8
Leg, Leveling WPL-R0905506
...
9
Grommet WPL-R0906502
...
10
Washer WPL-R0900501
...
11
Cover, Junc Box WPL-R0903032
...
12
Cover Switch Brkt WPL-R0905514
...
13
Brkt, Flood Switch WPL-R0905513
...
14
Switch Flood WPL-R0902501
...
15
Door Spring - Orange WPL-R0905638
...
16
Float Stem WPL-R0905512
...
17
Check Valve WPL-R0910053
...
18
Box, Junction WPL-R0903587
...
19
Baffle, Tube Corner Rh WPL-R0905596
...
20
Cable And Eyelet WPL-R0910012
...
21
Roller & Stud Kit WPL-R0910013
...
22
Insul, Hsg Terminal WPL-R0903582
...
23
Screw WPL-R0900011
...
24
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
25
Solenoid Assembly, Water Valve WPL-R0909002
...
26
Valve, Water Inlet (W/solenoid WPL-R0910033
...
27
Clamp WPL-R0901510
...
28
Hose, Water Inlet WPL-R0903514
...
29
Endcap WPL-WPW10326683
...
30
Rack Slide WPL-R0905567
...
31
Element-Heating WPL-R0910065
...
32
Support-Heater WPL-R0905658
...
33
Screw WPL-WPW10348409
...
34
Flood Float WPL-R0903501
...
35
Float, Dome WPL-R0913227
...
36
Cap, Sump WPL-Y03000213
...
37
Cover Inlet Sump WPL-R0905527
...
38
Tub Roller & Stud Kit WPL-R0910004
...
39
No.8 Type A Set Sst Washer WPL-R0900503
...
40
Latch Keeper WPL-R0905505
...
41
Screw WPL-R0900025
...
42
Screw WPL-R0900008
...
44
Nut WPL-R0901003
...
45
Insulation WPL-R0904508
...
46
Assy, Pwr Shower WPL-R0905554
...
47
Screw WPL-R0900013
...
49
Assy, Filter Frame WPL-R0910122
...
50
Hose WPL-Y03000084
...
51
Thermostat WPL-R0911006
...
52
Receptacle WPL-R0910021

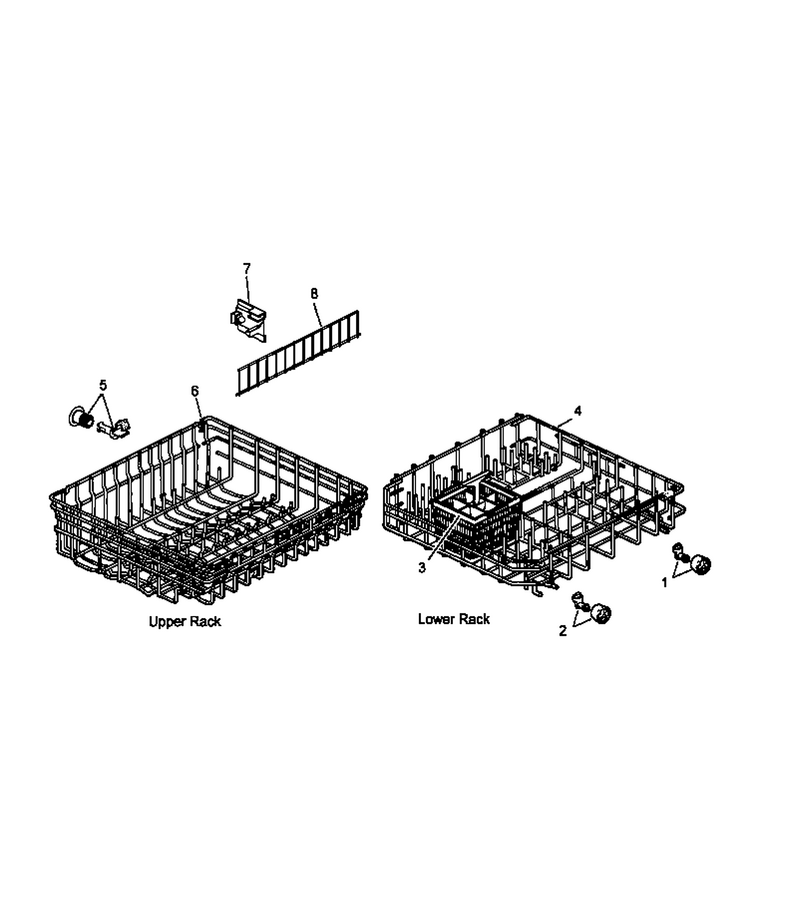

05 - Upper/lower Rack Parts

...
...
1
Roller WPL-W10882367
...
2
Lower Roller Assy WPL-R0910007
...
3
Basket,silverware WPL-R0910113
...
4
Assy Lower Rack & Roller WPL-R0910112
...
5
Wheel WPL-W10542232
...
6
Rack-Upper Tm WPL-R0910114
...
7
Support- Shelf Tm WPL-R0910115
...
8
Shelf- Rack Tm WPL-R0910116

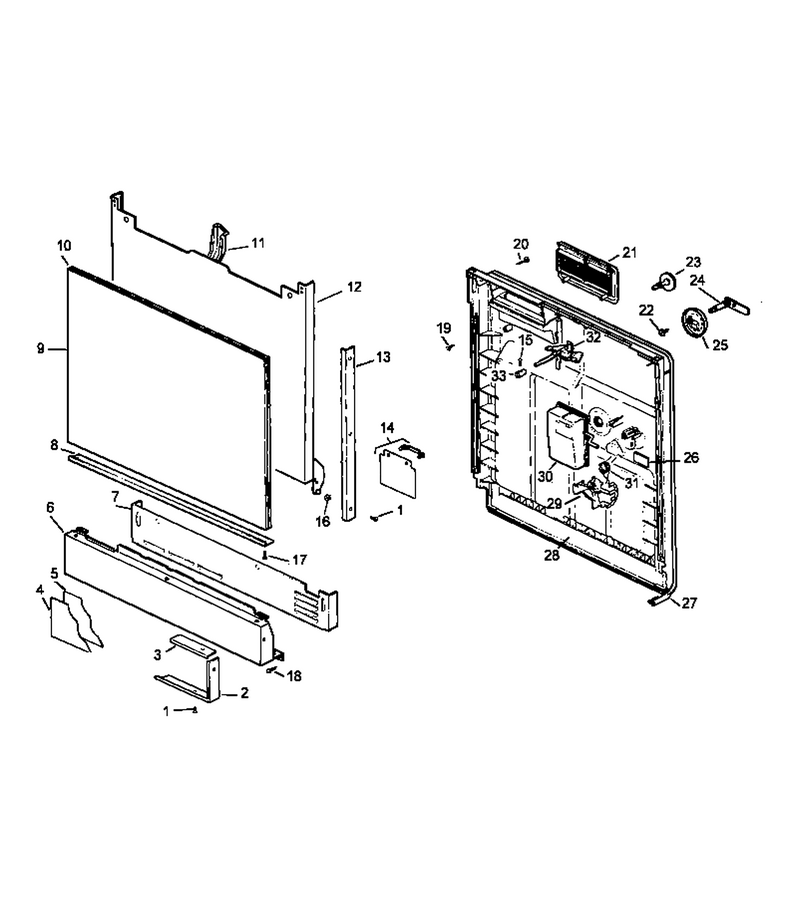

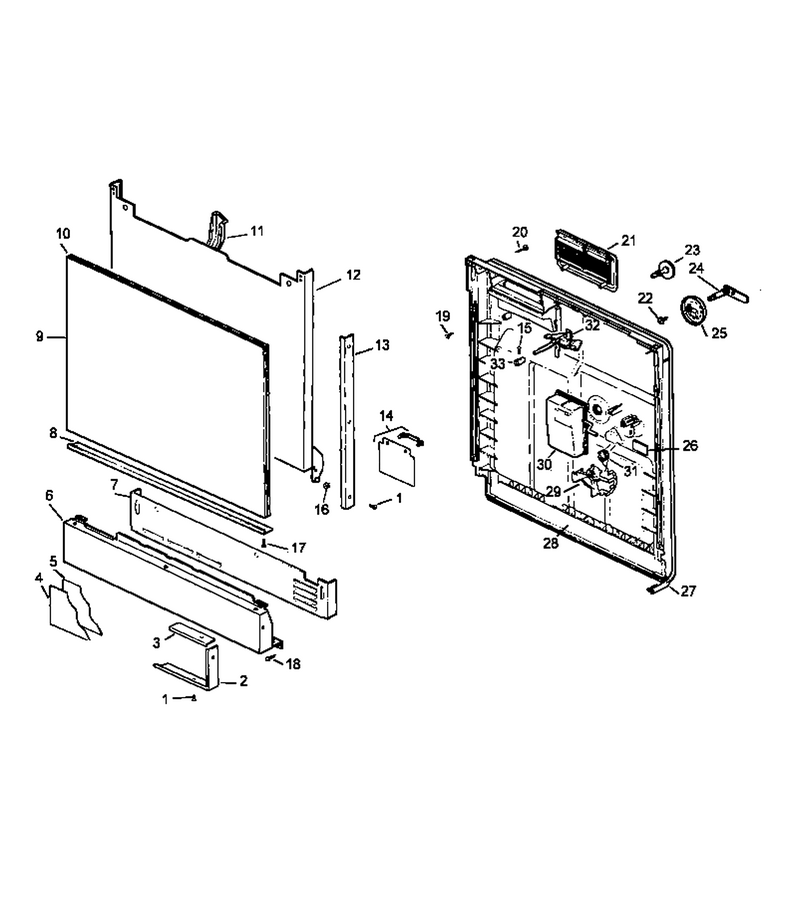

02 - Door/trim Parts

...
...
1
Screw WPL-M0211530
...
2
Trim, Side And Bottom WPL-R0905610
...
3
Trim, Top Service Panel WPL-R0905609
...
4
Insert, Serv. Panel WPL-R0905623
...
5
Insulator, Insert Panel WPL-R0910036
...
6
Panel, Access WPL-Y03000189
...
7
Toe Kick Assy WPL-R0903022
...
8
Trim Btm Door WPL-R0905635
...
9
Insert, Door Panel WPL-R0905620
...
10
Insulator WPL-R0906002
...
11
Conduit WPL-R0905661
...
12
Assy Panel Front (Weld Mt) WPL-R0905659
...
13
Trim Side Door WPL-R0905636
...
14
Drip Shield WPL-R0910011
...
15
Screw WPL-WP74004005
...
16
Hinge Arm Bearing WPL-R0905537
...
17
Screw WPL-W10856125
...
18
Screw, Handle WPL-61002031
...
19
Screw WPL-R0900009
...
20
Screw WPL-R0900006
...
21
Door Vent WPL-R0905536
...
22
Screw WPL-R0900007
...
23
Cap, Fill WPL-Y03000003
...
24
Shaft Hand D Cup WPL-R0905615
...
25
Detergent Cup Cover WPL-R0910010
...
26
Deflecter WPL-R0905523
...
27
Door Gasket WPL-R0904507
...
28
Door, Inner WPL-R0903021
...
29
Cam, Det. WPL-R0905625
...
30
Injector, Rinse WPL-Y03000002
...
31
Spring Det Trip WPL-R0905624
...
32
Latch, Assembly WPL-Y03000191
...
33
Knob Latch WPL-Y03000015

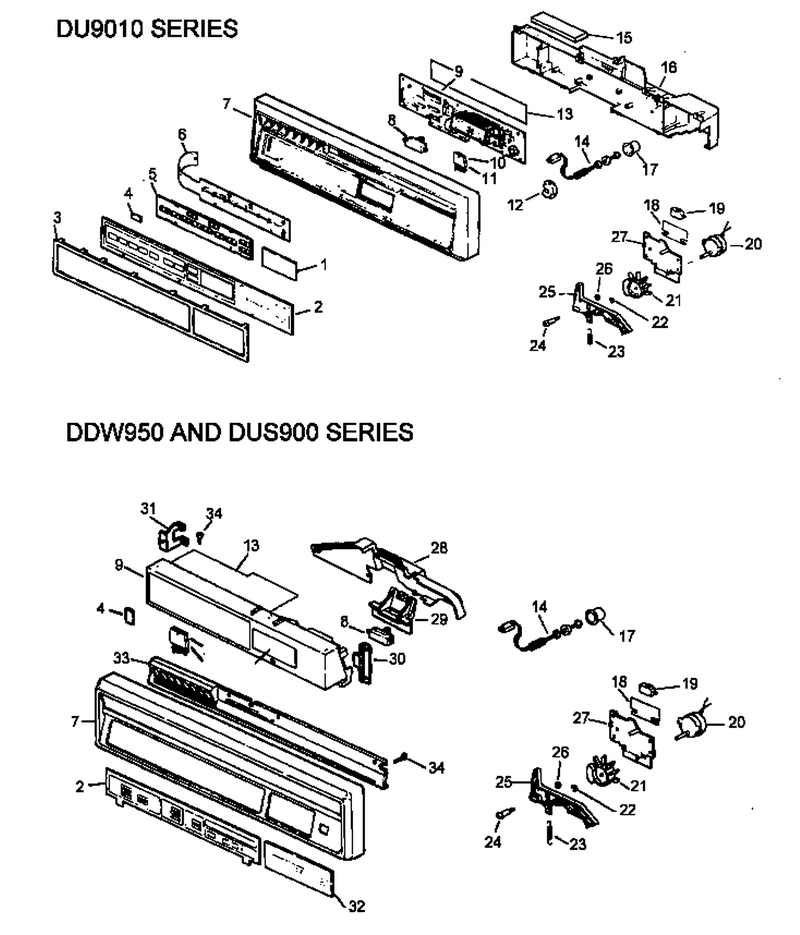

01 - Control Panel Assy

...
...
1
Filter Display WPL-R0910072
...
2
Film Appearance WPL-R0910117
...
4
Switch, Key WPL-R0902512
...
7
Escutcheon WPL-R0903031
...
8
Switch WPL-Y03000066
...
9
Net-Assy,control WPL-R0910070
...
10
Connector, Elect, 6 Pin WPL-R0906006
...
11
Therminal Pin & Socket WPL-R0906007
...
13
Barrier-Moisture WPL-R0904515
...
14
Thermistor & Spring WPL-R0911005
...
17
Thermistor Housing WPL-R0911003
...
18
Insulator Switch WPL-R0904511
...
19
Switch Det. Motor WPL-R0902511
...
20
Motor, Det. Cup WPL-R0907002
...
21
Cam, Motor WPL-R0907003
...
22
Retainer WPL-R0901514
...
23
Spring, Timer Lever WPL-R0905541
...
24
Stud WPL-R0905578
...
25
Leaver Det. Trip WPL-R0905628
...
26
Nut WPL-R0901006
...
27
Mounting Plate WPL-R0905627
...
28
Cover-Harness WPL-R0905662
...
29
Bracket-Switch WPL-R0910068
...
30
Bracket Control R.h. WPL-R0905656
...
31
Bracket Control L.h. WPL-R0905657
...
32
Bezel- Monogram WPL-R0903578
...
33
Insert-Escutcheon WPL-R0905663
...
34
Screw WPL-W10856125
