Amana DDW650WW (BOM: P1173709W)

Model: DDW650WW (BOM: P1173709W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

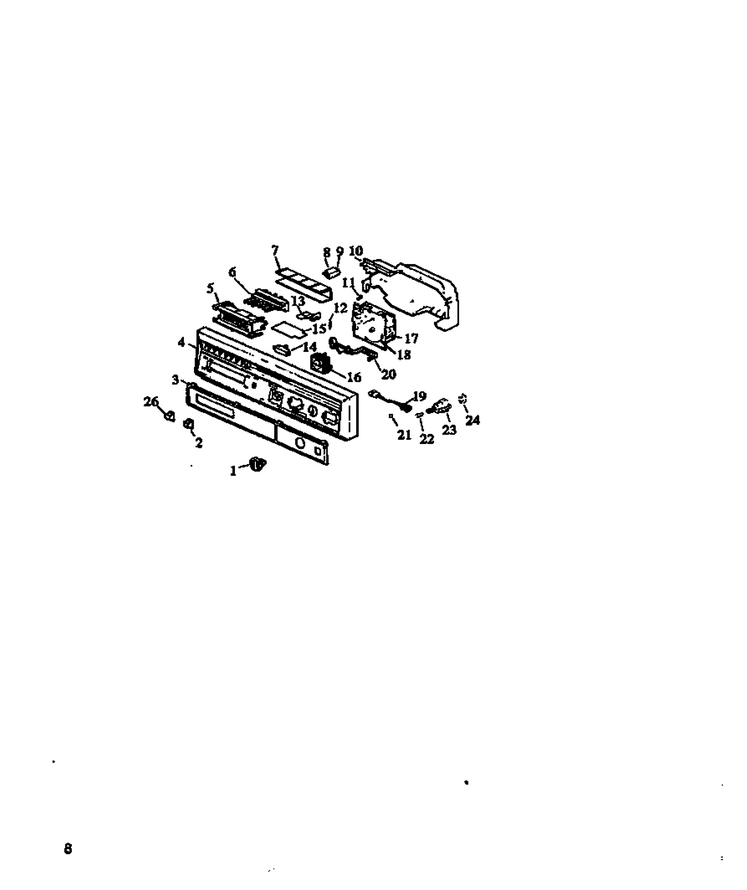

03 - Page 3

...
...
1
Assy Timer Knob WPL-R0903576
...
2
Push Button WPL-R0903574
...
3
Insert- Escutcheon WPL-R0905708
...
4
Escutcheon WPL-R0903030
...
5
Retainer WPL-R0905592
...
6
Switch-Push Button WPL-R0902521
...
7
Cover WPL-R0905593
...
8
Housing Terminal WPL-R0910049
...
9
Terminal WPL-Y03000076
...
10
Cover Electric WPL-R0905641
...
11
Screw WPL-R0900009
...
12
Spring, Timer Lever WPL-R0905541
...
13
Ass`y, Switch Leaf WPL-R0905716
...
14
Switch, Interlock WPL-R0902506
...
15
Shield, Switch WPL-R0905534
...
16
Switch, Cycle WPL-R0902507
...
17
Timer WPL-R0904012
...
18
Cam-Timer WPL-R0904009
...
19
Assy Pilot Light WPL-R0912003
...
20
Insulator Heater WPL-R0910020
...
21
Lens WPL-R0910061
...
22
Spring WPL-R0901501
...
23
Thermostat, Water WPL-R0911001
...
24
Retainer WPL-R0901502
...
26
Pushbutton WPL-R0903585
...
27
Door Gasket WPL-R0904507

05 - Page 5

...
...
1
Insul, Hsg Terminal WPL-R0903582
...
2
Solenoid WPL-Y03000185
...
3
Bracket-Solenoid WPL-R0905639
...
4
Screw WPL-W10856125
...
5
Shaft Guard/slinger WPL-R0905564
...
6
Nut WPL-R0906510
...
7
Seal, Shaft WPL-R0906504
...
8
Clamp WPL-R0901510
...

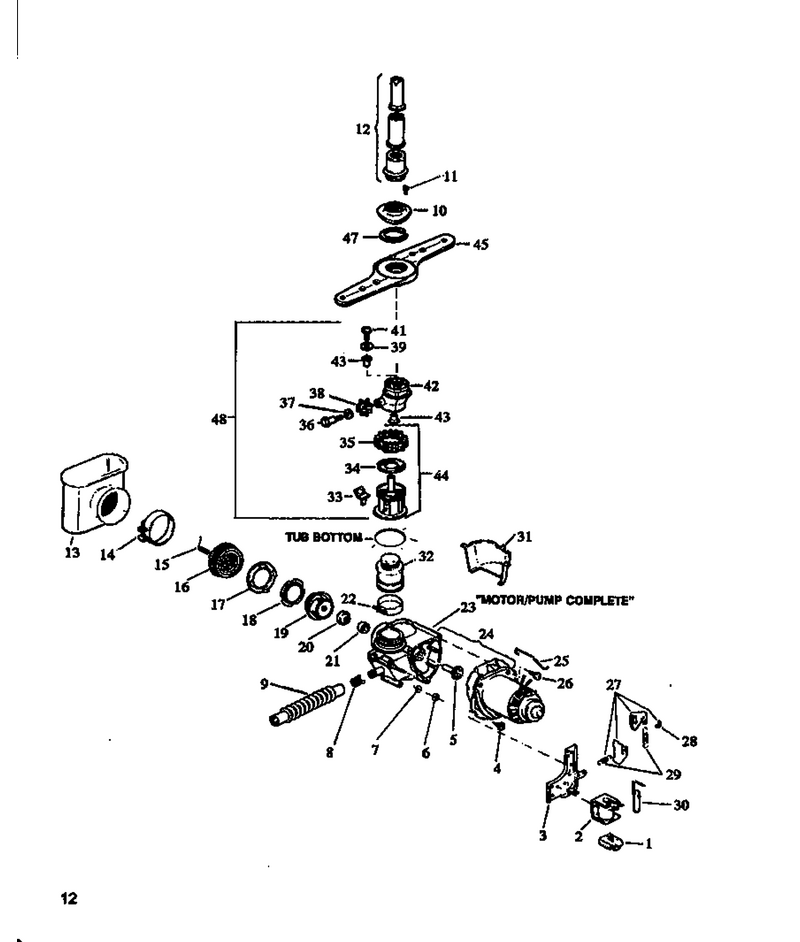

9
Tube Assy, Drain WPL-Y03000184
...
10
Adapter Pwr Twr WPL-R0905558
...
11
Screw WPL-WPW10348409
...
12
Center Spray Assy WPL-R0910017
...
13
Inlet, Sump WPL-R0905604
...
14
Clamp WPL-WP696392
...
15
Spring, Cutter WPL-R0905521
...
16
Nut WPL-R0905563
...
17
Wear Ring Base WPL-R0905518
...
18
Wear Ring WPL-R0905520
...
19
Pump Impeller WPL-R0905519
...
20
Shaft Seal WPL-R0903503
...
21
Seal WPL-R0903502
...
22
Clamp WPL-WP696392
...
23
Motor/pump Assy Dishwa WPL-R0910001
...
24
Motor-Pump WPL-WPY03000182
...
25
Hanger Mechanism WPL-R0905712
...
26
Screw WPL-R0900007
...
27
Gate Valve Arm Kit WPL-Y03000032
...
28
Retainer WPL-R0901503
...
29
Spring, Gate Arm WPL-R0905529
...
30
Armature & Link Assy WPL-R0905517
...
31
Guard WPL-R0905522
...
32
Connector, Pump WPL-R0903520
...
33
Check Valve WPL-R0910037
...
34
Seal Lower WPL-R0910029
...
35
Nut WPL-R0901004
...
36
Screw WPL-R0900015
...
37
Washer WPL-R0900504
...
38
Pinion Gear WPL-R0910016
...
39
Washer WPL-R0900502
...
41
Screw WPL-R0900014
...
42
Hub/pinion Assy WPL-R0905555
...
43
Bearing WPL-R0905556
...
44
Supt & Nut Arm WPL-R0901009
...
45
Spray Arm WPL-Y03000113
...
47
Seal, Split Ring WPL-R0905557

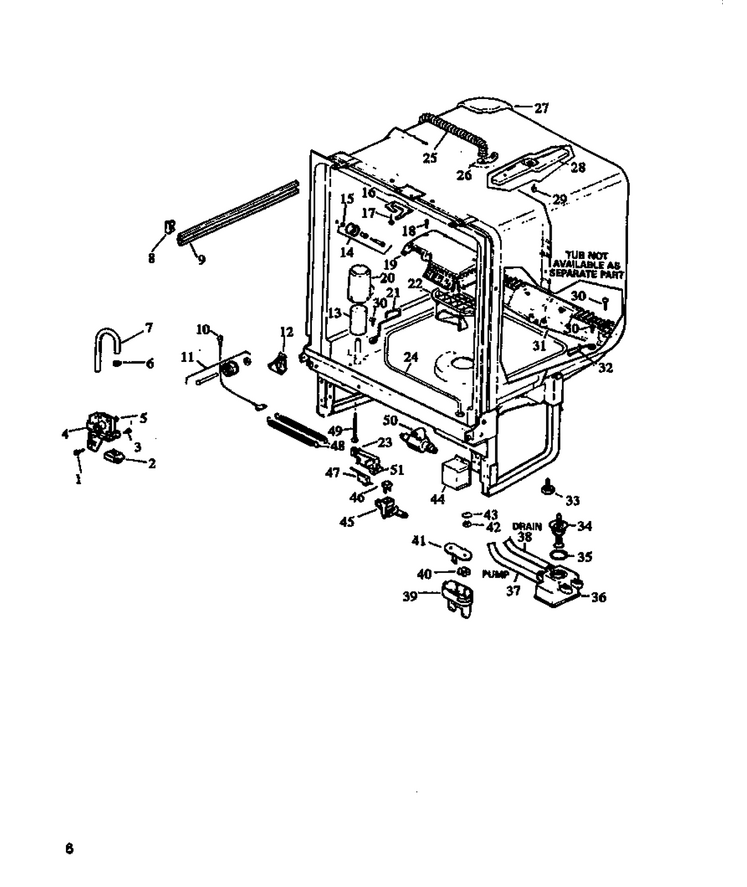

02 - Page 2

...
...
1
Scr 10-24x3/8 Tt Hex WPL-R0900012
...
2
Insul, Hsg Terminal WPL-R0903582
...
3
Screw WPL-R0900011
...
4
Solenoid Assembly, Water Valve WPL-R0909002
...
5
Valve, Water Inlet (W/solenoid WPL-R0910033
...
6
Clamp WPL-R0901510
...
7
Hose, Water Inlet WPL-R0903514
...
8
Endcap WPL-WPW10326683
...
9
Rack Slide WPL-R0905567
...
10
Cable And Eyelet WPL-R0905640
...
11
Roller & Stud Kit WPL-R0910013
...
12
Baffle, Tube Corner Rh WPL-R0905596
...
13
Flood Float WPL-R0903501
...
14
Tub Roller & Stud Kit WPL-R0910004
...
15
No.8 Type A Set Sst Washer WPL-R0900503
...
16
Latch Keeper WPL-R0905505
...
17
Screw WPL-R0900025
...
18
Screw WPL-R0900008
...
19
Cover Inlet Sump WPL-R0905527
...
20
Float, Dome WPL-R0913227
...
21
Support, Heater Front WPL-R0905632
...
22
Cap, Sump WPL-Y03000213
...
23
Cover Switch Brkt WPL-R0905514
...
24
Heater WPL-R0906001
...
25
Hose, Shower Assy WPL-R0903527
...
26
Nut WPL-R0901003
...
27
Insulation WPL-R0904508
...
28
Assy, Pwr Shower WPL-R0905554
...
29
Screw WPL-R0900013
...
30
Screw WPL-WPW10348409
...
31
Frame Assy WPL-R0910052
...
32
Support Heater Rear WPL-R0905633
...
33
Leg, Leveling WPL-R0905506
...
34
Piston & Nut Assy WPL-Y03000222
...
35
Gasket WPL-R0904503
...
36
Coll. Chamber WPL-Y03000055
...
37
Hose, Chamber WPL-R0906506
...
38
Hose WPL-Y03000084
...
39
Barrier, Htg Element WPL-R0903581
...
40
Nut WPL-R0901001
...
41
Base Barrier WPL-R0903580
...
42
Grommet WPL-R0906502
...
43
Washer WPL-R0900501
...
44
Cover, Jct. Box WPL-R0905553
...
45
Retainer WPL-R0901502
...
46
Thermostat, Water WPL-R0911001
...
47
Switch Flood WPL-R0902501
...
48
Door Spring - Orange WPL-R0905638
...
49
Float Stem WPL-R0905512
...
50
Check Valve WPL-R0910053
...
51
Brkt, Flood Switch WPL-R0905513

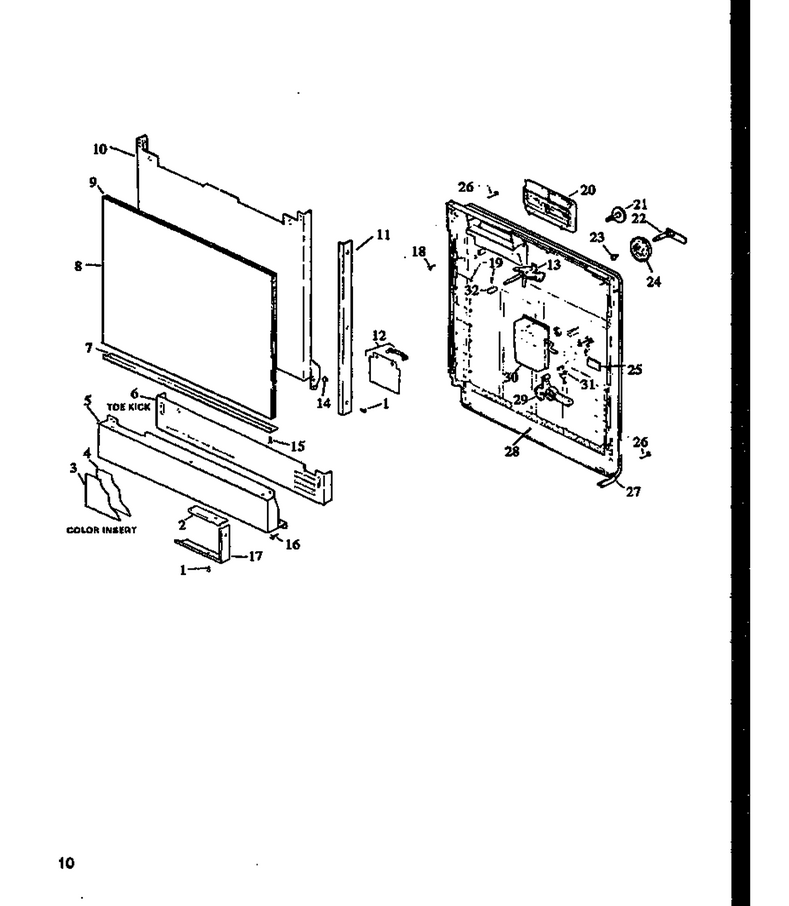

04 - Page 4

...
...
NI
Screw WPL-R0900017
...
1
Screw WPL-W11233072
...
2
Trim-Top Serv Panel WPL-R0905648
...
3
Insert, Serv. Panel WPL-R0905623
...
4
Insulator, Insert Panel WPL-R0910036
...
5
Panel, Access WPL-Y03000189
...
6
Toe Kick Assy WPL-R0903022
...
7
Trim Btm Door WPL-R0905635
...
8
Insert, Door Panel WPL-R0905620
...
9
Insulator WPL-R0906002
...
10
Door & Hinge Assy, Outer WPL-R0905637
...
11
Trim Side Door WPL-R0905636
...
12
Drip Shield WPL-R0910011
...
13
Latch, Assembly WPL-Y03000191
...
14
Adapter Faucet WPL-R0903562
...
15
Screw WPL-W10856125
...
16
Screw, Handle WPL-61002031
...
17
Trim, Side And Bottom WPL-R0905610
...
18
Screw WPL-R0900009
...
19
Screw WPL-WP74004005
...
20
Door Vent WPL-R0905536
...
21
Cap, Fill WPL-Y03000003
...
22
Shaft Hand D Cup WPL-R0905615
...
23
Screw WPL-R0900007
...
24
Detergent Cup Cover WPL-R0910010
...
25
Deflecter WPL-R0905523
...
26
Screw WPL-R0900006
...
27
Door Gasket WPL-R0904507
...
28
Door, Inner WPL-R0903021
...
29
Latch Detergent Cup WPL-R0905539
...
30
Injector, Rinse WPL-Y03000002
...
31
Trip Spring WPL-R0905542
...
32
Knob- Latch Handle WPL-R0903577

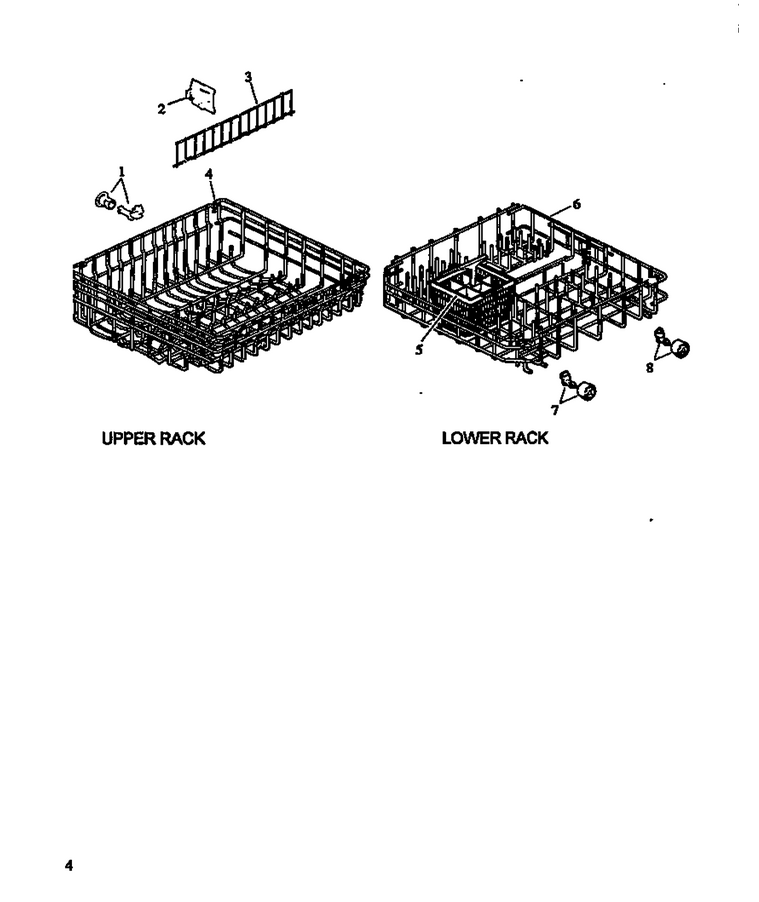

01 - Page 1

...
...
1
Wheel WPL-W10542232
...
2
Support- Shelf Tm WPL-R0910115
...
3
Shelf- Rack Tm WPL-R0910116
...
4
Upper Rack & Roller Tm WPL-R0910161
...
5
Basket,silverware WPL-R0910113
...
6
Assy Lower Rack & Roller WPL-R0910112
...
7
Lower Roller Assy WPL-R0910007
...
8
Roller WPL-W10882367
