product name

Amana DDW195-1W (BOM: DDW19501W)

Model: DDW195-1W (BOM: DDW19501W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

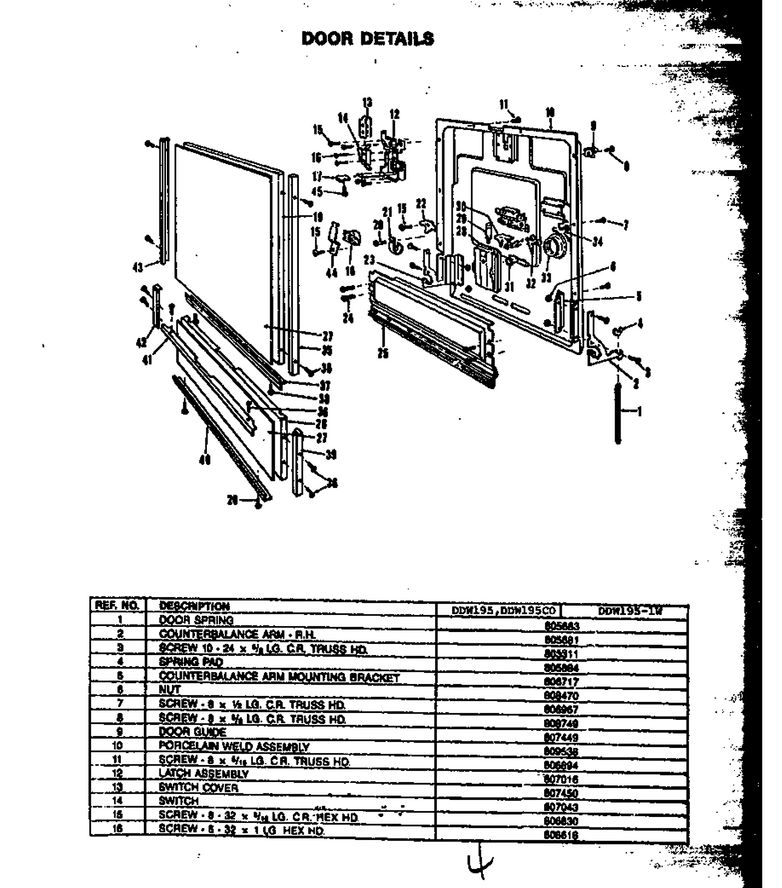

02 - Door Details

...
...
1
Spring- Co WPL-Y0808971
...
2
Rh Arm WPL-805681
...
3
Screw WPL-0803311
...
4
Spring Pad WPL-0805884
...
5
Arm Bracket WPL-Y0806717
...
6
Nut WPL-M0282009
...
7
Screw WPL-0806967
...
8
Screw WPL-Y0808749
...
9
Door Guide WPL-0807449
...
10
Panel,inner Door 24`` WPL-Y0809538
...
11
Screw WPL-0806894
...
12
Latch Asm WPL-807016
...
13
Switch Cover WPL-0807450
...
14
Switch, Door Latch WPL-Y0807043
...
15
Screw WPL-0806830
...
16
Screw WPL-0808618
...
17
Latch Knob, Ddw195-1w WPL-0809683
...
18
Thermostat WPL-Y0808956
...
19
Door Panel, White WPL-0807262
...
20
Screw WPL-M0217225
...
21
Clamp WPL-Y0808442
...
22
Terminal, Grounding WPL-0807213
...
23
Arm Assy Lh Counterbalance WPL-0805682
...
24
Use 0806976 WPL-0806810
...
25
Vent Baffl WPL-809412
...
26
Access Panel, White WPL-0809108
...
27
Door And Access Panel Inserts WPL-0808914
...
28
Body Dispenser, Wetting Agent WPL-Y0806753
...
29
Plunger WPL-0806757
...
30
Bi-Metal Asm WPL-809109
...
31
Fill Plug WPL-Y0807673
...
32
Screw WPL-W11233072
...
33
Grommet, Mounting WPL-0805631
...
34
Screw WPL-0806863
...
35
Door Pnl Trim, Rh WPL-0808976
...
36
Screw WPL-WP355214
...
37
Door Panel, Trim, Bottom WPL-0809682
...
38
Screw WPL-W11233072
...
39
Trim, R.h. WPL-0808028
...
40
Sub 808027 Trim, Access WPL-Y0809994
...
41
Trim, Top, Access Panel WPL-0809681
...
42
Screw WPL-W11233072
...
43
Door Pnl Trim, Lh WPL-0808977
...
44
Thermostat Retainer WPL-0809097
...
45
Use 0806830 WPL-0809163

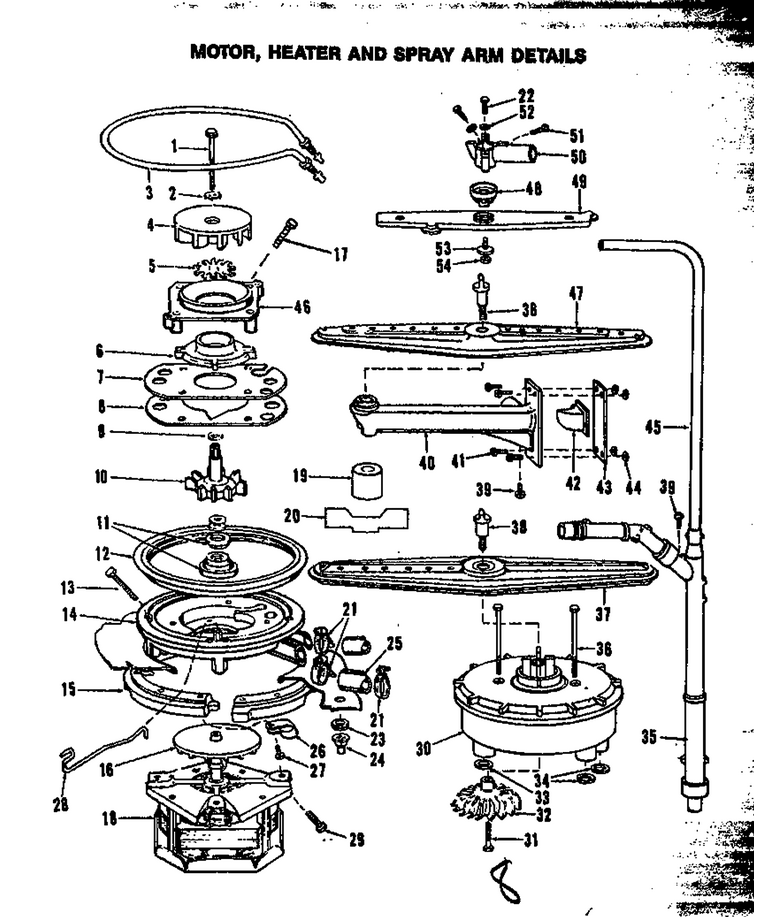

04 - Motor

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-0809004
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0809006
...
8
Pump Gasket WPL-Y0809007
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809110
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw, Pump Housing WPL-0807359
...
14
Housing WPL-Y03100021
...
15
Clamp Ring WPL-807712
...
16
Water Shield Assy WPL-Y0809366
...
17
Screw, Pump Housing WPL-0807359
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Clamp WPL-WP285655
...
22
Screw WPL-Y0806901
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Hose Spray Tube WPL-0805674
...
26
Clamp WPL-Y0808442
...
27
Screw WPL-0807270
...
28
Wire Retainer WPL-0809010
...
29
Screw WPL-807268
...
30
Filter Body WPL-Y809011
...
31
Screw WPL-0809073
...
32
Diffuser WPL-Y0809014
...
33
O Ring WPL-Y0809016
...
34
O Ring WPL-0809015
...
35
Delivery Tube Assy. Kit WPL-0808805
...
36
Screw WPL-0809012
...
37
Lower Spray Arm Assembly WPL-809017
...
38
Spray Arm Bolt WPL-809018
...
39
Screw WPL-W11233072
...
40
Delivery Arm WPL-0809019
...
41
Screw WPL-WP67006908
...
42
Plug Delivery Arm WPL-0805781
...
43
Gasket Delivery Arm WPL-0805782
...
44
``o`` Ring WPL-Y0808210
...
45
Supply Tube WPL-0807224
...
46
Spacer Plate WPL-Y0809020
...
47
Spray Arm WPL-Y0809021
...
48
Distributor WPL-808462
...
49
Spray Arm & Seal Assy WPL-Y0808463
...
50
Distributor WPL-0808464
...
51
Screw WPL-0806976
...
52
Washer, Sealing WPL-0809044
...
53
Washer WPL-Y0808465
...
54
Screw WPL-Y0808466

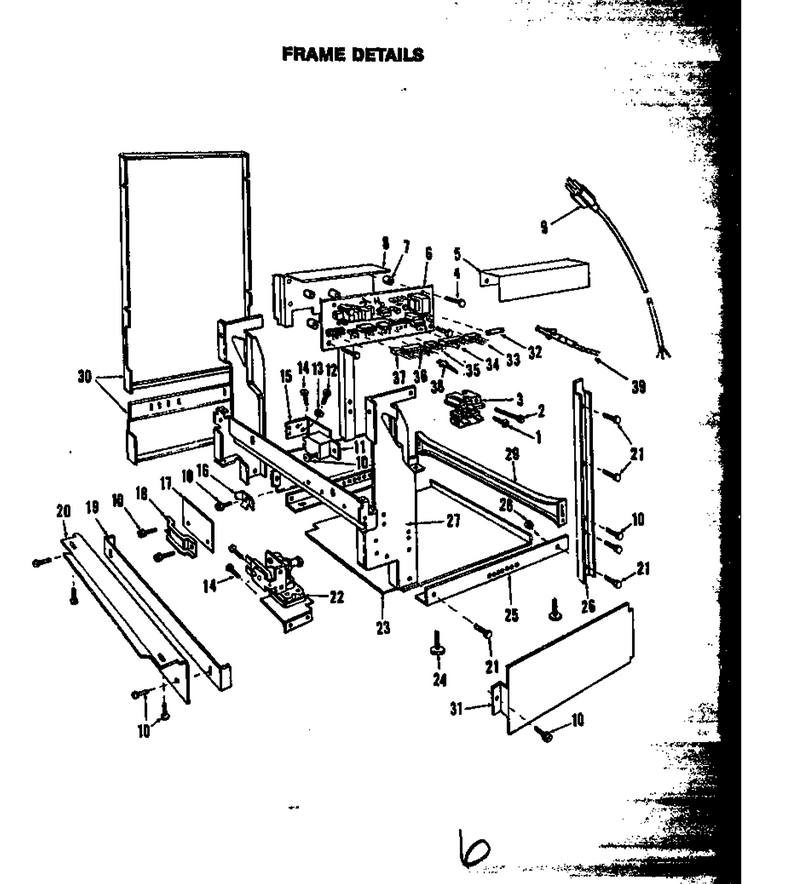

03 - Frame Details

...
...
1
Screw WPL-WP488234
...
2
Screw WPL-0804672
...
3
Relay WPL-0805255
...
4
Screw WPL-WP22001496
...
5
Shield WPL-0809232
...
6
Power Supply WPL-Y0809230
...
7
Spacer WPL-0805323
...
8
Relay Bracket WPL-0809233
...
9
Power Cord WPL-Y0808395
...
10
Screw WPL-WP90767
...
11
Junction Box Cover WPL-0800222
...
12
Screw WPL-0807951
...
13
Washer WPL-0807373
...
14
Screw WPL-Y0807950
...
15
Cover Bracket WPL-0807019
...
16
Terminal, Grounding WPL-0807213
...
17
Wire Shield WPL-0809144
...
18
Wiring Clamp WPL-0806723
...
19
Toe Plate, Adjustable WPL-0809303
...
20
Toe Plate WPL-0809765
...
21
Screw WPL-0807001
...
22
Valve Assy WPL-Y0809240
...
23
Bottom Panel WPL-Y0808434
...
24
Leveling Leg WPL-0809422
...
25
``u`` Frame Assembly WPL-Y0807851
...
26
Support Channel WPL-0808670
...
27
Weld Assembly, Hinge WPL-0807848
...
28
Nut K WPL-M0282005
...
29
Brace, Rear WPL-Y0807852
...
30
Side Panel Kit, Almond WPL-0808884
...
31
Side Panel WPL-Y0808433
...
32
Fuse, 12 Amp WPL-M0805105
...
33
Terminal Housing Cn6 WPL-0809385
...
34
Terminal Housing Cn4 WPL-0809388
...
35
Terminal Housing Cn3 WPL-0809384
...
36
Terminal Housing Cn2 WPL-0809386
...
37
Terminal Housing Cn5 WPL-0809387
...
38
Terminal (Small Prong-Cn4 Cns) WPL-0809383
...
39
Terminal WPL-808132

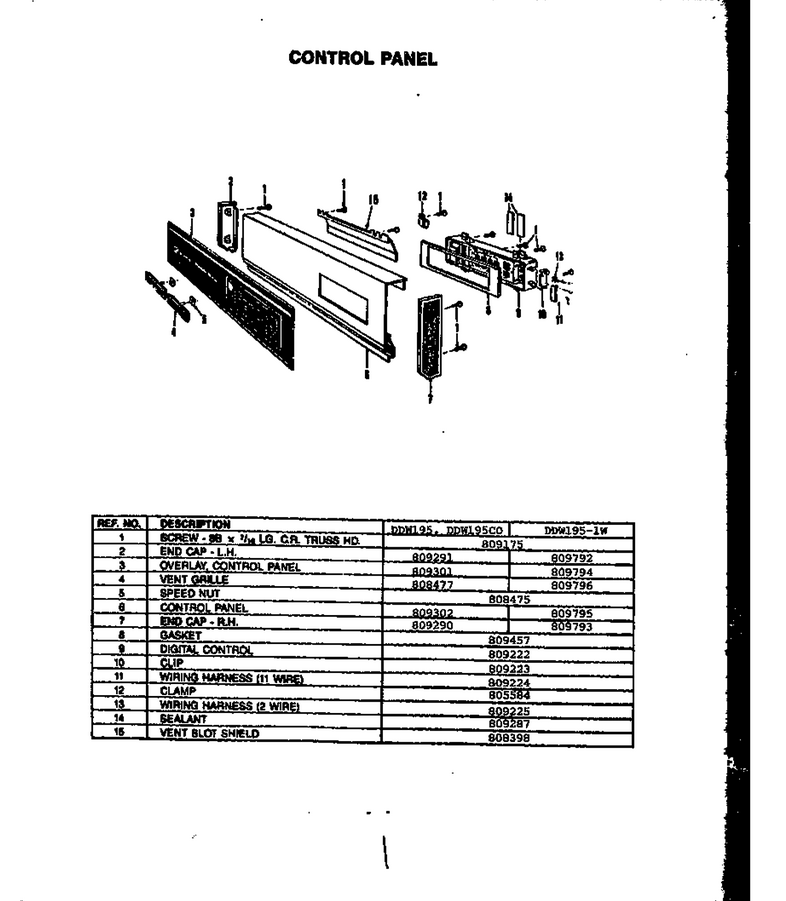

05 - Page 1

...
...
1
Screw WPL-0809175
...
2
End Cap, Lh, Ddw195-1w WPL-0809792
...
3
Overlay, Control Panel, Ddw195 WPL-0809794
...
4
Vent Grille, Ddw195-1w WPL-Y0809796
...
5
Speed Nut WPL-Y0808475
...
6
Control Panel, Ddw195-1w WPL-Y0809795
...
7
Brkt Mtg WPL-809793
...
8
Control Case Gasket WPL-0809457
...
9
Digital Control WPL-0809222
...
10
Clip WPL-0809223
...
11
Wiring Harness WPL-0809224
...
12
Clamp WPL-W10833902
...
13
Wiring Harness WPL-0809225
...
14
Sealant WPL-0809287
...
15
Shield, Vent Plate WPL-Y0808398

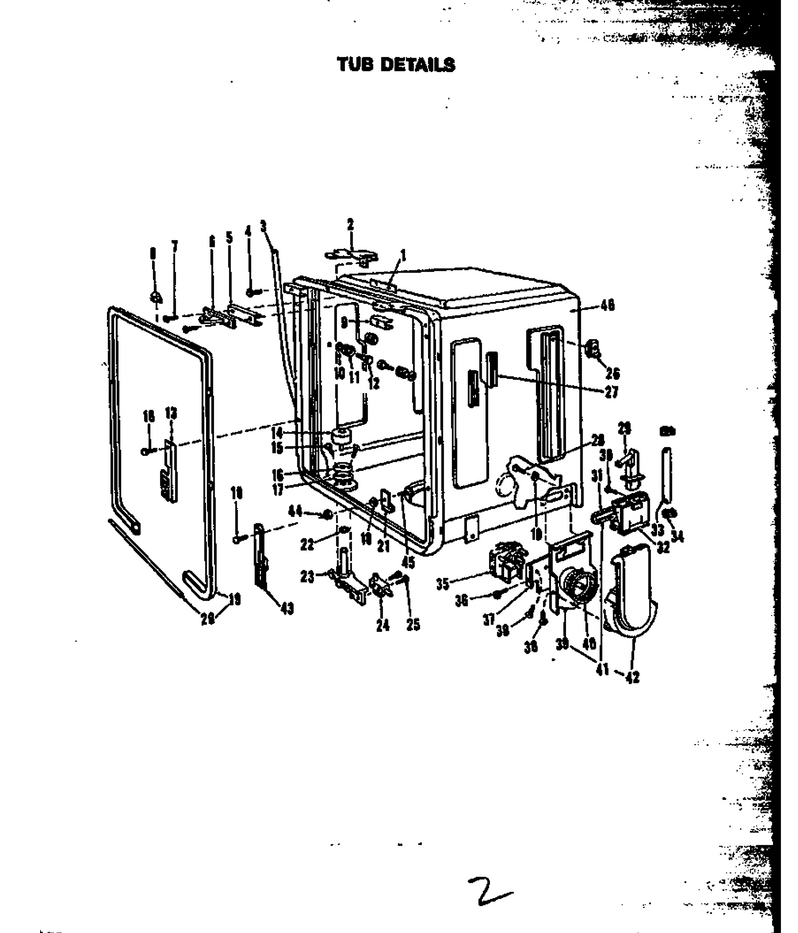

07 - Tub Details

...
...
NI
Tub Insulation WPL-0809512
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Drain Hose WPL-809112
...
4
Screw WPL-0806976
...
5
Shim Strike WPL-0807073
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Screw WPL-0808368
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
White Gask WPL-808959
...
20
Junction, Wire Gasket WPL-0808344
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Assy WPL-Y0809859
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Nut, Cage WPL-0806291
...
27
Twin Nut Assem. WPL-0807038
...
28
Screw WPL-Y0806901
...
29
Inlet Nozzle WPL-0808707
...
30
Screw WPL-0808818
...
31
Gasket WPL-806797
...
32
Vent Stack WPL-0808706
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Motor WPL-Y0807389
...
36
Knob Screw WPL-0804164
...
37
Plate, Motor WPL-0806793
...
38
Screw WPL-803003
...
39
Plate, Blower WPL-0806794
...
40
Wheel & Clip Assembly WPL-0806230
...
41
Housing Assy. WPL-0808765
...
42
Housing, Blower WPL-0808738
...
43
Rh Guide WPL-807471
...
44
Use M0281003 WPL-0803346
...
45
Screw WPL-WP250830
...
46
Tub And Gasket Assembly WPL-808762

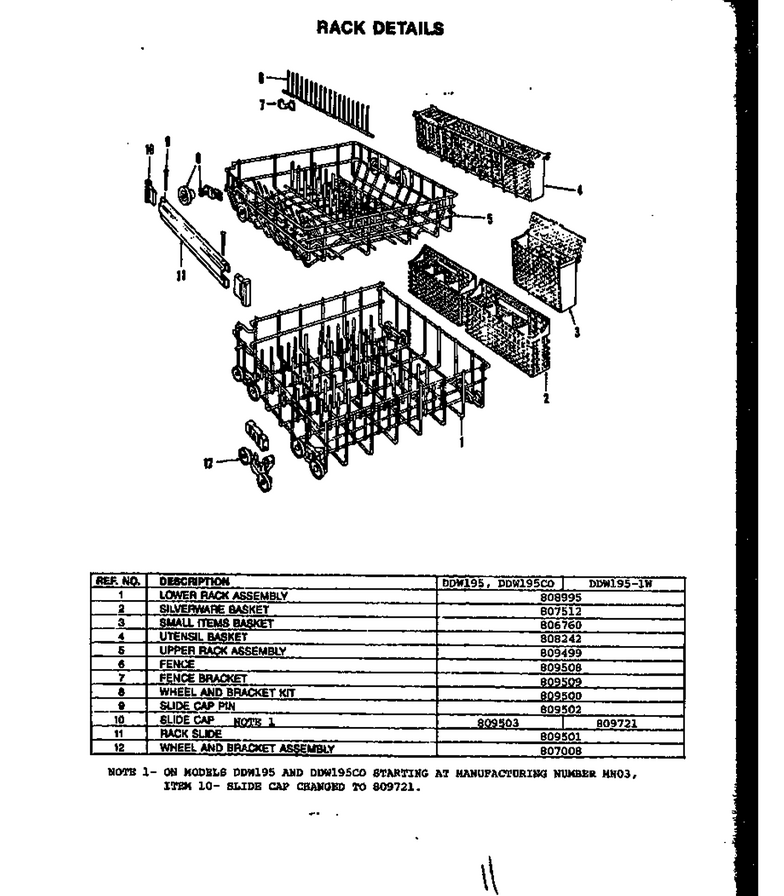

06 - Rack Details

...
...
1
Upper Rack Asm WPL-808996
...
2
Silverware Basket WPL-Y0807512
...
3
Sml Item Basket WPL-806760
...
4
Basket, Utensil WPL-0808242
...
5
Upper Rack Assy. WPL-0809499
...
6
Fence, Rack WPL-0809508
...
7
Fence Bracket WPL-0809509
...
8
Rack Wheel Asm WPL-809500
...
9
Cap Pin WPL-0809502
...
10
Slide Cap WPL-0809721
...
11
Rack Slide WPL-0809501
...
12
Wheel Assy WPL-Y0807008

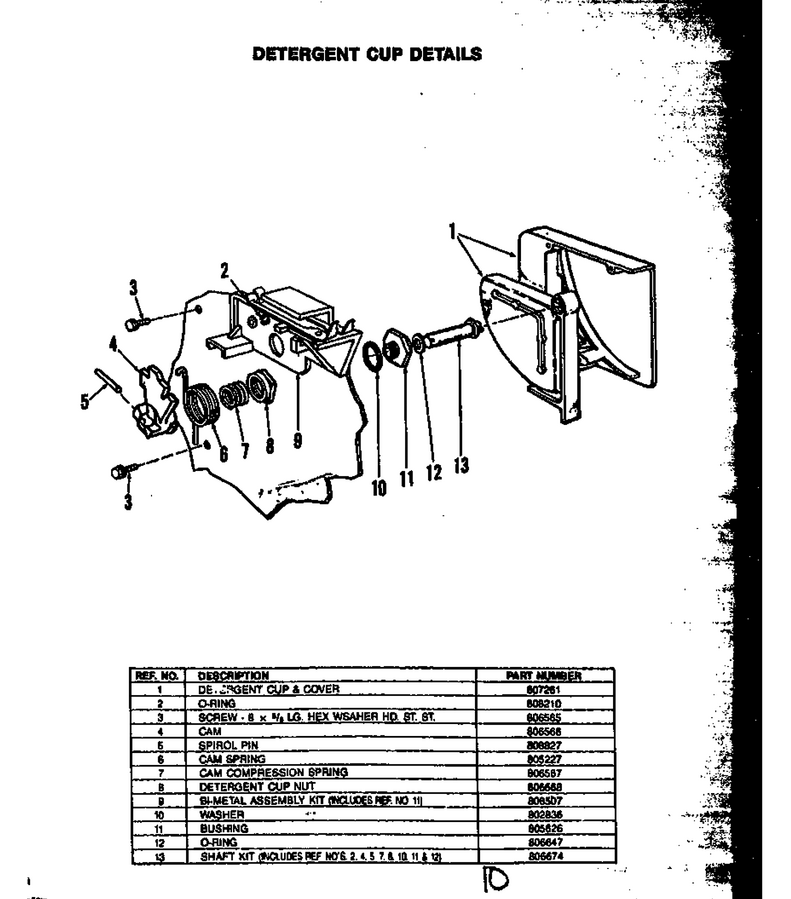

01 - Detergent Cup Details

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
