Amana DDW160/MN04

Model: DDW160/MN04

Save Part Not Listed?
product name

Popular Parts

Popular Parts

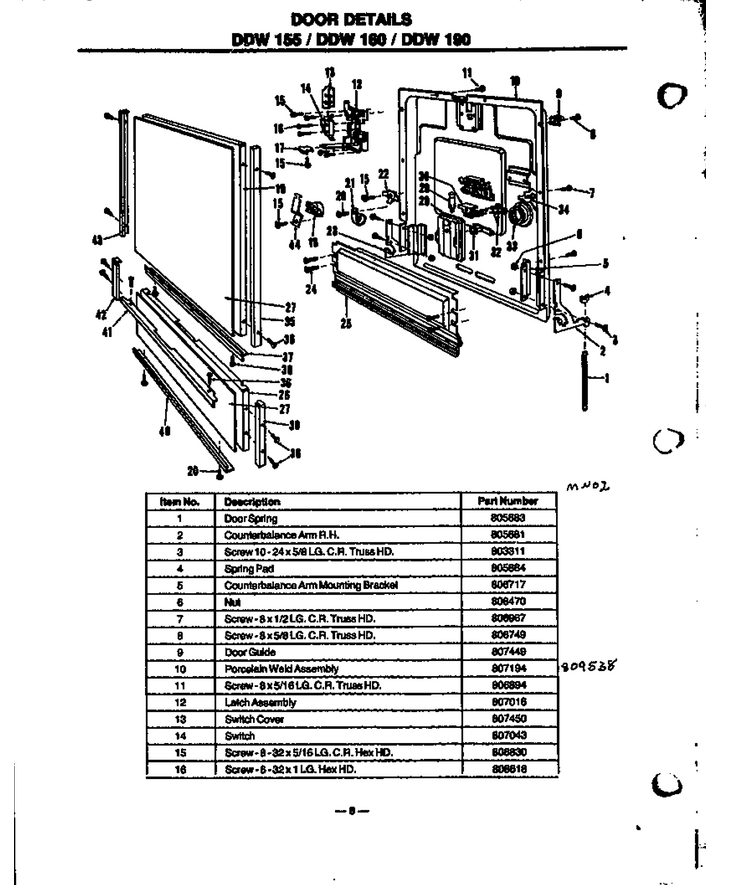

03 - Door Details

...
...
NI
Trim, Door Kit, Wood WPL-0808936
...
1
Spring- Co WPL-Y0808971
...
2
Rh Arm WPL-805681
...
3
Screw WPL-0803311
...
4
Spring Pad WPL-0805884
...
5
Arm Bracket WPL-Y0806717
...
6
Nut WPL-M0282009
...
7
Screw WPL-0806967
...
8
Screw WPL-Y0808749
...
9
Door Guide WPL-0807449
...
10
Inner Dr. Assy. WPL-0807194
...
11
Screw WPL-0806894
...
12
Latch Asm WPL-807016
...
13
Switch Cover WPL-0807450
...
14
Switch, Door Latch WPL-Y0807043
...
15
Screw WPL-0806830
...
16
Screw WPL-0808618
...
17
Knob, Latch WPL-0808698
...
18
Thermostat WPL-Y0808956
...
19
Door Panel, White WPL-0807262
...
20
Screw WPL-M0217225
...
21
Clamp WPL-Y0808442
...
22
Terminal, Grounding WPL-0807213
...
23
Arm Assy Lh Counterbalance WPL-0805682
...
24
Use 0806976 WPL-0806810
...
26
Access Panel, White WPL-0809108
...
27
Door Trim WPL-808910
...
28
Body Dispenser, Wetting Agent WPL-Y0806753
...
29
Plunger WPL-0806757
...
30
Bi-Metal Asm WPL-809109
...
31
Plug, Dispenser Fill WPL-Y03100038
...
32
Screw WPL-W11233072
...
33
Grommet, Mounting WPL-0805631
...
34
Screw WPL-0806863
...
35
Door Panel Trim, Rh WPL-0810090
...
36
Screw WPL-WP74004005
...
37
Trim, Door Panel, Bottom WPL-0809309
...
38
Screw WPL-W11233072
...
39
Access Panel Trim, Rh WPL-0810092
...
40
Access Panel Trim, Bottom WPL-0810085
...
41
Trim, Door Panel, Top WPL-0809310
...
42
Access Panel Trim, Lh WPL-0810093
...
43
Door Panel Trim, Lh WPL-0810091
...
44
Thermostat Retainer WPL-0809097

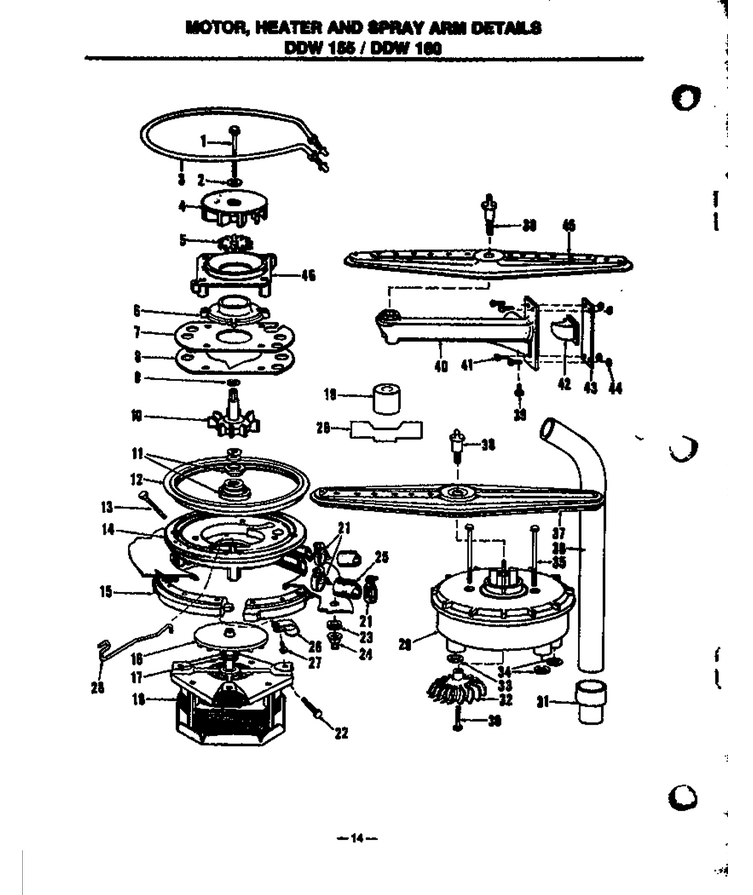

05 - Motor

...
...
NI
Screw WPL-0809831
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
3
Heater WPL-0809004
...
4
Impeller, Upper WPL-Y0809918
...
5
Macerator WPL-Y03100008
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0809006
...
8
Pump Gasket WPL-Y0809007
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y03100019
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw, Pump Housing WPL-0807359
...
14
Housing WPL-Y03100021
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assembly WPL-Y0806300
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Clamp WPL-WP285655
...
22
Screw WPL-807268
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Hose Spray Tube WPL-0805674
...
26
Clamp WPL-Y0808442
...
27
Screw WPL-0807270
...
28
Wire Retainer WPL-0809010
...
29
Filter Body WPL-Y809011
...
30
Screw WPL-0809073
...
31
Adaptor WPL-Y0806989
...
32
Diffuser WPL-Y0809014
...
33
O Ring WPL-Y0809016
...
34
O Ring WPL-0809015
...
35
Screw WPL-0809012
...
36
Sub 807487 Supply Tube WPL-0807151
...
37
Spray Arm, Lower WPL-0810015
...
38
Spray Arm Bolt WPL-809018
...
39
Screw WPL-W11233072
...
40
Delivery Arm WPL-0809019
...
41
Screw WPL-WP67006908
...
42
Plug Delivery Arm WPL-0805781
...
43
Gasket Delivery Arm WPL-0805782
...
44
``o`` Ring WPL-Y0808210
...
45
Spray Arm WPL-Y0809021
...
46
Plate, Spacer WPL-0809921

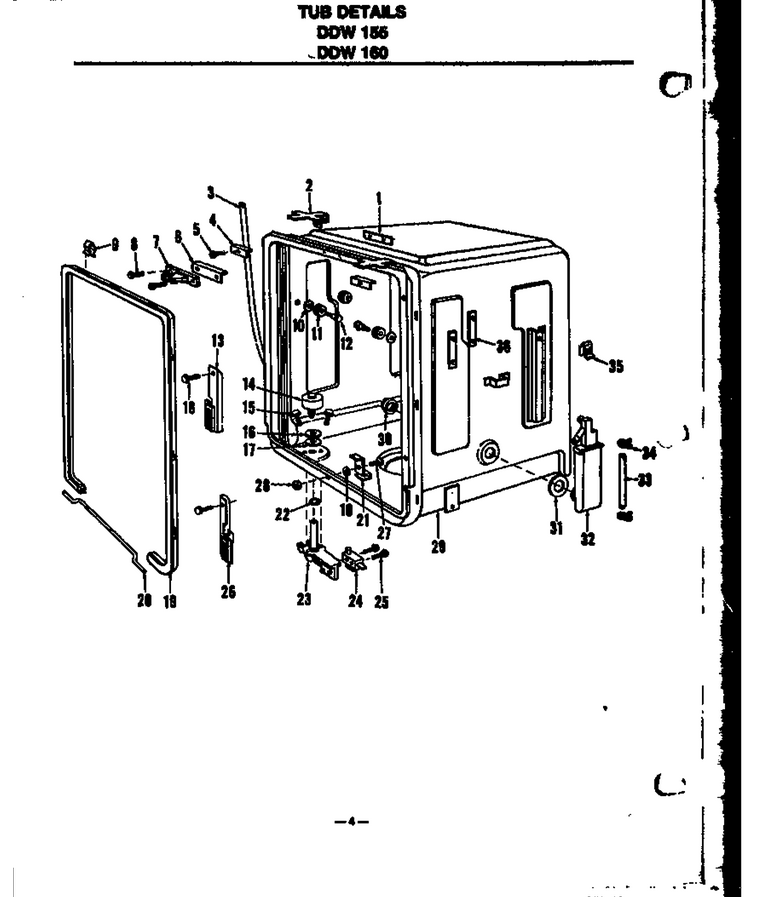

07 - Tub Details

...
...
NI
Tub Insulation WPL-0809113
...
1
Latch Tapping Plate WPL-0808868
...
2
Clip WPL-0808289
...
3
Drain Hose WPL-809112
...
4
Shim WPL-Y0808366
...
5
Screw WPL-0806976
...
6
Shim Strike WPL-0807073
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Clip Kit (Tub Gasket) WPL-805763
...
10
Washer, Sealing WPL-0809044
...
11
Tub Roller WPL-Y03100018
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw, No.10-24 X 5/8 WPL-0806539
...
19
White Gask WPL-808959
...
20
Junction, Wire Gasket WPL-0808344
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Rh Guide WPL-807471
...
27
Screw WPL-WP250830
...
28
Use M0281003 WPL-0803346
...
29
Tub And Gasket Assembly WPL-809262
...
30
Nut Plastic WPL-0805669
...
31
Washer WPL-803573
...
32
Water Inlet Assy WPL-Y0806470
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Nut, Cage WPL-0806291
...
36
Twin Nut Assem. WPL-0807038

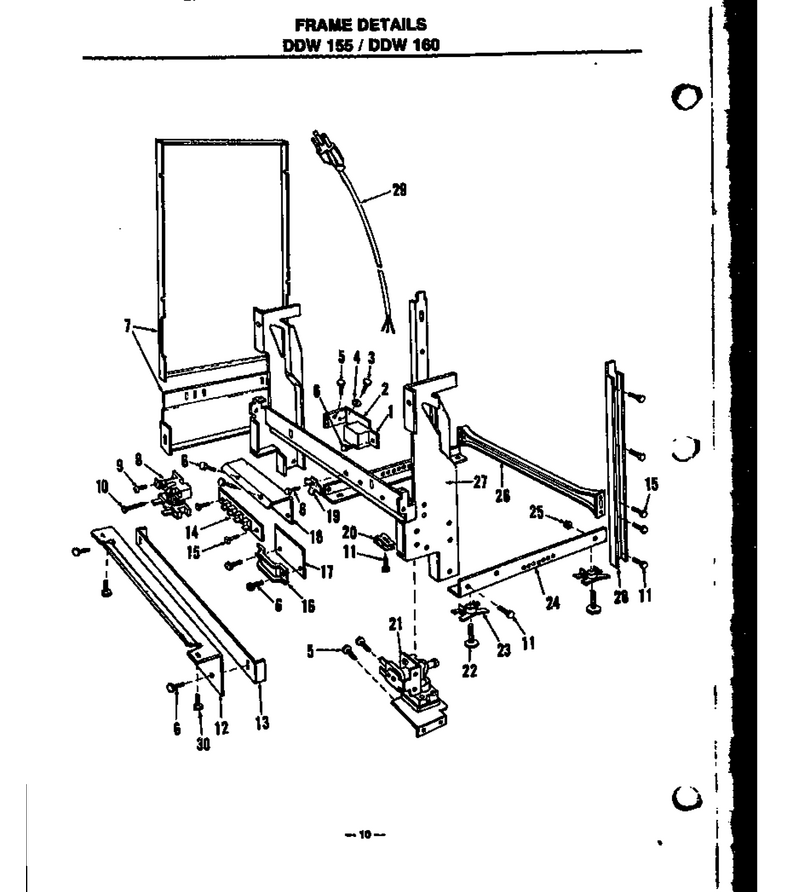

04 - Frame Details

...
...
1
Junction Box Cover WPL-0800222
...
2
Cover Bracket WPL-0807019
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Screw WPL-WP90767
...
7
Side Panel Kit WPL-808881
...
8
Relay WPL-0805255
...
9
Screw WPL-WP488234
...
10
Screw WPL-0804672
...
11
Screw WPL-0807001
...
12
Use 0809765 WPL-0809304
...
13
Toe Plate, Adjustable WPL-0809303
...
14
Terminal Block WPL-0807486
...
15
Screw WPL-W11233072
...
16
Wiring Clamp WPL-0806723
...
17
Wire Shield WPL-0808013
...
18
Bracket, Terminal Board WPL-0807849
...
19
Terminal, Grounding WPL-0807213
...
20
Speed Nut WPL-0808170
...
21
Valve Assy WPL-Y0809240
...
22
Leveling Legs WPL-0807672
...
23
Tee Nut - Snap In WPL-0807671
...
24
``u`` Frame Assembly WPL-Y0807851
...
25
Nut K WPL-M0282005
...
26
Brace, Rear WPL-Y0807852
...
27
Weld Assembly, Hinge WPL-0807848
...
28
Support Channel WPL-0808670
...
29
Power Cord WPL-Y0808395
...
30
Screw WPL-WP90767

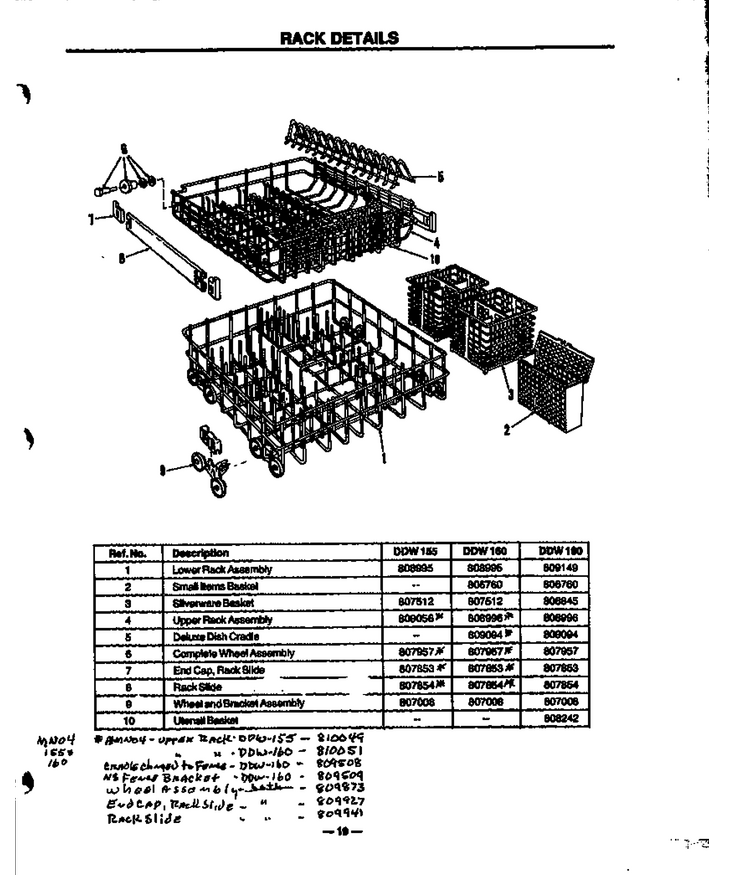

06 - Rack Details

...
...
NI
Fence Bracket WPL-0809509
...
1
Upper Rack Asm WPL-808996
...
2
Sml Item Basket WPL-806760
...
3
Silverware Basket WPL-Y0807512
...
4
Rack, Upper WPL-0810051
...
5
Fence, Rack WPL-0809508
...
6
Wheel, Rack WPL-Y0809873
...
7
End Cap, Slide (4) WPL-965554
...
8
Rack Slide WPL-0809941
...
9
Wheel Assy WPL-Y0807008

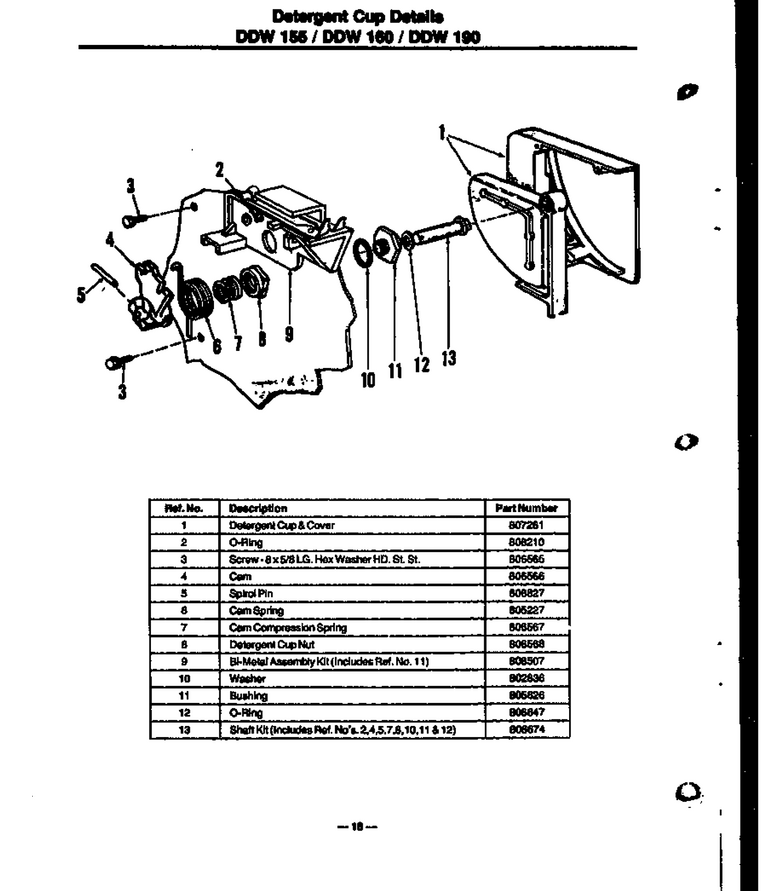

02 - Detergent Cup Details

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674

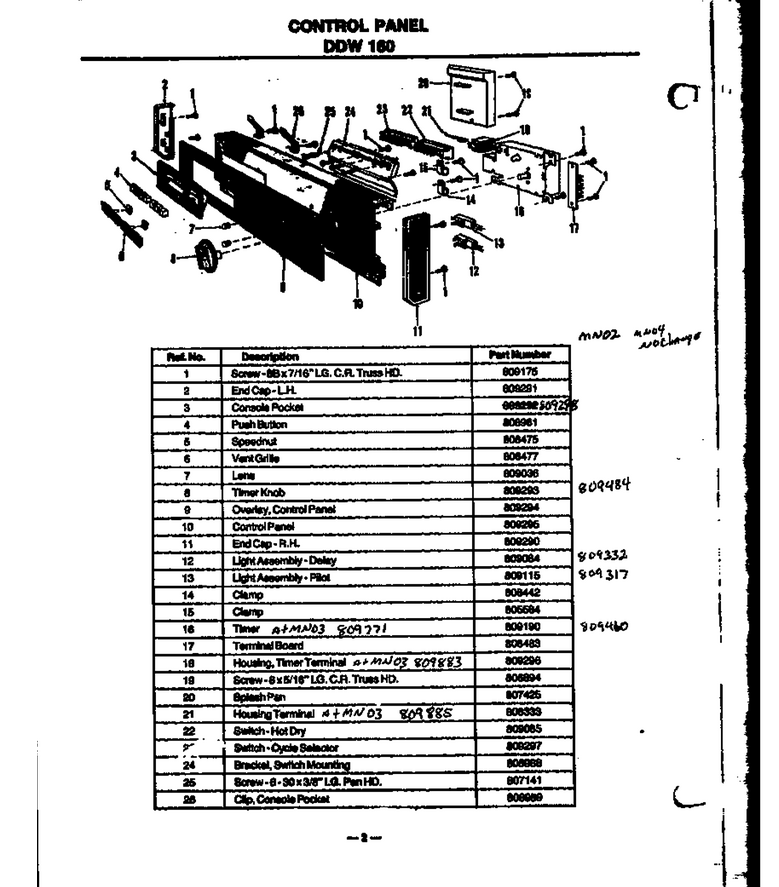

01 - Control Panel

...
...
1
Screw WPL-0809175
...
2
End Cap, L.h. WPL-0809291
...
4
Push Button WPL-0808981
...
5
Speed Nut WPL-Y0808475
...
6
Vent Grille WPL-Y0808477
...
7
Lens WPL-0809036
...
8
Knob, Timer WPL-Y0809293
...
9
Overlay, Control Panel WPL-0809294
...
10
Control Panel WPL-0809295
...
11
End Cap, R.h. WPL-0809290
...
12
Light Assy. - Delay WPL-0809084
...
13
Light Assy. - Pilot WPL-0809115
...
14
Clamp WPL-Y0808442
...
15
Clamp WPL-W10833902
...
16
X Timer WPL-0809190
...
17
Terminal Board Assy. WPL-Y0808483
...
18
Timer, Terminal Housing WPL-0809296
...
19
Screw WPL-0806894
...
20
Splash Pan WPL-0807425
...
21
Terminal, (Pack Of 25) WPL-0808333
...
22
Switch WPL-Y0809085
...
23
Switch WPL-Y0809297
...
24
Bracket, Switch WPL-0808988
...
25
Screw WPL-0807141
...
26
Clip, Console Pocket WPL-0808989
