Amana DDV30W1 (BOM: P1179402S)

Model: DDV30W1 (BOM: P1179402S)

Save Part Not Listed?
product name

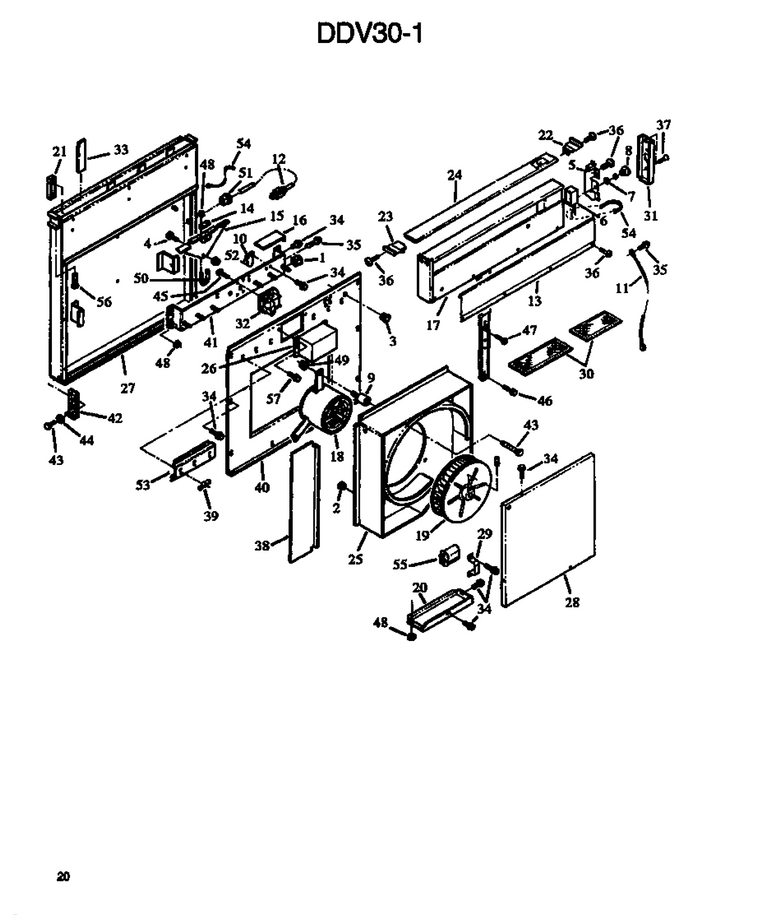

01 - Page 3

...
...
NI
Chimney Assy. (Complete) WPL-47001046
...
1
Bushing, Snap WPL-A3293504
...
2
Bushing-Snap WPL-A3293505
...
3
Strain Relief WPL-R0199668
...
4
Roller WPL-R0199631
...
5
Assy, Switch (Up / Down) WPL-R0199673
...
6
Harness, Speed Control WPL-R0199636
...
7
Nut WPL-R0199666
...
8
Knob WPL-R0199495
...
9
Isolator, Motor WPL-R0199662
...
10
Assy, Switch / Bracket WPL-R0199613
...
11
Wire, Ground WPL-R0199676
...
12
Harness, Wire WPL-R0199638
...
13
Trim, Stainless Panel WPL-R0199657
...
14
Plate WPL-R0199612
...
15
Crank WPL-R0199610
...
16
Cover, Switch WPL-47001014
...
17
Ass`y, Chimney / Slide WPL-R0199648
...
18
Bushing, Snap WPL-A3293504
...
19
Wheel, Blower WPL-R0199659
...
20
Extension, Scroll Box WPL-R0199655
...
21
Spacer WPL-R0199622
...
22
Ass`y- Top WPL-R0199686
...
23
Ass`y- Top WPL-R0199687
...
24
Top, Stainless WPL-R0199647
...
25
Ass`y, Scroll Box WPL-R0199637
...
26
Cover, Gear Motor WPL-R0199658
...
27
Air Box WPL-R0199639
...
28
Cover, Scroll Box WPL-R0199650
...
29
Bracket WPL-10825501
...
30
28`` Filter Kit WPL-R0199602
...
31
End Cap WPL-R0199661
...
32
Motor, Gear WPL-47001250
...
33
Strip, Back Slide WPL-R0199623
...
34
Screw, No.8-18 X .375 WPL-R0199663
...
35
Screw, Ground No.10-32 X 1/2`` F WPL-R0199492
...
36
Screw WPL-WP400021-1
...
37
Screw WPL-R0199491
...
38
Cover, Air Box Opening WPL-R0199653
...
39
Wing Nut (25) WPL-R0199665
...
40
Cover, Air Box WPL-R0199649
...
41
Ass`y, Gear Motor Brkt WPL-R0199672
...
42
Leg, Support WPL-R0199654
...
43
Screw, No.10-12 X 1`` WPL-R0199481
...
44
Washer, Flat 5/16-18 WPL-R0199620
...
45
Screw WPL-R0199356
...
46
Screw WPL-WP3351614
...
47
Screw, Mach No.10-24 X 3/8`` Fl H WPL-R0199488
...
48
Nut WPL-M0282009
...
49
Nut, 1/4`` - 20 Whizlock WPL-R0199478
...
50
U-Bolt WPL-R0199609
...
51
Relief-Str WPL-Y60298
...
52
Nut K WPL-R0199625
...
53
Clamp, Wire Channel WPL-R0199651
...
54
Tie-Elect. WPL-R0199490
...
55
Capacitor WPL-R0199667
...
56
Screw, 1/4-20 X 1 1/4 WPL-R0199664
...
57
Screw, No.8-18 X 1/4`` Bpt WPL-R0199615
