Amana DDV30E (BOM: P1119601S)

Model: DDV30E (BOM: P1119601S)

Save Part Not Listed?
product name

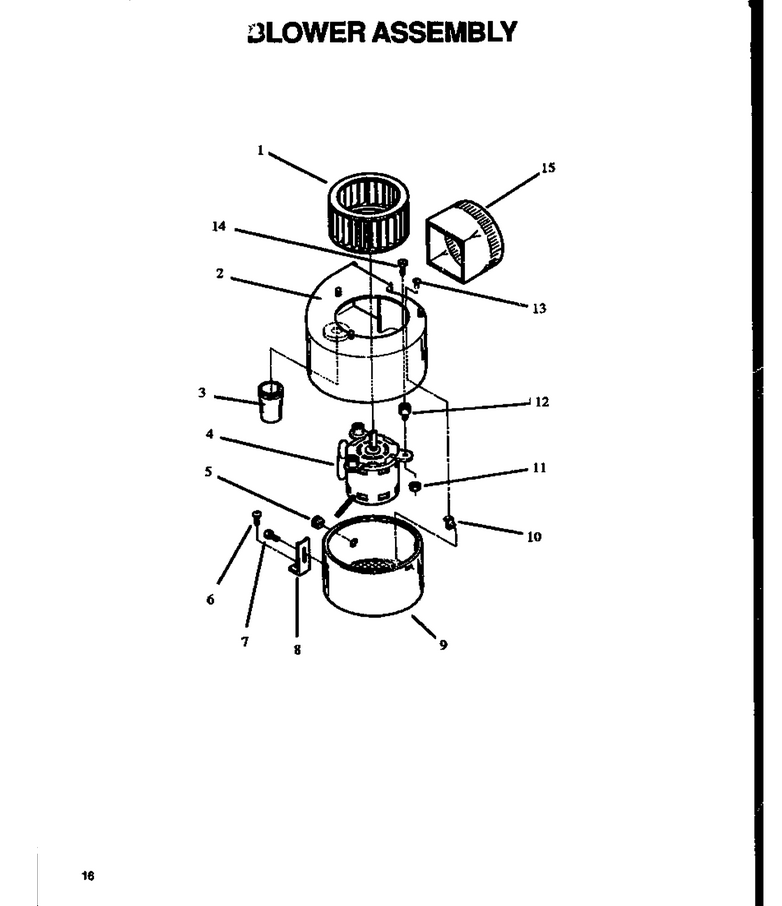

01 - Blower Assy

...
...
NI
Ass`y, Blower WPL-R0199487
...
1
Wheel, Blower WPL-R0199468
...
2
Weldm`t, Scroll WPL-R0199469
...
3
Grease, Jar WPL-R0199470
...
4
Motor, Blower WPL-R0199471
...
5
Bushing, Snap (Blk) WPL-308655B
...
6
Screw 1/4-14 X 3/4`` WPL-R0199473
...
7
Screw,mach 5/16-18 X 1/2`` WPL-R0199474
...
8
Leg,support WPL-R0199475
...
9
Weld, Motor Cover WPL-R0199476
...
10
Sleeve, Fastener WPL-R0199477
...
11
Nut, 1/4`` - 20 Whizlock WPL-R0199478
...
12
Mounts, Rubber WPL-R0199479
...
13
Screw, 1/4-20 X 5/16`` WPL-R0199480
...
14
Screw, No.10-12 X 1`` WPL-R0199481
...
15
Transition, Square To Round WPL-R0199482

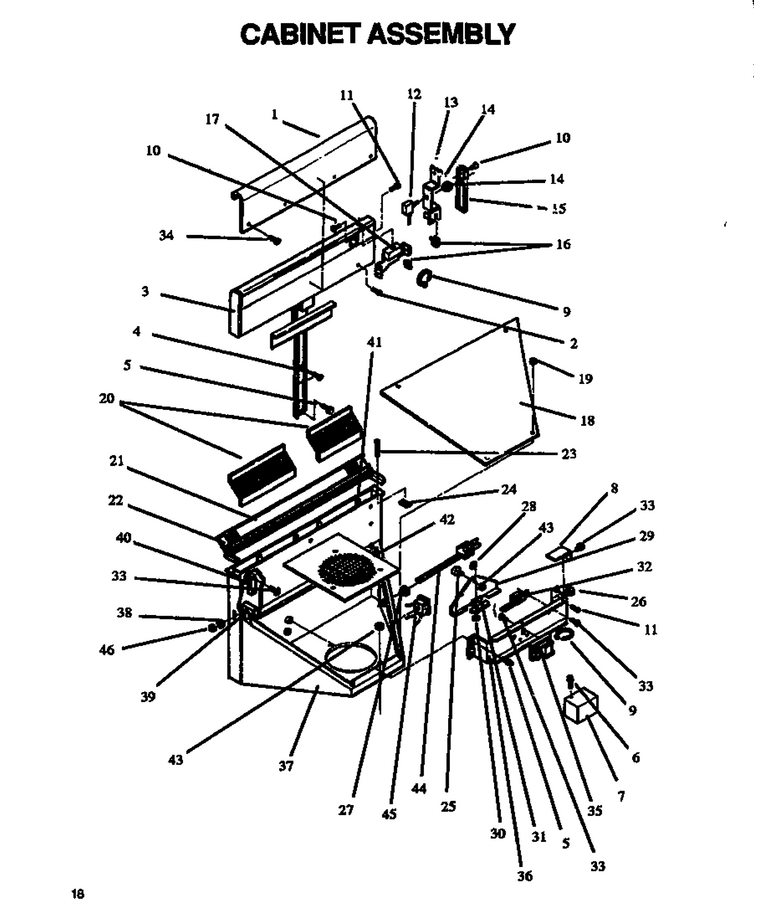

02 - Cabinet Assy

...
...
NI
Assy, 28`` Air Vent WPL-R0199484
...
1
Panel, Stainless Stl Trim 28`` WPL-R0199483
...
2
Screw, No.8-18 X 1/4`` Bpt WPL-R0199485
...
3
Chimney, 28`` Air Vent WPL-R0199486
...
4
Screw, Mach No.10-24 X 3/8`` Fl H WPL-R0199488
...
5
Screw WPL-WP3351614
...
6
Screw WPL-R0199357
...
7
Cover, Gear Motor WPL-R0199632
...
8
Cover WPL-R0199629
...
9
Tie-Elect. WPL-R0199490
...
10
Screw WPL-R0199491
...
11
Screw, Ground No.10-32 X 1/2`` F WPL-R0199492
...
12
Kit, Speed Control WPL-R0199493
...
13
Bracket, Speed Control WPL-R0199494
...
14
Knob WPL-R0199495
...
15
End Cp- R.h. WPL-R0199496
...
16
Nut No.8-18 WPL-R0199497
...
17
Door Switch/bracket Assy WPL-Y04500032
...
18
Door, Access WPL-R0199499
...
19
Hex Nut 10-24 Nickel WPL-R0199601
...
20
28`` Filter Kit WPL-R0199602
...
21
Kit, 28`` Door (Black) WPL-R0199603
...
22
Magnet WPL-R0199606
...
23
Screw, No.10-16 X 2`` Ph Oval Hd WPL-R0199607
...
24
Nut No.10-16 WPL-R0199608
...
25
Roller WPL-R0199631
...
26
Bushing, Snap WPL-A3293504
...
27
Relief-Str WPL-Y60298
...
28
U-Bolt WPL-R0199609
...
29
Crank WPL-R0199610
...
30
Nut WPL-M0282009
...
31
Plate WPL-R0199612
...
32
Assy, Switch / Bracket WPL-R0199613
...
33
Screw WPL-WP488234
...
34
Screw, No.8-18 X 1/4`` Bpt WPL-R0199615
...
35
Motor, Gear WPL-47001250
...
36
Bracket, Motor WPL-R0199617
...
37
Weldm`t, 28`` Transition WPL-R0199618
...
38
Washer, Flat 5/16-18 WPL-R0199620
...
39
Weldm`t, Stop Bracket WPL-R0199621
...
40
Spacer WPL-R0199622
...
41
Strip, Back Slide WPL-R0199623
...
42
Weldm`t, Venturi Plate WPL-R0199624
...
43
Nut K WPL-R0199625
...
44
Cord, Power WPL-1731300208
...
45
Receptacle WPL-R0199627
...
46
Nut, 1/4`` - 20 Whizlock WPL-R0199478
