Amana DDO-692C

Model: DDO-692C

Save Part Not Listed?
product name

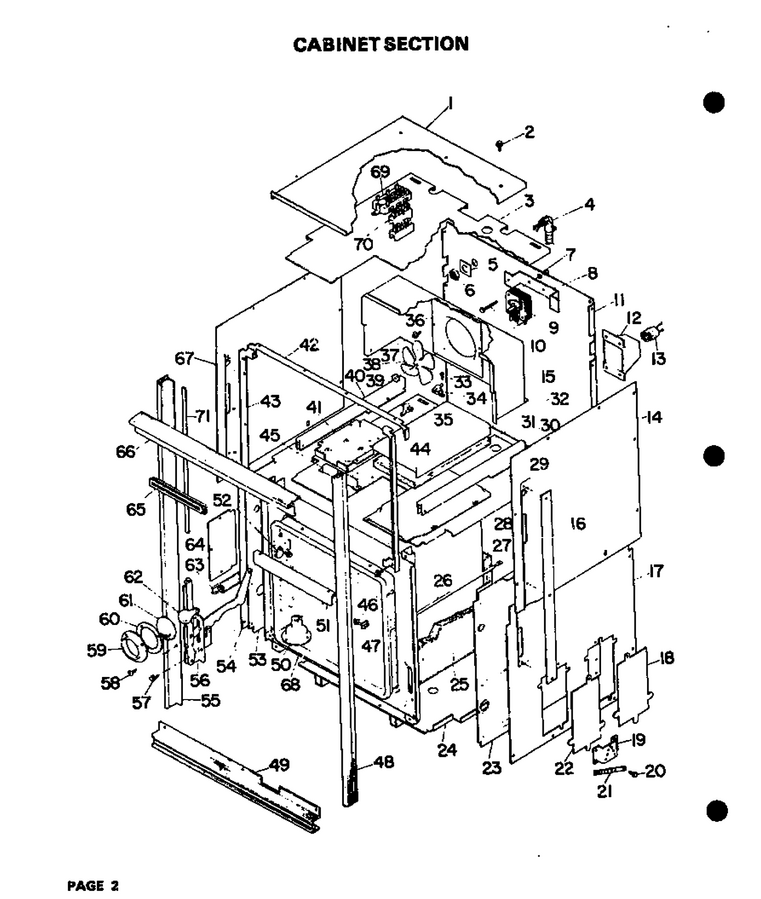

02 - Cabinet Section

...
...
NI
Wire Harness Power Line WPL-Y0045307
...
1
Cabinet Top WPL-16-01-025
...
3
Sub R0157828 WPL-0040744
...
4
Sub 43740, 5651105 C WPL-0045311
...
5
Reinforcement Bracket WPL-44-01-588
...
7
Nut WPL-71-03-025
...
8
Motor Mount WPL-44-01-652
...
9
Fan Motor WPL-74-09-022
...
10
Screw 6-32 X 1 Brass WPL-71-01-113
...
11
Upper Cabinet Back WPL-16-09-095
...
12
Lamp, Cup WPL-0040740
...
13
Oven Light Socket WPL-74-08-063
...
14
Upper Cabinet Side, Rt. WPL-16-02-180
...
15
Microwave Fan Housing 692 WPL-Y0040795
...
16
Capillary Shield Pyro W/o WPL-Y0040754
...
17
Lower Cabinet Side, Lt. WPL-16-02-161
...
18
Hinge Access Cover Pyro W.o. WPL-Y0040798
...
19
Door Spring Mounting Bracket WPL-44-01-670
...
20
Screw WPL-71-02-088
...
21
Door Spring Adjustment Bracket WPL-44-01-671
...
22
Hinge Access Cover Pyro W.o. WPL-Y0040798
...
23
Insulation Retainer Sides Pyro WPL-Y0040742
...
24
Oven Bottom-Lower WPL-Y0316867
...
25
Insulation Wrapper, 2 X 20 X 8 WPL-72-01-038
...
26
Mullion Element WPL-74-06-175
...
27
Insulation Back, 4 X 20 X 20 WPL-72-01-039
...
28
Sub R0157828 WPL-0040744
...
29
Flue Box, Upper WPL-Y0040586
...
30
Microwave Support Runner 692 WPL-0041030
...
31
Insulation WPL-53-01-175
...
32
Flue Box Cover WPL-0040831
...
33
Screw WPL-71-02-088
...
34
Upper Oven Fan Switch WPL-74-03-077
...
35
Hi Limit Switch WPL-74-03-091
...
36
Fan Mounting Plate WPL-44-01-651
...
37
Screw WPL-71-02-088
...
38
Fan Blade WPL-78-06-007
...
40
Microwave Support Runner 692 WPL-0041030
...
41
Latch Mounting Bracket WPL-44-01-643
...
42
Microwave Support Fr W/a 692 WPL-Y0041031
...
45
Shield, Terminal (Blk) WPL-Y0040797
...
46
Screw, Cover Mounting WPL-71-02-100
...
47
Capillary Hole Cover WPL-44-01-680
...
48
Side Trim, Rt. WPL-77-04-353
...
49
Bottom Trim WPL-77-04-294
...
50
Smoke Eliminator WPL-74-09-024
...
51
Shield, Reflector (Cg) WPL-40850CG
...
52
Probe Recept Cover Pyro Wo WPL-0045153
...
53
Insulation Retainer Sides Pyro WPL-Y0040742
...
54
Lower Cabinet Side, Lt. WPL-16-02-161
...
55
Side Trim, Lt. WPL-77-04-354
...
56
Hinge Assy WPL-Y0052095
...
57
Screw WPL-71-02-101
...
58
Screw, Latch Plate Mtg. WPL-71-02-096
...
59
Lens Retainer WPL-44-01-645
...
60
Oven Light Cover Gasket WPL-72-03-084
...
61
Oven Light Lens WPL-79-02-197
...
62
Oven Lamp WPL-74-07-003
...
63
Hinge Spring WPL-78-03-018
...
64
Hinge Access Cover Pyro W.o. WPL-Y0040798
...
65
Latch Handle Guide WPL-72-04-032
...
66
Center Trim WPL-77-04-355
...
67
Upper Oven Cabinet Side, Lt. WPL-16-02-181
...
68
Oven Cavity WPL-311145E
...
69
Oven Heater Relay WPL-74-03-081
...
70
Terminal Block WPL-74-08-086
...
71
Side Filler Trim WPL-77-04-339
...
72
Molex Plug WPL-74-05-086

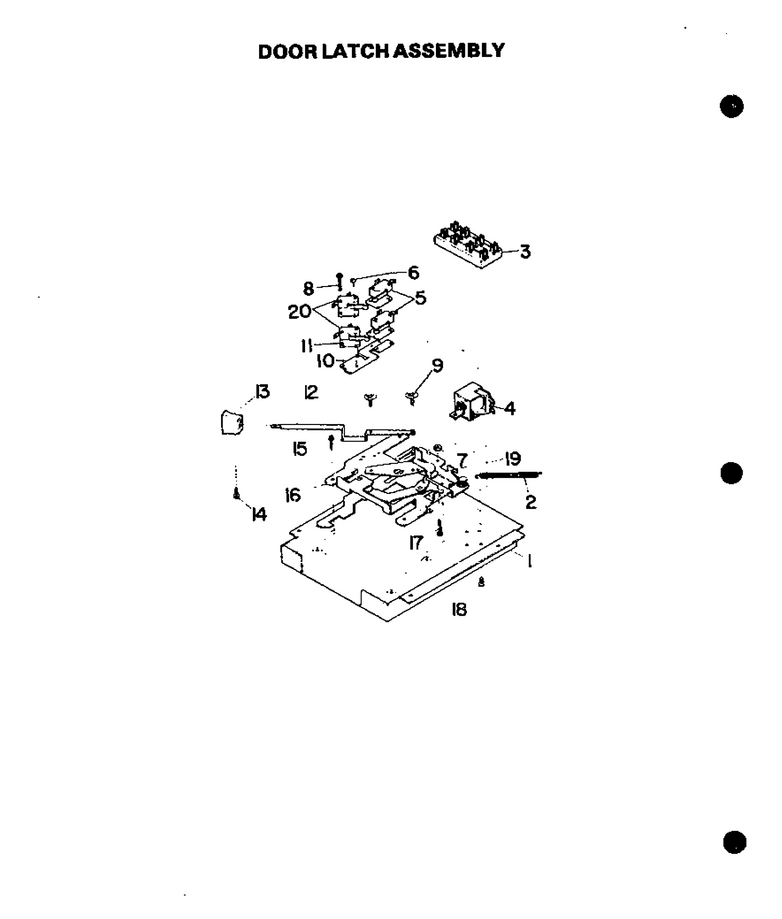

03 - Door Latch Assy

...
...
NI
Wire Jumper WPL-56-43-765
...
1
Latch Mounting Bracket WPL-44-01-643
...
2
Switch WPL-74-03-103
...
3
Terminal Block WPL-74-08-116
...
4
Solenoid WPL-74-03-106
...
5
Switch WPL-74-03-100
...
6
Screw, Raceway Mounting WPL-71-02-025
...
7
Nut WPL-71-03-002
...
8
Screw - Switch Mounting WPL-71-02-108
...
9
Wing Bolt WPL-71-02-099
...
10
Mounting Bracket Switch WPL-44-01-711
...
11
Insulator, Switch WPL-72-03-100
...
12
Latch Arm WPL-28-03-017
...
13
Latch Handle WPL-77-01-039
...
14
Screw, Handle Mtg. WPL-71-01-122
...
15
Screw WPL-71-02-088
...
16
Door Lock WPL-71-06-024
...
17
Screw 6-32 X 1 Brass WPL-71-01-113
...
18
Screw 10-24 X 1/4 WPL-71-01-044
...
19
Cam WPL-28-02-012

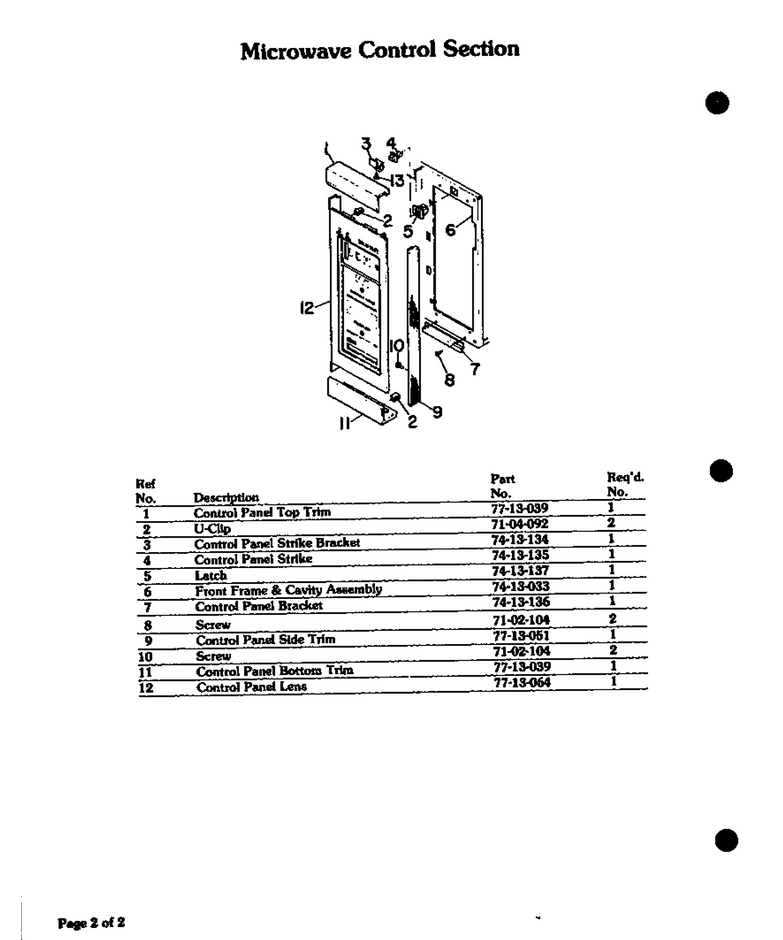

06 - Microwave Control Section

...
...
1
Control Panel Bottom Trim WPL-77-13-039
...
2
U-Clip WPL-71-04-092
...
3
Control Panel Strike Bracket WPL-74-13-134
...
4
Control Panel Strike WPL-74-13-135
...
5
Control Panel Catch WPL-74-13-137
...
6
Front Frame And Cavity Asy`y. WPL-74-13-033
...
7
Control Panel Bracket WPL-74-13-136
...
8
Screw WPL-71-02-104
...
9
Control Panel Side Trim WPL-77-13-051
...
10
Screw WPL-71-02-104
...
11
Control Panel Bottom Trim WPL-77-13-039
...
12
Control Panel Lens WPL-77-13-064

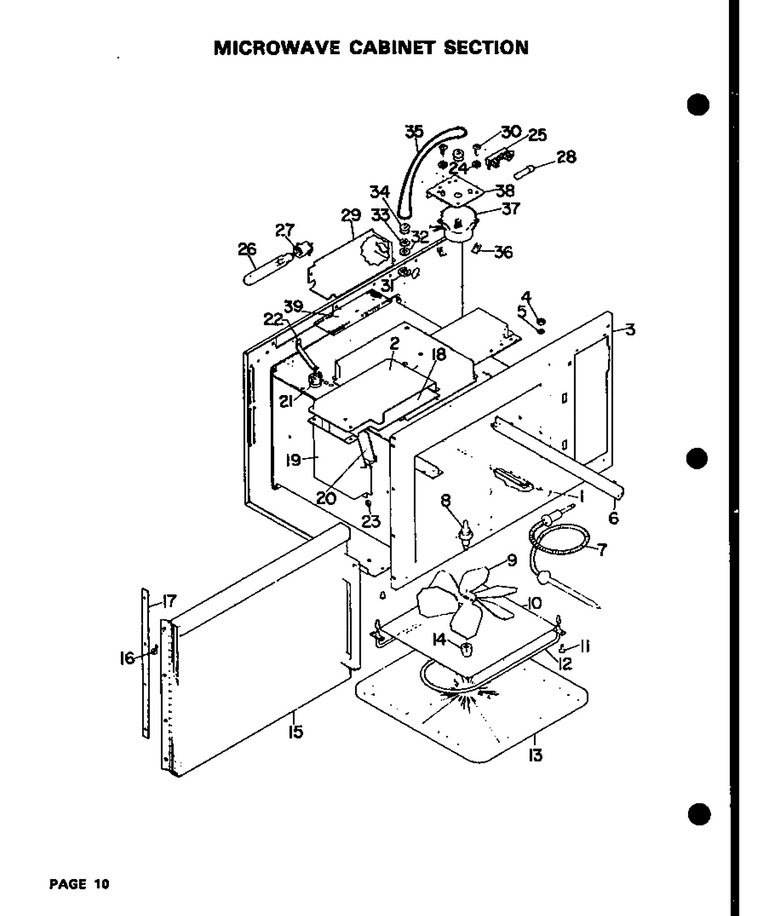

04 - Microwave Cabinet Section

...
...
1
Rail, Lt. WPL-44-02-327
...
2
Cavity Vent, Top WPL-32-01-071
...
3
Front Frame And Cavity Asy`y. WPL-74-13-033
...
4
Nut WPL-71-03-025
...
6
Browning Racks Rails WPL-77-13-029
...
7
Meat Probe WPL-74-13-087
...
8
Stirrer Shaft WPL-72-04-035
...
9
Stirrer Blade WPL-78-13-003
...
10
Stirrer Cover WPL-79-13-001
...
11
Screw WPL-71-02-104
...
12
Browning Element WPL-74-13-013
...
13
Cook-N-Bown Tray WPL-79-02-223
...
14
Acorn Nut WPL-74-13-061
...
15
Sub 47370 Gl.dr. Repl. WPL-0049739
...
16
Screw WPL-71-02-103
...
17
Hinge Bracket Microwaves WPL-Y0041055
...
19
Cavity Vent Transition 692 WPL-Y0040562
...
21
Hi Limit Stat WPL-74-13-068
...
22
Spring WPL-74-13-067
...
23
Nut 10-32 WPL-71-03-037
...
24
Lock Washer WPL-71-09-040
...
25
Fuse Block WPL-74-13-029
...
26
Oven Lamp WPL-74-07-021
...
27
Lamp Socket WPL-74-08-090
...
28
Fuse, 15 Amp. WPL-74-13-028
...
29
Lamp Cover Microwave WPL-0041054
...
30
Screw WPL-71-02-104
...
31
Ring Retainer WPL-71-09-038
...
32
Washer, Nylon WPL-71-09-033
...
33
Ring Retainer WPL-71-09-034
...
34
Grommet WPL-74-13-066
...
35
``o`` Ring WPL-74-13-064
...
36
Tinnerman Clip WPL-71-04-094
...
37
Stirrer Motor WPL-74-13-045
...
38
Stirrer Motor Mounting Bracket WPL-44-01-697
...
39
Light Lens WPL-79-13-003

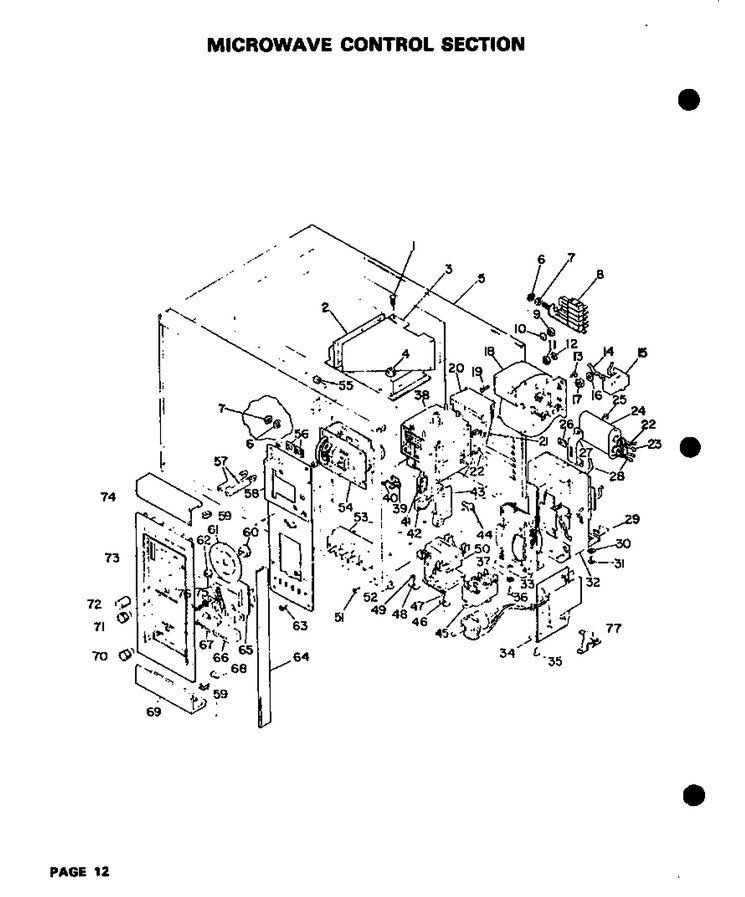

05 - Microwave Control Section

...
...
1
Snap Rivet WPL-71-13-002
...
2
Gasket, Long WPL-82-08-068
...
3
Magnetron Duct WPL-74-13-098
...
5
Bottom&back Microwaves WPL-Y0040198
...
7
Nut WPL-71-03-041
...
8
Lower Oven Hi-Limit Switch WPL-74-03-092
...
9
Nut 10-32 WPL-71-03-037
...
11
Nut 10-32 WPL-71-03-037
...
13
Screw WPL-71-02-115
...
14
Sub 43669 Wire Jumper WPL-Y0045294
...
15
Diode WPL-74-13-062
...
16
Washer WPL-71-09-011
...
17
Screw WPL-71-02-104
...
18
Blower Assembly WPL-74-13-091
...
19
Screw, Grounding WPL-71-02-098
...
20
Blower Duct WPL-74-13-054
...
21
Wire Clip WPL-71-04-097
...
22
Sub 43668 Wire Jumper WPL-Y0045293
...
23
Wire Ass`y., Cap. To Fil. Tran WPL-56-43-741
...
24
Capacitor WPL-74-13-043
...
25
Screw WPL-71-02-104
...
26
Tinnerman Clip WPL-71-04-094
...
27
Capacitor Mtg. Bracket WPL-71-13-004
...
28
Sub 43669 Wire Jumper WPL-Y0046378
...
29
Tinnerman Clip WPL-71-04-090
...
30
Lockwasher WPL-71-09-039
...
31
Screw WPL-71-02-080
...
32
High Voltage Transformer WPL-74-13-016
...
33
Filament Transformer WPL-74-13-090
...
34
Variable Power Control WPL-74-13-053
...
35
Screw WPL-71-02-104
...
36
Screw WPL-71-02-080
...
37
Lockwasher WPL-71-09-039
...
38
Magnetron WPL-74-13-017
...
39
Hi Limit Stat, Magnetron WPL-74-13-069
...
40
Screw WPL-71-02-105
...
41
Micro Switch WPL-74-13-071
...
42
Micro Switch WPL-74-13-072
...
43
Door Catch Bracket WPL-74-13-052
...
44
Screw WPL-71-02-106
...
45
Relay, D.c. WPL-74-13-040
...
46
Tinnerman Clip WPL-71-04-094
...
47
Screw WPL-71-02-104
...
48
Tinnerman Clip WPL-71-04-094
...
49
Screw WPL-71-02-104
...
50
Relay, A.c. WPL-74-13-039
...
51
Screw WPL-71-02-104
...
52
See Note Screw -- (Not Used) WPL-Y00000000
...
53
Cook Switch WPL-74-13-076
...
54
Digital Timer WPL-74-13-085
...
55
See Note Spacer -- (Not Used) WPL-Y00000000
...
56
Tinnerman Clip WPL-71-04-093
...
57
Indicator Light WPL-74-13-099
...
58
Plate Contr Panel WPL-0048309
...
59
U-Clip WPL-71-04-092
...
60
3/8`` Nut WPL-71-03-038
...
61
Variable Power Dial WPL-77-13-033
...
63
Screw WPL-71-02-093
...
64
Side Trim WPL-77-13-038
...
65
Probe Indicator WPL-74-13-089
...
66
Start Button WPL-77-13-023
...
67
Brown Button WPL-77-13-024
...
68
Screw WPL-71-02-112
...
69
Control Panel Bottom Trim WPL-77-13-039
...
70
Knob, Variable Power WPL-77-13-007
...
71
Knob, Variable Power WPL-77-13-007
...
72
Knob, Digital Clock WPL-77-13-035
...
73
Control Panel Lens WPL-77-13-027
...
74
Control Panel Bottom Trim WPL-77-13-039
...
75
Lockwasher WPL-71-09-039
...
76
Screw WPL-71-02-104
...
77
Upper Oven Fan Switch WPL-74-03-077

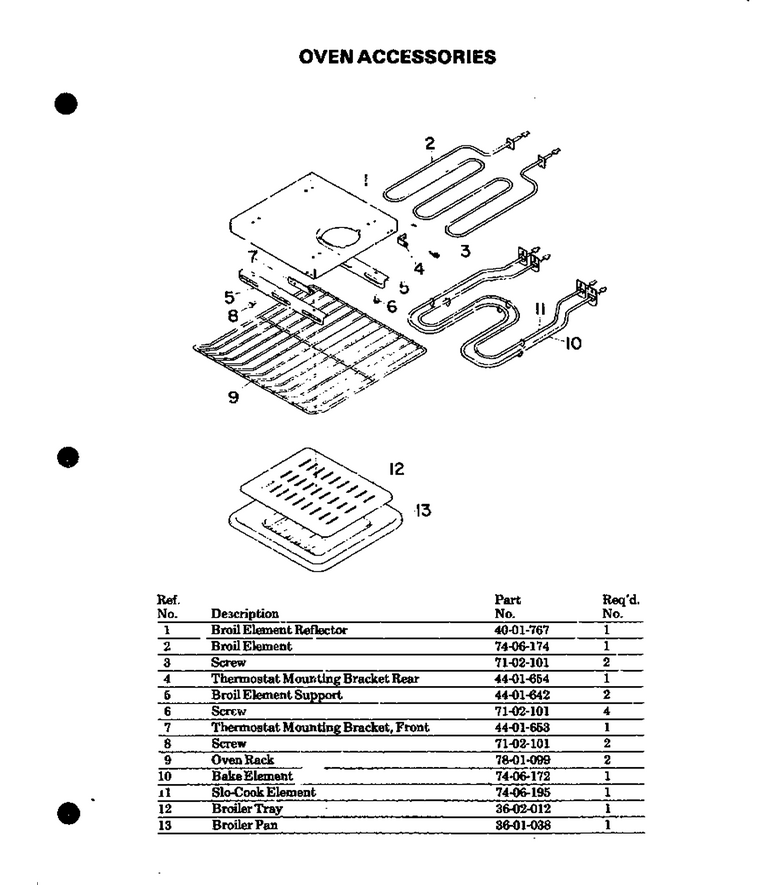

07 - Oven Accessories

...
...
1
Broil Element Reflector Pyro WPL-0040749
...
2
Broil Element WPL-74-06-174
...
3
Screw WPL-71-02-101
...
4
Thermostat Mounting Bracket Re WPL-44-01-654
...
5
Broil Element Support WPL-44-01-642
...
6
Screw WPL-71-02-101
...
7
Thermostat Mounting Bracket, F WPL-44-01-653
...
8
Screw WPL-71-02-101
...
9
Oven Rack WPL-78-01-099
...
10
Bake Element WPL-74-06-172
...
11
Slo-Cook Element WPL-74-06-195
...
12
Procelain Broiler (Pan And Grid) WPL-4396923
...
13
Procelain Broiler (Pan And Grid) WPL-4396923

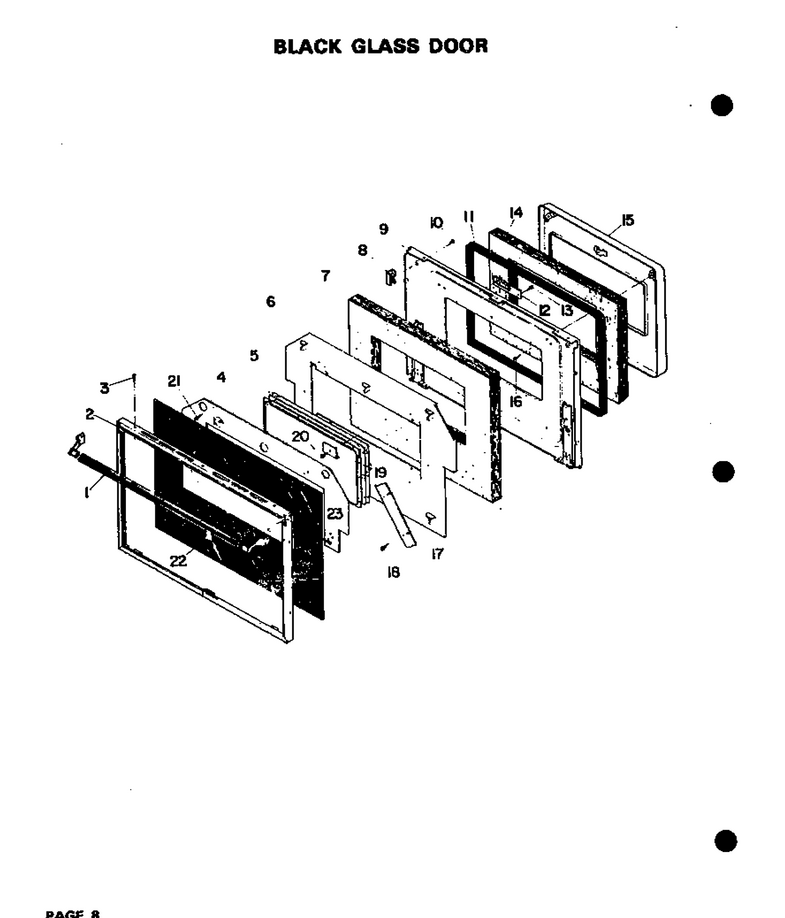

01 - Black Glass Door

...
...
1
Door Handle WPL-77-01-041
...
2
Door Frame WPL-77-04-283
...
3
Screw, Latch Plate Mtg. WPL-71-02-096
...
4
Upper Baffle Pyro W/o Door WPL-Y0045148
...
5
Window Assembly WPL-79-02-204
...
6
Inner Baffle Pyro WPL-Y0045146
...
7
Door Insulation WPL-72-01-040
...
8
Glass Support WPL-44-01-560
...
9
Door Liner WPL-12-02-113
...
10
Screw WPL-71-02-060
...
11
Door Gasket WPL-75-06-245
...
12
Latch Plate WPL-Y0052039
...
13
Screw WPL-71-02-091
...
14
Pad Insulation WPL-72-01-041
...
15
Door Pad WPL-12-01-145
...
16
Screw WPL-71-02-060
...
17
Door Air Channel Pyro W/o Dr WPL-0048097
...
18
Screw WPL-71-02-088
...
19
Window Mtg. Bracket WPL-44-01-666
...
20
Screw WPL-71-02-088
...
21
Screw WPL-71-02-088
...
22
Door Glass WPL-79-02-192
...
23
Screw, Handle Mtg. WPL-71-01-117

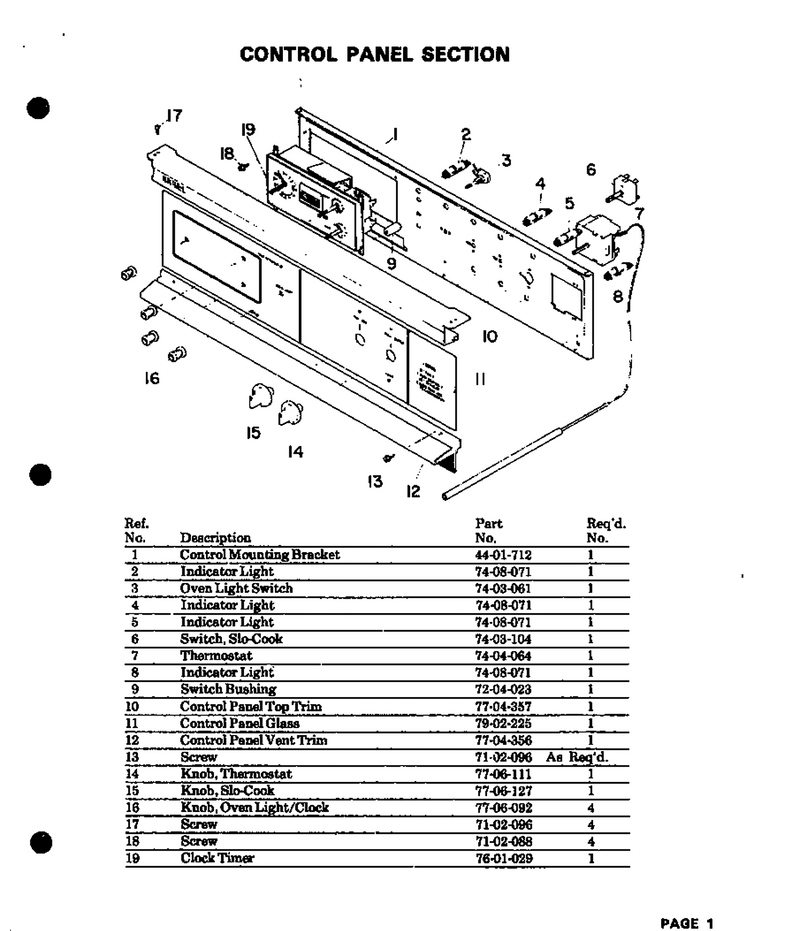

08 - Page 1

...
...
Ddo-692e This Change Covers The Glass Door Assembly And Corresponding Trim Changes On The Control Panel. Also Incudes Parts Breakdown For Original Plastic Doo WPL-NOTE:
...
1
Control Mounting Bracket WPL-44-01-712
...
2
Indicator Light WPL-74-08-071
...
3
Oven Light Switch WPL-74-03-061
...
4
Indicator Light WPL-74-08-071
...
5
Indicator Light WPL-74-08-071
...
6
Switch, Slo-Cook WPL-74-03-104
...
7
Lower Oven Thermostat WPL-74-04-064
...
8
Indicator Light WPL-74-08-071
...
9
Switch Bushing WPL-72-04-023
...
10
Control Panel Top Trim WPL-77-04-357
...
11
Control Panel Glass WPL-79-02-225
...
12
Control Panel Vent Trim WPL-77-04-356
...
13
Screw, Latch Plate Mtg. WPL-71-02-096
...
14
Knob, Thermostat WPL-77-06-111
...
15
Knob, Slo-Cook WPL-77-06-127
...
16
Knob, Oven Light/clock WPL-77-06-092
...
17
Screw, Latch Plate Mtg. WPL-71-02-096
...
18
Screw WPL-71-02-088
...
19
Clock Timer WPL-76-01-029
