Amana DCS450W (BOM: P1139734N W)

Model: DCS450W (BOM: P1139734N W)

Save Part Not Listed?
product name

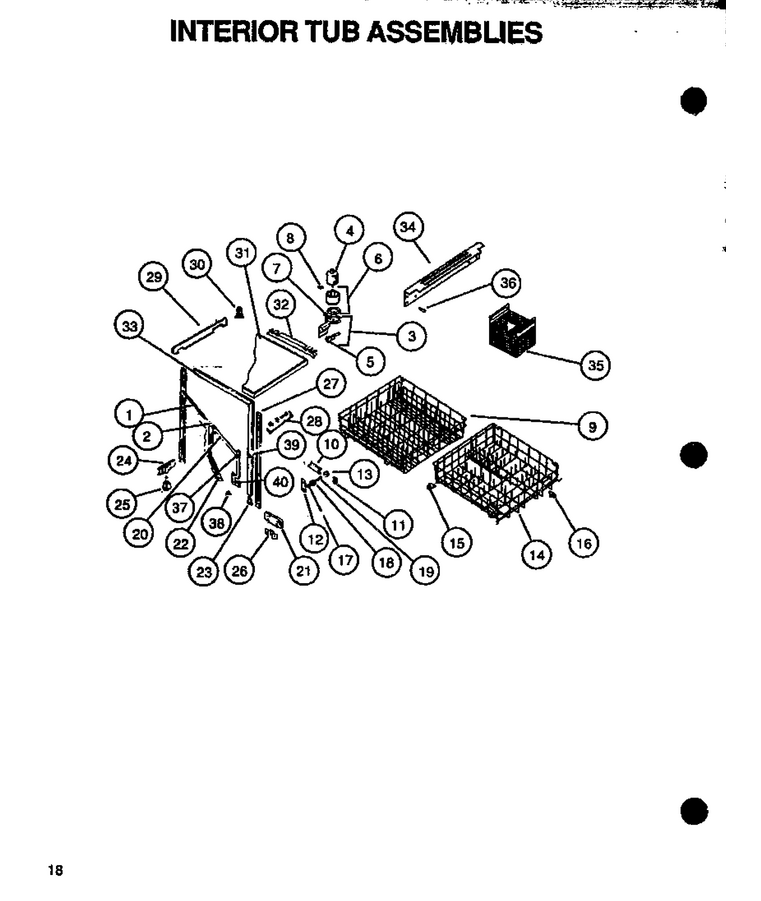

03 - Interior Tub Assy

...
...
1
Spring-Hinge WPL-R0905660
...
2
Spring Extension WPL-R0905666
...
3
Switch, Flood And Bracket Asse WPL-R9010074
...
4
Float, Flood Cont WPL-R0903546
...
5
Housing Terminal WPL-Y03000125
...
6
Float Tube & Gasket WPL-R0910076
...
7
Washer WPL-R0900511
...
8
Pushnut-Float Ret. WPL-R0901012
...
9
Upper Rack WPL-Y03000131
...
10
Rack Slide WPL-R0905567
...
11
Endcap WPL-WPW10326683
...
12
Strip Nut A WPL-R0901013
...
13
Roller & Stud Upper Rack WPL-R0910079
...
14
Assy Lower Rack (Blue) WPL-R0910080
...
15
Roller & Stud, Lower Rack WPL-R0910081
...
16
Rack, Stop WPL-R0903554
...
17
Washer WPL-R0900507
...
18
Roller, Tub WPL-R0903555
...
19
Stud, Tub Roller WPL-R0903556
...
20
Pad, Anti-Tipl.h. WPL-R0905676
...
21
Assy L.h. Guide WPL-R0910086
...
22
Pad, Anti-Tip WPL-R0904519
...
23
Cap, Side Trim WPL-R0905680
...
24
Socket, Caster WPL-R0905681
...
25
Caster WPL-R0910087
...
26
Bracket , Guide WPL-R0905682
...
27
Leg , Pedistal WPL-R0905683
...
28
Grommet Tub WPL-R0903560
...
29
Screw WPL-R0900043
...
30
Trim, Corner WPL-R0905686
...
31
Clamp A WPL-R0901517
...
32
Bracket Mounting WPL-R0905689
...
33
Trim. L.h. Side WPL-R0905690
...
34
Plate Kick WPL-R0905696
...
35
Basket, Silverware WPL-R0910009
...
36
Kit, Screw WPL-R9800670
...
37
Riveta WPL-R0901518
...
38
Screw, Hinge To Door WPL-R0900036
...
39
Clip WPL-R0901015
...
40
Assy Left Hinge WPL-R0910099

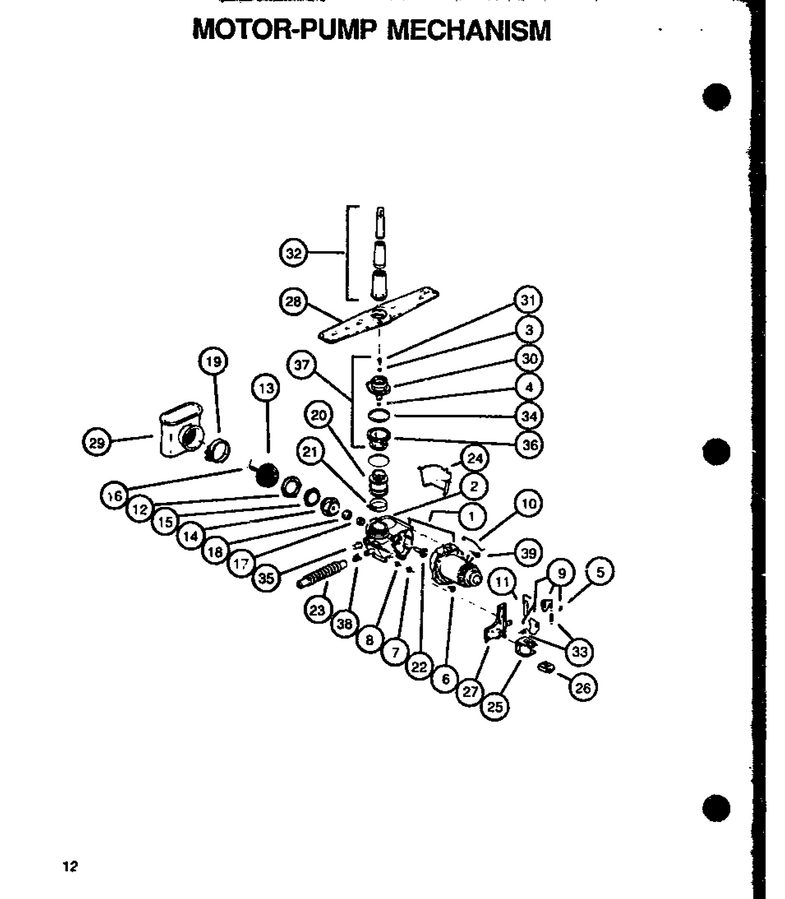

04 - Motor-Pump Mechanism

...
...
NI
Plug WPL-R0903588

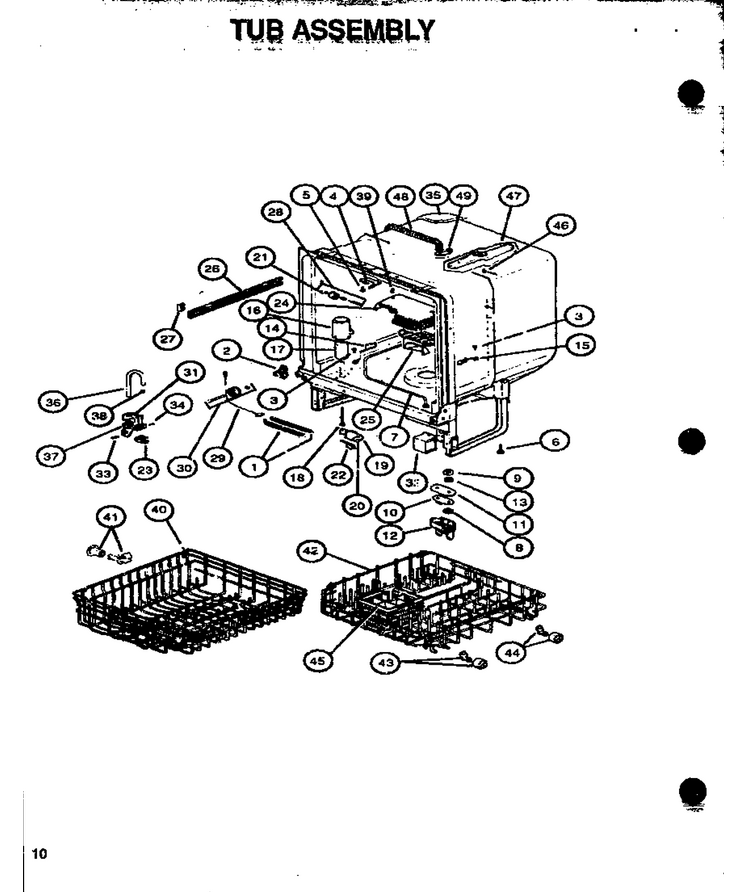

07 - Tub Assy

...
...
NI
Manual, Use & Care WPL-R0913043

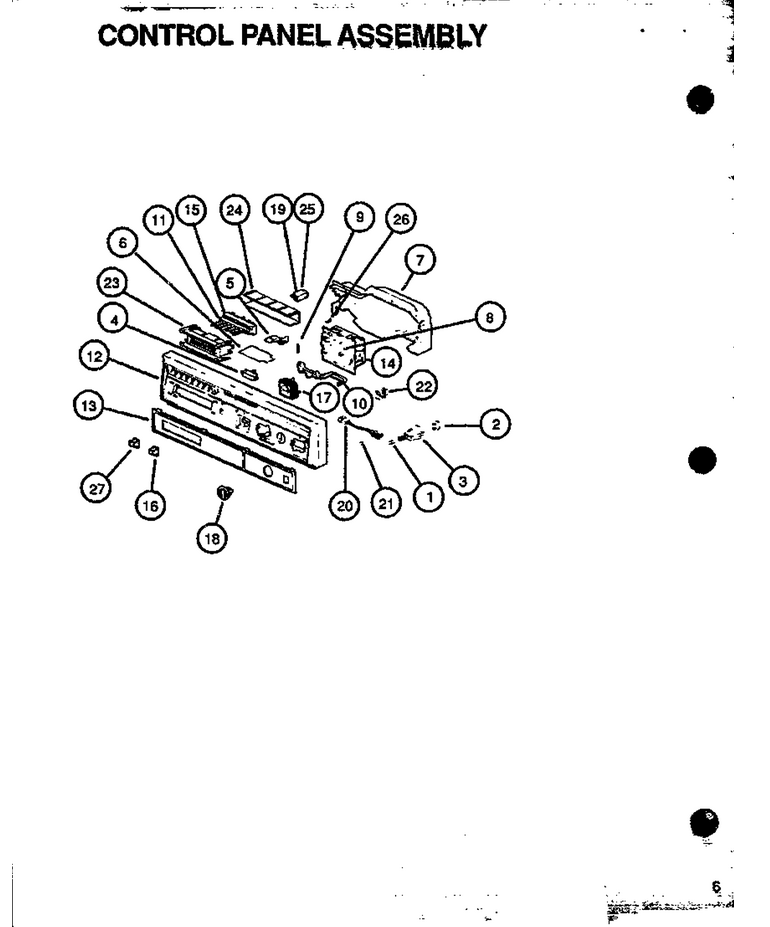

01 - Control Panel Assy

...
...
NI
Manual, Use & Care WPL-R0913043

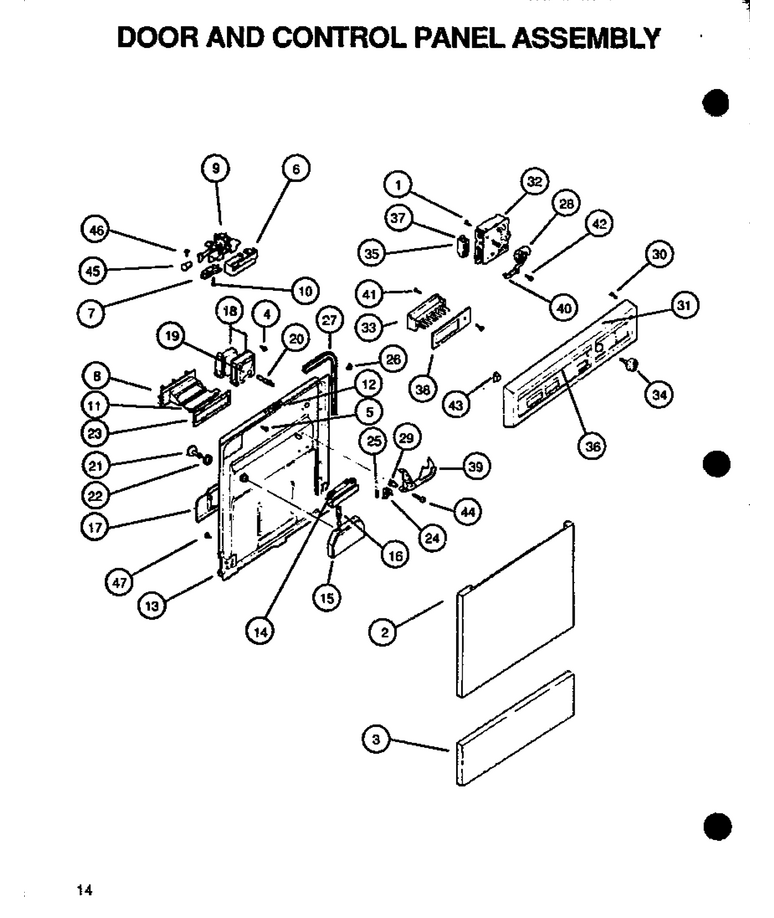

02 - Door And Control Panel Assy

...
...
1
Screw, Timer Mtg WPL-R0900028
...
2
Panel- Outer Door,w WPL-R0905710
...
3
Panel & Insul Service (White) WPL-R0905695
...
4
Screw 8-10x .625 Bt15 WPL-R0900033
...
5
Screw 8-18a .625 Bttr WPL-R0900034
...
6
Guard, Switch WPL-R0905697
...
7
Screw Interlock Switch WPL-R0900035
...
8
Door, Inner Vent WPL-R0910091
...
9
Assy Latch WPL-R0910093
...
10
Switch Latch WPL-R0902520
...
11
Cover, Vent B WPL-R0910094
...
12
Insert, Inner Door WPL-R0903563
...
13
Panel, Inner Door WPL-R0910095
...
14
Bimetal Rinse Aid WPL-R0905699
...
15
Gasket, Rinse Aid WPL-R0910097
...
16
Pin Seal, Valve WPL-R0910098
...
17
Baffle Vent WPL-R0910102
...
18
Assy Detergent Cup Gasket WPL-R0910103
...
19
Gasket Detergent Shaft WPL-R0904521
...
20
Shaft, Detergent Cup WPL-R0903565
...
21
Cap, Fill WPL-Y03000003
...
22
Nut Rinse Ind Mtg WPL-R0901016
...
23
Gasket Door Vent WPL-R0904522
...
24
Lever, Cam Detergent WPL-R0910104
...
25
Spring Detergent WPL-R0905701
...
26
Clip, Door Gasket WPL-R0903566
...
27
Door Gasket WPL-Y03000164
...
28
Cam, Detergent & Vent Trip WPL-R0907004
...
29
Spacer, Pivot Detergent WPL-R0903568
...
30
Screw Escutheon To Door WPL-R0900038
...
31
Assy Escutcheon & Insert WPL-R0910107
...
32
Timer WPL-Y03000166
...
33
Switch, Pushbutton WPL-R0902523
...
34
Ring, Timer Knob WPL-R0903570
...
35
Housing Terminal WPL-R0910049
...
36
Trim, Handle WPL-R0905702
...
37
Terminal WPL-Y03000076
...
38
Bracket, Switch WPL-R0903028
...
39
Lever WPL-R0910108
...
40
Bushing Vent Lever WPL-R0910109
...
41
Screw 8-18 X 1/2 Bt Phl Pan WPL-R0900039
...
42
Screw WPL-WPW10068250
...
43
Push Button WPL-R0903542
...
44
Detergent Lever Screw WPL-R0900037
...
45
Knob, Latch WPL-R0903532
...
46
Screw WPL-WP74004005
...
47
Screw, 8-15 7/16 Aprss WPL-R0900041

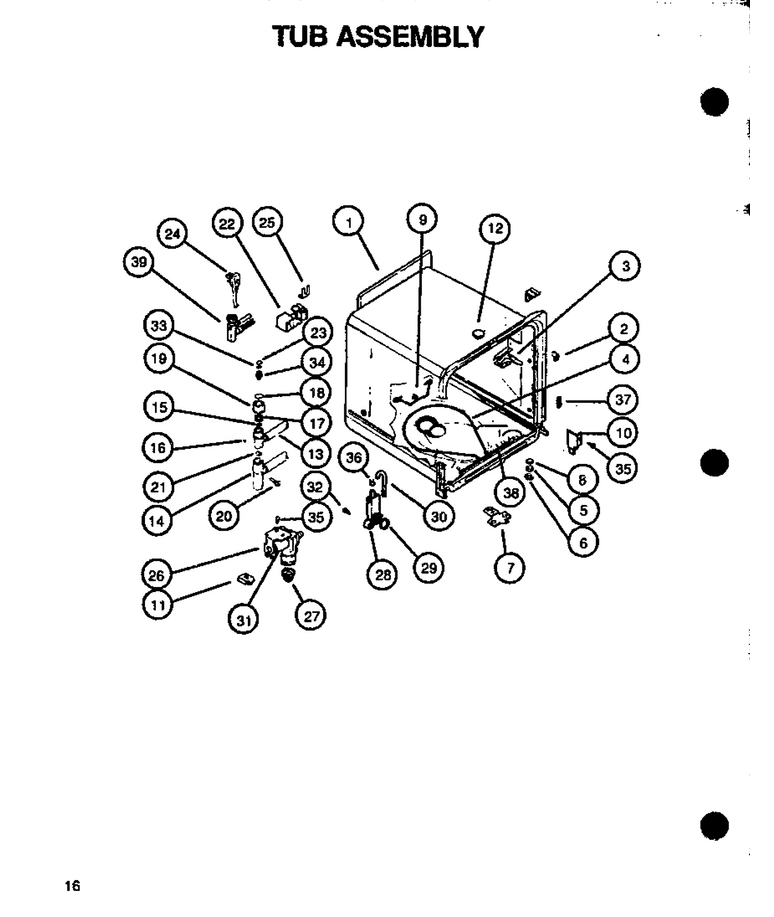

06 - Ptub Assy

...
...
1
Insulation WPL-R0904502
...
2
Speed Nut A WPL-R0901516
...
3
Keeper And Fastner WPL-R0901515
...
4
Element-Heating WPL-R0910067
...
5
Washer-Heater WPL-R0900509
...
6
Nut-Heater WPL-R0901010
...
7
Strap-Ground WPL-R0905669
...
8
Washer-Heater WPL-R0900510
...
9
Stabilizer Htg Element WPL-R0910073
...
10
Trim-Tub Corner Lh WPL-R0905668
...
11
Insulator WPL-R0903507
...
12
Plug-Power Shower WPL-R0903553
...
13
See Note Inlet Hose Assembly -- (Use Ref No. 39-Unicouple Assembly) WPL-Y00000000
...
14
See Note Hose, Drain Assembly -- (Use Ref No. 39-Unicouple Assembly) WPL-Y00000000
...
15
See Note O-Ring -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
16
See Note Steel Ball -- (Use Ref No. 39 - Uicouple Assembly) Use Refno. 39 - Unicouple Assembly) WPL-Y00000000
...
17
See Note Slider, Spring WPL-Y00000000
...
18
See Note Ring, Spring -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
19
See Note Slider -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
20
See Note Pressure Release Lever -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
21
See Note Release Actuator -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
22
See Note Hose Guide Assembly -- (Use Ref No. 39-Unicouple Assembly) WPL-Y00000000
...
23
See Note Gasket Adapt Ext. Thd. -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
24
Shield Cord WPL-R0906008
...
25
Guide, Cord WPL-R0905678
...
26
Water Valve WPL-Y03000147
...
27
Screen Water Valve WPL-R0910089
...
28
Fill, Tunnel WPL-R0910034
...
29
Gasket, Funnel WPL-R0904505
...
30
Hose, Fill WPL-R0903561
...
31
Solenoid Assembly, Water Valve WPL-R0909002
...
32
Screw 8-10x .625 Bt15 WPL-R0900033
...
33
See Note Gasket, Adapt, Ind. Thd -- (Use Ref No. 39 - Inicouple Assembly) WPL-Y00000000
...
34
See Note Adapter Faucet -- (Use Ref No. 39 - Unicouple Assembly) WPL-Y00000000
...
35
Kit, Screw WPL-R9800670
...
36
Clamp WPL-R0901510
...
37
Grommet WPL-R0903564
...
38
Assy Tab Fl Gasket & Retainer WPL-R0910106
...
39
Assy, Unicouple Replace WPL-R0910119

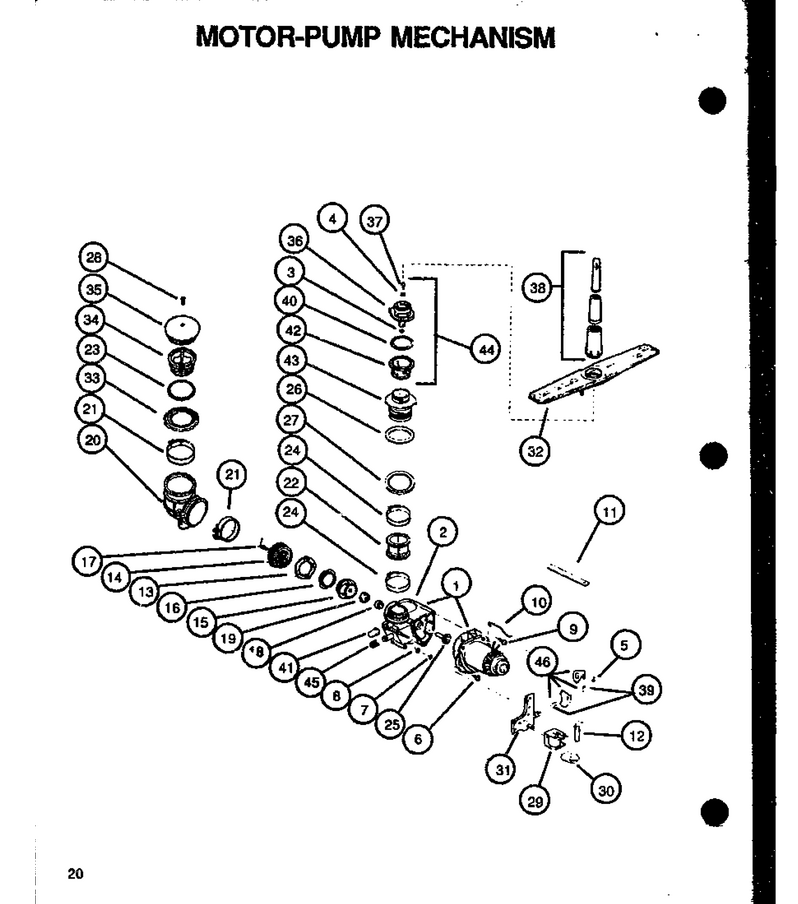

05 - Motor-Pump Mechanism

...
...
1
Motor/pump Assy Dishwa WPL-R0907001
...
2
Motor/pump Assy Dishwa WPL-R0910001
...
3
No.8 Type A Set Sst Washer WPL-R0900503
...
4
Thrust Washer WPL-R0900508
...
5
Retainer WPL-R0901503
...
6
Screw WPL-W10856125
...
7
Nut WPL-R0906510
...
8
Seal, Shaft WPL-R0906504
...
9
Gate Valve Arm Kit WPL-Y03000032
...
10
Hanger-Motor WPL-R0905670
...
11
Strap-Motor WPL-R0905671
...
12
Armature & Link Assy WPL-R0905517
...
13
Wear Ring Base WPL-R0905518
...
14
Nut WPL-R0905563
...
15
Pump Impeller WPL-R0905519
...
16
Wear Ring WPL-R0905520
...
17
Spring, Cutter WPL-R0905521
...
18
Seal WPL-R0903502
...
19
Shaft Seal WPL-R0903503
...
20
Connector -Pipe Inlet WPL-R0903547
...
21
Clamp WPL-WP696392
...
22
Tube-Spray Arm WPL-R0903548
...
23
Gasket-Support WPL-R0904516
...
24
Clamp WPL-WP696392
...
25
Shaft Guard/slinger WPL-R0905564
...
26
Gasket-Spray Base WPL-R0904517
...
27
Nut-Spray Base WPL-R0903549
...
28
Screw, Sump Cover Mtg WPL-R0900029
...
29
Solenoid WPL-Y03000185
...
30
Insulator WPL-R0903506
...
31
Bracket-Solenoid WPL-R0905639
...
32
Assy Spray Arm WPL-R0910077
...
33
Nut-Sump Inlet WPL-R0903550
...
34
Inlet-Sump WPL-R0903551
...
35
Cover-Sump WPL-R0905672
...
36
Spray Arm Hub WPL-R0910056
...
37
Screw, Hub WPL-R0900026
...
38
Assembly-Center Spray WPL-R0910057
...
39
Spring, Gate Arm WPL-R0905529
...
40
Kit Spray Assy WPL-R0903535
...
41
Cap, Power Shower WPL-R0903508
...
42
Check Valve WPL-R0910037
...
43
Adapter WPL-R0903552
...
44
Hub & Suppt. WPL-R0903515
...
45
Clamp WPL-R0901510
...
46
Screw WPL-R0900007
