Amana DCS2111LOA (BOM: DCS21101LOA)

Model: DCS2111LOA (BOM: DCS21101LOA)

Save Part Not Listed?
product name

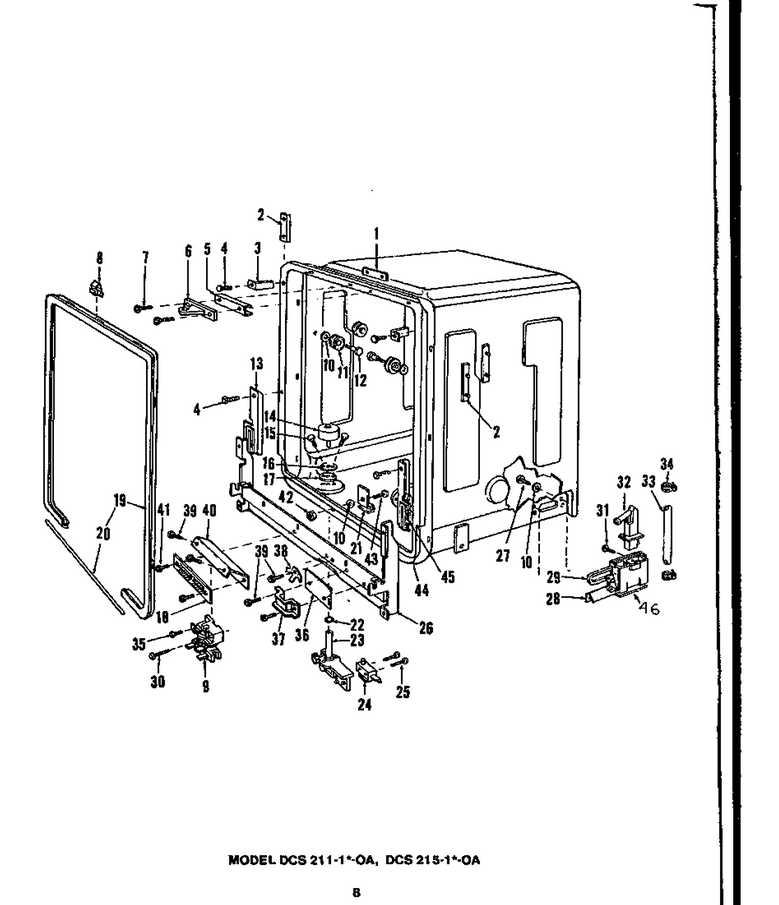

05 - Page 4

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Twin Nut Assem. WPL-0807038
...
3
Tub Pad WPL-807454
...
4
Screw, No.10-24 X 5/8 WPL-0806539
...
5
Shim Strike WPL-0807073
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Relay WPL-0805255
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Guide, Counterbalance, L.h. WPL-Y0807470
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Terminal Block WPL-0807486
...
19
White Gask WPL-808959
...
20
Junction, Wire Gasket WPL-0808344
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Hinge Weld Assy. WPL-0808739
...
27
Screw WPL-Y0806901
...
28
Tapping Plate WPL-0808705
...
29
Gasket WPL-806797
...
30
Screw WPL-0804672
...
31
Screw WPL-0808818
...
32
Inlet Nozzle WPL-0808707
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Screw WPL-WP488234
...
36
Wire Shield WPL-0809144
...
37
Wiring Clamp WPL-0806723
...
38
Terminal, Grounding WPL-0807213
...
39
Screw WPL-WP90767
...
40
Bracket, Terminal Board WPL-0807849
...
41
Screw WPL-W11233072
...
42

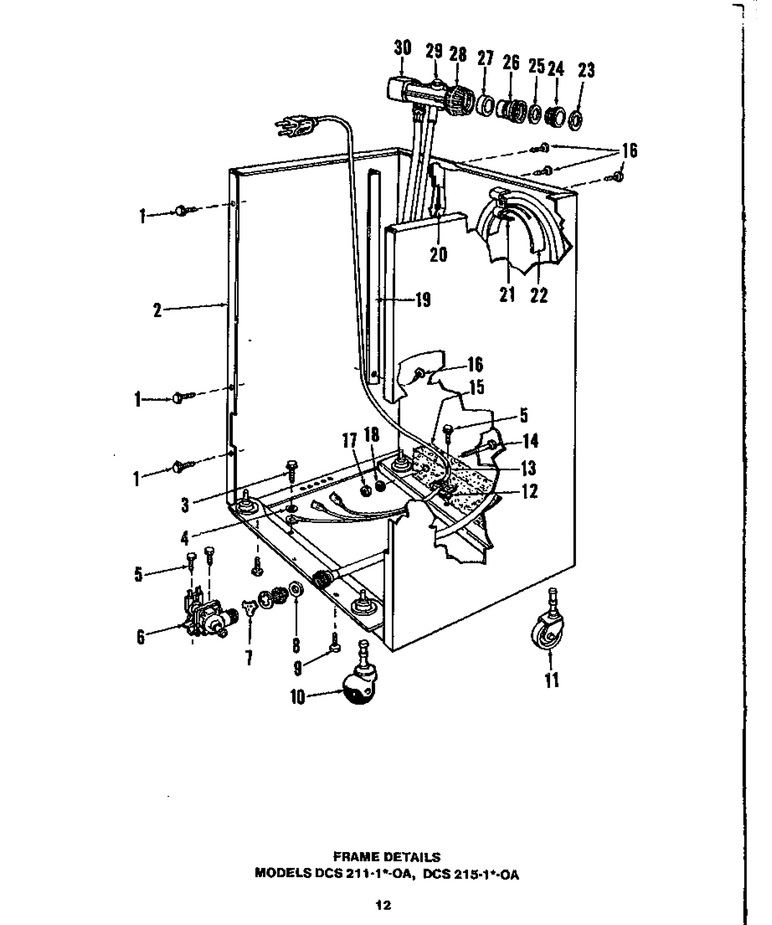

Use M0281003 WPL-0803346
...
43
Screw WPL-WP250830
...
44
Tub & Gasket Assy WPL-0809141
...
45
Rh Guide WPL-807471
...
46
Vent Stack WPL-0808706

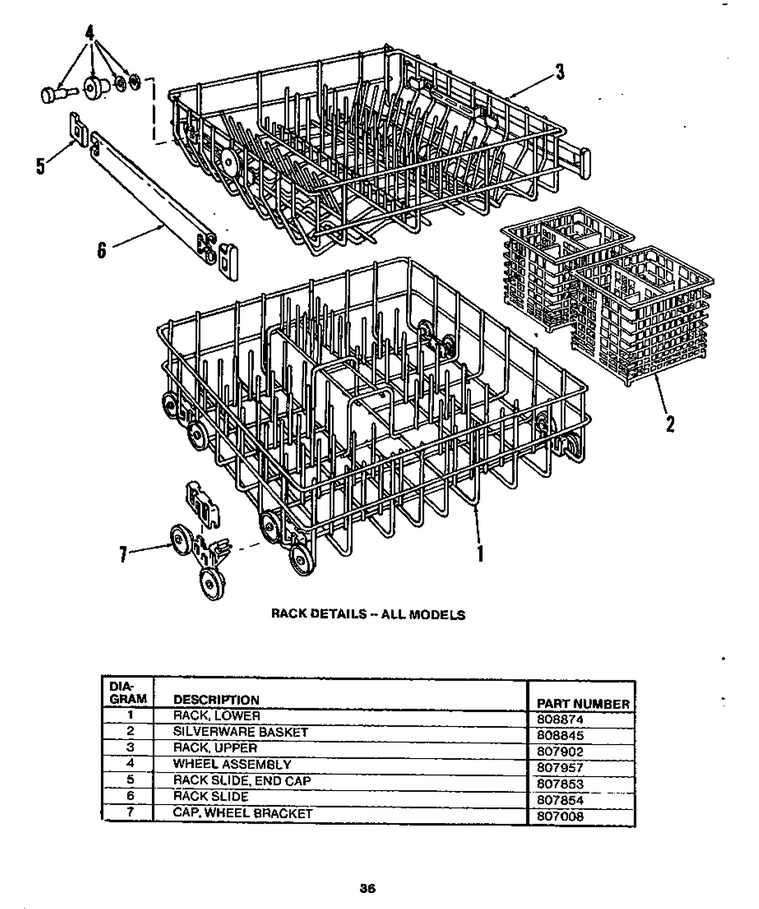

07 - Rack Details

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845
...
3
Rack, Upper WPL-0807902
...
4
Wheel Asm WPL-807957
...
5
End Cap, Rack Slide WPL-Y0807853
...
6
Rack Slide WPL-0807854
...
7
Wheel Assy WPL-Y0807008

06 - Page 6

...
...
NI
Sub 808928, Conversion Kit WPL-0090896
...
1
Screw, No.10-24 X 5/8 WPL-0806539
...
2
See Note Frame Assembly - Not Serviced WPL-Y00000000
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Valve WPL-0808667
...
7
Flow Washer WPL-0808432
...
8
Gasket- In WPL-WPY013783
...
9
Screw WPL-WP90767
...
10
Caster,front WPL-0808542
...
11
Rear Caster WPL-808543
...
12
Strain Relief WPL-M0370007
...
13
Cord, Power WPL-0805046
...
14
Screw WPL-0808612
...
15
Weight WPL-0808615
...
16
Screw WPL-W11233072
...
17
Nut WPL-0808661
...
18
Washer WPL-0808613
...
19
Hose Guard WPL-0808120
...
20
Guide, Hose WPL-0805859
...
21
Bracket Retaining WPL-0806142
...
22
Support, Hose WPL-0806143
...
23
Washer For Faucet Adapter WPL-910209
...
24
Adapter WPL-Y0800782
...
25
Washer, Adapter WPL-Y0803392
...
26
Adapter WPL-WPW10254672
...
27
Coupler Ga WPL-WP910218
...
28
Sub 809139, Collar WPL-Y0809139
...
29
Kit, Pressure Relief WPL-0807498
...
30
Faucet Coupler Assembly WPL-Y0807496

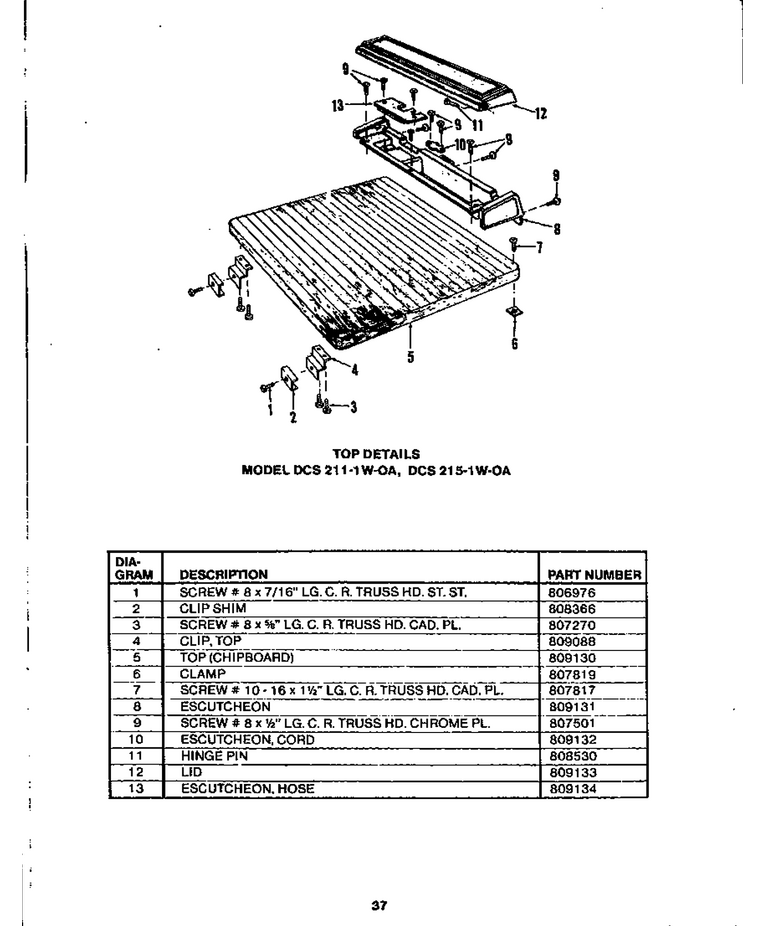

08 - Top Details

...
...
1
Screw WPL-0806976
...
2
Shim WPL-Y0808366
...
3
Screw WPL-0807270
...
4
Clip WPL-0809088
...
5
Top, Chipboard WPL-0809130
...
6
Clamp, Top WPL-Y0807819
...
7
Screw WPL-Y0807817
...
8
Escutcheon WPL-0809131
...
9
Screw WPL-W11233072
...
10
Cord, Escutcheon WPL-0809132
...
11
Hinge Pin WPL-Y0808530
...
12
Lid WPL-0809133
...
13
Hose Escutcheon WPL-0809134

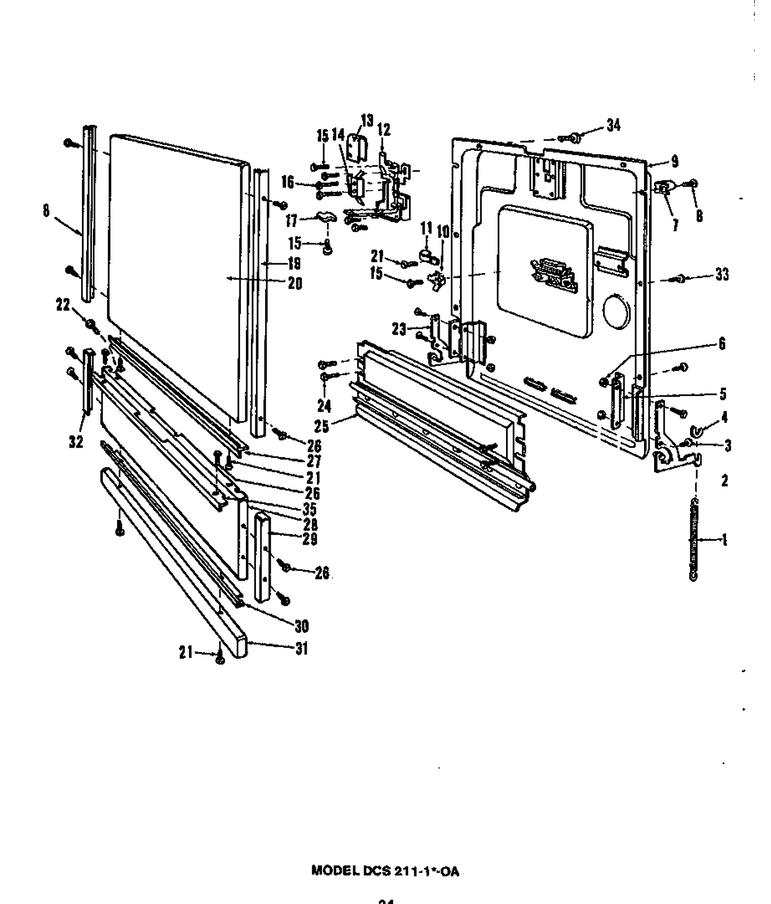

04 - Page 12

...
...
1
Spring- Co WPL-Y0808971
...
2
Rh Arm WPL-805681
...
3
Screw WPL-0803311
...
4
Spring Pad WPL-0805884
...
5
Arm Bracket WPL-Y0806717
...
6
Nut WPL-M0282009
...
7
Door Guide WPL-0807449
...
8
Screw WPL-Y0808749
...
9
Sub 809288, Inner Door Panel WPL-0807191
...
10
Terminal, Grounding WPL-0807213
...
11
Clamp WPL-Y0808442
...
12
Latch Asm WPL-807016
...
13
Switch Cover WPL-0807450
...
14
Switch, Door Latch WPL-Y0807043
...
15
Screw WPL-0806830
...
16
Screw WPL-0808618
...
17
Sub 806893 Latch Knob WPL-0806398
...
18
Door Pnl Trim, Lh WPL-0808977
...
19
Door Pnl Trim, Rh WPL-0808976
...
20
Door Panel, Almond WPL-Y0808523
...
21
Screw WPL-M0217225
...
22
Screw WPL-WP90767
...
23
Arm Assy Lh Counterbalance WPL-0805682
...
24
Use 0806976 WPL-0806810
...
25
Vent Baffl WPL-809412
...
26
Screw WPL-WP74004005
...
27
Door Trim, Bottom WPL-Y0807347
...
28
Access Panel, Gold WPL-Y0808525
...
29
Trim, R.h. WPL-0808028
...
30
Trim, Access, Bottom WPL-Y0808521
...
31
Toe Plate WPL-Y0808522
...
32
Screw WPL-W11233072
...
33
Screw WPL-0806967
...
34
Screw WPL-0806894
...
35
Trim, Top, Access Panel WPL-0808346

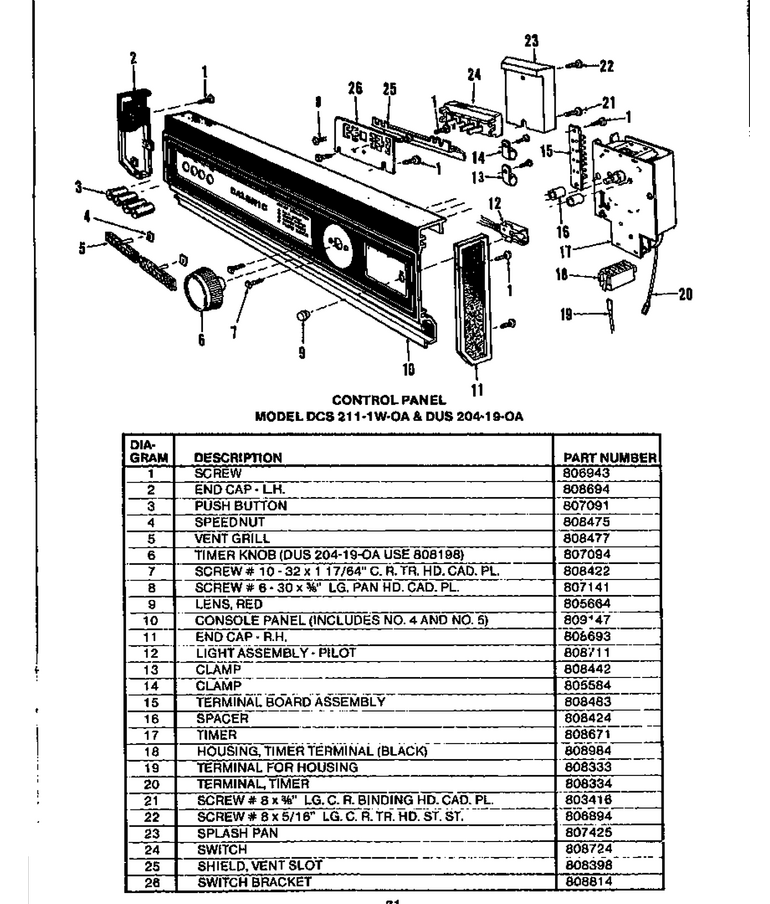

01 - Control Panel

...
...
1
Screw WPL-0806943
...
2
End Cap, Lh WPL-0808694
...
3
Push Button WPL-807091
...
4
Speed Nut WPL-Y0808475
...
5
Vent Grille WPL-Y0808477
...
6
Timer Knob WPL-Y0808482
...
7
Screw, No.10-32 X 1 7/64 WPL-0808422
...
8
Screw WPL-0807141
...
9
Lens WPL-0805664
...
10
Console Panel WPL-0809147
...
11
End Cap, Rh WPL-0808693
...
12
Light Assy. WPL-0808711
...
13
Clamp WPL-Y0808442
...
14
Clamp WPL-W10833902
...
15
Terminal Board Assy. WPL-Y0808483
...
16
Spacer WPL-0808424
...
17
Timer WPL-0808671
...
18
Timer Terminal Housing WPL-0808984
...
19
Terminal, (Pack Of 25) WPL-0808333
...
20
Terminal End WPL-0808334
...
21
Screw WPL-M0217225
...
22
Screw WPL-0806894
...
23
Splash Pan WPL-0807425
...
24
Switch WPL-0808724
...
25
Shield, Vent Plate WPL-Y0808398
...
26
Bracket WPL-0808814

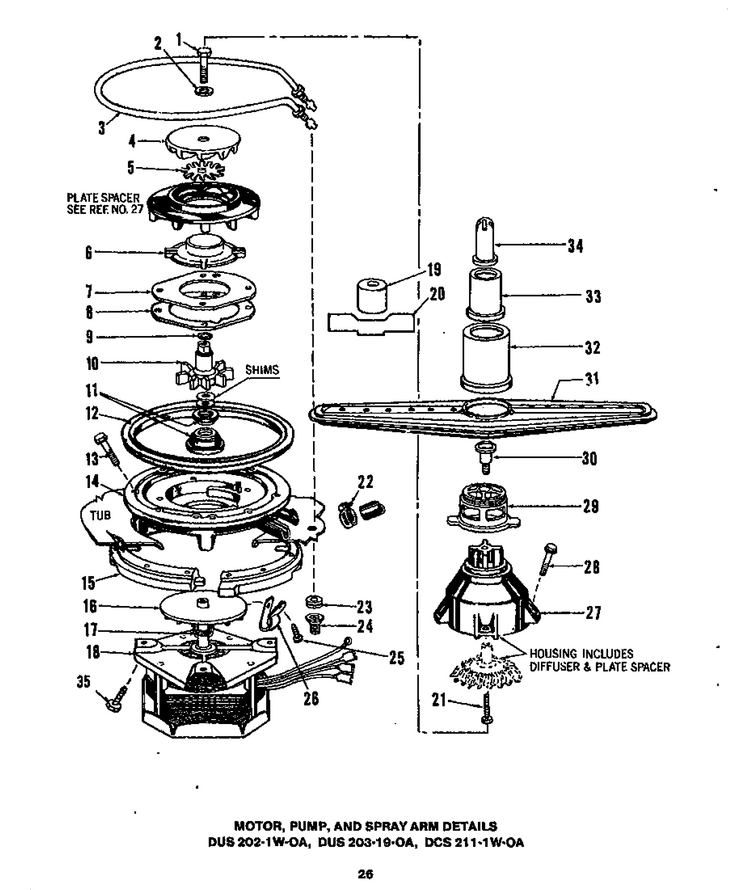

03 - Motor

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-Y0809060
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Screw WPL-WP67006908
...
22
Clamp WPL-WP285655
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw, Pump Housing WPL-0807359
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Spray Arm WPL-0808177
...
32
Tower Base WPL-Y0808178
...
33
Tower Section WPL-Y0808179
...
34
Tower Tip WPL-Y0808180
...
35
Screw WPL-807268

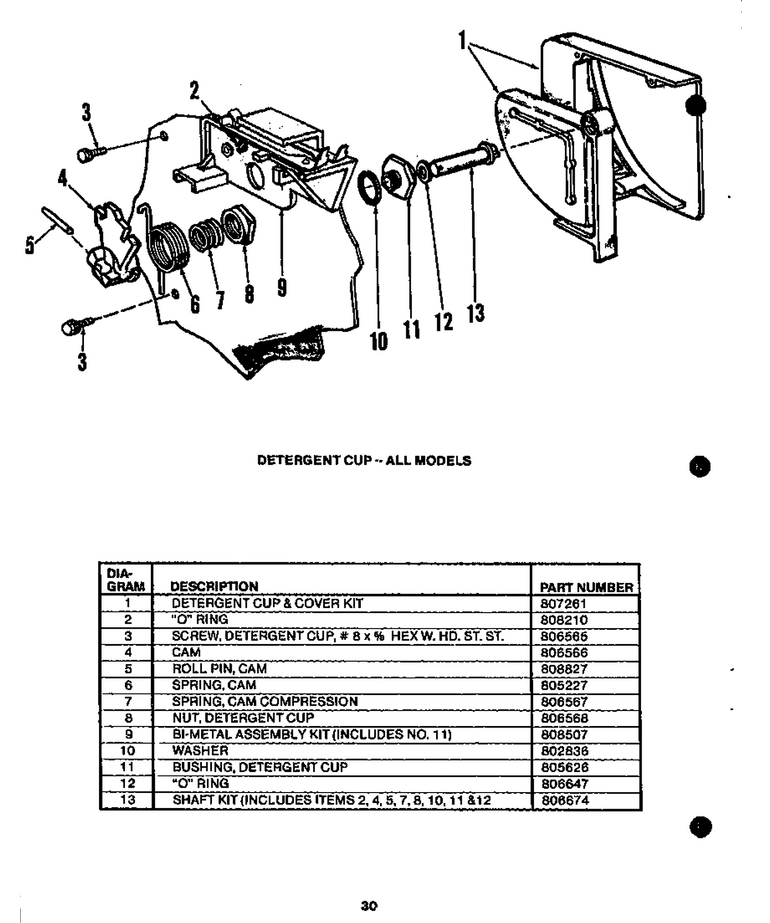

02 - Detergent Cup

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Screw WPL-0806565
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Trigger Assembly WPL-808507
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
