Amana DCS-416-1W (BOM: DCS-416-1 W)

Model: DCS-416-1W (BOM: DCS-416-1 W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

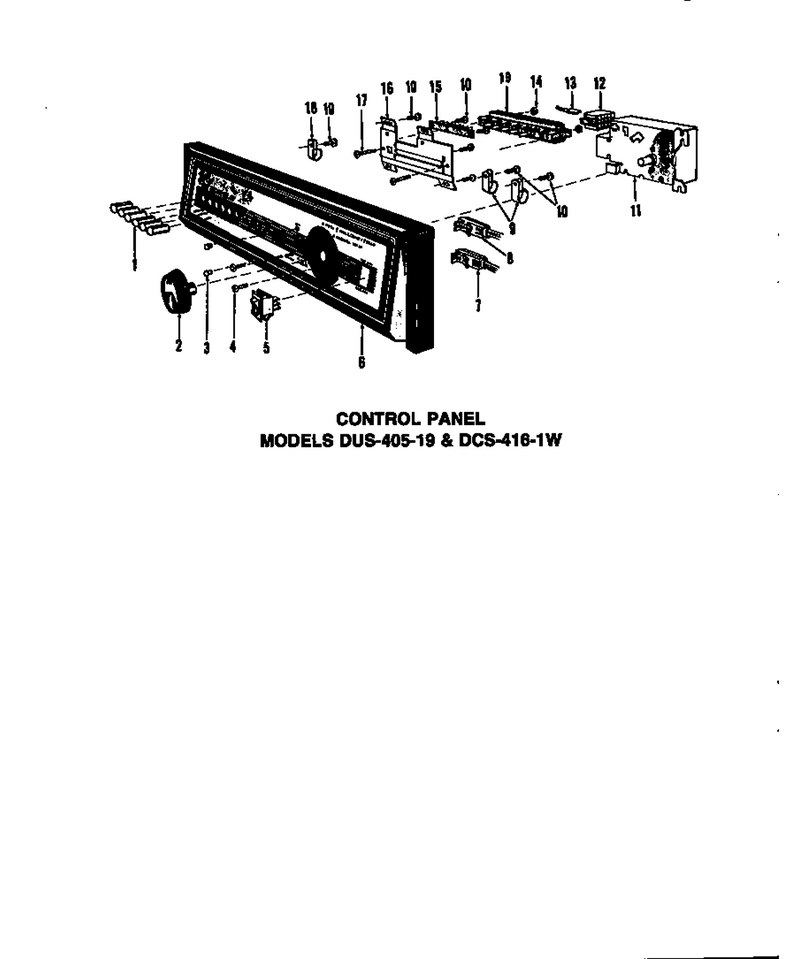

01 - Counter Panel

...
...
1
Push Button WPL-807091
...
2
Knob WPL-0809356
...
3
Lens WPL-0809036
...
4
Screw WPL-0805324
...
5
Switch, Rocker WPL-Y0063997
...
6
Control Panel WPL-0809367
...
7
Light Assy. WPL-0809332
...
8
Light, Assy. WPL-0809317
...
9
Clamp WPL-Y0808442
...
10
Screw WPL-0809175
...
11
X Timer WPL-0809190
...
12
Timer, Terminal Housing WPL-0809296
...
13
Terminal, (Pack Of 25) WPL-0808333
...
14
Use M0281003 WPL-0803346
...
15
Terminal Board Assy. WPL-Y0808483
...
16
Bracket, Sw. Mtg. WPL-0809334
...
17
Screw WPL-0807103
...
18
Clamp WPL-W10833902
...
19
Switch WPL-0809333

03 - Door Details

...
...
2
Screw WPL-0803311

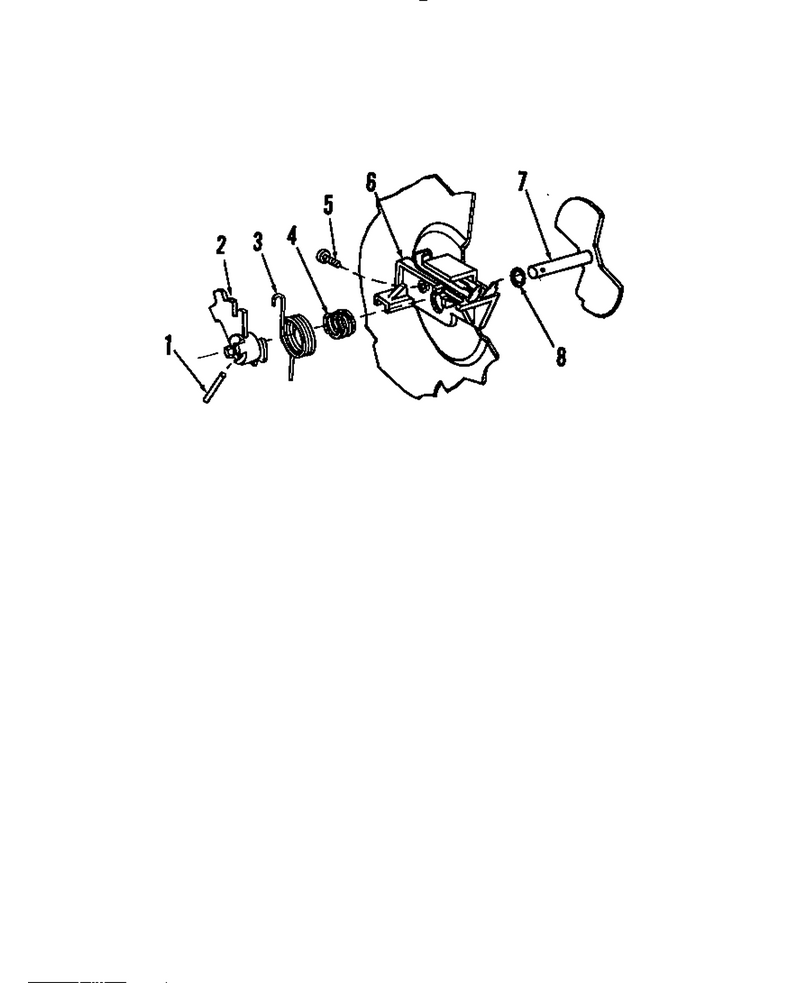

02 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

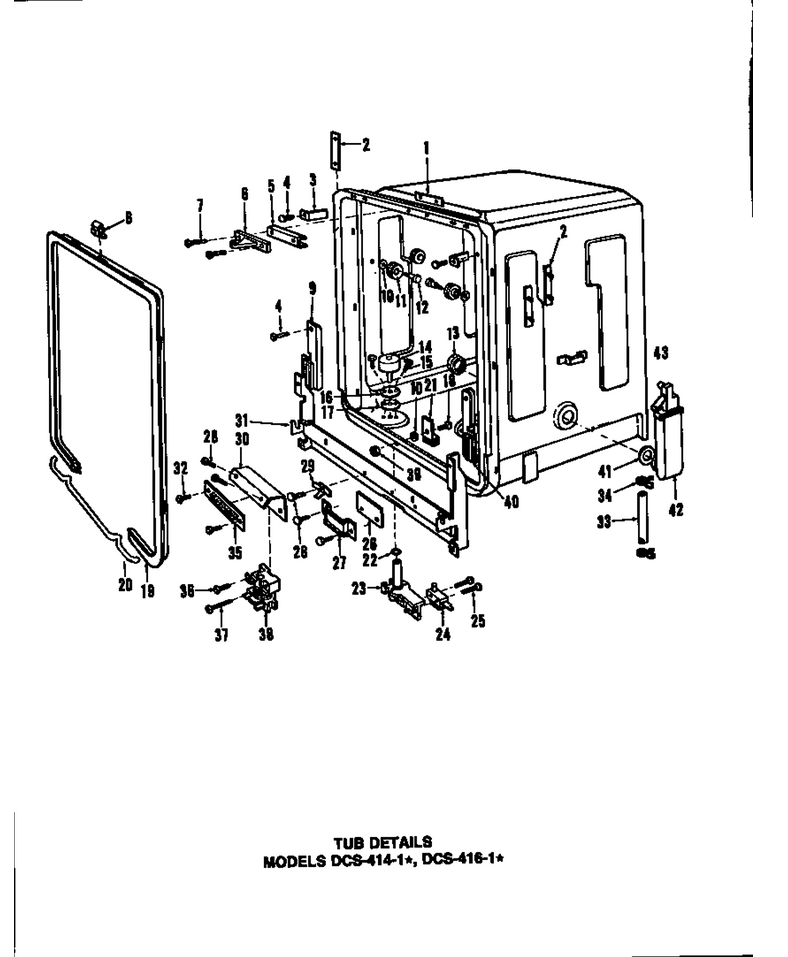

07 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Twin Nut Assem. WPL-0807038
...
3
Tub Pad WPL-807454
...
4
Screw, No.10-24 X 5/8 WPL-0806539
...
5
Shim WPL-0809214
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Nut Plastic WPL-0805669
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw WPL-WP250830
...
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL-4340834
...
20
Gasket, Wire Junction WPL-0809320
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Wire Shield WPL-0809144
...
27
Wiring Clamp WPL-0806723
...
28
Screw WPL-WP90767
...
29
Terminal, Grounding WPL-0807213
...
30
Bracket, Terminal Board WPL-0807849
...
31
Hinge Weld Assy. WPL-0808739
...
32
Screw WPL-W11233072
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Terminal Block WPL-0807486
...
36
Screw WPL-WP488234
...
37
Screw WPL-0804672
...
38
Relay WPL-0805255
...
39
Use M0281003 WPL-0803346
...
40
Rh Guide WPL-807471
...
41
Washer WPL-803573
...
42
Water Inlet Assy WPL-Y0806470
...
43
Tub & Gasket Assy WPL-0809347

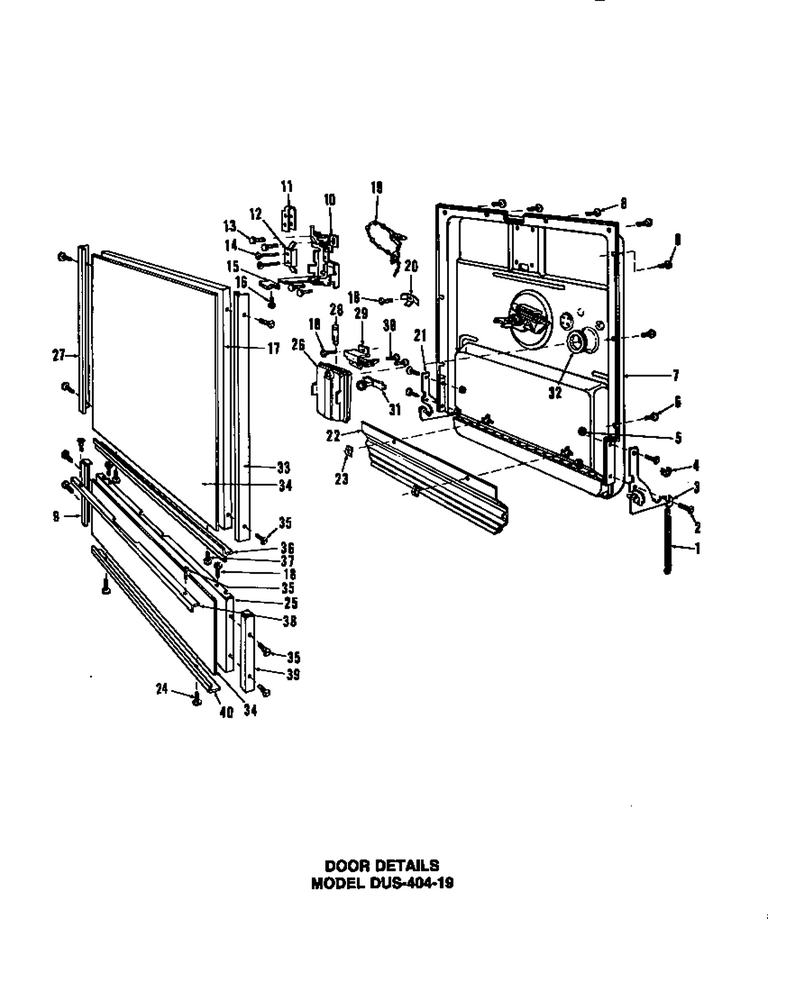

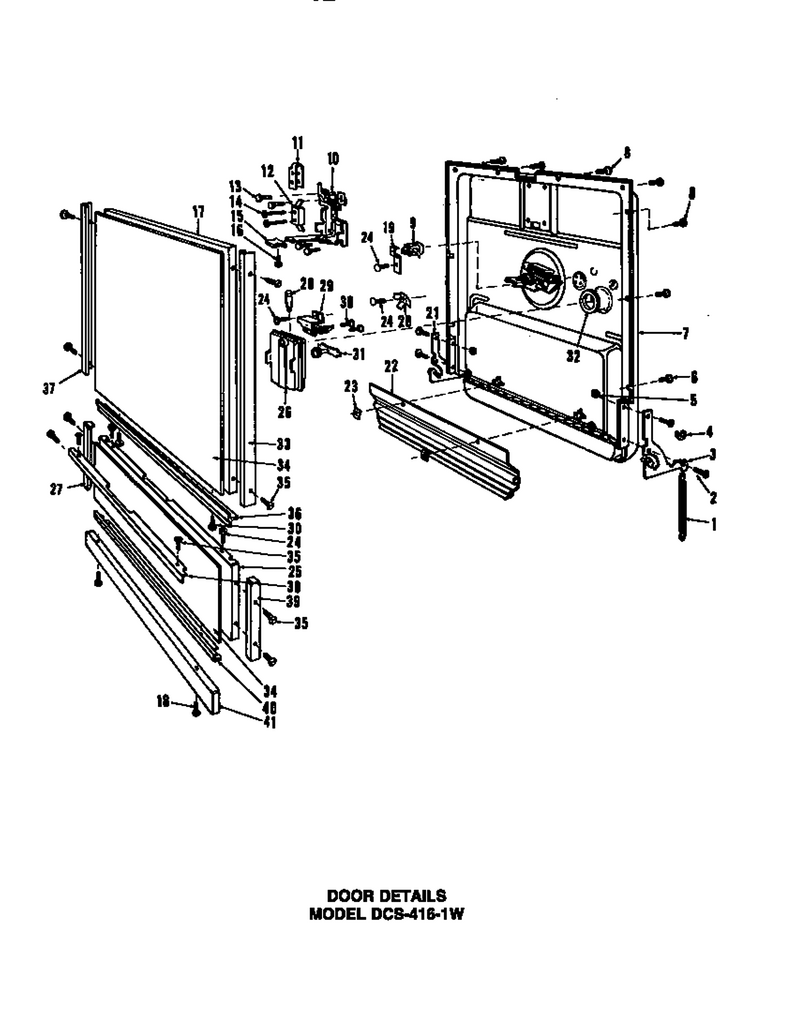

04 - Door Details

...
...
1
Door Spring WPL-809360
...
2
Screw WPL-0803311
...
3
Rh Arm WPL-805681
...
4
Spring Pad WPL-0805884
...
5
Nut WPL-M0282009
...
6
Screw WPL-WP7101P126-60
...
7
Door Assy. WPL-0809054
...
8
Screw WPL-Y0808749
...
9
Thermostat WPL-Y0808956
...
10
Latch Asm WPL-807016
...
11
Switch Cover WPL-0807450
...
12
Switch, Door Latch WPL-Y0807043
...
13
Screw WPL-W11233072
...
14
Screw WPL-0808618
...
15
Sub 806893 Latch Knob WPL-0806398
...
16
Use 0806830 WPL-0809163
...
17
Door Panel, White WPL-0807262
...
18
Screw WPL-M0217225
...
19
Thermostat Retainer WPL-0809097
...
20
Terminal, Grounding WPL-0807213
...
21
Arm Assy Lh Counterbalance WPL-0805682
...
22
Baffle Seal WPL-Y0809025
...
23
Speednut WPL-0809026
...
24
Screw WPL-WP90767
...
25
Access Panel, White WPL-0809108
...
26
Body Dispenser, Wetting Agent WPL-Y0806753
...
27
Trim, Acc Side WPL-0808104
...
28
Plunger WPL-0806757
...
29
Bi-Metal Asm WPL-809109
...
30
Screw WPL-W11233072
...
31
Fill Plug WPL-Y0807673
...
32
Grommet, Mounting WPL-0805631
...
33
Door Panel Trim, Rh WPL-0808990
...
34
Door & Access Pnl Inserts Harv WPL-0808912
...
35
Screw WPL-WP74004005
...
36
Door Trim, Bottom WPL-Y0807347
...
37
Door Panel Trim, Lh WPL-0808991
...
38
Trim, Top, Access Panel WPL-0808346
...
39
Trim, Acc Side WPL-0808103
...
40
Trim, Access, Bottom WPL-Y0808521
...
41
Toe Plate WPL-Y0808522

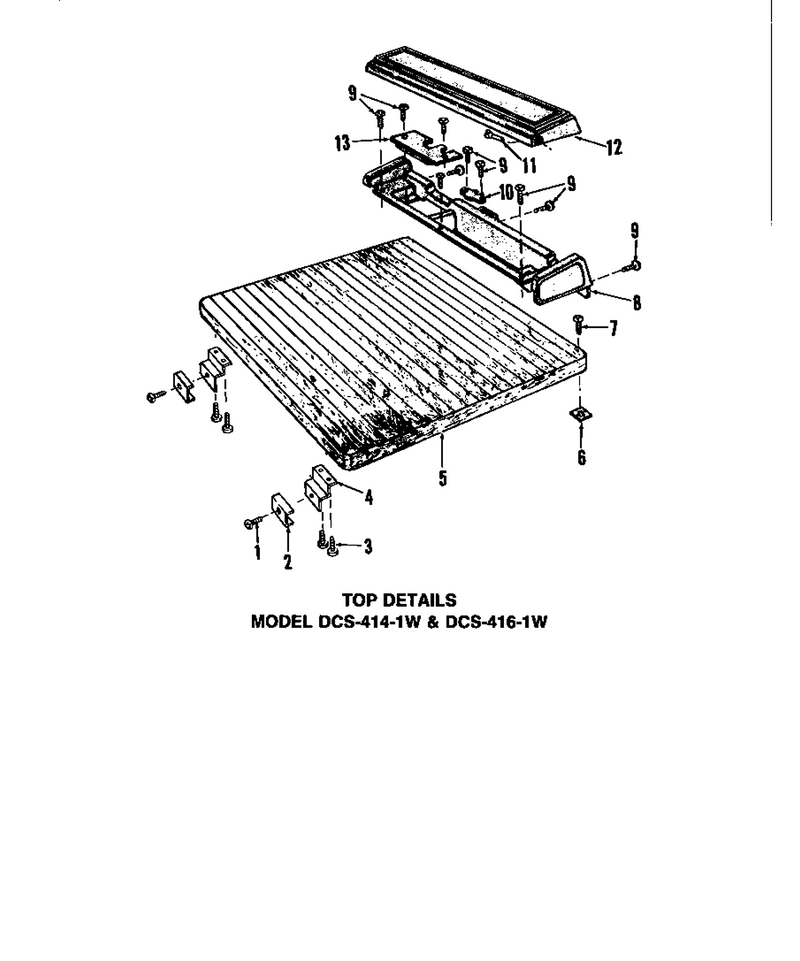

06 - Top Details

...
...
1
Screw WPL-0806976
...
3
Screw WPL-0807270
...
4
Clip WPL-0809088
...
5
Top, Chipboard WPL-0809130
...
6
Clamp, Top WPL-Y0807819
...
7
Screw WPL-Y0807817
...
8
Escutcheon WPL-0809131
...
9
Screw WPL-W11233072
...
10
Cord, Escutcheon WPL-0809132
...
11
Hinge Pin WPL-Y0808530
...
12
Lid WPL-0809133
...
13
Hose Escutcheon WPL-0809134

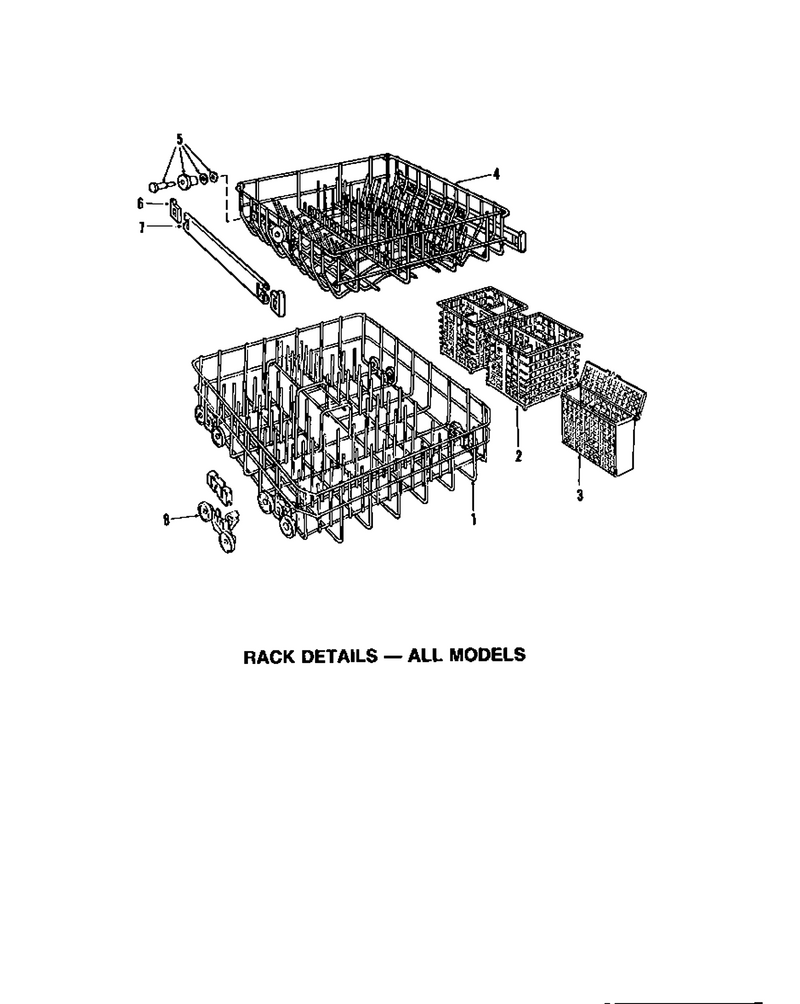

05 - Rack Details

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845
...
4
Rack, Upper WPL-0807902
...
5
Wheel Asm WPL-807957
...
6
End Cap, Rack Slide WPL-Y0807853
...
7
Rack Slide WPL-0807854
...
8
Wheel Assy WPL-Y0807008
