Amana DCS-414-1W (BOM: DCS-414-1 W)

Model: DCS-414-1W (BOM: DCS-414-1 W)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

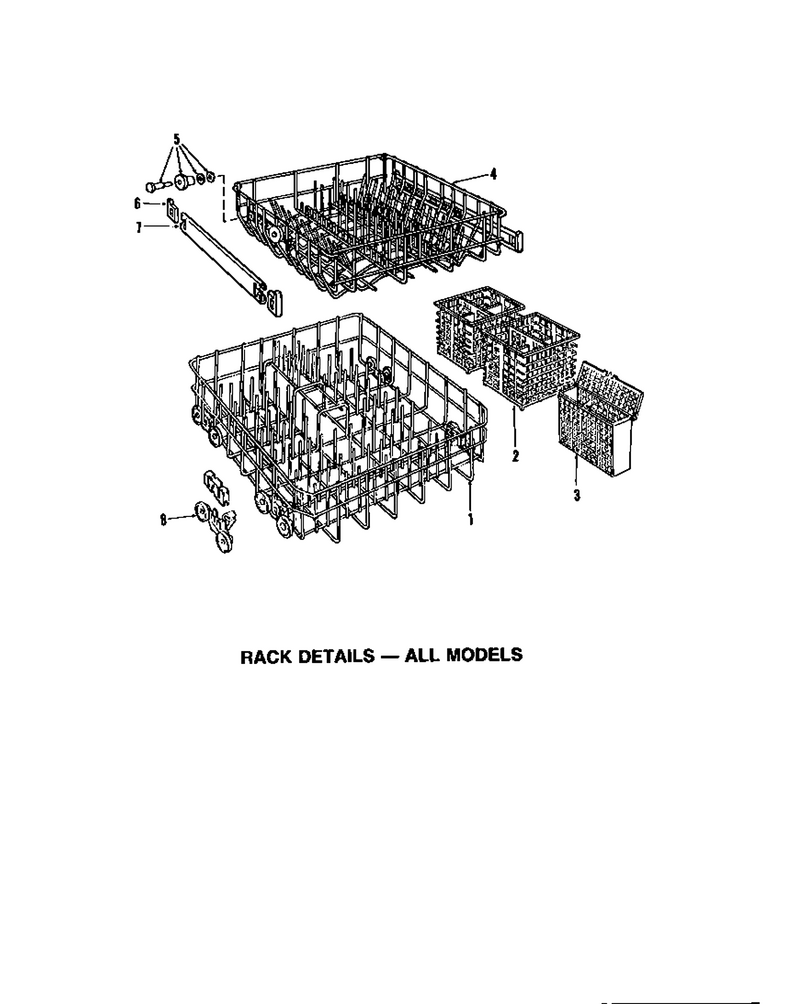

07 - Rack Details

...
...
1
Lower Rack Assy WPL-Y0808874
...
2
Silverware Basket WPL-Y0808845
...
4
Rack, Upper WPL-0807902
...
5
Wheel Asm WPL-807957
...
6
End Cap, Rack Slide WPL-Y0807853
...
7
Rack Slide WPL-0807854
...
8
Wheel Assy WPL-Y0807008

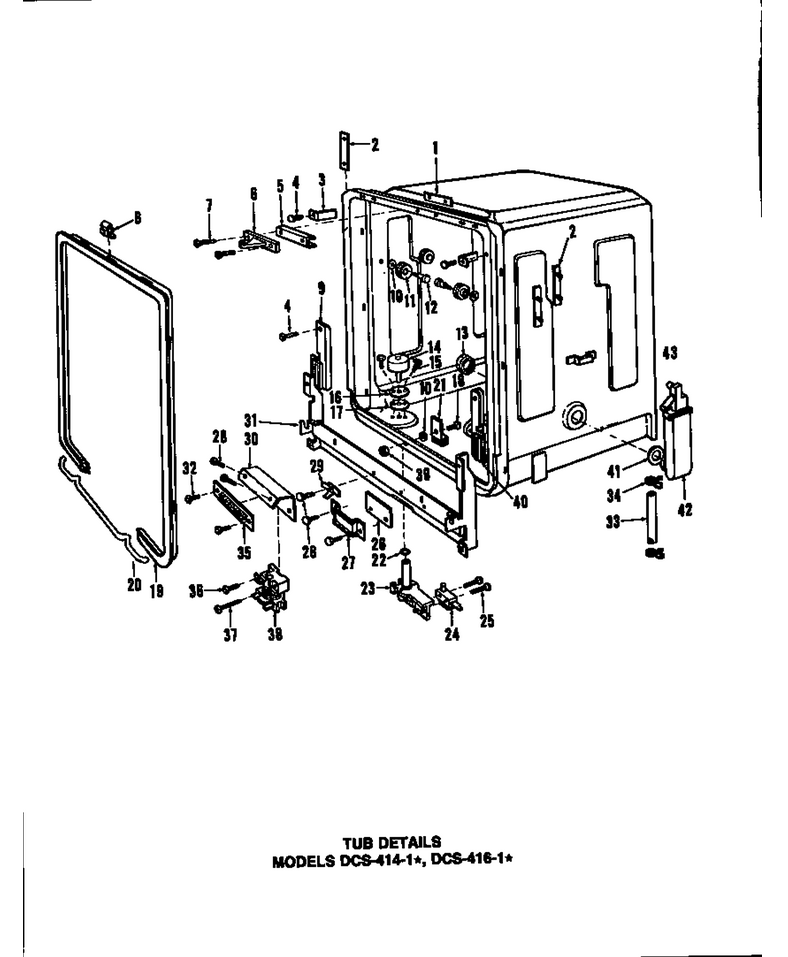

09 - Tub Details

...
...
1
Latch Tapping Plate WPL-0808868
...
2
Twin Nut Assem. WPL-0807038
...
3
Tub Pad WPL-807454
...
4
Screw, No.10-24 X 5/8 WPL-0806539
...
5
Shim WPL-0809214
...
6
Strike WPL-807015
...
7
Screw WPL-WP22001496
...
8
Clip Kit (Tub Gasket) WPL-805763
...
9
Guide, Counterbalance, L.h. WPL-Y0807470
...
10
Washer, Sealing WPL-0809044
...
11
Roller WPL-0807180
...
12
Kit, Screw & Washer WPL-0808564
...
13
Nut Plastic WPL-0805669
...
14
Float WPL-Y0804630
...
15
Screw WPL-807268
...
16
Ring WPL-Y0808064
...
17
Gasket WPL-808063
...
18
Screw WPL-WP250830
...
19
Gasket & Wire Assembly (Includes Keys 9 & 20) WPL-4340834
...
20
Gasket, Wire Junction WPL-0809320
...
21
Clip, Gasket WPL-0808115
...
22
``0`` Ring WPL-Y0807759
...
23
Float Assy WPL-Y0809859
...
24
Float Switch WPL-Y0807680
...
25
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
26
Wire Shield WPL-0809144
...
27
Wiring Clamp WPL-0806723
...
28
Screw WPL-WP90767
...
29
Terminal, Grounding WPL-0807213
...
30
Bracket, Terminal Board WPL-0807849
...
31
Hinge Weld Assy. WPL-0808739
...
32
Screw WPL-W11233072
...
33
Tube, Inlet WPL-0807891
...
34
Clamp WPL-Y0807813
...
35
Terminal Block WPL-0807486
...
36
Screw WPL-WP488234
...
37
Screw WPL-0804672
...
38
Relay WPL-0805255
...
39
Use M0281003 WPL-0803346
...
40
Rh Guide WPL-807471
...
41
Washer WPL-803573
...
42
Water Inlet Assy WPL-Y0806470
...
43
Tub & Gasket Assy. WPL-0809257

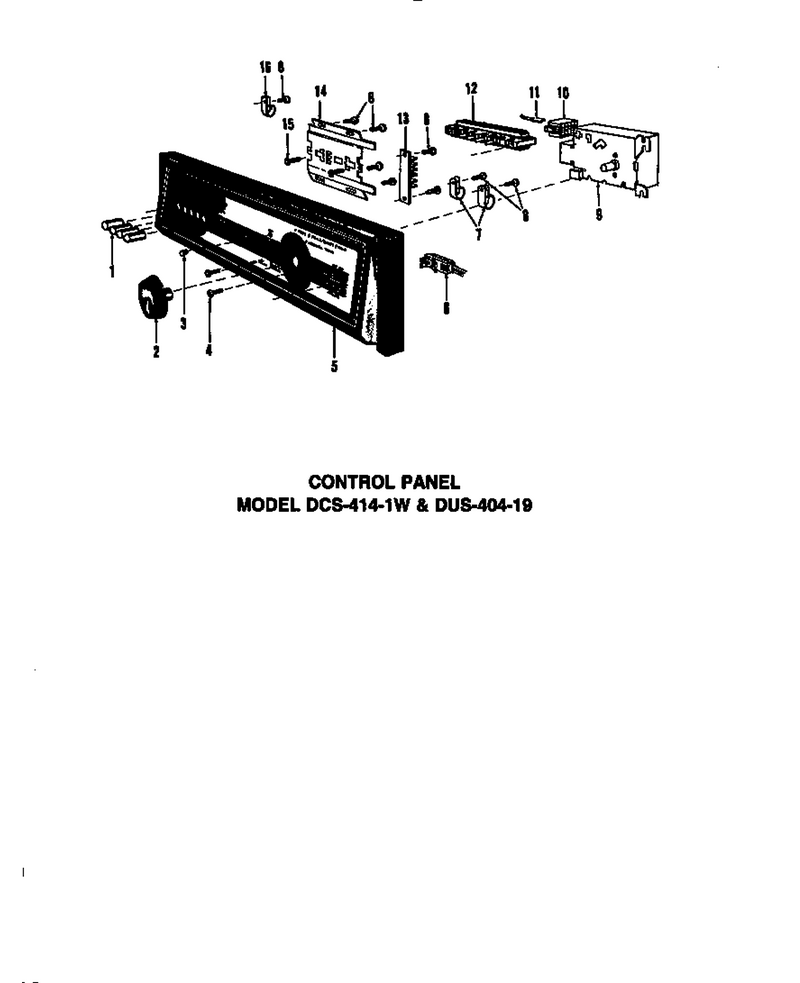

01 - Counter Panel

...
...
1
Push Button WPL-807091
...
2
Knob WPL-0809356
...
3
Lens WPL-0809036
...
4
Screw WPL-0805324
...
5
Control Panel WPL-0809358
...
6
Light, Assy. WPL-0809317
...
7
Clamp WPL-Y0808442
...
8
Screw WPL-0809175
...
9
Timer WPL-Y0809191
...
10
Timer, Terminal Housing WPL-0809296
...
11
Terminal, (Pack Of 25) WPL-0808333
...
12
Switch WPL-0809328
...
13
Terminal Board Assy. WPL-Y0808483
...
14
Bracket, Switch WPL-0809314
...
15
Screw WPL-0807141
...
16
Clamp WPL-W10833902

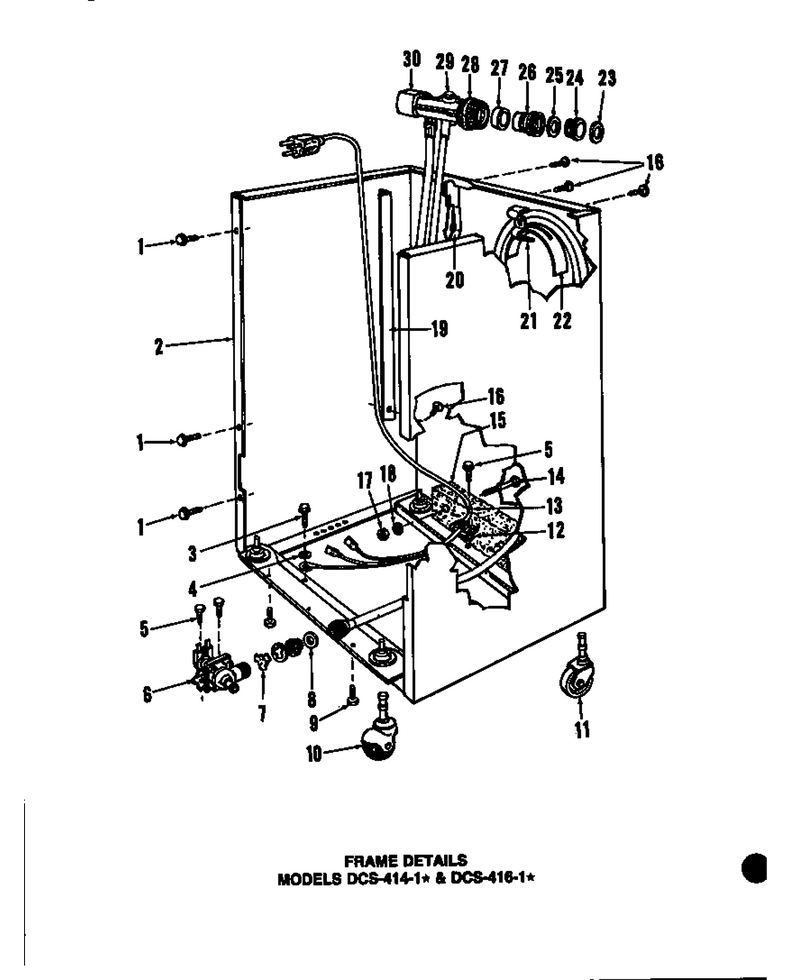

05 - Frame Details

...
...
NI
Sub 808928, Conversion Kit WPL-0090896
...
1
Screw, No.10-24 X 5/8 WPL-0806539
...
2
See Note Frame Assembly - Not Serviced WPL-Y00000000
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Valve WPL-0808667
...
7
Flow Washer WPL-0808432
...
8
Gasket- In WPL-WPY013783
...
9
Screw WPL-WP90767
...
10
Caster,front WPL-0808542
...
11
Rear Caster WPL-808543
...
12
Strain Relief WPL-M0370007
...
13
Cord, Power WPL-0805046
...
14
Screw WPL-0808612
...
15
Weight WPL-0808615
...
16
Screw WPL-W11233072
...
17
Nut WPL-0808661
...
18
Washer WPL-0808613
...
19
Hose Guard WPL-0808120
...
20
Guide, Hose WPL-0805859
...
21
Bracket Retaining WPL-0806142
...
22
Support, Hose WPL-0806143
...
23
Washer For Faucet Adapter WPL-910209
...
24
Adapter WPL-Y0800782
...
25
Washer, Adapter WPL-Y0803392
...
26
Adapter WPL-WPW10254672
...
27
Coupler Ga WPL-WP910218
...
28
Sub 809139, Collar WPL-Y0809139
...
29
Kit, Pressure Relief WPL-0807498
...
30
Faucet Coupler Assembly WPL-Y0807496

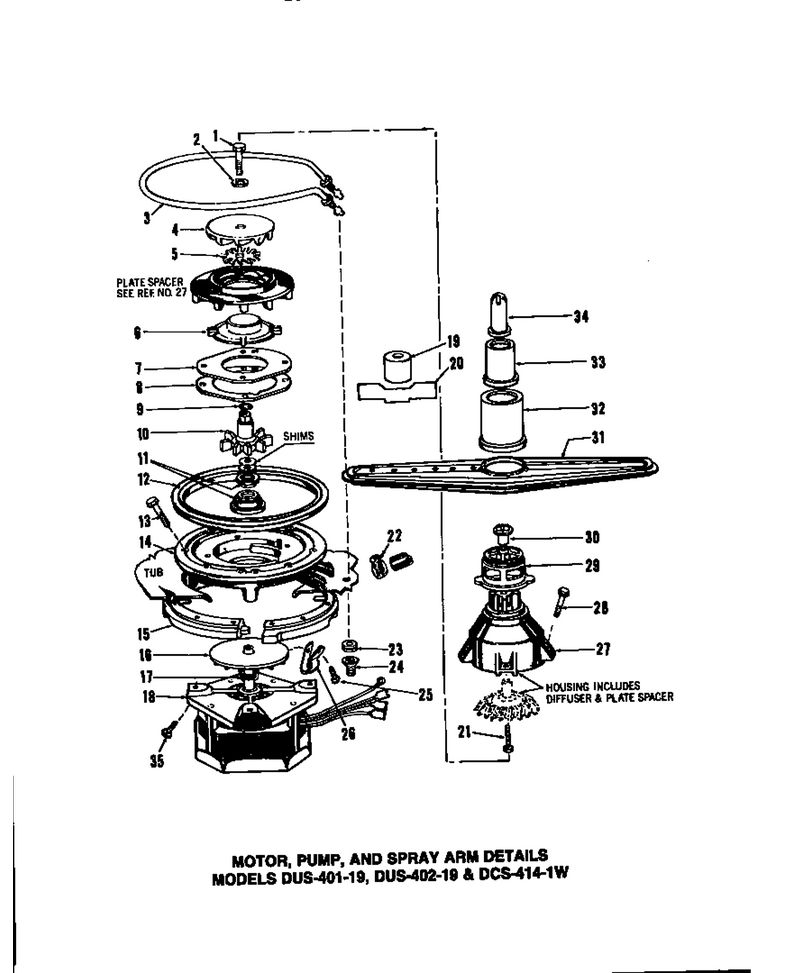

06 - Motor, Pump, And Spray Arm Details

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater WPL-Y0809060
...
4
Upper Impeller WPL-809005
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Pump Seal Kit WPL-Y0809116
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-Y0809059
...
15
Clamp Ring WPL-807712
...
16
Slinger, Plastic WPL-0808899
...
17
Tolerance Ring WPL-0808898
...
18
Motor Assy WPL-Y0809100
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Screw WPL-WP67006908
...
22
Clamp WPL-WP285655
...
23
Motor Securing Bolt WPL-0806883
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Impeller Housing Kit (Includes Key Nos. 6 & 7) WPL-809119
...
28
Screw, Pump Housing WPL-0807359
...
29
Bearing WPL-Y0809046
...
30
Spray Arm Bolt WPL-809018
...
31
Spray Arm WPL-0808177
...
32
Tower Base WPL-Y0808178
...
33
Overlay, Control Panel WPL-0808197
...
34
Tower Tip WPL-Y0808180
...
35
Screw WPL-807268

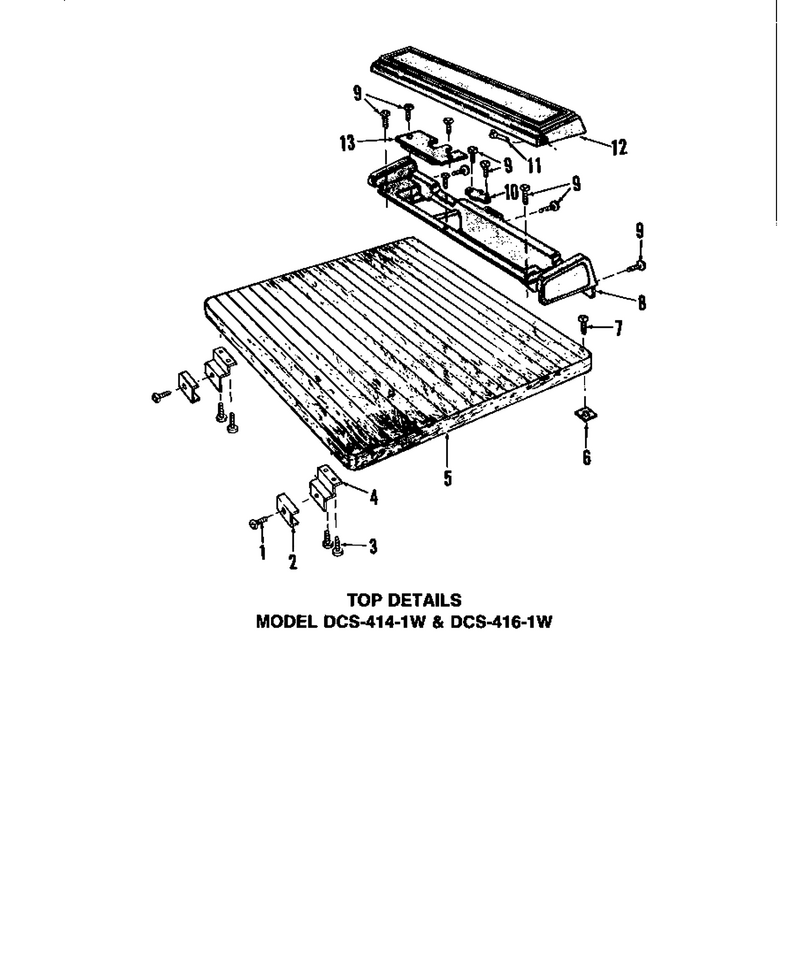

08 - Top Details

...
...
1
Screw WPL-0806976
...
3
Screw WPL-0807270
...
4
Clip WPL-0809088
...
5
Top, Chipboard WPL-0809130
...
6
Clamp, Top WPL-Y0807819
...
7
Screw WPL-Y0807817
...
8
Escutcheon WPL-0809131
...
9
Screw WPL-W11233072
...
10
Cord, Escutcheon WPL-0809132
...
11
Hinge Pin WPL-Y0808530
...
12
Lid WPL-0809133
...
13
Hose Escutcheon WPL-0809134

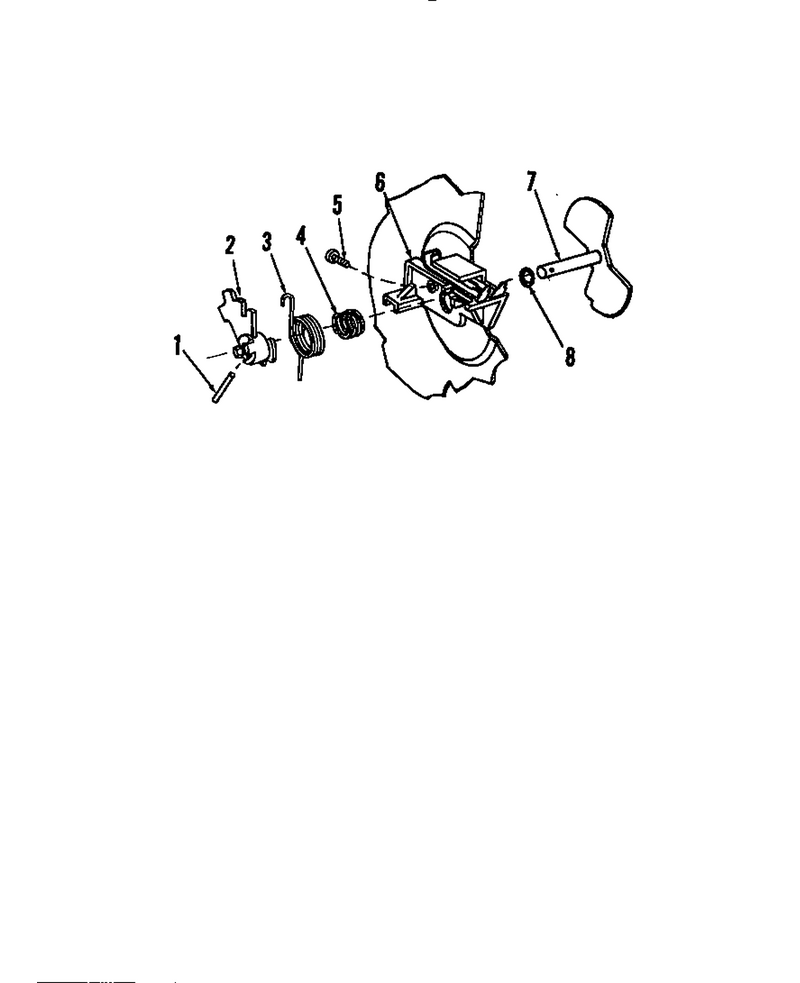

02 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

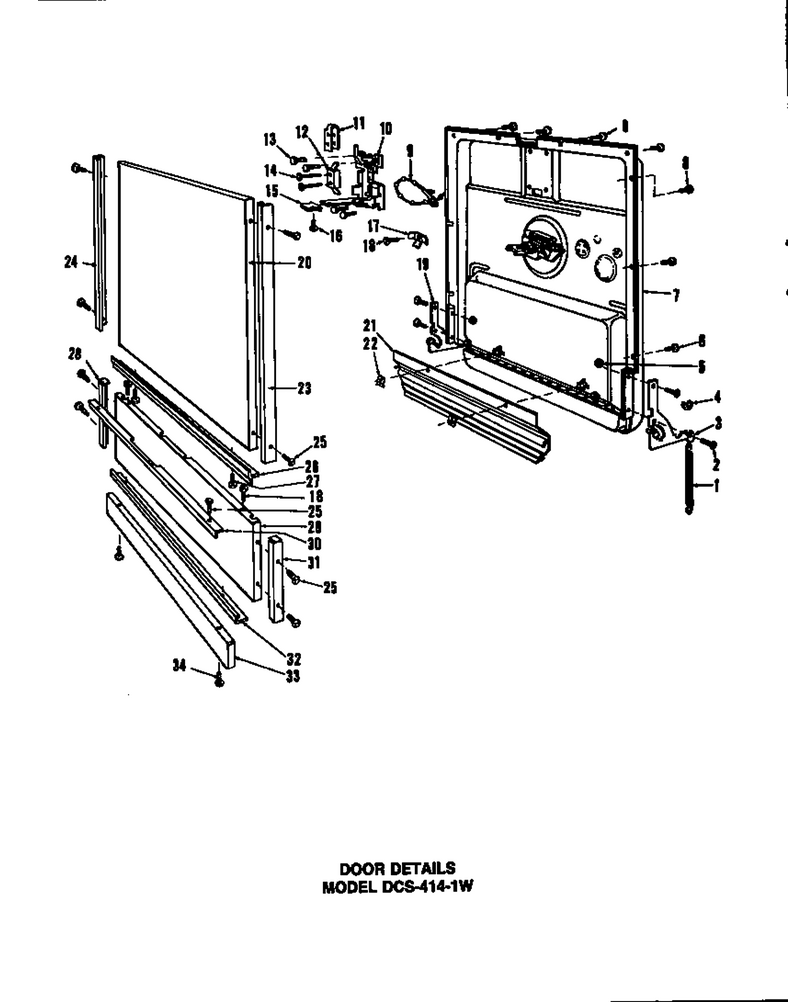

04 - Door Details

...
...
1
Door Spring WPL-809360
...
2
Screw WPL-0803311
...
3
Rh Arm WPL-805681
...
4
Spring Pad WPL-0805884
...
5
Nut WPL-M0282009
...
6
Screw WPL-WP7101P126-60
...
7
Door Assy. WPL-0809052
...
8
Switch WPL-808479
...
9
Tie Wire WPL-WPM0322202
...
10
Latch Asm WPL-807016
...
11
Switch Cover WPL-0807450
...
12
Switch, Door Latch WPL-Y0807043
...
13
Screw WPL-W11233072
...
14
Screw WPL-0808618
...
15
Sub 806893 Latch Knob WPL-0806398
...
16
Use 0806830 WPL-0809163
...
17
Terminal, Grounding WPL-0807213
...
18
Screw WPL-WP90767
...
19
Arm Assy Lh Counterbalance WPL-0805682
...
20
Door Panel, White WPL-0807262
...
21
Baffle Seal WPL-Y0809025
...
22
Speednut WPL-0809026
...
23
Door Panel Trim, Rh WPL-0808990
...
24
Door Panel Trim, Lh WPL-0808991
...
25
Screw WPL-WP74004005
...
26
Door Trim, Bottom WPL-Y0807347
...
27
Screw WPL-W11233072
...
28
Trim, Acc Side WPL-0808104
...
29
Access Panel, Gold WPL-Y0808525
...
30
Trim, Top, Access Panel WPL-0808346
...
31
Trim, Acc Side WPL-0808103
...
32
Trim, Access, Bottom WPL-Y0808521
...
33
Toe Plate WPL-Y0808522
...
34
Screw WPL-M0217225

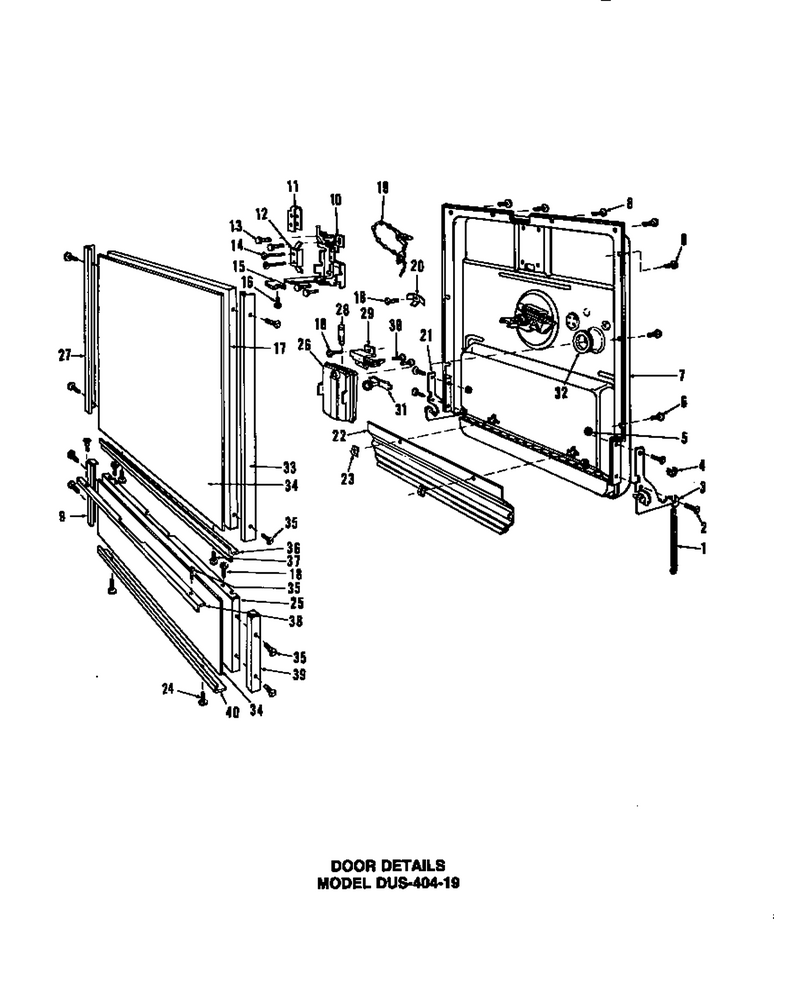

03 - Door Details

...
...
2
Screw WPL-0803311
