Amana DCS-414-1H (BOM: DCS-414-1 H)

Model: DCS-414-1H (BOM: DCS-414-1 H)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

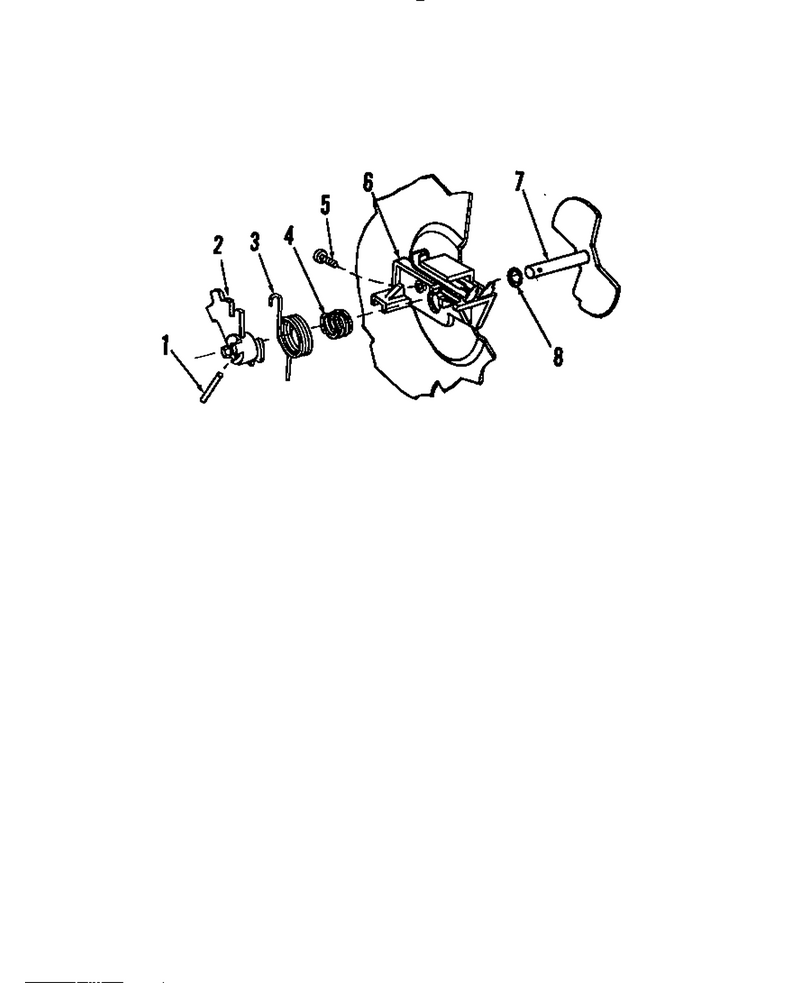

01 - Detergent Cup

...
...
1
Spirol Pin WPL-Y0808827
...
2
Cam WPL-806566
...
3
Spring WPL-805227
...
4
Spring, Cam Compression WPL-0806567
...
5
Screw WPL-W11233072
...
6
Det Cup Trigger WPL-809072
...
7
Dispenser, Lid Assy WPL-Y03100061
...
8
O-Ring WPL-WP912510

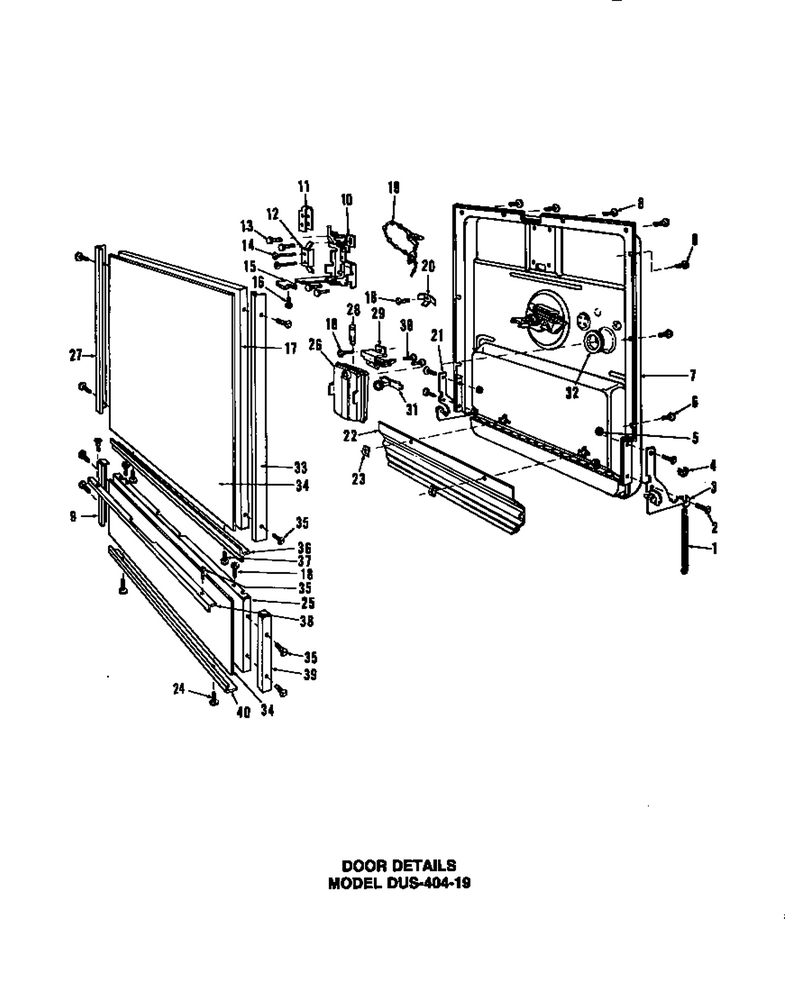

02 - Door Details

...
...
2
Screw WPL-0803311

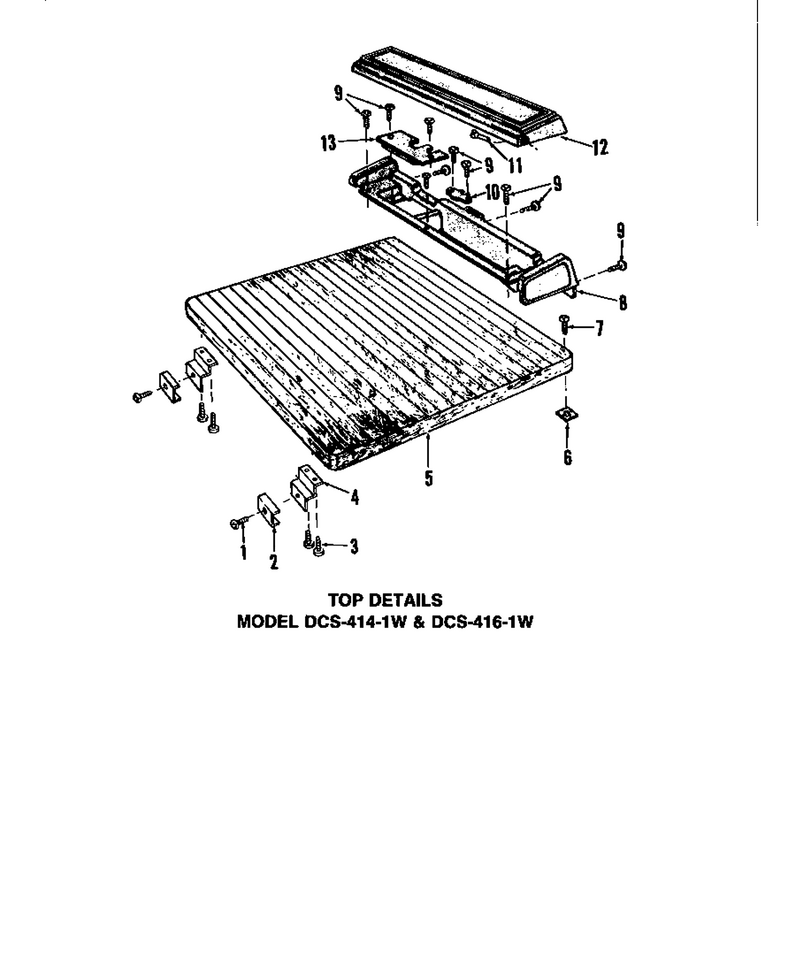

04 - Top Details

...
...
2
Clip, Shim WPL-0809199

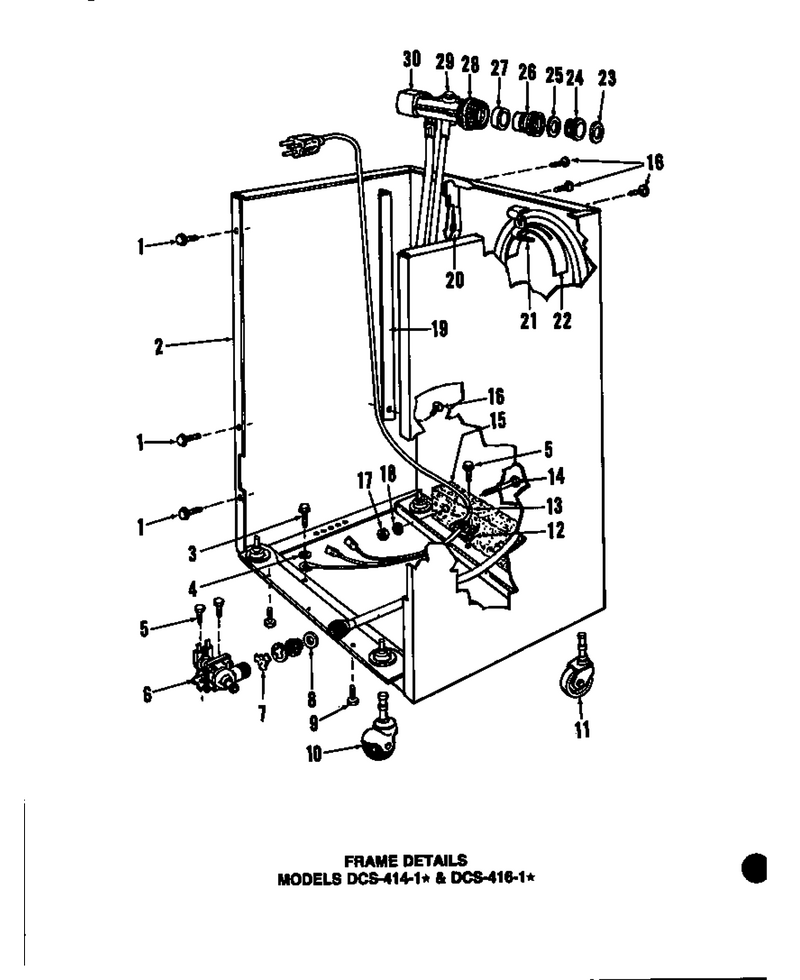

03 - Frame Details

...
...
NI
Sub 808928, Conversion Kit WPL-0090896
...
1
Screw, No.10-24 X 5/8 WPL-0806539
...
2
See Note Frame Assembly - Not Serviced WPL-Y00000000
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Valve WPL-0808667
...
7
Flow Washer WPL-0808432
...
8
Gasket- In WPL-WPY013783
...
9
Screw WPL-WP90767
...
10
Caster,front WPL-0808542
...
11
Rear Caster WPL-808543
...
12
Strain Relief WPL-M0370007
...
13
Cord, Power WPL-0805046
...
14
Screw WPL-0808612
...
15
Weight WPL-0808615
...
16
Screw WPL-W11233072
...
17
Nut WPL-0808661
...
18
Washer WPL-0808613
...
19
Hose Guard WPL-0808120
...
20
Guide, Hose WPL-0805859
...
21
Bracket Retaining WPL-0806142
...
22
Support, Hose WPL-0806143
...
23
Washer For Faucet Adapter WPL-910209
...
24
Adapter WPL-Y0800782
...
25
Washer, Adapter WPL-Y0803392
...
26
Adapter WPL-WPW10254672
...
27
Coupler Ga WPL-WP910218
...
28
Sub 809139, Collar WPL-Y0809139
...
29
Kit, Pressure Relief WPL-0807498
...
30
Faucet Coupler Assembly WPL-Y0807496
