Amana DCR2111COM (BOM: DCR21101COM)

Model: DCR2111COM (BOM: DCR21101COM)

Save Part Not Listed?
product name

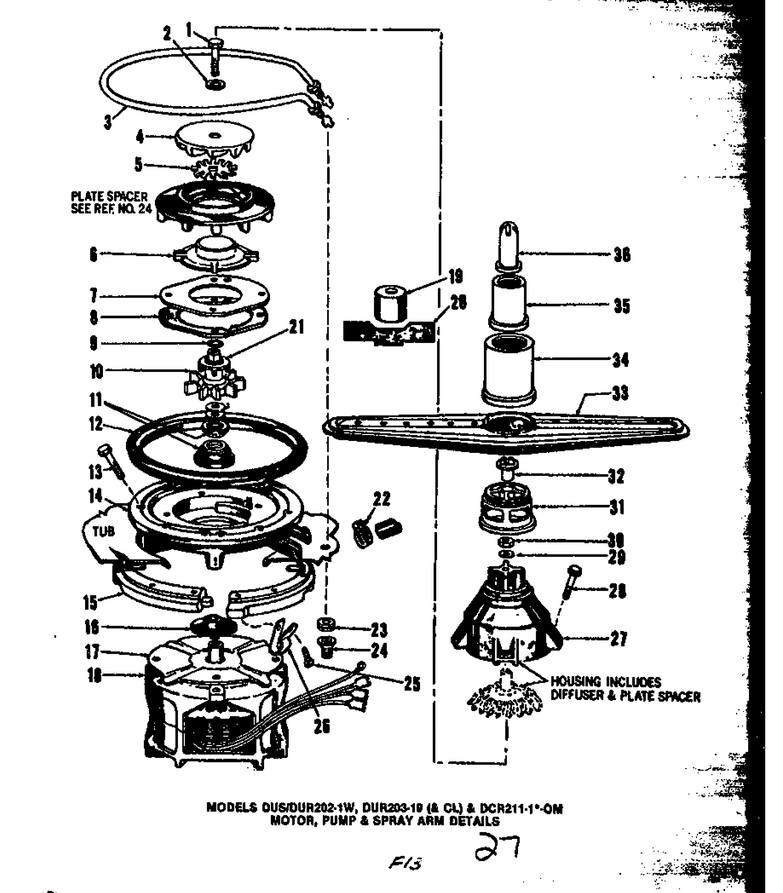

05 - Motor

...
...
1
Screw No.10x1-1/4`` Lg Hex Washer WPL-Y0806353
...
2
No.8 Type A Set Sst Washer WPL-0803367
...
3
Heater Kit WPL-806864
...
4
Impeller, Upper WPL-0808041
...
5
Blade, Macerator WPL-0808075
...
6
Shroud WPL-806267
...
7
Pump Plate WPL-0807884
...
8
Gasket WPL-807709
...
9
``o`` Ring WPL-Y0806521
...
10
Kit, Impeller WPL-0808722
...
11
Gasket WPL-803903
...
12
Pump Gasket WPL-809008
...
13
Screw WPL-807268
...
14
Pump Housing WPL-0808700
...
15
Clamp Ring WPL-807712
...
16
Slinger WPL-0808561
...
17
Water Shield Assy WPL-0808435
...
18
Motor Assembly WPL-Y0806300
...
19
Seal Installation Tool WPL-Y0803923
...
20
Shim Gauge WPL-0807077
...
21
Ring, Impeller WPL-0808699
...
22
Clamp, Hose WPL-0806090
...
23
Grommet WPL-Y0806833
...
24
Nut WPL-0806834
...
25
Screw WPL-0807270
...
26
Clamp WPL-Y0808442
...
27
Housing WPL-Y0808964
...
28
Screw, Pump Housing WPL-0807359
...
29
Lockwasher WPL-0804526
...
30
Nut WPL-0804527
...
31
Bearing WPL-Y0808175
...
32
Nut WPL-Y0808176
...
33
Spray Arm WPL-0808177
...
34
Tower Base WPL-Y0808178
...
35
Tower Section WPL-Y0808179
...
36
Tower Tip WPL-Y0808180

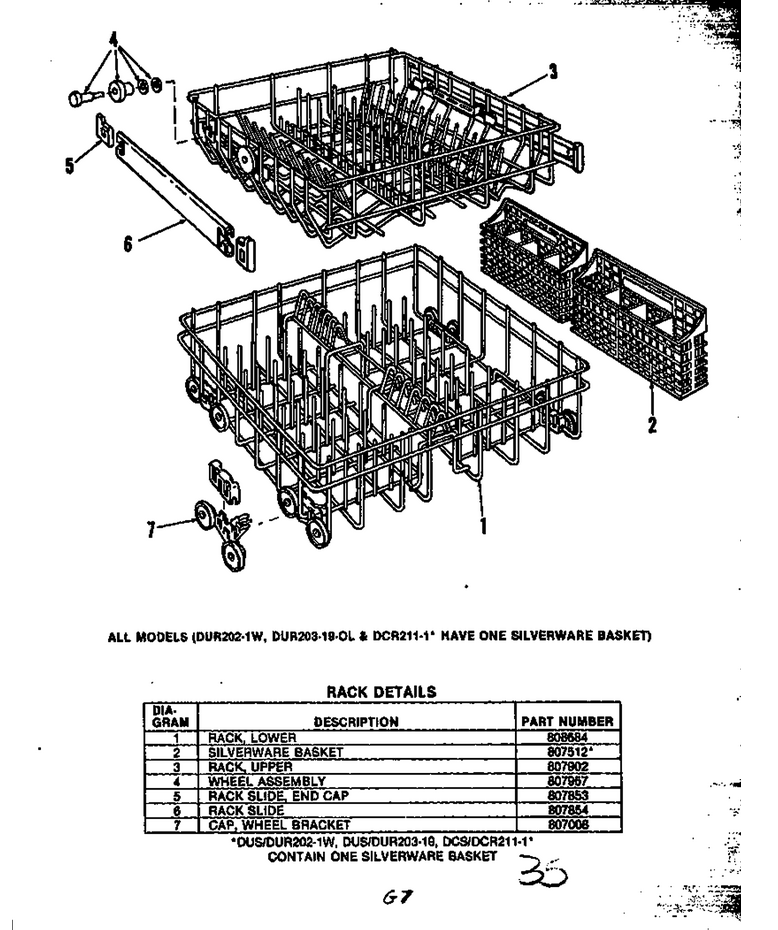

07 - Rack Details

...
...
1
Sub 808946,rack Lower WPL-0808684
...
2
Silverware Basket WPL-Y0807512
...
3
Rack, Upper WPL-0807902
...
4
Wheel Asm WPL-807957
...
5
End Cap, Rack Slide WPL-Y0807853
...
6
Rack Slide WPL-0807854
...
7
Wheel Assy WPL-Y0807008

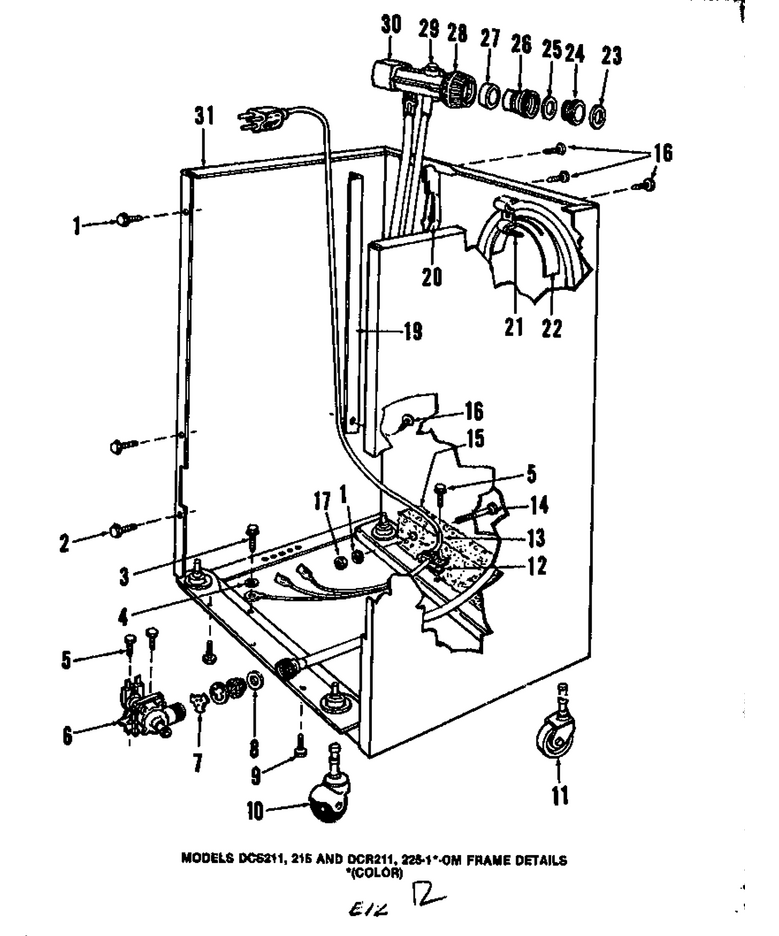

04 - Frame Details

...
...
NI
Sub 808928, Conversion Kit WPL-0090896
...
1
Screw, No.10-24 X 5/8 WPL-0806539
...
2
Screw WPL-0806663
...
3
Screw WPL-0807951
...
4
Washer WPL-0807373
...
5
Screw WPL-Y0807950
...
6
Sub 808667, Valve WPL-Y0808431
...
7
Flow Washer WPL-0808432
...
8
Gasket- In WPL-WPY013783
...
9
Screw WPL-WP90767
...
10
Caster,front WPL-0808542
...
11
Rear Caster WPL-808543
...
12
Strain Relief WPL-M0370007
...
13
Cord, Power WPL-0805046
...
14
Sub 806967 Screw WPL-0806812
...
15
Weight WPL-0808615
...
16
Screw WPL-W11233072
...
17
Nut WPL-0808661
...
18
Washer WPL-0808613
...
19
Hose Guard WPL-0808120
...
20
Guide, Hose WPL-0805859
...
21
Bracket Retaining WPL-0806142
...
22
Support, Hose WPL-0806143
...
23
Washer For Faucet Adapter WPL-910209
...
24
Adapter WPL-Y0800782
...
25
Washer, Adapter WPL-Y0803392
...
26
Adapter WPL-WPW10254672
...
27
Coupler Ga WPL-WP910218
...
28
Sub 809139, Collar WPL-Y0809139
...
29
Kit, Pressure Relief WPL-0807498
...
30
Faucet Coupler Assembly WPL-Y0807496
...
31
See Note Wrapper WPL-Y00000000

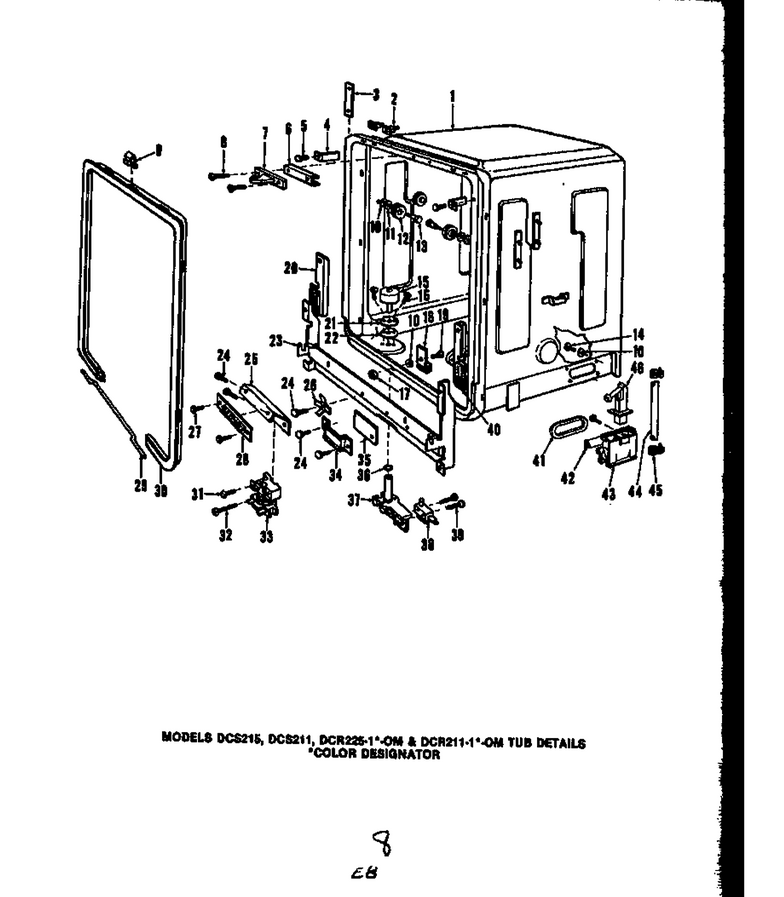

06 - Page 4

...
...
1
Sub 808372, Tub & Gasket Assy. WPL-0808725
...
2
Plastic Nut WPL-0807018
...
3
Twin Nut Assem. WPL-0807038
...
4
Tub Pad WPL-807454
...
5
Screw, No.10-24 X 5/8 WPL-0806539
...
6
Shim Strike WPL-0807073
...
7
Strike WPL-807015
...
8
Screw WPL-WP22001496
...
9
Clip Kit (Tub Gasket) WPL-805763
...
10
Use 0809044 WPL-0805776
...
11
No.8 Type A Set Sst Washer WPL-0803367
...
12
Roller WPL-0807180
...
13
Sub 808564, Kit, Screw & Wsr. WPL-0807181
...
14
Screw WPL-Y0806901
...
15
Float WPL-Y0804630
...
16
Screw WPL-807268
...
17
Use M0281003 WPL-0803346
...
18
Clip, Gasket WPL-0808115
...
19
Screw WPL-WP250830
...
20
Guide, Counterbalance, L.h. WPL-Y0807470
...
21
Ring WPL-Y0808064
...
22
Gasket WPL-808063
...
23
Hinge Weld Assy. WPL-0808739
...
24
Screw WPL-0806830
...
25
Bracket, Terminal Board WPL-0807849
...
26
Terminal, Grounding WPL-0807213
...
27
Screw WPL-W11233072
...
28
Terminal Block WPL-0807486
...
29
Junction, Wire Gasket WPL-0808344
...
30
White Gask WPL-808959
...
31
Screw WPL-WP488234
...
32
Screw WPL-0804672
...
33
Sub 805255 Relay WPL-0806121
...
34
Wiring Clamp WPL-0806723
...
35
Wire Shield WPL-0808013
...
36
``0`` Ring WPL-Y0807759
...
37
Float Assy WPL-Y0809859
...
38
Float Switch WPL-Y0807680
...
39
Screw 4-40 X 5/8 Lg Hex Hd Cad WPL-0804594
...
40
Rh Guide WPL-807471
...
41
Gasket WPL-806797
...
42
Tapping Plate WPL-0808705
...
43
Vent Stack WPL-0808706
...
44
Tube, Inlet WPL-0807891
...
45
Clamp WPL-Y0807813
...
46
Inlet Nozzle WPL-0808707

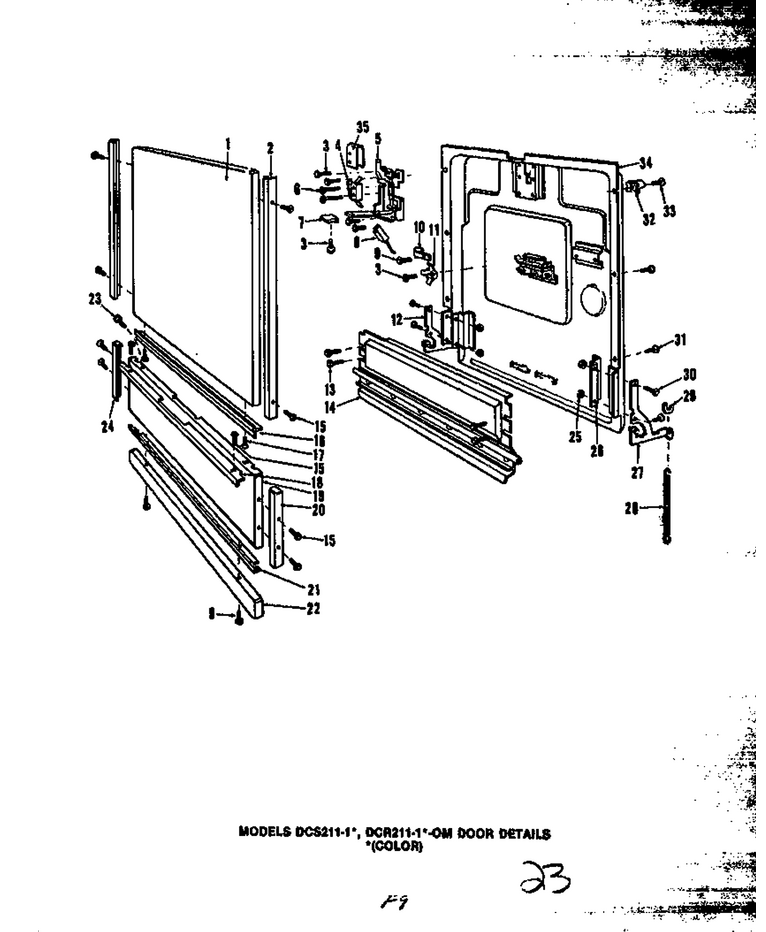

03 - Door Details

...
...
1
Door Panel, Almond WPL-Y0808523
...
2
Door Trim, Side WPL-0808026
...
3
Screw WPL-0806830
...
4
Switch, Door Latch WPL-Y0807043
...
5
Latch Asm WPL-807016
...
6
Screw WPL-0808618
...
7
Sub 806893 Latch Knob WPL-0806398
...
8
Terminal Insulator WPL-0806846
...
9
Screw WPL-M0217225
...
10
Clamp WPL-Y0808442
...
11
Terminal, Grounding WPL-0807213
...
12
Arm Assy Lh Counterbalance WPL-0805682
...
13
Use 0806976 WPL-0806810
...
14
Vent Plate Assembly WPL-0808369
...
15
Screw WPL-WP74004005
...
16
Door Trim, Bottom WPL-Y0807347
...
17
Screw WPL-W11233072
...
18
Trim, Top, Access Panel WPL-0808346
...
19
Sub 809108, Access Panel WPL-0807257
...
20
Trim, R.h. WPL-0808028
...
21
Trim, Access, Bottom WPL-Y0808521
...
22
Toe Plate WPL-Y0808522
...
23
Screw WPL-WP90767
...
24
Trim-Access Panel L.h. Side WPL-800829
...
25
Nut WPL-M0282009
...
26
Arm Bracket WPL-Y0806717
...
27
Rh Arm WPL-805681
...
28
Spring- Co WPL-Y0808971
...
29
Lens Light (Red) WPL-0805844
...
30
Screw WPL-0803311
...
31
Screw WPL-0806967
...
32
Door Guide WPL-0807449
...
33
Truss Hd. Cad. Pl. WPL-806926
...
34
Sub 809288, Inner Door Panel WPL-0807191
...
35
Switch Cover WPL-0807450

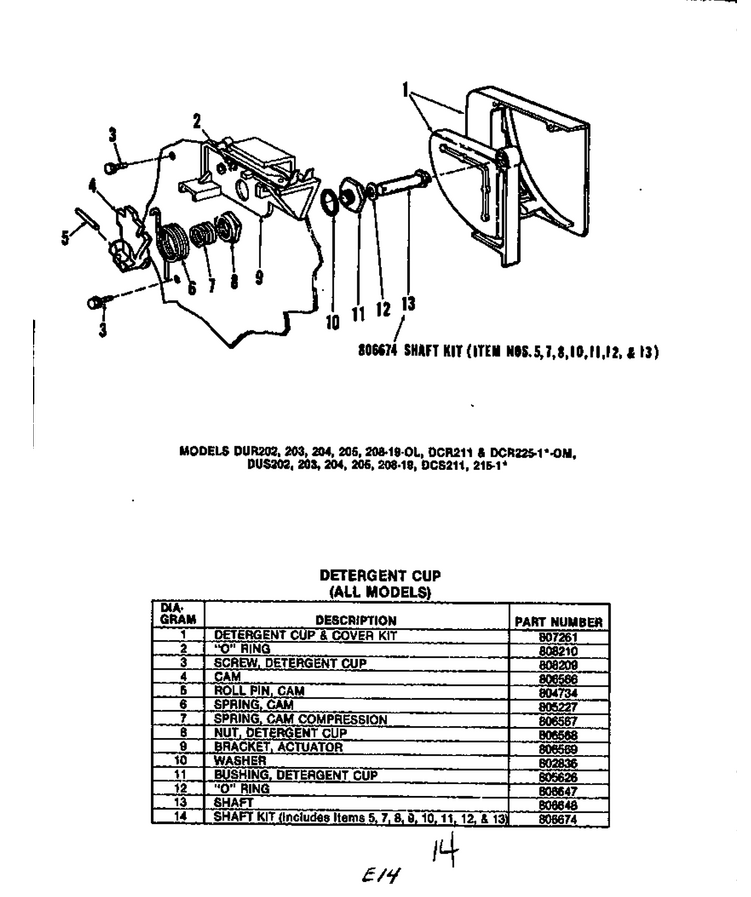

02 - Detergent Cup

...
...
1
Kit, Detergent Cup WPL-0807261
...
2
``o`` Ring WPL-Y0808210
...
3
Sub 806565, Screw WPL-0808209
...
4
Cam WPL-806566
...
5
Spirol Pin WPL-Y0808827
...
6
Spring WPL-805227
...
7
Spring, Cam Compression WPL-0806567
...
8
Nut WPL-Y0806568
...
9
Sub 808507, Trigger Assy WPL-Y0806569
...
10
Washer WPL-0802836
...
11
Bushing WPL-0805626
...
12
O-Ring WPL-WP912510
...
13
Shaft Kit WPL-806674
...
14
Shaft Kit WPL-806674

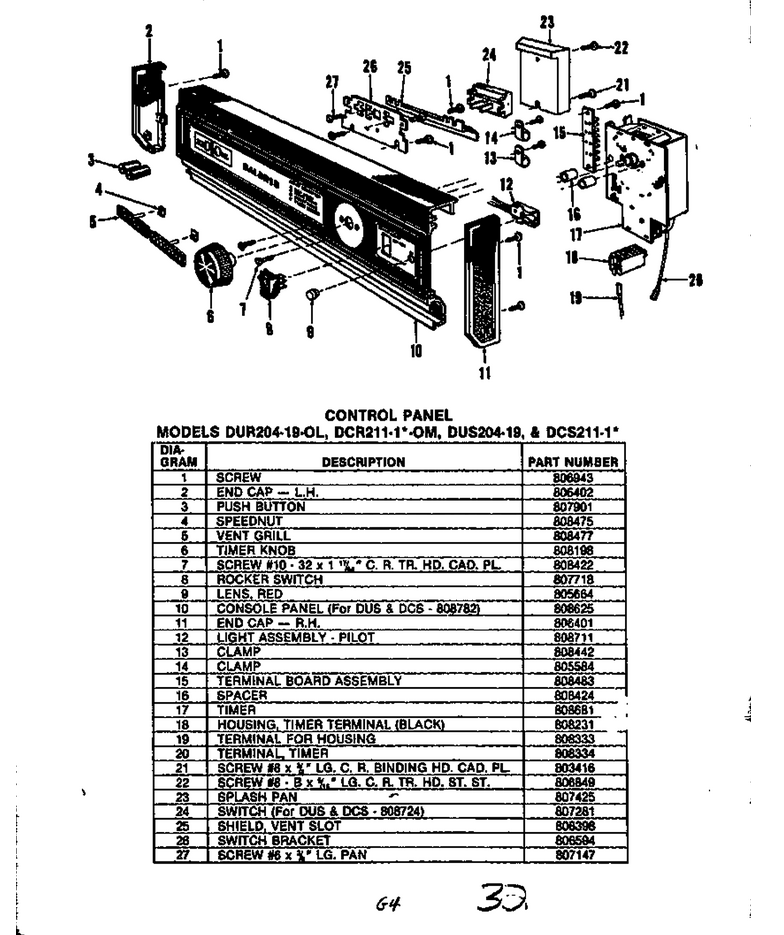

01 - Control Panel

...
...
1
Screw WPL-0806943
...
2
End Cap, Rh WPL-0806402
...
3
Tub & Gasket Assembly WPL-0807901
...
4
Speed Nut WPL-Y0808475
...
5
Vent Grille WPL-Y0808477
...
6
Timer Knob WPL-Y0808482
...
7
Screw, No.10-32 X 1 7/64 WPL-0808422
...
8
Switch WPL-807665
...
9
Lens WPL-0805664
...
10
Console Panel WPL-808625
...
11
Sub 806407, End Cap, Lh WPL-0806401
...
12
Light Assy. WPL-0808711
...
13
Clamp WPL-Y0808442
...
14
Clamp WPL-W10833902
...
15
Terminal Board Assy. WPL-Y0808483
...
16
Spacer WPL-0808424
...
17
Timer WPL-0808681
...
18
Housing, Timer B WPL-Y0808231
...
19
Terminal, (Pack Of 25) WPL-0808333
...
20
Terminal End WPL-0808334
...
21
Screw WPL-M0217225
...
22
Plate Assembly, Pump WPL-0806849
...
23
Splash Pan WPL-0807425
...
24
Switch WPL-807281
...
25
Shield, Vent Plate WPL-Y0808398
...
26
Bracket, Switch Mounting WPL-0806594
...
27
Screw WPL-807147

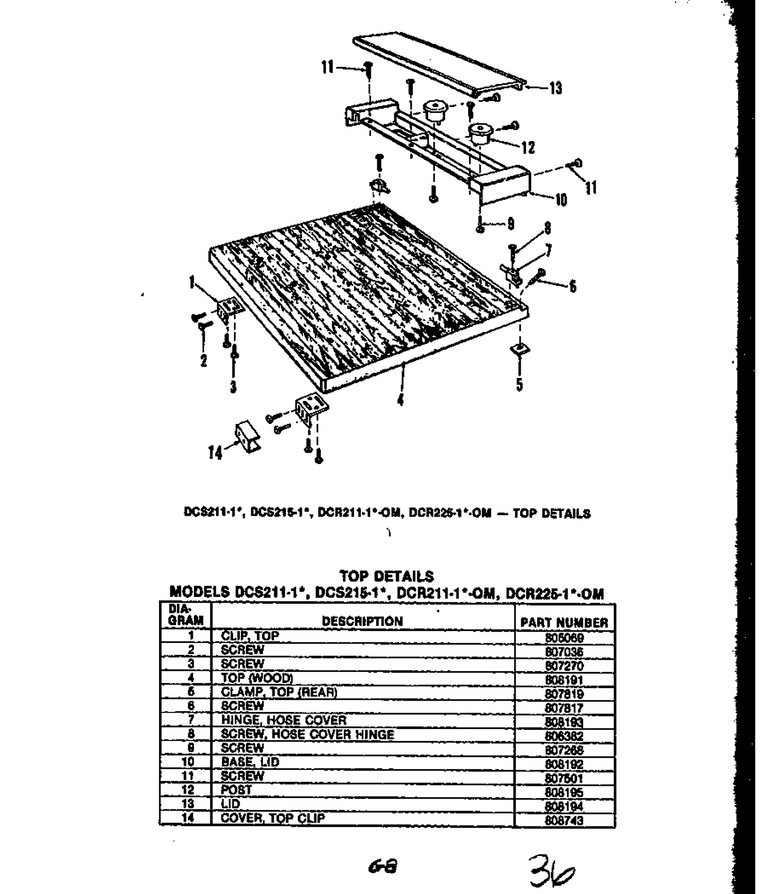

08 - Top Details

...
...
1
Clip WPL-805069
...
2
Screw WPL-0807036
...
3
Screw WPL-0807270
...
4
Top WPL-Y0808191
...
5
Clamp, Top WPL-Y0807819
...
6
Screw WPL-Y0807817
...
7
Hinge, Hose Cover WPL-Y0808193
...
8
Screw Assy WPL-0806382
...
9
Screw WPL-807268
...
10
Base, Lid WPL-Y0808192
...
11
Screw WPL-W11233072
...
12
Post WPL-Y0808195
...
13
Lid WPL-0808194
...
14
Cover, Top Clip WPL-0808743
