product name

Amana D1280.000

Model: D1280.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

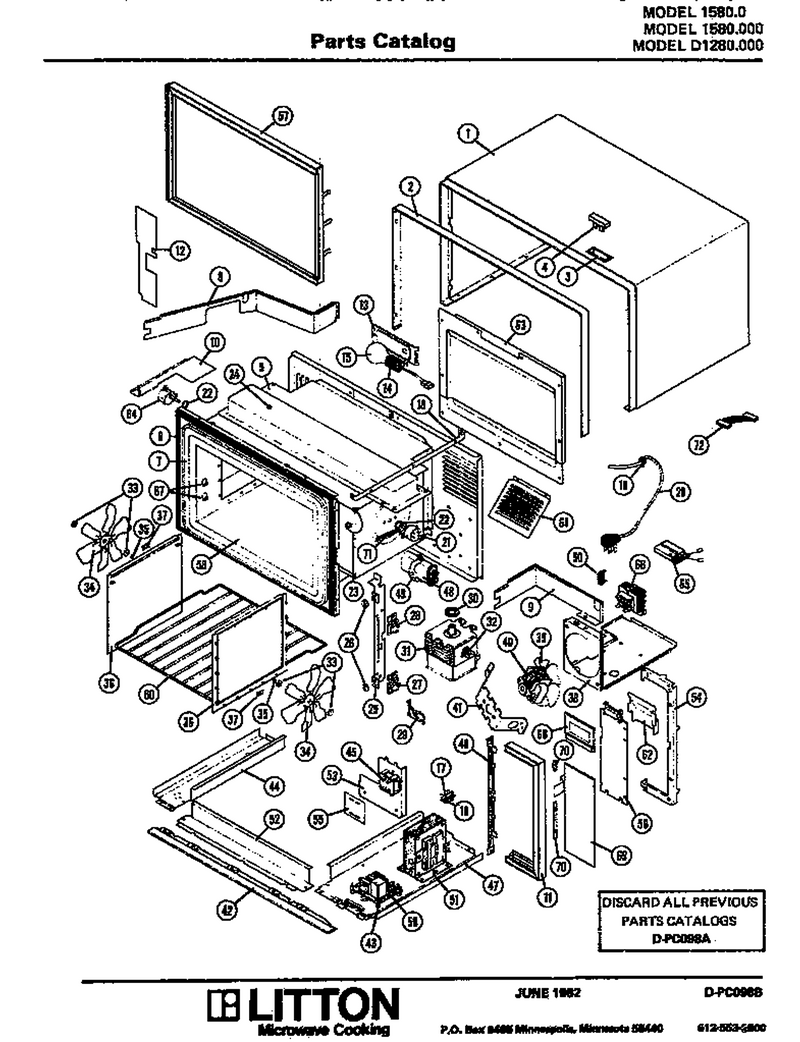

01 - Page 1

...
...
1
Not Available WPL-M80D72
...
2
Trim, Outer Case WPL-M75D56
...
3
Bezel, Door Release WPL-M76D201
...
4
Button, Door Release WPL-31990P01
...
5
Not Available WPL-M77D94
...
6
Gasket WPL-M25D48
...
7
Choke Filler WPL-M55D13
...
8
Duct Waveguide WPL-M65D224
...
9
Not Available WPL-M65D225
...
10
Screw WPL-WP90767
...
11
Bezel,dec Panel WPL-M7D459
...
12
Left Baffle WPL-M65D230
...
13
Cover Lamp WPL-M7D309
...
14
Wire Harness WPL-M5D186
...
15
Light Bulb WPL-8009
...
16
Ia 6-32 Screw (25) WPL-M1D664
...
17
Fuse 20 A WPL-WPM0805101
...
18
Ia Screw WPL-M1D329
...
19
Bush, Strain Relf (10) WPL-M1D600
...
20
No.8 T X 3/8`` Screw WPL-M1D402
...
21
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
22
R.f. Gasket WPL-M2D492
...
23
Ld Grn 16 Ga WPL-M5D120
...
24
Tuning Stud WPL-M2D488
...
25
Latch Slide WPL-M20D101
...
26
Bearing Latch WPL-M2D327
...
27
Switch Asy WPL-M14D135
...
28
Switch Asy WPL-M14D136
...
29
Assy, Switch WPL-M14D75
...
30
Gasket-Rf WPL-M2D296
...
31
Ia 5mm Flange Whiz-Lk Nut (25) WPL-M1D619
...
32
Cutout-Thermal-Control WPL-31866P01
...
33
Spcr-Stir WPL-M2D491
...
34
Stirrer Blade Kit WPL-M35D18
...
35
.156 Dia Push On Clip WPL-M1D78
...
36
Cover, Stirrer WPL-M45D18
...
37
Retainer, Clip WPL-M1D797
...
38
Screw WPL-WP90767
...
39
Fan, Blower Kit WPL-M35D16
...
40
Blower Motor Kit WPL-M12D33
...
41
No.10 T X 3/8`` Screw WPL-M1D479
...
42
Lower Trim WPL-M75D55
...
43
Not Available WPL-M2D489
...
44
Not Available WPL-M79D78
...
45
Triac WPL-M16D85
...
46
Screw (25) WPL-M1D804
...
47
Not Available WPL-M79D79
...
48
Capacitor-.69 WPL-59001160
...
49
Screw WPL-WP90767
...
50
Nut WPL-WP488130
...
51
No.10 T X 3/8`` Screw WPL-M1D479
...
52
R & L Base Baffle WPL-M65D223
...
53
Screw WPL-WP90767
...
54
No.8 T X 3/8`` Screw WPL-M1D402
...
55
Insulator, Triac WPL-M5D294
...
56
No.6 Thread Forming Screw WPL-M1D627
...
57
No.10-32 Flange Whiz-Lk Nut WPL-M1D449
...
58
Shelf WPL-M50D29
...
59
Module,interface WPL-M22D35
...
60
Rack-Wirex WPL-M67D19
...
61
Screw WPL-WP90767
...
62
Screw WPL-WP90767
...
63
Screw WPL-WP90767
...
64
No.4-40 Pan Hd Mach Scr WPL-M1D6
...
65
H.v. Lead WPL-M5D297
...
66
Screw WPL-WP90767
...
67
Support Rack WPL-B8371001
...
68
Display Window WPL-M2D490
...
69
Assy, Mem Sw 1580 WPL-M7D458
...
70
Spacer WPL-M2D440
...
71
Foamx(bl) 1 Pc.= 1 Ft. WPL-M2D493
...
72
Not Available WPL-M27D262
