Amana CST6512WW (BOM: P1143841NWW)

Model: CST6512WW (BOM: P1143841NWW)

Save Part Not Listed?
product name

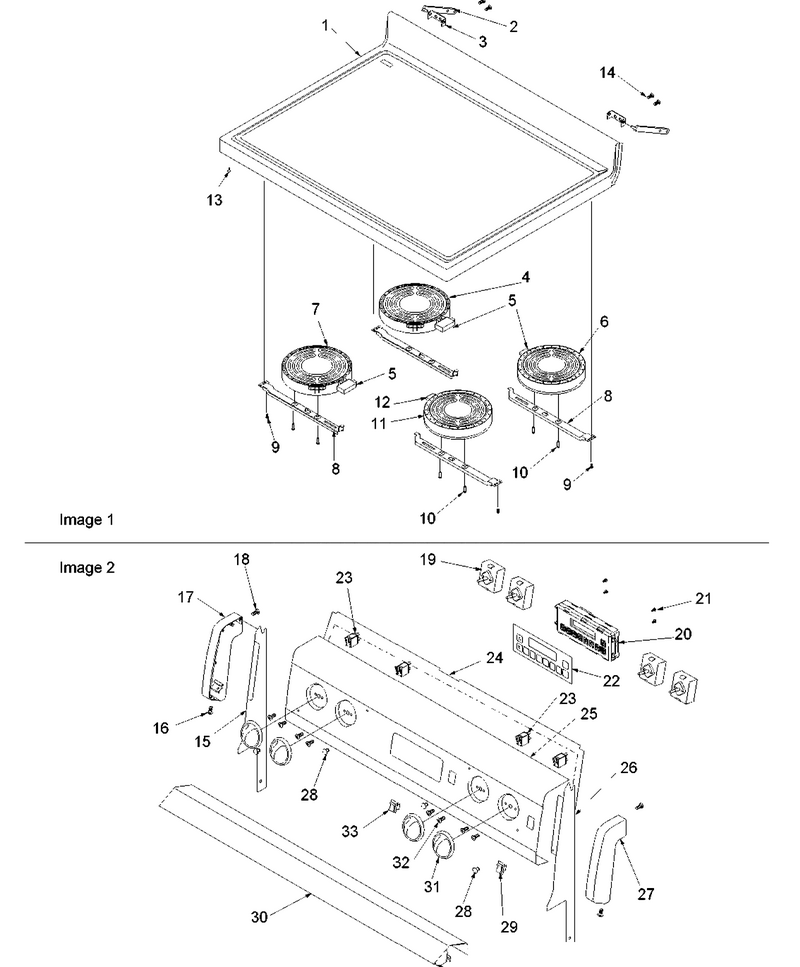

03 - Maintop And Backguard

...
...
NI
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
1
Assy,top & Glass(White-White) WPL-31721505WW
...
2
Pin, Hinge WPL-Y0315931
...
3
Brkt, Hinge Strap Mtg WPL-Y0306150
...
4
Elmnt-Surf WPL-W10823708
...
5
Limiter, Temp. (4) WPL-8053620
...
6
Elmnt-Surf WPL-W10823699
...
7
Elmnt-Surf WPL-WP32082801
...
8
Bracket, Element WPL-31720701
...
9
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
10
Screw, Shoulder Ab 6-20 X .825 WPL-31750715
...
11
Elmnt-Surf WPL-W10823726
...
12
Limiter-Dual WPL-0316689
...
13
Spacer, Snap-In WPL-31717001
...
14
Screw WPL-W11245710
...
15
Bkgd. Support-Lh WPL-315877W
...
16
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
17
End Cap Lh WPL-315843W
...
18
Screw, No.8-32 X3/8 P Trs Hd Lp WPL-31750420
...
19
Switch- In WPL-WP74011243
...
20
Erc3 (Electric) WPL-Y0315570
...
21
Screw WPL-WP693995
...
22
Overlay, Erc Mm (White) WPL-31858002W
...
23
Light-Ind WPL-WP903115
...
24
Cover, Upper Rear WPL-0315887
...
25
Panel, Backguard(Cst) WPL-31749840W
...
26
Bkgd. Support-Rh WPL-315876W
...
27
End Cap Rh WPL-315841W
...
28
Lens, Indicator WPL-Y0316265
...
29
Switch, Rocker (Wht) WPL-74008717
...
30
Shield, Bkgd Trim Heat WPL-31722704B
...
31
Knob, Infinite Switch (Wht) WPL-31760102W
...
32
Screw, No.8-32 X 1/4 WPL-31750714
...
33
Switch, Rocker WPL-301491W

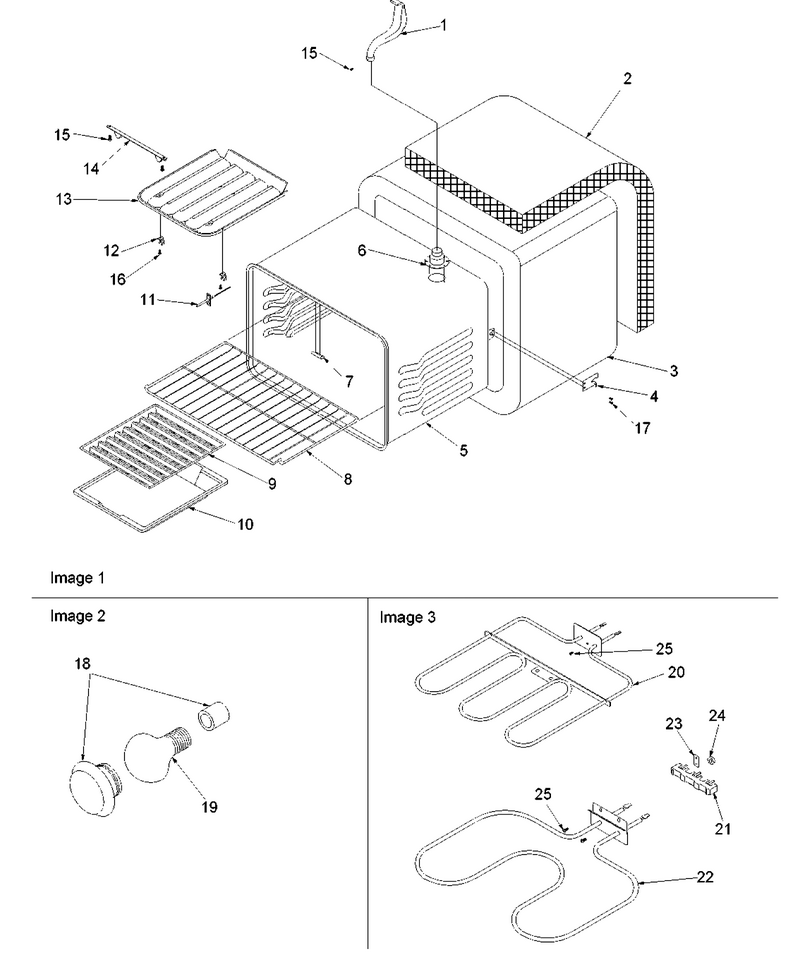

02 - Cavity

...
...
NI
Wire, Insulation Retainer 100`` WPL-31715801
...
1
Tube, Vent WPL-31866901
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Oven Shell (El. W/lt) WPL-31821301CG
...
6
Smoke Eliminator, Short WPL-Y0316952
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Procelain Broiler (Pan And Grid) WPL-4396923
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Sensor WPL-WPY0314907
...
12
Bracket, Mounting WPL-0315402
...
13
Reflector, Broil Element WPL-Y0315403
...
14
Bracket, Reflector Mounting WPL-Y0061557
...
15
Screw WPL-W11245710
...
16
Rivet, Pop WPL-Y0097822
...
17
Screw WPL-WP693995
...
18
Oven Light Assy WPL-31823701
...
19
Light Bulb WPL-8009
...
20
Element- B WPL-WPY0061732
...
21
Block-Term WPL-WP8203546
...
22
Element- B WPL-WP77001094
...
23
Block-Term WPL-WPW10245259
...
24
Hex Nut (Nkl) WPL-31750124
...
25
Screw WPL-WP7101P126-60

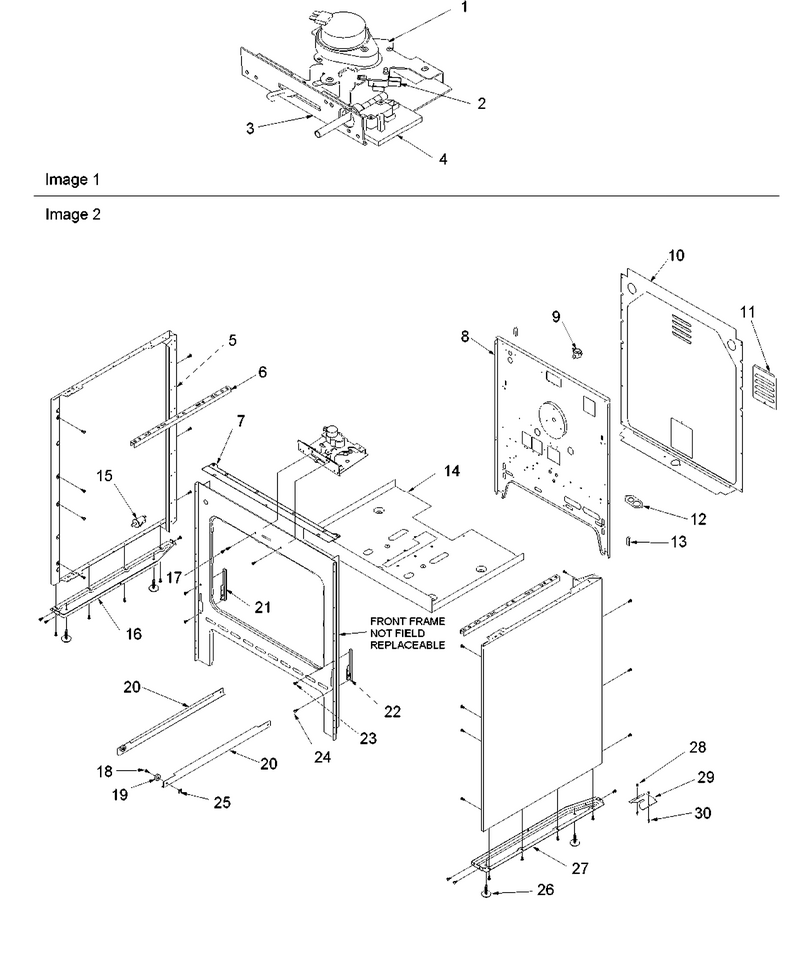

01 - Cabinet

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Latch, Door WPL-31933401
...
2
Switch, Micro WPL-31899201
...
3
Bracket, Latch Mounting WPL-31848301
...
4
Switch, Plunger WPL-31933601
...
5
Panel, Side (Wht) WPL-31825104W
...
6
Channel, Broil Burner WPL-Y0304019
...
7
Brkt- Main WPL-314891B
...
8
Retainer, Rear (Elec) WPL-31733901
...
9
Switch, Hi Limit WPL-Y0053584
...
10
Cover, Rear WPL-31757101
...
11
Plate, Access WPL-31757201
...
12
Plate, Main Inlet Wire WPL-0058311
...
13
Clip, Tinnerman WPL-31730101
...
14
Retainer, Insulation (Bottom) WPL-Y0309061
...
15
Plug, Button (3/4``-Blk) WPL-Y0315328
...
16
Brace, Leveling Leg (Lt) WPL-31854501
...
17
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
18
Bolt, Shoulder 10-32 WPL-31750717
...
19
Roller, Drawer WPL-31733401
...
20
Track, Mounting WPL-32075601
...
21
Hinge, Oven Door (Lt) WPL-31715201
...
22
Hinge-Door WPL-R0706011
...
23
Screw WPL-WP7101P126-60
...
24
Screw WPL-WP4159193
...
25
Nut WPL-M0282009
...
26
Leg,leveling Xxx WPL-314187B
...
27
Brace, Leveling Leg (Rt) WPL-31854502
...
28
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
29
Bracket, Anti Tip WPL-31945201
...
30
Anchor, Plastic WPL-Y0301555

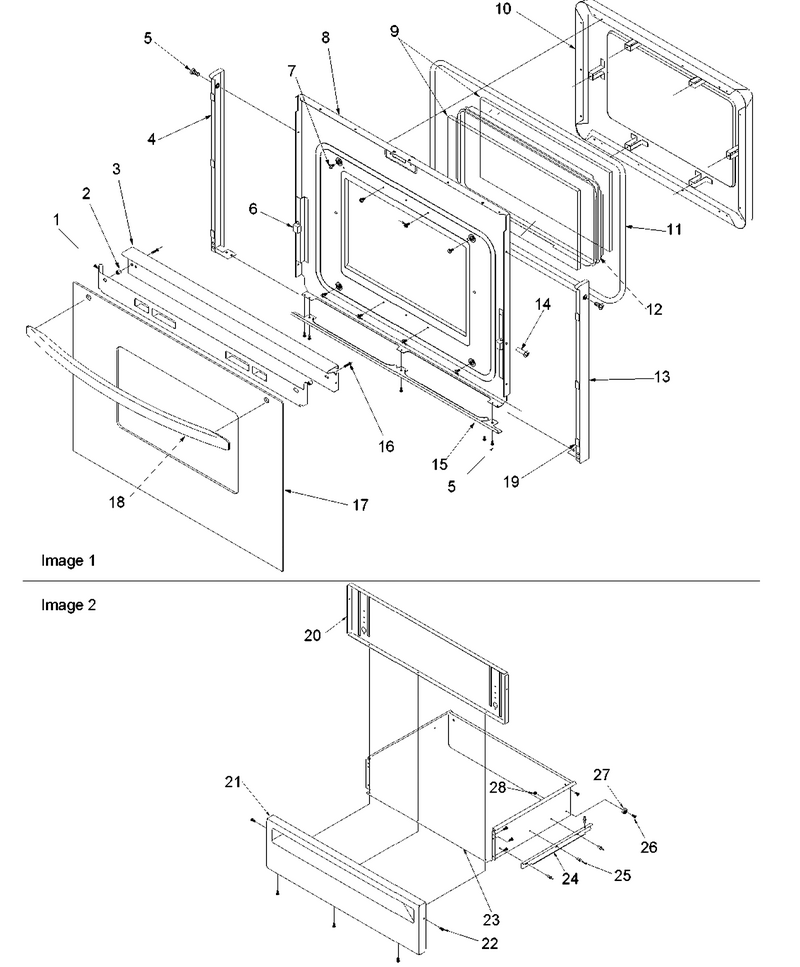

04 - Oven Door And Storage Door

...
...
NI
Insulation, Oven Door WPL-31977701
...
1
Assy, Glass Heat Shield WPL-31833201
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Wht) WPL-32054203W
...
4
End Cap, Lt (Wht) WPL-309458W
...
5
Screw WPL-W11245710
...
6
Bumper, Rubber WPL-Y0309627
...
7
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
8
Backer, Oven Door (Elec) WPL-317028CG
...
9
Glass, Door WPL-Y0317019
...
10
Pad, Oven Door WPL-317021CG
...
11
Gasket, Oven Door (67``) WPL-31715902
...
12
Frame, Window Pack WPL-Y0317020
...
13
End Cap, Rt (Wht) WPL-309457W
...
14
Rivet, Pop WPL-Y0302648
...
15
Support- G WPL-R9800243
...
16
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
17
Glass, Oven Dr (White) WPL-315944W
...
18
Handle- Ov WPL-77001119
...
19
Tape, Foam WPL-0043184
...
20
Liner, Drawer Panel (Blk) WPL-31930601B
...
21
Panel, Drawer (Wht) WPL-309177W
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Track, Storage Drawer WPL-31733301
...
25
Rivet, Pop WPL-Y0097822
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut WPL-M0282009
