Amana CSR6203W (BOM: P1143839N W)

Model: CSR6203W (BOM: P1143839N W)

Save Part Not Listed?
product name

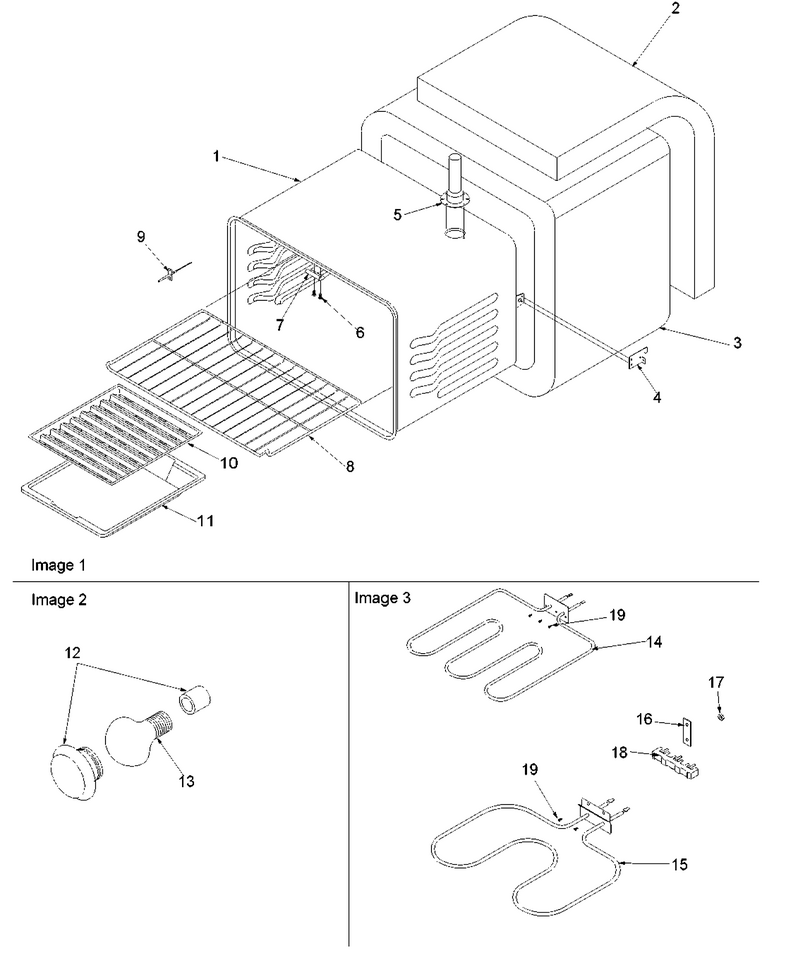

02 - Cavity

...
...
NI
Wire, Insulation Retainer 100`` WPL-31715801
...
1
Oven Shell (El. W/lt) WPL-31821301CG
...
2
Insulation, Wrapper WPL-31975801
...
3
Insulation, Wrapper WPL-31975801
...
4
Bracket, Oven Cavity WPL-Y0058852
...
5
Smoke Eliminator, Tall WPL-Y0316951
...
6
Screw WPL-W11245710
...
7
Cover, Chip WPL-Y0315022
...
8
Rack-Oven WPL-WP314763J
...
9
Sensor WPL-WPY0314907
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Procelain Broiler (Pan And Grid) WPL-4396923
...
12
Oven Light Assy WPL-31823701
...
13
Light Bulb WPL-8009
...
14
Element- B WPL-WP77001094
...
15
Broil Elem WPL-WPY0063532
...
16
Block-Term WPL-WPW10245259
...
17
Hex Nut (Nkl) WPL-31750124
...
18
Block-Term WPL-WP8203546
...
19
Screw WPL-WP7101P126-60

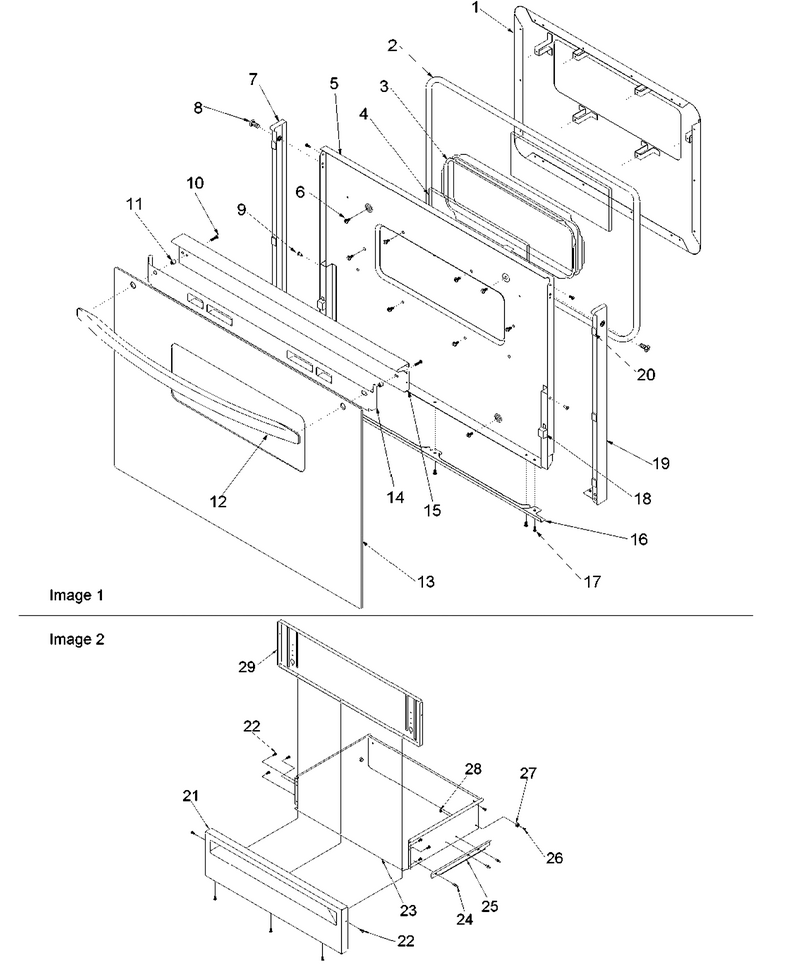

04 - Oven Door And Storage Drawer

...
...
NI
Insulation,door-Sub Backer WPL-0062614
...
1
Pad, Door (Enameled) WPL-316976CG
...
2
Gasket, Oven Door (67``) WPL-31715902
...
3
Frame, Window Pack WPL-Y0316975
...
4
Glass, Double Coated WPL-Y0316974
...
5
Backer, Oven Door (Sm Window) WPL-316978CG
...
6
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
7
End Cap, Lt (Blk) WPL-309458B
...
8
Screw WPL-W11245710
...
9
Rivet, Pop WPL-Y0302648
...
10
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
11
Bushing, Handle (Nal) WPL-Y0309461
...
12
Handle, Oven Door (Blk) WPL-77001118
...
13
Glass, Oven Door WPL-315943B
...
14
Assy, Glass Heat Shield WPL-31833201
...
15
Trim, Door Top (Blk) WPL-32054201B
...
16
Asy- Door WPL-12002810
...
17
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
18
Bumper, Rubber WPL-Y0309627
...
19
End Cap, Rt (Blk) WPL-309457B
...
20
Tape, Foam WPL-0043184
...
21
Panel, Drawer (Wht) WPL-309177W
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Rivet, Pop WPL-Y0097822
...
25
Track, Storage Drawer WPL-31733301
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut WPL-M0282009
...
29
Liner, Drawer Panel (Blk) WPL-31930601B

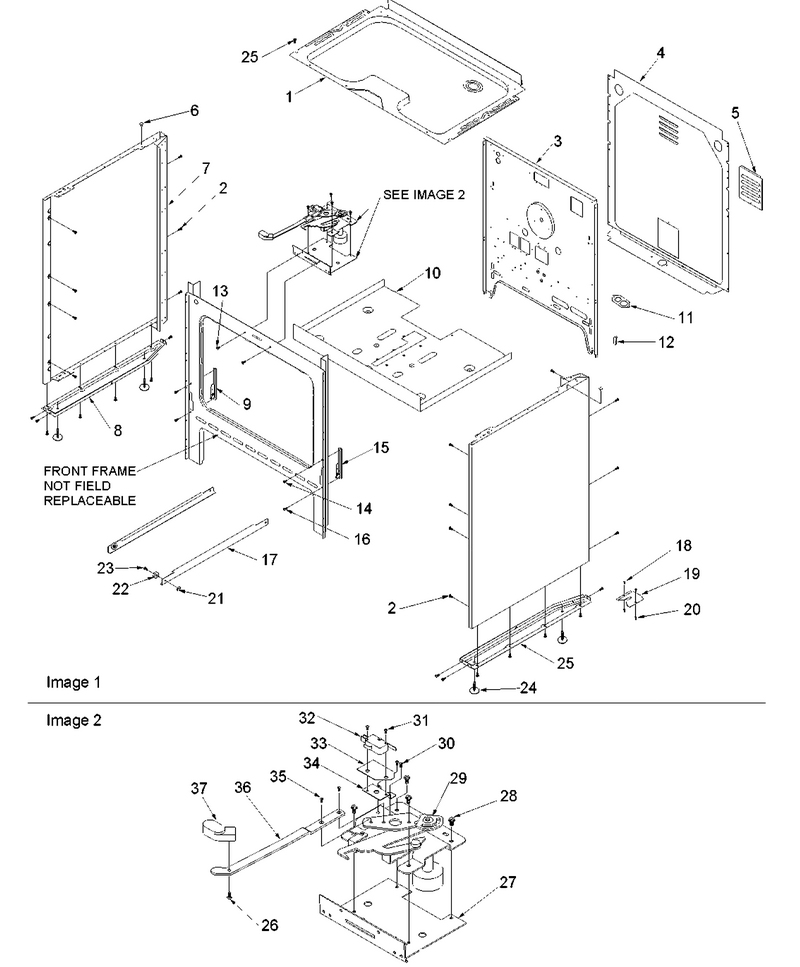

01 - Cabinet

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Baffle, Drip (Enamel) WPL-31836001CG
...
2
Screw WPL-W11245710
...
3
Retainer, Rear (Elec) WPL-31733901
...
4
Cover, Rear WPL-31757101
...
5
Plate, Access WPL-31757201
...
6
Spacer, Snap-In WPL-31717001
...
7
Panel, Side (Wht) WPL-31825104W
...
8
Brace, Leveling Leg (Lt) WPL-31854501
...
9
Hinge, Oven Door (Lt) WPL-31715201
...
10
Retainer, Insulation (Bottom) WPL-Y0309061
...
11
Plate, Main Inlet Wire WPL-0058311
...
12
Cable, Clip Esm WPL-Y0091587
...
13
Screw WPL-W11245710
...
14
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
15
Hinge-Door WPL-R0706011
...
16
Screw WPL-WP4159193
...
17
Track, Mounting WPL-32075601
...
18
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
19
Bracket, Anti Tip WPL-31945201
...
20
Anchor, Plastic WPL-Y0301555
...
21
Nut WPL-M0282009
...
22
Roller, Drawer WPL-31733401
...
23
Bolt, Shoulder 10-32 WPL-31750717
...
24
Leg,leveling Xxx WPL-314187B
...
25
Brace, Leveling Leg (Rt) WPL-31854502
...
26
Screw 6 32x5/16 Ph Fh WPL-Y0041769
...
27
Bracket, Latch Mounting WPL-31848301
...
28
Screw WPL-W11245710
...
29
Latch, Oven Door (Elec) WPL-31719901
...
30
Screw, Tt 23 4-40 X 5/8 WPL-Y0065664
...
31
Screw 4-40x1 WPL-Y0092365
...
32
Switch, Clean Circuit WPL-Y0065780
...
33
Insulation, Esm WPL-Y0091523
...
34
Bracket, Switch WPL-Y0302316
...
35
Screw WPL-WP4159193
...
36
Latch Arm WPL-303039B
...
37
Knob, Latch Handle (Blk) WPL-0302300

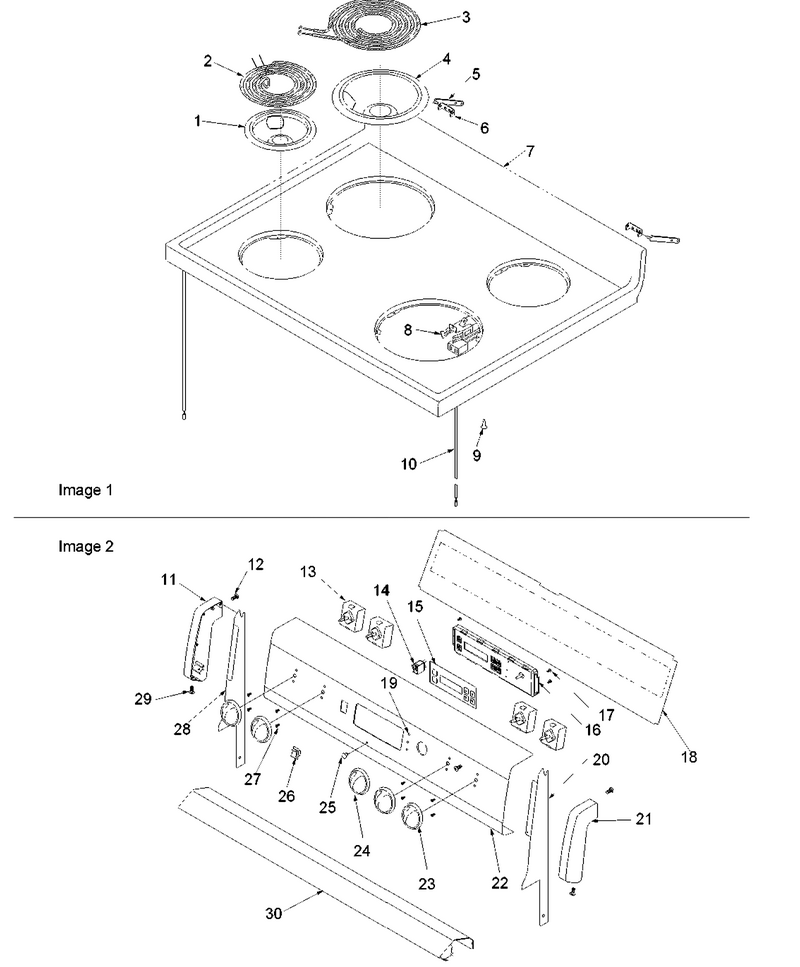

03 - Main Top And Backguard

...
...
NI
Screw, No.8-18 X 1/4 P Trs Hd WPL-31750422
...
1
Bowl-Drip WPL-WPW10196406
...
2
Elmnt-Surf WPL-WPW10345407
...
3
Elmnt-Surf WPL-WP9761346
...
4
Bowl-Drip WPL-WPW10196405
...
5
Pin, Hinge WPL-Y0315931
...
6
Brkt, Hinge Strap Mtg WPL-Y0306150
...
7
Main Top-Electric Upswept WPL-306899W
...
8
Receptacle WPL-330031
...
9
Spacer, Snap-In WPL-31717001
...
10
Support, Maintop WPL-Y0315430
...
11
End Cap WPL-WP315843B
...
12
Screw WPL-WP693995
...
13
Switch- In WPL-WP74011243
...
14
Light-Ind WPL-WP903115
...
15
Overlay, Krc Mm (Black) WPL-31777904B
...
16
Krc Electric WPL-31771301
...
17
Screw WPL-WP693995
...
18
Cover, Upper Rear WPL-0315887
...
19
Lens, Ind Light (Mini Snap In) WPL-31780501
...
20
Bkgd. Support-Rh WPL-315876B
...
21
End Cap WPL-WP315841B
...
22
Panel, Backguard(Caloric) WPL-31779441B
...
23
Knob, Infinite Switch (Blk) WPL-31760101B
...
24
Knob, Thermostat Krc (Blk) WPL-31760307B
...
25
Lens, Indicator Light WPL-31780502
...
26
Switch, Rocker WPL-Y0063997
...
27
Screw, No.8-32 X 1/4 WPL-31750714
...
28
Bkgd. Support-Lh WPL-315877B
...
29
Screw WPL-74009538
...
30
Shield, Bkgd Trim Heat WPL-31722704B
