Amana CSG7601WW (BOM: P1143398NWW)

Model: CSG7601WW (BOM: P1143398NWW)

Save Part Not Listed?
product name

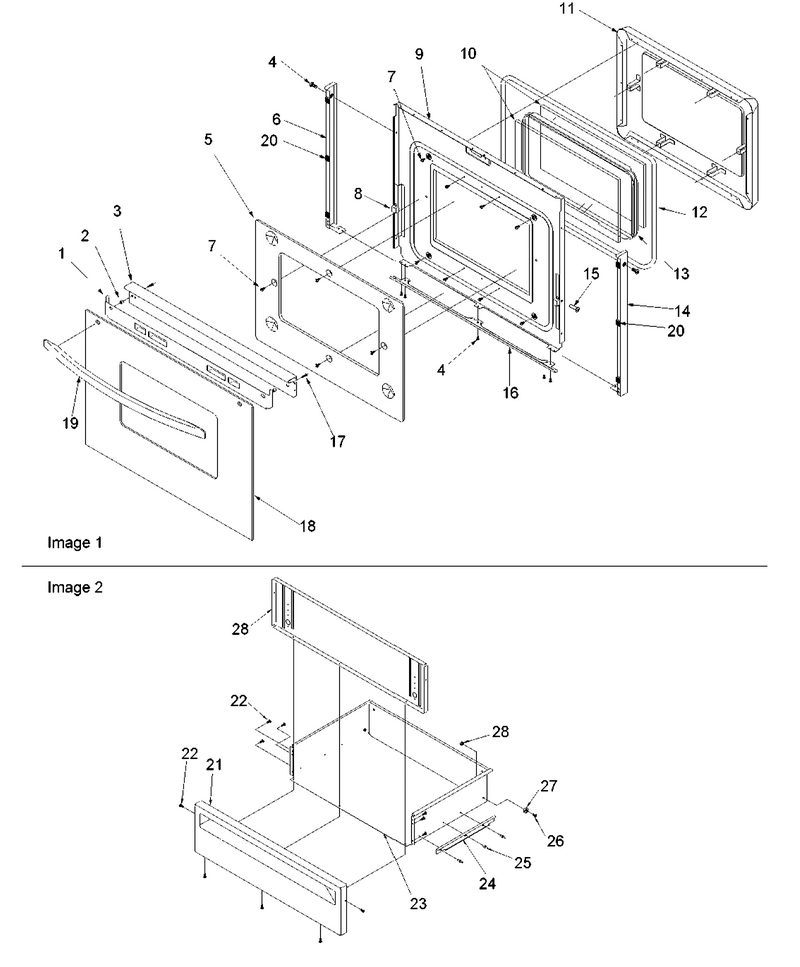

05 - Oven Door And Storage Door

...
...
NI
Insulation, Oven Door WPL-31977701
...
1
Assy, Glass Heat Shield WPL-31833201
...
2
Bushing, Handle (Nal) WPL-Y0309461
...
3
Trim, Door Top (Wht) WPL-32054203W
...
4
Screw WPL-W11245710
...
5
Shield, Heat WPL-Y0309068
...
6
End Cap, Door (Lt-Wht) WPL-309523W
...
7
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
8
Bumper, Rubber WPL-Y0309627
...
9
Backer, Oven Door WPL-317023CG
...
10
Glass, Door WPL-Y0317019
...
11
Pad, Oven Door WPL-317021CG
...
12
Gasket, Oven Door (67``) WPL-31715902
...
13
Frame, Window Pack WPL-Y0317020
...
14
End Cap, Door (Rt-Wht) WPL-309522W
...
15
Rivet, Pop WPL-Y0302648
...
16
Support- G WPL-R9800243
...
17
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
18
Glass, Oven Door (Wht) WPL-316238W
...
19
Handle- Ov WPL-77001119
...
20
Tape, Foam WPL-0043184
...
21
Panel, Drawer (Wht) WPL-309176W
...
22
Screw WPL-W11245710
...
23
Drawer, Storage (Wht) WPL-32059403W
...
24
Track, Storage Drawer WPL-31733301
...
25
Rivet, Pop WPL-Y0097822
...
26
Bolt, Shoulder 10-32 WPL-31750717
...
27
Roller, Drawer WPL-31733401
...
28
Nut WPL-M0282009

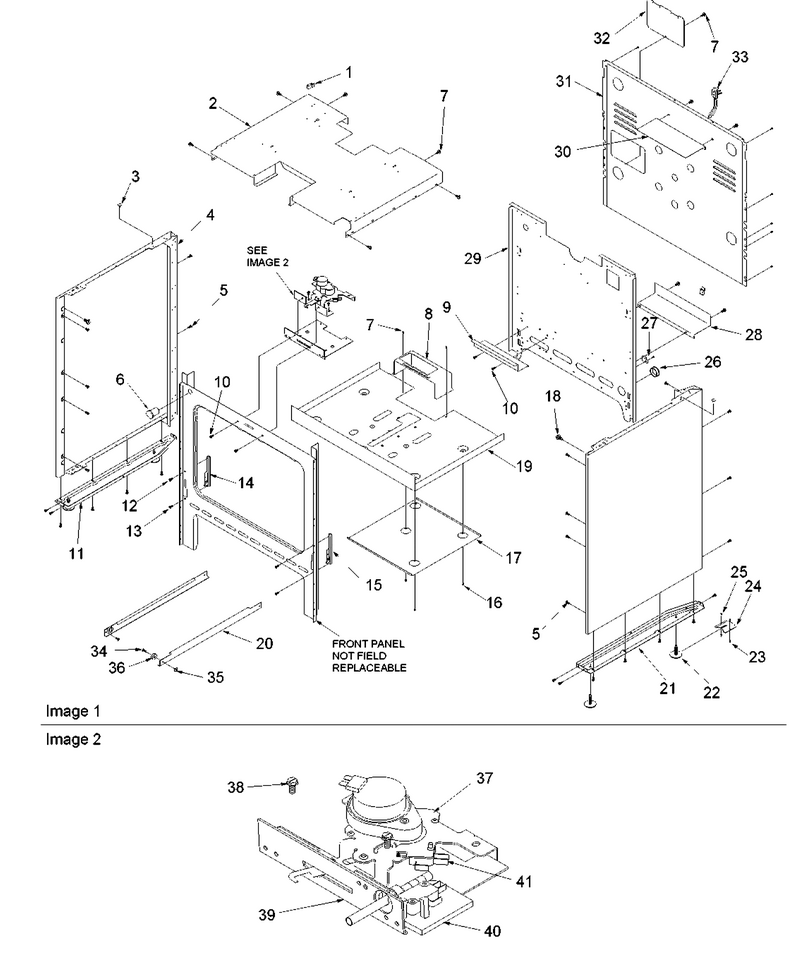

02 - Cabinet

...
...
NI
Anti-Tip Pack WPL-31970801
...
1
Cable, Clip Esm WPL-Y0091587
...
2
Retainer, Top Insul WPL-31730801
...
3
Spacer, Snap-In WPL-31717001
...
4
Panel, Side (Wht) WPL-31825104W
...
5
Screw WPL-W11245710
...
6
Plug, Button (3/4``-Blk) WPL-Y0315328
...
7
Screw WPL-WP693995
...
8
Cover, Ig/bake Burner WPL-Y0302498
...
9
Wire Raceway WPL-31782401
...
10
Screw WPL-W11245710
...
11
Brace, Leveling Leg (Lt) WPL-31854501
...
12
Screw WPL-WP7101P126-60
...
13
Screw WPL-WP4159193
...
14
Hinge, Oven Door (Lt) WPL-31715201
...
15
Hinge-Door WPL-R0706011
...
16
Screw, No.8-18 X .500 Ab (Blk) WPL-31750719
...
17
Shield WPL-0059596
...
18
Screw, Shoulder Abno.8-18 X .550 WPL-31750718
...
19
Retainer, Bot Insul WPL-31719301
...
20
Track, Mounting WPL-32075601
...
21
Brace, Leveling Leg (Rt) WPL-31854502
...
22
Leg,leveling Xxx WPL-314187B
...
23
Anchor, Plastic WPL-Y0301555
...
24
Bracket, Anti Tip WPL-31945201
...
25
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
26
Bushing, Snap (Blk) WPL-308655B
...
27
Wire Clamp, Insulated WPL-Y0074685
...
28
Cover, Electrical WPL-Y0306827
...
29
Retainer, Rear Insul WPL-31733101
...
30
Shield, Krc Heat WPL-31791301
...
31
Cover, Rear WPL-Y0315888
...
32
Plate, Access WPL-31800001
...
33
Power Cord WPL-Y0306654
...
34
Bolt, Shoulder 10-32 WPL-31750717
...
35
Nut WPL-M0282009
...
36
Roller, Drawer WPL-31733401
...
37
Latch, Door WPL-31933401
...
38
Screw WPL-WP693995
...
39
Bracket, Latch Mounting WPL-31848301
...
40
Switch, Plunger WPL-31933601
...
41
Switch, Micro WPL-31899201

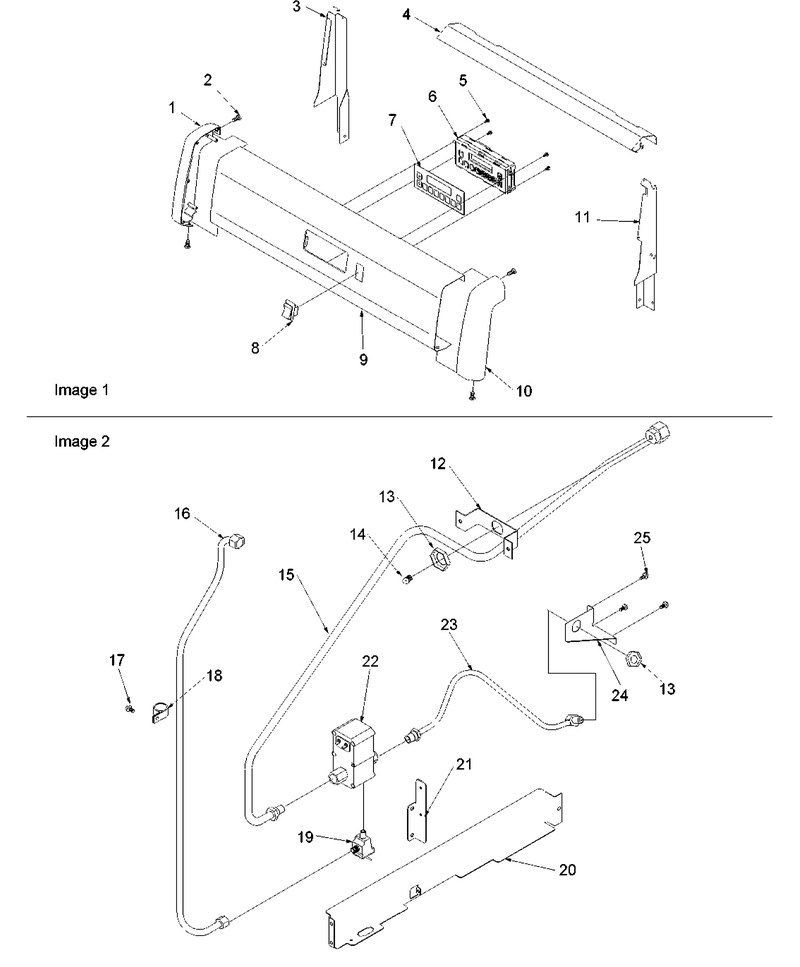

01 - Backguard And Gas Supply

...
...
NI
Harness, Bkgrd Erc WPL-Y0316203
...
1
End Cap Lh WPL-315843W
...
2
Screw, No.6-20 X .375 Pan Hd WPL-31750309
...
3
Bkgd. Support-Lh WPL-315877W
...
4
Shield, Bkgd Trim Heat WPL-31722704B
...
5
Screw, No.8-18 X 3/8 Pph (Blk) WPL-31750407
...
6
Erc3 (Gas) WPL-Y0315569
...
7
Overlay, Erc Mm (White) WPL-31858002W
...
8
Switch, Rocker WPL-301491W
...
9
Pnl,bkgd-Screened (White) WPL-31857808W
...
10
End Cap Rh WPL-315841W
...
11
Bkgd. Support-Rh WPL-315876W
...
12
Brkt, Broil Orifice WPL-Y0315018
...
13
Nut, Pal 3/4-16 X 1.062 WPL-31750116
...
14
Orifice, No.58 Lp WPL-31864901
...
15
Tubing, Valve To Broil WPL-Y0316210
...
16
Tubing Assy WPL-31769901
...
17
Screw, No.6-32 X .375 Panhd(Blk) WPL-31750308
...
18
Cable, Clip Esm WPL-Y0091587
...
19
Valve, Shutoff WPL-0306428
...
20
Brkt, Dual Valve WPL-Y0316216
...
21
Brk`t, Gas Valve WPL-Y0316789
...
22
Valve, Gas WPL-Y0316220
...
23
Tubing, Orifice Assy WPL-Y0316791
...
24
Brkt, Bake Venturi WPL-Y0316251
...
25
Screw WPL-WP693995

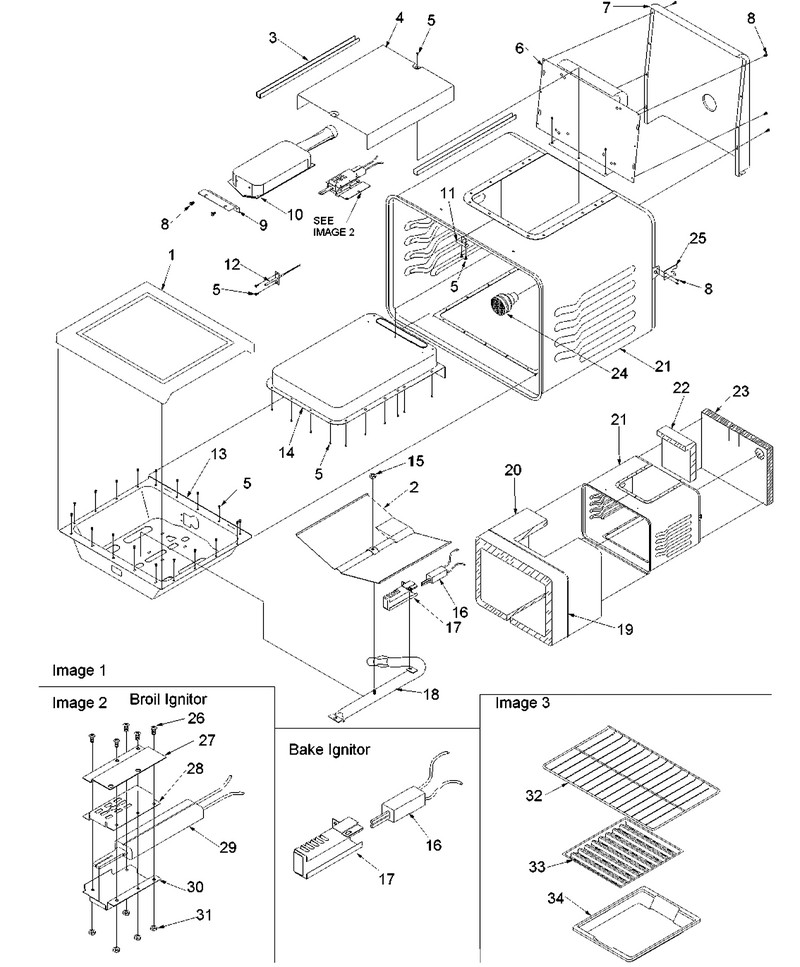

03 - Cavity

...
...
NI
Screw WPL-W11245710
...
1
Bottom, Oven WPL-316214CG
...
2
Baffle, Oven Burner WPL-Y0316215
...
3
Channel, Broil Burner WPL-Y0304019
...
4
Heat Shield, Broil WPL-Y0309733
...
5
Screw WPL-W11245710
...
6
Flue, Enameled WPL-306456CG
...
7
Flue, Dilution WPL-Y0316510
...
8
Screw WPL-WP693995
...
9
Bracket, Mtg. Br. Support WPL-Y0060687
...
10
Assy, Br. Burner WPL-Y0060691
...
11
Cover, Chip WPL-Y0315022
...
12
Sensor WPL-WPY0314907
...
13
Burner Box, Lower WPL-Y0063802
...
14
Weldm`t, Broil Chamber WPL-31730501
...
15
Nut WPL-M0282009
...
16
Ignitor- B WPL-WP31940001
...
17
Bracket, Igniter Mounting WPL-31957101
...
18
Burner, Oven WPL-Y0316211
...
19
Wire, Insulation Retainer 100`` WPL-31715801
...
20
Insulation WPL-31976201
...
21
Oven Shell (Gas W/lt) WPL-31821701CG
...
22
Insulation WPL-31976001
...
23
Insulation WPL-31976101
...
24
Oven Light Assy WPL-31823701
...
25
Bracket, Oven Cavity WPL-Y0058852
...
26
Screw, No.6-32 X .375 Panhd(Blk) WPL-31750308
...
27
Bracket Ignitor Mtg WPL-Y0303112
...
28
Shield, Top Igniter WPL-0063781
...
29
Kit, Ignitor WPL-786324
...
30
Ignitor Shield-Bottom WPL-Y0308104
...
31
Nut K WPL-M0282005
...
32
Rack-Oven WPL-WP314763J
...
33
Procelain Broiler (Pan And Grid) WPL-4396923
...
34
Procelain Broiler (Pan And Grid) WPL-4396923

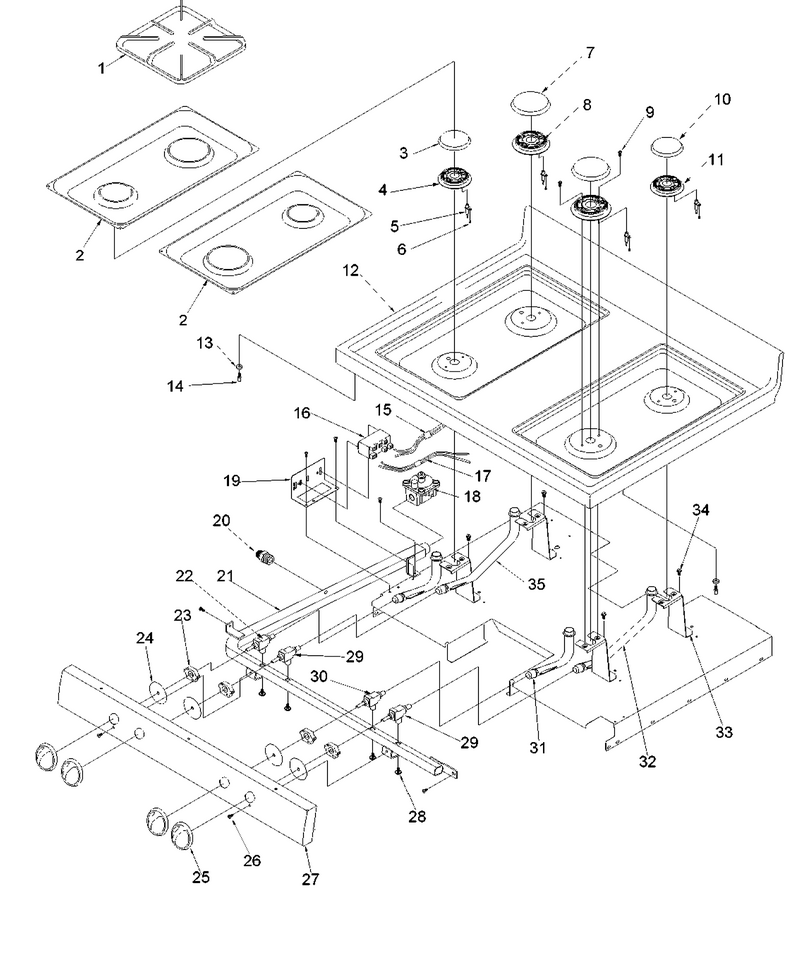

04 - Main Top

...
...
NI
Screw, Stud WPL-31750709
...
1
Grate Single(Gray) WPL-31719102SY
...
2
Bowl- Burn WPL-WP315600B
...
3
Cap, Burner 5k (Speckle Grey) WPL-31782502SY
...
4
Top Burner (Small 5k) WPL-Y0315769
...
5
Igntr-Surf WPL-WPY0316773
...
6
Screw, Electrode WPL-Y0316775
...
7
Cap-Burner WPL-WP31782702SY
...
8
Burnr-Head WPL-WP7504P109-60
...
9
Screw WPL-WPY04100059
...
10
Cap-Burner WPL-WP31782602SY
...
11
Top Burner WPL-WPY0315768
...
12
Main Top,gas,deep Sump WPL-315102W
...
13
Spacer, Nylon (.14``) WPL-Y0062445
...
14
Screw, No.8-18 X 3/8 Pph (Blk) WPL-31750407
...
15
Harness, Spark Module (31``) WPL-Y0316742
...
16
Spark Module, 4+0 WPL-0315154
...
17
Harness, Spark Module (20``) WPL-Y0316743
...
18
Regulator, Pressure WPL-Y0308866
...
19
Bracket WPL-WPW10116817
...
20
Fitting, 1/8``x 3/8`` WPL-Y0301263
...
21
Pipe, Manifold WPL-Y0316219
...
22
Valve, Gas 270 Deg (5k Btu) WPL-Y0315960
...
23
Switch- Sp WPL-WPY0316572
...
24
Shield, Switch WPL-Y0316741
...
25
Knob, Top Burner Valve (Wht) WPL-31905402W
...
26
Screw WPL-W11245710
...
27
Pnl, Manifold (White) WPL-315989W
...
28
Screw WPL-WP8273096
...
29
Valve, Top 12k Btu WPL-Y0315962
...
30
Valve, Gas 270 Deg WPL-Y0315961
...
31
Tube, Venturi-Front WPL-31899401
...
32
Tube, Venturi-Right Rear WPL-31899502
...
33
Brkt, Venturi Mtg WPL-Y0316218
...
34
Screw WPL-WP693995
...
35
Tube, Venturi-Left Rear WPL-31899501
