product name

Amana CSG7103W/P1143397NW Gas Range

Model: CSG7103W-P1143397NW

Save
 Part Not Listed?Part Not Listed?

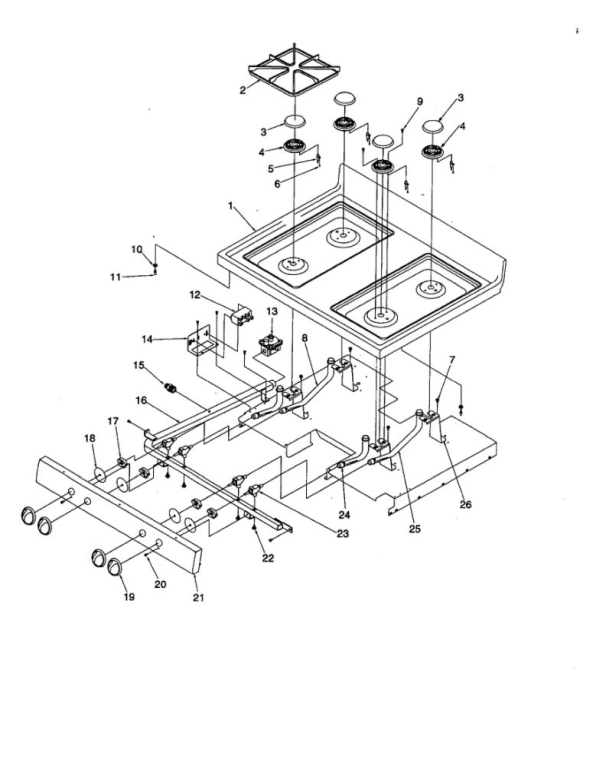

product name

Amana CSG7103W-P1143397NW

...
...
5
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
9
Range Screw WPL-WP7101P126-60
...
16
Refrigerator Screw WPL-W11245710

Amana CSG7103W-P1143397NW

...
...
4
Range Surface Burner Base WPL-WPY0315768
...
5
Range Surface Burner Igniter WPL-WPY0316773
...
7
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
9
Range Screw WPL-WPY04100059
...
11
Refrigerator Screw WPL-W11245710
...
22
Screw WPL-WP8273096

Amana CSG7103W-P1143397NW

...
...
5
Refrigerator Screw WPL-W11245710
...
8
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995
...
11
Range Oven Burner Igniter (Replaces 4315139, 4363426, Y0309159) WPL-786324
...
12
Range Oven Temperature Sensor WPL-WPY0314907
...
17
Range Bake Igniter WPL-WP31940001
...
23
Insulation WPL-31976001
...
30
Range Oven Burner Igniter (Replaces 4315139, 4363426, Y0309159) WPL-786324
...
32
Refrigerator Nut WPL-M0282005
...
33
Range Oven Rack (Replaces 314763J) WPL-WP314763J
...
35
Range Broil Pan WPL-4396923

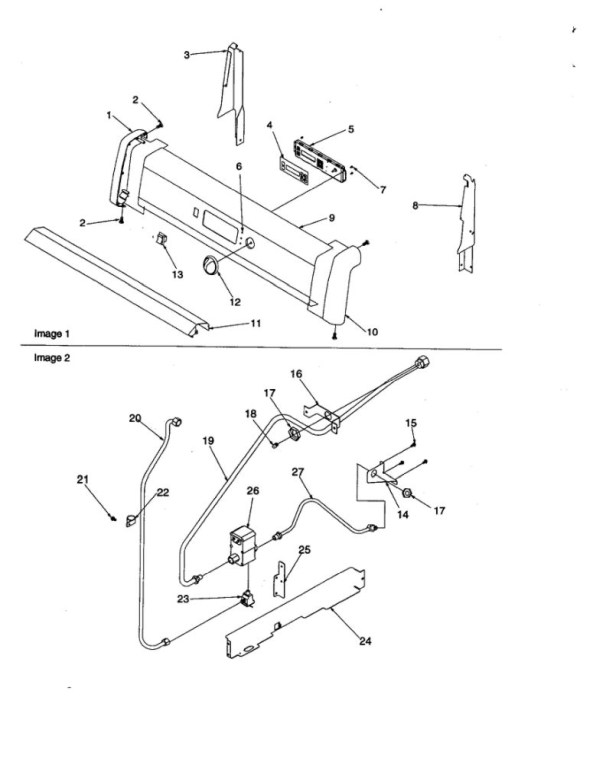

Amana CSG7103W-P1143397NW

...
...
1
Range Control Panel End Cap, Left WPL-WP315843B
...
2
Thread-Cutting Screw WPL-STD610603
...
7
Refrigerator Screw (Replaces W10362924, W11546547, Wp489355) WPL-W11233072
...
10
Range Control Panel End Cap, Right WPL-WP315841B
...
15
Appliance Hex Head Screw, 8-18 X 5/8-In (Replaces 693995) WPL-WP693995

Amana CSG7103W-P1143397NW

...
...
8
Refrigerator Screw WPL-W11245710

Amana CSG7103W-P1143397NW

...
...
NI
Refrigerator Nut WPL-M0282005
...
NI
Refrigerator Screw WPL-W11245710
...
...
...
