Amana CSG3601W (BOM: P1143396N W)

Model: CSG3601W (BOM: P1143396N W)

Save Part Not Listed?
product name

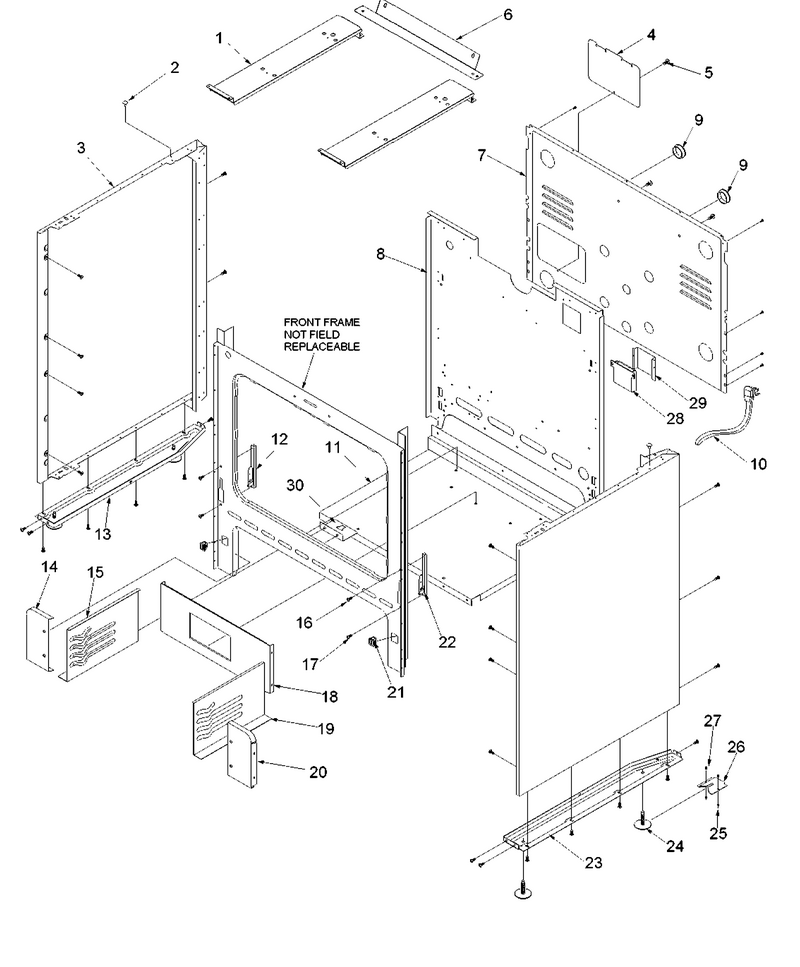

01 - Cabinet

...
...
NI
Strap, Side Pnl WPL-31794401
...
1
Brkt, Mtg Venturi WPL-31816201
...
2
Spacer, Snap-In WPL-31717001
...
3
Panel, Side (Wht) WPL-31825104W
...
4
Plate, Access WPL-31800001
...
5
Screw WPL-WP693995
...
6
Brkt, Flue Support WPL-31853301
...
7
Cover, Rear WPL-Y0315888
...
8
Retainer, Rear Insulation WPL-31825201
...
9
Bushing, Snap (Blk) WPL-308655B
...
10
Harness, Input WPL-31838101
...
11
Bottom, Broil Chamber WPL-31825301
...
12
Hinge, Oven Door (Lt) WPL-31715201
...
13
Brace, Leveling Leg (Lt) WPL-31854501
...
14
Shield, Side Broil Lh WPL-31831704CG
...
15
Side, Broil Chamber L.h. WPL-31831504CG
...
16
Screw WPL-WP4159193
...
17
Screw WPL-WP7101P126-60
...
18
Shield, Burner WPL-31839301
...
19
Side, Broil Chamber R.h. WPL-31831503CG
...
20
Shield, Side Broil Rh WPL-31831703CG
...
21
Door Catch, W/o Catch Spring WPL-31844002
...
22
Hinge-Door WPL-R0706011
...
23
Brace, Leveling Leg (Rt) WPL-31854502
...
24
Leg,leveling Xxx WPL-314187B
...
25
Anchor, Plastic WPL-Y0301555
...
26
Bracket, Anti Tip WPL-31945201
...
27
Screw, No.8-18x5/8 P Rd Hd (Blk) WPL-31750412
...
28
Module, Spark 4+1 WPL-31829601
...
29
Cover, Spark Module WPL-31838401
...
30
Bracket, Frt Burner Support WPL-31855601

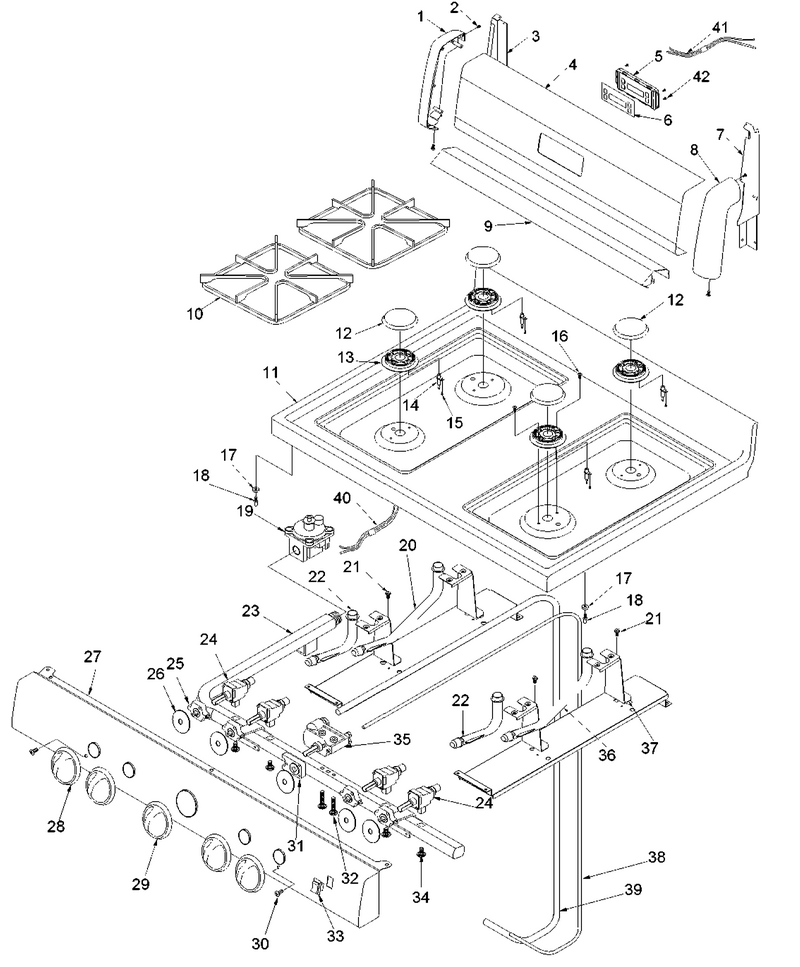

03 - Maintop And Backguard

...
...
NI
Harness, Spark Switch WPL-31830001
...
1
End Cap WPL-WP315843B
...
2
Screw, No.8-18 X 3/8 Pph (Blk) WPL-31750407
...
3
Bkgd. Support-Lh WPL-315877B
...
4
Panel, Backguard(Csg) WPL-31820914B
...
5
Clock/timer,led Slew W/o Ovly WPL-31878000
...
6
Overlay,clock/timer WPL-31954701B
...
7
Bkgd. Support-Rh WPL-315876B
...
8
End Cap WPL-WP315841B
...
9
Shield, Bkgd Trim Heat WPL-31722704B
...
10
Grate, Burner Wire WPL-315978B
...
11
Main Top (White) WPL-315771W
...
12
Cap, Burner 9k (Matte Blk) WPL-31782601MB
...
13
Top Burner WPL-WPY0315768
...
14
Igntr-Surf WPL-WPY0316773
...
15
Screw, Electrode WPL-Y0316775
...
16
Screw WPL-WPY04100059
...
17
Spacer, Nylon (.14``) WPL-Y0062445
...
18
Screw, Stud WPL-31750709
...
19
Regulator, Pressure WPL-31829701
...
20
Tube, Venturi-Right Rear WPL-31899502
...
21
Screw WPL-WP693995
...
22
Tube, Venturi-Front WPL-31899401
...
23
Manifold Pipe WPL-31849302Y
...
24
Valve, 90 Deg Maxi-Shield WPL-31837802
...
25
Switch, Spark Valve (H-W) WPL-31837701
...
26
Shield, Switch WPL-Y0314316
...
27
Manifold Panel, Mrg3600 Black WPL-31820708B
...
28
Knob, Top Burner (Maxi Spark) WPL-31760419B
...
29
Knob, T`stat M/c WPL-31832201B
...
30
Screw WPL-W11245710
...
31
Switch, Spark Therm (H-W) WPL-31837601
...
32
Bolt, T`stat Mtg (H/w) WPL-31750720
...
33
Switch, Rocker WPL-316160B
...
34
Screw WPL-W10491986
...
35
T`stat, Spark (H/w) WPL-31829001
...
36
Tube, Venturi-Left Rear WPL-31899501
...
37
Brkt, Venturi Mtg WPL-Y0316218
...
38
Tubing, T`stat/pilot 51.281`` WPL-31853401
...
39
Tubing,t-Stat To Valve WPL-31826801
...
40
Harness, Spark Wire WPL-31941801
...
41
Harness, Backguard WPL-31839001
...
42
Screw, No.6-20 X .375 Pan Hd WPL-31750309

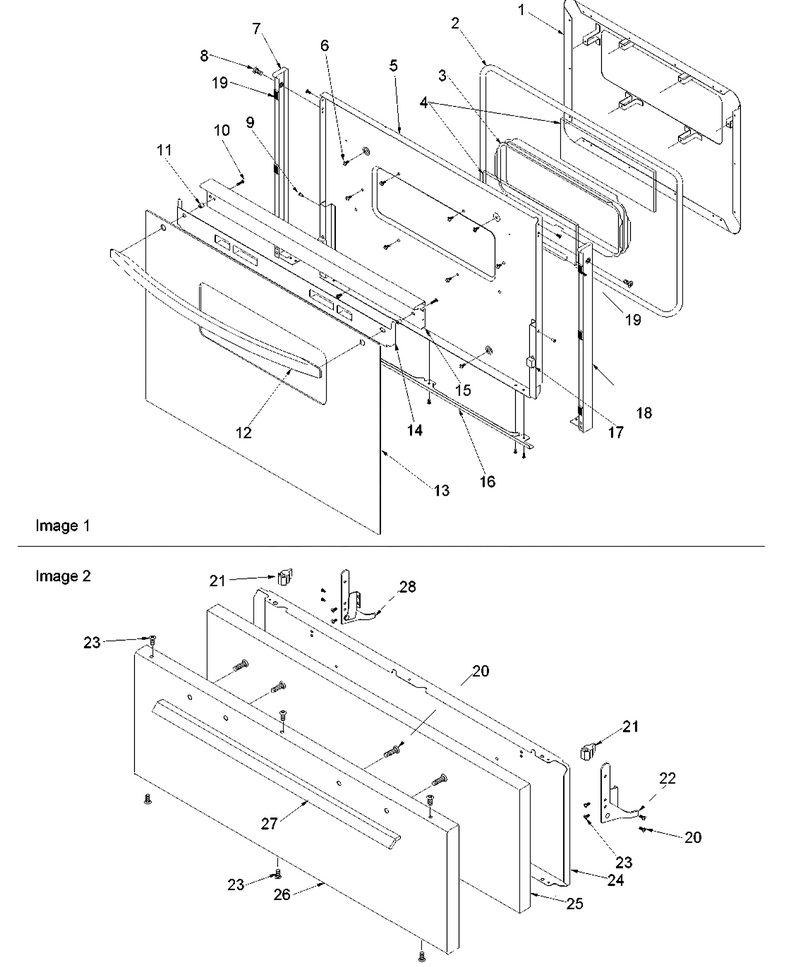

04 - Oven Door And Broiler Door

...
...
NI
Screw WPL-W11245710
...
1
Pad, Door (Enameled) WPL-316976CG
...
2
Gasket, Oven Door (67``) WPL-31715902
...
3
Frame, Window Pack WPL-Y0316975
...
4
Glass, Double Coated WPL-Y0316974
...
5
Backer, Door (Enameled) WPL-317011CG
...
6
Screw, No.8 X .375 Wafer Hd(Blk) WPL-31750706
...
7
End Cap, Door (Lt-Blk) WPL-309523B
...
8
Screw WPL-W11245710
...
9
Rivet, Pop WPL-Y0302648
...
10
Screw, 10-32 X 1.250`` Pan Hd WPL-31750525
...
11
Bushing, Handle (Nal) WPL-Y0309461
...
12
Handle, Oven Door (Blk) WPL-77001118
...
13
Glass, Oven Door (Black) WPL-316227B
...
14
Assy, Glass Heat Shield WPL-31833201
...
15
Trim, Door Top (Blk) WPL-32054201B
...
16
Asy- Door WPL-12002810
...
17
Bumper, Rubber WPL-Y0309627
...
18
End Cap, Door (Rt-Blk) WPL-309522B
...
19
Tape, Foam WPL-0043184
...
20
Screw WPL-WP7101P126-60
...
21
Striker- D WPL-WP71002097
...
22
Hinge, Low Broil Door R.h. WPL-31828101
...
23
Screw WPL-W11245710
...
24
Liner, Door Pnl WPL-31883401CG
...
25
Insulation, Broil Door WPL-31845401
...
26
Door, Low Broil WPL-31831203W
...
27
Handle, Visor WPL-31819007W
...
28
Hinge, Low Broil Door L.h. WPL-31828102

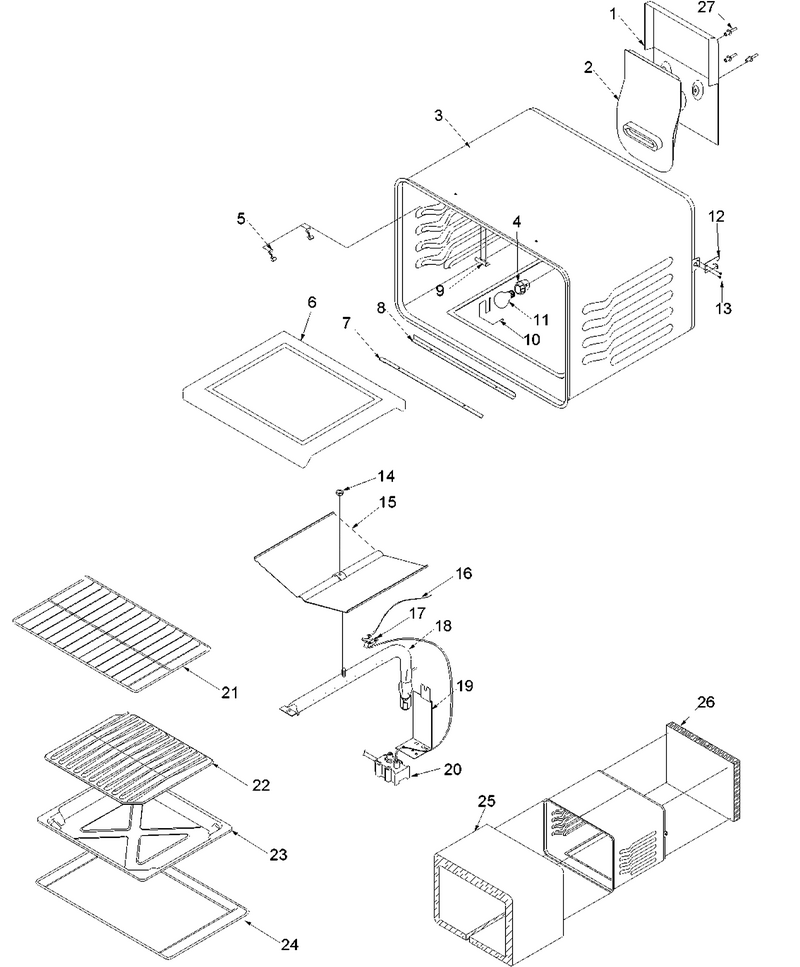

02 - Cavity

...
...
NI
Screw WPL-W11245710
...
1
Shield,flue WPL-31854701
...
2
W/a Flue WPL-31854601
...
3
Shell, Oven (Nsc Gas W/lt) WPL-31819901CG
...
4
Socket, Oven Light WPL-Y0316385
...
5
Clip, Capillary WPL-0316386
...
6
Bottom, Oven WPL-316214CG
...
7
Brkt, Oven Bottom Frt WPL-31831901
...
8
Brkt, Oven Bottom WPL-31826001
...
9
Cover, Chip WPL-Y0315022
...
10
Cage, Oven Light WPL-Y0315057
...
11
Light Bulb WPL-8009
...
12
Bracket, Oven Cavity WPL-Y0058852
...
13
Screw WPL-WP693995
...
14
Nut WPL-M0282009
...
15
Baffle, Oven Burner WPL-31831001
...
16
Ignitor, Spark H/w Oven Burner WPL-31829301
...
17
Pilot, Oven Spark (H/w) WPL-31830101
...
18
Burner, Oven Low Broil WPL-31827801
...
19
Brkt, Gas Valve Support WPL-31825901
...
20
Valve, Safety (H/w) WPL-31827601
...
21
Rack-Oven WPL-WP314763J
...
22
Procelain Broiler (Pan And Grid) WPL-4396923
...
23
Procelain Broiler (Pan And Grid) WPL-4396923
...
24
Rack, Broiler WPL-31832101J
...
25
Insulation, Wrapper WPL-31824801
...
26
Insulation WPL-31976101
...
27
Rivet, Pop WPL-Y0097822
