Amana CSDI25C (BOM: P7390008W)

Model: CSDI25C (BOM: P7390008W)

Save Part Not Listed?
product name

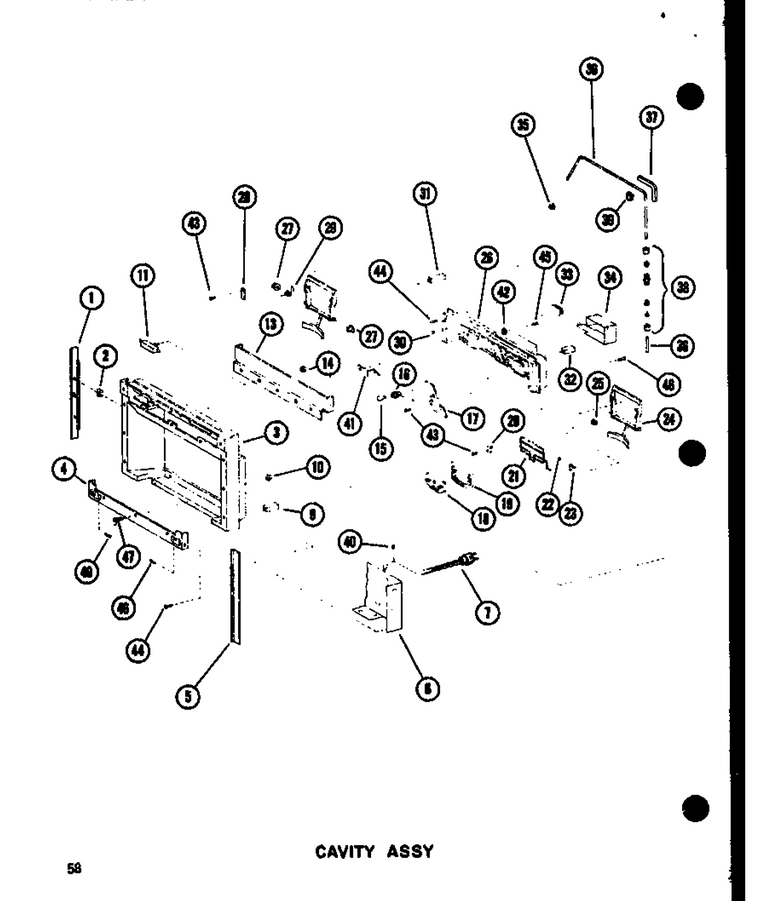

02 - Cavity Assy

...
...
1
Cover, Hinge WPL-B5760701
...
2
Clip WPL-A3267601
...
3
Cavity, Dispenser WPL-D7292501
...
4
Lwr Mull Pntd-G WPL-C8916309
...
5
Seal Strip WPL-B5701301
...
6
Heater, Cavity WPL-D7203901
...
7
Wiring Harness WPL-C8795401
...
9
Spacer WPL-A3211902
...
10
Nut WPL-M0288804
...
11
Switch A WPL-M0340702
...
13
Mullion, Upper, Coppertone WPL-C8810302
...
14
Hex Nut On Switch WPL-Y312706
...
15
Bulb-Light WPL-W10857122
...
16
Light Socket A WPL-B5708201
...
17
Mtg Plate-Socket WPL-A3214401
...
18
Door Chute A/ K WPL-B5695802
...
19
Gasket, Door WPL-B5697801
...
20
Holder Pivot Wire K / A WPL-A3211501
...
21
Pivot Wire WPL-B5695701
...
22
Speed Nut A- K WPL-M0287901
...
23
Spring Door Chute K A WPL-A3211001
...
24
Activating Arm Kit WPL-R0157308
...
25
Bushing-Pivot Wire WPL-B5698601
...
26
Top-Cavity WPL-D7182801
...
27
Bushing WPL-B5698502
...
28
Holder-Arm A WPL-A3211601
...
29
Spring Arm A WPL-B5700601
...
30
Rubber Bumper WPL-A3059002
...
31
Spacer WPL-A3211901
...
32
Spacer WPL-A3211903
...
33
Clip-Cable WPL-M0110505
...
34
Heater Chute Kit WPL-C8702501
...
35
Grommet A WPL-M0580401
...
36
Tube WPL-WPB5705307
...
37
Insul Tubing 1=12`` WPL-A0329806
...
38
Connector WPL-WP2198677
...
39
Spring WPL-A3225902
...
40
Sleeve WPL-B5778701
...
41
Bracket WPL-B5716001
...
42
Washer WPL-M0272504
...
43
Screw A K WPL-M0253704
...
44
Screw-Handle WPL-M0253719
...
45
Screw WPL-M0233716
...
46
Screw WPL-M0216531
...
47
Screw WPL-M0244531
...
48
Screw WPL-WP90767
...
49
Screw WPL-M0227306

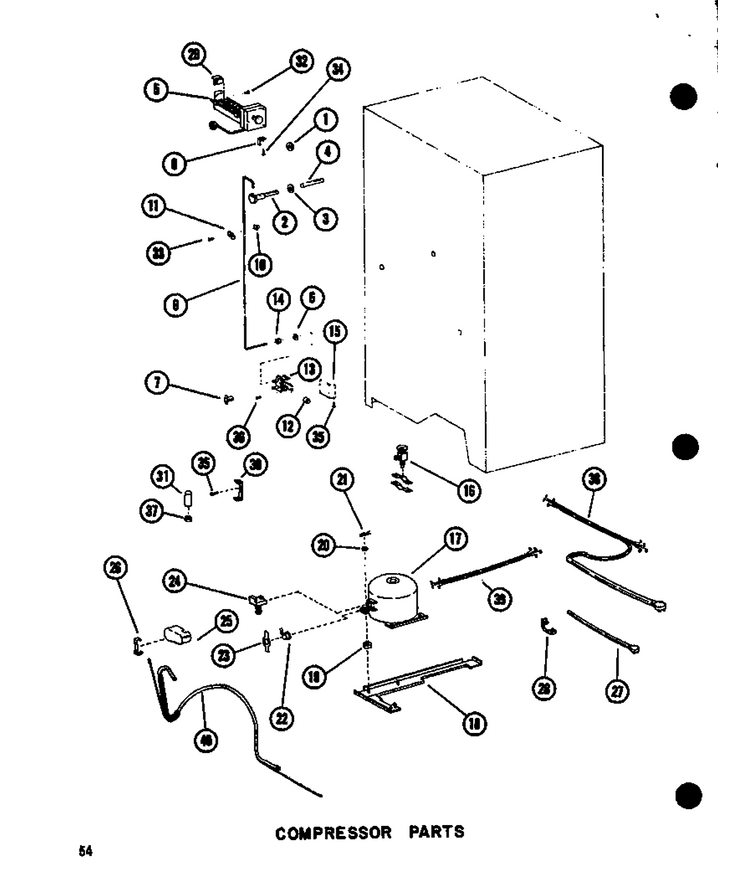

04 - Compressor Parts

...
...
1
Plug, Button (blk) WPL-A3080001
...
2
Fill Tube WPL-R0182123
...
3
Plug Button WPL-A3091301
...
4
Ext-Fill Tube WPL-A3127405
...
5
Kit, Icemaker WPL-D7261601
...
6
O Ring K WPL-M0500702
...
7
Insert- Pl WPL-WPA3223101
...
8
Brkt-Ice Maker WPL-A3224501
...
9
Tube WPL-WPB5705307
...
10
Grommet, Screw WPL-M0580007
...
11
Clamp WPL-M0102804
...
12
Coupling, Solenoid Valve And H WPL-A3084501
...
13
Valve-Inlt WPL-R0175017
...
14
Nut, Compression WPL-M0282201
...
15
Bracket-Solenoid WPL-B5701401
...
16
Saddle Valve WPL-A3034801
...
17
Compressor Ae1413a WPL-C3667002
...
18
Support, Comp. Weld WPL-C3688602
...
19
Grommet K WPL-A3026101
...
20
Washer, Nylon K WPL-M0590101
...
21
Clip K WPL-A3140801
...
22
Overload K WPL-C3689101
...
23
Spring K WPL-A3043601
...
24
Relay WPL-C3689201
...
25
Terminal Cover WPL-B0551801
...
26
Strap K WPL-A3041801
...
27
Power Cord WPL-R0157154
...
28
Grommet, Cord WPL-211881
...
29
Clip WPL-B5720302
...
32
Screw WPL-WP98165
...
33
Screw WPL-WP90767
...
34
Screw WPL-M0253916
...
35
Screw WPL-M0233104
...
36
Screw WPL-M0251017
...
37
End Cap-Capacitor WPL-B5768601
...
38
Wiring Harness WPL-D7400601
...
39
Wiring Harness WPL-B5730802
...
40
Heat Exchanger WPL-D7003902

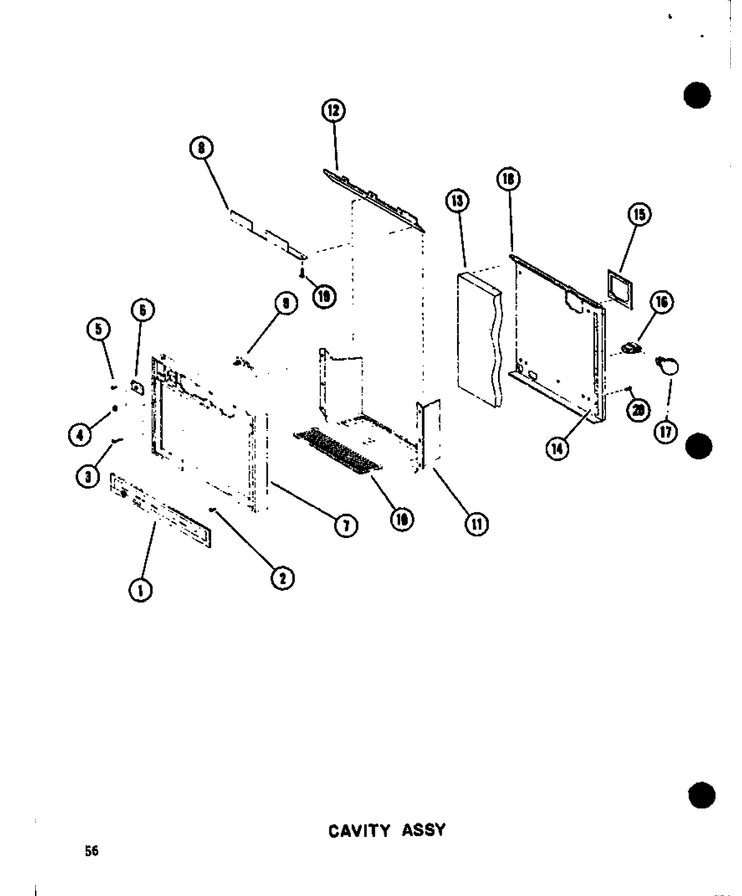

01 - Cavity Assy

...
...
1
Escutcheon WPL-D7190002
...
2
Screw WPL-M0244531
...
3
Screw WPL-WP3400886
...
4
Nut A WPL-M0281401
...
5
Screw WPL-W11084238
...
6
Mtg Plate-Switch WPL-A3221001
...
7
Bezel WPL-D7182601
...
8
Shield Switch WPL-B5716101
...
9
Switch-Light A WPL-M0340107
...
10
Grille WPL-B5698201
...
11
Insert-Cavity WPL-D7182501
...
12
Trim-Cavity WPL-C3693101
...
13
Insulation A WPL-C8701601
...
14
Insulation Block A WPL-A3219101
...
15
Gasket A WPL-A3212304
...
16
Socket Light A WPL-B5777701
...
17
Light Bulb WPL-8009
...
18
Front, Chassis WPL-D7344201
...
19
Screw WPL-M0233728
...
20
Screw WPL-M0254020

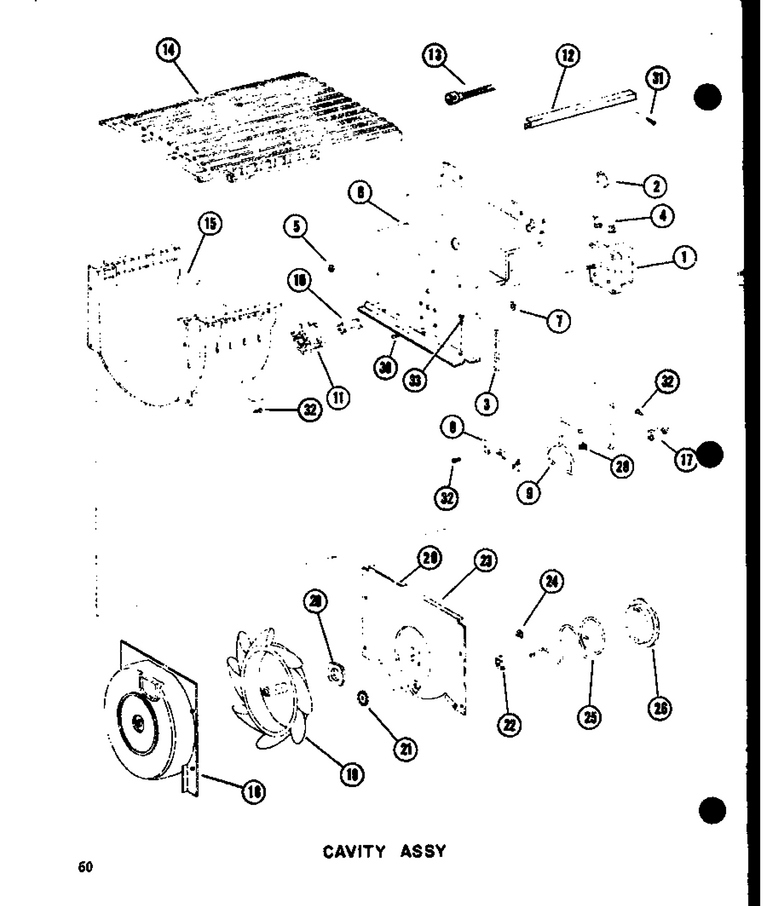

03 - Cavity Assy

...
...
1
Motor WPL-C3696003
...
2
Wiring Harness WPL-C8726901
...
3
Gasket (inch) WPL-A3030301
...
4
Switch-Sealed WPL-M0341501
...
5
Nut, Switch WPL-M0281404
...
6
Rear Chassis WPL-D7372102
...
7
Washer WPL-M0272504
...
8
Holder-Shutoff Arm WPL-B5697601
...
9
Arm-Shut Off WPL-D7341901
...
10
Spline-Drive WPL-B5697701
...
11
Drive Link WPL-C3693601
...
12
Rail, Chassis WPL-C8808401
...
13
Wiring Harness WPL-D7344302
...
14
Shelf, Bottom, Upper Fz WPL-D7182702
...
15
Ice Bucket A WPL-D7550301
...
17
Detent-Shut Off Arm WPL-C3694201
...
18
Cover, Lift Wheel A WPL-D7192602
...
19
Wheel-Lift A WPL-D7192701
...
20
Bushing A WPL-B5698401
...
21
Helix & Pin-Kit WPL-R0157470
...
22
Bushing A WPL-B5700502
...
23
Partition Panel A WPL-D7182001
...
24
Ring-Retaining A WPL-M0274601
...
25
Helix & Pin-Kit WPL-R0157470
...
26
End Cap-Helix A WPL-C3692901
...
28
Grommet WPL-A0288701
...
29
Strip A WPL-A3221801
...
30
Screw WPL-M0202528
...
31
Screw WPL-M0253916
...
32
Screw WPL-WP98165
...
33
Screw WPL-WP3390631

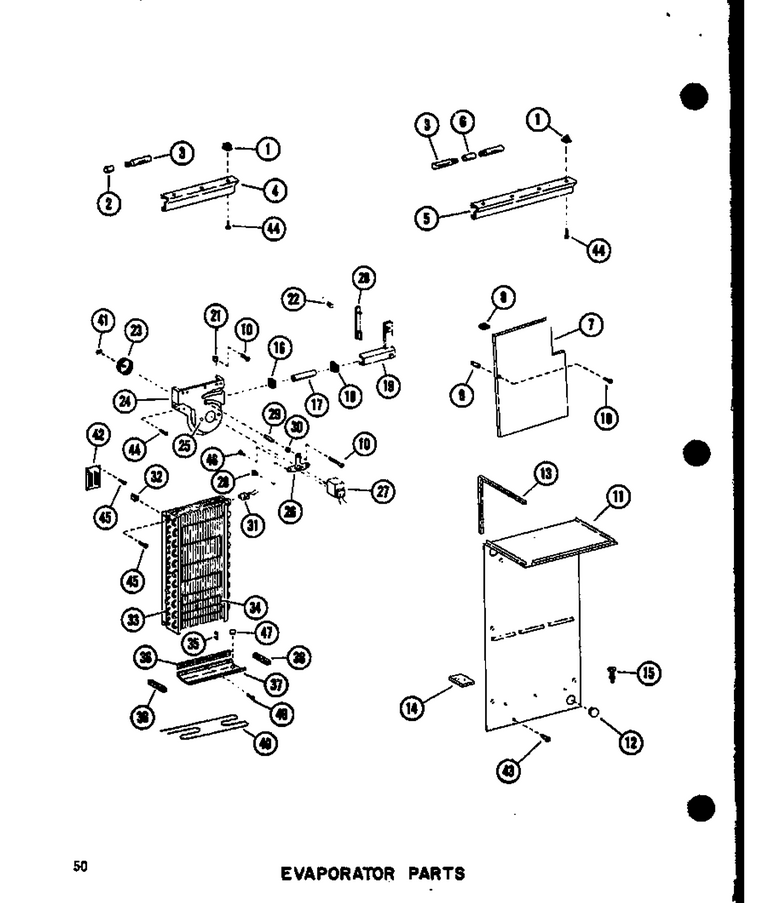

06 - Evap Parts

...
...
1
Grommet, Screw WPL-M0580007
...
2
Socket WPL-B5637601
...
3
Bulb-Light WPL-WPA3073101
...
4
Light Shield WPL-D3954208
...
5
Light Shield WPL-D3954210
...
6
Socket-Light WPL-12096901
...
7
Baffle WPL-C8795702
...
8
Gasket WPL-A4591108
...
9
Spacer WPL-A3044202
...
10
Screw-Sm WPL-M0238636
...
11
Cover-Evap WPL-D7181602
...
12
Plug WPL-A3069103
...
13
Gasket, Bottom WPL-A3189394
...
14
Air Block Spacer K WPL-A3095504
...
15
Drain Tube WPL-C3607401
...
16
Gasket WPL-A3116401
...
17
Tube WPL-C3615301
...
18
Gasket WPL-A3116601
...
19
Escutcheon, Control WPL-B5656705
...
20
Slide-Mt Kpr WPL-B5622803
...
21
Clip WPL-M0118001
...
22
Clip WPL-M0113004
...
23
Blower Wheel WPL-C3587301
...
24
Blower Hsg WPL-D7344604
...
25
Grommet WPL-A4573802
...
26
Mounting Bracket WPL-B5651801
...
27
Motor WPL-C8713101
...
28
Grommet WPL-A0288701
...
29
Spacer,bl Housing WPL-A3044204
...
30
Washer WPL-M0270519
...
31
Thermostat K WPL-C8736601
...
32
Grommet A WPL-M0580002
...
33
Coil Evaporator A WPL-D7136801
...
34
Heater WPL-C3628603
...
35
Clip WPL-M0110301
...
36
Gasket A-K WPL-A3077901
...
37
Drip Tray A-K WPL-C3597801
...
38
Gasket K WPL-A3098302
...
40
Heater Drip Tr A-K WPL-C8723501
...
41
Clip WPL-M0286901
...
42
Terminal Board WPL-B5707501
...
43
Screw (3) WPL-67006425
...
44
Screw WPL-WP90767
...
45
Screw WPL-WP98165
...
46
Screw WPL-M0211020
...
47
Drain Screen WPL-A3113702
...
49
Screw WPL-M0233104

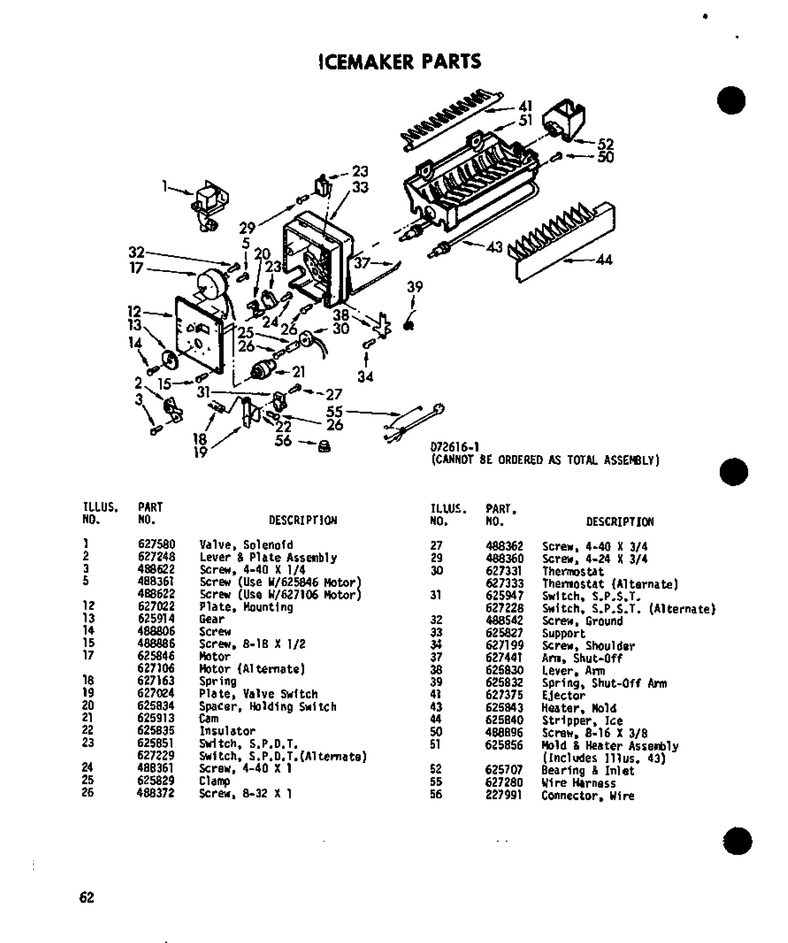

10 - Ice Maker Parts

...
...
NI
Thermostat WPL-R0161026
...
1
Valve-Inlt WPL-R0175017
...
2
Lever & Plate Assembly WPL-627248
...
3
Screw WPL-W11084238
...
5
Screw WPL-488361
...
12
Plate, Mounting WPL-627740
...
13
Gear WPL-WP628210
...
14
Screw, 8-18 X 1/2 WPL-488806
...
15
Screw WPL-WP488787
...
17
Motor WPL-R0154016
...
18
Spring WPL-627163
...
19
Plate, Valve Switch WPL-627024
...
20
Spacer WPL-WP625834
...
21
Cam WPL-625913
...
22
Insulator, Switch (2) WPL-984683
...
23
Switch, S.p.d.t. WPL-625851
...
24
Screw WPL-488361
...
25
Clamp WPL-625829
...
26
Screw WPL-488372
...
27
Screw, 4-40 X 3/4 WPL-488362
...
29
Screw WPL-488360
...
30
Thermostat WPL-R0161026
...
31
Switch, S.p.s.t. WPL-625947
...
32
Screw, Ground WPL-488542
...
33
Support WPL-625827
...
34
Screw, Shoulder WPL-627199
...
37
Shut Off Arm WPL-627441
...
38
Lever Arm WPL-625830
...
39
Spring-Arm WPL-480855
...
41
Ejector WPL-627375
...
43
Kit WPL-R0157335
...
44
Stripper, Ice WPL-625840
...
50
Screw WPL-R0186023
...
51
Assy, Mold & Heater WPL-R0161032
...
52
Inlet Kit WPL-833593
...
55
Harns-Wire WPL-627612
...
56
Connector, Wire WPL-227991

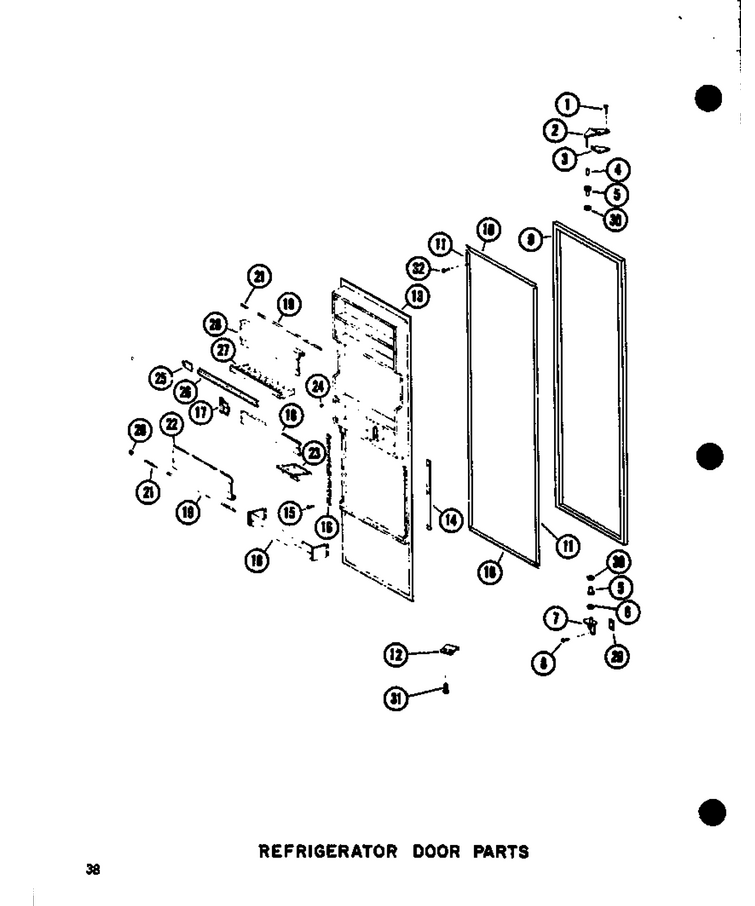

13 - Ref Door Parts

...
...
1
Screw WPL-M0254331
...
2
Hinge-Right WPL-C8816602
...
3
Shim, Top Hinge WPL-B8389007
...
4
Bushing WPL-A3132401
...
5
Flat Bearing (bottom Hinge) WPL-B0539807
...
6
Washer K WPL-M0274014
...
7
Hinge WPL-D7250103
...
8
Screw WPL-WP67006715
...
9
D7092602q WPL-D7092602
...
10
Retainer Gasket WPL-D7025102
...
11
Retainer WPL-D7025101
...
12
Stop Door WPL-A3139801
...
13
Inner Dr Panel Ref WPL-D7181003
...
14
Tap Strip-Ladder WPL-A3133001
...
15
Screw K WPL-M0213517
...
16
Ladder WPL-C3623101
...
17
Support - Cream Lh WPL-B5631705
...
18
Package Ret WPL-D3976717
...
19
Rod A WPL-A3056205
...
20
Spacer Butter Door WPL-A3057003
...
21
Spring K WPL-A3067001
...
22
Door, Butter WPL-C8720401
...
23
Buttertray WPL-67004412A
...
24
Rubber Bumper WPL-A3059002
...
25
Support K WPL-B0530004
...
26
Retainer WPL-B5632001
...
27
Egg WPL-D7025701
...
28
Utility Door WPL-C8720301
...
29
Shim WPL-A3061902
...
30
Seal-O Ring WPL-M0500901
...
31
Screw WPL-M0214028
...
32
Screw WPL-WP98165

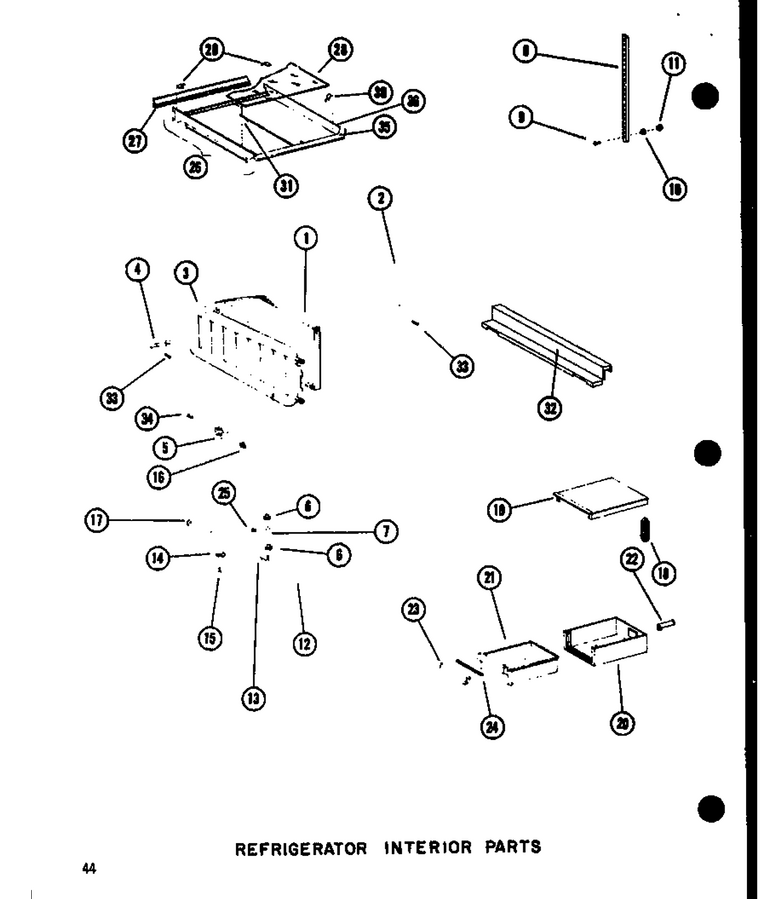

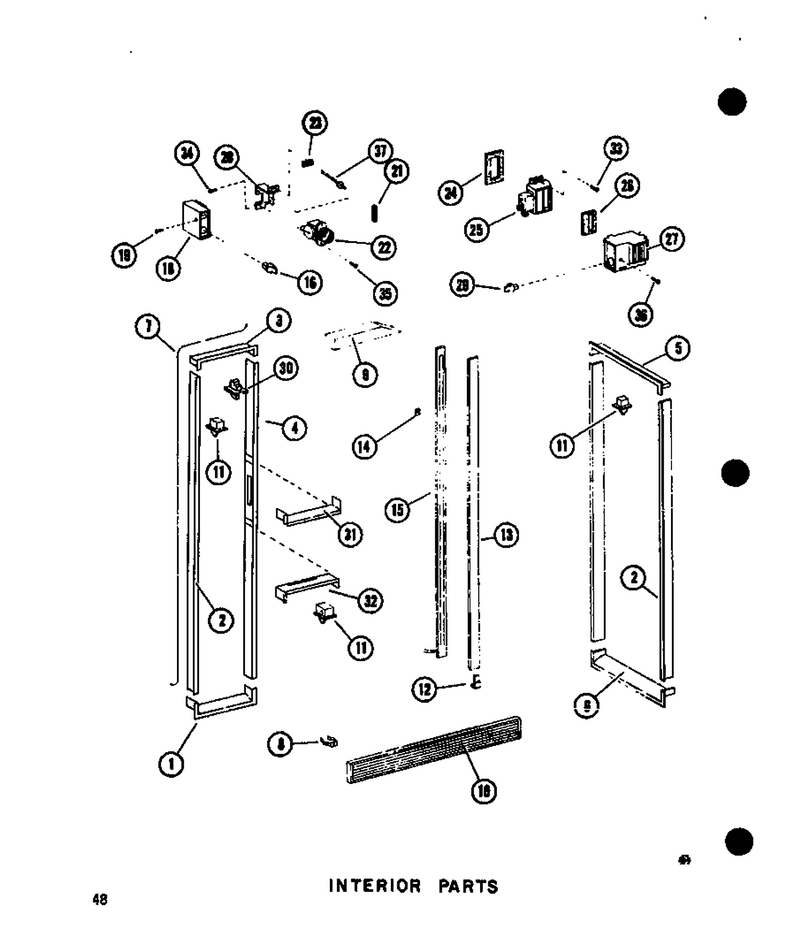

11 - Interior Parts

...
...
1
Breaker Frame WPL-D3952401
...
2
Breaker Frame WPL-D3951709
...
3
Breaker Frame, Fz Top WPL-D3953102
...
4
Breaker Frame WPL-D7180101
...
5
Breaker Frame WPL-D3952503
...
6
Breaker Frame WPL-D3952601
...
7
Heater-Frz Flange WPL-C3628503
...
8
Clip WPL-WPM0117303
...
9
Cover-Switch WPL-B5743601
...
10
Grille WPL-D7070208
...
11
Switch, Light WPL-C3680305
...
12
Key WPL-A3120801
...
13
Mullion, Gold WPL-C8810404
...
14
Clip WPL-M0113401
...
15
Drier, Center Mullion, 115 V., WPL-C3628304
...
16
Knob WPL-D7009801
...
18
Escutcheon WPL-D7345503
...
19
Screw WPL-M0230926
...
20
Bracket, Control WPL-C8702602
...
21
Gasket-Per Ft WPL-A30303-35
...
22
Control WPL-C3615004
...
23
Switch WPL-M0341202
...
24
Gasket-Damper WPL-B8315901
...
25
Control, Ref WPL-C3682901
...
26
Gasket Control WPL-A3113601
...
27
Escutcheon WPL-D7345701
...
29
Knob WPL-D7009802
...
30
Switch WPL-C3680306
...
31
Breaker Frame WPL-C3690901
...
32
Breaker Frame WPL-C3690903
...
33
Screw, S.m. WPL-M0211207
...
34
Screw WPL-WP98165
...
35
Screw WPL-WP90767
...
36
Screw WPL-M0230926
...
37
Rivet A WPL-M0010202

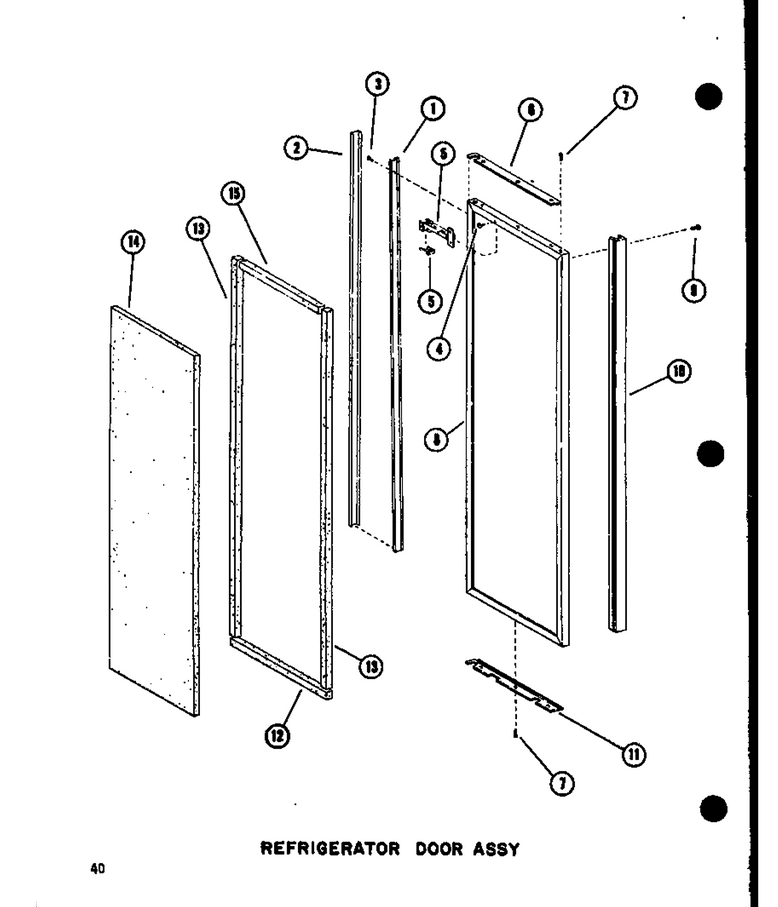

12 - Ref Door Assy

...
...
1
Retainer WPL-C3592901
...
2
Trim WPL-B0599001
...
3
Screw A K WPL-M0211516
...
4
Screw WPL-M1252001
...
5
Door Closure WPL-D7022901
...
6
Trim-Door WPL-D7204901
...
7
Screw WPL-M0214028
...
8
Door Ref Av-T-Sdi25b WPL-D7391208
...
9
Screw WPL-M0254129
...
10
Handle WPL-C8797901
...
11
Trim-Door WPL-D7212301
...
12
Insulation WPL-B0534409
...
13
Insulation WPL-B5629002
...
14
Insulation WPL-B5612005
...
15
Insulation WPL-B5629008

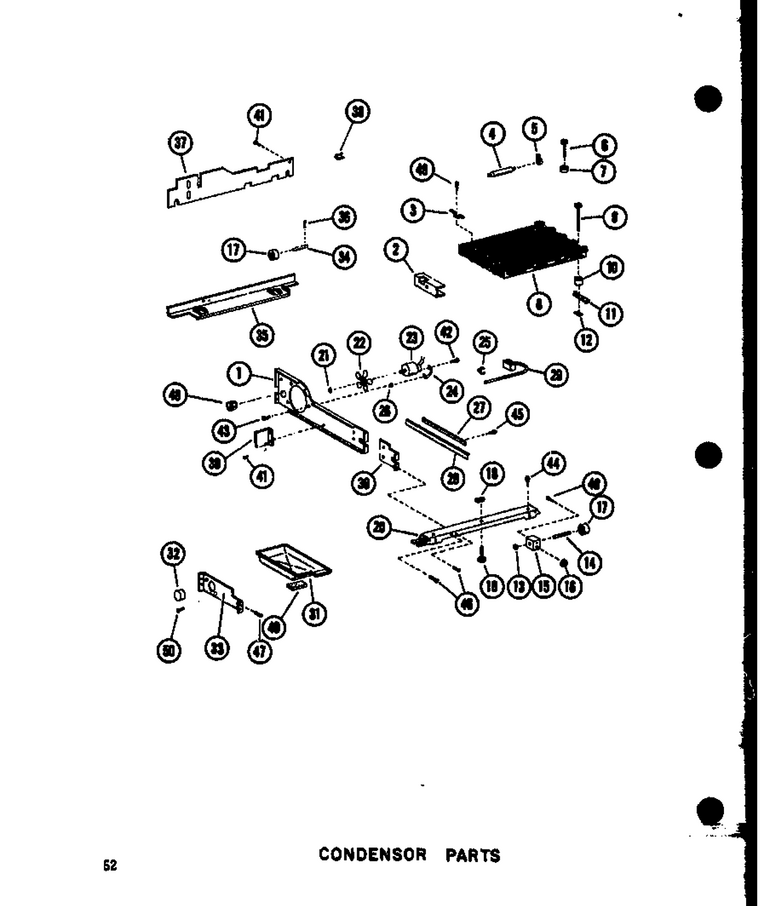

05 - Condensor Parts

...
...
1
Fan Shroud WPL-C3617602
...
2
Spacer WPL-B0544101
...
3
Clip-Cond WPL-A3054502
...
4
Drier WPL-WPB2150504
...
5
Clamp-Drier WPL-M0104002
...
6
Sems Fastner WPL-M0257037
...
7
Spacer WPL-A3013906
...
8
Condenser Assy Pnt WPL-D7196401
...
9
Sems Fastner WPL-M0257039
...
10
Spacer WPL-A3013907
...
11
Bracket, Support WPL-A3085401
...
12
Nut A WPL-M0286003
...
13
Fastener WPL-M0289401
...
14
Rivet WPL-M1205302
...
15
Bracket K WPL-A3125201
...
16
Nut, Self Thread WPL-M0283801
...
17
Roller WPL-M0520102
...
18
Wing Nut WPL-A3122601
...
19
Foot-Levelling WPL-B1601601
...
20
Front Rail WPL-B5627604
...
21
Nut WPL-WP486692
...
22
Blade, Fan WPL-B5742603
...
23
Motor-Cond WPL-833697
...
24
Bracket, Cond Motor WPL-B0598701
...
25
Clip WPL-M0116401
...
26
Grommet K WPL-M0500107
...
27
Retainer WPL-B0599701
...
28
Seal WPL-B0599602
...
29
Drain Tube Assy WPL-C3607201
...
30
Extension WPL-B5619802
...
31
Pan, Drain WPL-D7001001
...
32
Timer-Def WPL-R0131577
...
33
Bracket-Timer WPL-C8821701
...
34
Pivot Pin K WPL-M1210001
...
35
Rail Rear WPL-C8918602
...
36
Cotter Pin K WPL-M1200001
...
37
Mc Back Assy WPL-C3655002
...
38
Clip WPL-M0110502
...
39
Stop,drain Pan WPL-A3125701
...
40
Pad A WPL-B5691701
...
41
Screw-Sm WPL-M0241118
...
42
Screw WPL-WPM0223816
...
43
Screw Shoulder WPL-M0238833
...
44
Screw WPL-M0267101
...
45
Screw WPL-WP98165
...
46
Screw WPL-M0294459
...
47
Screw WPL-M0218116
...
48
Strain Relief WPL-A3245101
...
49
Kit, Screw WPL-R9800670
...
50
Screw,tc WPL-M0230017

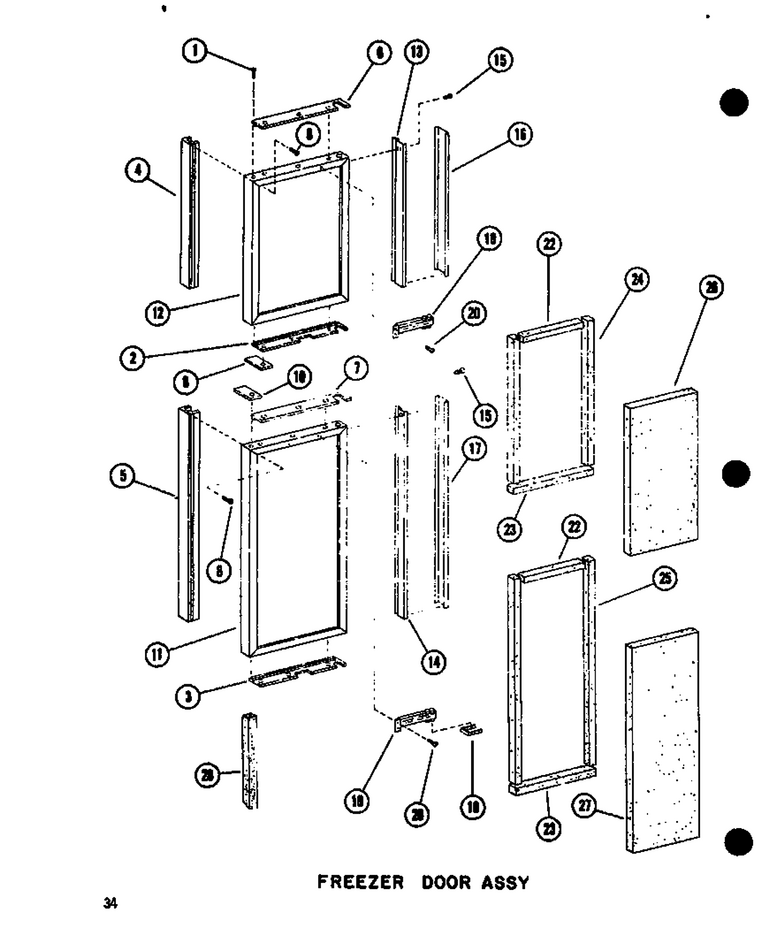

07 - Fz Door Assy

...
...
1
Screw WPL-M0214028
...
2
Trim-Door WPL-D7212305
...
3
Trim-Door WPL-D7204904
...
4
Handle WPL-C8797903
...
5
Handle WPL-C8797902
...
6
Trim-Door WPL-D7204902
...
7
Trim-Door WPL-D7188702
...
8
Screw WPL-M0254129
...
9
End Cap-Handle WPL-C3693202
...
10
End Cap-Handle WPL-C3693201
...
11
Door-Fr-C-T-Sdi22b WPL-D7394208
...
12
Door-Up-Fr-G-T-Sdi22b WPL-D7394214
...
13
Retainer WPL-C3592909
...
14
Retainer WPL-C3592910
...
15
Screw A K WPL-M0211516
...
16
Trim WPL-B0599006
...
17
Trim WPL-B0599007
...
18
Cover WPL-B5644001
...
19
Door Closure WPL-D7022901
...
20
Screw WPL-M1252001
...
22
Insulation WPL-B5629006
...
23
Insulation WPL-B5629003
...
24
Insulation WPL-B5629016
...
25
Insulation WPL-B5629022
...
26
Insulation WPL-B5612009
...
27
Insulation WPL-B5612010
...
28
Insulation Ft. K WPL-B0572822

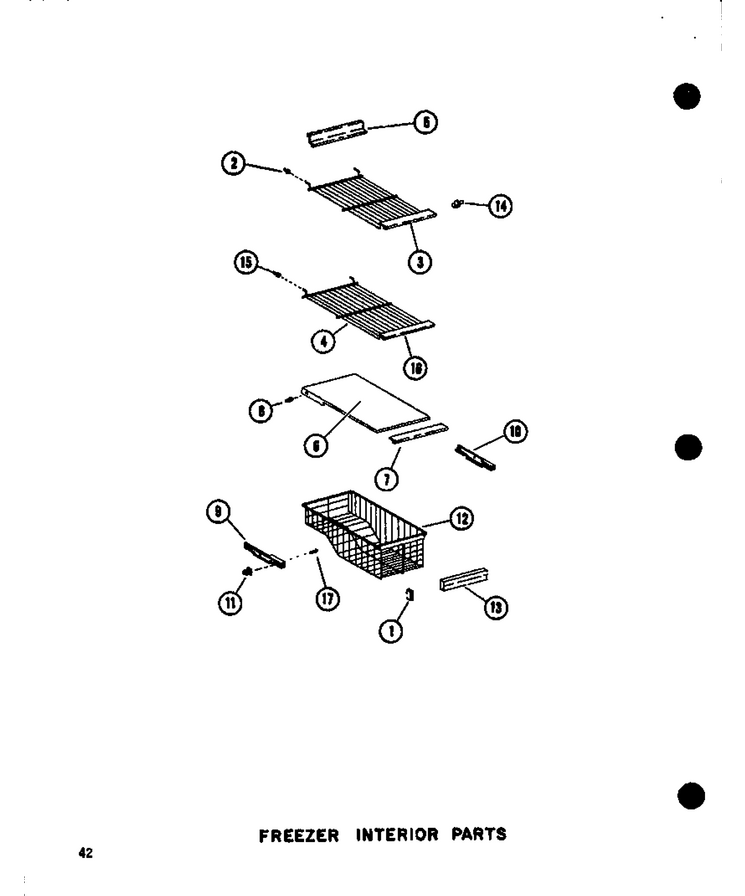

09 - Fz Interior Parts

...
...
1
End Cap WPL-B0590704
...
2
Plug WPL-A0387302
...
4
Shelf Fz, Bottom WPL-D7343903
...
5
Trim WPL-D7344503
...
7
Trim WPL-B0596602
...
8
Support WPL-M0560002
...
9
Basket Guide Lh WPL-D3997601
...
10
Glide, Basket, R.h. WPL-D3997602
...
11
Grommet, Screw WPL-M0580007
...
12
Basket-Fr WPL-D7419801
...
13
Trim WPL-C3623702
...
15
Grommet WPL-A3066301
...
16
Trim Shelf K WPL-C8795201
...
17
Screw WPL-WP98165

14 - Ref Interior Parts

...
...
1
Insulation K WPL-B5707402
...
2
Baffle WPL-A3204801
...
3
Service Ta WPL-R0157487
...
4
Spring-Leaf WPL-B5698901
...
5
Support Water Tank WPL-B5698101
...
6
Grommet WPL-A3138301
...
7
Drain Tube WPL-A3224901
...
8
Ladder WPL-D7103701
...
9
Screw WPL-M0207632
...
10
Washer WPL-M0270519
...
11
Nut WPL-WP486255
...
12
Tube WPL-WPB5705307
...
13
Tubing Plastic K WPL-B5705312
...
14
Clamp WPL-M0102804
...
15
Screw WPL-M0233716
...
16
Grommet, Screw WPL-M0580007
...
17
Grommet, Tube WPL-A3207902
...
19
Top, Meat Keeper WPL-D7001104
...
20
Sleeve, Meat Keeper WPL-D7001302
...
21
Pan, Meat Keeper WPL-D3975703
...
22
Grommet WPL-C3614902
...
23
Trim, Handle WPL-C3623002
...
24
Gasket (per Foot) WPL-A3030313
...
25
Spring WPL-A3225902
...
26
Frame Assy WPL-R0179041
...
27
Trim Shelf A WPL-C8716101
...
28
Shelf-Glass A WPL-B5724101
...
29
Spacer Shelf A WPL-A3232201
...
30
Spacer Shelf A WPL-A3233901
...
31
Spacer Shelf A WPL-A3233902
...
33
Screw WPL-WP90767
...
34
Screw WPL-WP98165
...
35
Trim-Shelf A WPL-D7343002
...
36
Frame Mt Kpr A WPL-D7599503

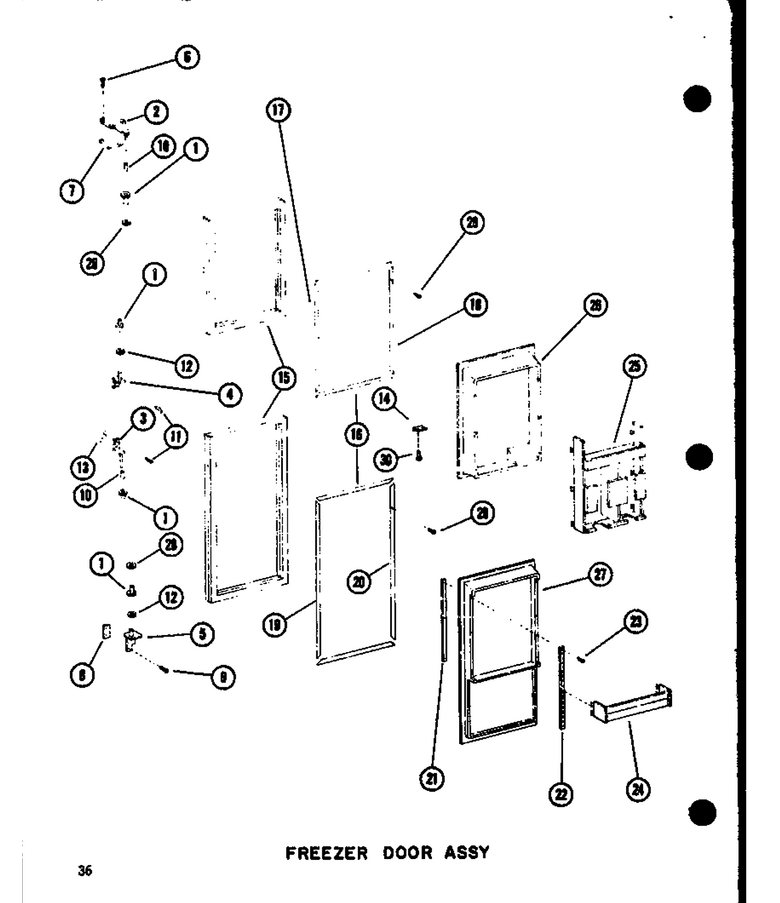

08 - Fz Door Assy

...
...
1
Bearing Flat (top Hinge) WPL-B0539806
...
2
Hinge-Left WPL-C8816601
...
3
Hinge-Center WPL-C3694101
...
4
Hinge, Fz Door, Bottom, Upper WPL-B5698002
...
5
Hinge WPL-D7250104
...
6
Screw WPL-M0254331
...
7
Shim, Top Hinge WPL-B8389007
...
8
Shim WPL-A3061903
...
9
Screw WPL-WP67006715
...
10
Bushing WPL-A3132401
...
11
Screw WPL-M0227306
...
12
Washer K WPL-M0274013
...
13
Shim-Center Hinge WPL-A3212102
...
14
Stop Door WPL-A3139801
...
15
Gasket,upper Fz WPL-D7251001
...
16
Retainer Gasket WPL-D7025103
...
17
Retainer Gasket WPL-D7025107
...
18
Retainer Gasket WPL-D7025108
...
19
Retainer Gasket WPL-D7025109
...
20
Retainer Gasket WPL-D7025110
...
21
Tap Strip-Ladder WPL-A3212201
...
22
Ladder WPL-C3693001
...
23
Screw K WPL-M0213517
...
24
Retainer Assy WPL-A0066202
...
25
Juice Rack WPL-D7332801
...
26
Inner Dr Panel WPL-D7180803
...
27
Inner Door Panel WPL-D7180902
...
28
Seal-O Ring WPL-M0500901
...
29
Screw WPL-WP98165
...
30
Screw WPL-M0214028

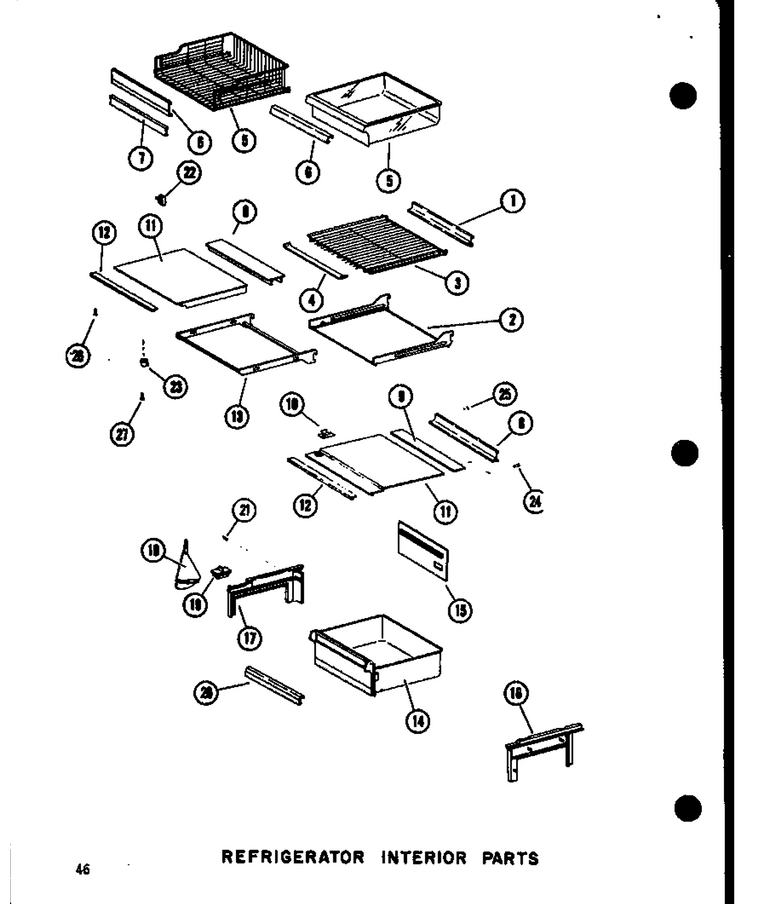

15 - Ref Interior Parts

...
...
1
Trim WPL-C3622804
...
2
Frame Cantilever Glide Shelf WPL-D7102403
...
3
Shelf, Fruit Bin WPL-D7102803
...
4
Trim K WPL-C3677301
...
5
Bin, Fruit WPL-D7102901
...
6
Trim WPL-C3623003
...
8
Trim Humidity Compartment WPL-C3622701
...
9
Ext-Hc Top WPL-C3622303
...
10
Escutcheon WPL-C3623501
...
11
Top Assy WPL-D7022201
...
12
Trim WPL-B0596603
...
14
Pan, Humidity Compartment WPL-D7219801
...
15
Back-Humidity Comp WPL-C8705503
...
16
Side, Humidity Compartment, R. WPL-D7201302
...
17
Rail Lh WPL-D7201204
...
18
Air Damper Cont K WPL-C8705401
...
19
Slide WPL-B5632101
...
24
Screw WPL-WP1163839
...
25
Screw WPL-M0211530
...
26
Screw WPL-M0230814
...
27
Screw, No.8-32 X1/2 Nyl Hex Hd WPL-31750417
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
