Amana CRRL-9TB (BOM: P7521403M)

Model: CRRL-9TB (BOM: P7521403M)

Save Part Not Listed?
product name

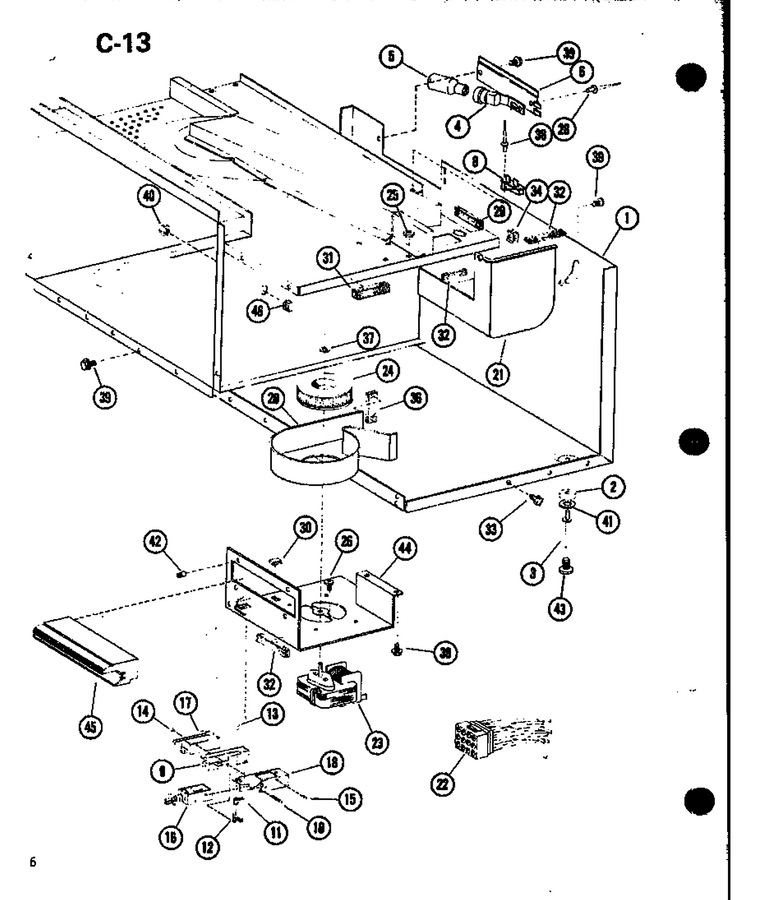

02 - Page 2

...
...
1
Base Pan WPL-D7351705
...
2
Foot WPL-M0011001
...
3
Screw Shoulder WPL-M0238833
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Panel WPL-B5782901
...
8
Oven Thermal Fuse WPL-B5785303
...
9
Spring Latch- WPL-B8311201
...
10
Screw WPL-M0227520
...
11
Bell Crank WPL-B5672502
...
12
Bell Crank WPL-B5672503
...
13
Pin-Bell Crank WPL-A3182602
...
14
Nut K WPL-M0282005
...
15
Screw WPL-M0201414
...
16
Door Locking Solenoid WPL-B5682106
...
17
Switch Preform A WPL-A3163412
...
18
Bracket Latch K WPL-C8845301
...
20
Blower Scroll WPL-C8797201
...
21
Magnetron Cover WPL-D7349002
...
22
Wiring Harness WPL-D7477201
...
23
Motor- Blo WPL-C8793205
...
24
Blower Wheel WPL-C8793501
...
25
Lock-Nut---K WPL-M0282801
...
26
Screw WPL-M0202842
...
28
Rivet-Pop WPL-59002054
...
29
Gasket WPL-A3030302
...
30
Clip WPL-M0113501
...
31
Gasket (per Foot) WPL-A3030303
...
32
Gasket (per Foot) WPL-10839706
...
33
Screw WPL-WP489464
...
34
Clip WPL-M0288213
...
36
Gasket-Cavity Top WPL-10839709
...
37
Nut WPL-WP3195558
...
38
Rivet WPL-WP210720
...
39
Screw WPL-M0216717
...
40
Nut-Decorative WPL-A3275701
...
41
Washer WPL-M0270501
...
42
Clip-Tube WPL-A3286501
...
43
Screw Shoulder WPL-M0238833
...
44
Plate Motor Mtg WPL-D7398101
...
46
Jack Assembly WPL-A3275602

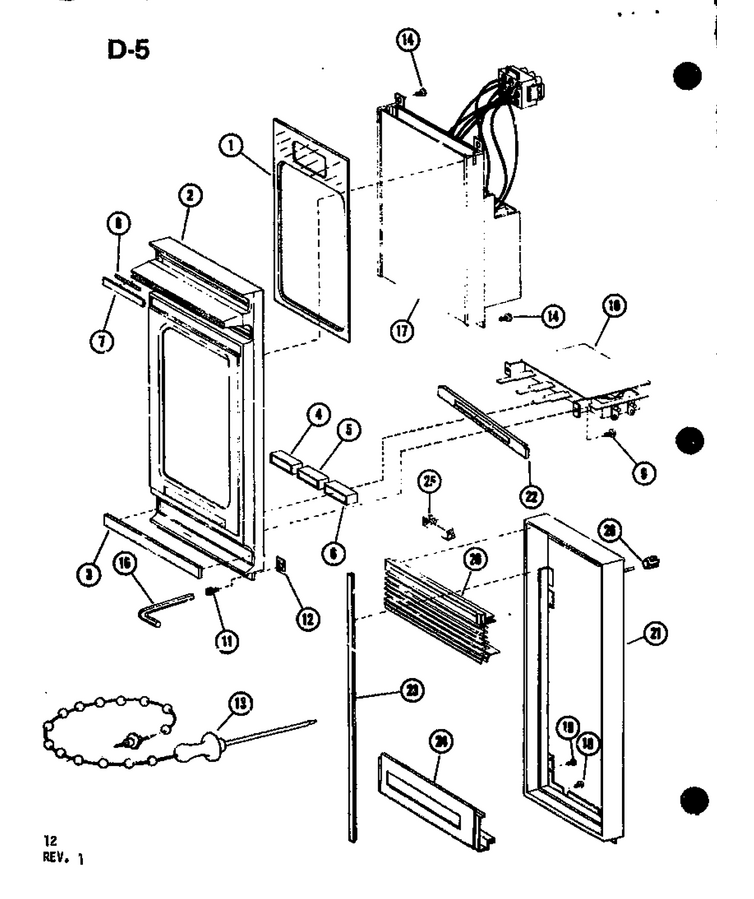

03 - Page 3

...
...
1
Inner Window A-K WPL-A3167901
...
2
Latch, Door WPL-A3183001
...
3
Rivet WPL-A3183901
...
5
Gasket Window A-K WPL-A3264601
...
6
Gasket Window A-K WPL-A3264602
...
9
Cb Arm R A WPL-B5693103
...
10
Inner Door Assy A WPL-C8755401
...
13
Inner Door Mold Assy WPL-D7240304
...
14
Gasket Top A WPL-D7320001
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Right A WPL-D7320003
...
17
Gasket Left A WPL-D7320004
...
19
Screw WPL-M0258518
...
20
Tape Per Roll WPL-M0275163
...
21
Nut WPL-M0287401
...
22
Nut WPL-717488
...
24
Shim WPL-A3127101
...
25
Bumper WPL-A1511502
...
26
Rivet-Pop WPL-A4539615
...
27
Pop Rivet WPL-A4539602
...
28
Hinge WPL-B5603203
...
29
Cord, Power WPL-B8310501
...
30
Oven Tray WPL-R0156726
...
31
Outer Cabinet WPL-D7378101
...
32
Access Pnl WPL-D7378001
...
33
Spring WPL-M0775001
...
34
Grommet, Cord WPL-211881
...
35
Screw WPL-W11084238
...
36
Screw WPL-M0217701
...
37
Screw WPL-M0213815
...
38
Screw WPL-WP59002061
...
39
Screw-Sm/hex WPL-12990523
...
40
Rivet-Pop WPL-59002054
...
41
Seal K WPL-B5738501
...
42
Screw WPL-M0218116
...
43
Tape Alum WPL-M0275166
...
44
Handle-Door WPL-C3671301
...
45
Door Outer WPL-D7514901
...
46
Screw WPL-M0234030
...
47
Tape Roll WPL-M0275155
...
48
Window WPL-D7425802

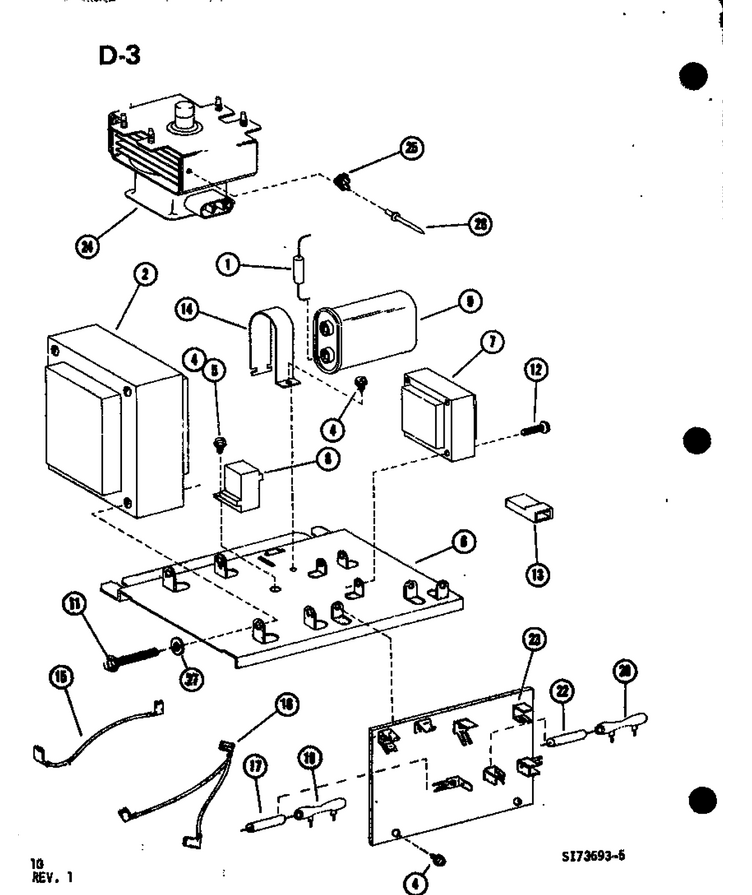

04 - Page 4

...
...
1
Resistor A WPL-M0305202
...
2
Transformer WPL-D7369203
...
4
Screw WPL-WP489349
...
5
Screw WPL-WP3388228
...
6
Transformer Mounting Plate WPL-D7351804
...
7
Transformer-Filament WPL-C8807801
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Screw WPL-M0253509
...
13
Insulator, Term. K WPL-M0325301
...
14
Strap-Capacitor WPL-A3257003
...
15
Jumper Wire WPL-D7292618
...
16
Jumper Wire WPL-D7292673
...
17
Fuse WPL-M0308110
...
19
Resistor Assy WPL-B8332801
...
20
Resistor K WPL-M0308607
...
22
Fuse Resistor K WPL-M0308109
...
23
Terminal Board WPL-C8861003
...
24
Magnetron WPL-10794402
...
25
Fuse- Ther WPL-59001951
...
26
Rivet-Pop WPL-59002054
...
27
Lock Washer WPL-M0272805

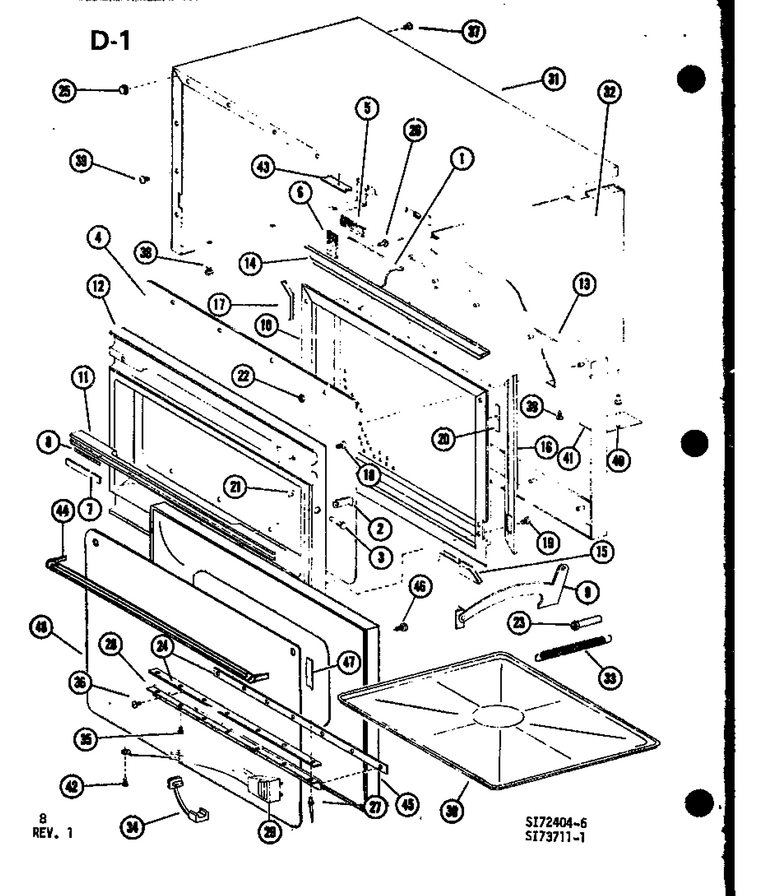

05 - Page 5

...
...
1
Escutcheon Lens-K WPL-C8872701
...
4
Button (start) K WPL-C8743104
...
5
Button (stop) K WPL-C8743108
...
6
Button (light) WPL-C8743109
...
9
Screw WPL-M0234003
...
10
Switch Ssl K WPL-C8787803
...
11
Screw T.c WPL-M0229916
...
12
Speed Nut K WPL-M0288301
...
13
Temp Probe WPL-C8821504
...
14
Screw WPL-WP59002061
...
16
Wrench-Hex WPL-A4696103
...
17
Sub 54678, Touchmatic Timer WPL-R163079A
...
18
Screw WPL-8169474
...
19
Screw WPL-M0213815
...
20
Grille-Air Disch WPL-C8837901
...
21
Escutcheon WPL-D7425202
...
22
Brkt-Switch WPL-B8305101
...
23
Trim WPL-C8838001
...
24
Escutcheon WPL-C8838101
...
25
Gasket, Foam WPL-A3030339
...
26
Clip-Tube WPL-A3286501

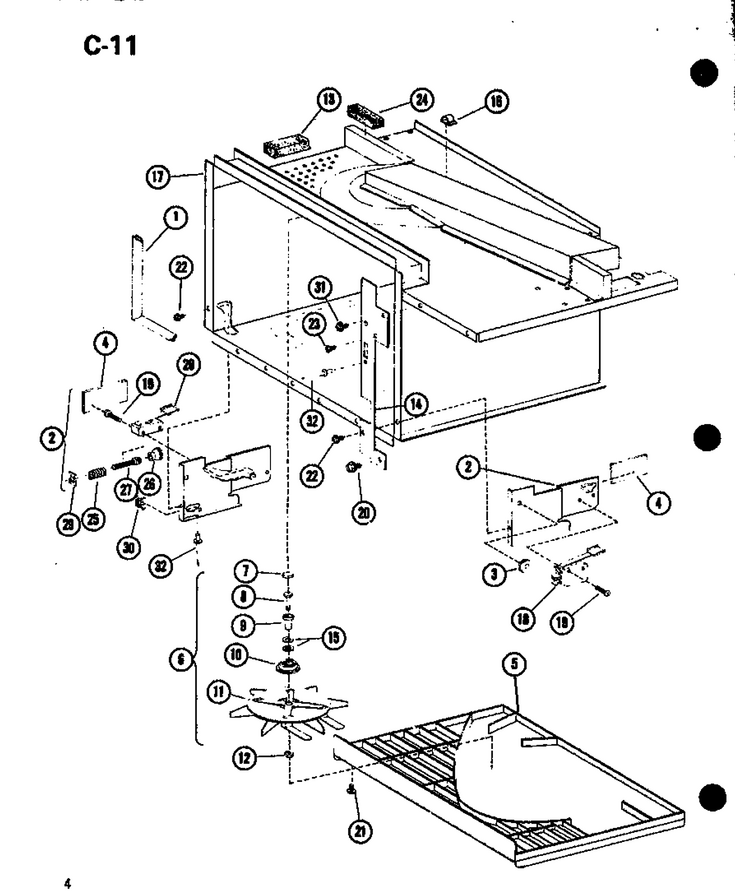

01 - Page 1

...
...
1
Gasket WPL-C3637201
...
2
Ctr Brkt Assy WPL-D7482003
...
3
Roller Assy Kit WPL-R0157145
...
4
X$x Pad WPL-M0050902
...
5
Grease Shield WPL-D7544002
...
6
Assy, Antenna WPL-C8806701
...
7
Bearing Cap WPL-B5792601
...
8
Stub-Antenna A WPL-B5783101
...
9
Bearing-Antenna A WPL-B5783001
...
10
Bushing A WPL-C8838501
...
11
Assy, Antenna WPL-C8806701
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263901
...
14
Flange-Oven Cav WPL-D7365505
...
15
Washer WPL-M0274044
...
16
Clip WPL-B5667302
...
17
Oven Weld. WPL-D7350515
...
18
Interlock Switch WPL-C8736705
...
19
Screw A-K WPL-M0227525
...
20
Screw WPL-WP3388228
...
21
Screw WPL-M0213815
...
22
Screw-Sm/hex WPL-12990523
...
23
Screw WPL-M0217514
...
24
Gasket (per Foot) WPL-10839706
...
25
Spring A WPL-A3277701
...
26
Guide Screw A-K WPL-A3277801
...
27
Screw Adjusting A-K WPL-A3277601
...
28
Switch-L Intl A WPL-A3162510
...
29
Speed Nut A WPL-M0286114
...
30
Clip WPL-B5667302
...
31
Screw WPL-WP489349
...
32
Rivet-Pop WPL-59002054
