Amana CRRL-5D (BOM: P7559008M)

Model: CRRL-5D (BOM: P7559008M)

Save Part Not Listed?
product name

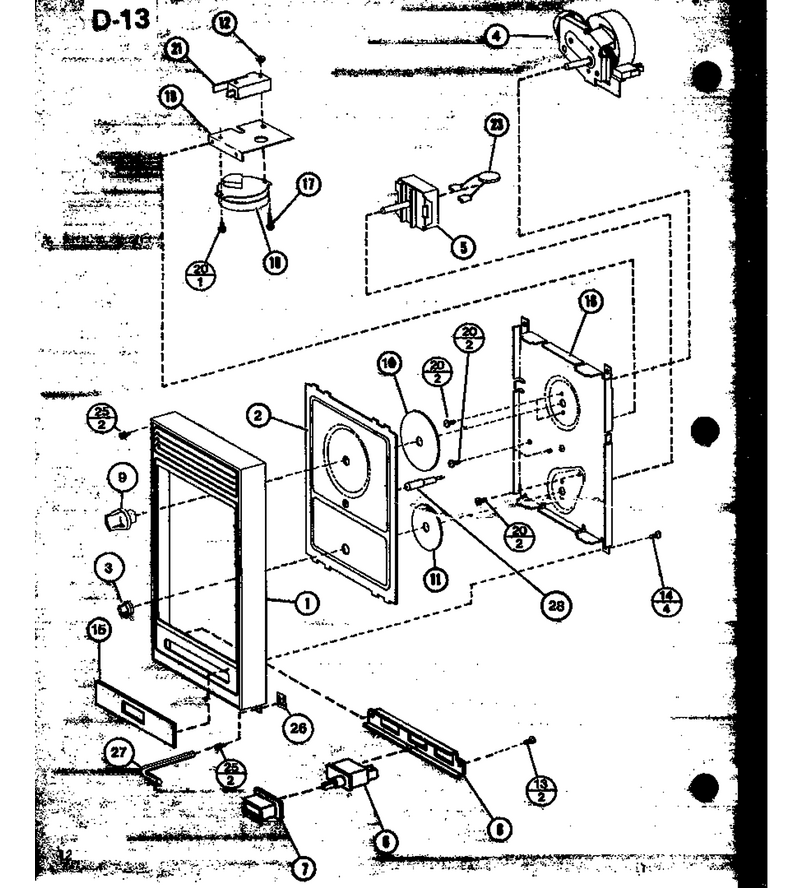

04 - Page 4

...
...
1
Escut. Control WPL-D7548904
...
2
Lens, Esuct. WPL-D7541201
...
3
Knob WPL-C8929301
...
4
Timer 30 Min WPL-C8791708
...
5
Rotary Switch WPL-B8334103
...
6
Switch WPL-B5674703
...
7
Button WPL-C8846501
...
8
Brkt. Switch Mtg WPL-B5782803
...
9
Knob WPL-C8735901
...
10
Disk Timer WPL-C8730420
...
11
Disk Selector WPL-C8730426
...
12
Nut K WPL-M0282005
...
13
Screw WPL-W11084238
...
14
Screw WPL-WP59002061
...
15
Thinplate WPL-B8348104
...
16
Chassis Plate WPL-D7558403
...
17
Screw WPL-M0227520
...
18
Timer WPL-B5699801
...
19
Bracket WPL-B5699601
...
20
Screw WPL-M0234114
...
21
Switch-Cut Off WPL-A3220703
...
23
Ptc Resistor Assy WPL-A1027301Q
...
25
Screw T.c WPL-M0229916
...
26
Speed Nut K WPL-M0288301
...
27
Wrench-Hex WPL-A4696103
...
28
Light Pilot A WPL-B5786601

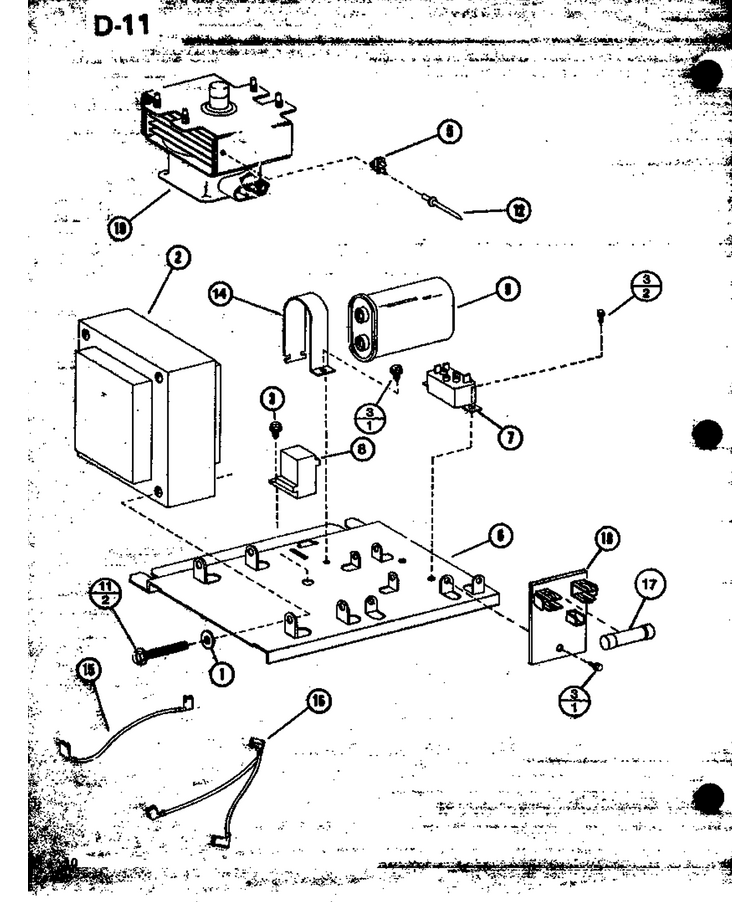

03 - Page 3

...
...
1
Lock Washer WPL-M0272805
...
2
Transformer K WPL-D7391405
...
3
Screw WPL-WP3388228
...
5
Fuse- Ther WPL-59001951
...
6
Mtg Plate Trans WPL-D7351805
...
7
Relay K WPL-B5773502
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Rivet WPL-WP210720
...
14
Strap-Capacitor WPL-A3257003
...
15
Jumper Wire WPL-D7292618
...
16
Jumper Wire K WPL-D7292637
...
17
Fuse 20 A WPL-WPM0805101
...
18
Board-Term WPL-C8988701
...
19
Magnetron WPL-10794402

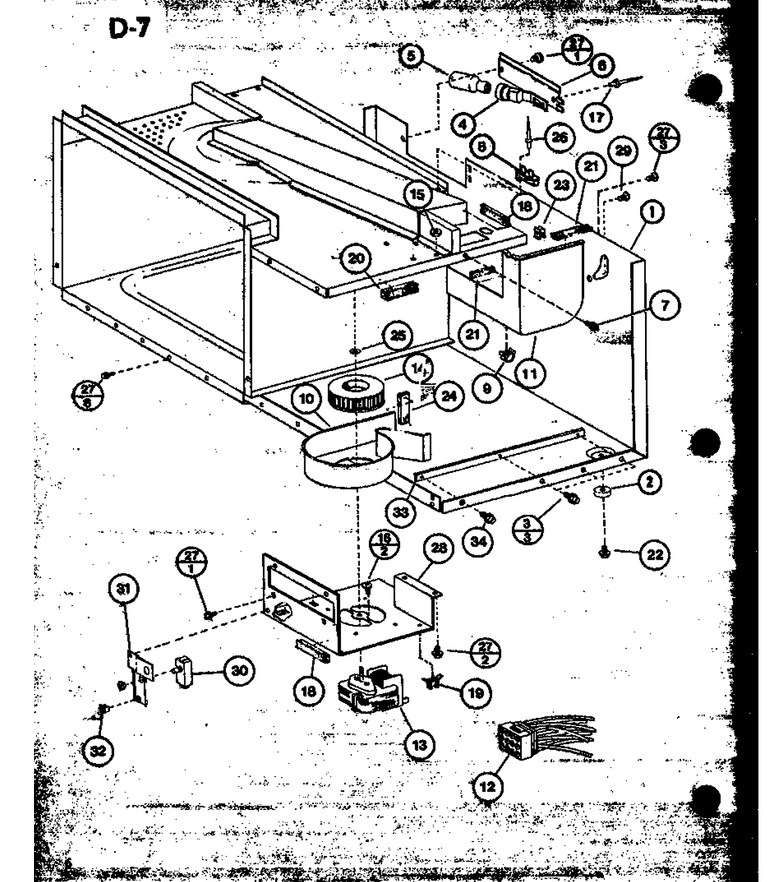

02 - Page 2

...
...
1
Base Pan WPL-D7506205
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Screw WPL-WP489464
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Access Panel WPL-B5782906
...
7
Screw WPL-WP489349
...
8
Fuse, Thermal WPL-B5795303
...
9
Clip WPL-M0106801
...
10
Scroll WPL-D7609401
...
11
Magnetron Cover WPL-D7349003
...
12
Wiring Harness, Oven WPL-D7672201
...
13
Motor- Blo WPL-C8793205
...
14
Blower Wheel WPL-C8793501
...
15
Lock-Nut---K WPL-M0282801
...
16
Screw WPL-WP3400094
...
17
Rivet-Pop WPL-59002054
...
18
Gasket WPL-A3030302
...
19
Clip WPL-B5667303
...
20
Gasket (Per Foot) WPL-A3030303
...
21
Gasket (Per Foot) WPL-10839706
...
22
Screw-Shoulder WPL-M0220219
...
23
Clip WPL-M0288213
...
24
Gasket-Cavity Top WPL-10839709
...
25
Nut WPL-WP3195558
...
26
Rivet WPL-WP210720
...
27
Screw WPL-WP3388228
...
28
Mtg Plate WPL-D7533302
...
29
Screw WPL-M0216519
...
30
Switch Door Open WPL-C8715205
...
31
Bracket WPL-C8896601
...
32
Grommet WPL-M0580204
...
33
Brace, Base Pan WPL-B8356701
...
34
Screw WPL-WP90767

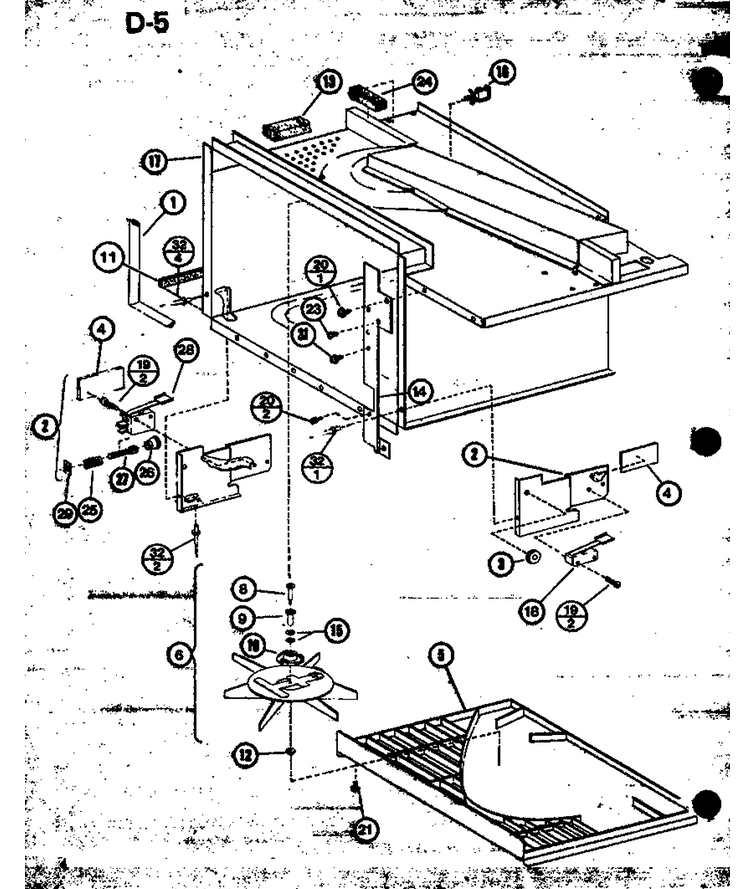

01 - Page 1

...
...
1
Gasket, Oven WPL-C8896201
...
2
Ctr Brkt Assy WPL-D7482006
...
3
Roller Assy Kit WPL-R0157145
...
4
X$x Pad WPL-M0050902
...
5
Grease Shield WPL-D7544002
...
6
Antenna Assembly WPL-C8934801
...
8
Stub-Antenna A WPL-B5783101
...
9
Bearing Antenna A WPL-B5783002
...
10
Bushing Antenna A WPL-D7606301
...
11
Gasket WPL-53001610
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263902
...
14
Flange Cover Pntd WPL-D7562502
...
15
Washer WPL-M0274044
...
16
Clip WPL-B5667302
...
17
Oven Cavity WPL-D7350524
...
18
Switch WPL-C8736703
...
19
Screw A-K WPL-M0227525
...
20
Screw WPL-WP3388228
...
21
Screw WPL-WP489349
...
23
Screw WPL-M0230727
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Spring A WPL-A3277701
...
26
Guide Screw A-K WPL-A3277801
...
27
Screw Adjusting A-K WPL-A3277601
...
28
Limit Switch WPL-A3162513
...
29
Speed Nut A WPL-M0286114
...
31
Screw WPL-M0236921
...
32
Rivet-Pop WPL-59002054
