Amana CRRL-5C (BOM: P7559006M)

Model: CRRL-5C (BOM: P7559006M)

Save Part Not Listed?
product name

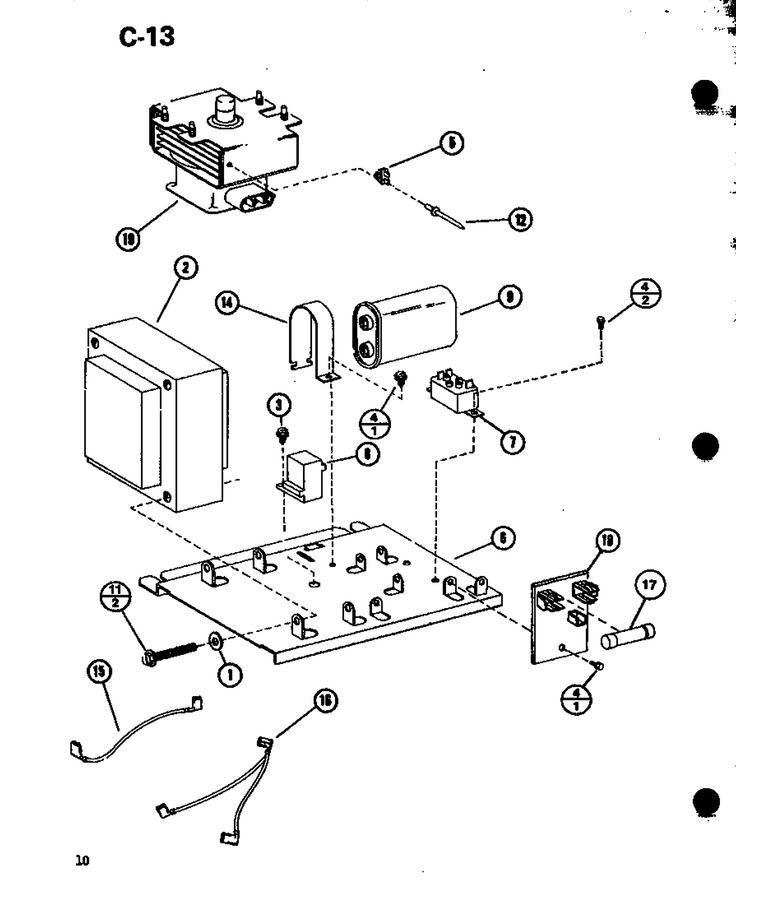

01 - Page 4

...
...
1
Lock Washer WPL-M0272805
...
2
Transformer Kit WPL-D7391403
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP489349
...
5
Fuse- Ther WPL-59001951
...
6
Mtg Plate Trans WPL-D7351805
...
7
Relay K WPL-B5773502
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Rivet WPL-WP210720
...
14
Strap-Capacitor WPL-A3257003
...
15
Jumper Wire WPL-D7292618
...
16
Jumper Wire WPL-D7292652
...
17
Fuse 20 A WPL-WPM0805101
...
18
Board-Term WPL-C8988701
...
19
Magnetron WPL-10794402

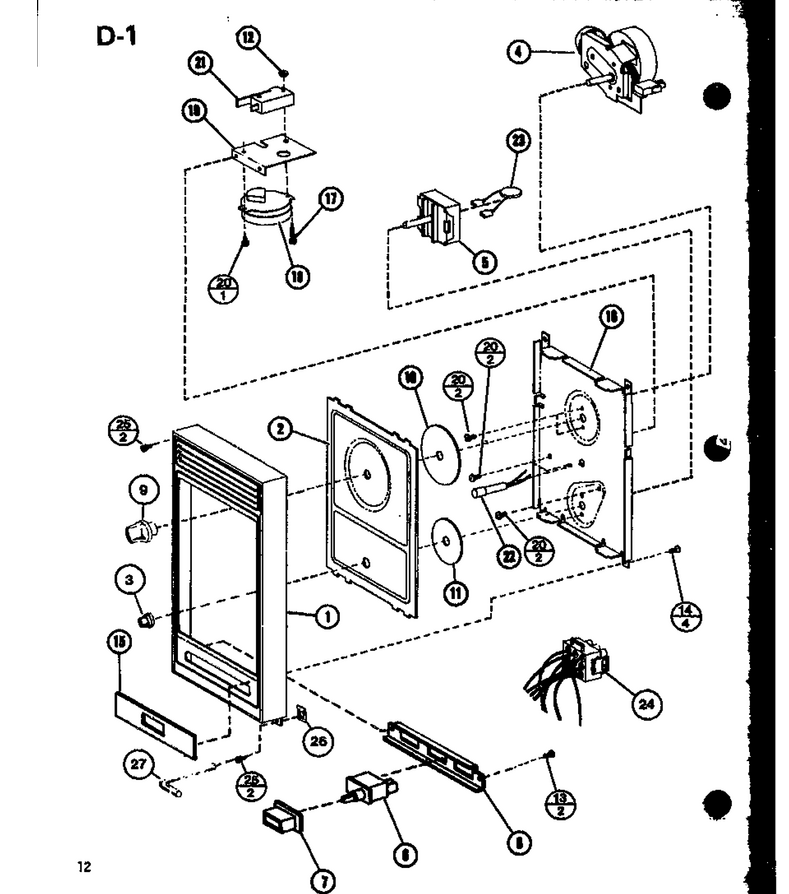

02 - Page 5

...
...
1
Escut. Control WPL-D7548904
...
2
Lens, Esuct. WPL-D7541201
...
3
Knob WPL-C8929301
...
4
Timer 30 Min K-A WPL-C8791704
...
5
Rotary Switch WPL-B8334103
...
6
Switch WPL-B5674703
...
7
Button WPL-C8846501
...
8
Brkt. Switch Mtg WPL-B5782803
...
9
Knob WPL-C8735901
...
10
Disk Timer WPL-C8730420
...
11
Disk Selector WPL-C8730426
...
12
Nut K WPL-M0282005
...
13
Screw WPL-W11084238
...
14
Screw WPL-WP59002061
...
15
Thinplate WPL-B8348104
...
16
Chassis Plate WPL-D7558403
...
17
Screw WPL-M0227520
...
18
Timer WPL-B5699801
...
19
Bracket WPL-B5699601
...
20
Screw WPL-M0234114
...
21
Switch-Cut Off WPL-A3220703
...
22
Light Pilot A WPL-B5786601
...
23
Ptc Resistor Assy WPL-A1027301Q
...
24
Wiring Harness WPL-D7639901
...
25
Screw T.c WPL-M0229916
...
26
Speed Nut K WPL-M0288301
...
27
Wrench-Hex WPL-A4696103
