product name

Amana CRRL-5C (BOM: P7559004M)

Model: CRRL-5C (BOM: P7559004M)

Save Part Not Listed?
product name

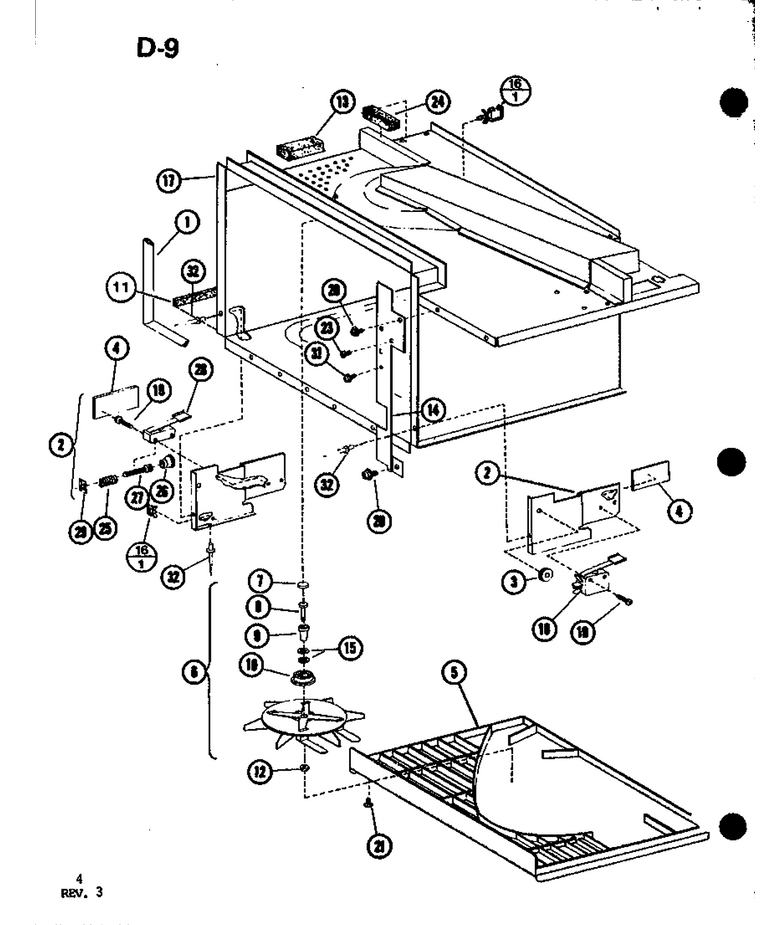

01 - Page 1

...
...
1
Gasket, Oven WPL-C8896201
...
2
Ctr Brkt Assy WPL-D7482003
...
3
Roller Assy Kit WPL-R0157145
...
4
X$x Pad WPL-M0050902
...
5
Grease Shield WPL-D7544002
...
6
Assy, Antenna WPL-C8806701
...
7
Bearing Cap WPL-B5792601
...
8
Stub-Antenna A WPL-B5783101
...
9
Stub-Antenna A WPL-B5783101
...
10
Bushing A WPL-C8838501
...
11
Gasket WPL-53001610
...
12
Nut A WPL-M0281203
...
13
Gasket WPL-A3263902
...
14
Flange Cover Pntd WPL-D7562502
...
15
Washer WPL-M0274051
...
16
Clip WPL-B5667302
...
17
Oven Cavity WPL-D7350507
...
18
Switch WPL-C8736703
...
19
Screw A-K WPL-M0227525
...
20
Screw WPL-WP3388228
...
21
Screw WPL-WP489349
...
23
Screw WPL-M0230727
...
24
Gasket (Per Foot) WPL-A3030303
...
25
Spring A WPL-A3277701
...
26
Guide Screw A-K WPL-A3277801
...
27
Screw Adjusting A-K WPL-A3277601
...
28
Switch-L Intl A WPL-A3162510
...
29
Speed Nut A WPL-M0286114
...
31
Screw WPL-M0236921
...
32
Rivet-Pop WPL-59002054

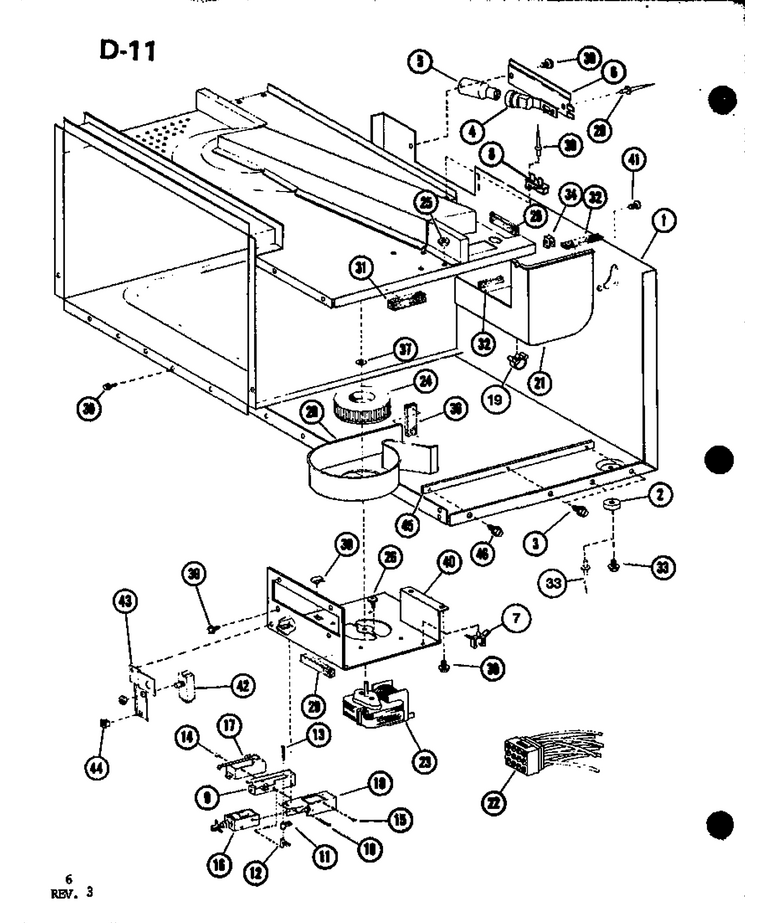

02 - Page 2

...
...
1
Base Pan WPL-D7506205
...
2
Foot O.c. Wrapper WPL-B5732506
...
3
Screw WPL-WP489464
...
4
Socket WPL-B5784001
...
5
Bulb-Light WPL-WPA3167501
...
6
Access Panel WPL-B5782906
...
7
Clip WPL-B5667303
...
8
Fuse, Thermal WPL-B5795303
...
19
Clip WPL-M0106801
...
20
Scroll WPL-D7609401
...
21
Magnetron Cover WPL-D7349003
...
22
Wiring Harness WPL-D7616301
...
23
Motor- Blo WPL-C8793205
...
24
Blower Wheel WPL-C8793501
...
25
Lock-Nut---K WPL-M0282801
...
26
Screw WPL-WP3400094
...
28
Rivet-Pop WPL-59002054
...
29
Gasket WPL-A3030302
...
31
Gasket (Per Foot) WPL-A3030303
...
32
Gasket (Per Foot) WPL-10839706
...
33
Screw-Shoulder WPL-M0220219
...
34
Clip WPL-M0288213
...
36
Gasket-Cavity Top WPL-10839709
...
37
Nut WPL-WP3195558
...
38
Rivet WPL-WP210720
...
39
Screw WPL-WP3388228
...
40
Mtg Plate WPL-D7533302
...
41
Screw WPL-M0216519
...
42
Switch Door Open WPL-C8715204
...
43
Bracket WPL-C8896601
...
44
Grommet WPL-M0580204
...
45
Brace, Base Pan WPL-B8356701
...
46
Screw WPL-WP90767

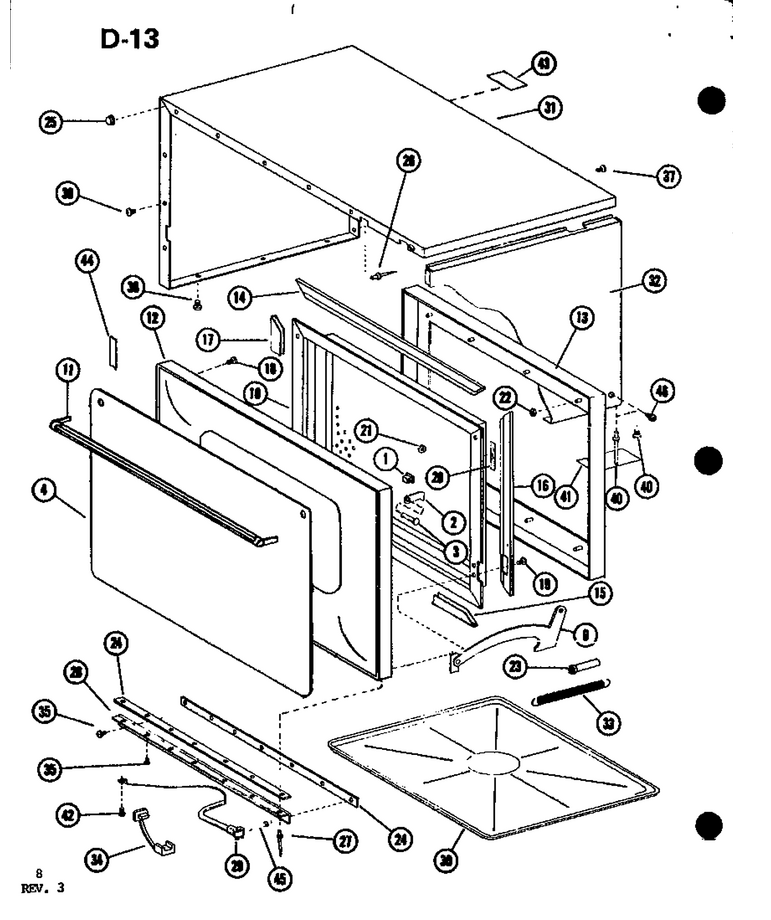

03 - Page 3

...
...
1
Stricker, Switch WPL-B8345501
...
3
Rivet WPL-A3183901
...
4
Window WPL-D7425802
...
9
Cb Arm R A WPL-B5693103
...
10
Inner Door Assy A WPL-C8755401
...
11
Handle-Door WPL-C3671301
...
12
Outer Door WPL-D7514905
...
13
Inner Door Mold Assy WPL-D7564601
...
14
Gasket Top A WPL-D7320001
...
15
Gasket Bottom A WPL-D7320002
...
16
Gasket Right A WPL-D7320003
...
17
Gasket Left A WPL-D7320004
...
18
Screw WPL-M0234031
...
19
Screw WPL-M0259218
...
20
Tape Per Roll WPL-M0275163
...
21
Nut WPL-M0287401
...
22
Nut WPL-717488
...
25
Bumper WPL-A1511502
...
26
Rivet-Pop WPL-A4539615
...
28
Hinge WPL-C8886601
...
29
Cord, Power WPL-B8310501
...
30
Oven Tray WPL-R0156726
...
31
Outer Cabinet WPL-D7378110
...
32
Access Panel WPL-D7378006
...
33
Spring WPL-M0775001
...
34
Grommet, Cord WPL-211881
...
35
Screw WPL-M0259203
...
37
Screw WPL-WP3388228
...
39
Screw-Sm/hex WPL-12990523
...
40
Screw Torx WPL-M0259318
...
41
Warranty Seal WPL-B5738502
...
42
Screw WPL-M0218116
...
43
Tape Alum WPL-M0275166
...
44
Tape Roll WPL-M0275155
...
46
Screw Torx WPL-M0243324

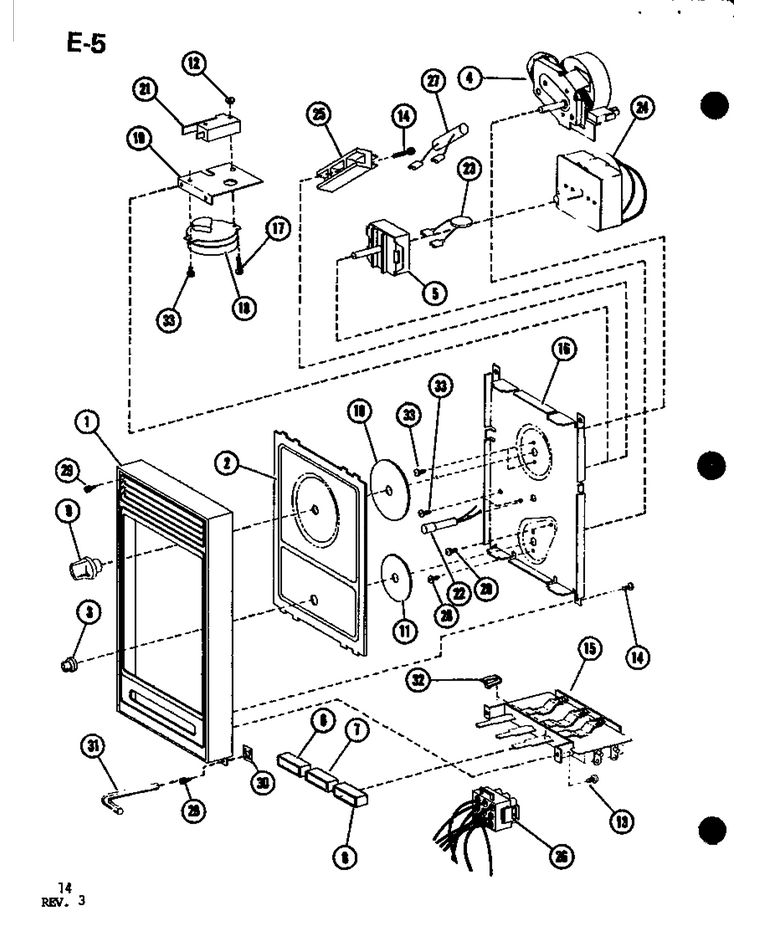

05 - Page 6

...
...
1
Escut. Control WPL-D7548901
...
2
Lens, Esuct. WPL-D7541201
...
3
Knob WPL-C8898901
...
4
Timer 30 Min K-A WPL-C8791704
...
5
Switch WPL-B8334101
...
6
Start Button WPL-C8869501
...
7
Stop Button WPL-C8869401
...
8
Light Button WPL-C8869301
...
9
Knob WPL-C8735901
...
10
Disk Timer WPL-C8730420
...
11
Disk, Selector WPL-C8730422
...
12
Nut K WPL-M0282005
...
13
Screw WPL-W11084238
...
14
Screw WPL-WP59002061
...
15
Switch Ssl WPL-D7546301
...
16
Chassis Plate WPL-D7558403
...
17
Screw WPL-M0227520
...
18
Timer WPL-B5699801
...
19
Bracket WPL-B5699601
...
20
Screw WPL-M0234114
...
21
Switch-Cut Off WPL-A3220703
...
22
Light Pilot A WPL-B5786601
...
23
Ptc Resistor Assy WPL-A1027301Q
...
26
Wiring Harness WPL-D7562201
...
29
Screw T.c WPL-M0229916
...
30
Speed Nut K WPL-M0288301
...
31
Wrench-Hex WPL-A4696103
...
32
Spring WPL-A1039301
...
33
Screw WPL-M0234114

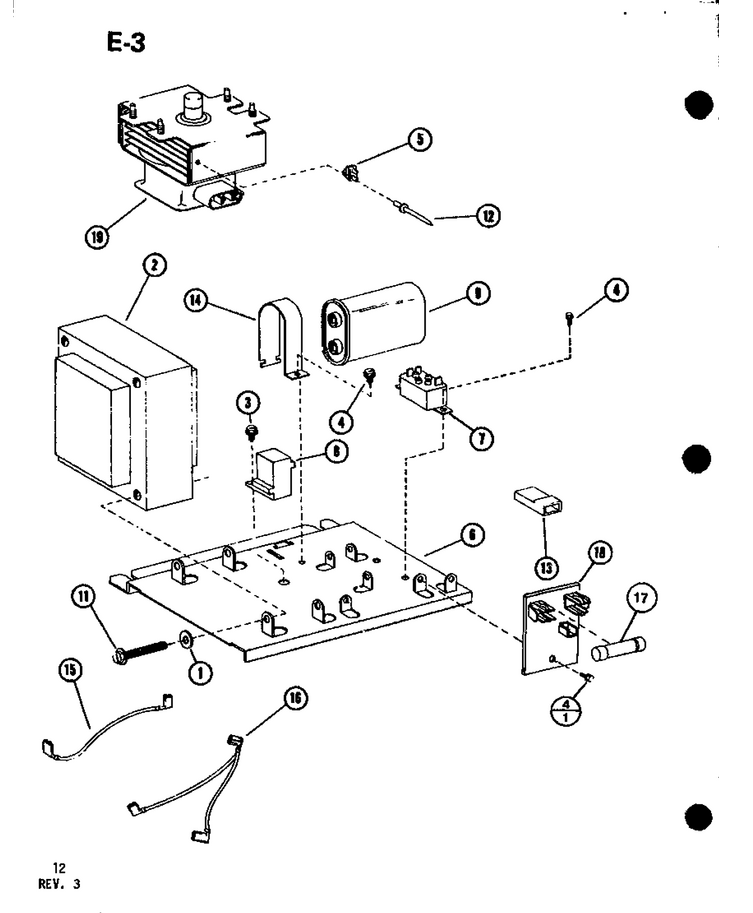

04 - Page 5

...
...
1
Lock Washer WPL-M0272805
...
2
Transformer Kit WPL-D7391403
...
3
Screw WPL-WP3388228
...
4
Screw WPL-WP489349
...
5
Fuse- Ther WPL-59001951
...
6
Transformer Mounting Plate WPL-D7351804
...
7
Relay K WPL-B5773502
...
8
Kit, Diode WPL-M3D71
...
9
Capacitor-.85 WPL-59001651
...
11
Screw WPL-M0254452
...
12
Rivet WPL-WP210720
...
13
Insulator, Term. K WPL-M0325301
...
14
Strap-Capacitor WPL-A3257003
...
15
Jumper Wire WPL-D7292618
...
16
Jumper Wire WPL-D7292652
...
17
Fuse 20 A WPL-WPM0805101
...
18
Board-Term WPL-C8988701
...
19
Magnetron WPL-10794402
