Amana CRMC-30 (BOM: P7625502M)

Model: CRMC-30 (BOM: P7625502M)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

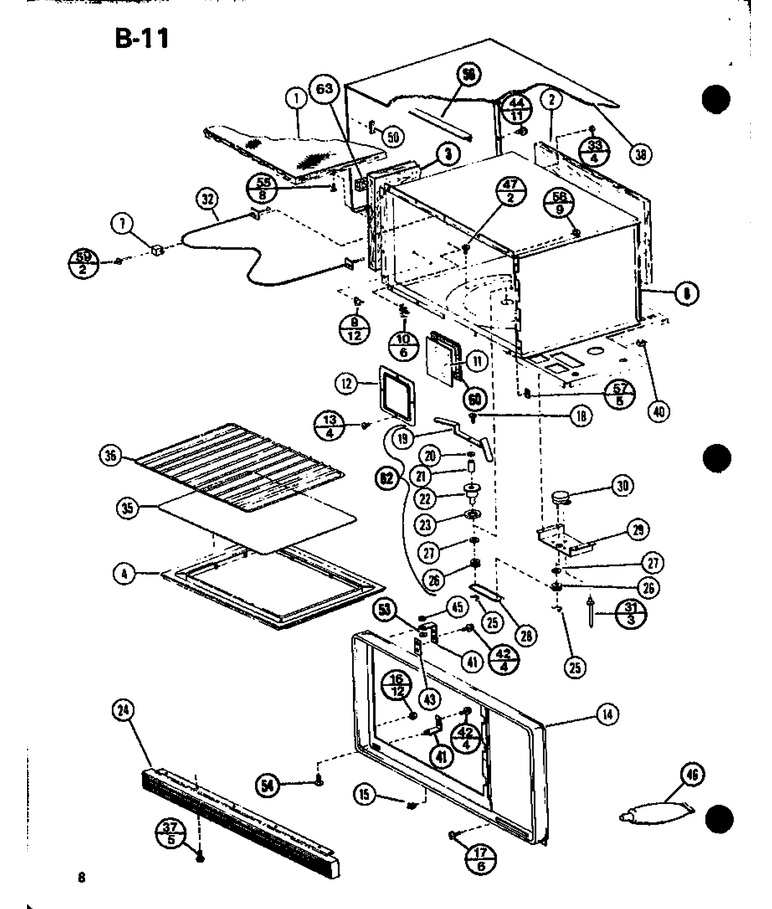

03 - Page 3

...
...
1
Insul-Oven Top WPL-B8307302
...
2
Insul-Back Oven WPL-B8307202
...
3
Insul-Lft Oven WPL-B8307102
...
4
Tray Support (Small) WPL-D7428101
...
7
Heater Svpts K WPL-B5797402
...
8
Oven Weld K WPL-D7432010
...
9
Support K WPL-B8359202
...
10
Support K WPL-B8359302
...
11
Glass,oven Light WPL-B8304301
...
12
Bracket Oven Light WPL-C8840302
...
13
Screw A K WPL-M0211516
...
14
Bezel WPL-C8837503
...
15
Clip Exhaust Duct WPL-A1018401
...
16
Nut, Self Thread WPL-M0283801
...
17
Screw, No.8-32 X 5/16 Pph (Blk) WPL-31750402
...
18
Screw A WPL-M0202515
...
19
Antenna A WPL-B8302701
...
20
Washer WPL-M0272503
...
21
Shaft-Antenna A WPL-B8357201
...
22
Antenna Dr Coupler A WPL-A1005502
...
23
Bearing A WPL-A1005403
...
24
Grille WPL-D7414401
...
25
Retainer Ring A WPL-A1021601
...
26
Clip, Waterline WPL-12454802
...
27
Washer WPL-M0270535
...
28
O Ring WPL-A1021701
...
29
Bracket WPL-B8310901
...
30
Motor WPL-B8308302
...
31
Rivet-Pop WPL-59002054
...
32
Heater Broil Element WPL-C8830502
...
33
Nut K WPL-M0282005
...
35
Oven Tray (Large) WPL-C8841202
...
36
Oven Rack K WPL-D7622101
...
37
Screw WPL-M0217514
...
38
Wrapper-Bent WPL-D7414501
...
40
Clip-Cable WPL-M0110505
...
41
Hinge WPL-B8300101
...
42
Screw WPL-WP489128
...
43
Shim WPL-B8314402
...
44
Screw WPL-WP59002061
...
45
Washer WPL-M0274046
...
46
Adhesive Melt Pint WPL-M0910003
...
47
Screw WPL-WP59002061
...
50
Gasket (Inch) WPL-A3030301
...
53
Washer WPL-M0274045
...
54
Screw WPL-M0258901
...
55
Screw Torx WPL-M0259318
...
56
Stiffner, Wrapper WPL-B8343901
...
57
Spring Fastener WPL-B8308801
...
58
Nut, Self Thread WPL-M0283801
...
59
Rivet WPL-WP210720
...
60
Insulator-Lt Brkt WPL-C8912501
...
62
Antenna Assembly WPL-B8324202
...
63
Insulation WPL-B8360102

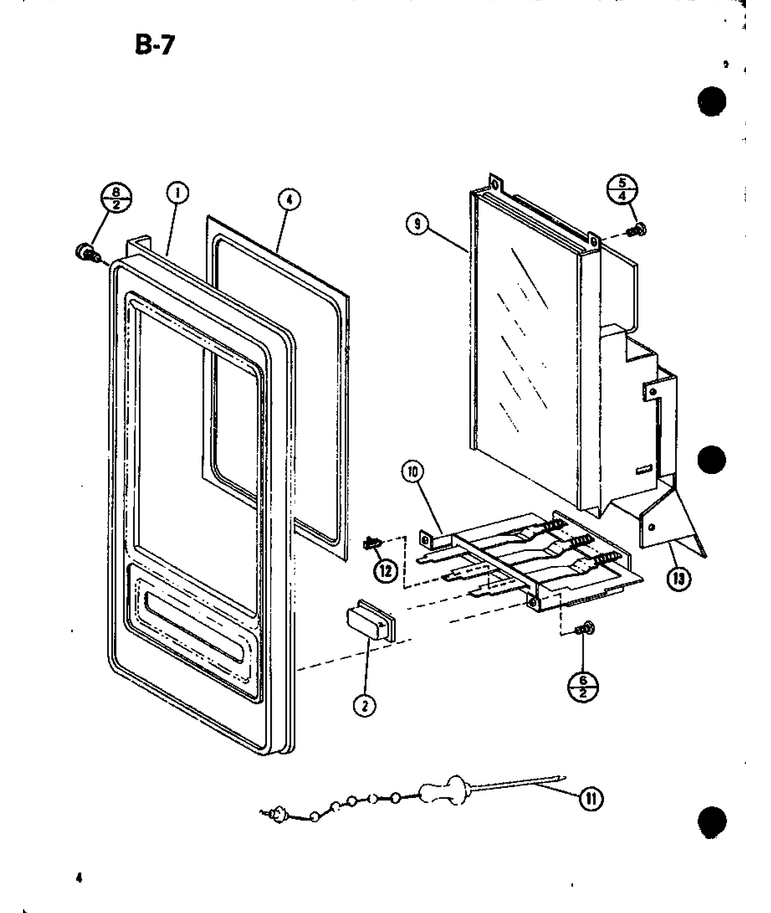

01 - Page 1

...
...
1
Escutcheon Control WPL-D7480802
...
2
Light Button WPL-C8869301
...
4
Gasket WPL-C8866301
...
5
Screw WPL-M0234114
...
6
Screw WPL-W11084238
...
8
Screw WPL-214597
...
9
Module Rmc WPL-R163043A
...
10
Switch Ssl K WPL-D7546302
...
11
Temp Probe WPL-C8821504
...
12
Spring WPL-A1039301

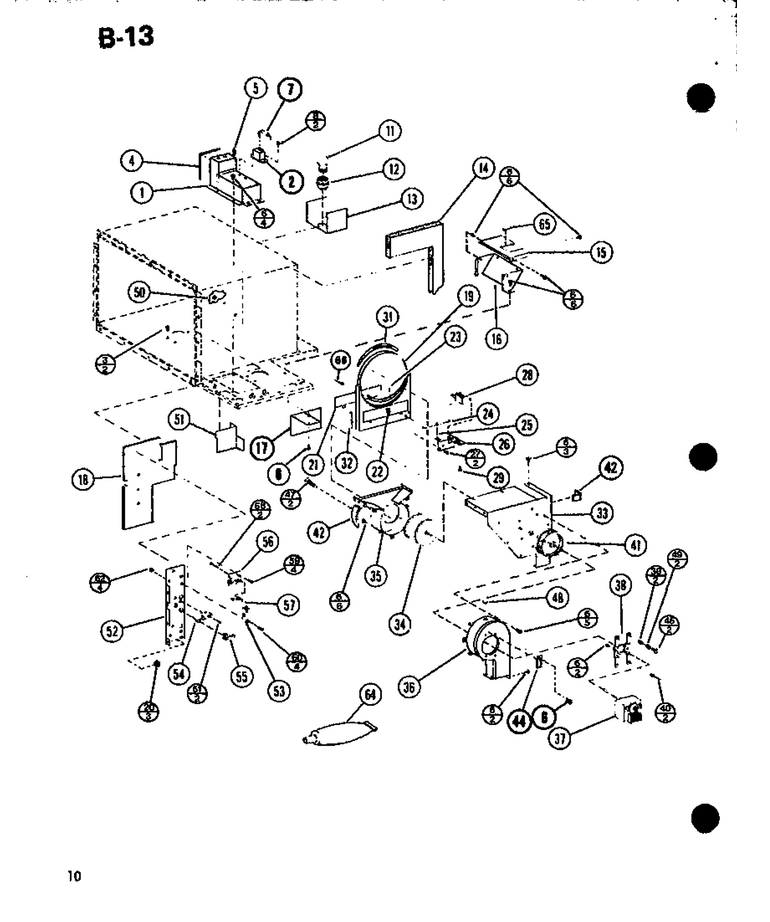

04 - Page 4

...
...
1
Exhust Duct WPL-C8825603
...
2
Relay K WPL-C8845503
...
3
Screw WPL-WP59002061
...
4
Gasket, U-Channel WPL-B8321904
...
5
Gasket WPL-A1018104
...
6
Screw WPL-WP489349
...
7
Cap & Resistor Assy WPL-B8329401
...
8
Screw WPL-M0213815
...
11
Light Bulb WPL-8009
...
12
Socket, Oven Light WPL-Y0316385
...
13
Shield Bulb WPL-A1021401
...
14
Insul-Rt Oven WPL-B8306902
...
15
Duct Cover WPL-C8825302
...
16
Duct, Bl Imput WPL-C8825201
...
17
Baffle, Transformer WPL-B8323501
...
18
Insul-Rt Oven WPL-B8307002
...
19
Air Deflector WPL-C8827403
...
20
Nut, Self Thread WPL-M0283801
...
21
Door-Oven Air WPL-B5796801
...
22
Bracket-Sol Arm WPL-B8305801
...
23
Pin WPL-M1200104
...
24
Solenoid Arm K WPL-B8305902
...
25
Roll Pin WPL-M1200101
...
26
Mtg Bracket WPL-C8870001
...
27
Screw WPL-M0213815
...
28
Rmc Solenoid Kit WPL-R0157446
...
29
Screw WPL-M0201414
...
31
Gasket, U-Channel WPL-B8321902
...
32
Gasket, U-Channel WPL-B8321903
...
33
Bracket-Scroll Mtg WPL-D7404701
...
34
Blower Wheel WPL-C3670805
...
35
Scroll Wld WPL-C8826801
...
36
Blower Scroll WPL-C8825404
...
37
Motor WPL-B5736104
...
38
Mtr Mnt WPL-B5795401
...
39
Clip, Waterline WPL-12454802
...
40
Pop Rivet WPL-A4539609
...
41
Blower Wheel WPL-C3670806
...
42
Insul-Blower Scroll WPL-B8307402
...
44
Clip, Cord WPL-M0104102
...
45
Screw WPL-M0227303
...
47
Screw WPL-WP3400094
...
48
Plug WPL-M0310005
...
49
Eyelet K WPL-A0381401
...
50
Nut K WPL-M0281405
...
51
Baffle WPL-B8323001
...
52
Bracket-Sw Mtg WPL-D7428201
...
53
Switch, Limit WPL-C8842003
...
54
Limit Switch WPL-B8306602
...
55
Door Guide,sleeve WPL-C8840402
...
56
Door Catch WPL-C8829605
...
57
Lever WPL-B8305701
...
58
Pin Bell-Crank WPL-A3182601
...
59
Screw WPL-M0234114
...
60
Screw WPL-M0227520
...
61
Screw K WPL-M0229005
...
62
Nut K WPL-M0282005
...
64
Sealer Rtv WPL-M0275563
...
65
Gasket (Inch) WPL-A3030301
...
66
Rivet-Pop WPL-59002054

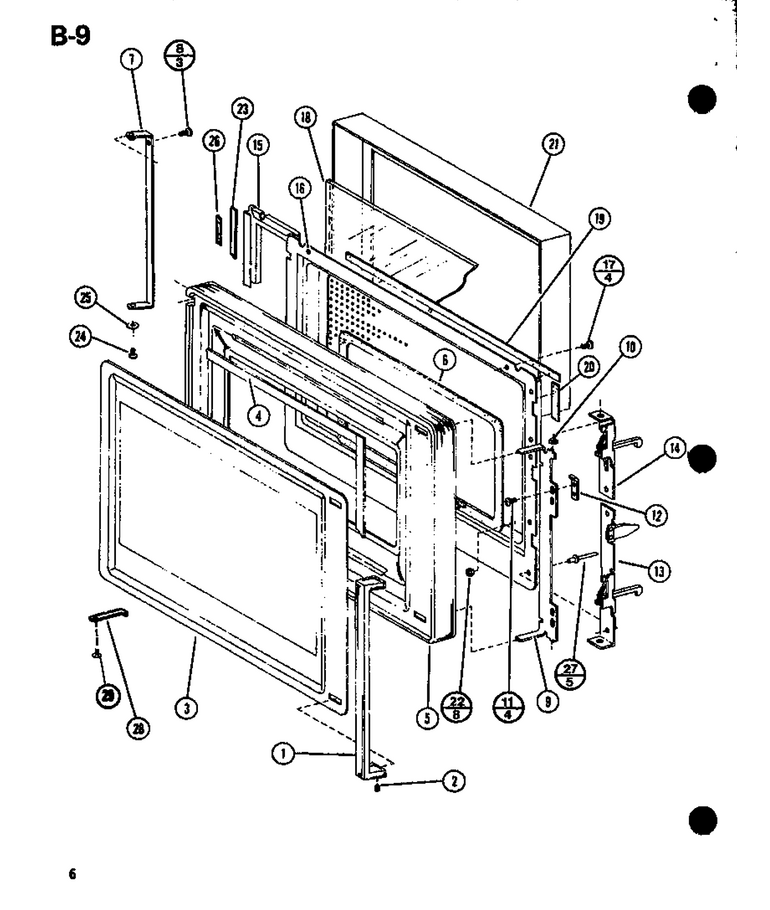

02 - Page 2

...
...
1
Handle WPL-C8830803
...
2
Screw WPL-WP8533976
...
4
Tape Roll (72 Yds/roll) WPL-M0275159
...
5
Door Casting WPL-D7412403
...
6
Gasket WPL-A1018101
...
7
Door Hinge WPL-C8836501
...
8
Screw WPL-WPW10068250
...
9
Actuator-Latch WPL-C8841001
...
10
Bushing WPL-B8306202
...
11
Screw A WPL-M0202515
...
12
Adjustor WPL-B8314502
...
13
Lwr Door Latch Assy WPL-R0183067
...
14
Upper Door Latch Assy WPL-R0183068
...
15
Gasket WPL-D7447702
...
16
Inner Door Assy WPL-C8840501
...
17
Screw WPL-M0259218
...
18
Window-Inner WPL-A1004901
...
19
Gasket WPL-A1032401
...
20
Gasket WPL-A1032402
...
21
Door-Inner WPL-D7410801
...
22
Nut WPL-A1021301
...
23
Tape Per Roll WPL-M0275163
...
24
Screw WPL-M0258901
...
25
Washer WPL-M0274045
...
26
Sealer Rtv WPL-M0275563
...
27
Rivet-Pop WPL-59002054
...
28
Arm-Door Stop WPL-B8307503
...
29
Screw-Shoulder WPL-M0220219
